4-65 — REAR LEAF SPRING (#4478) — 708 parça

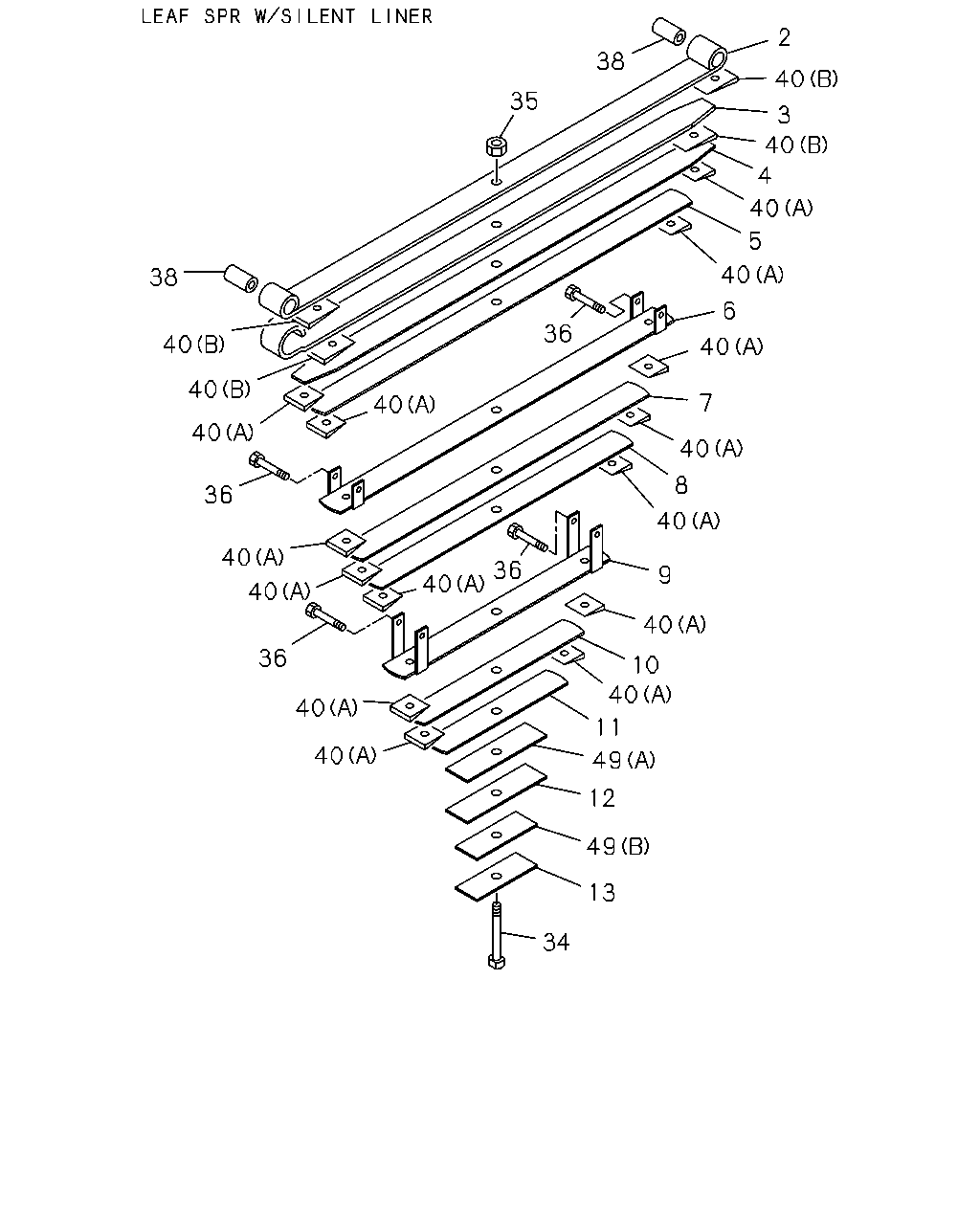

çizim 5129
2 38 40 35 3 40 4 40 5 40 38 6 36 40 40 40 7 40 40 40 8 36 40 40 36 9 40 40 40 36 10 40 40 11 40 49 12 49 13 34
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING; LEAF,NO 1,RR MAIN
9-LEAF ASM PART: B = 1-51310-483-0 		1-51311-272-1 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
10-LEAF ASM PART: A = 1-51310-466-1 		1-51311-466-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
11-LEAF ASM PART: C = 1-51310-662-0, H = 1-51410-184-0 		1-51311-662-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
12-LEAF ASM PART: D = 1-51310-690-0, G = 1-51410-183-0 		1-51311-690-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
12-LEAF ASM PART: E = 1-51310-726-0 		1-51311-726-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
12-LEAF ASM PART: F = 1-51410-107-0 		1-51411-107-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
12-LEAF ASM PART: I = 1-51410-185-0 		1-51411-185-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
12-LEAF ASM PART: J = 1-51410-193-0 		1-51411-193-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
5-LEAF ASM PART: K = 8-98096-766-1, L = 8-98202-919-0 		8-98099-132-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
9-LEAF ASM PART: B = 1-51310-483-0 		1-51312-272-1 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
10-LEAF ASM PART: A = 1-51310-466-1 		1-51312-466-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
11-LEAF ASM PART: C = 1-51310-662-0, H = 1-51410-184-0 		1-51312-662-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
12-LEAF ASM PART: D = 1-51310-690-0, G = 1-51410-183-0 		1-51312-690-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
12-LEAF ASM PART: E = 1-51310-726-0, I = 1-51410-185-0 		1-51312-726-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
12-LEAF ASM PART: F = 1-51410-107-0 		1-51412-107-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
12-LEAF ASM PART: J = 1-51410-193-0 		1-51412-193-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
5-LEAF ASM PART: K = 8-98096-766-1, L = 8-98202-919-0 		8-98099-133-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
10-LEAF ASM PART: A = 1-51310-466-1 		1-51313-466-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
9-LEAF ASM PART: B = 1-51310-483-0 		1-51313-483-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
11-LEAF ASM PART: C = 1-51310-662-0, H = 1-51410-184-0 		1-51313-662-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
12-LEAF ASM PART: D = 1-51310-690-0, G = 1-51410-183-0 		1-51313-690-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
12-LEAF ASM PART: E = 1-51310-726-0, I = 1-51410-185-0 		1-51313-726-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
12-LEAF ASM PART: F = 1-51410-107-0 		1-51413-107-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
12-LEAF ASM PART: J = 1-51410-193-0 		1-51413-193-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
5-LEAF ASM PART: K = 8-98096-766-1, L = 8-98202-919-0 		8-98099-134-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
10-LEAF ASM PART: A = 1-51310-466-1 		1-51314-466-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
9-LEAF ASM PART: B = 1-51310-483-0 		1-51314-483-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
11-LEAF ASM PART: C = 1-51310-662-0, H = 1-51410-184-0 		1-51314-662-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
12-LEAF ASM PART: D = 1-51310-690-0, G = 1-51410-183-0 		1-51314-690-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
12-LEAF ASM PART: E = 1-51310-726-0, I = 1-51410-185-0 		1-51314-726-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
12-LEAF ASM PART: F = 1-51410-107-0 		1-51414-107-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
12-LEAF ASM PART: J = 1-51410-193-0 		1-51414-193-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
5-LEAF ASM PART: K = 8-98096-766-1, L = 8-98202-919-0 		8-98099-135-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
10-LEAF ASM PART: A = 1-51310-466-1 		1-51315-466-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
9-LEAF ASM PART: B = 1-51310-483-0 		1-51315-483-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
11-LEAF ASM PART: C = 1-51310-662-0, H = 1-51410-184-0 		1-51315-662-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
12-LEAF ASM PART: D = 1-51310-690-0, G = 1-51410-183-0 		1-51315-690-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
12-LEAF ASM PART: E = 1-51310-726-0, I = 1-51410-185-0 		1-51315-726-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
12-LEAF ASM PART: F = 1-51410-107-0 		1-51415-107-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
12-LEAF ASM PART: J = 1-51410-193-0 		1-51415-193-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
5-LEAF ASM PART: K = 8-98096-766-1, L = 8-98202-919-0 		8-98099-136-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
10-LEAF ASM PART: A = 1-51310-466-1 		1-51316-466-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
9-LEAF ASM PART: B = 1-51310-483-0 		1-51316-483-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
11-LEAF ASM PART: C = 1-51310-662-0, H = 1-51410-184-0 		1-51316-662-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
12-LEAF ASM PART: D = 1-51310-690-0, G = 1-51410-183-0 		1-51316-690-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
12-LEAF ASM PART: E = 1-51310-726-0, I = 1-51410-185-0 		1-51316-726-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
12-LEAF ASM PART: F = 1-51410-107-0 		1-51416-107-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
12-LEAF ASM PART: J = 1-51410-193-0 		1-51416-193-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
10-LEAF ASM PART: A = 1-51310-466-1 		1-51317-466-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
9-LEAF ASM PART: B = 1-51310-483-0 		1-51317-483-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
11-LEAF ASM PART: C = 1-51310-662-0, H = 1-51410-184-0 		1-51317-662-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
12-LEAF ASM PART: D = 1-51310-690-0, G = 1-51410-183-0 		1-51317-690-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
12-LEAF ASM PART: E = 1-51310-726-0, I = 1-51410-185-0 		1-51317-726-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
12-LEAF ASM PART: F = 1-51410-107-0 		1-51417-107-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
12-LEAF ASM PART: J = 1-51410-193-0 		1-51417-193-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
10-LEAF ASM PART: A = 1-51310-466-1 		1-51318-466-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
9-LEAF ASM PART: B = 1-51310-483-0 		1-51318-483-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
11-LEAF ASM PART: C = 1-51310-662-0, H = 1-51410-184-0 		1-51318-662-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
12-LEAF ASM PART: D = 1-51310-690-0, G = 1-51410-183-0 		1-51318-690-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
12-LEAF ASM PART: E = 1-51310-726-0, I = 1-51410-185-0 		1-51318-726-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
12-LEAF ASM PART: F = 1-51410-107-0 		1-51418-107-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
12-LEAF ASM PART: J = 1-51410-193-0 		1-51418-193-0 01 1 -
10 SPRING; LEAF,NO 9,RR MAIN
10-LEAF ASM PART: A = 1-51310-466-1 		1-51319-466-0 01 1 -
10 SPRING; LEAF,NO 9,RR MAIN
9-LEAF ASM PART: B = 1-51310-483-0 		1-51319-483-0 01 1 -
10 SPRING; LEAF,NO 9,RR MAIN
11-LEAF ASM PART: C = 1-51310-662-0, H = 1-51410-184-0 		1-51319-662-0 01 1 -
10 SPRING; LEAF,NO 9,RR MAIN
12-LEAF ASM PART: D = 1-51310-690-0, G = 1-51410-183-0 		1-51319-690-0 01 1 -
10 SPRING; LEAF,NO 9,RR MAIN
12-LEAF ASM PART: E = 1-51310-726-0, I = 1-51410-185-0 		1-51319-726-0 01 1 -
10 SPRING; LEAF,NO 9,RR MAIN
12-LEAF ASM PART: F = 1-51410-107-0 		1-51419-107-0 01 1 -
10 SPRING; LEAF,NO 9,RR MAIN
12-LEAF ASM PART: J = 1-51410-193-0 		1-51419-193-0 01 1 -
11 SPRING; LEAF,NO 10,RR MAIN
12-LEAF ASM PART: E = 1-51310-726-0 		1-51320-726-0 01 1 -
11 SPRING; LEAF,NO 10,RR MAIN
10-LEAF ASM PART: A = 1-51310-466-1 		1-51321-466-0 01 1 -
11 SPRING; LEAF,NO 10,RR MAIN
11-LEAF ASM PART: C = 1-51310-662-0, H = 1-51410-184-0 		1-51321-662-0 01 1 -
11 SPRING; LEAF,NO 10,RR MAIN
12-LEAF ASM PART: D = 1-51310-690-0, G = 1-51410-183-0 		1-51321-690-0 01 1 -
11 SPRING; LEAF,NO 10,RR MAIN
12-LEAF ASM PART: I = 1-51410-185-0 		1-51321-726-0 01 1 -
11 SPRING; LEAF,NO 10,RR MAIN
12-LEAF ASM PART: J = 1-51410-193-0 		1-51420-193-0 01 1 -
11 SPRING; LEAF,NO 10,RR MAIN
12-LEAF ASM PART: F = 1-51410-107-0 		1-51421-107-0 01 1 -
12 SPRING; LEAF,NO 11,RR MAIN
12-LEAF ASM PART: E = 1-51310-726-0 		1-51321-726-0 01 1 -
12 SPRING; LEAF,NO 11,RR MAIN
11-LEAF ASM PART: C = 1-51310-662-0, H = 1-51410-184-0 		1-51322-662-0 01 1 -
12 SPRING; LEAF,NO 11,RR MAIN
12-LEAF ASM PART: D = 1-51310-690-0, G = 1-51410-183-0 		1-51322-690-0 01 1 -
12 SPRING; LEAF,NO 11,RR MAIN
12-LEAF ASM PART: I = 1-51410-185-0 		1-51322-726-0 01 1 -
12 SPRING; LEAF,NO 11,RR MAIN
12-LEAF ASM PART: J = 1-51410-193-0 		1-51421-193-0 01 1 -
12 SPRING; LEAF,NO 11,RR MAIN
12-LEAF ASM PART: F = 1-51410-107-0 		1-51422-107-0 01 1 -
13 SPRING; LEAF,NO 12,RR MAIN
12-LEAF ASM PART: E = 1-51310-726-0 		1-51322-726-0 01 1 -
13 SPRING; LEAF,NO 12,RR MAIN
12-LEAF ASM PART: D = 1-51310-690-0, G = 1-51410-183-0 		1-51323-690-0 01 1 -
13 SPRING; LEAF,NO 12,RR MAIN
12-LEAF ASM PART: I = 1-51410-185-0 		1-51323-726-0 01 1 -
13 SPRING; LEAF,NO 12,RR MAIN
12-LEAF ASM PART: J = 1-51410-193-0 		1-51422-193-0 01 1 -
13 SPRING; LEAF,NO 12,RR MAIN
12-LEAF ASM PART: F = 1-51410-107-0 		1-51423-107-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=190 ASM PART: E = 1-51310-726-0, I = 1-51410-185-0 		1-51156-229-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=180 ASM PART: J = 1-51410-193-0 		1-51156-394-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=180 ASM PART: F = 1-51410-107-0 		1-51356-198-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=175 ASM PART: C = 1-51310-662-0, H = 1-51410-184-0 		1-51356-205-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=180 ASM PART: D = 1-51310-690-0, G = 1-51410-183-0 		1-51356-210-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=150 ASM PART: K = 8-98096-766-1, L = 8-98202-919-0 		8-98098-336-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=145 ASM PART: A = 1-51310-466-1 		9-51356-202-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=140 ASM PART: B = 1-51310-483-0 		9-51356-603-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
M12 ASM PART: A = 1-51310-466-1, B = 1-51310-483-0, C = 1-51310-662-0, D = 1-51310-690-0, G = 1-51410-183-0, H = 1-51410-184-0 		9-99110-112-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
M12 ASM PART: E = 1-51310-726-0, F = 1-51410-107-0, I = 1-51410-185-0, J = 1-51410-193-0, K = 8-98096-766-1, L = 8-98202-919-0 		9-99110-512-0 01 1 -
36 BOLT; CLIP,LEAF SPR,RR
M10X97 ASM PART: E = 1-51310-726-0, I = 1-51410-185-0 		1-09000-294-0 04 1 -
36 BOLT; CLIP,LEAF SPR,RR
M10X99 ASM PART: C = 1-51310-662-0, D = 1-51310-690-0, G = 1-51410-183-0, H = 1-51410-184-0 		1-09000-328-0 04 1 -
36 BOLT; CLIP,LEAF SPR,RR
M10X117 ASM PART: J = 1-51410-193-0 		1-09000-334-0 04 1 -
36 BOLT; CLIP,LEAF SPR,RR
ASM PART: F = 1-51410-107-0 		1-09000-433-0 04 1 -
36 BOLT; CLIP,LEAF SPR,RR
M10X103 ASM PART: K = 8-98096-766-1, L = 8-98202-919-0 		1-09000-536-0 02 1 -
36 BOLT; CLIP,LEAF SPR,RR
ASM PART: A = 1-51310-466-1, B = 1-51310-483-0 		9-09801-233-0 03 1 -
38 BUSHING; LEAF SPR,RR
OD=38 ASM PART: C = 1-51310-662-0, D = 1-51310-690-0, E = 1-51310-726-0, K = 8-98096-766-1, L = 8-98202-919-0 		1-51351-009-0 02 1 -
38 BUSHING; LEAF SPR,RR
OD=38 ASM PART: G = 1-51410-183-0, H = 1-51410-184-0, I = 1-51410-185-0 		1-51351-030-0 02 1 -
38 BUSHING; LEAF SPR,RR
OD=38 ASM PART: F = 1-51410-107-0, J = 1-51410-193-0 		1-51351-031-0 02 1 -
38 BUSHING; LEAF SPR,RR
ASM PART: A = 1-51310-466-1, B = 1-51310-483-0 		9-51351-018-0 02 1 -
40 LINER; LEAF SPR,RR
(A) ASM PART: E = 1-51310-726-0, I = 1-51410-185-0 		1-51159-022-0 14 1 -
40 LINER; LEAF SPR,RR
(B) ASM PART: E = 1-51310-726-0, I = 1-51410-185-0 		1-51159-023-0 04 1 -
40 LINER; LEAF SPR,RR
(B) ASM PART: K = 8-98096-766-1 		1-51159-023-0 08 1 -
40 LINER; LEAF SPR,RR
(A) ASM PART: J = 1-51410-193-0 		1-51159-024-0 14 1 -
40 LINER; LEAF SPR,RR
(B) ASM PART: J = 1-51410-193-0 		1-51159-029-0 04 1 -
40 LINER; LEAF SPR,RR
ASM PART: L = 8-98202-919-0 		8-98202-886-1 08 1 -
49 SPRING; LEAF,INTER,RR SPR
(A) ASM PART: E = 1-51310-726-0 		1-51159-043-0 01 1 -
49 SPRING; LEAF,INTER,RR SPR
(A) ASM PART: I = 1-51410-185-0 		1-51159-043-0 04 1 -
49 SPRING; LEAF,INTER,RR SPR
(B) ASM PART: E = 1-51310-726-0 		1-51159-044-0 01 1 -
49 SPRING; LEAF,INTER,RR SPR
(B) ASM PART: I = 1-51410-185-0 		1-51159-044-0 04 1 -
49 SPRING; LEAF,INTER,RR SPR
(A) ASM PART: J = 1-51410-193-0 		1-51159-059-0 01 1 -
49 SPRING; LEAF,INTER,RR SPR
(B) ASM PART: J = 1-51410-193-0 		1-51159-060-0 01 1 -

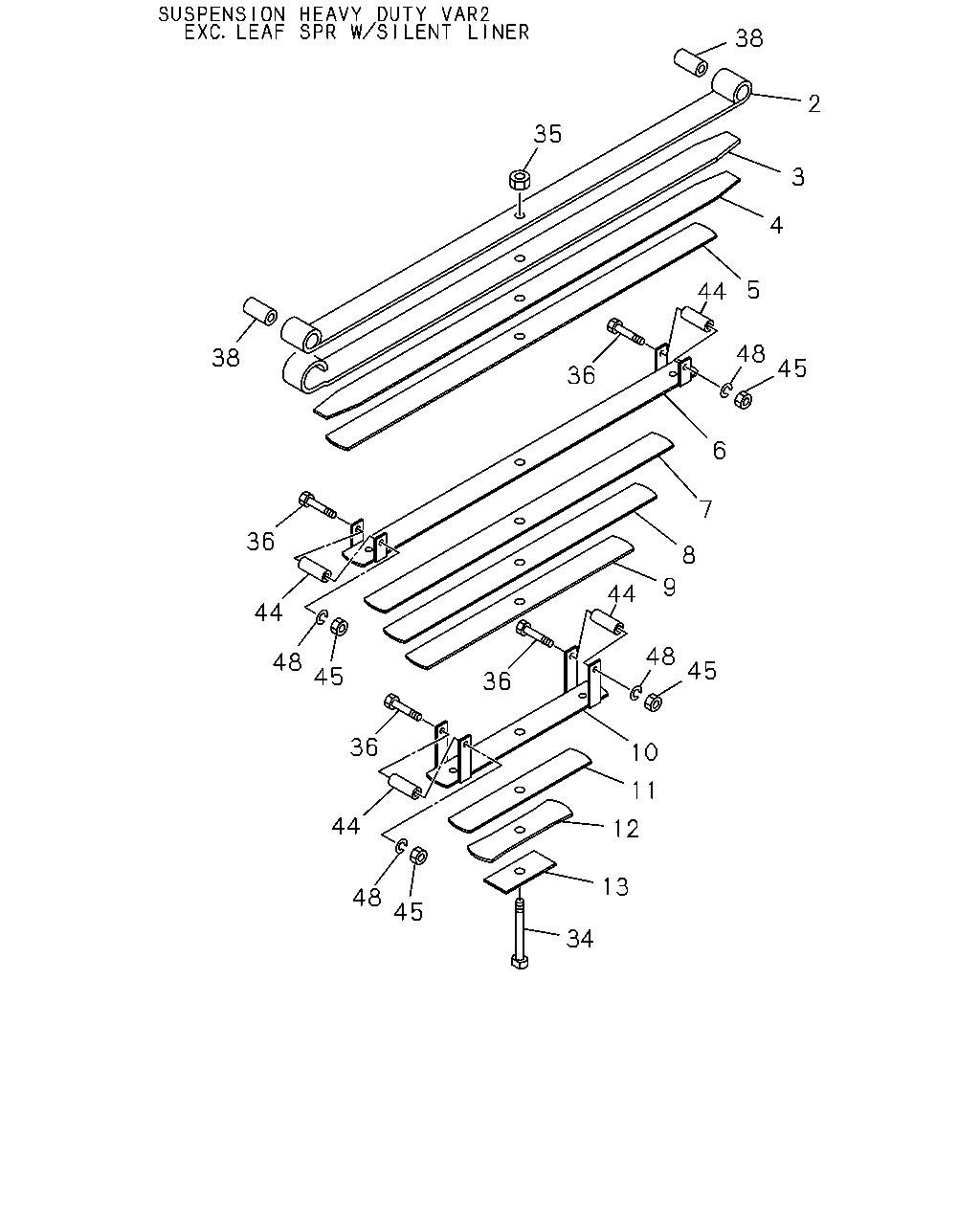

çizim 36893
38 2 35 3 4 5 44 48 38 45 36 6 7 36 8 9 44 44 48 48 45 45 36 36 10 11 44 12 13 48 45 34
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING; LEAF,NO 1,RR MAIN
9-LEAF ASM PART: B = 1-51310-483-0 		1-51311-272-1 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
10-LEAF ASM PART: A = 1-51310-466-1 		1-51311-466-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
11-LEAF ASM PART: C = 1-51310-662-0, H = 1-51410-184-0 		1-51311-662-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
12-LEAF ASM PART: D = 1-51310-690-0, G = 1-51410-183-0 		1-51311-690-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
12-LEAF ASM PART: E = 1-51310-726-0 		1-51311-726-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
12-LEAF ASM PART: F = 1-51410-107-0 		1-51411-107-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
12-LEAF ASM PART: I = 1-51410-185-0 		1-51411-185-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
12-LEAF ASM PART: J = 1-51410-193-0 		1-51411-193-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
5-LEAF ASM PART: K = 8-98096-766-1, L = 8-98202-919-0 		8-98099-132-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
9-LEAF ASM PART: B = 1-51310-483-0 		1-51312-272-1 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
10-LEAF ASM PART: A = 1-51310-466-1 		1-51312-466-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
11-LEAF ASM PART: C = 1-51310-662-0, H = 1-51410-184-0 		1-51312-662-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
12-LEAF ASM PART: D = 1-51310-690-0, G = 1-51410-183-0 		1-51312-690-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
12-LEAF ASM PART: E = 1-51310-726-0, I = 1-51410-185-0 		1-51312-726-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
12-LEAF ASM PART: F = 1-51410-107-0 		1-51412-107-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
12-LEAF ASM PART: J = 1-51410-193-0 		1-51412-193-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
5-LEAF ASM PART: K = 8-98096-766-1, L = 8-98202-919-0 		8-98099-133-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
10-LEAF ASM PART: A = 1-51310-466-1 		1-51313-466-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
9-LEAF ASM PART: B = 1-51310-483-0 		1-51313-483-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
11-LEAF ASM PART: C = 1-51310-662-0, H = 1-51410-184-0 		1-51313-662-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
12-LEAF ASM PART: D = 1-51310-690-0, G = 1-51410-183-0 		1-51313-690-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
12-LEAF ASM PART: E = 1-51310-726-0, I = 1-51410-185-0 		1-51313-726-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
12-LEAF ASM PART: F = 1-51410-107-0 		1-51413-107-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
12-LEAF ASM PART: J = 1-51410-193-0 		1-51413-193-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
5-LEAF ASM PART: K = 8-98096-766-1, L = 8-98202-919-0 		8-98099-134-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
10-LEAF ASM PART: A = 1-51310-466-1 		1-51314-466-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
9-LEAF ASM PART: B = 1-51310-483-0 		1-51314-483-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
11-LEAF ASM PART: C = 1-51310-662-0, H = 1-51410-184-0 		1-51314-662-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
12-LEAF ASM PART: D = 1-51310-690-0, G = 1-51410-183-0 		1-51314-690-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
12-LEAF ASM PART: E = 1-51310-726-0, I = 1-51410-185-0 		1-51314-726-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
12-LEAF ASM PART: F = 1-51410-107-0 		1-51414-107-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
12-LEAF ASM PART: J = 1-51410-193-0 		1-51414-193-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
5-LEAF ASM PART: K = 8-98096-766-1, L = 8-98202-919-0 		8-98099-135-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
10-LEAF ASM PART: A = 1-51310-466-1 		1-51315-466-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
9-LEAF ASM PART: B = 1-51310-483-0 		1-51315-483-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
11-LEAF ASM PART: C = 1-51310-662-0, H = 1-51410-184-0 		1-51315-662-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
12-LEAF ASM PART: D = 1-51310-690-0, G = 1-51410-183-0 		1-51315-690-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
12-LEAF ASM PART: E = 1-51310-726-0, I = 1-51410-185-0 		1-51315-726-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
12-LEAF ASM PART: F = 1-51410-107-0 		1-51415-107-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
12-LEAF ASM PART: J = 1-51410-193-0 		1-51415-193-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
5-LEAF ASM PART: K = 8-98096-766-1, L = 8-98202-919-0 		8-98099-136-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
10-LEAF ASM PART: A = 1-51310-466-1 		1-51316-466-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
9-LEAF ASM PART: B = 1-51310-483-0 		1-51316-483-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
11-LEAF ASM PART: C = 1-51310-662-0, H = 1-51410-184-0 		1-51316-662-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
12-LEAF ASM PART: D = 1-51310-690-0, G = 1-51410-183-0 		1-51316-690-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
12-LEAF ASM PART: E = 1-51310-726-0, I = 1-51410-185-0 		1-51316-726-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
12-LEAF ASM PART: F = 1-51410-107-0 		1-51416-107-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
12-LEAF ASM PART: J = 1-51410-193-0 		1-51416-193-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
10-LEAF ASM PART: A = 1-51310-466-1 		1-51317-466-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
9-LEAF ASM PART: B = 1-51310-483-0 		1-51317-483-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
11-LEAF ASM PART: C = 1-51310-662-0, H = 1-51410-184-0 		1-51317-662-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
12-LEAF ASM PART: D = 1-51310-690-0, G = 1-51410-183-0 		1-51317-690-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
12-LEAF ASM PART: E = 1-51310-726-0, I = 1-51410-185-0 		1-51317-726-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
12-LEAF ASM PART: F = 1-51410-107-0 		1-51417-107-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
12-LEAF ASM PART: J = 1-51410-193-0 		1-51417-193-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
10-LEAF ASM PART: A = 1-51310-466-1 		1-51318-466-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
9-LEAF ASM PART: B = 1-51310-483-0 		1-51318-483-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
11-LEAF ASM PART: C = 1-51310-662-0, H = 1-51410-184-0 		1-51318-662-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
12-LEAF ASM PART: D = 1-51310-690-0, G = 1-51410-183-0 		1-51318-690-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
12-LEAF ASM PART: E = 1-51310-726-0, I = 1-51410-185-0 		1-51318-726-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
12-LEAF ASM PART: F = 1-51410-107-0 		1-51418-107-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
12-LEAF ASM PART: J = 1-51410-193-0 		1-51418-193-0 01 1 -
10 SPRING; LEAF,NO 9,RR MAIN
10-LEAF ASM PART: A = 1-51310-466-1 		1-51319-466-0 01 1 -
10 SPRING; LEAF,NO 9,RR MAIN
9-LEAF ASM PART: B = 1-51310-483-0 		1-51319-483-0 01 1 -
10 SPRING; LEAF,NO 9,RR MAIN
11-LEAF ASM PART: C = 1-51310-662-0, H = 1-51410-184-0 		1-51319-662-0 01 1 -
10 SPRING; LEAF,NO 9,RR MAIN
12-LEAF ASM PART: D = 1-51310-690-0, G = 1-51410-183-0 		1-51319-690-0 01 1 -
10 SPRING; LEAF,NO 9,RR MAIN
12-LEAF ASM PART: E = 1-51310-726-0, I = 1-51410-185-0 		1-51319-726-0 01 1 -
10 SPRING; LEAF,NO 9,RR MAIN
12-LEAF ASM PART: F = 1-51410-107-0 		1-51419-107-0 01 1 -
10 SPRING; LEAF,NO 9,RR MAIN
12-LEAF ASM PART: J = 1-51410-193-0 		1-51419-193-0 01 1 -
11 SPRING; LEAF,NO 10,RR MAIN
12-LEAF ASM PART: E = 1-51310-726-0 		1-51320-726-0 01 1 -
11 SPRING; LEAF,NO 10,RR MAIN
10-LEAF ASM PART: A = 1-51310-466-1 		1-51321-466-0 01 1 -
11 SPRING; LEAF,NO 10,RR MAIN
11-LEAF ASM PART: C = 1-51310-662-0, H = 1-51410-184-0 		1-51321-662-0 01 1 -
11 SPRING; LEAF,NO 10,RR MAIN
12-LEAF ASM PART: D = 1-51310-690-0, G = 1-51410-183-0 		1-51321-690-0 01 1 -
11 SPRING; LEAF,NO 10,RR MAIN
12-LEAF ASM PART: I = 1-51410-185-0 		1-51321-726-0 01 1 -
11 SPRING; LEAF,NO 10,RR MAIN
12-LEAF ASM PART: J = 1-51410-193-0 		1-51420-193-0 01 1 -
11 SPRING; LEAF,NO 10,RR MAIN
12-LEAF ASM PART: F = 1-51410-107-0 		1-51421-107-0 01 1 -
12 SPRING; LEAF,NO 11,RR MAIN
12-LEAF ASM PART: E = 1-51310-726-0 		1-51321-726-0 01 1 -
12 SPRING; LEAF,NO 11,RR MAIN
11-LEAF ASM PART: C = 1-51310-662-0, H = 1-51410-184-0 		1-51322-662-0 01 1 -
12 SPRING; LEAF,NO 11,RR MAIN
12-LEAF ASM PART: D = 1-51310-690-0, G = 1-51410-183-0 		1-51322-690-0 01 1 -
12 SPRING; LEAF,NO 11,RR MAIN
12-LEAF ASM PART: I = 1-51410-185-0 		1-51322-726-0 01 1 -
12 SPRING; LEAF,NO 11,RR MAIN
12-LEAF ASM PART: J = 1-51410-193-0 		1-51421-193-0 01 1 -
12 SPRING; LEAF,NO 11,RR MAIN
12-LEAF ASM PART: F = 1-51410-107-0 		1-51422-107-0 01 1 -
13 SPRING; LEAF,NO 12,RR MAIN
12-LEAF ASM PART: E = 1-51310-726-0 		1-51322-726-0 01 1 -
13 SPRING; LEAF,NO 12,RR MAIN
12-LEAF ASM PART: D = 1-51310-690-0, G = 1-51410-183-0 		1-51323-690-0 01 1 -
13 SPRING; LEAF,NO 12,RR MAIN
12-LEAF ASM PART: I = 1-51410-185-0 		1-51323-726-0 01 1 -
13 SPRING; LEAF,NO 12,RR MAIN
12-LEAF ASM PART: J = 1-51410-193-0 		1-51422-193-0 01 1 -
13 SPRING; LEAF,NO 12,RR MAIN
12-LEAF ASM PART: F = 1-51410-107-0 		1-51423-107-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=190 ASM PART: E = 1-51310-726-0, I = 1-51410-185-0 		1-51156-229-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=180 ASM PART: J = 1-51410-193-0 		1-51156-394-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=180 ASM PART: F = 1-51410-107-0 		1-51356-198-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=175 ASM PART: C = 1-51310-662-0, H = 1-51410-184-0 		1-51356-205-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=180 ASM PART: D = 1-51310-690-0, G = 1-51410-183-0 		1-51356-210-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=150 ASM PART: K = 8-98096-766-1, L = 8-98202-919-0 		8-98098-336-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=145 ASM PART: A = 1-51310-466-1 		9-51356-202-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=140 ASM PART: B = 1-51310-483-0 		9-51356-603-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
M12 ASM PART: A = 1-51310-466-1, B = 1-51310-483-0, C = 1-51310-662-0, D = 1-51310-690-0, G = 1-51410-183-0, H = 1-51410-184-0 		9-99110-112-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
M12 ASM PART: E = 1-51310-726-0, F = 1-51410-107-0, I = 1-51410-185-0, J = 1-51410-193-0, K = 8-98096-766-1, L = 8-98202-919-0 		9-99110-512-0 01 1 -
36 BOLT; CLIP,LEAF SPR,RR
M10X97 ASM PART: E = 1-51310-726-0, I = 1-51410-185-0 		1-09000-294-0 04 1 -
36 BOLT; CLIP,LEAF SPR,RR
M10X99 ASM PART: C = 1-51310-662-0, D = 1-51310-690-0, G = 1-51410-183-0, H = 1-51410-184-0 		1-09000-328-0 04 1 -
36 BOLT; CLIP,LEAF SPR,RR
M10X117 ASM PART: J = 1-51410-193-0 		1-09000-334-0 04 1 -
36 BOLT; CLIP,LEAF SPR,RR
ASM PART: F = 1-51410-107-0 		1-09000-433-0 04 1 -
36 BOLT; CLIP,LEAF SPR,RR
M10X103 ASM PART: K = 8-98096-766-1, L = 8-98202-919-0 		1-09000-536-0 02 1 -
36 BOLT; CLIP,LEAF SPR,RR
ASM PART: A = 1-51310-466-1, B = 1-51310-483-0 		9-09801-233-0 03 1 -
38 BUSHING; LEAF SPR,RR
OD=38 ASM PART: C = 1-51310-662-0, D = 1-51310-690-0, E = 1-51310-726-0, K = 8-98096-766-1, L = 8-98202-919-0 		1-51351-009-0 02 1 -
38 BUSHING; LEAF SPR,RR
OD=38 ASM PART: G = 1-51410-183-0, H = 1-51410-184-0, I = 1-51410-185-0 		1-51351-030-0 02 1 -
38 BUSHING; LEAF SPR,RR
OD=38 ASM PART: F = 1-51410-107-0, J = 1-51410-193-0 		1-51351-031-0 02 1 -
38 BUSHING; LEAF SPR,RR
ASM PART: A = 1-51310-466-1, B = 1-51310-483-0 		9-51351-018-0 02 1 -
44 PIPE; CLIP,LEAF SPR,RR MAIN
ASM PART: F = 1-51410-107-0 		1-51353-011-0 04 1 -
44 PIPE; CLIP,LEAF SPR,RR MAIN
ASM PART: A = 1-51310-466-1, B = 1-51310-483-0 		9-51153-008-0 03 1 -
45 NUT; CLIP,LEAF SPR,RR MAIN
M8 ASM PART: A = 1-51310-466-1, B = 1-51310-483-0 		9-09110-008-0 03 1 -
45 NUT; CLIP,LEAF SPR,RR MAIN
M10 ASM PART: F = 1-51410-107-0 		9-09110-010-0 04 1 -
48 WASHER; CLIP,LEAF SPR
ASM PART: A = 1-51310-466-1, B = 1-51310-483-0 		9-09150-008-0 03 1 -
48 WASHER; CLIP,LEAF SPR
ID=10.2 ASM PART: F = 1-51410-107-0 		9-09150-510-0 04 1 -

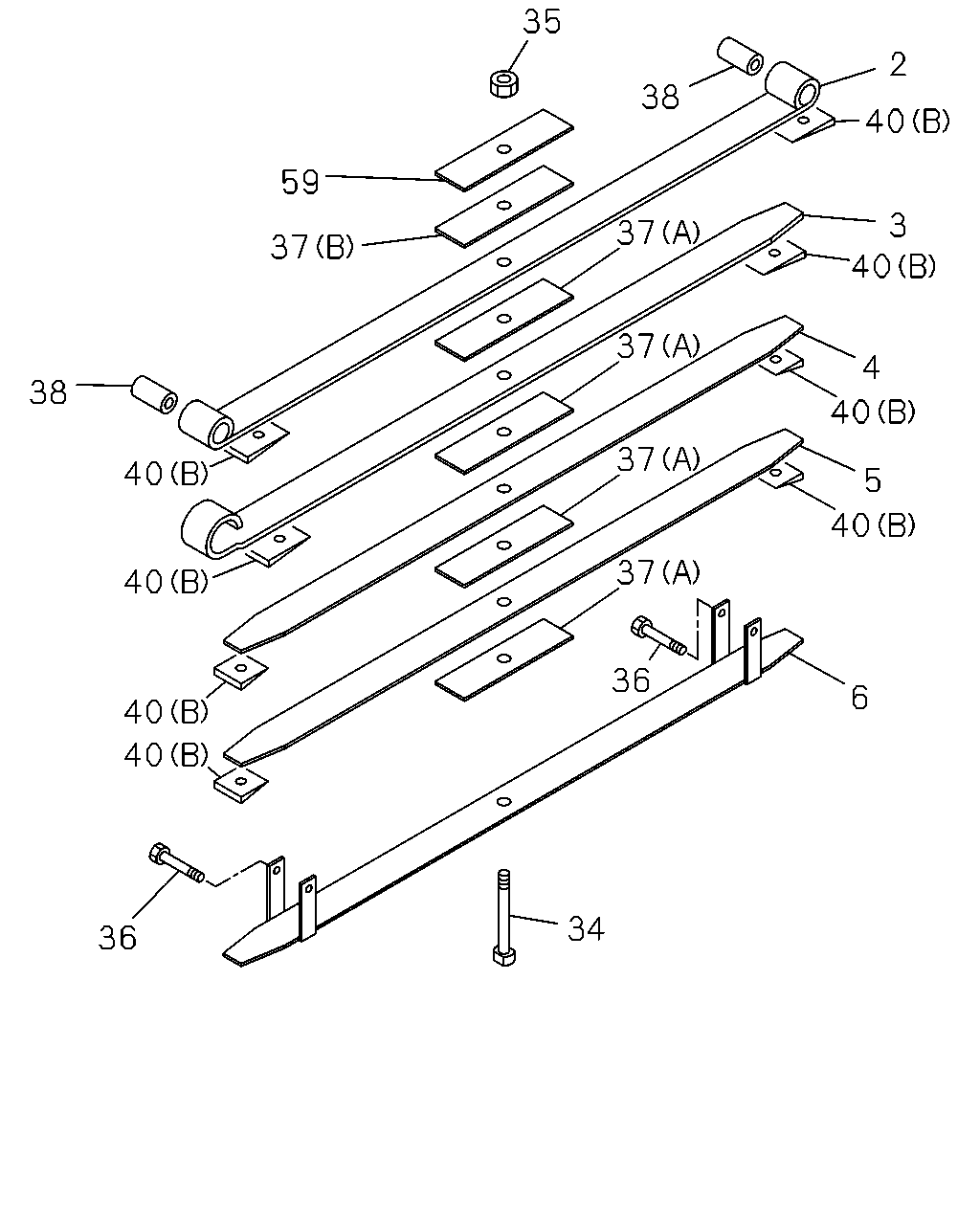

çizim 36911
35 2 38 40 59 3 37 37 40 37 4 38 40 37 40 5 40 37 40 36 6 40 40 34 36
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING; LEAF,NO 1,RR MAIN
9-LEAF ASM PART: B = 1-51310-483-0 		1-51311-272-1 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
10-LEAF ASM PART: A = 1-51310-466-1 		1-51311-466-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
11-LEAF ASM PART: C = 1-51310-662-0, H = 1-51410-184-0 		1-51311-662-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
12-LEAF ASM PART: D = 1-51310-690-0, G = 1-51410-183-0 		1-51311-690-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
12-LEAF ASM PART: E = 1-51310-726-0 		1-51311-726-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
12-LEAF ASM PART: F = 1-51410-107-0 		1-51411-107-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
12-LEAF ASM PART: I = 1-51410-185-0 		1-51411-185-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
12-LEAF ASM PART: J = 1-51410-193-0 		1-51411-193-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
5-LEAF ASM PART: K = 8-98096-766-1, L = 8-98202-919-0 		8-98099-132-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
9-LEAF ASM PART: B = 1-51310-483-0 		1-51312-272-1 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
10-LEAF ASM PART: A = 1-51310-466-1 		1-51312-466-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
11-LEAF ASM PART: C = 1-51310-662-0, H = 1-51410-184-0 		1-51312-662-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
12-LEAF ASM PART: D = 1-51310-690-0, G = 1-51410-183-0 		1-51312-690-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
12-LEAF ASM PART: E = 1-51310-726-0, I = 1-51410-185-0 		1-51312-726-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
12-LEAF ASM PART: F = 1-51410-107-0 		1-51412-107-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
12-LEAF ASM PART: J = 1-51410-193-0 		1-51412-193-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
5-LEAF ASM PART: K = 8-98096-766-1, L = 8-98202-919-0 		8-98099-133-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
10-LEAF ASM PART: A = 1-51310-466-1 		1-51313-466-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
9-LEAF ASM PART: B = 1-51310-483-0 		1-51313-483-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
11-LEAF ASM PART: C = 1-51310-662-0, H = 1-51410-184-0 		1-51313-662-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
12-LEAF ASM PART: D = 1-51310-690-0, G = 1-51410-183-0 		1-51313-690-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
12-LEAF ASM PART: E = 1-51310-726-0, I = 1-51410-185-0 		1-51313-726-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
12-LEAF ASM PART: F = 1-51410-107-0 		1-51413-107-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
12-LEAF ASM PART: J = 1-51410-193-0 		1-51413-193-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
5-LEAF ASM PART: K = 8-98096-766-1, L = 8-98202-919-0 		8-98099-134-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
10-LEAF ASM PART: A = 1-51310-466-1 		1-51314-466-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
9-LEAF ASM PART: B = 1-51310-483-0 		1-51314-483-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
11-LEAF ASM PART: C = 1-51310-662-0, H = 1-51410-184-0 		1-51314-662-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
12-LEAF ASM PART: D = 1-51310-690-0, G = 1-51410-183-0 		1-51314-690-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
12-LEAF ASM PART: E = 1-51310-726-0, I = 1-51410-185-0 		1-51314-726-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
12-LEAF ASM PART: F = 1-51410-107-0 		1-51414-107-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
12-LEAF ASM PART: J = 1-51410-193-0 		1-51414-193-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
5-LEAF ASM PART: K = 8-98096-766-1, L = 8-98202-919-0 		8-98099-135-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
10-LEAF ASM PART: A = 1-51310-466-1 		1-51315-466-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
9-LEAF ASM PART: B = 1-51310-483-0 		1-51315-483-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
11-LEAF ASM PART: C = 1-51310-662-0, H = 1-51410-184-0 		1-51315-662-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
12-LEAF ASM PART: D = 1-51310-690-0, G = 1-51410-183-0 		1-51315-690-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
12-LEAF ASM PART: E = 1-51310-726-0, I = 1-51410-185-0 		1-51315-726-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
12-LEAF ASM PART: F = 1-51410-107-0 		1-51415-107-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
12-LEAF ASM PART: J = 1-51410-193-0 		1-51415-193-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
5-LEAF ASM PART: K = 8-98096-766-1, L = 8-98202-919-0 		8-98099-136-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=190 ASM PART: E = 1-51310-726-0, I = 1-51410-185-0 		1-51156-229-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=180 ASM PART: J = 1-51410-193-0 		1-51156-394-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=180 ASM PART: F = 1-51410-107-0 		1-51356-198-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=175 ASM PART: C = 1-51310-662-0, H = 1-51410-184-0 		1-51356-205-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=180 ASM PART: D = 1-51310-690-0, G = 1-51410-183-0 		1-51356-210-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=150 ASM PART: K = 8-98096-766-1, L = 8-98202-919-0 		8-98098-336-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=145 ASM PART: A = 1-51310-466-1 		9-51356-202-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=140 ASM PART: B = 1-51310-483-0 		9-51356-603-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
M12 ASM PART: A = 1-51310-466-1, B = 1-51310-483-0, C = 1-51310-662-0, D = 1-51310-690-0, G = 1-51410-183-0, H = 1-51410-184-0 		9-99110-112-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
M12 ASM PART: E = 1-51310-726-0, F = 1-51410-107-0, I = 1-51410-185-0, J = 1-51410-193-0, K = 8-98096-766-1, L = 8-98202-919-0 		9-99110-512-0 01 1 -
36 BOLT; CLIP,LEAF SPR,RR
M10X97 ASM PART: E = 1-51310-726-0, I = 1-51410-185-0 		1-09000-294-0 04 1 -
36 BOLT; CLIP,LEAF SPR,RR
M10X99 ASM PART: C = 1-51310-662-0, D = 1-51310-690-0, G = 1-51410-183-0, H = 1-51410-184-0 		1-09000-328-0 04 1 -
36 BOLT; CLIP,LEAF SPR,RR
M10X117 ASM PART: J = 1-51410-193-0 		1-09000-334-0 04 1 -
36 BOLT; CLIP,LEAF SPR,RR
ASM PART: F = 1-51410-107-0 		1-09000-433-0 04 1 -
36 BOLT; CLIP,LEAF SPR,RR
M10X103 ASM PART: K = 8-98096-766-1, L = 8-98202-919-0 		1-09000-536-0 02 1 -
36 BOLT; CLIP,LEAF SPR,RR
ASM PART: A = 1-51310-466-1, B = 1-51310-483-0 		9-09801-233-0 03 1 -
37 SPACER; CENTER,LEAF SPR,RR
(A) ASM PART: K = 8-98096-766-1, L = 8-98202-919-0 		8-98098-339-0 04 1 -
37 SPACER; CENTER,LEAF SPR,RR
(B) ASM PART: K = 8-98096-766-1, L = 8-98202-919-0 		8-98098-340-0 01 1 -
38 BUSHING; LEAF SPR,RR
OD=38 ASM PART: C = 1-51310-662-0, D = 1-51310-690-0, E = 1-51310-726-0, K = 8-98096-766-1, L = 8-98202-919-0 		1-51351-009-0 02 1 -
38 BUSHING; LEAF SPR,RR
OD=38 ASM PART: G = 1-51410-183-0, H = 1-51410-184-0, I = 1-51410-185-0 		1-51351-030-0 02 1 -
38 BUSHING; LEAF SPR,RR
OD=38 ASM PART: F = 1-51410-107-0, J = 1-51410-193-0 		1-51351-031-0 02 1 -
38 BUSHING; LEAF SPR,RR
ASM PART: A = 1-51310-466-1, B = 1-51310-483-0 		9-51351-018-0 02 1 -
40 LINER; LEAF SPR,RR
(A) ASM PART: E = 1-51310-726-0, I = 1-51410-185-0 		1-51159-022-0 14 1 -
40 LINER; LEAF SPR,RR
(B) ASM PART: E = 1-51310-726-0, I = 1-51410-185-0 		1-51159-023-0 04 1 -
40 LINER; LEAF SPR,RR
(B) ASM PART: K = 8-98096-766-1 		1-51159-023-0 08 1 -
40 LINER; LEAF SPR,RR
(A) ASM PART: J = 1-51410-193-0 		1-51159-024-0 14 1 -
40 LINER; LEAF SPR,RR
(B) ASM PART: J = 1-51410-193-0 		1-51159-029-0 04 1 -
40 LINER; LEAF SPR,RR
ASM PART: L = 8-98202-919-0 		8-98202-886-1 08 1 -
59 SEAT; RR SPRING,SUB
T=9 ASM PART: K = 8-98096-766-1, L = 8-98202-919-0 		8-98098-341-0 01 1 -
çizim 37050
38 2 35 3 4 44 48 45 36 38 5 36 48 45 6 7 44 8 36 48 45 44 9 10 11 34
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING; LEAF,NO 1,RR MAIN
9-LEAF ASM PART: B = 1-51310-483-0 		1-51311-272-1 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
10-LEAF ASM PART: A = 1-51310-466-1 		1-51311-466-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
11-LEAF ASM PART: C = 1-51310-662-0, H = 1-51410-184-0 		1-51311-662-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
12-LEAF ASM PART: D = 1-51310-690-0, G = 1-51410-183-0 		1-51311-690-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
12-LEAF ASM PART: E = 1-51310-726-0 		1-51311-726-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
12-LEAF ASM PART: F = 1-51410-107-0 		1-51411-107-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
12-LEAF ASM PART: I = 1-51410-185-0 		1-51411-185-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
12-LEAF ASM PART: J = 1-51410-193-0 		1-51411-193-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
5-LEAF ASM PART: K = 8-98096-766-1, L = 8-98202-919-0 		8-98099-132-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
9-LEAF ASM PART: B = 1-51310-483-0 		1-51312-272-1 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
10-LEAF ASM PART: A = 1-51310-466-1 		1-51312-466-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
11-LEAF ASM PART: C = 1-51310-662-0, H = 1-51410-184-0 		1-51312-662-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
12-LEAF ASM PART: D = 1-51310-690-0, G = 1-51410-183-0 		1-51312-690-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
12-LEAF ASM PART: E = 1-51310-726-0, I = 1-51410-185-0 		1-51312-726-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
12-LEAF ASM PART: F = 1-51410-107-0 		1-51412-107-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
12-LEAF ASM PART: J = 1-51410-193-0 		1-51412-193-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
5-LEAF ASM PART: K = 8-98096-766-1, L = 8-98202-919-0 		8-98099-133-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
10-LEAF ASM PART: A = 1-51310-466-1 		1-51313-466-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
9-LEAF ASM PART: B = 1-51310-483-0 		1-51313-483-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
11-LEAF ASM PART: C = 1-51310-662-0, H = 1-51410-184-0 		1-51313-662-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
12-LEAF ASM PART: D = 1-51310-690-0, G = 1-51410-183-0 		1-51313-690-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
12-LEAF ASM PART: E = 1-51310-726-0, I = 1-51410-185-0 		1-51313-726-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
12-LEAF ASM PART: F = 1-51410-107-0 		1-51413-107-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
12-LEAF ASM PART: J = 1-51410-193-0 		1-51413-193-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
5-LEAF ASM PART: K = 8-98096-766-1, L = 8-98202-919-0 		8-98099-134-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
10-LEAF ASM PART: A = 1-51310-466-1 		1-51314-466-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
9-LEAF ASM PART: B = 1-51310-483-0 		1-51314-483-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
11-LEAF ASM PART: C = 1-51310-662-0, H = 1-51410-184-0 		1-51314-662-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
12-LEAF ASM PART: D = 1-51310-690-0, G = 1-51410-183-0 		1-51314-690-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
12-LEAF ASM PART: E = 1-51310-726-0, I = 1-51410-185-0 		1-51314-726-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
12-LEAF ASM PART: F = 1-51410-107-0 		1-51414-107-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
12-LEAF ASM PART: J = 1-51410-193-0 		1-51414-193-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
5-LEAF ASM PART: K = 8-98096-766-1, L = 8-98202-919-0 		8-98099-135-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
10-LEAF ASM PART: A = 1-51310-466-1 		1-51315-466-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
9-LEAF ASM PART: B = 1-51310-483-0 		1-51315-483-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
11-LEAF ASM PART: C = 1-51310-662-0, H = 1-51410-184-0 		1-51315-662-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
12-LEAF ASM PART: D = 1-51310-690-0, G = 1-51410-183-0 		1-51315-690-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
12-LEAF ASM PART: E = 1-51310-726-0, I = 1-51410-185-0 		1-51315-726-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
12-LEAF ASM PART: F = 1-51410-107-0 		1-51415-107-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
12-LEAF ASM PART: J = 1-51410-193-0 		1-51415-193-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
5-LEAF ASM PART: K = 8-98096-766-1, L = 8-98202-919-0 		8-98099-136-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
10-LEAF ASM PART: A = 1-51310-466-1 		1-51316-466-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
9-LEAF ASM PART: B = 1-51310-483-0 		1-51316-483-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
11-LEAF ASM PART: C = 1-51310-662-0, H = 1-51410-184-0 		1-51316-662-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
12-LEAF ASM PART: D = 1-51310-690-0, G = 1-51410-183-0 		1-51316-690-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
12-LEAF ASM PART: E = 1-51310-726-0, I = 1-51410-185-0 		1-51316-726-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
12-LEAF ASM PART: F = 1-51410-107-0 		1-51416-107-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
12-LEAF ASM PART: J = 1-51410-193-0 		1-51416-193-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
10-LEAF ASM PART: A = 1-51310-466-1 		1-51317-466-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
9-LEAF ASM PART: B = 1-51310-483-0 		1-51317-483-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
11-LEAF ASM PART: C = 1-51310-662-0, H = 1-51410-184-0 		1-51317-662-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
12-LEAF ASM PART: D = 1-51310-690-0, G = 1-51410-183-0 		1-51317-690-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
12-LEAF ASM PART: E = 1-51310-726-0, I = 1-51410-185-0 		1-51317-726-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
12-LEAF ASM PART: F = 1-51410-107-0 		1-51417-107-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
12-LEAF ASM PART: J = 1-51410-193-0 		1-51417-193-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
10-LEAF ASM PART: A = 1-51310-466-1 		1-51318-466-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
9-LEAF ASM PART: B = 1-51310-483-0 		1-51318-483-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
11-LEAF ASM PART: C = 1-51310-662-0, H = 1-51410-184-0 		1-51318-662-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
12-LEAF ASM PART: D = 1-51310-690-0, G = 1-51410-183-0 		1-51318-690-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
12-LEAF ASM PART: E = 1-51310-726-0, I = 1-51410-185-0 		1-51318-726-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
12-LEAF ASM PART: F = 1-51410-107-0 		1-51418-107-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
12-LEAF ASM PART: J = 1-51410-193-0 		1-51418-193-0 01 1 -
10 SPRING; LEAF,NO 9,RR MAIN
10-LEAF ASM PART: A = 1-51310-466-1 		1-51319-466-0 01 1 -
10 SPRING; LEAF,NO 9,RR MAIN
9-LEAF ASM PART: B = 1-51310-483-0 		1-51319-483-0 01 1 -
10 SPRING; LEAF,NO 9,RR MAIN
11-LEAF ASM PART: C = 1-51310-662-0, H = 1-51410-184-0 		1-51319-662-0 01 1 -
10 SPRING; LEAF,NO 9,RR MAIN
12-LEAF ASM PART: D = 1-51310-690-0, G = 1-51410-183-0 		1-51319-690-0 01 1 -
10 SPRING; LEAF,NO 9,RR MAIN
12-LEAF ASM PART: E = 1-51310-726-0, I = 1-51410-185-0 		1-51319-726-0 01 1 -
10 SPRING; LEAF,NO 9,RR MAIN
12-LEAF ASM PART: F = 1-51410-107-0 		1-51419-107-0 01 1 -
10 SPRING; LEAF,NO 9,RR MAIN
12-LEAF ASM PART: J = 1-51410-193-0 		1-51419-193-0 01 1 -
11 SPRING; LEAF,NO 10,RR MAIN
12-LEAF ASM PART: E = 1-51310-726-0 		1-51320-726-0 01 1 -
11 SPRING; LEAF,NO 10,RR MAIN
10-LEAF ASM PART: A = 1-51310-466-1 		1-51321-466-0 01 1 -
11 SPRING; LEAF,NO 10,RR MAIN
11-LEAF ASM PART: C = 1-51310-662-0, H = 1-51410-184-0 		1-51321-662-0 01 1 -
11 SPRING; LEAF,NO 10,RR MAIN
12-LEAF ASM PART: D = 1-51310-690-0, G = 1-51410-183-0 		1-51321-690-0 01 1 -
11 SPRING; LEAF,NO 10,RR MAIN
12-LEAF ASM PART: I = 1-51410-185-0 		1-51321-726-0 01 1 -
11 SPRING; LEAF,NO 10,RR MAIN
12-LEAF ASM PART: J = 1-51410-193-0 		1-51420-193-0 01 1 -
11 SPRING; LEAF,NO 10,RR MAIN
12-LEAF ASM PART: F = 1-51410-107-0 		1-51421-107-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=190 ASM PART: E = 1-51310-726-0, I = 1-51410-185-0 		1-51156-229-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=180 ASM PART: J = 1-51410-193-0 		1-51156-394-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=180 ASM PART: F = 1-51410-107-0 		1-51356-198-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=175 ASM PART: C = 1-51310-662-0, H = 1-51410-184-0 		1-51356-205-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=180 ASM PART: D = 1-51310-690-0, G = 1-51410-183-0 		1-51356-210-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=150 ASM PART: K = 8-98096-766-1, L = 8-98202-919-0 		8-98098-336-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=145 ASM PART: A = 1-51310-466-1 		9-51356-202-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=140 ASM PART: B = 1-51310-483-0 		9-51356-603-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
M12 ASM PART: A = 1-51310-466-1, B = 1-51310-483-0, C = 1-51310-662-0, D = 1-51310-690-0, G = 1-51410-183-0, H = 1-51410-184-0 		9-99110-112-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
M12 ASM PART: E = 1-51310-726-0, F = 1-51410-107-0, I = 1-51410-185-0, J = 1-51410-193-0, K = 8-98096-766-1, L = 8-98202-919-0 		9-99110-512-0 01 1 -
36 BOLT; CLIP,LEAF SPR,RR
M10X97 ASM PART: E = 1-51310-726-0, I = 1-51410-185-0 		1-09000-294-0 04 1 -
36 BOLT; CLIP,LEAF SPR,RR
M10X99 ASM PART: C = 1-51310-662-0, D = 1-51310-690-0, G = 1-51410-183-0, H = 1-51410-184-0 		1-09000-328-0 04 1 -
36 BOLT; CLIP,LEAF SPR,RR
M10X117 ASM PART: J = 1-51410-193-0 		1-09000-334-0 04 1 -
36 BOLT; CLIP,LEAF SPR,RR
ASM PART: F = 1-51410-107-0 		1-09000-433-0 04 1 -
36 BOLT; CLIP,LEAF SPR,RR
M10X103 ASM PART: K = 8-98096-766-1, L = 8-98202-919-0 		1-09000-536-0 02 1 -
36 BOLT; CLIP,LEAF SPR,RR
ASM PART: A = 1-51310-466-1, B = 1-51310-483-0 		9-09801-233-0 03 1 -
38 BUSHING; LEAF SPR,RR
OD=38 ASM PART: C = 1-51310-662-0, D = 1-51310-690-0, E = 1-51310-726-0, K = 8-98096-766-1, L = 8-98202-919-0 		1-51351-009-0 02 1 -
38 BUSHING; LEAF SPR,RR
OD=38 ASM PART: G = 1-51410-183-0, H = 1-51410-184-0, I = 1-51410-185-0 		1-51351-030-0 02 1 -
38 BUSHING; LEAF SPR,RR
OD=38 ASM PART: F = 1-51410-107-0, J = 1-51410-193-0 		1-51351-031-0 02 1 -
38 BUSHING; LEAF SPR,RR
ASM PART: A = 1-51310-466-1, B = 1-51310-483-0 		9-51351-018-0 02 1 -
44 PIPE; CLIP,LEAF SPR,RR MAIN
ASM PART: F = 1-51410-107-0 		1-51353-011-0 04 1 -
44 PIPE; CLIP,LEAF SPR,RR MAIN
ASM PART: A = 1-51310-466-1, B = 1-51310-483-0 		9-51153-008-0 03 1 -
45 NUT; CLIP,LEAF SPR,RR MAIN
M8 ASM PART: A = 1-51310-466-1, B = 1-51310-483-0 		9-09110-008-0 03 1 -
45 NUT; CLIP,LEAF SPR,RR MAIN
M10 ASM PART: F = 1-51410-107-0 		9-09110-010-0 04 1 -
48 WASHER; CLIP,LEAF SPR
ASM PART: A = 1-51310-466-1, B = 1-51310-483-0 		9-09150-008-0 03 1 -
48 WASHER; CLIP,LEAF SPR
ID=10.2 ASM PART: F = 1-51410-107-0 		9-09150-510-0 04 1 -
çizim 39037
38 2 35 3 44 48 45 36 38 4 36 48 45 5 6 44 7 36 48 45 44 8 9 10 34
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING; LEAF,NO 1,RR MAIN
9-LEAF ASM PART: B = 1-51310-483-0 		1-51311-272-1 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
10-LEAF ASM PART: A = 1-51310-466-1 		1-51311-466-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
11-LEAF ASM PART: C = 1-51310-662-0, H = 1-51410-184-0 		1-51311-662-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
12-LEAF ASM PART: D = 1-51310-690-0, G = 1-51410-183-0 		1-51311-690-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
12-LEAF ASM PART: E = 1-51310-726-0 		1-51311-726-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
12-LEAF ASM PART: F = 1-51410-107-0 		1-51411-107-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
12-LEAF ASM PART: I = 1-51410-185-0 		1-51411-185-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
12-LEAF ASM PART: J = 1-51410-193-0 		1-51411-193-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
5-LEAF ASM PART: K = 8-98096-766-1, L = 8-98202-919-0 		8-98099-132-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
9-LEAF ASM PART: B = 1-51310-483-0 		1-51312-272-1 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
10-LEAF ASM PART: A = 1-51310-466-1 		1-51312-466-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
11-LEAF ASM PART: C = 1-51310-662-0, H = 1-51410-184-0 		1-51312-662-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
12-LEAF ASM PART: D = 1-51310-690-0, G = 1-51410-183-0 		1-51312-690-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
12-LEAF ASM PART: E = 1-51310-726-0, I = 1-51410-185-0 		1-51312-726-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
12-LEAF ASM PART: F = 1-51410-107-0 		1-51412-107-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
12-LEAF ASM PART: J = 1-51410-193-0 		1-51412-193-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
5-LEAF ASM PART: K = 8-98096-766-1, L = 8-98202-919-0 		8-98099-133-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
10-LEAF ASM PART: A = 1-51310-466-1 		1-51313-466-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
9-LEAF ASM PART: B = 1-51310-483-0 		1-51313-483-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
11-LEAF ASM PART: C = 1-51310-662-0, H = 1-51410-184-0 		1-51313-662-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
12-LEAF ASM PART: D = 1-51310-690-0, G = 1-51410-183-0 		1-51313-690-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
12-LEAF ASM PART: E = 1-51310-726-0, I = 1-51410-185-0 		1-51313-726-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
12-LEAF ASM PART: F = 1-51410-107-0 		1-51413-107-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
12-LEAF ASM PART: J = 1-51410-193-0 		1-51413-193-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
5-LEAF ASM PART: K = 8-98096-766-1, L = 8-98202-919-0 		8-98099-134-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
10-LEAF ASM PART: A = 1-51310-466-1 		1-51314-466-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
9-LEAF ASM PART: B = 1-51310-483-0 		1-51314-483-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
11-LEAF ASM PART: C = 1-51310-662-0, H = 1-51410-184-0 		1-51314-662-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
12-LEAF ASM PART: D = 1-51310-690-0, G = 1-51410-183-0 		1-51314-690-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
12-LEAF ASM PART: E = 1-51310-726-0, I = 1-51410-185-0 		1-51314-726-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
12-LEAF ASM PART: F = 1-51410-107-0 		1-51414-107-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
12-LEAF ASM PART: J = 1-51410-193-0 		1-51414-193-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
5-LEAF ASM PART: K = 8-98096-766-1, L = 8-98202-919-0 		8-98099-135-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
10-LEAF ASM PART: A = 1-51310-466-1 		1-51315-466-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
9-LEAF ASM PART: B = 1-51310-483-0 		1-51315-483-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
11-LEAF ASM PART: C = 1-51310-662-0, H = 1-51410-184-0 		1-51315-662-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
12-LEAF ASM PART: D = 1-51310-690-0, G = 1-51410-183-0 		1-51315-690-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
12-LEAF ASM PART: E = 1-51310-726-0, I = 1-51410-185-0 		1-51315-726-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
12-LEAF ASM PART: F = 1-51410-107-0 		1-51415-107-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
12-LEAF ASM PART: J = 1-51410-193-0 		1-51415-193-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
5-LEAF ASM PART: K = 8-98096-766-1, L = 8-98202-919-0 		8-98099-136-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
10-LEAF ASM PART: A = 1-51310-466-1 		1-51316-466-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
9-LEAF ASM PART: B = 1-51310-483-0 		1-51316-483-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
11-LEAF ASM PART: C = 1-51310-662-0, H = 1-51410-184-0 		1-51316-662-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
12-LEAF ASM PART: D = 1-51310-690-0, G = 1-51410-183-0 		1-51316-690-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
12-LEAF ASM PART: E = 1-51310-726-0, I = 1-51410-185-0 		1-51316-726-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
12-LEAF ASM PART: F = 1-51410-107-0 		1-51416-107-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
12-LEAF ASM PART: J = 1-51410-193-0 		1-51416-193-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
10-LEAF ASM PART: A = 1-51310-466-1 		1-51317-466-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
9-LEAF ASM PART: B = 1-51310-483-0 		1-51317-483-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
11-LEAF ASM PART: C = 1-51310-662-0, H = 1-51410-184-0 		1-51317-662-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
12-LEAF ASM PART: D = 1-51310-690-0, G = 1-51410-183-0 		1-51317-690-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
12-LEAF ASM PART: E = 1-51310-726-0, I = 1-51410-185-0 		1-51317-726-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
12-LEAF ASM PART: F = 1-51410-107-0 		1-51417-107-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
12-LEAF ASM PART: J = 1-51410-193-0 		1-51417-193-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
10-LEAF ASM PART: A = 1-51310-466-1 		1-51318-466-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
9-LEAF ASM PART: B = 1-51310-483-0 		1-51318-483-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
11-LEAF ASM PART: C = 1-51310-662-0, H = 1-51410-184-0 		1-51318-662-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
12-LEAF ASM PART: D = 1-51310-690-0, G = 1-51410-183-0 		1-51318-690-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
12-LEAF ASM PART: E = 1-51310-726-0, I = 1-51410-185-0 		1-51318-726-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
12-LEAF ASM PART: F = 1-51410-107-0 		1-51418-107-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
12-LEAF ASM PART: J = 1-51410-193-0 		1-51418-193-0 01 1 -
10 SPRING; LEAF,NO 9,RR MAIN
10-LEAF ASM PART: A = 1-51310-466-1 		1-51319-466-0 01 1 -
10 SPRING; LEAF,NO 9,RR MAIN
9-LEAF ASM PART: B = 1-51310-483-0 		1-51319-483-0 01 1 -
10 SPRING; LEAF,NO 9,RR MAIN
11-LEAF ASM PART: C = 1-51310-662-0, H = 1-51410-184-0 		1-51319-662-0 01 1 -
10 SPRING; LEAF,NO 9,RR MAIN
12-LEAF ASM PART: D = 1-51310-690-0, G = 1-51410-183-0 		1-51319-690-0 01 1 -
10 SPRING; LEAF,NO 9,RR MAIN
12-LEAF ASM PART: E = 1-51310-726-0, I = 1-51410-185-0 		1-51319-726-0 01 1 -
10 SPRING; LEAF,NO 9,RR MAIN
12-LEAF ASM PART: F = 1-51410-107-0 		1-51419-107-0 01 1 -
10 SPRING; LEAF,NO 9,RR MAIN
12-LEAF ASM PART: J = 1-51410-193-0 		1-51419-193-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=190 ASM PART: E = 1-51310-726-0, I = 1-51410-185-0 		1-51156-229-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=180 ASM PART: J = 1-51410-193-0 		1-51156-394-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=180 ASM PART: F = 1-51410-107-0 		1-51356-198-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=175 ASM PART: C = 1-51310-662-0, H = 1-51410-184-0 		1-51356-205-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=180 ASM PART: D = 1-51310-690-0, G = 1-51410-183-0 		1-51356-210-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=150 ASM PART: K = 8-98096-766-1, L = 8-98202-919-0 		8-98098-336-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=145 ASM PART: A = 1-51310-466-1 		9-51356-202-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=140 ASM PART: B = 1-51310-483-0 		9-51356-603-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
M12 ASM PART: A = 1-51310-466-1, B = 1-51310-483-0, C = 1-51310-662-0, D = 1-51310-690-0, G = 1-51410-183-0, H = 1-51410-184-0 		9-99110-112-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
M12 ASM PART: E = 1-51310-726-0, F = 1-51410-107-0, I = 1-51410-185-0, J = 1-51410-193-0, K = 8-98096-766-1, L = 8-98202-919-0 		9-99110-512-0 01 1 -
36 BOLT; CLIP,LEAF SPR,RR
M10X97 ASM PART: E = 1-51310-726-0, I = 1-51410-185-0 		1-09000-294-0 04 1 -
36 BOLT; CLIP,LEAF SPR,RR
M10X99 ASM PART: C = 1-51310-662-0, D = 1-51310-690-0, G = 1-51410-183-0, H = 1-51410-184-0 		1-09000-328-0 04 1 -
36 BOLT; CLIP,LEAF SPR,RR
M10X117 ASM PART: J = 1-51410-193-0 		1-09000-334-0 04 1 -
36 BOLT; CLIP,LEAF SPR,RR
ASM PART: F = 1-51410-107-0 		1-09000-433-0 04 1 -
36 BOLT; CLIP,LEAF SPR,RR
M10X103 ASM PART: K = 8-98096-766-1, L = 8-98202-919-0 		1-09000-536-0 02 1 -
36 BOLT; CLIP,LEAF SPR,RR
ASM PART: A = 1-51310-466-1, B = 1-51310-483-0 		9-09801-233-0 03 1 -
38 BUSHING; LEAF SPR,RR
OD=38 ASM PART: C = 1-51310-662-0, D = 1-51310-690-0, E = 1-51310-726-0, K = 8-98096-766-1, L = 8-98202-919-0 		1-51351-009-0 02 1 -
38 BUSHING; LEAF SPR,RR
OD=38 ASM PART: G = 1-51410-183-0, H = 1-51410-184-0, I = 1-51410-185-0 		1-51351-030-0 02 1 -
38 BUSHING; LEAF SPR,RR
OD=38 ASM PART: F = 1-51410-107-0, J = 1-51410-193-0 		1-51351-031-0 02 1 -
38 BUSHING; LEAF SPR,RR
ASM PART: A = 1-51310-466-1, B = 1-51310-483-0 		9-51351-018-0 02 1 -
44 PIPE; CLIP,LEAF SPR,RR MAIN
ASM PART: F = 1-51410-107-0 		1-51353-011-0 04 1 -
44 PIPE; CLIP,LEAF SPR,RR MAIN
ASM PART: A = 1-51310-466-1, B = 1-51310-483-0 		9-51153-008-0 03 1 -
45 NUT; CLIP,LEAF SPR,RR MAIN
M8 ASM PART: A = 1-51310-466-1, B = 1-51310-483-0 		9-09110-008-0 03 1 -
45 NUT; CLIP,LEAF SPR,RR MAIN
M10 ASM PART: F = 1-51410-107-0 		9-09110-010-0 04 1 -
48 WASHER; CLIP,LEAF SPR
ASM PART: A = 1-51310-466-1, B = 1-51310-483-0 		9-09150-008-0 03 1 -
48 WASHER; CLIP,LEAF SPR
ID=10.2 ASM PART: F = 1-51410-107-0 		9-09150-510-0 04 1 -
çizim 39110
38 2 35 3 4 5 36 38 6 7 8 36 36 9 36 10 11 12 13 34
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING; LEAF,NO 1,RR MAIN
9-LEAF ASM PART: B = 1-51310-483-0 		1-51311-272-1 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
10-LEAF ASM PART: A = 1-51310-466-1 		1-51311-466-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
11-LEAF ASM PART: C = 1-51310-662-0, H = 1-51410-184-0 		1-51311-662-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
12-LEAF ASM PART: D = 1-51310-690-0, G = 1-51410-183-0 		1-51311-690-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
12-LEAF ASM PART: E = 1-51310-726-0 		1-51311-726-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
12-LEAF ASM PART: F = 1-51410-107-0 		1-51411-107-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
12-LEAF ASM PART: I = 1-51410-185-0 		1-51411-185-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
12-LEAF ASM PART: J = 1-51410-193-0 		1-51411-193-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
5-LEAF ASM PART: K = 8-98096-766-1, L = 8-98202-919-0 		8-98099-132-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
9-LEAF ASM PART: B = 1-51310-483-0 		1-51312-272-1 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
10-LEAF ASM PART: A = 1-51310-466-1 		1-51312-466-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
11-LEAF ASM PART: C = 1-51310-662-0, H = 1-51410-184-0 		1-51312-662-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
12-LEAF ASM PART: D = 1-51310-690-0, G = 1-51410-183-0 		1-51312-690-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
12-LEAF ASM PART: E = 1-51310-726-0, I = 1-51410-185-0 		1-51312-726-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
12-LEAF ASM PART: F = 1-51410-107-0 		1-51412-107-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
12-LEAF ASM PART: J = 1-51410-193-0 		1-51412-193-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
5-LEAF ASM PART: K = 8-98096-766-1, L = 8-98202-919-0 		8-98099-133-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
10-LEAF ASM PART: A = 1-51310-466-1 		1-51313-466-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
9-LEAF ASM PART: B = 1-51310-483-0 		1-51313-483-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
11-LEAF ASM PART: C = 1-51310-662-0, H = 1-51410-184-0 		1-51313-662-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
12-LEAF ASM PART: D = 1-51310-690-0, G = 1-51410-183-0 		1-51313-690-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
12-LEAF ASM PART: E = 1-51310-726-0, I = 1-51410-185-0 		1-51313-726-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
12-LEAF ASM PART: F = 1-51410-107-0 		1-51413-107-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
12-LEAF ASM PART: J = 1-51410-193-0 		1-51413-193-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
5-LEAF ASM PART: K = 8-98096-766-1, L = 8-98202-919-0 		8-98099-134-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
10-LEAF ASM PART: A = 1-51310-466-1 		1-51314-466-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
9-LEAF ASM PART: B = 1-51310-483-0 		1-51314-483-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
11-LEAF ASM PART: C = 1-51310-662-0, H = 1-51410-184-0 		1-51314-662-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
12-LEAF ASM PART: D = 1-51310-690-0, G = 1-51410-183-0 		1-51314-690-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
12-LEAF ASM PART: E = 1-51310-726-0, I = 1-51410-185-0 		1-51314-726-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
12-LEAF ASM PART: F = 1-51410-107-0 		1-51414-107-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
12-LEAF ASM PART: J = 1-51410-193-0 		1-51414-193-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
5-LEAF ASM PART: K = 8-98096-766-1, L = 8-98202-919-0 		8-98099-135-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
10-LEAF ASM PART: A = 1-51310-466-1 		1-51315-466-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
9-LEAF ASM PART: B = 1-51310-483-0 		1-51315-483-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
11-LEAF ASM PART: C = 1-51310-662-0, H = 1-51410-184-0 		1-51315-662-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
12-LEAF ASM PART: D = 1-51310-690-0, G = 1-51410-183-0 		1-51315-690-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
12-LEAF ASM PART: E = 1-51310-726-0, I = 1-51410-185-0 		1-51315-726-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
12-LEAF ASM PART: F = 1-51410-107-0 		1-51415-107-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
12-LEAF ASM PART: J = 1-51410-193-0 		1-51415-193-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
5-LEAF ASM PART: K = 8-98096-766-1, L = 8-98202-919-0 		8-98099-136-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
10-LEAF ASM PART: A = 1-51310-466-1 		1-51316-466-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
9-LEAF ASM PART: B = 1-51310-483-0 		1-51316-483-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
11-LEAF ASM PART: C = 1-51310-662-0, H = 1-51410-184-0 		1-51316-662-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
12-LEAF ASM PART: D = 1-51310-690-0, G = 1-51410-183-0 		1-51316-690-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
12-LEAF ASM PART: E = 1-51310-726-0, I = 1-51410-185-0 		1-51316-726-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
12-LEAF ASM PART: F = 1-51410-107-0 		1-51416-107-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
12-LEAF ASM PART: J = 1-51410-193-0 		1-51416-193-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
10-LEAF ASM PART: A = 1-51310-466-1 		1-51317-466-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
9-LEAF ASM PART: B = 1-51310-483-0 		1-51317-483-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
11-LEAF ASM PART: C = 1-51310-662-0, H = 1-51410-184-0 		1-51317-662-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
12-LEAF ASM PART: D = 1-51310-690-0, G = 1-51410-183-0 		1-51317-690-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
12-LEAF ASM PART: E = 1-51310-726-0, I = 1-51410-185-0 		1-51317-726-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
12-LEAF ASM PART: F = 1-51410-107-0 		1-51417-107-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
12-LEAF ASM PART: J = 1-51410-193-0 		1-51417-193-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
10-LEAF ASM PART: A = 1-51310-466-1 		1-51318-466-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
9-LEAF ASM PART: B = 1-51310-483-0 		1-51318-483-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
11-LEAF ASM PART: C = 1-51310-662-0, H = 1-51410-184-0 		1-51318-662-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
12-LEAF ASM PART: D = 1-51310-690-0, G = 1-51410-183-0 		1-51318-690-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
12-LEAF ASM PART: E = 1-51310-726-0, I = 1-51410-185-0 		1-51318-726-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
12-LEAF ASM PART: F = 1-51410-107-0 		1-51418-107-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
12-LEAF ASM PART: J = 1-51410-193-0 		1-51418-193-0 01 1 -
10 SPRING; LEAF,NO 9,RR MAIN
10-LEAF ASM PART: A = 1-51310-466-1 		1-51319-466-0 01 1 -
10 SPRING; LEAF,NO 9,RR MAIN
9-LEAF ASM PART: B = 1-51310-483-0 		1-51319-483-0 01 1 -
10 SPRING; LEAF,NO 9,RR MAIN
11-LEAF ASM PART: C = 1-51310-662-0, H = 1-51410-184-0 		1-51319-662-0 01 1 -
10 SPRING; LEAF,NO 9,RR MAIN
12-LEAF ASM PART: D = 1-51310-690-0, G = 1-51410-183-0 		1-51319-690-0 01 1 -
10 SPRING; LEAF,NO 9,RR MAIN
12-LEAF ASM PART: E = 1-51310-726-0, I = 1-51410-185-0 		1-51319-726-0 01 1 -
10 SPRING; LEAF,NO 9,RR MAIN
12-LEAF ASM PART: F = 1-51410-107-0 		1-51419-107-0 01 1 -
10 SPRING; LEAF,NO 9,RR MAIN
12-LEAF ASM PART: J = 1-51410-193-0 		1-51419-193-0 01 1 -
11 SPRING; LEAF,NO 10,RR MAIN
12-LEAF ASM PART: E = 1-51310-726-0 		1-51320-726-0 01 1 -
11 SPRING; LEAF,NO 10,RR MAIN
10-LEAF ASM PART: A = 1-51310-466-1 		1-51321-466-0 01 1 -
11 SPRING; LEAF,NO 10,RR MAIN
11-LEAF ASM PART: C = 1-51310-662-0, H = 1-51410-184-0 		1-51321-662-0 01 1 -
11 SPRING; LEAF,NO 10,RR MAIN
12-LEAF ASM PART: D = 1-51310-690-0, G = 1-51410-183-0 		1-51321-690-0 01 1 -
11 SPRING; LEAF,NO 10,RR MAIN
12-LEAF ASM PART: I = 1-51410-185-0 		1-51321-726-0 01 1 -
11 SPRING; LEAF,NO 10,RR MAIN
12-LEAF ASM PART: J = 1-51410-193-0 		1-51420-193-0 01 1 -
11 SPRING; LEAF,NO 10,RR MAIN
12-LEAF ASM PART: F = 1-51410-107-0 		1-51421-107-0 01 1 -
12 SPRING; LEAF,NO 11,RR MAIN
12-LEAF ASM PART: E = 1-51310-726-0 		1-51321-726-0 01 1 -
12 SPRING; LEAF,NO 11,RR MAIN
11-LEAF ASM PART: C = 1-51310-662-0, H = 1-51410-184-0 		1-51322-662-0 01 1 -
12 SPRING; LEAF,NO 11,RR MAIN
12-LEAF ASM PART: D = 1-51310-690-0, G = 1-51410-183-0 		1-51322-690-0 01 1 -
12 SPRING; LEAF,NO 11,RR MAIN
12-LEAF ASM PART: I = 1-51410-185-0 		1-51322-726-0 01 1 -
12 SPRING; LEAF,NO 11,RR MAIN
12-LEAF ASM PART: J = 1-51410-193-0 		1-51421-193-0 01 1 -
12 SPRING; LEAF,NO 11,RR MAIN
12-LEAF ASM PART: F = 1-51410-107-0 		1-51422-107-0 01 1 -
13 SPRING; LEAF,NO 12,RR MAIN
12-LEAF ASM PART: E = 1-51310-726-0 		1-51322-726-0 01 1 -
13 SPRING; LEAF,NO 12,RR MAIN
12-LEAF ASM PART: D = 1-51310-690-0, G = 1-51410-183-0 		1-51323-690-0 01 1 -
13 SPRING; LEAF,NO 12,RR MAIN
12-LEAF ASM PART: I = 1-51410-185-0 		1-51323-726-0 01 1 -
13 SPRING; LEAF,NO 12,RR MAIN
12-LEAF ASM PART: J = 1-51410-193-0 		1-51422-193-0 01 1 -
13 SPRING; LEAF,NO 12,RR MAIN
12-LEAF ASM PART: F = 1-51410-107-0 		1-51423-107-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=190 ASM PART: E = 1-51310-726-0, I = 1-51410-185-0 		1-51156-229-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=180 ASM PART: J = 1-51410-193-0 		1-51156-394-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=180 ASM PART: F = 1-51410-107-0 		1-51356-198-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=175 ASM PART: C = 1-51310-662-0, H = 1-51410-184-0 		1-51356-205-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=180 ASM PART: D = 1-51310-690-0, G = 1-51410-183-0 		1-51356-210-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=150 ASM PART: K = 8-98096-766-1, L = 8-98202-919-0 		8-98098-336-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=145 ASM PART: A = 1-51310-466-1 		9-51356-202-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=140 ASM PART: B = 1-51310-483-0 		9-51356-603-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
M12 ASM PART: A = 1-51310-466-1, B = 1-51310-483-0, C = 1-51310-662-0, D = 1-51310-690-0, G = 1-51410-183-0, H = 1-51410-184-0 		9-99110-112-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
M12 ASM PART: E = 1-51310-726-0, F = 1-51410-107-0, I = 1-51410-185-0, J = 1-51410-193-0, K = 8-98096-766-1, L = 8-98202-919-0 		9-99110-512-0 01 1 -
36 BOLT; CLIP,LEAF SPR,RR
M10X97 ASM PART: E = 1-51310-726-0, I = 1-51410-185-0 		1-09000-294-0 04 1 -
36 BOLT; CLIP,LEAF SPR,RR
M10X99 ASM PART: C = 1-51310-662-0, D = 1-51310-690-0, G = 1-51410-183-0, H = 1-51410-184-0 		1-09000-328-0 04 1 -
36 BOLT; CLIP,LEAF SPR,RR
M10X117 ASM PART: J = 1-51410-193-0 		1-09000-334-0 04 1 -
36 BOLT; CLIP,LEAF SPR,RR
ASM PART: F = 1-51410-107-0 		1-09000-433-0 04 1 -
36 BOLT; CLIP,LEAF SPR,RR
M10X103 ASM PART: K = 8-98096-766-1, L = 8-98202-919-0 		1-09000-536-0 02 1 -
36 BOLT; CLIP,LEAF SPR,RR
ASM PART: A = 1-51310-466-1, B = 1-51310-483-0 		9-09801-233-0 03 1 -
38 BUSHING; LEAF SPR,RR
OD=38 ASM PART: C = 1-51310-662-0, D = 1-51310-690-0, E = 1-51310-726-0, K = 8-98096-766-1, L = 8-98202-919-0 		1-51351-009-0 02 1 -
38 BUSHING; LEAF SPR,RR
OD=38 ASM PART: G = 1-51410-183-0, H = 1-51410-184-0, I = 1-51410-185-0 		1-51351-030-0 02 1 -
38 BUSHING; LEAF SPR,RR
OD=38 ASM PART: F = 1-51410-107-0, J = 1-51410-193-0 		1-51351-031-0 02 1 -
38 BUSHING; LEAF SPR,RR
ASM PART: A = 1-51310-466-1, B = 1-51310-483-0 		9-51351-018-0 02 1 -
çizim 39140
38 2 35 3 4 5 36 6 38 7 8 36 36 9 36 10 11 12 34
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING; LEAF,NO 1,RR MAIN
9-LEAF ASM PART: B = 1-51310-483-0 		1-51311-272-1 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
10-LEAF ASM PART: A = 1-51310-466-1 		1-51311-466-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
11-LEAF ASM PART: C = 1-51310-662-0, H = 1-51410-184-0 		1-51311-662-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
12-LEAF ASM PART: D = 1-51310-690-0, G = 1-51410-183-0 		1-51311-690-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
12-LEAF ASM PART: E = 1-51310-726-0 		1-51311-726-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
12-LEAF ASM PART: F = 1-51410-107-0 		1-51411-107-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
12-LEAF ASM PART: I = 1-51410-185-0 		1-51411-185-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
12-LEAF ASM PART: J = 1-51410-193-0 		1-51411-193-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
5-LEAF ASM PART: K = 8-98096-766-1, L = 8-98202-919-0 		8-98099-132-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
9-LEAF ASM PART: B = 1-51310-483-0 		1-51312-272-1 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
10-LEAF ASM PART: A = 1-51310-466-1 		1-51312-466-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
11-LEAF ASM PART: C = 1-51310-662-0, H = 1-51410-184-0 		1-51312-662-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
12-LEAF ASM PART: D = 1-51310-690-0, G = 1-51410-183-0 		1-51312-690-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
12-LEAF ASM PART: E = 1-51310-726-0, I = 1-51410-185-0 		1-51312-726-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
12-LEAF ASM PART: F = 1-51410-107-0 		1-51412-107-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
12-LEAF ASM PART: J = 1-51410-193-0 		1-51412-193-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
5-LEAF ASM PART: K = 8-98096-766-1, L = 8-98202-919-0 		8-98099-133-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
10-LEAF ASM PART: A = 1-51310-466-1 		1-51313-466-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
9-LEAF ASM PART: B = 1-51310-483-0 		1-51313-483-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
11-LEAF ASM PART: C = 1-51310-662-0, H = 1-51410-184-0 		1-51313-662-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
12-LEAF ASM PART: D = 1-51310-690-0, G = 1-51410-183-0 		1-51313-690-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
12-LEAF ASM PART: E = 1-51310-726-0, I = 1-51410-185-0 		1-51313-726-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
12-LEAF ASM PART: F = 1-51410-107-0 		1-51413-107-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
12-LEAF ASM PART: J = 1-51410-193-0 		1-51413-193-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
5-LEAF ASM PART: K = 8-98096-766-1, L = 8-98202-919-0 		8-98099-134-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
10-LEAF ASM PART: A = 1-51310-466-1 		1-51314-466-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
9-LEAF ASM PART: B = 1-51310-483-0 		1-51314-483-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
11-LEAF ASM PART: C = 1-51310-662-0, H = 1-51410-184-0 		1-51314-662-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
12-LEAF ASM PART: D = 1-51310-690-0, G = 1-51410-183-0 		1-51314-690-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
12-LEAF ASM PART: E = 1-51310-726-0, I = 1-51410-185-0 		1-51314-726-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
12-LEAF ASM PART: F = 1-51410-107-0 		1-51414-107-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
12-LEAF ASM PART: J = 1-51410-193-0 		1-51414-193-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
5-LEAF ASM PART: K = 8-98096-766-1, L = 8-98202-919-0 		8-98099-135-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
10-LEAF ASM PART: A = 1-51310-466-1 		1-51315-466-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
9-LEAF ASM PART: B = 1-51310-483-0 		1-51315-483-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
11-LEAF ASM PART: C = 1-51310-662-0, H = 1-51410-184-0 		1-51315-662-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
12-LEAF ASM PART: D = 1-51310-690-0, G = 1-51410-183-0 		1-51315-690-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
12-LEAF ASM PART: E = 1-51310-726-0, I = 1-51410-185-0 		1-51315-726-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
12-LEAF ASM PART: F = 1-51410-107-0 		1-51415-107-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
12-LEAF ASM PART: J = 1-51410-193-0 		1-51415-193-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
5-LEAF ASM PART: K = 8-98096-766-1, L = 8-98202-919-0 		8-98099-136-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
10-LEAF ASM PART: A = 1-51310-466-1 		1-51316-466-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
9-LEAF ASM PART: B = 1-51310-483-0 		1-51316-483-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
11-LEAF ASM PART: C = 1-51310-662-0, H = 1-51410-184-0 		1-51316-662-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
12-LEAF ASM PART: D = 1-51310-690-0, G = 1-51410-183-0 		1-51316-690-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
12-LEAF ASM PART: E = 1-51310-726-0, I = 1-51410-185-0 		1-51316-726-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
12-LEAF ASM PART: F = 1-51410-107-0 		1-51416-107-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
12-LEAF ASM PART: J = 1-51410-193-0 		1-51416-193-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
10-LEAF ASM PART: A = 1-51310-466-1 		1-51317-466-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
9-LEAF ASM PART: B = 1-51310-483-0 		1-51317-483-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
11-LEAF ASM PART: C = 1-51310-662-0, H = 1-51410-184-0 		1-51317-662-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
12-LEAF ASM PART: D = 1-51310-690-0, G = 1-51410-183-0 		1-51317-690-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
12-LEAF ASM PART: E = 1-51310-726-0, I = 1-51410-185-0 		1-51317-726-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
12-LEAF ASM PART: F = 1-51410-107-0 		1-51417-107-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
12-LEAF ASM PART: J = 1-51410-193-0 		1-51417-193-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
10-LEAF ASM PART: A = 1-51310-466-1 		1-51318-466-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
9-LEAF ASM PART: B = 1-51310-483-0 		1-51318-483-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
11-LEAF ASM PART: C = 1-51310-662-0, H = 1-51410-184-0 		1-51318-662-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
12-LEAF ASM PART: D = 1-51310-690-0, G = 1-51410-183-0 		1-51318-690-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
12-LEAF ASM PART: E = 1-51310-726-0, I = 1-51410-185-0 		1-51318-726-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
12-LEAF ASM PART: F = 1-51410-107-0 		1-51418-107-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
12-LEAF ASM PART: J = 1-51410-193-0 		1-51418-193-0 01 1 -
10 SPRING; LEAF,NO 9,RR MAIN
10-LEAF ASM PART: A = 1-51310-466-1 		1-51319-466-0 01 1 -
10 SPRING; LEAF,NO 9,RR MAIN
9-LEAF ASM PART: B = 1-51310-483-0 		1-51319-483-0 01 1 -
10 SPRING; LEAF,NO 9,RR MAIN
11-LEAF ASM PART: C = 1-51310-662-0, H = 1-51410-184-0 		1-51319-662-0 01 1 -
10 SPRING; LEAF,NO 9,RR MAIN
12-LEAF ASM PART: D = 1-51310-690-0, G = 1-51410-183-0 		1-51319-690-0 01 1 -
10 SPRING; LEAF,NO 9,RR MAIN
12-LEAF ASM PART: E = 1-51310-726-0, I = 1-51410-185-0 		1-51319-726-0 01 1 -
10 SPRING; LEAF,NO 9,RR MAIN
12-LEAF ASM PART: F = 1-51410-107-0 		1-51419-107-0 01 1 -
10 SPRING; LEAF,NO 9,RR MAIN
12-LEAF ASM PART: J = 1-51410-193-0 		1-51419-193-0 01 1 -
11 SPRING; LEAF,NO 10,RR MAIN
12-LEAF ASM PART: E = 1-51310-726-0 		1-51320-726-0 01 1 -
11 SPRING; LEAF,NO 10,RR MAIN
10-LEAF ASM PART: A = 1-51310-466-1 		1-51321-466-0 01 1 -
11 SPRING; LEAF,NO 10,RR MAIN
11-LEAF ASM PART: C = 1-51310-662-0, H = 1-51410-184-0 		1-51321-662-0 01 1 -
11 SPRING; LEAF,NO 10,RR MAIN
12-LEAF ASM PART: D = 1-51310-690-0, G = 1-51410-183-0 		1-51321-690-0 01 1 -
11 SPRING; LEAF,NO 10,RR MAIN
12-LEAF ASM PART: I = 1-51410-185-0 		1-51321-726-0 01 1 -
11 SPRING; LEAF,NO 10,RR MAIN
12-LEAF ASM PART: J = 1-51410-193-0 		1-51420-193-0 01 1 -
11 SPRING; LEAF,NO 10,RR MAIN
12-LEAF ASM PART: F = 1-51410-107-0 		1-51421-107-0 01 1 -
12 SPRING; LEAF,NO 11,RR MAIN
12-LEAF ASM PART: E = 1-51310-726-0 		1-51321-726-0 01 1 -
12 SPRING; LEAF,NO 11,RR MAIN
11-LEAF ASM PART: C = 1-51310-662-0, H = 1-51410-184-0 		1-51322-662-0 01 1 -
12 SPRING; LEAF,NO 11,RR MAIN
12-LEAF ASM PART: D = 1-51310-690-0, G = 1-51410-183-0 		1-51322-690-0 01 1 -
12 SPRING; LEAF,NO 11,RR MAIN
12-LEAF ASM PART: I = 1-51410-185-0 		1-51322-726-0 01 1 -
12 SPRING; LEAF,NO 11,RR MAIN
12-LEAF ASM PART: J = 1-51410-193-0 		1-51421-193-0 01 1 -
12 SPRING; LEAF,NO 11,RR MAIN
12-LEAF ASM PART: F = 1-51410-107-0 		1-51422-107-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=190 ASM PART: E = 1-51310-726-0, I = 1-51410-185-0 		1-51156-229-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=180 ASM PART: J = 1-51410-193-0 		1-51156-394-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=180 ASM PART: F = 1-51410-107-0 		1-51356-198-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=175 ASM PART: C = 1-51310-662-0, H = 1-51410-184-0 		1-51356-205-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=180 ASM PART: D = 1-51310-690-0, G = 1-51410-183-0 		1-51356-210-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=150 ASM PART: K = 8-98096-766-1, L = 8-98202-919-0 		8-98098-336-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=145 ASM PART: A = 1-51310-466-1 		9-51356-202-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=140 ASM PART: B = 1-51310-483-0 		9-51356-603-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
M12 ASM PART: A = 1-51310-466-1, B = 1-51310-483-0, C = 1-51310-662-0, D = 1-51310-690-0, G = 1-51410-183-0, H = 1-51410-184-0 		9-99110-112-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
M12 ASM PART: E = 1-51310-726-0, F = 1-51410-107-0, I = 1-51410-185-0, J = 1-51410-193-0, K = 8-98096-766-1, L = 8-98202-919-0 		9-99110-512-0 01 1 -
36 BOLT; CLIP,LEAF SPR,RR
M10X97 ASM PART: E = 1-51310-726-0, I = 1-51410-185-0 		1-09000-294-0 04 1 -
36 BOLT; CLIP,LEAF SPR,RR
M10X99 ASM PART: C = 1-51310-662-0, D = 1-51310-690-0, G = 1-51410-183-0, H = 1-51410-184-0 		1-09000-328-0 04 1 -
36 BOLT; CLIP,LEAF SPR,RR
M10X117 ASM PART: J = 1-51410-193-0 		1-09000-334-0 04 1 -
36 BOLT; CLIP,LEAF SPR,RR
ASM PART: F = 1-51410-107-0 		1-09000-433-0 04 1 -
36 BOLT; CLIP,LEAF SPR,RR
M10X103 ASM PART: K = 8-98096-766-1, L = 8-98202-919-0 		1-09000-536-0 02 1 -
36 BOLT; CLIP,LEAF SPR,RR
ASM PART: A = 1-51310-466-1, B = 1-51310-483-0 		9-09801-233-0 03 1 -
38 BUSHING; LEAF SPR,RR
OD=38 ASM PART: C = 1-51310-662-0, D = 1-51310-690-0, E = 1-51310-726-0, K = 8-98096-766-1, L = 8-98202-919-0 		1-51351-009-0 02 1 -
38 BUSHING; LEAF SPR,RR
OD=38 ASM PART: G = 1-51410-183-0, H = 1-51410-184-0, I = 1-51410-185-0 		1-51351-030-0 02 1 -
38 BUSHING; LEAF SPR,RR
OD=38 ASM PART: F = 1-51410-107-0, J = 1-51410-193-0 		1-51351-031-0 02 1 -
38 BUSHING; LEAF SPR,RR
ASM PART: A = 1-51310-466-1, B = 1-51310-483-0 		9-51351-018-0 02 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
