4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#44773) — 50 parça

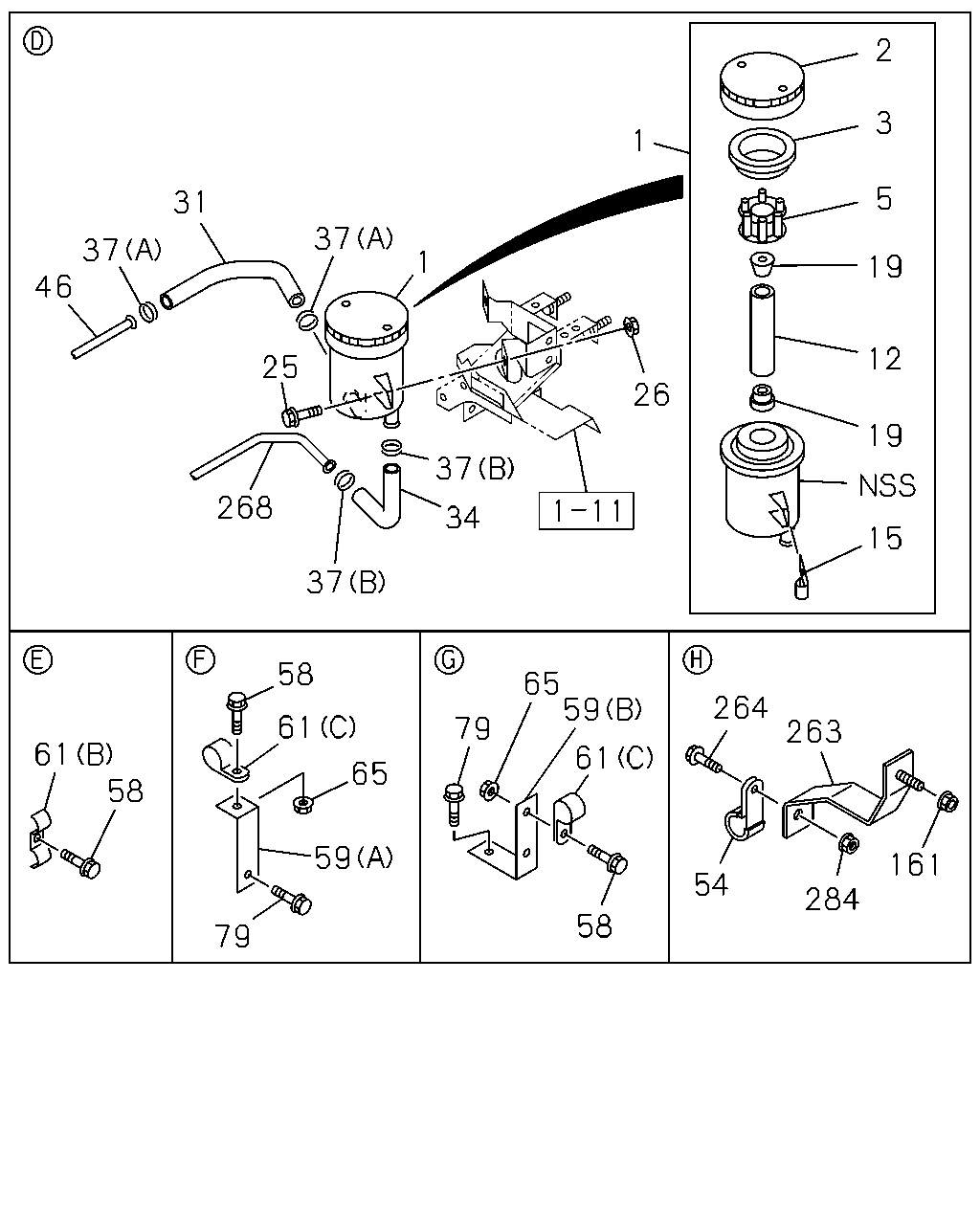

2 3 1 5 31 37 37 46 1 19 12 25 26 19 37 268 34 15 37 58 65 59 264 61 79 263 61 58 61 65 59 161 54 284 58 79

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	8-98166-928-0	01	1	1110-
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1110-
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	1110-
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	1110-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-011-0	01	1	1110-
15	PLATE; FILTER,OIL TANK	1-21249-016-0	02	1	1110-
19	SEAT; OIL TANK	1-21249-004-0	02	1	1110-
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28650-825-0	02	1	1110-
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	02	1	1110-
31	HOSE; P/S OIL TANK,INL	8-98092-730-0	01	1	1110-
34	HOSE; P/S OIL TANK,OUTLET	8-98021-827-0	01	1	1110-
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	1110-
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	1110-
46	PIPE; OIL,P/S UNIT TO OIL TANK EXC. CAB SUSPENSION FULL FLOATING<W16> L=1874	8-98126-456-0	01	1	1110-1404
46	PIPE; OIL,P/S UNIT TO OIL TANK CAB SUSPENSION FULL FLOATING<W16> L=1853	8-98151-041-0	01	1	1110-1404
46	PIPE; OIL,P/S UNIT TO OIL TANK L=1853	8-98151-041-0	01	1	1405-
54	CLIP; OIL PIPE ID=19 L=20	0-95235-836-0	01	1	1110-
58	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	02	1	1110-
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	1110-
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	1110-
59	BRACKET; CLIP,OIL PIPE (B)	8-98083-607-0	01	1	1110-
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	1110-
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1110-
61	CLIP; OIL PIPE CAB SUSPENSION FULL FLOATING<W16> (A) ID=12 & 15	1-09709-281-1	01	1	1110-1404
61	CLIP; OIL PIPE (A) ID=12 & 15	1-09709-281-1	01	1	1405-
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1110-
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	1110-
79	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	1110-
161	NUT; P/S PIPE M8 FLANGE	0-91180-108-0	01	1	1110-
263	BRACKET; P/S PIPE	8-98096-820-1	01	1	1110-
264	BOLT; PIPE BRKT M8X20 FLANGE	0-28650-820-0	01	1	1110-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-98154-047-0	01	1	1110-
284	NUT; PIPE M8 FLANGE	0-91180-108-0	01	1	1110-

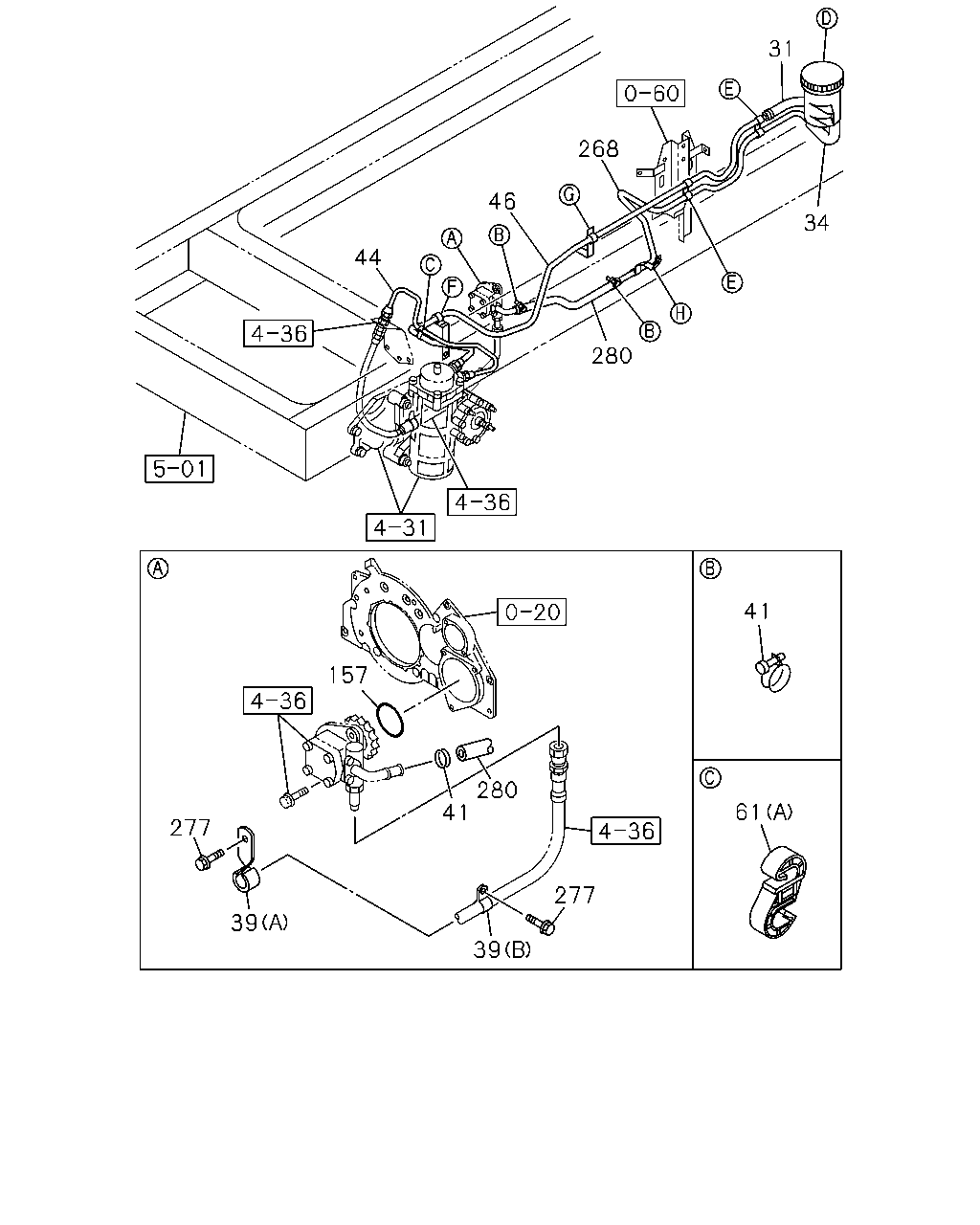

31 268 46 34 44 280 41 157 280 61 41 277 277 39 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	HOSE; P/S OIL TANK,INL	8-98092-730-0	01	1	1110-
34	HOSE; P/S OIL TANK,OUTLET	8-98021-827-0	01	1	1110-
39	CLIP; FLEX HOSE (A) ID=19 L=58	1-09700-733-1	01	1	1110-
39	CLIP; FLEX HOSE (B) ID=40	8-94226-553-0	01	1	1110-
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	1110-
44	PIPE; OIL,P/S UNIT TO NIPPLE	8-98079-653-1	01	1	1110-
46	PIPE; OIL,P/S UNIT TO OIL TANK EXC. CAB SUSPENSION FULL FLOATING<W16> L=1874	8-98126-456-0	01	1	1110-1404
46	PIPE; OIL,P/S UNIT TO OIL TANK CAB SUSPENSION FULL FLOATING<W16> L=1853	8-98151-041-0	01	1	1110-1404
46	PIPE; OIL,P/S UNIT TO OIL TANK L=1853	8-98151-041-0	01	1	1405-
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	1110-
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1110-
61	CLIP; OIL PIPE CAB SUSPENSION FULL FLOATING<W16> (A) ID=12 & 15	1-09709-281-1	01	1	1110-1404
61	CLIP; OIL PIPE (A) ID=12 & 15	1-09709-281-1	01	1	1405-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4	1-09623-467-0	01	1	1110-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-98154-047-0	01	1	1110-
277	BOLT; HOSE CLIP M8X16 FLANGE	0-28050-816-0	02	1	1110-
280	HOSE; P/S OIL PUMP,INL	8-98090-818-0	01	1	1110-
