◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LT ▶ 10676 - LT 111,112,132,133 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-61 - SHOCK ABSORBER; REAR SUSPENSION ▶
4-61 — SHOCK ABSORBER; REAR SUSPENSION (#4477) — 73 parça

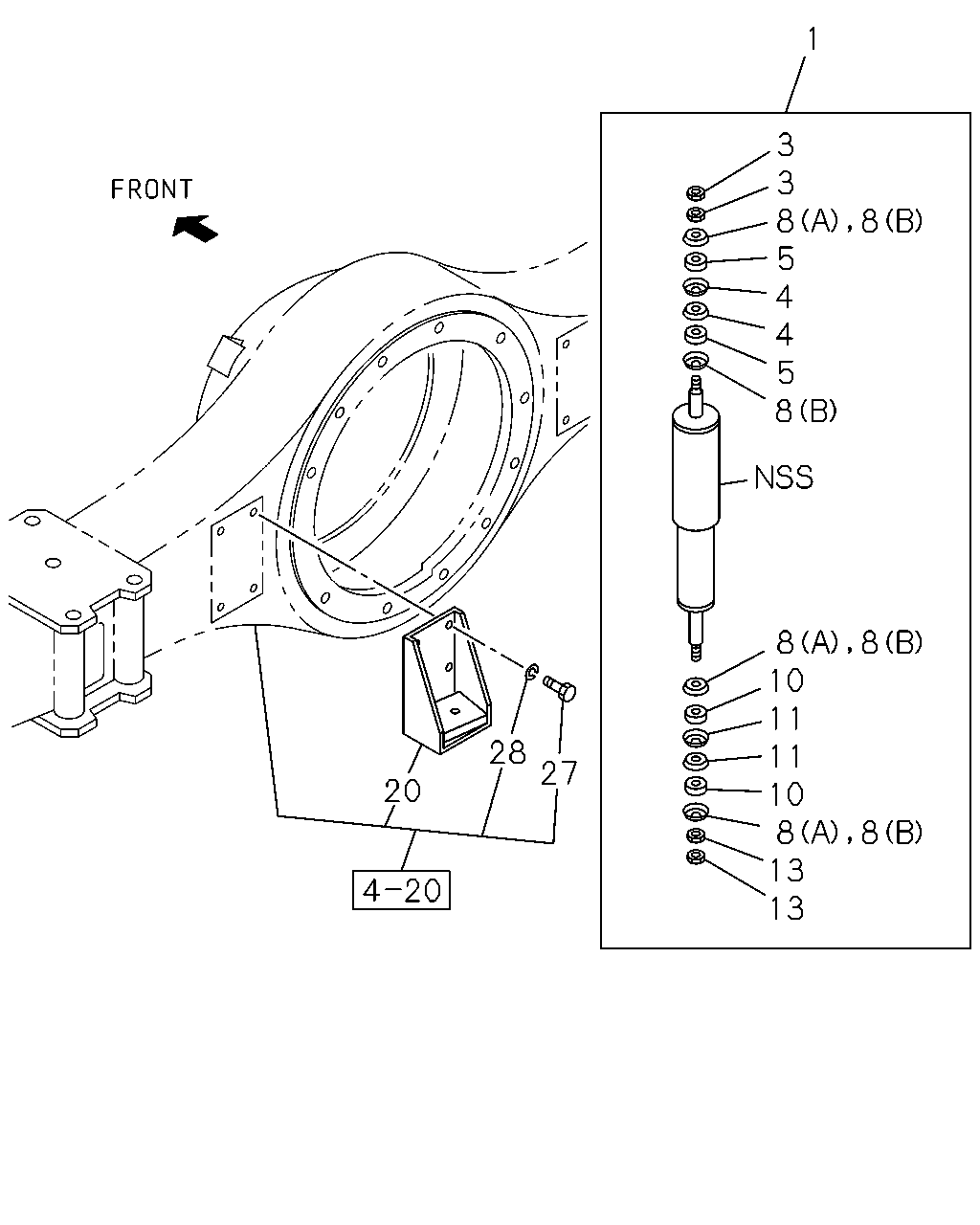

çizim 39036
1 3 3 8 5 4 4 5 8 8 8 10 11 11 10 8 13 13 8 28 27 20 8 4 20
BalonParca AdiParca NoAdetTipApplied Date A B
1 ABSORBER ASM; SHOCK,RR
TAPER LEAF SUSP RR<SAT> 		8-98073-532-0 02 1 0908- ● ●
1 ABSORBER ASM; SHOCK,RR 1-51630-195-2 02 1 9101-0907 ● ●
1 ABSORBER ASM; SHOCK,RR
EXC. TAPER LEAF SUSP RR<SAT> 		1-51630-195-2 02 1 0908- ● ●
3 NUT; S/ABS
M14 		9-99111-414-0 04 1 9101- ● ●
4 WASHER; CENTER,S/ABS
TAPER LEAF SUSP RR<SAT> ID=24 		1-51631-067-0 04 1 0908- ● ●
4 WASHER; CENTER,S/ABS
ID=20.8 		9-51631-041-0 04 1 9101-0907 ● ●
4 WASHER; CENTER,S/ABS
EXC. TAPER LEAF SUSP RR<SAT> ID=20.8 		9-51631-041-0 04 1 0908- ● ●
5 BUSHING; RUBBER,S/ABS,UPR
TAPER LEAF SUSP RR<SAT> ID=16 T=25 		1-51631-069-0 04 1 0908- ● ●
5 BUSHING; RUBBER,S/ABS,UPR 9-51631-039-0 04 1 9101-0907 ● ●
5 BUSHING; RUBBER,S/ABS,UPR
EXC. TAPER LEAF SUSP RR<SAT> 		9-51631-039-0 04 1 0908- ● ●
8 WASHER; S/ABS
TAPER LEAF SUSP RR<SAT> (B) ID=16.5 		1-51631-068-0 08 1 0908- ● ●
8 WASHER; S/ABS
(A) ID=16.5 		9-51631-040-0 06 1 9101-0907 ● ●
8 WASHER; S/ABS
EXC. TAPER LEAF SUSP RR<SAT> (A) ID=16.5 		9-51631-040-0 06 1 0908- ● ●
10 BUSHING; RUBBER,S/ABS
TAPER LEAF SUSP RR<SAT> ID=16 T=25 		1-51631-069-0 04 1 0908- ● ●
10 BUSHING; RUBBER,S/ABS 9-51631-039-0 04 1 9101-0907 ● ●
10 BUSHING; RUBBER,S/ABS
EXC. TAPER LEAF SUSP RR<SAT> 		9-51631-039-0 04 1 0908- ● ●
11 WASHER; CENTER,LWR,RR S/ABS
TAPER LEAF SUSP RR<SAT> ID=24 		1-51631-067-0 04 1 0908- ● ●
11 WASHER; CENTER,LWR,RR S/ABS
ID=20.8 		9-51631-041-0 04 1 9101-0907 ● ●
11 WASHER; CENTER,LWR,RR S/ABS
EXC. TAPER LEAF SUSP RR<SAT> ID=20.8 		9-51631-041-0 04 1 0908- ● ●
13 NUT; LWR,RR S/ABS
M14 		9-99111-414-0 04 1 9101- ● ●
20 BRACKET; LWR,S/ABS
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRT & RR SPR LONG SPAN<W55> 		1-42129-081-1 01 1 9101-9504 ● ●
20 BRACKET; LWR,S/ABS
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-42129-081-1 01 1 9505-9701 ● ●
20 BRACKET; LWR,S/ABS
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RR AXLE R105A<BBJ> 		1-42129-081-1 01 1 9702-0203 ● ●
20 BRACKET; LWR,S/ABS
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRT & RR SPR LONG SPAN<W55> 		1-42129-082-1 01 1 9101-9504 ● ●
20 BRACKET; LWR,S/ABS
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-42129-082-1 01 1 9505-9701 ● ●
20 BRACKET; LWR,S/ABS
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RR AXLE R105A<BBJ> 		1-42129-082-1 01 1 9702-0203 ● ●
20 BRACKET; LWR,S/ABS
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FRT & RR SPR LONG SPAN<W55> 		1-42129-094-0 01 1 9101-9504 ● ●
20 BRACKET; LWR,S/ABS
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FRT & RR SPR LONG SPAN<W55> 		1-42129-093-0 01 1 9101-9504 ● ●
20 BRACKET; LWR,S/ABS
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRT & RR SPR LONG SPAN<W55> 		1-42129-095-0 01 1 9101-9504 ● ●
20 BRACKET; LWR,S/ABS
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-42129-095-0 01 1 9505-9605 ● ●
20 BRACKET; LWR,S/ABS
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRK SYSTEM HEAVY DUTY<J55> 		1-42129-095-0 01 1 9606-9706 ● ●
20 BRACKET; LWR,S/ABS
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. P60W PROP SHAFT<B5M>,BRK SYSTEM HEAVY DUTY<J55> 		1-42129-095-0 01 1 9707-9802 ● ●
20 BRACKET; LWR,S/ABS
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-42129-095-0 01 1 9803-9808 ● ●
20 BRACKET; LWR,S/ABS
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRK SYSTEM HEAVY DUTY<J55> 		1-42129-095-0 01 1 9809-0203 ● ●
20 BRACKET; LWR,S/ABS
EXC. BRK SYSTEM HEAVY DUTY<J55> 		1-42129-095-0 01 1 0204-0705 ● ●
20 BRACKET; LWR,S/ABS
EXC. BRK SYSTEM HEAVY DUTY<J55> 		1-42129-095-0 01 1 0706- ●
20 BRACKET; LWR,S/ABS
EXC. BRK SYSTEM HEAVY DUTY<J55>,PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> 		1-42129-095-0 01 1 0706- ●
20 BRACKET; LWR,S/ABS
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRT & RR SPR LONG SPAN<W55> 		1-42129-096-0 01 1 9101-9504 ● ●
20 BRACKET; LWR,S/ABS
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-42129-096-0 01 1 9505-9605 ● ●
20 BRACKET; LWR,S/ABS
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRK SYSTEM HEAVY DUTY<J55> 		1-42129-096-0 01 1 9606-9706 ● ●
20 BRACKET; LWR,S/ABS
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. P60W PROP SHAFT<B5M>,BRK SYSTEM HEAVY DUTY<J55> 		1-42129-096-0 01 1 9707-9802 ● ●
20 BRACKET; LWR,S/ABS
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-42129-096-0 01 1 9803-9808 ● ●
20 BRACKET; LWR,S/ABS
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRK SYSTEM HEAVY DUTY<J55> 		1-42129-096-0 01 1 9809-0203 ● ●
20 BRACKET; LWR,S/ABS
EXC. BRK SYSTEM HEAVY DUTY<J55> 		1-42129-096-0 01 1 0204-0705 ● ●
20 BRACKET; LWR,S/ABS
EXC. BRK SYSTEM HEAVY DUTY<J55> 		1-42129-096-0 01 1 0706- ●
20 BRACKET; LWR,S/ABS
EXC. BRK SYSTEM HEAVY DUTY<J55>,PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> 		1-42129-096-0 01 1 0706- ●
20 BRACKET; LWR,S/ABS
BRK SYSTEM HEAVY DUTY<J55> 		1-42129-113-0 01 1 9606-9708 ● ●
20 BRACKET; LWR,S/ABS
BRK SYSTEM HEAVY DUTY<J55> EXC. P60W PROP SHAFT<B5M> 		1-42129-113-0 01 1 9709-9805 ● ●
20 BRACKET; LWR,S/ABS
P60W PROP SHAFT<B5M> 		1-42129-113-0 01 1 9709-9805 ●
20 BRACKET; LWR,S/ABS
BRK SYSTEM HEAVY DUTY<J55> 		1-42129-113-0 01 1 9806-9808 ● ●
20 BRACKET; LWR,S/ABS
BRK SYSTEM HEAVY DUTY<J55> 		1-42129-113-0 01 1 9809-9810 ● ●
20 BRACKET; LWR,S/ABS
BRK SYSTEM HEAVY DUTY<J55> 		1-42129-113-0 01 1 9811-9812 ● ●
20 BRACKET; LWR,S/ABS
BRK SYSTEM HEAVY DUTY<J55> 		1-42129-113-0 01 1 9901-0203 ● ●
20 BRACKET; LWR,S/ABS
BRK SYSTEM HEAVY DUTY<J55> 		1-42129-113-0 01 1 0204-0705 ● ●
20 BRACKET; LWR,S/ABS
BRK SYSTEM HEAVY DUTY<J55> 		1-42129-113-0 01 1 0706- ●
20 BRACKET; LWR,S/ABS
BRK SYSTEM HEAVY DUTY<J55> EXC. PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> 		1-42129-113-0 01 1 0706- ●
20 BRACKET; LWR,S/ABS
PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> 		1-42129-113-0 01 1 0706- ●
20 BRACKET; LWR,S/ABS
BRK SYSTEM HEAVY DUTY<J55> 		1-42129-114-0 01 1 9606-9708 ● ●
20 BRACKET; LWR,S/ABS
BRK SYSTEM HEAVY DUTY<J55> EXC. P60W PROP SHAFT<B5M> 		1-42129-114-0 01 1 9709-9805 ● ●
20 BRACKET; LWR,S/ABS
P60W PROP SHAFT<B5M> 		1-42129-114-0 01 1 9709-9805 ●
20 BRACKET; LWR,S/ABS
BRK SYSTEM HEAVY DUTY<J55> 		1-42129-114-0 01 1 9806-9808 ● ●
20 BRACKET; LWR,S/ABS
BRK SYSTEM HEAVY DUTY<J55> 		1-42129-114-0 01 1 9809-9810 ● ●
20 BRACKET; LWR,S/ABS
BRK SYSTEM HEAVY DUTY<J55> 		1-42129-114-0 01 1 9811-9812 ● ●
20 BRACKET; LWR,S/ABS
BRK SYSTEM HEAVY DUTY<J55> 		1-42129-114-0 01 1 9901-0203 ● ●
20 BRACKET; LWR,S/ABS
BRK SYSTEM HEAVY DUTY<J55> 		1-42129-114-0 01 1 0204-0705 ● ●
20 BRACKET; LWR,S/ABS
BRK SYSTEM HEAVY DUTY<J55> 		1-42129-114-0 01 1 0706- ●
20 BRACKET; LWR,S/ABS
BRK SYSTEM HEAVY DUTY<J55> EXC. PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> 		1-42129-114-0 01 1 0706- ●
20 BRACKET; LWR,S/ABS
PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> 		1-42129-114-0 01 1 0706- ●
20 BRACKET; LWR,S/ABS
FINAL GEAR 43/7 15.5" HYPOID(W1R) MT643 A/T ALLISON(PR7) DISC WHEEL 10STUD 22.5X8.25 165-13<QM8>,DISC WHEEL10STUD 20X7.00T<Q58>,DISC WHEEL 10STUD 20X7.50V 165-12<Q64> FRT & RR SPR LONG SPAN<W55> 		1-42129-113-0 01 1 9101-9504 ● ●
20 BRACKET; LWR,S/ABS
FINAL GEAR 43/7 15.5" HYPOID(W1R) MT643 A/T ALLISON(PR7) DISC WHEEL 10STUD 22.5X8.25 165-13<QM8>,DISC WHEEL10STUD 20X7.00T<Q58>,DISC WHEEL 10STUD 20X7.50V 165-12<Q64> FRT & RR SPR LONG SPAN<W55> 		1-42129-114-0 01 1 9101-9504 ● ●
27 BOLT; ABSORBER BRKT
M14X25 		0-20801-425-0 08 1 9101- ● ●
28 WASHER; LK,ABSORBER BRKT
ID=14.2 		9-09150-614-0 08 1 9101-0603 ● ●
28 WASHER; LK,ABSORBER BRKT
ID=14.2 		0-91510-614-0 08 1 0604- ● ●
