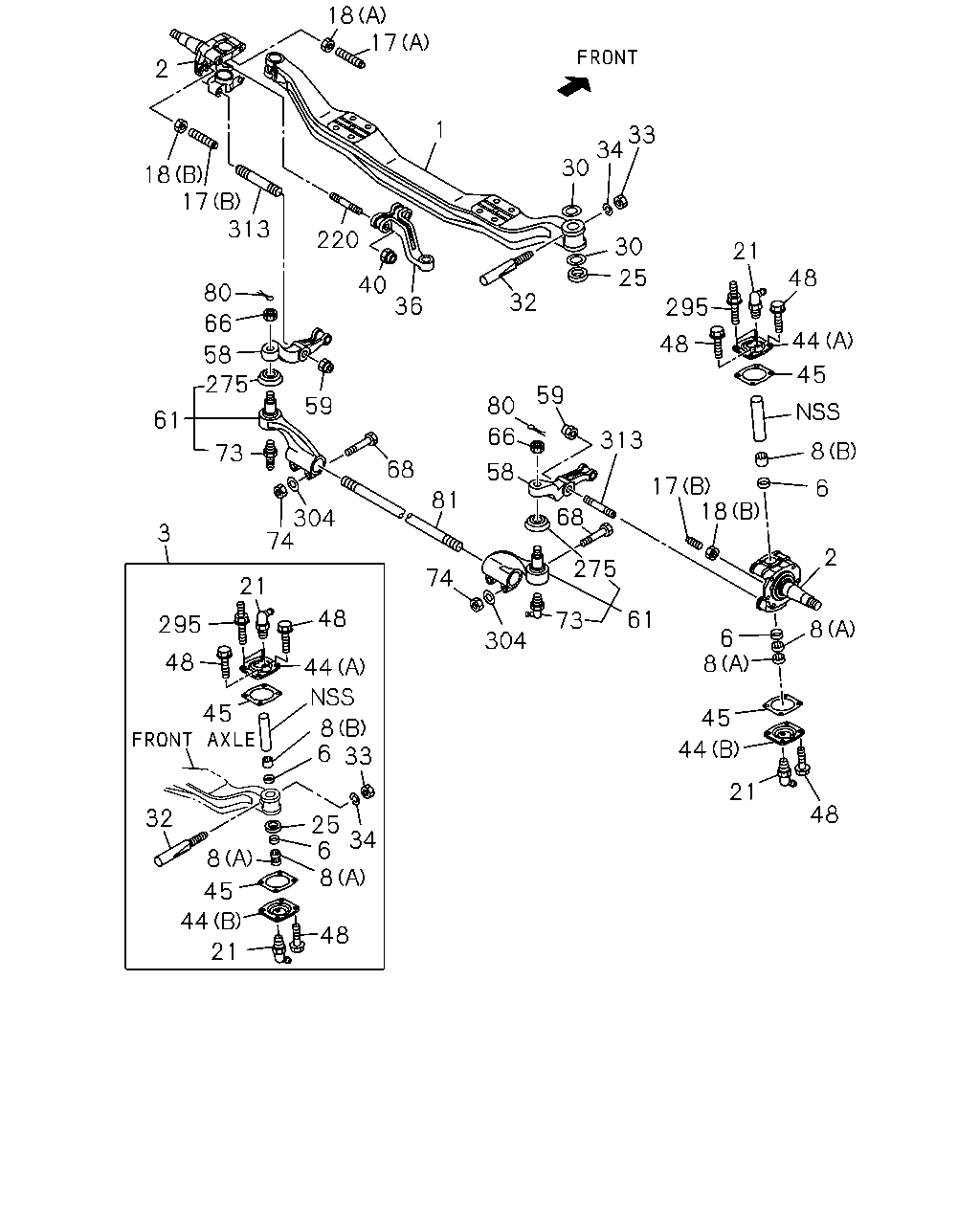

1 |
AXLE; FRT
|
8-98170-180-2 |
01 |
1 |
1110- |
| |
2 |
KNUCKLE; FRT AXLE
|
1-43131-120-1 |
01 |
1 |
1110- |
| |
2 |
KNUCKLE; FRT AXLE
|
1-43132-120-1 |
01 |
1 |
1110- |
| |
3 |
KING PIN SET
|
1-87831-410-2 |
02 |
1 |
1110- |
| |
6 |
SEAL; KING PIN
|
9-09926-024-0 |
04 |
1 |
1110- |
| |
8 |
BEARING; NEEDLE,KING PIN
(A)
NTN
|
9-00096-242-0 |
04 |
1 |
1110- |
| |
8 |
BEARING; NEEDLE,KING PIN
(B)
NTN
|
9-00096-243-0 |
02 |
1 |
1110- |
| |
17 |
BOLT; STOPPER KNUCKLE
(A)
M18X53
|
1-09009-066-0 |
01 |
1 |
1110- |
| |
17 |
BOLT; STOPPER KNUCKLE
(B)
M18X43
|
1-09009-190-0 |
02 |
1 |
1110- |
| |
18 |
NUT; STOPPER BOLT,KNUCKLE
(B)
M18
|
0-91110-518-0 |
02 |
1 |
1110- |
| |
18 |
NUT; STOPPER BOLT,KNUCKLE
(A) OCTAGON
M18
|
1-09469-011-1 |
01 |
1 |
1110- |
| |
21 |
NIPPLE; GREASE,KING PIN
PT1/8 ELBOW 67.5 DEGREES
|
0-90301-510-0 |
04 |
1 |
1110- |
| |
25 |
BEARING; THRUST,KING PIN
NSK
|
1-09829-043-2 |
02 |
1 |
1110- |
| |
30 |
WASHER; THRUST,KING PIN
T=4.875 -4.900
|
1-43171-185-0 |
AR |
1 |
1110- |
| |
30 |
WASHER; THRUST,KING PIN
T=4.900 -4.925
|
1-43171-186-0 |
AR |
1 |
1110- |
| |
30 |
WASHER; THRUST,KING PIN
T=4.925 -4.950
|
1-43171-187-0 |
AR |
1 |
1110- |
| |
30 |
WASHER; THRUST,KING PIN
T=4.950 -4.975
|
1-43171-188-0 |
AR |
1 |
1110- |
| |
30 |
WASHER; THRUST,KING PIN
T=4.975 -5.000
|
1-43171-189-0 |
AR |
1 |
1110- |
| |
30 |
WASHER; THRUST,KING PIN
T=5.000 -5.025
|
1-43171-190-0 |
AR |
1 |
1110- |
| |
30 |
WASHER; THRUST,KING PIN
T=5.025 -5.050
|
1-43171-191-0 |
AR |
1 |
1110- |
| |
30 |
WASHER; THRUST,KING PIN
T=5.050 -5.075
|
1-43171-192-0 |
AR |
1 |
1110- |
| |
30 |
WASHER; THRUST,KING PIN
T=5.075 -5.100
|
1-43171-193-0 |
AR |
1 |
1110- |
| |
30 |
WASHER; THRUST,KING PIN
T=5.100 -5.125
|
1-43171-194-0 |
AR |
1 |
1110- |
| |
30 |
WASHER; THRUST,KING PIN
T=5.125 -5.150
|
1-43171-195-0 |
AR |
1 |
1110- |
| |
30 |
WASHER; THRUST,KING PIN
T=5.150 -5.175
|
1-43171-196-0 |
AR |
1 |
1110- |
| |
30 |
WASHER; THRUST,KING PIN
T=5.175 -5.200
|
1-43171-197-0 |
AR |
1 |
1110- |
| |
30 |
WASHER; THRUST,KING PIN
T=5.200 -5.225
|
1-43171-198-0 |
AR |
1 |
1110- |
| |
30 |
WASHER; THRUST,KING PIN
T=5.225 -5.250
|
1-43171-199-0 |
AR |
1 |
1110- |
| |
32 |
BOLT; KEY,KING PIN
|
1-43116-002-2 |
02 |
1 |
1110- |
| |
33 |
NUT; KEY BOLT
M10
|
0-91110-510-0 |
02 |
1 |
1110- |
| |
34 |
WASHER; LK,KEY BOLT
ID=10.2
|
0-91510-810-0 |
02 |
1 |
1110-1302 |
| |
34 |
WASHER; LK,KEY BOLT
ID=10.2
|
0-91510-510-0 |
02 |
1 |
1303- |
| |
36 |
ARM; KNUCKLE
|
1-43133-073-3 |
01 |
1 |
1110- |
| |
40 |
NUT; KNUCKLE ARM
M22
|
1-09449-084-0 |
02 |
1 |
1110- |
| |
44 |
COVER; KING PIN
(A)
|
8-98100-654-0 |
02 |
1 |
1110- |
| |
44 |
COVER; KING PIN
(B)
|
8-98100-655-0 |
02 |
1 |
1110- |
| |
45 |
GASKET; KING PIN COVER
|
8-98100-656-1 |
04 |
1 |
1110- |
| |
48 |
BOLT; COVER
M10X25 FLANGE
|
0-28751-025-0 |
12 |
1 |
1110- |
| |
58 |
ARM; TIE ROD
|
1-43134-049-4 |
01 |
1 |
1110- |
| |
58 |
ARM; TIE ROD
|
1-43135-049-4 |
01 |
1 |
1110- |
| |
59 |
NUT; TIE ROD ARM
M22
|
1-09449-084-0 |
04 |
1 |
1110- |
| |
61 |
ROD END; TIE ROD
|
8-98096-753-0 |
01 |
1 |
1110-1306 |
| |
61 |
ROD END; TIE ROD
|
8-98228-106-0 |
01 |
1 |
1307- |
| |
61 |
ROD END; TIE ROD
|
8-98096-754-0 |
01 |
1 |
1110-1306 |
| |
61 |
ROD END; TIE ROD
|
8-98228-107-0 |
01 |
1 |
1307- |
| |
66 |
NUT; TIE ROD END
M24
|
1-09442-032-0 |
02 |
1 |
1110- |
| |
68 |
BOLT; TIE ROD END
M12X65
|
8-98053-922-0 |
04 |
1 |
1110- |
| |
73 |
NIPPLE; GREASE,TIE ROD END
|
1-43159-133-0 |
02 |
1 |
1110- |
| |
74 |
NUT; TIE ROD END
M12
|
0-91110-512-0 |
04 |
1 |
1110- |
| |
80 |
PIN; SPLIT,ROD END
OD=4.6 L=35
|
0-81125-035-0 |
02 |
1 |
1110- |
| |
81 |
ROD; TIE
|
8-98171-947-0 |
01 |
1 |
1110- |
| |
220 |
STUD; KNUCKLE ARM
M22X145
|
1-09300-127-1 |
02 |
1 |
1110- |
| |
275 |
BOOT; ROD END,TIE
|
1-43159-131-0 |
02 |
1 |
1110-1306 |
| |
275 |
BOOT; ROD END,TIE
|
8-98229-116-0 |
02 |
1 |
1307- |
| |
295 |
STUD; COVER,KING PIN
M10X20,M10X26 L=56
|
8-98010-334-0 |
04 |
1 |
1110- |
| |
304 |
WASHER; PL
ID=12.5
|
0-91614-512-0 |
04 |
1 |
1110- |
| |
313 |
STUD; TIE ROD ARM
M22X145
|
1-09300-127-1 |
04 |
1 |
1110- |
