◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11439 - FVR(IRAN) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#44765) — 47 parça

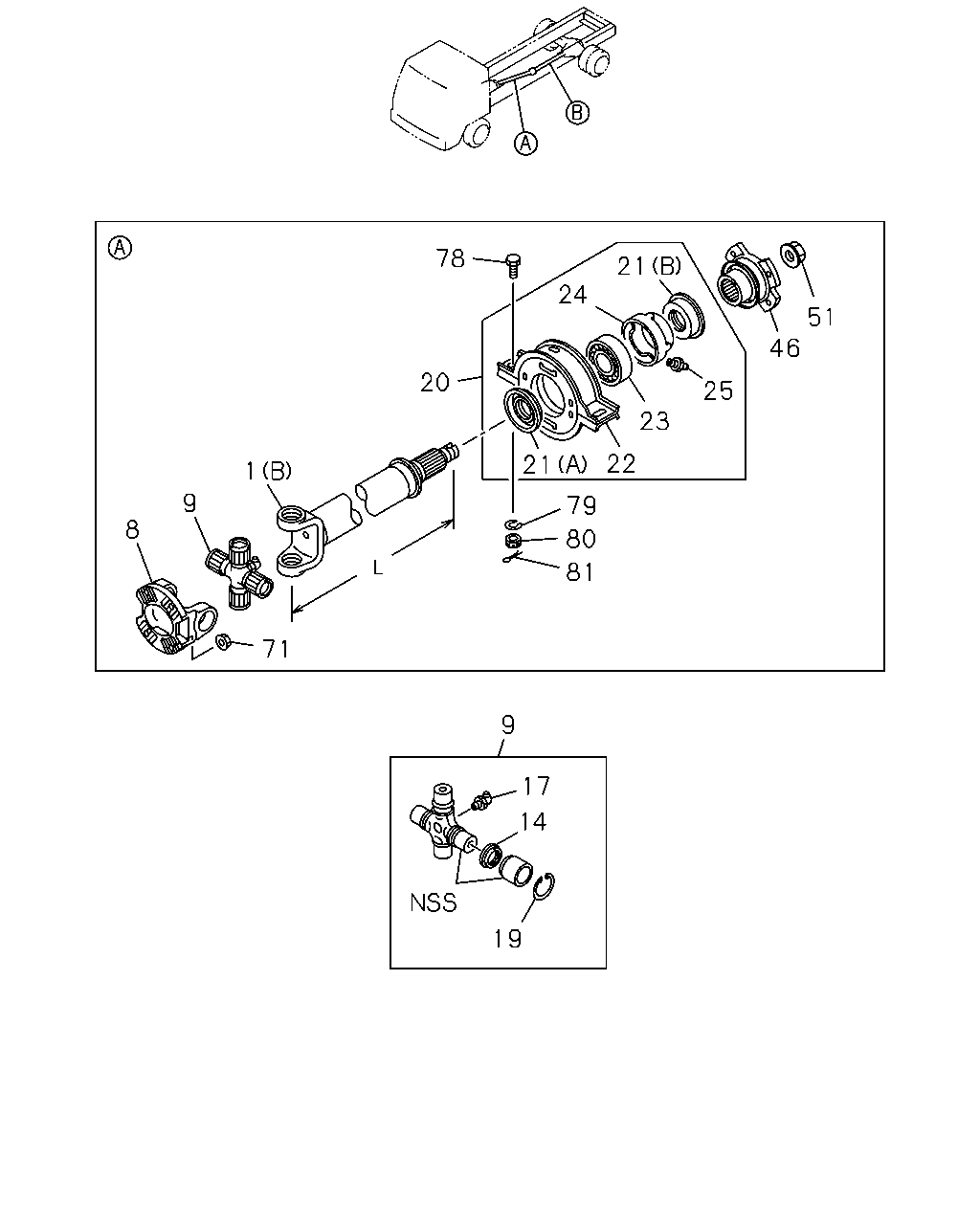

çizim 113580
78 21 24 51 46 20 25 23 22 21 1 9 79 8 80 81 71 9 17 14 19
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; PROP
(A) L=944 		1-37124-614-1 01 1 1110-
1 SHAFT; PROP
(B) L=1300 		8-98131-916-1 01 1 1110-
8 YOKE; FLANGE,PROP SHAFT 1-37211-079-1 01 1 1110-
8 YOKE; FLANGE,PROP SHAFT 1-37211-079-1 02 1 1110-
9 JOURNAL ASM; PROP SHAFT
NIPPLE 67.5 		1-37300-110-0 02 1 1110-
9 JOURNAL ASM; PROP SHAFT
NIPPLE 90 		1-37300-111-0 01 1 1110-1505
9 JOURNAL ASM; PROP SHAFT 1-37300-110-0 01 1 1506-
14 COVER; DUST,SPIDER 1-37249-131-0 04 1 1110-
14 COVER; DUST,SPIDER 1-37249-131-0 08 1 1110-
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1110-
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1110-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-102-1 04 1 1110-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-102-1 08 1 1110-
20 BEARING ASM; CTR,PROP SHAFT
ID=60 		1-37510-115-0 01 1 1110-
21 SEAL; OIL,CENTER BRG
(A) D=120 		1-09625-127-0 01 1 1110-
21 SEAL; OIL,CENTER BRG
(B) 		1-09625-621-0 01 1 1110-
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-048-2 01 1 1110-
23 BEARING; CENTER,PROP SHAFT 9-00090-256-0 01 1 1110-
24 RETAINER; CENTER BRG,1ST 1-37529-109-0 01 1 1110-
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1110-
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-348-0 01 1 1110-
51 NUT; FLANGE,SPLINED
M39 FLANGE 		1-09440-046-0 01 1 1110-
71 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 1110-
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
M16X45 		1-09042-030-0 02 1 1110-
79 WASHER; PL,HOLDER SET,CENTER BRG
ID=17 		1-09503-241-1 02 1 1110-
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		0-91116-516-0 02 1 1110-1204
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		8-98049-689-0 02 1 1205-
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		0-81124-025-0 02 1 1110-
çizim 113589
74 56 9 1 8 128 225 104 9 8 106 74 56 9 17 14 19
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; PROP
(A) L=944 		1-37124-614-1 01 1 1110-
1 SHAFT; PROP
(B) L=1300 		8-98131-916-1 01 1 1110-
8 YOKE; FLANGE,PROP SHAFT 1-37211-079-1 01 1 1110-
8 YOKE; FLANGE,PROP SHAFT 1-37211-079-1 02 1 1110-
9 JOURNAL ASM; PROP SHAFT
NIPPLE 67.5 		1-37300-110-0 02 1 1110-
9 JOURNAL ASM; PROP SHAFT
NIPPLE 90 		1-37300-111-0 01 1 1110-1505
9 JOURNAL ASM; PROP SHAFT 1-37300-110-0 01 1 1506-
14 COVER; DUST,SPIDER 1-37249-131-0 04 1 1110-
14 COVER; DUST,SPIDER 1-37249-131-0 08 1 1110-
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1110-
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1110-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-102-1 04 1 1110-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-102-1 08 1 1110-
56 NUT; YOKE
M14 FLANGE 		8-97365-444-0 08 1 1110-
74 BOLT; YOKE,TRANS
M14X50 		1-09000-645-0 08 1 1110-
104 PLUG; SLEEVE YOKE 1-09600-067-0 01 1 1110-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 1110-
128 SEAL; SLEEVE 1-37247-019-0 01 1 1110-
225 YOKE; SLEEVE,PROP SHAFT
L=330 		1-37241-124-0 01 1 1110-
