Isuzu WW
▶
TRUCKS
▶
FVR
▶
11439 - FVR(IRAN)
▶
3 - Brakes, Brake System
▶
3-75 - BRAKE PIPING; AIR,FRONT
▶
3-75 — BRAKE PIPING; AIR,FRONT
(#44762) — 49 parça
◀

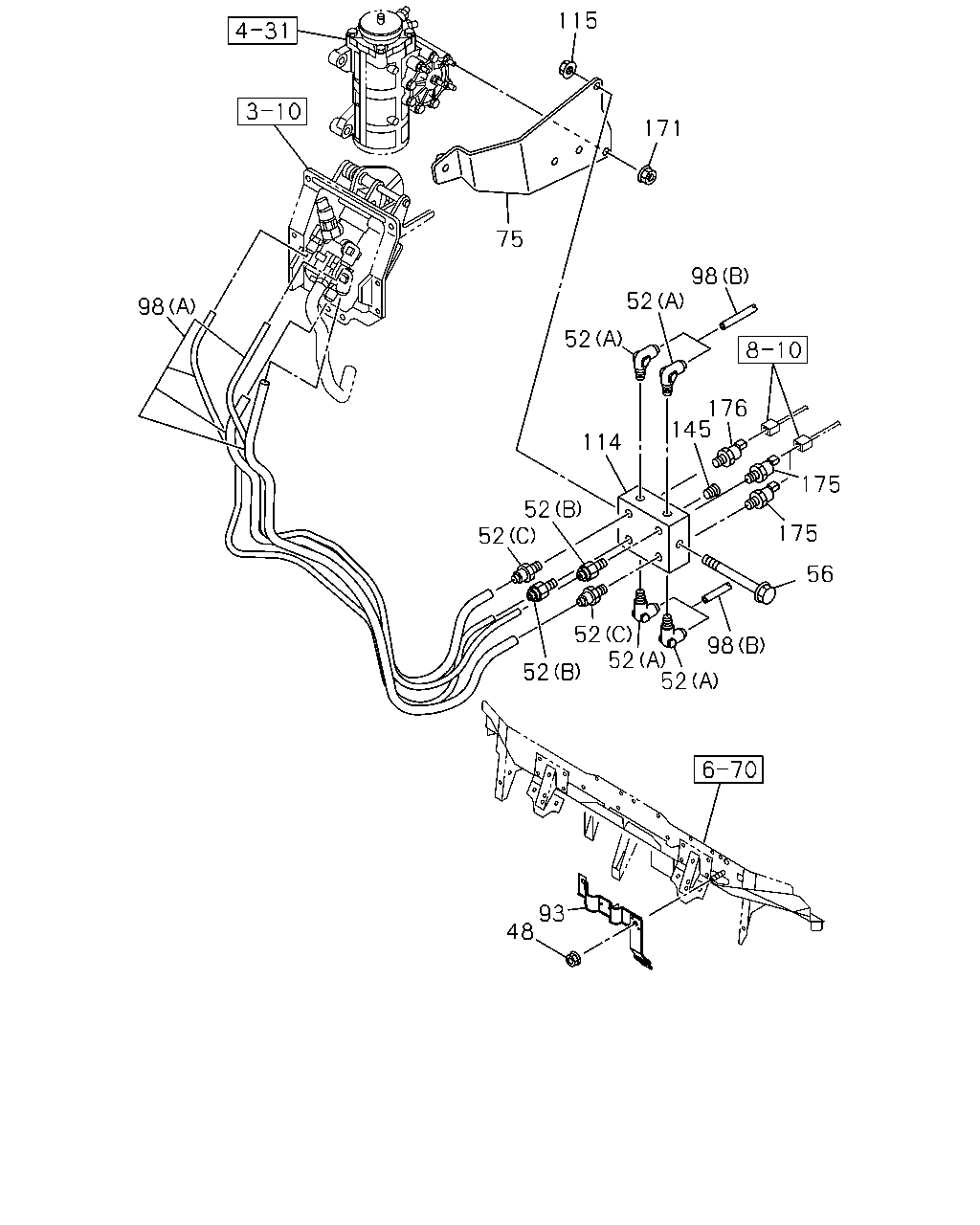

[375A] CAB UNDER (21 parça)

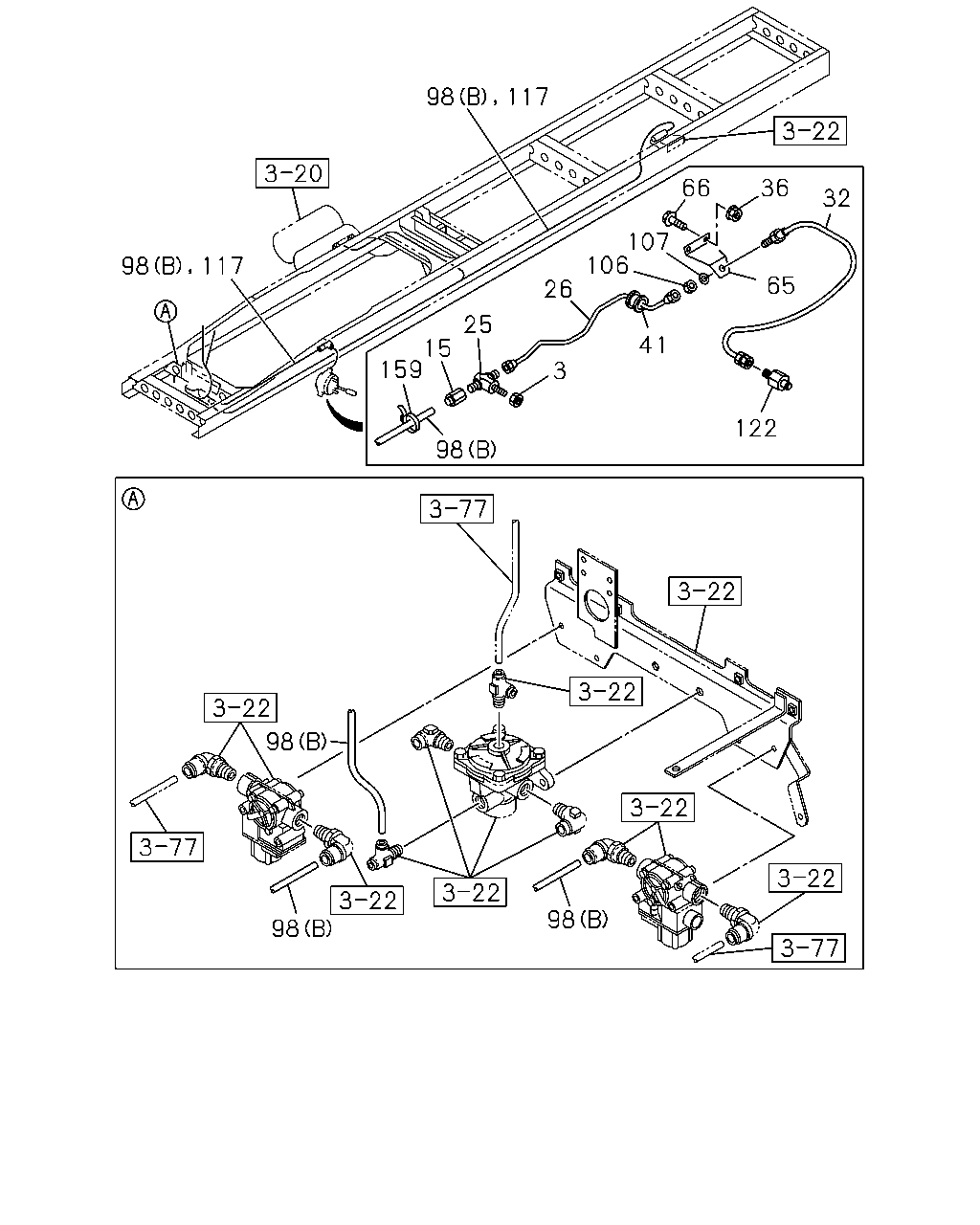

[375A] FRAME SIDE (28 parça)
▶
115
171
75
98
52
98
52
176
145
114
175
52
52
175
56
52
52
98
52
52
93
48
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
48
NUT; UNION BRKT
M6 FLANGE
0-91180-106-0
02
1
1110-
52
CONNECTOR; NYLON TUBE
(A) DIN8 & R1/4 ELBOW
1-09660-956-0
04
1
1110-
52
CONNECTOR; NYLON TUBE
(B) DIN8 R1/4 STRAIGHT
1-09660-963-0
02
1
1110-
52
CONNECTOR; NYLON TUBE
(C) DIN12 & R1/4 STRAIGHT
1-09660-967-0
02
1
1110-
56
BOLT; UNION BRKT
M8X100 FLANGE
0-28050-800-0
01
1
1110-
75
BRACKET; UNION
8-98126-944-0
01
1
1110-
93
BRACKET; UNION,TUBE
8-98112-515-1
01
1
1110-
98
TUBE; NYLON
CAB SUSPENSION SEMI FLOATING<SDK> (A)
8-98146-119-0
01
1
1110-1404
98
TUBE; NYLON
CAB SUSPENSION FULL FLOATING<W16> (A)
8-98141-345-0
01
1
1110-1404
98
TUBE; NYLON
(A)
8-98141-345-0
01
1
1405-
98
TUBE; NYLON
(B) SERVICED BY L=4000 OD=6
1-87411-002-0
AR
1
1110-
98
TUBE; NYLON
(B) SERVICED BY L=2000 OD=8
1-87411-006-0
AR
1
1110-
98
TUBE; NYLON
(B) SERVICED BY L=8000 OD=8
1-87411-009-0
AR
1
1110-
98
TUBE; NYLON
(B) SERVICED BY L=8000 OD=12
1-87411-014-0
AR
1
1110-
98
TUBE; NYLON
(B) SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
1110-
114
UNION; NYLON TUBE
8-98057-394-1
01
1
1110-
115
NUT; TUBE UNION
M8 FLANGE
0-91180-108-0
01
1
1110-
145
PLUG
PT1/4
9-99204-513-0
01
1
1110-
171
NUT; BRACKET
M10 FLANGE
0-91180-210-0
02
1
1110-
175
SENSOR; AIR PRESS
THREAD R1/4
1-80220-023-1
02
1
1110-
176
SWITCH; AIR PRESS
STAMP 0.3
8-98010-857-0
01
1
1110-
98
117
66
36
32
107
106
98
117
65
26
25
41
15
159
3
122
98
98
98
98
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
NUT; PIPE UNION
M12
0-91111-512-0
02
1
1110-
15
CONNECTOR; AIR PIPE
DIN12 & M16 STRAIGHT
1-09660-876-0
02
1
1110-
25
UNION; AIR PIPE
M16X2 2WAY ELBOW
1-09654-148-1
02
1
1110-
26
PIPE; AIR,UNION TO FLEX HOSE
L=500
8-98091-274-1
01
1
1110-
26
PIPE; AIR,UNION TO FLEX HOSE
L=657
8-98126-150-1
01
1
1110-
32
HOSE; FLEX,FRT
8-98090-844-0
02
1
1110-
36
NUT; HOSE BRKT
M8 FLANGE
0-91180-108-0
04
1
1110-
41
GROMMET; AIR PIPE
ID=28 OD=35 T=25
1-09332-011-1
02
1
1110-
65
BRACKET; FLEX HOSE
1-47476-210-0
01
1
1110-
65
BRACKET; FLEX HOSE
1-47476-211-0
01
1
1110-
66
BOLT; HOSE BRKT
M8X25 FLANGE
0-28650-825-0
04
1
1110-
98
TUBE; NYLON
CAB SUSPENSION SEMI FLOATING<SDK> (A)
8-98146-119-0
01
1
1110-1404
98
TUBE; NYLON
CAB SUSPENSION FULL FLOATING<W16> (A)
8-98141-345-0
01
1
1110-1404
98
TUBE; NYLON
(A)
8-98141-345-0
01
1
1405-
98
TUBE; NYLON
(B) SERVICED BY L=4000 OD=6
1-87411-002-0
AR
1
1110-
98
TUBE; NYLON
(B) SERVICED BY L=2000 OD=8
1-87411-006-0
AR
1
1110-
98
TUBE; NYLON
(B) SERVICED BY L=8000 OD=8
1-87411-009-0
AR
1
1110-
98
TUBE; NYLON
(B) SERVICED BY L=8000 OD=12
1-87411-014-0
AR
1
1110-
98
TUBE; NYLON
(B) SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
1110-
106
NUT; FLEX HOSE
M16
0-91111-516-0
02
1
1110-
107
WASHER; LK,FLEX HOSE
ID=16.2
0-91510-816-0
02
1
1110-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=15
1-87411-025-0
AR
1
1110-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=19
1-87411-027-0
AR
1
1110-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=22
1-87411-029-0
AR
1
1110-
117
TUBE; CORRUGATE
SERVICED BY L=4000 ID=28
1-87411-034-0
AR
1
1110-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=13
1-87411-022-0
AR
1
1110-
122
CONNECTOR; FLEX HOSE
M16 & PT3/8 STRAIGHT
1-09650-179-1
02
1
1110-
159
CLIP; NYLON TUBE
L=350
1-09707-183-0
02
1
1110-
