◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11439 - FVR(IRAN) ▶ 3 - Brakes, Brake System ▶ 3-46 - AIR DRYER ▶
3-46 — AIR DRYER (#44758) — 28 parça

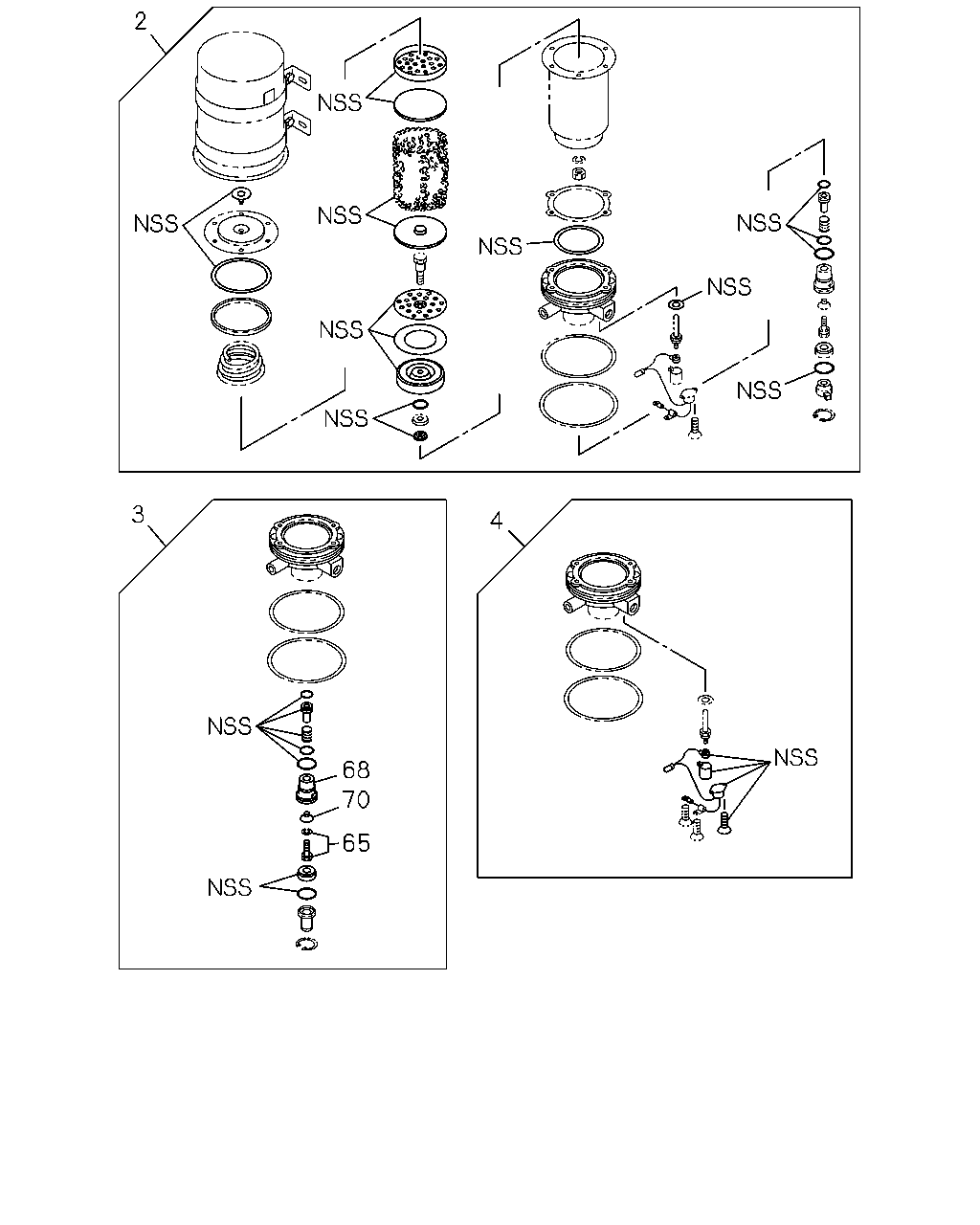

çizim 113575
2 3 4 68 70 65
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; AIR DRYER 1-85576-226-0 01 1 1110-
3 PISTON KIT; AIR DRYER 1-85576-057-1 01 1 1110-
4 THERMOSTAT KIT; AIR DRYER 1-85576-254-0 01 1 1110-
65 BOLT; PURGE VLV 1-48199-393-0 01 1 1110-
68 BODY; VALVE 1-48199-216-0 01 1 1110-
70 VALVE; AIR DRYER 1-48199-105-0 01 1 1110-

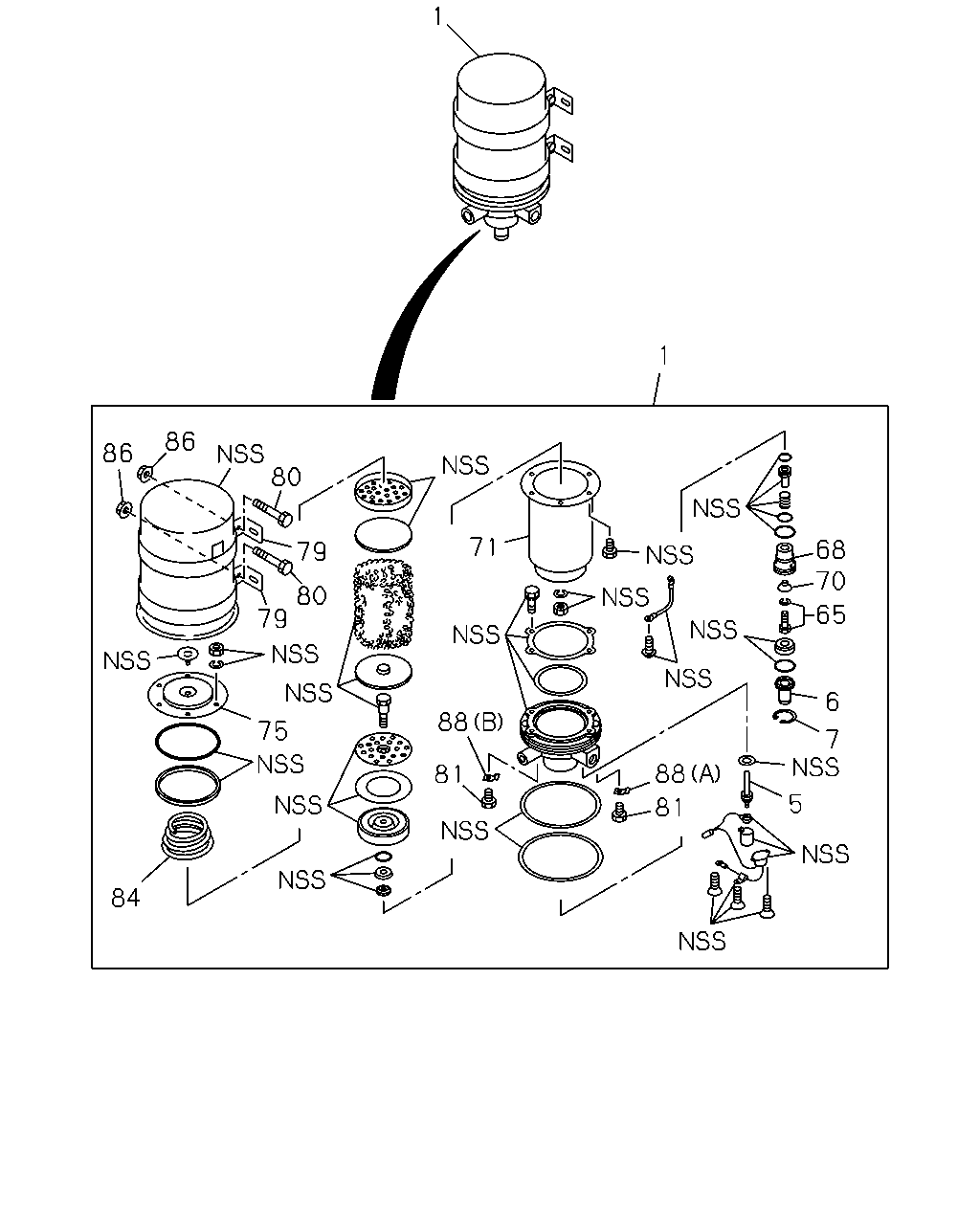

çizim 113577
1 1 86 86 80 71 68 70 79 80 79 65 6 88 75 7 88 81 5 81 84
BalonParca AdiParca NoAdetTipApplied Date
1 DRYER; AIR 1-48190-277-1 01 1 1110-
5 HEATER ASM; AIR DRYER 1-48199-085-0 02 1 1110-
6 COVER; EXH,AIR DRYER 1-48199-101-0 01 1 1110-
7 RING; SNAP,AIR DRYER 1-48199-154-0 01 1 1110-
65 BOLT; PURGE VLV 1-48199-393-0 01 1 1110-
68 BODY; VALVE 1-48199-216-0 01 1 1110-
70 VALVE; AIR DRYER 1-48199-105-0 01 1 1110-
71 CASE; INNER,AIR DRYER 1-48199-156-1 01 1 1110-
75 COVER; CASE,AIR DRYER 1-48199-167-0 01 1 1110-
79 BRACKET; AIR DRYER 1-48199-189-0 02 1 1110-
80 BOLT; BRKT 1-48199-190-0 02 1 1110-
81 BOLT; CASE,AIR DRYER 1-48199-177-0 02 1 1110-
84 SPRING; AIR DRYER 1-48199-166-0 01 1 1110-
86 NUT; BRKT 1-48199-320-0 02 1 1110-
88 PLATE; STOPPER
(A) 		1-48199-178-0 01 1 1110-
88 PLATE; STOPPER
(B) 		1-48199-179-0 01 1 1110-

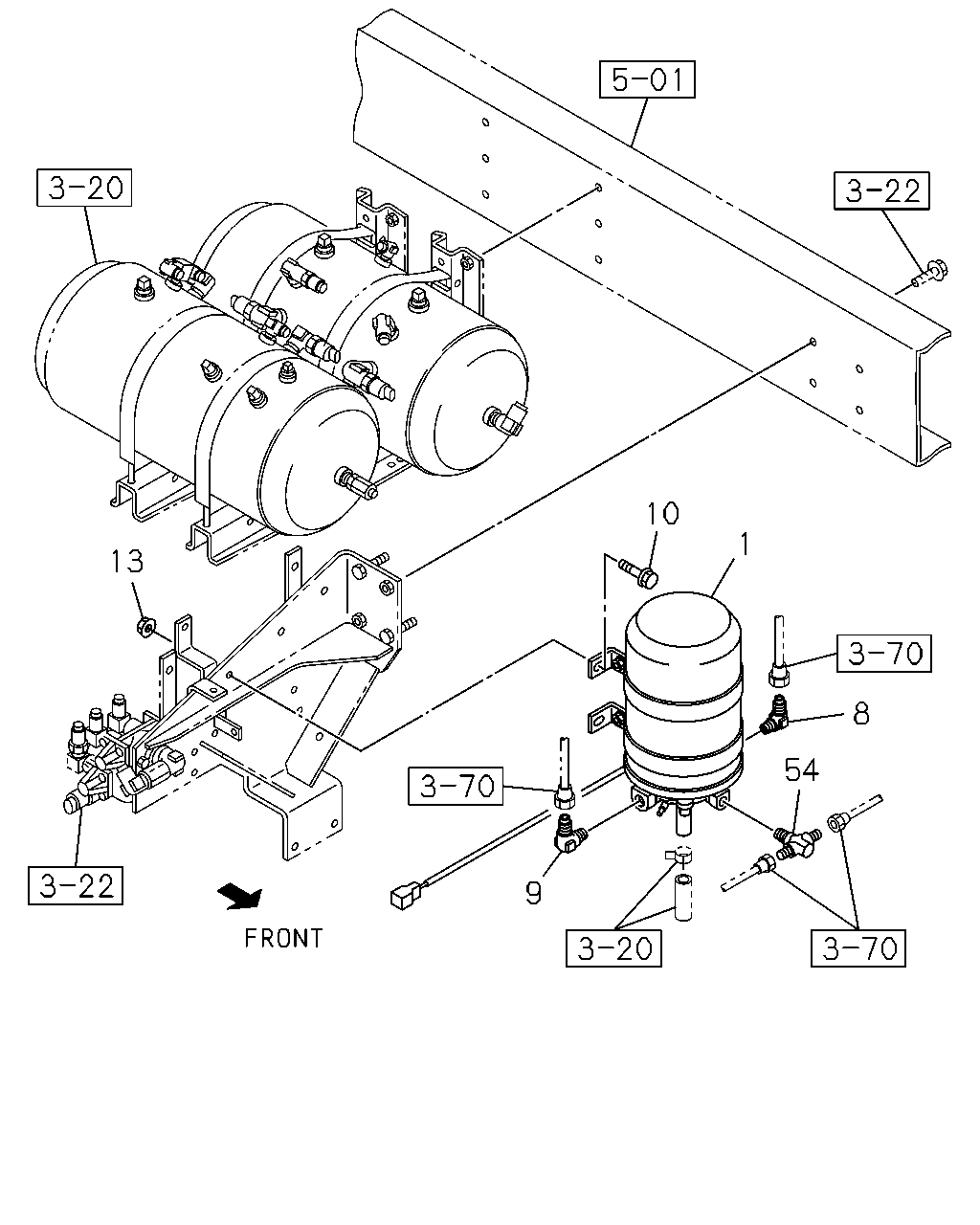

çizim 113594
10 1 13 8 54 9
BalonParca AdiParca NoAdetTipApplied Date
1 DRYER; AIR 1-48190-277-1 01 1 1110-
8 CONNECTOR; OUT,AIR DRYER
M20 & PT1/2 ELBOW 		1-09650-443-0 01 1 1110-
9 CONNECTOR; PIPE,AIR DRYER
M22 & R1/2 W/VALVE 		1-48320-026-2 01 1 1110-
10 BOLT; AIR DRYER
M10X25 FLANGE 		0-28651-025-0 04 1 1110-
13 NUT; AIR DRYER
M10 FLANGE 		0-91180-210-0 04 1 1110-
54 CONNECTOR
M12X2 & PT1/4 3WAY 		1-09656-229-1 01 1 1110-
