◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LT ▶ 10676 - LT 111,112,132,133 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-55 - FRONT LEAF SPRING ▶
4-55 — FRONT LEAF SPRING (#4475) — 823 parça

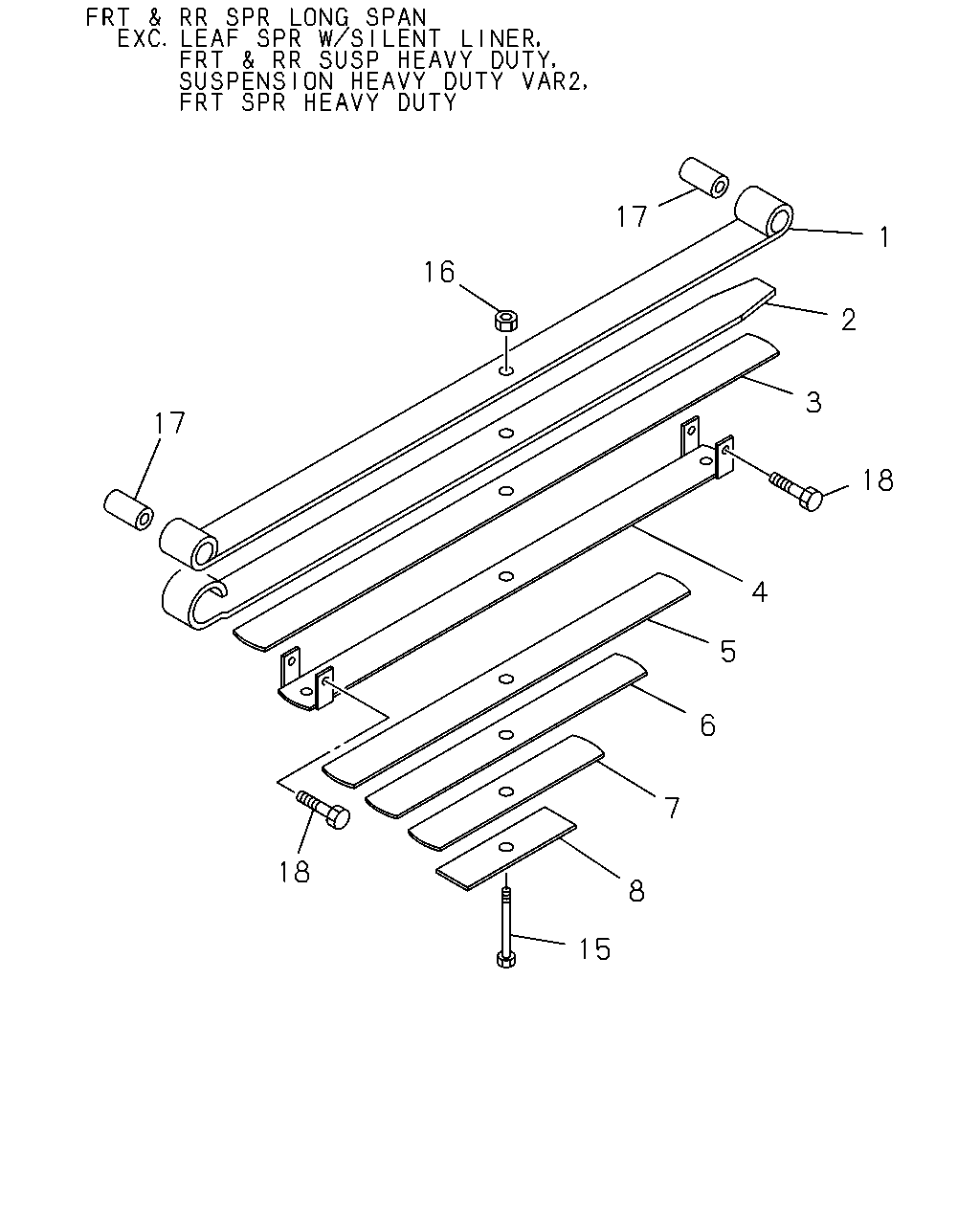

çizim 5128
17 1 16 2 3 17 18 4 5 6 7 18 8 15
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
8-LEAF ASM PART: B = 1-51110-465-2 		1-51111-267-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
9-LEAF ASM PART: A = 1-51110-449-2 		1-51111-449-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
8-LEAF ASM PART: C = 1-51110-822-1, H = 1-51130-628-0 		1-51111-822-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
9-LEAF ASM PART: D = 1-51110-824-1, I = 1-51130-629-0 		1-51111-824-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
8-LEAF ASM PART: E = 1-51110-825-1, J = 1-51130-630-0, L = 1-51130-830-0 		1-51111-825-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
7-LEAF ASM PART: F = 1-51130-112-0 		1-51131-112-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
9-LEAF ASM PART: G = 1-51130-456-1 		1-51131-456-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
8-LEAF ASM PART: K = 1-51130-656-0 		1-51131-656-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
3-LEAF ASM PART: M = 8-98096-765-0, N = 8-98202-922-0 		8-98099-129-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
8-LEAF ASM PART: B = 1-51110-465-2 		1-51112-267-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
9-LEAF ASM PART: A = 1-51110-449-2 		1-51112-449-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
8-LEAF ASM PART: C = 1-51110-822-1, H = 1-51130-628-0 		1-51112-822-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
9-LEAF ASM PART: D = 1-51110-824-1, I = 1-51130-629-0 		1-51112-824-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
8-LEAF ASM PART: E = 1-51110-825-1, J = 1-51130-630-0, L = 1-51130-830-0 		1-51112-825-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
7-LEAF ASM PART: F = 1-51130-112-0 		1-51132-112-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
9-LEAF ASM PART: G = 1-51130-456-1 		1-51132-456-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
8-LEAF ASM PART: K = 1-51130-656-0 		1-51132-656-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
3-LEAF ASM PART: M = 8-98096-765-0, N = 8-98202-922-0 		8-98099-130-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
9-LEAF ASM PART: A = 1-51110-449-2 		1-51113-449-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
8-LEAF ASM PART: B = 1-51110-465-2 		1-51113-465-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
8-LEAF ASM PART: C = 1-51110-822-1, H = 1-51130-628-0 		1-51113-822-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
9-LEAF ASM PART: D = 1-51110-824-1, I = 1-51130-629-0 		1-51113-824-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
8-LEAF ASM PART: E = 1-51110-825-1, J = 1-51130-630-0, L = 1-51130-830-0 		1-51113-825-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
7-LEAF ASM PART: F = 1-51130-112-0 		1-51133-112-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
9-LEAF ASM PART: G = 1-51130-456-1 		1-51133-456-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
8-LEAF ASM PART: K = 1-51130-656-0 		1-51133-656-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
3-LEAF ASM PART: M = 8-98096-765-0, N = 8-98202-922-0 		8-98099-131-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
9-LEAF ASM PART: A = 1-51110-449-2 		1-51114-449-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
8-LEAF ASM PART: B = 1-51110-465-2 		1-51114-465-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
8-LEAF ASM PART: C = 1-51110-822-1, H = 1-51130-628-0 		1-51114-822-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
9-LEAF ASM PART: D = 1-51110-824-1, I = 1-51130-629-0 		1-51114-824-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
8-LEAF ASM PART: E = 1-51110-825-1, J = 1-51130-630-0, L = 1-51130-830-0 		1-51114-825-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
7-LEAF ASM PART: F = 1-51130-112-0 		1-51134-112-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
9-LEAF ASM PART: G = 1-51130-456-1 		1-51134-456-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
8-LEAF ASM PART: K = 1-51130-656-0 		1-51134-656-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
9-LEAF ASM PART: A = 1-51110-449-2 		1-51115-449-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
8-LEAF ASM PART: B = 1-51110-465-2 		1-51115-465-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
8-LEAF ASM PART: C = 1-51110-822-1, H = 1-51130-628-0 		1-51115-822-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
9-LEAF ASM PART: D = 1-51110-824-1, I = 1-51130-629-0 		1-51115-824-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
8-LEAF ASM PART: E = 1-51110-825-1, J = 1-51130-630-0, L = 1-51130-830-0 		1-51115-825-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
7-LEAF ASM PART: F = 1-51130-112-0 		1-51135-112-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
9-LEAF ASM PART: G = 1-51130-456-1 		1-51135-456-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
8-LEAF ASM PART: K = 1-51130-656-0 		1-51135-656-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
9-LEAF ASM PART: A = 1-51110-449-2 		1-51116-449-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
8-LEAF ASM PART: B = 1-51110-465-2 		1-51116-465-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
8-LEAF ASM PART: C = 1-51110-822-1, H = 1-51130-628-0 		1-51116-822-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
9-LEAF ASM PART: D = 1-51110-824-1, I = 1-51130-629-0 		1-51116-824-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
8-LEAF ASM PART: E = 1-51110-825-1, J = 1-51130-630-0, L = 1-51130-830-0 		1-51116-825-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
7-LEAF ASM PART: F = 1-51130-112-0 		1-51136-112-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
9-LEAF ASM PART: G = 1-51130-456-1 		1-51136-456-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
8-LEAF ASM PART: K = 1-51130-656-0 		1-51136-656-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
9-LEAF ASM PART: A = 1-51110-449-2 		1-51117-449-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
8-LEAF ASM PART: B = 1-51110-465-2 		1-51117-465-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
8-LEAF ASM PART: C = 1-51110-822-1, H = 1-51130-628-0 		1-51117-822-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
9-LEAF ASM PART: D = 1-51110-824-1, I = 1-51130-629-0 		1-51117-824-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
8-LEAF ASM PART: E = 1-51110-825-1, J = 1-51130-630-0, L = 1-51130-830-0 		1-51117-825-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
7-LEAF ASM PART: F = 1-51130-112-0 		1-51137-112-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
9-LEAF ASM PART: G = 1-51130-456-1 		1-51137-456-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
8-LEAF ASM PART: K = 1-51130-656-0 		1-51137-656-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
9-LEAF ASM PART: A = 1-51110-449-2 		1-51118-449-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
8-LEAF ASM PART: B = 1-51110-465-2 		1-51118-465-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
8-LEAF ASM PART: C = 1-51110-822-1, H = 1-51130-628-0 		1-51118-822-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
9-LEAF ASM PART: D = 1-51110-824-1, I = 1-51130-629-0 		1-51118-824-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
8-LEAF ASM PART: E = 1-51110-825-1, J = 1-51130-630-0, L = 1-51130-830-0 		1-51118-825-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
9-LEAF ASM PART: G = 1-51130-456-1 		1-51138-456-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
8-LEAF ASM PART: K = 1-51130-656-0 		1-51138-656-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=120 ASM PART: A = 1-51110-449-2 		1-51156-201-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=150 ASM PART: B = 1-51110-465-2 		1-51156-227-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=120 ASM PART: C = 1-51110-822-1 		1-51156-241-0 01 1 -9504
15 BOLT; CENTER,LEAF SPR,FRT
L=135 ASM PART: D = 1-51110-824-1 		1-51156-242-0 01 1 -9504
15 BOLT; CENTER,LEAF SPR,FRT
L=130 ASM PART: F = 1-51130-112-0 		1-51156-243-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=130 ASM PART: E = 1-51110-825-1 		1-51156-243-0 01 1 -9504
15 BOLT; CENTER,LEAF SPR,FRT
L=145 ASM PART: G = 1-51130-456-1 		1-51156-250-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=130 ASM PART: L = 1-51130-830-0, M = 8-98096-765-0, N = 8-98202-922-0 		1-51156-346-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=120 ASM PART: H = 1-51130-628-0 		1-51156-382-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=120 ASM PART: C = 1-51110-822-1 		1-51156-382-0 01 1 9505-
15 BOLT; CENTER,LEAF SPR,FRT
L=130 ASM PART: E = 1-51110-825-1 		1-51156-383-0 01 1 9505-
15 BOLT; CENTER,LEAF SPR,FRT
L=130 ASM PART: J = 1-51130-630-0 		1-51156-383-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=135 ASM PART: D = 1-51110-824-1 		1-51156-384-0 01 1 9505-
15 BOLT; CENTER,LEAF SPR,FRT
L=135 ASM PART: I = 1-51130-629-0, K = 1-51130-656-0 		1-51156-384-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M16 ASM PART: C = 1-51110-822-1, D = 1-51110-824-1, E = 1-51110-825-1, F = 1-51130-112-0, G = 1-51130-456-1, H = 1-51130-628-0, I = 1-51130-629-0, J = 1-51130-630-0, K = 1-51130-656-0, L = 1-51130-830-0, M = 8-98096-765-0, N = 8-98202-922-0 		1-09400-054-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M12 ASM PART: A = 1-51110-449-2, B = 1-51110-465-2 		9-99110-112-0 01 1 -
17 BUSHING; LEAF SPR,FRT
OD=38 ASM PART: A = 1-51110-449-2, B = 1-51110-465-2, C = 1-51110-822-1, D = 1-51110-824-1, E = 1-51110-825-1, F = 1-51130-112-0, L = 1-51130-830-0, M = 8-98096-765-0, N = 8-98202-922-0 		1-51351-009-0 02 1 -
17 BUSHING; LEAF SPR,FRT
OD=38 ASM PART: G = 1-51130-456-1, H = 1-51130-628-0, I = 1-51130-629-0, J = 1-51130-630-0, K = 1-51130-656-0 		1-51351-030-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M10X99 ASM PART: C = 1-51110-822-1, E = 1-51110-825-1, H = 1-51130-628-0, J = 1-51130-630-0, L = 1-51130-830-0, M = 8-98096-765-0, N = 8-98202-922-0 		1-09000-328-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M10X99 ASM PART: D = 1-51110-824-1, F = 1-51130-112-0, I = 1-51130-629-0 		1-09000-328-0 03 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M10X105 ASM PART: G = 1-51130-456-1 		1-09000-391-0 04 1 -
18 BOLT; CLIP,LEAF SPR,FRT
ASM PART: K = 1-51130-656-0 		9-09801-223-0 04 1 -
18 BOLT; CLIP,LEAF SPR,FRT
ASM PART: A = 1-51110-449-2, B = 1-51110-465-2 		9-09801-233-0 03 1 -

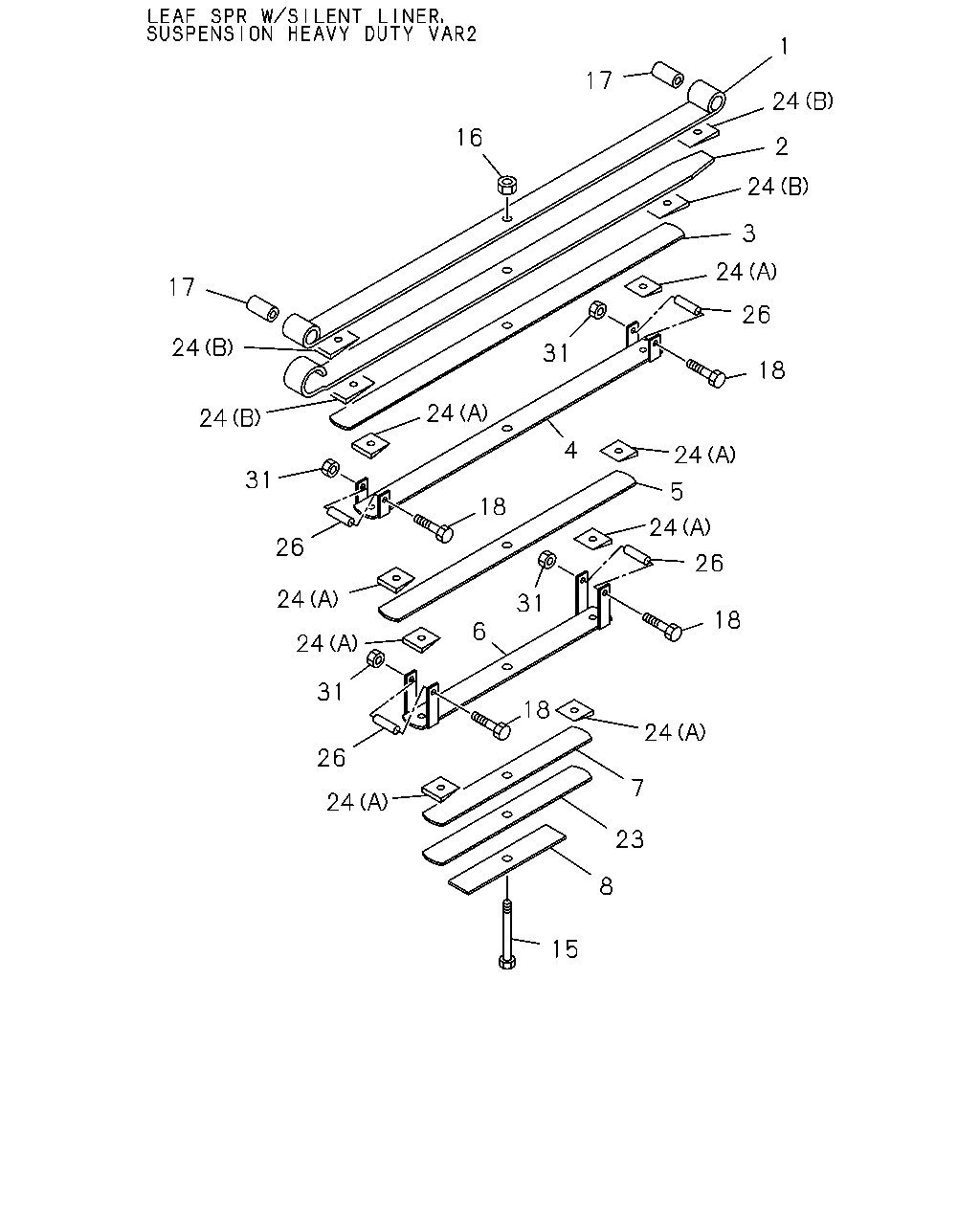

çizim 7344
1 17 24 16 2 24 3 24 17 26 24 31 18 24 24 4 24 31 5 18 24 26 26 24 31 18 6 24 31 18 24 26 7 24 23 8 15
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
8-LEAF ASM PART: B = 1-51110-465-2 		1-51111-267-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
9-LEAF ASM PART: A = 1-51110-449-2 		1-51111-449-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
8-LEAF ASM PART: C = 1-51110-822-1, H = 1-51130-628-0 		1-51111-822-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
9-LEAF ASM PART: D = 1-51110-824-1, I = 1-51130-629-0 		1-51111-824-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
8-LEAF ASM PART: E = 1-51110-825-1, J = 1-51130-630-0, L = 1-51130-830-0 		1-51111-825-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
7-LEAF ASM PART: F = 1-51130-112-0 		1-51131-112-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
9-LEAF ASM PART: G = 1-51130-456-1 		1-51131-456-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
8-LEAF ASM PART: K = 1-51130-656-0 		1-51131-656-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
3-LEAF ASM PART: M = 8-98096-765-0, N = 8-98202-922-0 		8-98099-129-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
8-LEAF ASM PART: B = 1-51110-465-2 		1-51112-267-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
9-LEAF ASM PART: A = 1-51110-449-2 		1-51112-449-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
8-LEAF ASM PART: C = 1-51110-822-1, H = 1-51130-628-0 		1-51112-822-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
9-LEAF ASM PART: D = 1-51110-824-1, I = 1-51130-629-0 		1-51112-824-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
8-LEAF ASM PART: E = 1-51110-825-1, J = 1-51130-630-0, L = 1-51130-830-0 		1-51112-825-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
7-LEAF ASM PART: F = 1-51130-112-0 		1-51132-112-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
9-LEAF ASM PART: G = 1-51130-456-1 		1-51132-456-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
8-LEAF ASM PART: K = 1-51130-656-0 		1-51132-656-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
3-LEAF ASM PART: M = 8-98096-765-0, N = 8-98202-922-0 		8-98099-130-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
9-LEAF ASM PART: A = 1-51110-449-2 		1-51113-449-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
8-LEAF ASM PART: B = 1-51110-465-2 		1-51113-465-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
8-LEAF ASM PART: C = 1-51110-822-1, H = 1-51130-628-0 		1-51113-822-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
9-LEAF ASM PART: D = 1-51110-824-1, I = 1-51130-629-0 		1-51113-824-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
8-LEAF ASM PART: E = 1-51110-825-1, J = 1-51130-630-0, L = 1-51130-830-0 		1-51113-825-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
7-LEAF ASM PART: F = 1-51130-112-0 		1-51133-112-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
9-LEAF ASM PART: G = 1-51130-456-1 		1-51133-456-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
8-LEAF ASM PART: K = 1-51130-656-0 		1-51133-656-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
3-LEAF ASM PART: M = 8-98096-765-0, N = 8-98202-922-0 		8-98099-131-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
9-LEAF ASM PART: A = 1-51110-449-2 		1-51114-449-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
8-LEAF ASM PART: B = 1-51110-465-2 		1-51114-465-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
8-LEAF ASM PART: C = 1-51110-822-1, H = 1-51130-628-0 		1-51114-822-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
9-LEAF ASM PART: D = 1-51110-824-1, I = 1-51130-629-0 		1-51114-824-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
8-LEAF ASM PART: E = 1-51110-825-1, J = 1-51130-630-0, L = 1-51130-830-0 		1-51114-825-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
7-LEAF ASM PART: F = 1-51130-112-0 		1-51134-112-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
9-LEAF ASM PART: G = 1-51130-456-1 		1-51134-456-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
8-LEAF ASM PART: K = 1-51130-656-0 		1-51134-656-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
9-LEAF ASM PART: A = 1-51110-449-2 		1-51115-449-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
8-LEAF ASM PART: B = 1-51110-465-2 		1-51115-465-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
8-LEAF ASM PART: C = 1-51110-822-1, H = 1-51130-628-0 		1-51115-822-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
9-LEAF ASM PART: D = 1-51110-824-1, I = 1-51130-629-0 		1-51115-824-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
8-LEAF ASM PART: E = 1-51110-825-1, J = 1-51130-630-0, L = 1-51130-830-0 		1-51115-825-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
7-LEAF ASM PART: F = 1-51130-112-0 		1-51135-112-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
9-LEAF ASM PART: G = 1-51130-456-1 		1-51135-456-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
8-LEAF ASM PART: K = 1-51130-656-0 		1-51135-656-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
9-LEAF ASM PART: A = 1-51110-449-2 		1-51116-449-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
8-LEAF ASM PART: B = 1-51110-465-2 		1-51116-465-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
8-LEAF ASM PART: C = 1-51110-822-1, H = 1-51130-628-0 		1-51116-822-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
9-LEAF ASM PART: D = 1-51110-824-1, I = 1-51130-629-0 		1-51116-824-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
8-LEAF ASM PART: E = 1-51110-825-1, J = 1-51130-630-0, L = 1-51130-830-0 		1-51116-825-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
7-LEAF ASM PART: F = 1-51130-112-0 		1-51136-112-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
9-LEAF ASM PART: G = 1-51130-456-1 		1-51136-456-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
8-LEAF ASM PART: K = 1-51130-656-0 		1-51136-656-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
9-LEAF ASM PART: A = 1-51110-449-2 		1-51117-449-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
8-LEAF ASM PART: B = 1-51110-465-2 		1-51117-465-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
8-LEAF ASM PART: C = 1-51110-822-1, H = 1-51130-628-0 		1-51117-822-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
9-LEAF ASM PART: D = 1-51110-824-1, I = 1-51130-629-0 		1-51117-824-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
8-LEAF ASM PART: E = 1-51110-825-1, J = 1-51130-630-0, L = 1-51130-830-0 		1-51117-825-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
7-LEAF ASM PART: F = 1-51130-112-0 		1-51137-112-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
9-LEAF ASM PART: G = 1-51130-456-1 		1-51137-456-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
8-LEAF ASM PART: K = 1-51130-656-0 		1-51137-656-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
9-LEAF ASM PART: A = 1-51110-449-2 		1-51118-449-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
8-LEAF ASM PART: B = 1-51110-465-2 		1-51118-465-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
8-LEAF ASM PART: C = 1-51110-822-1, H = 1-51130-628-0 		1-51118-822-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
9-LEAF ASM PART: D = 1-51110-824-1, I = 1-51130-629-0 		1-51118-824-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
8-LEAF ASM PART: E = 1-51110-825-1, J = 1-51130-630-0, L = 1-51130-830-0 		1-51118-825-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
9-LEAF ASM PART: G = 1-51130-456-1 		1-51138-456-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
8-LEAF ASM PART: K = 1-51130-656-0 		1-51138-656-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=120 ASM PART: A = 1-51110-449-2 		1-51156-201-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=150 ASM PART: B = 1-51110-465-2 		1-51156-227-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=120 ASM PART: C = 1-51110-822-1 		1-51156-241-0 01 1 -9504
15 BOLT; CENTER,LEAF SPR,FRT
L=135 ASM PART: D = 1-51110-824-1 		1-51156-242-0 01 1 -9504
15 BOLT; CENTER,LEAF SPR,FRT
L=130 ASM PART: F = 1-51130-112-0 		1-51156-243-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=130 ASM PART: E = 1-51110-825-1 		1-51156-243-0 01 1 -9504
15 BOLT; CENTER,LEAF SPR,FRT
L=145 ASM PART: G = 1-51130-456-1 		1-51156-250-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=130 ASM PART: L = 1-51130-830-0, M = 8-98096-765-0, N = 8-98202-922-0 		1-51156-346-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=120 ASM PART: H = 1-51130-628-0 		1-51156-382-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=120 ASM PART: C = 1-51110-822-1 		1-51156-382-0 01 1 9505-
15 BOLT; CENTER,LEAF SPR,FRT
L=130 ASM PART: E = 1-51110-825-1 		1-51156-383-0 01 1 9505-
15 BOLT; CENTER,LEAF SPR,FRT
L=130 ASM PART: J = 1-51130-630-0 		1-51156-383-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=135 ASM PART: D = 1-51110-824-1 		1-51156-384-0 01 1 9505-
15 BOLT; CENTER,LEAF SPR,FRT
L=135 ASM PART: I = 1-51130-629-0, K = 1-51130-656-0 		1-51156-384-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M16 ASM PART: C = 1-51110-822-1, D = 1-51110-824-1, E = 1-51110-825-1, F = 1-51130-112-0, G = 1-51130-456-1, H = 1-51130-628-0, I = 1-51130-629-0, J = 1-51130-630-0, K = 1-51130-656-0, L = 1-51130-830-0, M = 8-98096-765-0, N = 8-98202-922-0 		1-09400-054-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M12 ASM PART: A = 1-51110-449-2, B = 1-51110-465-2 		9-99110-112-0 01 1 -
17 BUSHING; LEAF SPR,FRT
OD=38 ASM PART: A = 1-51110-449-2, B = 1-51110-465-2, C = 1-51110-822-1, D = 1-51110-824-1, E = 1-51110-825-1, F = 1-51130-112-0, L = 1-51130-830-0, M = 8-98096-765-0, N = 8-98202-922-0 		1-51351-009-0 02 1 -
17 BUSHING; LEAF SPR,FRT
OD=38 ASM PART: G = 1-51130-456-1, H = 1-51130-628-0, I = 1-51130-629-0, J = 1-51130-630-0, K = 1-51130-656-0 		1-51351-030-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M10X99 ASM PART: C = 1-51110-822-1, E = 1-51110-825-1, H = 1-51130-628-0, J = 1-51130-630-0, L = 1-51130-830-0, M = 8-98096-765-0, N = 8-98202-922-0 		1-09000-328-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M10X99 ASM PART: D = 1-51110-824-1, F = 1-51130-112-0, I = 1-51130-629-0 		1-09000-328-0 03 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M10X105 ASM PART: G = 1-51130-456-1 		1-09000-391-0 04 1 -
18 BOLT; CLIP,LEAF SPR,FRT
ASM PART: K = 1-51130-656-0 		9-09801-223-0 04 1 -
18 BOLT; CLIP,LEAF SPR,FRT
ASM PART: A = 1-51110-449-2, B = 1-51110-465-2 		9-09801-233-0 03 1 -
23 SPRING; LEAF,INTER
ASM PART: J = 1-51130-630-0, L = 1-51130-830-0 		1-51159-042-0 01 1 -
23 SPRING; LEAF,INTER
ASM PART: E = 1-51110-825-1 		1-51159-042-0 01 1 9505-
23 SPRING; LEAF,INTER
ASM PART: E = 1-51110-825-1 		1-51177-240-0 01 1 -9504
23 SPRING; LEAF,INTER
ASM PART: K = 1-51130-656-0 		1-51179-016-0 01 1 -
23 SPRING; LEAF,INTER
ASM PART: F = 1-51130-112-0 		1-51399-021-0 01 1 -
24 LINER; LEAF SPR,FWD FRT
(A) ASM PART: E = 1-51110-825-1, J = 1-51130-630-0, L = 1-51130-830-0 		1-51159-022-0 10 1 -
24 LINER; LEAF SPR,FWD FRT
(A) ASM PART: F = 1-51130-112-0, K = 1-51130-656-0 		1-51159-022-0 08 1 -
24 LINER; LEAF SPR,FWD FRT
(B) ASM PART: K = 1-51130-656-0, M = 8-98096-765-0 		1-51159-023-0 04 1 -
24 LINER; LEAF SPR,FWD FRT
(B) ASM PART: E = 1-51110-825-1, F = 1-51130-112-0, J = 1-51130-630-0, L = 1-51130-830-0 		1-51159-023-0 02 1 -
24 LINER; LEAF SPR,FWD FRT
ASM PART: N = 8-98202-922-0 		8-98202-886-1 04 1 -
26 PIPE; CLIP,LEAF SPR,FRT
ASM PART: G = 1-51130-456-1 		1-51353-009-0 04 1 -
26 PIPE; CLIP,LEAF SPR,FRT
ASM PART: A = 1-51110-449-2, B = 1-51110-465-2 		9-51153-008-0 03 1 -
26 PIPE; CLIP,LEAF SPR,FRT
ASM PART: K = 1-51130-656-0 		9-51153-009-0 04 1 -
31 NUT; CLIP
M8 ASM PART: G = 1-51130-456-1 		9-09110-008-0 04 1 -
31 NUT; CLIP
M10 ASM PART: K = 1-51130-656-0 		9-09110-010-0 04 1 -
çizim 36589
17 1 16 2 3 18 17 4 18 5 18 6 23 7 20 15 24 24 24 24 24 24 24 24 24 24
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
8-LEAF ASM PART: B = 1-51110-465-2 		1-51111-267-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
9-LEAF ASM PART: A = 1-51110-449-2 		1-51111-449-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
8-LEAF ASM PART: C = 1-51110-822-1, H = 1-51130-628-0 		1-51111-822-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
9-LEAF ASM PART: D = 1-51110-824-1, I = 1-51130-629-0 		1-51111-824-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
8-LEAF ASM PART: E = 1-51110-825-1, J = 1-51130-630-0, L = 1-51130-830-0 		1-51111-825-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
7-LEAF ASM PART: F = 1-51130-112-0 		1-51131-112-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
9-LEAF ASM PART: G = 1-51130-456-1 		1-51131-456-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
8-LEAF ASM PART: K = 1-51130-656-0 		1-51131-656-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
3-LEAF ASM PART: M = 8-98096-765-0, N = 8-98202-922-0 		8-98099-129-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
8-LEAF ASM PART: B = 1-51110-465-2 		1-51112-267-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
9-LEAF ASM PART: A = 1-51110-449-2 		1-51112-449-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
8-LEAF ASM PART: C = 1-51110-822-1, H = 1-51130-628-0 		1-51112-822-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
9-LEAF ASM PART: D = 1-51110-824-1, I = 1-51130-629-0 		1-51112-824-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
8-LEAF ASM PART: E = 1-51110-825-1, J = 1-51130-630-0, L = 1-51130-830-0 		1-51112-825-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
7-LEAF ASM PART: F = 1-51130-112-0 		1-51132-112-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
9-LEAF ASM PART: G = 1-51130-456-1 		1-51132-456-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
8-LEAF ASM PART: K = 1-51130-656-0 		1-51132-656-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
3-LEAF ASM PART: M = 8-98096-765-0, N = 8-98202-922-0 		8-98099-130-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
9-LEAF ASM PART: A = 1-51110-449-2 		1-51113-449-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
8-LEAF ASM PART: B = 1-51110-465-2 		1-51113-465-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
8-LEAF ASM PART: C = 1-51110-822-1, H = 1-51130-628-0 		1-51113-822-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
9-LEAF ASM PART: D = 1-51110-824-1, I = 1-51130-629-0 		1-51113-824-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
8-LEAF ASM PART: E = 1-51110-825-1, J = 1-51130-630-0, L = 1-51130-830-0 		1-51113-825-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
7-LEAF ASM PART: F = 1-51130-112-0 		1-51133-112-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
9-LEAF ASM PART: G = 1-51130-456-1 		1-51133-456-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
8-LEAF ASM PART: K = 1-51130-656-0 		1-51133-656-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
3-LEAF ASM PART: M = 8-98096-765-0, N = 8-98202-922-0 		8-98099-131-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
9-LEAF ASM PART: A = 1-51110-449-2 		1-51114-449-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
8-LEAF ASM PART: B = 1-51110-465-2 		1-51114-465-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
8-LEAF ASM PART: C = 1-51110-822-1, H = 1-51130-628-0 		1-51114-822-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
9-LEAF ASM PART: D = 1-51110-824-1, I = 1-51130-629-0 		1-51114-824-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
8-LEAF ASM PART: E = 1-51110-825-1, J = 1-51130-630-0, L = 1-51130-830-0 		1-51114-825-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
7-LEAF ASM PART: F = 1-51130-112-0 		1-51134-112-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
9-LEAF ASM PART: G = 1-51130-456-1 		1-51134-456-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
8-LEAF ASM PART: K = 1-51130-656-0 		1-51134-656-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
9-LEAF ASM PART: A = 1-51110-449-2 		1-51115-449-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
8-LEAF ASM PART: B = 1-51110-465-2 		1-51115-465-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
8-LEAF ASM PART: C = 1-51110-822-1, H = 1-51130-628-0 		1-51115-822-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
9-LEAF ASM PART: D = 1-51110-824-1, I = 1-51130-629-0 		1-51115-824-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
8-LEAF ASM PART: E = 1-51110-825-1, J = 1-51130-630-0, L = 1-51130-830-0 		1-51115-825-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
7-LEAF ASM PART: F = 1-51130-112-0 		1-51135-112-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
9-LEAF ASM PART: G = 1-51130-456-1 		1-51135-456-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
8-LEAF ASM PART: K = 1-51130-656-0 		1-51135-656-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
9-LEAF ASM PART: A = 1-51110-449-2 		1-51116-449-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
8-LEAF ASM PART: B = 1-51110-465-2 		1-51116-465-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
8-LEAF ASM PART: C = 1-51110-822-1, H = 1-51130-628-0 		1-51116-822-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
9-LEAF ASM PART: D = 1-51110-824-1, I = 1-51130-629-0 		1-51116-824-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
8-LEAF ASM PART: E = 1-51110-825-1, J = 1-51130-630-0, L = 1-51130-830-0 		1-51116-825-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
7-LEAF ASM PART: F = 1-51130-112-0 		1-51136-112-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
9-LEAF ASM PART: G = 1-51130-456-1 		1-51136-456-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
8-LEAF ASM PART: K = 1-51130-656-0 		1-51136-656-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
9-LEAF ASM PART: A = 1-51110-449-2 		1-51117-449-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
8-LEAF ASM PART: B = 1-51110-465-2 		1-51117-465-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
8-LEAF ASM PART: C = 1-51110-822-1, H = 1-51130-628-0 		1-51117-822-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
9-LEAF ASM PART: D = 1-51110-824-1, I = 1-51130-629-0 		1-51117-824-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
8-LEAF ASM PART: E = 1-51110-825-1, J = 1-51130-630-0, L = 1-51130-830-0 		1-51117-825-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
7-LEAF ASM PART: F = 1-51130-112-0 		1-51137-112-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
9-LEAF ASM PART: G = 1-51130-456-1 		1-51137-456-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
8-LEAF ASM PART: K = 1-51130-656-0 		1-51137-656-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=120 ASM PART: A = 1-51110-449-2 		1-51156-201-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=150 ASM PART: B = 1-51110-465-2 		1-51156-227-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=120 ASM PART: C = 1-51110-822-1 		1-51156-241-0 01 1 -9504
15 BOLT; CENTER,LEAF SPR,FRT
L=135 ASM PART: D = 1-51110-824-1 		1-51156-242-0 01 1 -9504
15 BOLT; CENTER,LEAF SPR,FRT
L=130 ASM PART: F = 1-51130-112-0 		1-51156-243-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=130 ASM PART: E = 1-51110-825-1 		1-51156-243-0 01 1 -9504
15 BOLT; CENTER,LEAF SPR,FRT
L=145 ASM PART: G = 1-51130-456-1 		1-51156-250-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=130 ASM PART: L = 1-51130-830-0, M = 8-98096-765-0, N = 8-98202-922-0 		1-51156-346-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=120 ASM PART: H = 1-51130-628-0 		1-51156-382-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=120 ASM PART: C = 1-51110-822-1 		1-51156-382-0 01 1 9505-
15 BOLT; CENTER,LEAF SPR,FRT
L=130 ASM PART: E = 1-51110-825-1 		1-51156-383-0 01 1 9505-
15 BOLT; CENTER,LEAF SPR,FRT
L=130 ASM PART: J = 1-51130-630-0 		1-51156-383-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=135 ASM PART: D = 1-51110-824-1 		1-51156-384-0 01 1 9505-
15 BOLT; CENTER,LEAF SPR,FRT
L=135 ASM PART: I = 1-51130-629-0, K = 1-51130-656-0 		1-51156-384-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M16 ASM PART: C = 1-51110-822-1, D = 1-51110-824-1, E = 1-51110-825-1, F = 1-51130-112-0, G = 1-51130-456-1, H = 1-51130-628-0, I = 1-51130-629-0, J = 1-51130-630-0, K = 1-51130-656-0, L = 1-51130-830-0, M = 8-98096-765-0, N = 8-98202-922-0 		1-09400-054-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M12 ASM PART: A = 1-51110-449-2, B = 1-51110-465-2 		9-99110-112-0 01 1 -
17 BUSHING; LEAF SPR,FRT
OD=38 ASM PART: A = 1-51110-449-2, B = 1-51110-465-2, C = 1-51110-822-1, D = 1-51110-824-1, E = 1-51110-825-1, F = 1-51130-112-0, L = 1-51130-830-0, M = 8-98096-765-0, N = 8-98202-922-0 		1-51351-009-0 02 1 -
17 BUSHING; LEAF SPR,FRT
OD=38 ASM PART: G = 1-51130-456-1, H = 1-51130-628-0, I = 1-51130-629-0, J = 1-51130-630-0, K = 1-51130-656-0 		1-51351-030-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M10X99 ASM PART: C = 1-51110-822-1, E = 1-51110-825-1, H = 1-51130-628-0, J = 1-51130-630-0, L = 1-51130-830-0, M = 8-98096-765-0, N = 8-98202-922-0 		1-09000-328-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M10X99 ASM PART: D = 1-51110-824-1, F = 1-51130-112-0, I = 1-51130-629-0 		1-09000-328-0 03 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M10X105 ASM PART: G = 1-51130-456-1 		1-09000-391-0 04 1 -
18 BOLT; CLIP,LEAF SPR,FRT
ASM PART: K = 1-51130-656-0 		9-09801-223-0 04 1 -
18 BOLT; CLIP,LEAF SPR,FRT
ASM PART: A = 1-51110-449-2, B = 1-51110-465-2 		9-09801-233-0 03 1 -
20 SEAT; LEAF SPR,FRT
T=12 ASM PART: M = 8-98096-765-0, N = 8-98202-922-0 		1-51177-107-0 03 1 -
20 SEAT; LEAF SPR,FRT
T=14 ASM PART: F = 1-51130-112-0 		1-51177-127-0 01 1 -
23 SPRING; LEAF,INTER
ASM PART: J = 1-51130-630-0, L = 1-51130-830-0 		1-51159-042-0 01 1 -
23 SPRING; LEAF,INTER
ASM PART: E = 1-51110-825-1 		1-51159-042-0 01 1 9505-
23 SPRING; LEAF,INTER
ASM PART: E = 1-51110-825-1 		1-51177-240-0 01 1 -9504
23 SPRING; LEAF,INTER
ASM PART: K = 1-51130-656-0 		1-51179-016-0 01 1 -
23 SPRING; LEAF,INTER
ASM PART: F = 1-51130-112-0 		1-51399-021-0 01 1 -
24 LINER; LEAF SPR,FWD FRT
(A) ASM PART: E = 1-51110-825-1, J = 1-51130-630-0, L = 1-51130-830-0 		1-51159-022-0 10 1 -
24 LINER; LEAF SPR,FWD FRT
(A) ASM PART: F = 1-51130-112-0, K = 1-51130-656-0 		1-51159-022-0 08 1 -
24 LINER; LEAF SPR,FWD FRT
(B) ASM PART: K = 1-51130-656-0, M = 8-98096-765-0 		1-51159-023-0 04 1 -
24 LINER; LEAF SPR,FWD FRT
(B) ASM PART: E = 1-51110-825-1, F = 1-51130-112-0, J = 1-51130-630-0, L = 1-51130-830-0 		1-51159-023-0 02 1 -
24 LINER; LEAF SPR,FWD FRT
ASM PART: N = 8-98202-922-0 		8-98202-886-1 04 1 -

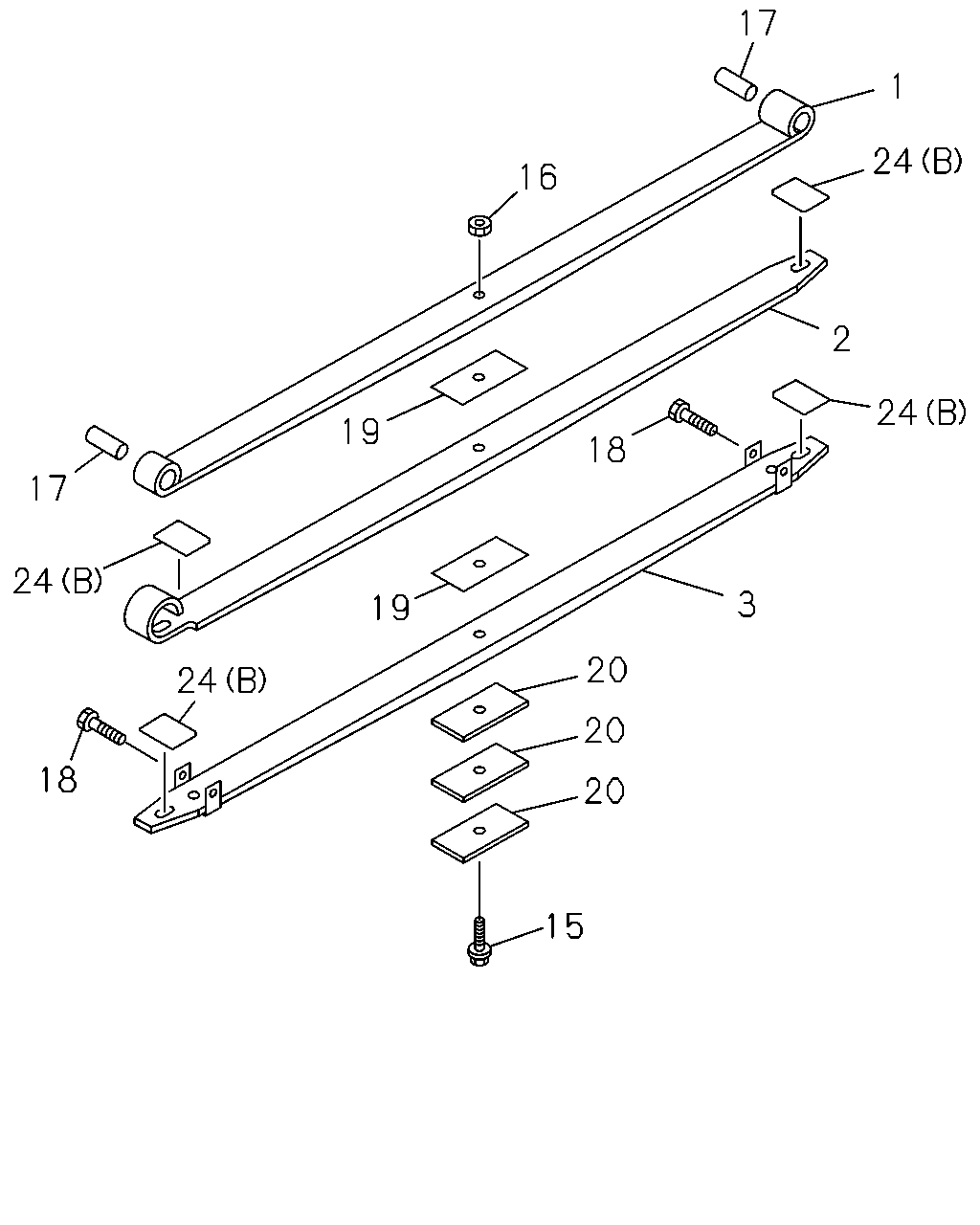

çizim 36939
17 1 24 2 24 18 3 20 20 20 15 19 19 16 17 24 18 24
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
8-LEAF ASM PART: B = 1-51110-465-2 		1-51111-267-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
9-LEAF ASM PART: A = 1-51110-449-2 		1-51111-449-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
8-LEAF ASM PART: C = 1-51110-822-1, H = 1-51130-628-0 		1-51111-822-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
9-LEAF ASM PART: D = 1-51110-824-1, I = 1-51130-629-0 		1-51111-824-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
8-LEAF ASM PART: E = 1-51110-825-1, J = 1-51130-630-0, L = 1-51130-830-0 		1-51111-825-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
7-LEAF ASM PART: F = 1-51130-112-0 		1-51131-112-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
9-LEAF ASM PART: G = 1-51130-456-1 		1-51131-456-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
8-LEAF ASM PART: K = 1-51130-656-0 		1-51131-656-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
3-LEAF ASM PART: M = 8-98096-765-0, N = 8-98202-922-0 		8-98099-129-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
8-LEAF ASM PART: B = 1-51110-465-2 		1-51112-267-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
9-LEAF ASM PART: A = 1-51110-449-2 		1-51112-449-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
8-LEAF ASM PART: C = 1-51110-822-1, H = 1-51130-628-0 		1-51112-822-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
9-LEAF ASM PART: D = 1-51110-824-1, I = 1-51130-629-0 		1-51112-824-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
8-LEAF ASM PART: E = 1-51110-825-1, J = 1-51130-630-0, L = 1-51130-830-0 		1-51112-825-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
7-LEAF ASM PART: F = 1-51130-112-0 		1-51132-112-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
9-LEAF ASM PART: G = 1-51130-456-1 		1-51132-456-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
8-LEAF ASM PART: K = 1-51130-656-0 		1-51132-656-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
3-LEAF ASM PART: M = 8-98096-765-0, N = 8-98202-922-0 		8-98099-130-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
9-LEAF ASM PART: A = 1-51110-449-2 		1-51113-449-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
8-LEAF ASM PART: B = 1-51110-465-2 		1-51113-465-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
8-LEAF ASM PART: C = 1-51110-822-1, H = 1-51130-628-0 		1-51113-822-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
9-LEAF ASM PART: D = 1-51110-824-1, I = 1-51130-629-0 		1-51113-824-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
8-LEAF ASM PART: E = 1-51110-825-1, J = 1-51130-630-0, L = 1-51130-830-0 		1-51113-825-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
7-LEAF ASM PART: F = 1-51130-112-0 		1-51133-112-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
9-LEAF ASM PART: G = 1-51130-456-1 		1-51133-456-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
8-LEAF ASM PART: K = 1-51130-656-0 		1-51133-656-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
3-LEAF ASM PART: M = 8-98096-765-0, N = 8-98202-922-0 		8-98099-131-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=120 ASM PART: A = 1-51110-449-2 		1-51156-201-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=150 ASM PART: B = 1-51110-465-2 		1-51156-227-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=120 ASM PART: C = 1-51110-822-1 		1-51156-241-0 01 1 -9504
15 BOLT; CENTER,LEAF SPR,FRT
L=135 ASM PART: D = 1-51110-824-1 		1-51156-242-0 01 1 -9504
15 BOLT; CENTER,LEAF SPR,FRT
L=130 ASM PART: F = 1-51130-112-0 		1-51156-243-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=130 ASM PART: E = 1-51110-825-1 		1-51156-243-0 01 1 -9504
15 BOLT; CENTER,LEAF SPR,FRT
L=145 ASM PART: G = 1-51130-456-1 		1-51156-250-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=130 ASM PART: L = 1-51130-830-0, M = 8-98096-765-0, N = 8-98202-922-0 		1-51156-346-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=120 ASM PART: H = 1-51130-628-0 		1-51156-382-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=120 ASM PART: C = 1-51110-822-1 		1-51156-382-0 01 1 9505-
15 BOLT; CENTER,LEAF SPR,FRT
L=130 ASM PART: E = 1-51110-825-1 		1-51156-383-0 01 1 9505-
15 BOLT; CENTER,LEAF SPR,FRT
L=130 ASM PART: J = 1-51130-630-0 		1-51156-383-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=135 ASM PART: D = 1-51110-824-1 		1-51156-384-0 01 1 9505-
15 BOLT; CENTER,LEAF SPR,FRT
L=135 ASM PART: I = 1-51130-629-0, K = 1-51130-656-0 		1-51156-384-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M16 ASM PART: C = 1-51110-822-1, D = 1-51110-824-1, E = 1-51110-825-1, F = 1-51130-112-0, G = 1-51130-456-1, H = 1-51130-628-0, I = 1-51130-629-0, J = 1-51130-630-0, K = 1-51130-656-0, L = 1-51130-830-0, M = 8-98096-765-0, N = 8-98202-922-0 		1-09400-054-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M12 ASM PART: A = 1-51110-449-2, B = 1-51110-465-2 		9-99110-112-0 01 1 -
17 BUSHING; LEAF SPR,FRT
OD=38 ASM PART: A = 1-51110-449-2, B = 1-51110-465-2, C = 1-51110-822-1, D = 1-51110-824-1, E = 1-51110-825-1, F = 1-51130-112-0, L = 1-51130-830-0, M = 8-98096-765-0, N = 8-98202-922-0 		1-51351-009-0 02 1 -
17 BUSHING; LEAF SPR,FRT
OD=38 ASM PART: G = 1-51130-456-1, H = 1-51130-628-0, I = 1-51130-629-0, J = 1-51130-630-0, K = 1-51130-656-0 		1-51351-030-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M10X99 ASM PART: C = 1-51110-822-1, E = 1-51110-825-1, H = 1-51130-628-0, J = 1-51130-630-0, L = 1-51130-830-0, M = 8-98096-765-0, N = 8-98202-922-0 		1-09000-328-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M10X99 ASM PART: D = 1-51110-824-1, F = 1-51130-112-0, I = 1-51130-629-0 		1-09000-328-0 03 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M10X105 ASM PART: G = 1-51130-456-1 		1-09000-391-0 04 1 -
18 BOLT; CLIP,LEAF SPR,FRT
ASM PART: K = 1-51130-656-0 		9-09801-223-0 04 1 -
18 BOLT; CLIP,LEAF SPR,FRT
ASM PART: A = 1-51110-449-2, B = 1-51110-465-2 		9-09801-233-0 03 1 -
19 SPACER; LEAF SPRING,FRT
ASM PART: M = 8-98096-765-0, N = 8-98202-922-0 		8-98098-338-0 02 1 -
20 SEAT; LEAF SPR,FRT
T=12 ASM PART: M = 8-98096-765-0, N = 8-98202-922-0 		1-51177-107-0 03 1 -
20 SEAT; LEAF SPR,FRT
T=14 ASM PART: F = 1-51130-112-0 		1-51177-127-0 01 1 -
24 LINER; LEAF SPR,FWD FRT
(A) ASM PART: E = 1-51110-825-1, J = 1-51130-630-0, L = 1-51130-830-0 		1-51159-022-0 10 1 -
24 LINER; LEAF SPR,FWD FRT
(A) ASM PART: F = 1-51130-112-0, K = 1-51130-656-0 		1-51159-022-0 08 1 -
24 LINER; LEAF SPR,FWD FRT
(B) ASM PART: K = 1-51130-656-0, M = 8-98096-765-0 		1-51159-023-0 04 1 -
24 LINER; LEAF SPR,FWD FRT
(B) ASM PART: E = 1-51110-825-1, F = 1-51130-112-0, J = 1-51130-630-0, L = 1-51130-830-0 		1-51159-023-0 02 1 -
24 LINER; LEAF SPR,FWD FRT
ASM PART: N = 8-98202-922-0 		8-98202-886-1 04 1 -
çizim 37033
17 1 16 24 2 24 24 17 18 24 24 24 4 3 5 18 24 24 6 24 24 7 24 24 23 8 15
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
8-LEAF ASM PART: B = 1-51110-465-2 		1-51111-267-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
9-LEAF ASM PART: A = 1-51110-449-2 		1-51111-449-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
8-LEAF ASM PART: C = 1-51110-822-1, H = 1-51130-628-0 		1-51111-822-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
9-LEAF ASM PART: D = 1-51110-824-1, I = 1-51130-629-0 		1-51111-824-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
8-LEAF ASM PART: E = 1-51110-825-1, J = 1-51130-630-0, L = 1-51130-830-0 		1-51111-825-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
7-LEAF ASM PART: F = 1-51130-112-0 		1-51131-112-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
9-LEAF ASM PART: G = 1-51130-456-1 		1-51131-456-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
8-LEAF ASM PART: K = 1-51130-656-0 		1-51131-656-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
3-LEAF ASM PART: M = 8-98096-765-0, N = 8-98202-922-0 		8-98099-129-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
8-LEAF ASM PART: B = 1-51110-465-2 		1-51112-267-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
9-LEAF ASM PART: A = 1-51110-449-2 		1-51112-449-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
8-LEAF ASM PART: C = 1-51110-822-1, H = 1-51130-628-0 		1-51112-822-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
9-LEAF ASM PART: D = 1-51110-824-1, I = 1-51130-629-0 		1-51112-824-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
8-LEAF ASM PART: E = 1-51110-825-1, J = 1-51130-630-0, L = 1-51130-830-0 		1-51112-825-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
7-LEAF ASM PART: F = 1-51130-112-0 		1-51132-112-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
9-LEAF ASM PART: G = 1-51130-456-1 		1-51132-456-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
8-LEAF ASM PART: K = 1-51130-656-0 		1-51132-656-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
3-LEAF ASM PART: M = 8-98096-765-0, N = 8-98202-922-0 		8-98099-130-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
9-LEAF ASM PART: A = 1-51110-449-2 		1-51113-449-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
8-LEAF ASM PART: B = 1-51110-465-2 		1-51113-465-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
8-LEAF ASM PART: C = 1-51110-822-1, H = 1-51130-628-0 		1-51113-822-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
9-LEAF ASM PART: D = 1-51110-824-1, I = 1-51130-629-0 		1-51113-824-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
8-LEAF ASM PART: E = 1-51110-825-1, J = 1-51130-630-0, L = 1-51130-830-0 		1-51113-825-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
7-LEAF ASM PART: F = 1-51130-112-0 		1-51133-112-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
9-LEAF ASM PART: G = 1-51130-456-1 		1-51133-456-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
8-LEAF ASM PART: K = 1-51130-656-0 		1-51133-656-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
3-LEAF ASM PART: M = 8-98096-765-0, N = 8-98202-922-0 		8-98099-131-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
9-LEAF ASM PART: A = 1-51110-449-2 		1-51114-449-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
8-LEAF ASM PART: B = 1-51110-465-2 		1-51114-465-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
8-LEAF ASM PART: C = 1-51110-822-1, H = 1-51130-628-0 		1-51114-822-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
9-LEAF ASM PART: D = 1-51110-824-1, I = 1-51130-629-0 		1-51114-824-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
8-LEAF ASM PART: E = 1-51110-825-1, J = 1-51130-630-0, L = 1-51130-830-0 		1-51114-825-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
7-LEAF ASM PART: F = 1-51130-112-0 		1-51134-112-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
9-LEAF ASM PART: G = 1-51130-456-1 		1-51134-456-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
8-LEAF ASM PART: K = 1-51130-656-0 		1-51134-656-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
9-LEAF ASM PART: A = 1-51110-449-2 		1-51115-449-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
8-LEAF ASM PART: B = 1-51110-465-2 		1-51115-465-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
8-LEAF ASM PART: C = 1-51110-822-1, H = 1-51130-628-0 		1-51115-822-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
9-LEAF ASM PART: D = 1-51110-824-1, I = 1-51130-629-0 		1-51115-824-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
8-LEAF ASM PART: E = 1-51110-825-1, J = 1-51130-630-0, L = 1-51130-830-0 		1-51115-825-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
7-LEAF ASM PART: F = 1-51130-112-0 		1-51135-112-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
9-LEAF ASM PART: G = 1-51130-456-1 		1-51135-456-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
8-LEAF ASM PART: K = 1-51130-656-0 		1-51135-656-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
9-LEAF ASM PART: A = 1-51110-449-2 		1-51116-449-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
8-LEAF ASM PART: B = 1-51110-465-2 		1-51116-465-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
8-LEAF ASM PART: C = 1-51110-822-1, H = 1-51130-628-0 		1-51116-822-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
9-LEAF ASM PART: D = 1-51110-824-1, I = 1-51130-629-0 		1-51116-824-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
8-LEAF ASM PART: E = 1-51110-825-1, J = 1-51130-630-0, L = 1-51130-830-0 		1-51116-825-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
7-LEAF ASM PART: F = 1-51130-112-0 		1-51136-112-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
9-LEAF ASM PART: G = 1-51130-456-1 		1-51136-456-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
8-LEAF ASM PART: K = 1-51130-656-0 		1-51136-656-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
9-LEAF ASM PART: A = 1-51110-449-2 		1-51117-449-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
8-LEAF ASM PART: B = 1-51110-465-2 		1-51117-465-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
8-LEAF ASM PART: C = 1-51110-822-1, H = 1-51130-628-0 		1-51117-822-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
9-LEAF ASM PART: D = 1-51110-824-1, I = 1-51130-629-0 		1-51117-824-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
8-LEAF ASM PART: E = 1-51110-825-1, J = 1-51130-630-0, L = 1-51130-830-0 		1-51117-825-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
7-LEAF ASM PART: F = 1-51130-112-0 		1-51137-112-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
9-LEAF ASM PART: G = 1-51130-456-1 		1-51137-456-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
8-LEAF ASM PART: K = 1-51130-656-0 		1-51137-656-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
9-LEAF ASM PART: A = 1-51110-449-2 		1-51118-449-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
8-LEAF ASM PART: B = 1-51110-465-2 		1-51118-465-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
8-LEAF ASM PART: C = 1-51110-822-1, H = 1-51130-628-0 		1-51118-822-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
9-LEAF ASM PART: D = 1-51110-824-1, I = 1-51130-629-0 		1-51118-824-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
8-LEAF ASM PART: E = 1-51110-825-1, J = 1-51130-630-0, L = 1-51130-830-0 		1-51118-825-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
9-LEAF ASM PART: G = 1-51130-456-1 		1-51138-456-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
8-LEAF ASM PART: K = 1-51130-656-0 		1-51138-656-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=120 ASM PART: A = 1-51110-449-2 		1-51156-201-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=150 ASM PART: B = 1-51110-465-2 		1-51156-227-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=120 ASM PART: C = 1-51110-822-1 		1-51156-241-0 01 1 -9504
15 BOLT; CENTER,LEAF SPR,FRT
L=135 ASM PART: D = 1-51110-824-1 		1-51156-242-0 01 1 -9504
15 BOLT; CENTER,LEAF SPR,FRT
L=130 ASM PART: F = 1-51130-112-0 		1-51156-243-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=130 ASM PART: E = 1-51110-825-1 		1-51156-243-0 01 1 -9504
15 BOLT; CENTER,LEAF SPR,FRT
L=145 ASM PART: G = 1-51130-456-1 		1-51156-250-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=130 ASM PART: L = 1-51130-830-0, M = 8-98096-765-0, N = 8-98202-922-0 		1-51156-346-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=120 ASM PART: H = 1-51130-628-0 		1-51156-382-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=120 ASM PART: C = 1-51110-822-1 		1-51156-382-0 01 1 9505-
15 BOLT; CENTER,LEAF SPR,FRT
L=130 ASM PART: E = 1-51110-825-1 		1-51156-383-0 01 1 9505-
15 BOLT; CENTER,LEAF SPR,FRT
L=130 ASM PART: J = 1-51130-630-0 		1-51156-383-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=135 ASM PART: D = 1-51110-824-1 		1-51156-384-0 01 1 9505-
15 BOLT; CENTER,LEAF SPR,FRT
L=135 ASM PART: I = 1-51130-629-0, K = 1-51130-656-0 		1-51156-384-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M16 ASM PART: C = 1-51110-822-1, D = 1-51110-824-1, E = 1-51110-825-1, F = 1-51130-112-0, G = 1-51130-456-1, H = 1-51130-628-0, I = 1-51130-629-0, J = 1-51130-630-0, K = 1-51130-656-0, L = 1-51130-830-0, M = 8-98096-765-0, N = 8-98202-922-0 		1-09400-054-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M12 ASM PART: A = 1-51110-449-2, B = 1-51110-465-2 		9-99110-112-0 01 1 -
17 BUSHING; LEAF SPR,FRT
OD=38 ASM PART: A = 1-51110-449-2, B = 1-51110-465-2, C = 1-51110-822-1, D = 1-51110-824-1, E = 1-51110-825-1, F = 1-51130-112-0, L = 1-51130-830-0, M = 8-98096-765-0, N = 8-98202-922-0 		1-51351-009-0 02 1 -
17 BUSHING; LEAF SPR,FRT
OD=38 ASM PART: G = 1-51130-456-1, H = 1-51130-628-0, I = 1-51130-629-0, J = 1-51130-630-0, K = 1-51130-656-0 		1-51351-030-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M10X99 ASM PART: C = 1-51110-822-1, E = 1-51110-825-1, H = 1-51130-628-0, J = 1-51130-630-0, L = 1-51130-830-0, M = 8-98096-765-0, N = 8-98202-922-0 		1-09000-328-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M10X99 ASM PART: D = 1-51110-824-1, F = 1-51130-112-0, I = 1-51130-629-0 		1-09000-328-0 03 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M10X105 ASM PART: G = 1-51130-456-1 		1-09000-391-0 04 1 -
18 BOLT; CLIP,LEAF SPR,FRT
ASM PART: K = 1-51130-656-0 		9-09801-223-0 04 1 -
18 BOLT; CLIP,LEAF SPR,FRT
ASM PART: A = 1-51110-449-2, B = 1-51110-465-2 		9-09801-233-0 03 1 -
23 SPRING; LEAF,INTER
ASM PART: J = 1-51130-630-0, L = 1-51130-830-0 		1-51159-042-0 01 1 -
23 SPRING; LEAF,INTER
ASM PART: E = 1-51110-825-1 		1-51159-042-0 01 1 9505-
23 SPRING; LEAF,INTER
ASM PART: E = 1-51110-825-1 		1-51177-240-0 01 1 -9504
23 SPRING; LEAF,INTER
ASM PART: K = 1-51130-656-0 		1-51179-016-0 01 1 -
23 SPRING; LEAF,INTER
ASM PART: F = 1-51130-112-0 		1-51399-021-0 01 1 -
24 LINER; LEAF SPR,FWD FRT
(A) ASM PART: E = 1-51110-825-1, J = 1-51130-630-0, L = 1-51130-830-0 		1-51159-022-0 10 1 -
24 LINER; LEAF SPR,FWD FRT
(A) ASM PART: F = 1-51130-112-0, K = 1-51130-656-0 		1-51159-022-0 08 1 -
24 LINER; LEAF SPR,FWD FRT
(B) ASM PART: K = 1-51130-656-0, M = 8-98096-765-0 		1-51159-023-0 04 1 -
24 LINER; LEAF SPR,FWD FRT
(B) ASM PART: E = 1-51110-825-1, F = 1-51130-112-0, J = 1-51130-630-0, L = 1-51130-830-0 		1-51159-023-0 02 1 -
24 LINER; LEAF SPR,FWD FRT
ASM PART: N = 8-98202-922-0 		8-98202-886-1 04 1 -
çizim 37034
17 1 16 2 3 18 17 4 5 6 18 7 8 18 9 15
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
8-LEAF ASM PART: B = 1-51110-465-2 		1-51111-267-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
9-LEAF ASM PART: A = 1-51110-449-2 		1-51111-449-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
8-LEAF ASM PART: C = 1-51110-822-1, H = 1-51130-628-0 		1-51111-822-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
9-LEAF ASM PART: D = 1-51110-824-1, I = 1-51130-629-0 		1-51111-824-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
8-LEAF ASM PART: E = 1-51110-825-1, J = 1-51130-630-0, L = 1-51130-830-0 		1-51111-825-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
7-LEAF ASM PART: F = 1-51130-112-0 		1-51131-112-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
9-LEAF ASM PART: G = 1-51130-456-1 		1-51131-456-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
8-LEAF ASM PART: K = 1-51130-656-0 		1-51131-656-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
3-LEAF ASM PART: M = 8-98096-765-0, N = 8-98202-922-0 		8-98099-129-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
8-LEAF ASM PART: B = 1-51110-465-2 		1-51112-267-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
9-LEAF ASM PART: A = 1-51110-449-2 		1-51112-449-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
8-LEAF ASM PART: C = 1-51110-822-1, H = 1-51130-628-0 		1-51112-822-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
9-LEAF ASM PART: D = 1-51110-824-1, I = 1-51130-629-0 		1-51112-824-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
8-LEAF ASM PART: E = 1-51110-825-1, J = 1-51130-630-0, L = 1-51130-830-0 		1-51112-825-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
7-LEAF ASM PART: F = 1-51130-112-0 		1-51132-112-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
9-LEAF ASM PART: G = 1-51130-456-1 		1-51132-456-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
8-LEAF ASM PART: K = 1-51130-656-0 		1-51132-656-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
3-LEAF ASM PART: M = 8-98096-765-0, N = 8-98202-922-0 		8-98099-130-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
9-LEAF ASM PART: A = 1-51110-449-2 		1-51113-449-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
8-LEAF ASM PART: B = 1-51110-465-2 		1-51113-465-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
8-LEAF ASM PART: C = 1-51110-822-1, H = 1-51130-628-0 		1-51113-822-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
9-LEAF ASM PART: D = 1-51110-824-1, I = 1-51130-629-0 		1-51113-824-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
8-LEAF ASM PART: E = 1-51110-825-1, J = 1-51130-630-0, L = 1-51130-830-0 		1-51113-825-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
7-LEAF ASM PART: F = 1-51130-112-0 		1-51133-112-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
9-LEAF ASM PART: G = 1-51130-456-1 		1-51133-456-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
8-LEAF ASM PART: K = 1-51130-656-0 		1-51133-656-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
3-LEAF ASM PART: M = 8-98096-765-0, N = 8-98202-922-0 		8-98099-131-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
9-LEAF ASM PART: A = 1-51110-449-2 		1-51114-449-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
8-LEAF ASM PART: B = 1-51110-465-2 		1-51114-465-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
8-LEAF ASM PART: C = 1-51110-822-1, H = 1-51130-628-0 		1-51114-822-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
9-LEAF ASM PART: D = 1-51110-824-1, I = 1-51130-629-0 		1-51114-824-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
8-LEAF ASM PART: E = 1-51110-825-1, J = 1-51130-630-0, L = 1-51130-830-0 		1-51114-825-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
7-LEAF ASM PART: F = 1-51130-112-0 		1-51134-112-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
9-LEAF ASM PART: G = 1-51130-456-1 		1-51134-456-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
8-LEAF ASM PART: K = 1-51130-656-0 		1-51134-656-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
9-LEAF ASM PART: A = 1-51110-449-2 		1-51115-449-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
8-LEAF ASM PART: B = 1-51110-465-2 		1-51115-465-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
8-LEAF ASM PART: C = 1-51110-822-1, H = 1-51130-628-0 		1-51115-822-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
9-LEAF ASM PART: D = 1-51110-824-1, I = 1-51130-629-0 		1-51115-824-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
8-LEAF ASM PART: E = 1-51110-825-1, J = 1-51130-630-0, L = 1-51130-830-0 		1-51115-825-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
7-LEAF ASM PART: F = 1-51130-112-0 		1-51135-112-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
9-LEAF ASM PART: G = 1-51130-456-1 		1-51135-456-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
8-LEAF ASM PART: K = 1-51130-656-0 		1-51135-656-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
9-LEAF ASM PART: A = 1-51110-449-2 		1-51116-449-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
8-LEAF ASM PART: B = 1-51110-465-2 		1-51116-465-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
8-LEAF ASM PART: C = 1-51110-822-1, H = 1-51130-628-0 		1-51116-822-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
9-LEAF ASM PART: D = 1-51110-824-1, I = 1-51130-629-0 		1-51116-824-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
8-LEAF ASM PART: E = 1-51110-825-1, J = 1-51130-630-0, L = 1-51130-830-0 		1-51116-825-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
7-LEAF ASM PART: F = 1-51130-112-0 		1-51136-112-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
9-LEAF ASM PART: G = 1-51130-456-1 		1-51136-456-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
8-LEAF ASM PART: K = 1-51130-656-0 		1-51136-656-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
9-LEAF ASM PART: A = 1-51110-449-2 		1-51117-449-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
8-LEAF ASM PART: B = 1-51110-465-2 		1-51117-465-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
8-LEAF ASM PART: C = 1-51110-822-1, H = 1-51130-628-0 		1-51117-822-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
9-LEAF ASM PART: D = 1-51110-824-1, I = 1-51130-629-0 		1-51117-824-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
8-LEAF ASM PART: E = 1-51110-825-1, J = 1-51130-630-0, L = 1-51130-830-0 		1-51117-825-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
7-LEAF ASM PART: F = 1-51130-112-0 		1-51137-112-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
9-LEAF ASM PART: G = 1-51130-456-1 		1-51137-456-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
8-LEAF ASM PART: K = 1-51130-656-0 		1-51137-656-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
9-LEAF ASM PART: A = 1-51110-449-2 		1-51118-449-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
8-LEAF ASM PART: B = 1-51110-465-2 		1-51118-465-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
8-LEAF ASM PART: C = 1-51110-822-1, H = 1-51130-628-0 		1-51118-822-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
9-LEAF ASM PART: D = 1-51110-824-1, I = 1-51130-629-0 		1-51118-824-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
8-LEAF ASM PART: E = 1-51110-825-1, J = 1-51130-630-0, L = 1-51130-830-0 		1-51118-825-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
9-LEAF ASM PART: G = 1-51130-456-1 		1-51138-456-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
8-LEAF ASM PART: K = 1-51130-656-0 		1-51138-656-0 01 1 -
9 SPRING; LEAF,NO 9,FRT
9-LEAF ASM PART: A = 1-51110-449-2 		1-51119-449-0 01 1 -
9 SPRING; LEAF,NO 9,FRT
9-LEAF ASM PART: D = 1-51110-824-1, I = 1-51130-629-0 		1-51119-824-0 01 1 -
9 SPRING; LEAF,NO 9,FRT
9-LEAF ASM PART: G = 1-51130-456-1 		1-51139-456-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=120 ASM PART: A = 1-51110-449-2 		1-51156-201-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=150 ASM PART: B = 1-51110-465-2 		1-51156-227-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=120 ASM PART: C = 1-51110-822-1 		1-51156-241-0 01 1 -9504
15 BOLT; CENTER,LEAF SPR,FRT
L=135 ASM PART: D = 1-51110-824-1 		1-51156-242-0 01 1 -9504
15 BOLT; CENTER,LEAF SPR,FRT
L=130 ASM PART: F = 1-51130-112-0 		1-51156-243-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=130 ASM PART: E = 1-51110-825-1 		1-51156-243-0 01 1 -9504
15 BOLT; CENTER,LEAF SPR,FRT
L=145 ASM PART: G = 1-51130-456-1 		1-51156-250-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=130 ASM PART: L = 1-51130-830-0, M = 8-98096-765-0, N = 8-98202-922-0 		1-51156-346-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=120 ASM PART: H = 1-51130-628-0 		1-51156-382-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=120 ASM PART: C = 1-51110-822-1 		1-51156-382-0 01 1 9505-
15 BOLT; CENTER,LEAF SPR,FRT
L=130 ASM PART: E = 1-51110-825-1 		1-51156-383-0 01 1 9505-
15 BOLT; CENTER,LEAF SPR,FRT
L=130 ASM PART: J = 1-51130-630-0 		1-51156-383-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=135 ASM PART: D = 1-51110-824-1 		1-51156-384-0 01 1 9505-
15 BOLT; CENTER,LEAF SPR,FRT
L=135 ASM PART: I = 1-51130-629-0, K = 1-51130-656-0 		1-51156-384-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M16 ASM PART: C = 1-51110-822-1, D = 1-51110-824-1, E = 1-51110-825-1, F = 1-51130-112-0, G = 1-51130-456-1, H = 1-51130-628-0, I = 1-51130-629-0, J = 1-51130-630-0, K = 1-51130-656-0, L = 1-51130-830-0, M = 8-98096-765-0, N = 8-98202-922-0 		1-09400-054-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M12 ASM PART: A = 1-51110-449-2, B = 1-51110-465-2 		9-99110-112-0 01 1 -
17 BUSHING; LEAF SPR,FRT
OD=38 ASM PART: A = 1-51110-449-2, B = 1-51110-465-2, C = 1-51110-822-1, D = 1-51110-824-1, E = 1-51110-825-1, F = 1-51130-112-0, L = 1-51130-830-0, M = 8-98096-765-0, N = 8-98202-922-0 		1-51351-009-0 02 1 -
17 BUSHING; LEAF SPR,FRT
OD=38 ASM PART: G = 1-51130-456-1, H = 1-51130-628-0, I = 1-51130-629-0, J = 1-51130-630-0, K = 1-51130-656-0 		1-51351-030-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M10X99 ASM PART: C = 1-51110-822-1, E = 1-51110-825-1, H = 1-51130-628-0, J = 1-51130-630-0, L = 1-51130-830-0, M = 8-98096-765-0, N = 8-98202-922-0 		1-09000-328-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M10X99 ASM PART: D = 1-51110-824-1, F = 1-51130-112-0, I = 1-51130-629-0 		1-09000-328-0 03 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M10X105 ASM PART: G = 1-51130-456-1 		1-09000-391-0 04 1 -
18 BOLT; CLIP,LEAF SPR,FRT
ASM PART: K = 1-51130-656-0 		9-09801-223-0 04 1 -
18 BOLT; CLIP,LEAF SPR,FRT
ASM PART: A = 1-51110-449-2, B = 1-51110-465-2 		9-09801-233-0 03 1 -
çizim 37038
17 1 16 2 3 26 18 25 17 4 25 18 5 26 6 25 18 26 7 8 15
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
8-LEAF ASM PART: B = 1-51110-465-2 		1-51111-267-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
9-LEAF ASM PART: A = 1-51110-449-2 		1-51111-449-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
8-LEAF ASM PART: C = 1-51110-822-1, H = 1-51130-628-0 		1-51111-822-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
9-LEAF ASM PART: D = 1-51110-824-1, I = 1-51130-629-0 		1-51111-824-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
8-LEAF ASM PART: E = 1-51110-825-1, J = 1-51130-630-0, L = 1-51130-830-0 		1-51111-825-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
7-LEAF ASM PART: F = 1-51130-112-0 		1-51131-112-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
9-LEAF ASM PART: G = 1-51130-456-1 		1-51131-456-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
8-LEAF ASM PART: K = 1-51130-656-0 		1-51131-656-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
3-LEAF ASM PART: M = 8-98096-765-0, N = 8-98202-922-0 		8-98099-129-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
8-LEAF ASM PART: B = 1-51110-465-2 		1-51112-267-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
9-LEAF ASM PART: A = 1-51110-449-2 		1-51112-449-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
8-LEAF ASM PART: C = 1-51110-822-1, H = 1-51130-628-0 		1-51112-822-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
9-LEAF ASM PART: D = 1-51110-824-1, I = 1-51130-629-0 		1-51112-824-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
8-LEAF ASM PART: E = 1-51110-825-1, J = 1-51130-630-0, L = 1-51130-830-0 		1-51112-825-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
7-LEAF ASM PART: F = 1-51130-112-0 		1-51132-112-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
9-LEAF ASM PART: G = 1-51130-456-1 		1-51132-456-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
8-LEAF ASM PART: K = 1-51130-656-0 		1-51132-656-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
3-LEAF ASM PART: M = 8-98096-765-0, N = 8-98202-922-0 		8-98099-130-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
9-LEAF ASM PART: A = 1-51110-449-2 		1-51113-449-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
8-LEAF ASM PART: B = 1-51110-465-2 		1-51113-465-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
8-LEAF ASM PART: C = 1-51110-822-1, H = 1-51130-628-0 		1-51113-822-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
9-LEAF ASM PART: D = 1-51110-824-1, I = 1-51130-629-0 		1-51113-824-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
8-LEAF ASM PART: E = 1-51110-825-1, J = 1-51130-630-0, L = 1-51130-830-0 		1-51113-825-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
7-LEAF ASM PART: F = 1-51130-112-0 		1-51133-112-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
9-LEAF ASM PART: G = 1-51130-456-1 		1-51133-456-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
8-LEAF ASM PART: K = 1-51130-656-0 		1-51133-656-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
3-LEAF ASM PART: M = 8-98096-765-0, N = 8-98202-922-0 		8-98099-131-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
9-LEAF ASM PART: A = 1-51110-449-2 		1-51114-449-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
8-LEAF ASM PART: B = 1-51110-465-2 		1-51114-465-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
8-LEAF ASM PART: C = 1-51110-822-1, H = 1-51130-628-0 		1-51114-822-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
9-LEAF ASM PART: D = 1-51110-824-1, I = 1-51130-629-0 		1-51114-824-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
8-LEAF ASM PART: E = 1-51110-825-1, J = 1-51130-630-0, L = 1-51130-830-0 		1-51114-825-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
7-LEAF ASM PART: F = 1-51130-112-0 		1-51134-112-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
9-LEAF ASM PART: G = 1-51130-456-1 		1-51134-456-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
8-LEAF ASM PART: K = 1-51130-656-0 		1-51134-656-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
9-LEAF ASM PART: A = 1-51110-449-2 		1-51115-449-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
8-LEAF ASM PART: B = 1-51110-465-2 		1-51115-465-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
8-LEAF ASM PART: C = 1-51110-822-1, H = 1-51130-628-0 		1-51115-822-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
9-LEAF ASM PART: D = 1-51110-824-1, I = 1-51130-629-0 		1-51115-824-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
8-LEAF ASM PART: E = 1-51110-825-1, J = 1-51130-630-0, L = 1-51130-830-0 		1-51115-825-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
7-LEAF ASM PART: F = 1-51130-112-0 		1-51135-112-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
9-LEAF ASM PART: G = 1-51130-456-1 		1-51135-456-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
8-LEAF ASM PART: K = 1-51130-656-0 		1-51135-656-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
9-LEAF ASM PART: A = 1-51110-449-2 		1-51116-449-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
8-LEAF ASM PART: B = 1-51110-465-2 		1-51116-465-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
8-LEAF ASM PART: C = 1-51110-822-1, H = 1-51130-628-0 		1-51116-822-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
9-LEAF ASM PART: D = 1-51110-824-1, I = 1-51130-629-0 		1-51116-824-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
8-LEAF ASM PART: E = 1-51110-825-1, J = 1-51130-630-0, L = 1-51130-830-0 		1-51116-825-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
7-LEAF ASM PART: F = 1-51130-112-0 		1-51136-112-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
9-LEAF ASM PART: G = 1-51130-456-1 		1-51136-456-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
8-LEAF ASM PART: K = 1-51130-656-0 		1-51136-656-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
9-LEAF ASM PART: A = 1-51110-449-2 		1-51117-449-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
8-LEAF ASM PART: B = 1-51110-465-2 		1-51117-465-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
8-LEAF ASM PART: C = 1-51110-822-1, H = 1-51130-628-0 		1-51117-822-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
9-LEAF ASM PART: D = 1-51110-824-1, I = 1-51130-629-0 		1-51117-824-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
8-LEAF ASM PART: E = 1-51110-825-1, J = 1-51130-630-0, L = 1-51130-830-0 		1-51117-825-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
7-LEAF ASM PART: F = 1-51130-112-0 		1-51137-112-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
9-LEAF ASM PART: G = 1-51130-456-1 		1-51137-456-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
8-LEAF ASM PART: K = 1-51130-656-0 		1-51137-656-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
9-LEAF ASM PART: A = 1-51110-449-2 		1-51118-449-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
8-LEAF ASM PART: B = 1-51110-465-2 		1-51118-465-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
8-LEAF ASM PART: C = 1-51110-822-1, H = 1-51130-628-0 		1-51118-822-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
9-LEAF ASM PART: D = 1-51110-824-1, I = 1-51130-629-0 		1-51118-824-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
8-LEAF ASM PART: E = 1-51110-825-1, J = 1-51130-630-0, L = 1-51130-830-0 		1-51118-825-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
9-LEAF ASM PART: G = 1-51130-456-1 		1-51138-456-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
8-LEAF ASM PART: K = 1-51130-656-0 		1-51138-656-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=120 ASM PART: A = 1-51110-449-2 		1-51156-201-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=150 ASM PART: B = 1-51110-465-2 		1-51156-227-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=120 ASM PART: C = 1-51110-822-1 		1-51156-241-0 01 1 -9504
15 BOLT; CENTER,LEAF SPR,FRT
L=135 ASM PART: D = 1-51110-824-1 		1-51156-242-0 01 1 -9504
15 BOLT; CENTER,LEAF SPR,FRT
L=130 ASM PART: F = 1-51130-112-0 		1-51156-243-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=130 ASM PART: E = 1-51110-825-1 		1-51156-243-0 01 1 -9504
15 BOLT; CENTER,LEAF SPR,FRT
L=145 ASM PART: G = 1-51130-456-1 		1-51156-250-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=130 ASM PART: L = 1-51130-830-0, M = 8-98096-765-0, N = 8-98202-922-0 		1-51156-346-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=120 ASM PART: H = 1-51130-628-0 		1-51156-382-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=120 ASM PART: C = 1-51110-822-1 		1-51156-382-0 01 1 9505-
15 BOLT; CENTER,LEAF SPR,FRT
L=130 ASM PART: E = 1-51110-825-1 		1-51156-383-0 01 1 9505-
15 BOLT; CENTER,LEAF SPR,FRT
L=130 ASM PART: J = 1-51130-630-0 		1-51156-383-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=135 ASM PART: D = 1-51110-824-1 		1-51156-384-0 01 1 9505-
15 BOLT; CENTER,LEAF SPR,FRT
L=135 ASM PART: I = 1-51130-629-0, K = 1-51130-656-0 		1-51156-384-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M16 ASM PART: C = 1-51110-822-1, D = 1-51110-824-1, E = 1-51110-825-1, F = 1-51130-112-0, G = 1-51130-456-1, H = 1-51130-628-0, I = 1-51130-629-0, J = 1-51130-630-0, K = 1-51130-656-0, L = 1-51130-830-0, M = 8-98096-765-0, N = 8-98202-922-0 		1-09400-054-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M12 ASM PART: A = 1-51110-449-2, B = 1-51110-465-2 		9-99110-112-0 01 1 -
17 BUSHING; LEAF SPR,FRT
OD=38 ASM PART: A = 1-51110-449-2, B = 1-51110-465-2, C = 1-51110-822-1, D = 1-51110-824-1, E = 1-51110-825-1, F = 1-51130-112-0, L = 1-51130-830-0, M = 8-98096-765-0, N = 8-98202-922-0 		1-51351-009-0 02 1 -
17 BUSHING; LEAF SPR,FRT
OD=38 ASM PART: G = 1-51130-456-1, H = 1-51130-628-0, I = 1-51130-629-0, J = 1-51130-630-0, K = 1-51130-656-0 		1-51351-030-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M10X99 ASM PART: C = 1-51110-822-1, E = 1-51110-825-1, H = 1-51130-628-0, J = 1-51130-630-0, L = 1-51130-830-0, M = 8-98096-765-0, N = 8-98202-922-0 		1-09000-328-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M10X99 ASM PART: D = 1-51110-824-1, F = 1-51130-112-0, I = 1-51130-629-0 		1-09000-328-0 03 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M10X105 ASM PART: G = 1-51130-456-1 		1-09000-391-0 04 1 -
18 BOLT; CLIP,LEAF SPR,FRT
ASM PART: K = 1-51130-656-0 		9-09801-223-0 04 1 -
18 BOLT; CLIP,LEAF SPR,FRT
ASM PART: A = 1-51110-449-2, B = 1-51110-465-2 		9-09801-233-0 03 1 -
25 NUT; CLAMP
M8 ASM PART: A = 1-51110-449-2, B = 1-51110-465-2 		9-09110-008-0 03 1 -
26 PIPE; CLIP,LEAF SPR,FRT
ASM PART: G = 1-51130-456-1 		1-51353-009-0 04 1 -
26 PIPE; CLIP,LEAF SPR,FRT
ASM PART: A = 1-51110-449-2, B = 1-51110-465-2 		9-51153-008-0 03 1 -
26 PIPE; CLIP,LEAF SPR,FRT
ASM PART: K = 1-51130-656-0 		9-51153-009-0 04 1 -
çizim 39108
1 17 16 2 3 30 26 17 31 18 4 5 31 18 30 30 26 26 31 18 6 31 30 18 26 7 8 9 15
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
8-LEAF ASM PART: B = 1-51110-465-2 		1-51111-267-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
9-LEAF ASM PART: A = 1-51110-449-2 		1-51111-449-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
8-LEAF ASM PART: C = 1-51110-822-1, H = 1-51130-628-0 		1-51111-822-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
9-LEAF ASM PART: D = 1-51110-824-1, I = 1-51130-629-0 		1-51111-824-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
8-LEAF ASM PART: E = 1-51110-825-1, J = 1-51130-630-0, L = 1-51130-830-0 		1-51111-825-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
7-LEAF ASM PART: F = 1-51130-112-0 		1-51131-112-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
9-LEAF ASM PART: G = 1-51130-456-1 		1-51131-456-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
8-LEAF ASM PART: K = 1-51130-656-0 		1-51131-656-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
3-LEAF ASM PART: M = 8-98096-765-0, N = 8-98202-922-0 		8-98099-129-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
8-LEAF ASM PART: B = 1-51110-465-2 		1-51112-267-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
9-LEAF ASM PART: A = 1-51110-449-2 		1-51112-449-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
8-LEAF ASM PART: C = 1-51110-822-1, H = 1-51130-628-0 		1-51112-822-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
9-LEAF ASM PART: D = 1-51110-824-1, I = 1-51130-629-0 		1-51112-824-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
8-LEAF ASM PART: E = 1-51110-825-1, J = 1-51130-630-0, L = 1-51130-830-0 		1-51112-825-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
7-LEAF ASM PART: F = 1-51130-112-0 		1-51132-112-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
9-LEAF ASM PART: G = 1-51130-456-1 		1-51132-456-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
8-LEAF ASM PART: K = 1-51130-656-0 		1-51132-656-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
3-LEAF ASM PART: M = 8-98096-765-0, N = 8-98202-922-0 		8-98099-130-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
9-LEAF ASM PART: A = 1-51110-449-2 		1-51113-449-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
8-LEAF ASM PART: B = 1-51110-465-2 		1-51113-465-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
8-LEAF ASM PART: C = 1-51110-822-1, H = 1-51130-628-0 		1-51113-822-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
9-LEAF ASM PART: D = 1-51110-824-1, I = 1-51130-629-0 		1-51113-824-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
8-LEAF ASM PART: E = 1-51110-825-1, J = 1-51130-630-0, L = 1-51130-830-0 		1-51113-825-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
7-LEAF ASM PART: F = 1-51130-112-0 		1-51133-112-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
9-LEAF ASM PART: G = 1-51130-456-1 		1-51133-456-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
8-LEAF ASM PART: K = 1-51130-656-0 		1-51133-656-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
3-LEAF ASM PART: M = 8-98096-765-0, N = 8-98202-922-0 		8-98099-131-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
9-LEAF ASM PART: A = 1-51110-449-2 		1-51114-449-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
8-LEAF ASM PART: B = 1-51110-465-2 		1-51114-465-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
8-LEAF ASM PART: C = 1-51110-822-1, H = 1-51130-628-0 		1-51114-822-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
9-LEAF ASM PART: D = 1-51110-824-1, I = 1-51130-629-0 		1-51114-824-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
8-LEAF ASM PART: E = 1-51110-825-1, J = 1-51130-630-0, L = 1-51130-830-0 		1-51114-825-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
7-LEAF ASM PART: F = 1-51130-112-0 		1-51134-112-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
9-LEAF ASM PART: G = 1-51130-456-1 		1-51134-456-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
8-LEAF ASM PART: K = 1-51130-656-0 		1-51134-656-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
9-LEAF ASM PART: A = 1-51110-449-2 		1-51115-449-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
8-LEAF ASM PART: B = 1-51110-465-2 		1-51115-465-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
8-LEAF ASM PART: C = 1-51110-822-1, H = 1-51130-628-0 		1-51115-822-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
9-LEAF ASM PART: D = 1-51110-824-1, I = 1-51130-629-0 		1-51115-824-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
8-LEAF ASM PART: E = 1-51110-825-1, J = 1-51130-630-0, L = 1-51130-830-0 		1-51115-825-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
7-LEAF ASM PART: F = 1-51130-112-0 		1-51135-112-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
9-LEAF ASM PART: G = 1-51130-456-1 		1-51135-456-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
8-LEAF ASM PART: K = 1-51130-656-0 		1-51135-656-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
9-LEAF ASM PART: A = 1-51110-449-2 		1-51116-449-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
8-LEAF ASM PART: B = 1-51110-465-2 		1-51116-465-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
8-LEAF ASM PART: C = 1-51110-822-1, H = 1-51130-628-0 		1-51116-822-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
9-LEAF ASM PART: D = 1-51110-824-1, I = 1-51130-629-0 		1-51116-824-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
8-LEAF ASM PART: E = 1-51110-825-1, J = 1-51130-630-0, L = 1-51130-830-0 		1-51116-825-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
7-LEAF ASM PART: F = 1-51130-112-0 		1-51136-112-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
9-LEAF ASM PART: G = 1-51130-456-1 		1-51136-456-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
8-LEAF ASM PART: K = 1-51130-656-0 		1-51136-656-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
9-LEAF ASM PART: A = 1-51110-449-2 		1-51117-449-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
8-LEAF ASM PART: B = 1-51110-465-2 		1-51117-465-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
8-LEAF ASM PART: C = 1-51110-822-1, H = 1-51130-628-0 		1-51117-822-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
9-LEAF ASM PART: D = 1-51110-824-1, I = 1-51130-629-0 		1-51117-824-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
8-LEAF ASM PART: E = 1-51110-825-1, J = 1-51130-630-0, L = 1-51130-830-0 		1-51117-825-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
7-LEAF ASM PART: F = 1-51130-112-0 		1-51137-112-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
9-LEAF ASM PART: G = 1-51130-456-1 		1-51137-456-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
8-LEAF ASM PART: K = 1-51130-656-0 		1-51137-656-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
9-LEAF ASM PART: A = 1-51110-449-2 		1-51118-449-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
8-LEAF ASM PART: B = 1-51110-465-2 		1-51118-465-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
8-LEAF ASM PART: C = 1-51110-822-1, H = 1-51130-628-0 		1-51118-822-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
9-LEAF ASM PART: D = 1-51110-824-1, I = 1-51130-629-0 		1-51118-824-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
8-LEAF ASM PART: E = 1-51110-825-1, J = 1-51130-630-0, L = 1-51130-830-0 		1-51118-825-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
9-LEAF ASM PART: G = 1-51130-456-1 		1-51138-456-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
8-LEAF ASM PART: K = 1-51130-656-0 		1-51138-656-0 01 1 -
9 SPRING; LEAF,NO 9,FRT
9-LEAF ASM PART: A = 1-51110-449-2 		1-51119-449-0 01 1 -
9 SPRING; LEAF,NO 9,FRT
9-LEAF ASM PART: D = 1-51110-824-1, I = 1-51130-629-0 		1-51119-824-0 01 1 -
9 SPRING; LEAF,NO 9,FRT
9-LEAF ASM PART: G = 1-51130-456-1 		1-51139-456-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=120 ASM PART: A = 1-51110-449-2 		1-51156-201-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=150 ASM PART: B = 1-51110-465-2 		1-51156-227-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=120 ASM PART: C = 1-51110-822-1 		1-51156-241-0 01 1 -9504
15 BOLT; CENTER,LEAF SPR,FRT
L=135 ASM PART: D = 1-51110-824-1 		1-51156-242-0 01 1 -9504
15 BOLT; CENTER,LEAF SPR,FRT
L=130 ASM PART: F = 1-51130-112-0 		1-51156-243-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=130 ASM PART: E = 1-51110-825-1 		1-51156-243-0 01 1 -9504
15 BOLT; CENTER,LEAF SPR,FRT
L=145 ASM PART: G = 1-51130-456-1 		1-51156-250-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=130 ASM PART: L = 1-51130-830-0, M = 8-98096-765-0, N = 8-98202-922-0 		1-51156-346-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=120 ASM PART: H = 1-51130-628-0 		1-51156-382-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=120 ASM PART: C = 1-51110-822-1 		1-51156-382-0 01 1 9505-
15 BOLT; CENTER,LEAF SPR,FRT
L=130 ASM PART: E = 1-51110-825-1 		1-51156-383-0 01 1 9505-
15 BOLT; CENTER,LEAF SPR,FRT
L=130 ASM PART: J = 1-51130-630-0 		1-51156-383-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=135 ASM PART: D = 1-51110-824-1 		1-51156-384-0 01 1 9505-
15 BOLT; CENTER,LEAF SPR,FRT
L=135 ASM PART: I = 1-51130-629-0, K = 1-51130-656-0 		1-51156-384-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M16 ASM PART: C = 1-51110-822-1, D = 1-51110-824-1, E = 1-51110-825-1, F = 1-51130-112-0, G = 1-51130-456-1, H = 1-51130-628-0, I = 1-51130-629-0, J = 1-51130-630-0, K = 1-51130-656-0, L = 1-51130-830-0, M = 8-98096-765-0, N = 8-98202-922-0 		1-09400-054-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M12 ASM PART: A = 1-51110-449-2, B = 1-51110-465-2 		9-99110-112-0 01 1 -
17 BUSHING; LEAF SPR,FRT
OD=38 ASM PART: A = 1-51110-449-2, B = 1-51110-465-2, C = 1-51110-822-1, D = 1-51110-824-1, E = 1-51110-825-1, F = 1-51130-112-0, L = 1-51130-830-0, M = 8-98096-765-0, N = 8-98202-922-0 		1-51351-009-0 02 1 -
17 BUSHING; LEAF SPR,FRT
OD=38 ASM PART: G = 1-51130-456-1, H = 1-51130-628-0, I = 1-51130-629-0, J = 1-51130-630-0, K = 1-51130-656-0 		1-51351-030-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M10X99 ASM PART: C = 1-51110-822-1, E = 1-51110-825-1, H = 1-51130-628-0, J = 1-51130-630-0, L = 1-51130-830-0, M = 8-98096-765-0, N = 8-98202-922-0 		1-09000-328-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M10X99 ASM PART: D = 1-51110-824-1, F = 1-51130-112-0, I = 1-51130-629-0 		1-09000-328-0 03 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M10X105 ASM PART: G = 1-51130-456-1 		1-09000-391-0 04 1 -
18 BOLT; CLIP,LEAF SPR,FRT
ASM PART: K = 1-51130-656-0 		9-09801-223-0 04 1 -
18 BOLT; CLIP,LEAF SPR,FRT
ASM PART: A = 1-51110-449-2, B = 1-51110-465-2 		9-09801-233-0 03 1 -
26 PIPE; CLIP,LEAF SPR,FRT
ASM PART: G = 1-51130-456-1 		1-51353-009-0 04 1 -
26 PIPE; CLIP,LEAF SPR,FRT
ASM PART: A = 1-51110-449-2, B = 1-51110-465-2 		9-51153-008-0 03 1 -
26 PIPE; CLIP,LEAF SPR,FRT
ASM PART: K = 1-51130-656-0 		9-51153-009-0 04 1 -
30 WASHER; CLIP,LEAF SPR,FRT
ID=8.2 ASM PART: G = 1-51130-456-1 		9-09150-508-0 04 1 -
31 NUT; CLIP
M8 ASM PART: G = 1-51130-456-1 		9-09110-008-0 04 1 -
31 NUT; CLIP
M10 ASM PART: K = 1-51130-656-0 		9-09110-010-0 04 1 -
çizim 39147
17 1 16 2 3 4 26 17 18 25 5 18 25 6 26 7 25 18 26 8 9 15
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
8-LEAF ASM PART: B = 1-51110-465-2 		1-51111-267-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
9-LEAF ASM PART: A = 1-51110-449-2 		1-51111-449-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
8-LEAF ASM PART: C = 1-51110-822-1, H = 1-51130-628-0 		1-51111-822-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
9-LEAF ASM PART: D = 1-51110-824-1, I = 1-51130-629-0 		1-51111-824-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
8-LEAF ASM PART: E = 1-51110-825-1, J = 1-51130-630-0, L = 1-51130-830-0 		1-51111-825-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
7-LEAF ASM PART: F = 1-51130-112-0 		1-51131-112-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
9-LEAF ASM PART: G = 1-51130-456-1 		1-51131-456-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
8-LEAF ASM PART: K = 1-51130-656-0 		1-51131-656-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
3-LEAF ASM PART: M = 8-98096-765-0, N = 8-98202-922-0 		8-98099-129-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
8-LEAF ASM PART: B = 1-51110-465-2 		1-51112-267-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
9-LEAF ASM PART: A = 1-51110-449-2 		1-51112-449-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
8-LEAF ASM PART: C = 1-51110-822-1, H = 1-51130-628-0 		1-51112-822-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
9-LEAF ASM PART: D = 1-51110-824-1, I = 1-51130-629-0 		1-51112-824-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
8-LEAF ASM PART: E = 1-51110-825-1, J = 1-51130-630-0, L = 1-51130-830-0 		1-51112-825-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
7-LEAF ASM PART: F = 1-51130-112-0 		1-51132-112-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
9-LEAF ASM PART: G = 1-51130-456-1 		1-51132-456-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
8-LEAF ASM PART: K = 1-51130-656-0 		1-51132-656-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
3-LEAF ASM PART: M = 8-98096-765-0, N = 8-98202-922-0 		8-98099-130-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
9-LEAF ASM PART: A = 1-51110-449-2 		1-51113-449-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
8-LEAF ASM PART: B = 1-51110-465-2 		1-51113-465-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
8-LEAF ASM PART: C = 1-51110-822-1, H = 1-51130-628-0 		1-51113-822-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
9-LEAF ASM PART: D = 1-51110-824-1, I = 1-51130-629-0 		1-51113-824-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
8-LEAF ASM PART: E = 1-51110-825-1, J = 1-51130-630-0, L = 1-51130-830-0 		1-51113-825-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
7-LEAF ASM PART: F = 1-51130-112-0 		1-51133-112-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
9-LEAF ASM PART: G = 1-51130-456-1 		1-51133-456-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
8-LEAF ASM PART: K = 1-51130-656-0 		1-51133-656-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
3-LEAF ASM PART: M = 8-98096-765-0, N = 8-98202-922-0 		8-98099-131-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
9-LEAF ASM PART: A = 1-51110-449-2 		1-51114-449-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
8-LEAF ASM PART: B = 1-51110-465-2 		1-51114-465-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
8-LEAF ASM PART: C = 1-51110-822-1, H = 1-51130-628-0 		1-51114-822-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
9-LEAF ASM PART: D = 1-51110-824-1, I = 1-51130-629-0 		1-51114-824-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
8-LEAF ASM PART: E = 1-51110-825-1, J = 1-51130-630-0, L = 1-51130-830-0 		1-51114-825-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
7-LEAF ASM PART: F = 1-51130-112-0 		1-51134-112-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
9-LEAF ASM PART: G = 1-51130-456-1 		1-51134-456-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
8-LEAF ASM PART: K = 1-51130-656-0 		1-51134-656-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
9-LEAF ASM PART: A = 1-51110-449-2 		1-51115-449-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
8-LEAF ASM PART: B = 1-51110-465-2 		1-51115-465-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
8-LEAF ASM PART: C = 1-51110-822-1, H = 1-51130-628-0 		1-51115-822-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
9-LEAF ASM PART: D = 1-51110-824-1, I = 1-51130-629-0 		1-51115-824-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
8-LEAF ASM PART: E = 1-51110-825-1, J = 1-51130-630-0, L = 1-51130-830-0 		1-51115-825-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
7-LEAF ASM PART: F = 1-51130-112-0 		1-51135-112-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
9-LEAF ASM PART: G = 1-51130-456-1 		1-51135-456-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
8-LEAF ASM PART: K = 1-51130-656-0 		1-51135-656-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
9-LEAF ASM PART: A = 1-51110-449-2 		1-51116-449-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
8-LEAF ASM PART: B = 1-51110-465-2 		1-51116-465-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
8-LEAF ASM PART: C = 1-51110-822-1, H = 1-51130-628-0 		1-51116-822-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
9-LEAF ASM PART: D = 1-51110-824-1, I = 1-51130-629-0 		1-51116-824-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
8-LEAF ASM PART: E = 1-51110-825-1, J = 1-51130-630-0, L = 1-51130-830-0 		1-51116-825-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
7-LEAF ASM PART: F = 1-51130-112-0 		1-51136-112-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
9-LEAF ASM PART: G = 1-51130-456-1 		1-51136-456-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
8-LEAF ASM PART: K = 1-51130-656-0 		1-51136-656-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
9-LEAF ASM PART: A = 1-51110-449-2 		1-51117-449-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
8-LEAF ASM PART: B = 1-51110-465-2 		1-51117-465-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
8-LEAF ASM PART: C = 1-51110-822-1, H = 1-51130-628-0 		1-51117-822-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
9-LEAF ASM PART: D = 1-51110-824-1, I = 1-51130-629-0 		1-51117-824-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
8-LEAF ASM PART: E = 1-51110-825-1, J = 1-51130-630-0, L = 1-51130-830-0 		1-51117-825-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
7-LEAF ASM PART: F = 1-51130-112-0 		1-51137-112-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
9-LEAF ASM PART: G = 1-51130-456-1 		1-51137-456-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
8-LEAF ASM PART: K = 1-51130-656-0 		1-51137-656-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
9-LEAF ASM PART: A = 1-51110-449-2 		1-51118-449-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
8-LEAF ASM PART: B = 1-51110-465-2 		1-51118-465-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
8-LEAF ASM PART: C = 1-51110-822-1, H = 1-51130-628-0 		1-51118-822-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
9-LEAF ASM PART: D = 1-51110-824-1, I = 1-51130-629-0 		1-51118-824-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
8-LEAF ASM PART: E = 1-51110-825-1, J = 1-51130-630-0, L = 1-51130-830-0 		1-51118-825-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
9-LEAF ASM PART: G = 1-51130-456-1 		1-51138-456-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
8-LEAF ASM PART: K = 1-51130-656-0 		1-51138-656-0 01 1 -
9 SPRING; LEAF,NO 9,FRT
9-LEAF ASM PART: A = 1-51110-449-2 		1-51119-449-0 01 1 -
9 SPRING; LEAF,NO 9,FRT
9-LEAF ASM PART: D = 1-51110-824-1, I = 1-51130-629-0 		1-51119-824-0 01 1 -
9 SPRING; LEAF,NO 9,FRT
9-LEAF ASM PART: G = 1-51130-456-1 		1-51139-456-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=120 ASM PART: A = 1-51110-449-2 		1-51156-201-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=150 ASM PART: B = 1-51110-465-2 		1-51156-227-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=120 ASM PART: C = 1-51110-822-1 		1-51156-241-0 01 1 -9504
15 BOLT; CENTER,LEAF SPR,FRT
L=135 ASM PART: D = 1-51110-824-1 		1-51156-242-0 01 1 -9504
15 BOLT; CENTER,LEAF SPR,FRT
L=130 ASM PART: F = 1-51130-112-0 		1-51156-243-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=130 ASM PART: E = 1-51110-825-1 		1-51156-243-0 01 1 -9504
15 BOLT; CENTER,LEAF SPR,FRT
L=145 ASM PART: G = 1-51130-456-1 		1-51156-250-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=130 ASM PART: L = 1-51130-830-0, M = 8-98096-765-0, N = 8-98202-922-0 		1-51156-346-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=120 ASM PART: H = 1-51130-628-0 		1-51156-382-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=120 ASM PART: C = 1-51110-822-1 		1-51156-382-0 01 1 9505-
15 BOLT; CENTER,LEAF SPR,FRT
L=130 ASM PART: E = 1-51110-825-1 		1-51156-383-0 01 1 9505-
15 BOLT; CENTER,LEAF SPR,FRT
L=130 ASM PART: J = 1-51130-630-0 		1-51156-383-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=135 ASM PART: D = 1-51110-824-1 		1-51156-384-0 01 1 9505-
15 BOLT; CENTER,LEAF SPR,FRT
L=135 ASM PART: I = 1-51130-629-0, K = 1-51130-656-0 		1-51156-384-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M16 ASM PART: C = 1-51110-822-1, D = 1-51110-824-1, E = 1-51110-825-1, F = 1-51130-112-0, G = 1-51130-456-1, H = 1-51130-628-0, I = 1-51130-629-0, J = 1-51130-630-0, K = 1-51130-656-0, L = 1-51130-830-0, M = 8-98096-765-0, N = 8-98202-922-0 		1-09400-054-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M12 ASM PART: A = 1-51110-449-2, B = 1-51110-465-2 		9-99110-112-0 01 1 -
17 BUSHING; LEAF SPR,FRT
OD=38 ASM PART: A = 1-51110-449-2, B = 1-51110-465-2, C = 1-51110-822-1, D = 1-51110-824-1, E = 1-51110-825-1, F = 1-51130-112-0, L = 1-51130-830-0, M = 8-98096-765-0, N = 8-98202-922-0 		1-51351-009-0 02 1 -
17 BUSHING; LEAF SPR,FRT
OD=38 ASM PART: G = 1-51130-456-1, H = 1-51130-628-0, I = 1-51130-629-0, J = 1-51130-630-0, K = 1-51130-656-0 		1-51351-030-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M10X99 ASM PART: C = 1-51110-822-1, E = 1-51110-825-1, H = 1-51130-628-0, J = 1-51130-630-0, L = 1-51130-830-0, M = 8-98096-765-0, N = 8-98202-922-0 		1-09000-328-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M10X99 ASM PART: D = 1-51110-824-1, F = 1-51130-112-0, I = 1-51130-629-0 		1-09000-328-0 03 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M10X105 ASM PART: G = 1-51130-456-1 		1-09000-391-0 04 1 -
18 BOLT; CLIP,LEAF SPR,FRT
ASM PART: K = 1-51130-656-0 		9-09801-223-0 04 1 -
18 BOLT; CLIP,LEAF SPR,FRT
ASM PART: A = 1-51110-449-2, B = 1-51110-465-2 		9-09801-233-0 03 1 -
25 NUT; CLAMP
M8 ASM PART: A = 1-51110-449-2, B = 1-51110-465-2 		9-09110-008-0 03 1 -
26 PIPE; CLIP,LEAF SPR,FRT
ASM PART: G = 1-51130-456-1 		1-51353-009-0 04 1 -
26 PIPE; CLIP,LEAF SPR,FRT
ASM PART: A = 1-51110-449-2, B = 1-51110-465-2 		9-51153-008-0 03 1 -
26 PIPE; CLIP,LEAF SPR,FRT
ASM PART: K = 1-51130-656-0 		9-51153-009-0 04 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
