Sayfa 4-50 - Isuzu EPC

4-50 — FRONT SUSPENSION (#4474) — 274 parça

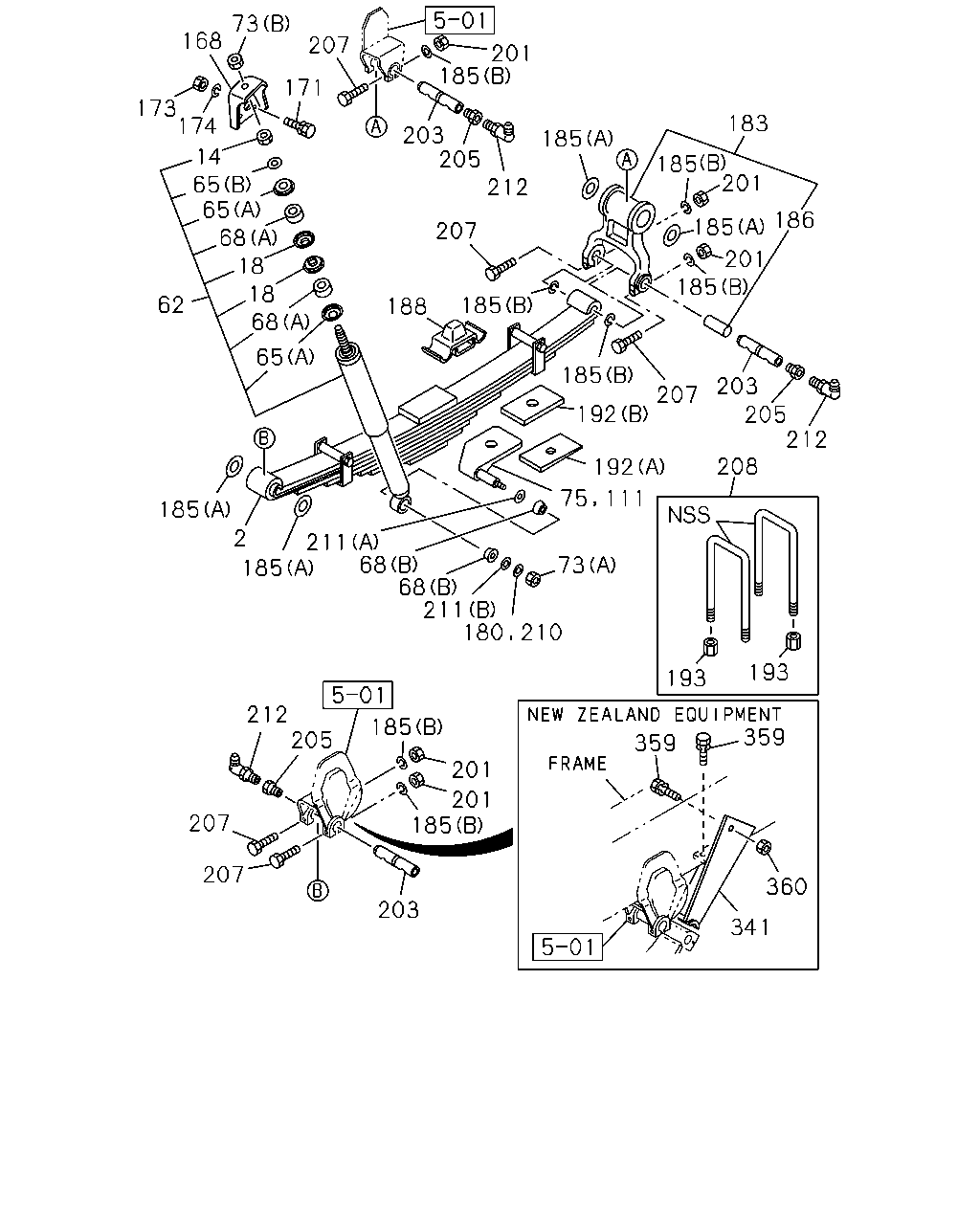

73 168 207 201 185 171 173 174 183 203 205 212 185 14 65 65 68 18 18 68 201 186 185 207 201 185 62 185 188 65 185 203 205 212 207 192 208 192 75 111 185 2 211 68 68 211 73 185 193 193 212 205 359 185 359 201 201 185 207 207 360 203 341 180 210 185

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> 3-LEAF	8-98096-765-0	02	1	0908-1210	●	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> 3-LEAF	8-98202-922-0	02	1	1211-	●	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. LEAF SPR W/SILENT LINER<C1N>,FRT LEAF SPR W/SILENTLINER<C4Y> FRT SPR HEAVY DUTY<F60> FRT & RR SPR LONG SPAN<W55> EXC. FRT & RR SUSP HEAVY DUTY<F40> 7-LEAF	1-51130-112-0	02	1	9101-9504	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. WHEEL BASE 6300MM(63W) EXC. LEAF SPR W/SILENT LINER<C1N> 9-LEAF	1-51130-456-1	02	1	9505-9808	●	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. SUSPENSION HEAVY DUTY VAR2(F41) EXC. LEAF SPR W/SILENT LINER<C1N> 9-LEAF	1-51130-456-1	02	1	9809-0203	●	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRT & RR SPR LONG SPAN<W55> EXC. LEAF SPR W/SILENT LINER<C1N>,FRT LEAF SPR W/SILENT LINER<C4Y>,FRT & RR SUSP HEAVY DUTY<F40>,FRT SPR HEAVY DUTY<F60> 8-LEAF	1-51110-822-0	02	1	9101-9504	●	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. WHEEL BASE 5000MM(50W),WHEEL BASE 5700MM(57W) EXC. LEAF SPR W/SILENT LINER<C1N>,FRT & RR SUSP HEAVY DUTY<F40> 8-LEAF	1-51110-822-1	02	1	9505-9804	●	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. WHEEL BASE 5000MM(50W),WHEEL BASE 5700MM(57W) EXC. LEAF SPR W/SILENT LINER<C1N>,FRT & RR SUSP HEAVY DUTY<F40>,TAIWAN EQUIPMENT<WW5> 8-LEAF	1-51110-822-1	02	1	9805-9808	●	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. LEAF SPR W/SILENT LINER<C1N>,FRT & RR SUSP HEAVY DUTY<F40>,SUSPENSION HEAVY DUTY VAR2(F41) 8-LEAF	1-51110-822-1	02	1	9809-0203	●	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. LEAF SPR W/SILENT LINER<C1N>,FRT & RR SUSP HEAVY DUTY<F40> 8-LEAF	1-51110-822-1	02	1	0204-0301	●	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRT & RR SUSP HEAVY DUTY<F40> FRT & RR SPR LONG SPAN<W55> EXC. LEAF SPR W/SILENT LINER<C1N>,FRT LEAF SPR W/SILENT LINER<C4Y>,FRT SPR HEAVY DUTY<F60> 9-LEAF	1-51110-824-0	02	1	9101-9504	●	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. WHEEL BASE 5000MM(50W),WHEEL BASE 5700MM(57W) FRT & RR SUSP HEAVY DUTY<F40> EXC. LEAF SPR W/SILENT LINER<C1N> 9-LEAF	1-51110-824-1	02	1	9505-9804	●	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. WHEEL BASE 5000MM(50W),WHEEL BASE 5700MM(57W) FRT & RR SUSP HEAVY DUTY<F40> EXC. LEAF SPR W/SILENT LINER<C1N>,TAIWAN EQUIPMENT<WW5> 9-LEAF	1-51110-824-1	02	1	9805-9808	●	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRT & RR SUSP HEAVY DUTY<F40> EXC. LEAF SPR W/SILENT LINER<C1N> 9-LEAF	1-51110-824-1	02	1	9809-0301	●	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRT & RR SUSP HEAVY DUTY<F40> EXC. LEAF SPR W/SILENT LINER<C1N>,FRT LEAF SPR W/SILENT LINER<C4Y>,FRT SPR HEAVY DUTY<F60>,FRT & RRSPR LONG SPAN<W55> 9-LEAF	1-51110-449-2	02	1	9101-9504	●	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. LEAF SPR W/SILENT LINER<C1N> SUSPENSION HEAVY DUTY VAR2(F41) 8-LEAF	1-51130-656-0	02	1	9901-0203	●	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. LEAF SPR W/SILENT LINER<C1N>,FRT LEAF SPR W/SILENTLINER<C4Y> FRT & RR SPR LONG SPAN<W55> EXC. FRT & RR SUSP HEAVY DUTY<F40>,FRT SPR HEAVY DUTY<F60> 8-LEAF	1-51110-825-0	02	1	9101-9504	●	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. WHEEL BASE 5000MM(50W),WHEEL BASE 5700MM(57W) LEAF SPR W/SILENT LINER<C1N> EXC. FRT & RR SUSP HEAVY DUTY<F40> 8-LEAF	1-51110-825-1	02	1	9505-9804	●	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. WHEEL BASE 5000MM(50W),WHEEL BASE 5700MM(57W) LEAF SPR W/SILENT LINER<C1N> EXC. FRT & RR SUSP HEAVY DUTY<F40>,TAIWAN EQUIPMENT<WW5> 8-LEAF	1-51110-825-1	02	1	9805-9808	●	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. LEAF SPR W/SILENT LINER<C1N> EXC. FRT & RR SUSP HEAVY DUTY<F40>,SUSPENSION HEAVY DUTY VAR2(F41) 8-LEAF	1-51110-825-1	02	1	9809-0203	●	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. LEAF SPR W/SILENT LINER<C1N> EXC. FRT & RR SUSP HEAVY DUTY<F40> 8-LEAF	1-51110-825-1	02	1	0204-0301	●	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. 8-LEAF	1-51110-825-1	02	1	0302-0308	●	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. 8-LEAF	1-51130-830-0	02	1	0309-0907	●	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRT TAPER LEAF SUSPENSION<SAR> 8-LEAF	1-51130-830-0	02	1	0908-	●	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. LEAF SPR W/SILENT LINER<C1N>,FRT LEAF SPR W/SILENT LINER<C4Y>,FRT & RR SUSP HEAVY DUTY<F40>, FRTSPR HEAVY DUTY<F60>,FRT & RR SPR LONG SPAN<W55> 8-LEAF	1-51110-465-2	02	1	9101-9504	●	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. WHEEL BASE 5000MM(50W),WHEEL BASE 5700MM(57W) FRT & RR SUSP HEAVY DUTY<F40> TAIWAN EQUIPMENT<WW5> EXC. LEAF SPR W/SILENT LINER<C1N> 9-LEAF	1-51130-629-0	02	1	9805-9805		●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. WHEEL BASE 5000MM(50W),WHEEL BASE 5700MM(57W) LEAF SPR W/SILENT LINER<C1N> TAIWAN EQUIPMENT<WW5> EXC. FRT & RR SUSP HEAVY DUTY<F40> 8-LEAF	1-51130-630-0	02	1	9805-9805		●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. WHEEL BASE 5000MM(50W),WHEEL BASE 5700MM(57W) TAIWAN EQUIPMENT<WW5> EXC. LEAF SPR W/SILENT LINER<C1N>,FRT & RR SUSP HEAVY DUTY<F40> 8-LEAF	1-51130-628-0	02	1	9805-9805		●
14	NUT; S/ABS,UPR M14	9-99111-414-0	02	1	9101-	●	●
18	WASHER; CENTERING,S/ABS ID=20.8	9-51631-041-0	04	1	9101-0205	●	●
18	WASHER; CENTERING,S/ABS ID=24	1-51631-067-0	04	1	0206-	●	●
62	ABSORBER ASM; SHOCK,FRT BEST VALUE PARTS	1-87610-154-0	02	1	0206-0907	●	●
62	ABSORBER ASM; SHOCK,FRT EXC. FRT TAPER LEAF SUSPENSION<SAR> BEST VALUE PARTS	1-87610-154-0	02	1	0908-	●	●
62	ABSORBER ASM; SHOCK,FRT FRT TAPER LEAF SUSPENSION<SAR>	8-98096-780-0	02	1	0908-	●	●
62	ABSORBER ASM; SHOCK,FRT FRT & RR SPR LONG SPAN<W55> EXC. FRT SPR HEAVY DUTY<F60>	1-51630-171-1	02	1	9101-9504	●
62	ABSORBER ASM; SHOCK,FRT FRT & RR SPR LONG SPAN<W55>	1-51630-171-1	02	1	9101-9504		●
62	ABSORBER ASM; SHOCK,FRT	1-51630-171-1	02	1	9505-9908	●	●
62	ABSORBER ASM; SHOCK,FRT FRT SPR HEAVY DUTY<F60> FRT & RR SPR LONG SPAN<W55>	1-51630-288-1	02	1	9101-9504	●
62	ABSORBER ASM; SHOCK,FRT	1-51630-726-0	02	1	9909-0205	●	●
62	ABSORBER ASM; SHOCK,FRT	1-51630-417-0	02	1	0206-0907	●	●
62	ABSORBER ASM; SHOCK,FRT EXC. FRT TAPER LEAF SUSPENSION<SAR>	1-51630-417-0	02	1	0908-	●	●
62	ABSORBER ASM; SHOCK,FRT EXC. FRT & RR SPR LONG SPAN<W55>	1-51630-053-3	02	1	9101-9504	●	●
65	WASHER; S/ABS (A) ID=16.5	9-51631-040-0	04	1	9101-0205	●	●
65	WASHER; S/ABS (A) ID=16.5	1-51631-068-0	04	1	0206-	●	●
65	WASHER; S/ABS (B) ID=16.5	1-09503-266-0	02	1	0206-	●	●
68	BUSHING; S/ABS (B)	9-51631-026-0	04	1	9101-	●	●
68	BUSHING; S/ABS (A)	9-51631-039-0	04	1	9101-0205	●	●
68	BUSHING; S/ABS (A) ID=16 T=25	1-51631-069-0	04	1	0206-	●	●
73	NUT; BRKT,SHOCK (B) M14	9-99111-414-0	02	1	9101-0512	●	●
73	NUT; BRKT,SHOCK (B) M14	0-91111-514-0	02	1	0601-	●	●
73	NUT; BRKT,SHOCK FRT & RR SPR LONG SPAN<W55> (A) M20	9-99110-420-0	02	1	9101-9504	●	●
73	NUT; BRKT,SHOCK (A) M20	9-99110-420-0	02	1	9505-0306	●	●
73	NUT; BRKT,SHOCK (A) M20	9-99110-520-0	02	1	0307-0512	●	●
73	NUT; BRKT,SHOCK (A) M20	0-91110-520-0	02	1	0601-	●	●
73	NUT; BRKT,SHOCK EXC. FRT & RR SPR LONG SPAN<W55> (A)	9-09110-420-0	02	1	9101-9504	●	●
75	BRACKET; FRT S/ABS FRT & RR SPR LONG SPAN<W55>	1-51681-606-0	01	1	9101-9504	●	●
75	BRACKET; FRT S/ABS	1-51681-606-0	01	1	9505-0306	●	●
75	BRACKET; FRT S/ABS FRT & RR SPR LONG SPAN<W55>	1-51681-605-0	01	1	9101-9504	●	●
75	BRACKET; FRT S/ABS	1-51681-605-0	01	1	9505-0306	●	●
75	BRACKET; FRT S/ABS EXC. FRT & RR SPR LONG SPAN<W55>	1-51681-608-0	01	1	9101-9504	●	●
75	BRACKET; FRT S/ABS EXC. FRT & RR SPR LONG SPAN<W55>	1-51681-607-0	01	1	9101-9504	●	●
111	SUPPORTER; S/ABS,FRT SUSP EXC. STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZERSHAFT<F59>	1-51681-722-1	01	1	0307-1004	●	●
111	SUPPORTER; S/ABS,FRT SUSP EXC. STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZERSHAFT<F59>	8-98153-483-0	01	1	1005-	●	●
111	SUPPORTER; S/ABS,FRT SUSP EXC. STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZERSHAFT<F59>	1-51681-723-1	01	1	0307-1004	●	●
111	SUPPORTER; S/ABS,FRT SUSP EXC. STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZERSHAFT<F59>	8-98153-484-0	01	1	1005-	●	●
168	BRACKET; S/ABS,FRT SUSP FRT & RR SPR LONG SPAN<W55>	1-51681-426-0	02	1	9101-9112	●	●
168	BRACKET; S/ABS,FRT SUSP BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-51681-426-0	02	1	9201-9504	●	●
168	BRACKET; S/ABS,FRT SUSP EXC. FRT & RR SPR LONG SPAN<W55>	8-94300-084-0	02	1	9101-9112	●	●
168	BRACKET; S/ABS,FRT SUSP EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	8-94300-084-0	02	1	9201-9504	●	●
168	BRACKET; S/ABS,FRT SUSP	1-51681-616-0	02	1	9505-	●	●
171	BOLT; S/ABS BRKT FRT & RR SPR LONG SPAN<W55> M12X35 W/LK WASHER	0-50041-235-0	08	1	9101-9112	●	●
171	BOLT; S/ABS BRKT EXC. FRT & RR SPR LONG SPAN<W55> M12X55 W/LK WASHER	0-20801-255-0	08	1	9101-9112	●	●
173	NUT; S/ABS M12	9-99110-512-0	08	1	9101-9112	●	●
174	WASHER; LK,S/ABS EXC. FRT & RR SPR LONG SPAN<W55> ID=12.2	9-09150-512-0	08	1	9101-9112	●	●
174	WASHER; LK,S/ABS ID=12.2	9-09150-512-0	08	1	9201-9504	●	●
180	WASHER; PL,PIN ID=21	9-09160-520-0	02	1	0307-0605	●	●
180	WASHER; PL,PIN ID=21	0-91610-520-0	02	1	0606-	●	●
183	SHACKLE; FRT SUSP	1-51162-029-4	02	1	9101-9804	●	●
183	SHACKLE; FRT SUSP	1-51162-029-4	02	1	9805-9805	●
183	SHACKLE; FRT SUSP EXC. TAIWAN EQUIPMENT<WW5>	1-51162-029-4	02	1	9805-9805		●
183	SHACKLE; FRT SUSP	1-51162-029-5	02	1	9806-	●	●
183	SHACKLE; FRT SUSP TAIWAN EQUIPMENT<WW5>	1-51162-063-0	02	1	9805-9805		●
185	WASHER; LK,PIN (A) PACKING ID=32.4	1-51169-018-0	12	1	9101-9804	●	●
185	WASHER; LK,PIN (A) PACKING ID=32.4	1-51169-018-0	12	1	9805-9805	●
185	WASHER; LK,PIN EXC. TAIWAN EQUIPMENT<WW5> (A) PACKING ID=32.4	1-51169-018-0	12	1	9805-9805		●
185	WASHER; LK,PIN (A) PACKING ID=32.4	1-51169-018-0	12	1	9806-	●	●
185	WASHER; LK,PIN (B) ID=12.2	9-09150-512-0	12	1	9101-9209	●	●
185	WASHER; LK,PIN (B) ID=12.2	9-09150-612-0	12	1	9210-0603	●	●
185	WASHER; LK,PIN (B) ID=12.2	0-91510-612-0	12	1	0604-	●	●
185	WASHER; LK,PIN TAIWAN EQUIPMENT<WW5> (A)	1-09503-277-0	12	1	9805-9805		●
186	BUSHING; SHACKLE OD=38	1-51351-009-0	02	1	9101-9804	●	●
186	BUSHING; SHACKLE OD=38	1-51351-009-0	02	1	9805-9805	●
186	BUSHING; SHACKLE EXC. TAIWAN EQUIPMENT<WW5> OD=38	1-51351-009-0	02	1	9805-9805		●
186	BUSHING; SHACKLE OD=38	1-51351-009-0	02	1	9806-0902	●	●
186	BUSHING; SHACKLE OD=38	8-98081-829-0	02	1	0903-	●	●
186	BUSHING; SHACKLE TAIWAN EQUIPMENT<WW5> OD=38	1-51351-030-0	02	1	9805-9805		●
188	RUBBER; CLAMP,U-BOLT,FRT SPR STABILIZER SHAFT FRT & RR<FE6> EXC. FRT STABILIZER SHAFT<F59>	1-51172-121-0	02	1	1109-	●	●
188	RUBBER; CLAMP,U-BOLT,FRT SPR FRT STABILIZER SHAFT<F59> EXC. STABILIZER SHAFT FRT & RR<FE6>	1-51172-121-0	02	1	1109-	●	●
188	RUBBER; CLAMP,U-BOLT,FRT SPR	9-51172-067-1	02	1	9101-1108	●	●
188	RUBBER; CLAMP,U-BOLT,FRT SPR EXC. STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZERSHAFT<F59>	9-51172-067-1	02	1	1109-	●	●
192	PIECE; DIST FRT & RR SPR LONG SPAN<W55> (A) 80X145 ID=17	1-51177-238-1	02	1	9101-9504	●	●
192	PIECE; DIST (A) 80X145 ID=17	1-51177-238-1	02	1	9505-0306	●	●
192	PIECE; DIST FRT & RR SPR LONG SPAN<W55> EXC. STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZERSHAFT<F59> (B) 80X150 ID=24.5	1-51177-162-0	02	1	9101-9205	●	●
192	PIECE; DIST FRT & RR SPR LONG SPAN<W55> EXC. STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZERSHAFT<F59> (B) 80X148 ID=24.5	1-51377-022-1	02	1	9206-9504	●	●
192	PIECE; DIST EXC. STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZERSHAFT<F59> (B) 80X148 ID=24.5	1-51377-022-1	02	1	9505-9510	●	●
192	PIECE; DIST WHEEL BASE 5000MM(50W),WHEEL BASE 5700MM(57W) EXC. STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZERSHAFT<F59> (B) 80X148 ID=24.5	1-51377-022-1	02	1	9511-9808	●	●
192	PIECE; DIST EXC. STABILIZER SHAFT FRT & RR<FE6>,SUSPENSION HEAVY DUTY VAR2(F41),FRT STABILIZER SHAFT<F59> (B) 80X148 ID=24.5	1-51377-022-1	02	1	9809-0203	●	●
192	PIECE; DIST EXC. STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZERSHAFT<F59> (B) 80X148 ID=24.5	1-51377-022-1	02	1	0204-0306	●	●
193	NUT; U BOLT M22	9-09112-822-0	08	1	9101-0512	●	●
193	NUT; U BOLT M22	0-91112-822-0	08	1	0601-1206	●	●
193	NUT; U BOLT M22	8-98179-318-0	08	1	1207-	●	●
201	NUT; PIN LK M12	9-99110-512-0	12	1	9101-9504	●	●
201	NUT; PIN LK M12 FLANGE	0-91150-212-0	12	1	9607-9608	●	●
201	NUT; PIN LK M12	9-99110-512-0	12	1	9609-0512	●	●
201	NUT; PIN LK M12	0-91110-512-0	12	1	0601-	●	●
203	PIN; SPR TO SHACKLE	1-51161-031-0	06	1	9101-9804	●	●
203	PIN; SPR TO SHACKLE	1-51161-031-0	06	1	9805-9805	●
203	PIN; SPR TO SHACKLE EXC. TAIWAN EQUIPMENT<WW5>	1-51161-031-0	06	1	9805-9805		●
203	PIN; SPR TO SHACKLE	1-51161-031-0	06	1	9806-	●	●
203	PIN; SPR TO SHACKLE TAIWAN EQUIPMENT<WW5>	1-51161-050-0	06	1	9805-9805		●
205	ATTACHMENT; GREASE NIPPLE	9-43165-001-0	06	1	9101-	●	●
207	BOLT; SPR TO SHACKLE M12X80	0-10806-280-0	12	1	9101-9606	●	●
207	BOLT; SPR TO SHACKLE M12X80	0-28081-280-0	12	1	9607-9608	●	●
207	BOLT; SPR TO SHACKLE M12X80	0-10806-280-0	12	1	9609-0512	●	●
207	BOLT; SPR TO SHACKLE M12X80	0-10856-280-0	12	1	0601-	●	●
208	U-BOLT SET; FRT SPRING STABILIZER SHAFT FRT & RR<FE6> EXC. FRT STABILIZER SHAFT<F59> L=210	1-87870-380-2	04	1	1109-	●	●
208	U-BOLT SET; FRT SPRING FRT STABILIZER SHAFT<F59> EXC. STABILIZER SHAFT FRT & RR<FE6> L=210	1-87870-380-2	04	1	1109-	●	●
208	U-BOLT SET; FRT SPRING L=210	1-87870-309-0	04	1	9505-9812	●	●
208	U-BOLT SET; FRT SPRING LEAF SPR W/SILENT LINER<C1N> SUSPENSION HEAVY DUTY VAR2(F41) L=210	1-87870-309-0	04	1	9901-0203	●	●
208	U-BOLT SET; FRT SPRING EXC. SUSPENSION HEAVY DUTY VAR2(F41) L=210	1-87870-309-0	04	1	9901-0203	●	●
208	U-BOLT SET; FRT SPRING L=210	1-87870-309-0	04	1	0204-0306	●	●
208	U-BOLT SET; FRT SPRING L=190	1-87870-026-3	04	1	0307-0512	●	●
208	U-BOLT SET; FRT SPRING L=190	1-87870-439-1	04	1	0601-0907	●	●
208	U-BOLT SET; FRT SPRING EXC. STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZERSHAFT<F59> L=190	1-87870-439-2	04	1	0908-	●	●
208	U-BOLT SET; FRT SPRING FRT & RR SPR LONG SPAN<W55> L=210	1-87870-309-0	02	1	9101-9504	●	●
208	U-BOLT SET; FRT SPRING FRT & RR SUSP HEAVY DUTY<F40> EXC. FRT & RR SPR LONG SPAN<W55> L=190	1-87870-026-2	02	1	9101-9504	●	●
208	U-BOLT SET; FRT SPRING EXC. FRT & RR SUSP HEAVY DUTY<F40>,FRT & RR SPR LONG SPAN<W55> L=170	1-87870-034-1	02	1	9101-9504	●	●
208	U-BOLT SET; FRT SPRING SUSPENSION HEAVY DUTY VAR2(F41) EXC. LEAF SPR W/SILENT LINER<C1N> L=230	1-87870-311-0	04	1	9901-0203	●	●
210	WASHER; S/ABS,OUTER ID=21	9-09160-520-0	02	1	9101-0306	●	●
211	WASHER; BRKT,SHOCK (A) ID=27	9-51631-027-0	02	1	9101-	●	●
211	WASHER; BRKT,SHOCK (B) ID=21	9-51631-028-0	02	1	9101-	●	●
212	NIPPLE; GREASE,ELBOW PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	06	1	9101-0512	●	●
212	NIPPLE; GREASE,ELBOW PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	06	1	0601-	●	●
341	STOPPER; SHACKLE,LEAF SPRING NEW ZEALAND EQUIPMENT<PK5>	1-51169-025-0	01	1	9101-9504	●
341	STOPPER; SHACKLE,LEAF SPRING NEW ZEALAND EQUIPMENT<PK5>	1-51169-024-0	01	1	9101-9504	●
359	BOLT; STOPPER,LEAF SPRING NEW ZEALAND EQUIPMENT<PK5> M10X30 W/LK WASHER	0-50041-030-0	06	1	9101-9504	●
360	NUT; STOPPER,LEAF SPRING NEW ZEALAND EQUIPMENT<PK5> M10	9-09110-510-0	04	1	9101-9504	●

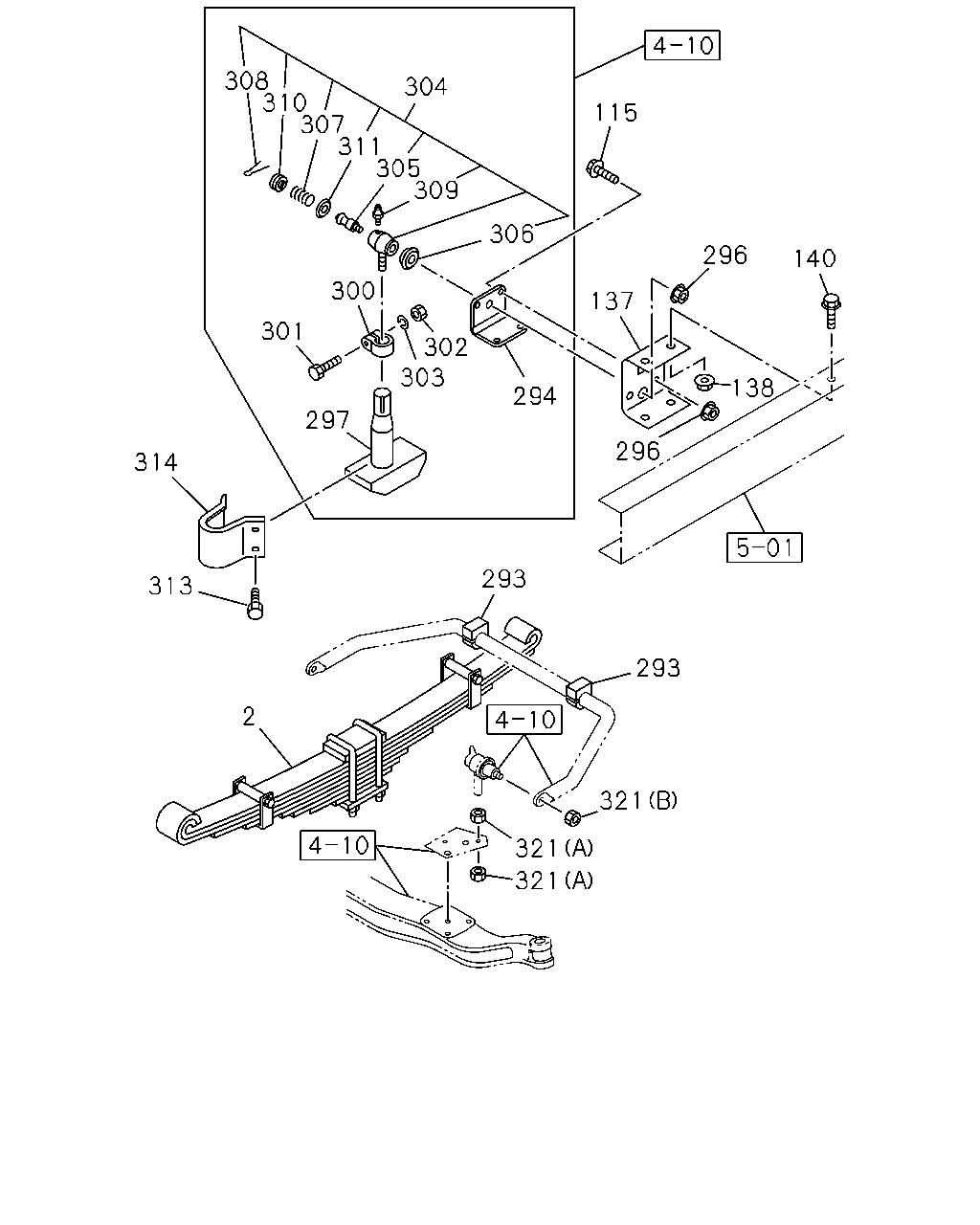

308 310 307 311 309 304 115 306 296 140 300 137 301 302 303 138 294 297 296 314 293 313 293 2 321 321 321 305

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> 3-LEAF	8-98096-765-0	02	1	0908-1210	●	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> 3-LEAF	8-98202-922-0	02	1	1211-	●	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. LEAF SPR W/SILENT LINER<C1N>,FRT LEAF SPR W/SILENTLINER<C4Y> FRT SPR HEAVY DUTY<F60> FRT & RR SPR LONG SPAN<W55> EXC. FRT & RR SUSP HEAVY DUTY<F40> 7-LEAF	1-51130-112-0	02	1	9101-9504	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. WHEEL BASE 6300MM(63W) EXC. LEAF SPR W/SILENT LINER<C1N> 9-LEAF	1-51130-456-1	02	1	9505-9808	●	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. SUSPENSION HEAVY DUTY VAR2(F41) EXC. LEAF SPR W/SILENT LINER<C1N> 9-LEAF	1-51130-456-1	02	1	9809-0203	●	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRT & RR SPR LONG SPAN<W55> EXC. LEAF SPR W/SILENT LINER<C1N>,FRT LEAF SPR W/SILENT LINER<C4Y>,FRT & RR SUSP HEAVY DUTY<F40>,FRT SPR HEAVY DUTY<F60> 8-LEAF	1-51110-822-0	02	1	9101-9504	●	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. WHEEL BASE 5000MM(50W),WHEEL BASE 5700MM(57W) EXC. LEAF SPR W/SILENT LINER<C1N>,FRT & RR SUSP HEAVY DUTY<F40> 8-LEAF	1-51110-822-1	02	1	9505-9804	●	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. WHEEL BASE 5000MM(50W),WHEEL BASE 5700MM(57W) EXC. LEAF SPR W/SILENT LINER<C1N>,FRT & RR SUSP HEAVY DUTY<F40>,TAIWAN EQUIPMENT<WW5> 8-LEAF	1-51110-822-1	02	1	9805-9808	●	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. LEAF SPR W/SILENT LINER<C1N>,FRT & RR SUSP HEAVY DUTY<F40>,SUSPENSION HEAVY DUTY VAR2(F41) 8-LEAF	1-51110-822-1	02	1	9809-0203	●	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. LEAF SPR W/SILENT LINER<C1N>,FRT & RR SUSP HEAVY DUTY<F40> 8-LEAF	1-51110-822-1	02	1	0204-0301	●	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRT & RR SUSP HEAVY DUTY<F40> FRT & RR SPR LONG SPAN<W55> EXC. LEAF SPR W/SILENT LINER<C1N>,FRT LEAF SPR W/SILENT LINER<C4Y>,FRT SPR HEAVY DUTY<F60> 9-LEAF	1-51110-824-0	02	1	9101-9504	●	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. WHEEL BASE 5000MM(50W),WHEEL BASE 5700MM(57W) FRT & RR SUSP HEAVY DUTY<F40> EXC. LEAF SPR W/SILENT LINER<C1N> 9-LEAF	1-51110-824-1	02	1	9505-9804	●	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. WHEEL BASE 5000MM(50W),WHEEL BASE 5700MM(57W) FRT & RR SUSP HEAVY DUTY<F40> EXC. LEAF SPR W/SILENT LINER<C1N>,TAIWAN EQUIPMENT<WW5> 9-LEAF	1-51110-824-1	02	1	9805-9808	●	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRT & RR SUSP HEAVY DUTY<F40> EXC. LEAF SPR W/SILENT LINER<C1N> 9-LEAF	1-51110-824-1	02	1	9809-0301	●	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRT & RR SUSP HEAVY DUTY<F40> EXC. LEAF SPR W/SILENT LINER<C1N>,FRT LEAF SPR W/SILENT LINER<C4Y>,FRT SPR HEAVY DUTY<F60>,FRT & RRSPR LONG SPAN<W55> 9-LEAF	1-51110-449-2	02	1	9101-9504	●	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. LEAF SPR W/SILENT LINER<C1N> SUSPENSION HEAVY DUTY VAR2(F41) 8-LEAF	1-51130-656-0	02	1	9901-0203	●	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. LEAF SPR W/SILENT LINER<C1N>,FRT LEAF SPR W/SILENTLINER<C4Y> FRT & RR SPR LONG SPAN<W55> EXC. FRT & RR SUSP HEAVY DUTY<F40>,FRT SPR HEAVY DUTY<F60> 8-LEAF	1-51110-825-0	02	1	9101-9504	●	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. WHEEL BASE 5000MM(50W),WHEEL BASE 5700MM(57W) LEAF SPR W/SILENT LINER<C1N> EXC. FRT & RR SUSP HEAVY DUTY<F40> 8-LEAF	1-51110-825-1	02	1	9505-9804	●	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. WHEEL BASE 5000MM(50W),WHEEL BASE 5700MM(57W) LEAF SPR W/SILENT LINER<C1N> EXC. FRT & RR SUSP HEAVY DUTY<F40>,TAIWAN EQUIPMENT<WW5> 8-LEAF	1-51110-825-1	02	1	9805-9808	●	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. LEAF SPR W/SILENT LINER<C1N> EXC. FRT & RR SUSP HEAVY DUTY<F40>,SUSPENSION HEAVY DUTY VAR2(F41) 8-LEAF	1-51110-825-1	02	1	9809-0203	●	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. LEAF SPR W/SILENT LINER<C1N> EXC. FRT & RR SUSP HEAVY DUTY<F40> 8-LEAF	1-51110-825-1	02	1	0204-0301	●	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. 8-LEAF	1-51110-825-1	02	1	0302-0308	●	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. 8-LEAF	1-51130-830-0	02	1	0309-0907	●	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRT TAPER LEAF SUSPENSION<SAR> 8-LEAF	1-51130-830-0	02	1	0908-	●	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. LEAF SPR W/SILENT LINER<C1N>,FRT LEAF SPR W/SILENT LINER<C4Y>,FRT & RR SUSP HEAVY DUTY<F40>, FRTSPR HEAVY DUTY<F60>,FRT & RR SPR LONG SPAN<W55> 8-LEAF	1-51110-465-2	02	1	9101-9504	●	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. WHEEL BASE 5000MM(50W),WHEEL BASE 5700MM(57W) FRT & RR SUSP HEAVY DUTY<F40> TAIWAN EQUIPMENT<WW5> EXC. LEAF SPR W/SILENT LINER<C1N> 9-LEAF	1-51130-629-0	02	1	9805-9805		●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. WHEEL BASE 5000MM(50W),WHEEL BASE 5700MM(57W) LEAF SPR W/SILENT LINER<C1N> TAIWAN EQUIPMENT<WW5> EXC. FRT & RR SUSP HEAVY DUTY<F40> 8-LEAF	1-51130-630-0	02	1	9805-9805		●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. WHEEL BASE 5000MM(50W),WHEEL BASE 5700MM(57W) TAIWAN EQUIPMENT<WW5> EXC. LEAF SPR W/SILENT LINER<C1N>,FRT & RR SUSP HEAVY DUTY<F40> 8-LEAF	1-51130-628-0	02	1	9805-9805		●
115	BOLT; SUPPORT BRKT TO BODY FRT & RR SPR LONG SPAN<W55> STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> M12X35 W/LK WASHER	0-50041-235-0	04	1	9101-9504	●	●
115	BOLT; SUPPORT BRKT TO BODY STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> M12X35 W/LK WASHER	0-50041-235-0	04	1	9505-9606	●	●
115	BOLT; SUPPORT BRKT TO BODY STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> M12X35 FLANGE	0-28681-235-0	04	1	9607-0103	●	●
115	BOLT; SUPPORT BRKT TO BODY STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> M12X35 FLANGE	0-28081-235-0	08	1	0104-0306	●	●
115	BOLT; SUPPORT BRKT TO BODY FRT & RR SPR LONG SPAN<W55> STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> M12X40 W/LK WASHER	0-50041-240-0	04	1	9101-9504	●	●
115	BOLT; SUPPORT BRKT TO BODY STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> M12X40 W/LK WASHER	0-50041-240-0	04	1	9505-9606	●	●
115	BOLT; SUPPORT BRKT TO BODY STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> M12X40 FLANGE	0-28681-240-0	04	1	9607-0103	●	●
137	BRACKET; STAB BAR TO FRAME STABILIZER SHAFT FRT & RR<FE6>	1-51781-134-0	01	1	0307-	●	●
137	BRACKET; STAB BAR TO FRAME FRT STABILIZER SHAFT<F59>	1-51781-134-0	01	1	0307-	●	●
137	BRACKET; STAB BAR TO FRAME FRT & RR SPR LONG SPAN<W55> STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59>	1-51781-020-4	02	1	9101-9504	●	●
137	BRACKET; STAB BAR TO FRAME STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59>	1-51781-020-4	02	1	9505-0306	●	●
137	BRACKET; STAB BAR TO FRAME STABILIZER SHAFT FRT & RR<FE6>	1-51781-112-0	01	1	0307-	●	●
137	BRACKET; STAB BAR TO FRAME FRT STABILIZER SHAFT<F59>	1-51781-112-0	01	1	0307-	●	●
138	NUT; BRKT FRT & RR SPR LONG SPAN<W55> STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> M12	9-99110-512-0	04	1	9101-9504	●	●
138	NUT; BRKT STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> M12	9-99110-512-0	04	1	9505-9606	●	●
138	NUT; BRKT STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> M12 FLANGE	0-91150-212-0	04	1	9607-0306	●	●
138	NUT; BRKT STABILIZER SHAFT FRT & RR<FE6> EXC. FRT STABILIZER SHAFT<F59> M14	9-99110-514-0	08	1	0307-0512	●	●
138	NUT; BRKT FRT STABILIZER SHAFT<F59> M14	9-99110-514-0	08	1	0307-0512	●	●
138	NUT; BRKT STABILIZER SHAFT FRT & RR<FE6> M14	0-91110-514-0	08	1	0601-	●	●
138	NUT; BRKT FRT STABILIZER SHAFT<F59> M14	0-91110-514-0	08	1	0601-	●	●
140	BOLT; BRKT FRT & RR SPR LONG SPAN<W55> STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> M12X28 W/LK WASHER	0-50041-228-0	04	1	9101-9504	●	●
140	BOLT; BRKT STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> M12X30 FLANGE	0-28081-230-0	04	1	9505-9606	●	●
140	BOLT; BRKT STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> M12X35 FLANGE	0-28681-235-0	04	1	9607-0103	●	●
140	BOLT; BRKT STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> M12X35 FLANGE	0-28081-235-0	04	1	0104-0301	●	●
140	BOLT; BRKT STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> M12X30 FLANGE	0-28681-230-0	04	1	0302-0306	●	●
140	BOLT; BRKT STABILIZER SHAFT FRT & RR<FE6> M14X45	0-20801-445-0	08	1	0307-	●	●
140	BOLT; BRKT FRT STABILIZER SHAFT<F59> M14X45	0-20801-445-0	08	1	0307-	●	●
293	BUSHING; SUPPORT,STABILIZER FRT & RR SPR LONG SPAN<W55> STABILIZER SHAFT FRT & RR<FE6> FRT SPR HEAVY DUTY<F60>	1-51789-025-0	02	1	9101-9504	●
293	BUSHING; SUPPORT,STABILIZER FRT & RR SPR LONG SPAN<W55> STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> EXC. FRT SPR HEAVY DUTY<F60>	1-51789-017-0	04	1	9101-9504	●
293	BUSHING; SUPPORT,STABILIZER FRT & RR SPR LONG SPAN<W55> STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59>	1-51789-017-0	04	1	9101-9504		●
293	BUSHING; SUPPORT,STABILIZER STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59>	1-51789-017-0	02	1	9505-0306	●	●
294	BRACKET; SUPPORT,STABILIZER FRT & RR SPR LONG SPAN<W55> STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59>	1-51781-037-1	02	1	9101-9504	●	●
294	BRACKET; SUPPORT,STABILIZER STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59>	1-51781-037-2	02	1	9505-0306	●	●
296	NUT; SUPPORT,STABILIZER FRT & RR SPR LONG SPAN<W55> STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> M16	1-09449-014-0	02	1	9101-9504	●	●
296	NUT; SUPPORT,STABILIZER STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> M16	1-09449-014-0	02	1	9505-0306	●	●
296	NUT; SUPPORT,STABILIZER FRT & RR SPR LONG SPAN<W55> STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> M12	9-99110-512-0	08	1	9101-9504	●	●
296	NUT; SUPPORT,STABILIZER STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> M12	9-99110-512-0	08	1	9505-9606	●	●
296	NUT; SUPPORT,STABILIZER STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> M12 FLANGE	0-91150-212-0	08	1	9607-0306	●	●
297	ROD; STABILIZER FRT & RR SPR LONG SPAN<W55> STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59>	1-51773-046-1	02	1	9101-9504	●	●
297	ROD; STABILIZER STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59>	1-51773-046-1	02	1	9505-0306	●	●
300	CLAMP; ROD END,SUPPORT FRT & RR SPR LONG SPAN<W55> STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59>	1-43159-002-2	02	1	9101-9504	●	●
300	CLAMP; ROD END,SUPPORT STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59>	1-43159-002-3	02	1	9505-0306	●	●
301	BOLT; CLAMP,ROD END FRT & RR SPR LONG SPAN<W55> STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> M12X47	9-09801-294-0	02	1	9101-9504	●	●
301	BOLT; CLAMP,ROD END STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> M12X47	9-09801-294-0	02	1	9505-0306	●	●
302	NUT; CLAMP,ROD END FRT & RR SPR LONG SPAN<W55> STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> M12	9-99110-512-0	02	1	9101-9504	●	●
302	NUT; CLAMP,ROD END STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> M12	9-99110-512-0	02	1	9505-0306	●	●
303	WASHER; LK,CLAMP,ROD END FRT & RR SPR LONG SPAN<W55> STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> ID=12.2	9-09150-612-0	02	1	9101-9210	●	●
303	WASHER; LK,CLAMP,ROD END FRT & RR SPR LONG SPAN<W55> STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> ID=12.2	9-09150-812-0	02	1	9211-9504	●	●
303	WASHER; LK,CLAMP,ROD END STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> ID=12.2	9-09150-812-0	02	1	9505-0306	●	●
304	ROD END ASM; STABILIZER FRT & RR SPR LONG SPAN<W55> STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59>	1-43150-468-0	02	1	9101-9504	●	●
304	ROD END ASM; STABILIZER STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59>	1-43150-468-0	02	1	9505-0306	●	●
305	JOINT; BALL,ROD END FRT & RR SPR LONG SPAN<W55> STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59>	1-87090-211-0	02	1	9101-9504	●	●
305	JOINT; BALL,ROD END STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59>	1-87090-211-0	02	1	9505-0306	●	●
306	BOOT; ROD END,SUPPORT FRT & RR SPR LONG SPAN<W55> STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> D=18.5,29	1-43159-036-0	02	1	9101-9504	●	●
306	BOOT; ROD END,SUPPORT STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> D=18.5,29	1-43159-036-0	02	1	9505-0306	●	●
307	SPRING; ROD END,SUPPORT FRT & RR SPR LONG SPAN<W55> STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59>	1-09580-080-0	02	1	9101-9504	●	●
307	SPRING; ROD END,SUPPORT STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59>	1-09580-080-0	02	1	9505-0306	●	●
308	PIN; SPLIT FRT & RR SPR LONG SPAN<W55> STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> OD=2.8 L=55	9-08113-055-0	02	1	9101-9504	●	●
308	PIN; SPLIT STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> OD=2.8 L=55	9-08113-055-0	02	1	9505-0306	●	●
309	NIPPLE; GREASE,ROD END FRT & RR SPR LONG SPAN<W55> STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> PT1/8 STRAIGHT	9-09031-010-0	02	1	9101-9504	●	●
309	NIPPLE; GREASE,ROD END STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> PT1/8 STRAIGHT	9-09031-010-0	02	1	9505-0306	●	●
310	PLUG; ROD END,SUPPORT FRT & RR SPR LONG SPAN<W55> STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59>	1-44375-001-0	02	1	9101-9504	●	●
310	PLUG; ROD END,SUPPORT STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59>	1-44375-001-0	02	1	9505-0306	●	●
311	SEAT; JOINT BALL FRT & RR SPR LONG SPAN<W55> STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59>	1-44373-002-0	02	1	9101-9504	●	●
311	SEAT; JOINT BALL STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59>	1-44373-002-0	02	1	9505-0306	●	●
313	BOLT; RET,SUPPORT FRT & RR SPR LONG SPAN<W55> STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> M10X25	8-94463-351-0	08	1	9101-9504	●	●
313	BOLT; RET,SUPPORT STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> M10X25	8-94463-351-0	08	1	9505-0306	●	●
314	RETAINER; SUPPORT FRT & RR SPR LONG SPAN<W55> STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59>	1-51789-015-2	02	1	9101-9504	●	●
314	RETAINER; SUPPORT STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59>	1-51789-015-2	02	1	9505-0306	●	●
321	NUT; ROD END,SUPPORT FRT & RR SPR LONG SPAN<W55> STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> (B) M16	1-09449-014-0	02	1	9101-9504	●	●
321	NUT; ROD END,SUPPORT STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> (B) M16	1-09449-014-0	02	1	9505-0306	●	●
321	NUT; ROD END,SUPPORT FRT & RR SPR LONG SPAN<W55> STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> (A) M20	9-99110-520-0	02	1	9101-9504	●	●
321	NUT; ROD END,SUPPORT STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> (A) M20	9-99110-520-0	02	1	9505-0306	●	●
321	NUT; ROD END,SUPPORT FRT & RR SPR LONG SPAN<W55> STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> (A) M20	9-09840-318-0	02	1	9101-9504	●	●
321	NUT; ROD END,SUPPORT STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> (A) M20	9-09840-318-0	02	1	9505-0306	●	●

138 140 377 138 138 137 377 138 140 377 140 137 377 140

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
137	BRACKET; STAB BAR TO FRAME STABILIZER SHAFT FRT & RR<FE6>	1-51781-134-0	01	1	0307-	●	●
137	BRACKET; STAB BAR TO FRAME FRT STABILIZER SHAFT<F59>	1-51781-134-0	01	1	0307-	●	●
137	BRACKET; STAB BAR TO FRAME FRT & RR SPR LONG SPAN<W55> STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59>	1-51781-020-4	02	1	9101-9504	●	●
137	BRACKET; STAB BAR TO FRAME STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59>	1-51781-020-4	02	1	9505-0306	●	●
137	BRACKET; STAB BAR TO FRAME STABILIZER SHAFT FRT & RR<FE6>	1-51781-112-0	01	1	0307-	●	●
137	BRACKET; STAB BAR TO FRAME FRT STABILIZER SHAFT<F59>	1-51781-112-0	01	1	0307-	●	●
138	NUT; BRKT FRT & RR SPR LONG SPAN<W55> STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> M12	9-99110-512-0	04	1	9101-9504	●	●
138	NUT; BRKT STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> M12	9-99110-512-0	04	1	9505-9606	●	●
138	NUT; BRKT STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> M12 FLANGE	0-91150-212-0	04	1	9607-0306	●	●
138	NUT; BRKT STABILIZER SHAFT FRT & RR<FE6> EXC. FRT STABILIZER SHAFT<F59> M14	9-99110-514-0	08	1	0307-0512	●	●
138	NUT; BRKT FRT STABILIZER SHAFT<F59> M14	9-99110-514-0	08	1	0307-0512	●	●
138	NUT; BRKT STABILIZER SHAFT FRT & RR<FE6> M14	0-91110-514-0	08	1	0601-	●	●
138	NUT; BRKT FRT STABILIZER SHAFT<F59> M14	0-91110-514-0	08	1	0601-	●	●
140	BOLT; BRKT FRT & RR SPR LONG SPAN<W55> STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> M12X28 W/LK WASHER	0-50041-228-0	04	1	9101-9504	●	●
140	BOLT; BRKT STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> M12X30 FLANGE	0-28081-230-0	04	1	9505-9606	●	●
140	BOLT; BRKT STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> M12X35 FLANGE	0-28681-235-0	04	1	9607-0103	●	●
140	BOLT; BRKT STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> M12X35 FLANGE	0-28081-235-0	04	1	0104-0301	●	●
140	BOLT; BRKT STABILIZER SHAFT FRT & RR<FE6>,FRT STABILIZER SHAFT<F59> M12X30 FLANGE	0-28681-230-0	04	1	0302-0306	●	●
140	BOLT; BRKT STABILIZER SHAFT FRT & RR<FE6> M14X45	0-20801-445-0	08	1	0307-	●	●
140	BOLT; BRKT FRT STABILIZER SHAFT<F59> M14X45	0-20801-445-0	08	1	0307-	●	●
377	WASHER; LK,BRKT STABILIZER SHAFT FRT & RR<FE6> EXC. FRT STABILIZER SHAFT<F59> ID=14.2	9-09150-514-0	08	1	0307-0603	●	●
377	WASHER; LK,BRKT FRT STABILIZER SHAFT<F59> ID=14.2	9-09150-514-0	08	1	0307-0603	●	●
377	WASHER; LK,BRKT STABILIZER SHAFT FRT & RR<FE6> ID=14.2	0-91510-514-0	08	1	0604-	●	●
377	WASHER; LK,BRKT FRT STABILIZER SHAFT<F59> ID=14.2	0-91510-514-0	08	1	0604-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
