2-20 — MANUAL TRANSMISSION ASM AND CASE (#44738) — 128 parça

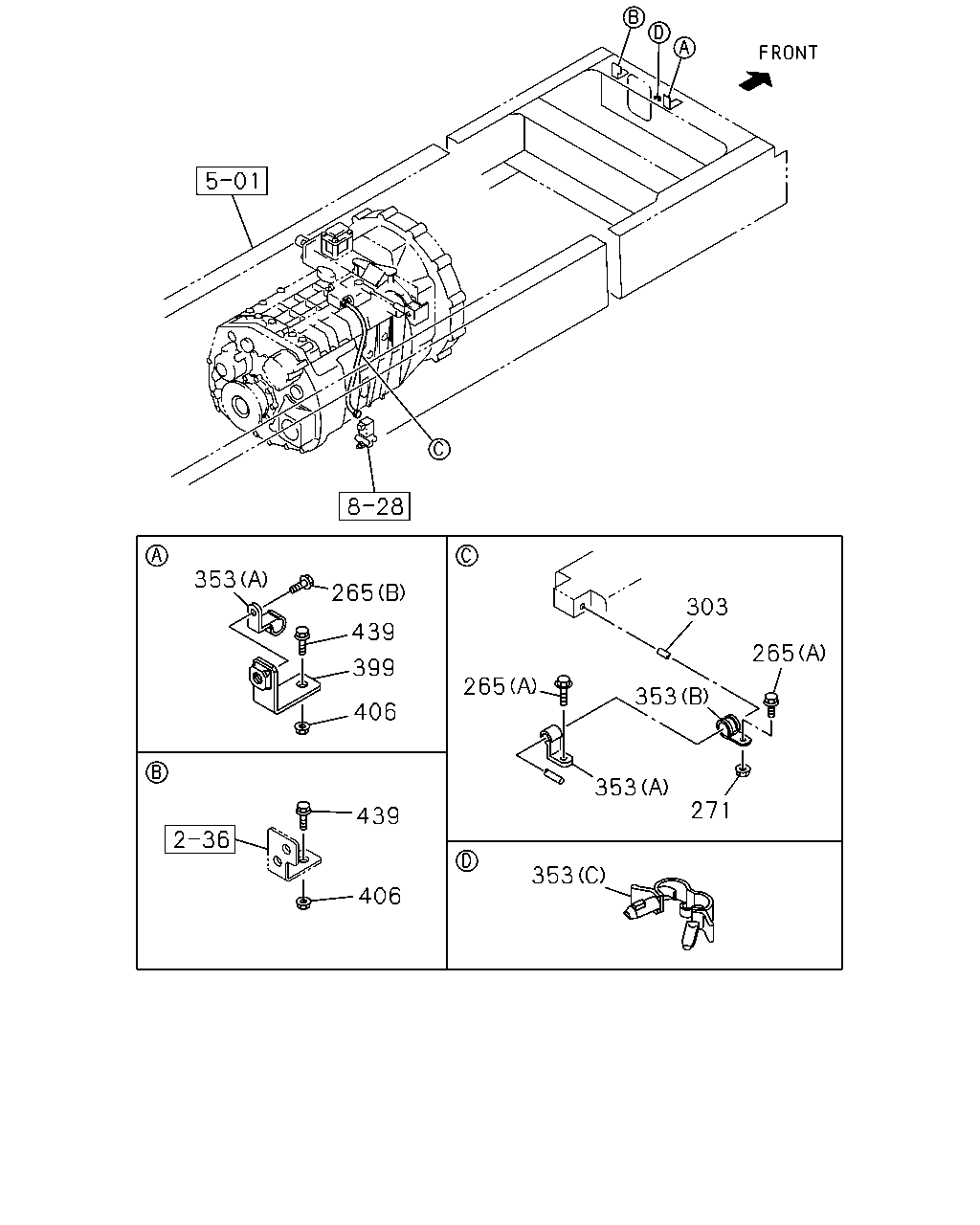

353 265 303 439 265 399 265 353 406 353 271 439 353 406

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
265	BOLT; CLIP (B) M8X16 FLANGE	0-28050-816-0	01	1	1110-
265	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	1110-
265	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	1110-
265	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	03	1	1110-
271	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1110-
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	1110-
353	CLIP; NYLON TUBE EXC. CAB SUSPENSION FULL FLOATING<W16> (C) ID=5-12 L=14.5	1-09987-221-0	01	1	1201-1404
353	CLIP; NYLON TUBE (A) ID=11 L=20	0-95235-035-0	01	1	1110-
353	CLIP; NYLON TUBE (A) ID=11 L=20	0-95235-035-0	03	1	1110-
353	CLIP; NYLON TUBE (B) ID=18 L=28	1-09701-067-0	01	1	1110-
353	CLIP; NYLON TUBE (B) ID=18 L=28	1-09701-067-0	02	1	1110-
399	BRACKET; CLIP	8-98085-674-0	01	1	1110-
406	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1110-
439	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	1110-

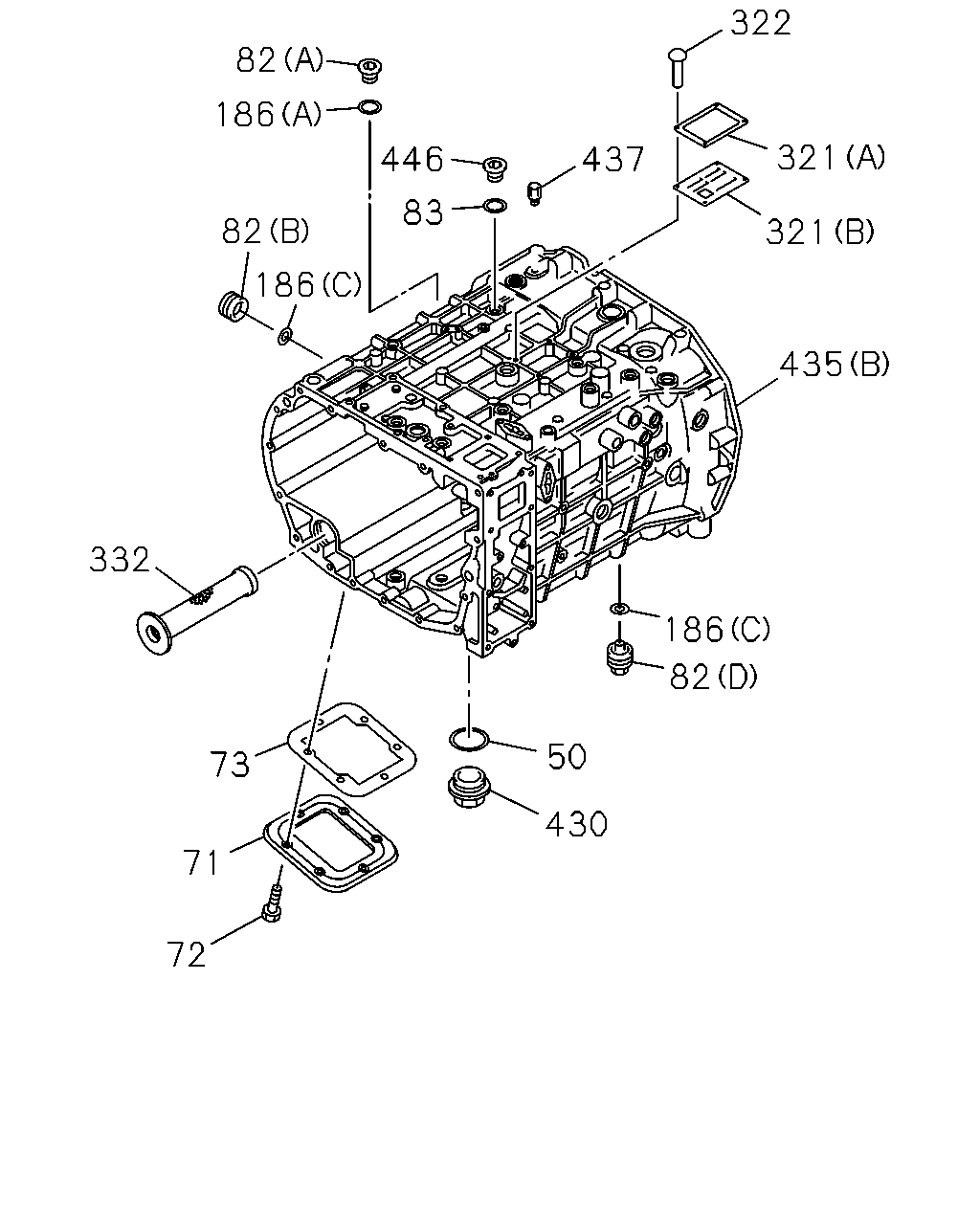

322 82 186 321 446 437 83 82 321 186 435 332 186 82 50 73 430 71 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	1-33119-293-0	01	1	1110-
71	COVER; SIDE,TRANS CASE	1-33119-407-0	01	1	1110-1305
71	COVER; SIDE,TRANS CASE	1-33119-622-0	01	1	1306-
72	BOLT; SIDE COVER M10X22	1-36129-014-1	06	1	1110-1305
72	BOLT; SIDE COVER M10X22	1-33119-592-0	06	1	1306-
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33119-237-0	01	1	1110-
82	PLUG; SCREW,CASE (A)	1-33119-171-0	01	1	1110-1305
82	PLUG; SCREW,CASE (A)	1-33119-619-0	01	1	1306-
82	PLUG; SCREW,CASE (B)	1-33119-268-0	01	1	1110-1305
82	PLUG; SCREW,CASE (B)	1-33119-620-0	02	1	1306-
82	PLUG; SCREW,CASE (C)	1-33119-285-0	02	1	1110-1305
82	PLUG; SCREW,CASE (C)	1-33119-618-0	02	1	1306-
82	PLUG; SCREW,CASE (D)	1-33119-376-0	01	1	1110-1305
83	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). EXC. PTO ZF TRANS RR(BDM)	1-33119-249-0	01	1	1110-1305
186	RING; SEAL (A)	1-33119-249-0	01	1	1110-
186	RING; SEAL (B)	1-33119-286-0	02	1	1110-
186	RING; SEAL (C)	1-33119-435-0	02	1	1110-
321	PLATE; NAME (A)	1-33119-519-0	01	1	1110-
321	PLATE; NAME (B)	1-33119-520-0	01	1	1110-
322	RIVET; NAME PLATE	1-33119-398-0	04	1	1110-1305
322	RIVET; NAME PLATE	1-33119-617-0	04	1	1306-
332	FILTER; OIL	1-33119-437-0	01	1	1110-
430	PLUG; OIL DRAIN	1-33119-156-0	01	1	1110-1305
430	PLUG; OIL DRAIN	1-33119-621-0	01	1	1306-
435	CASE; TRANS PTO ZF TRANS RR(BDM) (B)	1-33111-371-0	01	1	1110-1305
435	CASE; TRANS (A)	1-33111-368-0	01	1	1110-1305
435	CASE; TRANS (A)	1-33111-371-0	01	1	1306-
435	CASE; TRANS EXC. PTO ZF TRANS RR(BDM) (B)	1-33111-369-0	01	1	1110-1305
435	CASE; TRANS (B)	1-33111-380-0	01	1	1306-
437	BREATHER; TRANS	1-36122-004-0	01	1	1110-1305
437	BREATHER; TRANS	1-36122-006-0	01	1	1306-
446	PLUG; CASE,TRANS EXC. PTO ZF TRANS RR(BDM)	1-33119-171-0	01	1	1110-1305

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	1	TRANSMISSION ASM; MANUAL PTO ZF TRANS RR(BDM)	1-33044-084-1	01	1	1110-
	1	TRANSMISSION ASM; MANUAL EXC. PTO ZF TRANS RR(BDM)	1-33043-933-1	01	1	1110-

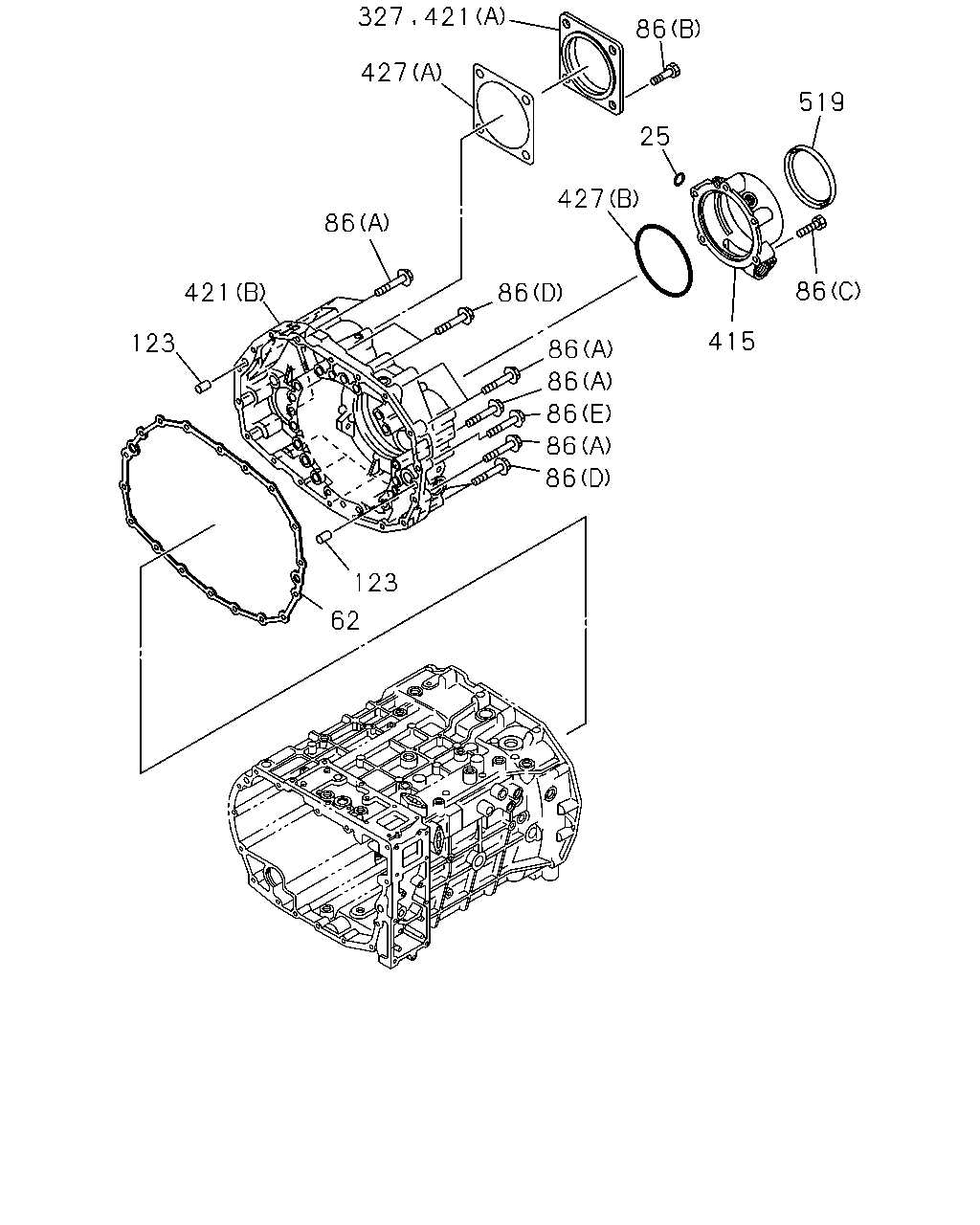

327 421 519 25 427 415 86 427 421 123 123 62 86 86 86 86 86 86 86 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33139-060-0	01	1	1110-
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-087-0	01	1	1110-
86	BOLT; RR COVER PTO ZF TRANS RR(BDM) (A) M10X70	1-33119-522-0	07	1	1110-1305
86	BOLT; RR COVER (A) M10X70	1-33119-616-0	12	1	1306-
86	BOLT; RR COVER PTO ZF TRANS RR(BDM) (D) M10X110	1-33139-057-0	05	1	1110-1305
86	BOLT; RR COVER (D) M10X110	1-33139-235-0	05	1	1306-
86	BOLT; RR COVER PTO ZF TRANS RR(BDM) (E) M10X50	1-33139-058-0	01	1	1110-1305
86	BOLT; RR COVER (E) M10X50	1-33139-236-0	01	1	1306-
86	BOLT; RR COVER (C) M10X60	1-33139-118-0	05	1	1110-1305
86	BOLT; RR COVER (C) M10X60	1-33139-237-0	05	1	1306-
86	BOLT; RR COVER EXC. PTO ZF TRANS RR(BDM) (A) M10X70	1-33119-518-0	12	1	1110-1305
86	BOLT; RR COVER EXC. PTO ZF TRANS RR(BDM) (A) M12X25	1-33119-594-0	04	1	1306-
86	BOLT; RR COVER EXC. PTO ZF TRANS RR(BDM) (B) M12X28	1-33139-051-0	04	1	1110-1305
86	BOLT; RR COVER EXC. PTO ZF TRANS RR(BDM) (D) M10X110	1-33139-210-0	05	1	1110-1305
86	BOLT; RR COVER EXC. PTO ZF TRANS RR(BDM) (E) M10X50	1-33139-211-0	01	1	1110-1305
123	DOWEL; TRANS CASE	1-33119-292-0	04	1	1110-
327	COVER; RR,COUNTER EXC. PTO ZF TRANS RR(BDM)	1-33131-273-0	01	1	1306-
415	COVER; BRG PTO ZF TRANS RR(BDM)	1-33131-262-0	01	1	1110-1305
415	COVER; BRG	1-33131-269-0	01	1	1306-
415	COVER; BRG EXC. PTO ZF TRANS RR(BDM)	1-33131-260-0	01	1	1110-1305
421	COVER; RR,TRANS PTO ZF TRANS RR(BDM) (B)	1-33131-261-0	01	1	1110-1305
421	COVER; RR,TRANS (B)	1-33131-275-0	01	1	1306-
421	COVER; RR,TRANS EXC. PTO ZF TRANS RR(BDM) (A)	1-33131-165-0	01	1	1110-1305
421	COVER; RR,TRANS EXC. PTO ZF TRANS RR(BDM) (B)	1-33131-214-0	01	1	1110-1305
427	GASKET; RR COVER (B)	1-33132-078-0	01	1	1110-1305
427	GASKET; RR COVER (B)	1-33132-088-0	01	1	1306-
427	GASKET; RR COVER EXC. PTO ZF TRANS RR(BDM) (A)	1-33132-054-0	01	1	1110-
519	GASKET; SHAFT	1-33139-059-0	01	1	1110-

468 329 82 186 245 478 477 29 27 561 314 561 24 435 33 113 330 315 28 463 413 561 36 36 37 2 561 343 412

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	HOUSING; CLU	1-31111-183-0	01	1	1110-
24	COVER; CHECK HOLE,DUST	1-31119-024-0	01	1	1110-1305
24	COVER; CHECK HOLE,DUST	1-31119-059-0	01	1	1306-
27	BOLT; COVER TO CLU HSG	1-31119-025-0	04	1	1110-1305
27	BOLT; COVER TO CLU HSG	1-31119-058-0	04	1	1306-
28	COVER; FRT,TRANS CASE	1-33121-166-0	01	1	1110-
29	BOLT; FRT COVER M8X30	1-33549-172-0	06	1	1110-1305
29	BOLT; FRT COVER M8X30	1-33549-581-0	06	1	1306-
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-33219-321-0	01	1	1110-
36	BEARING; NEEDLE,CLU HSG	1-09811-396-0	04	1	1110-
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	1110-
82	PLUG; SCREW,CASE (A)	1-33119-171-0	01	1	1110-1305
82	PLUG; SCREW,CASE (A)	1-33119-619-0	01	1	1306-
82	PLUG; SCREW,CASE (B)	1-33119-268-0	01	1	1110-1305
82	PLUG; SCREW,CASE (B)	1-33119-620-0	02	1	1306-
82	PLUG; SCREW,CASE (C)	1-33119-285-0	02	1	1110-1305
82	PLUG; SCREW,CASE (C)	1-33119-618-0	02	1	1306-
82	PLUG; SCREW,CASE (D)	1-33119-376-0	01	1	1110-1305
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33122-023-0	01	1	1110-1305
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33122-024-0	01	1	1306-
186	RING; SEAL (A)	1-33119-249-0	01	1	1110-
186	RING; SEAL (B)	1-33119-286-0	02	1	1110-
186	RING; SEAL (C)	1-33119-435-0	02	1	1110-
245	PIPE; OIL	1-33119-517-0	01	1	1110-
314	GASKET; CASE	1-33112-052-0	01	1	1110-
315	BOLT; CASE PTO ZF TRANS RR(BDM) M10X70	1-33119-522-0	17	1	1110-1305
315	BOLT; CASE M10X70	1-33119-616-0	17	1	1306-
315	BOLT; CASE EXC. PTO ZF TRANS RR(BDM) M10X70	1-33119-518-0	17	1	1110-1305
329	PUMP ASM; OIL PTO ZF TRANS RR(BDM)	1-34150-121-0	01	1	1110-1305
329	PUMP ASM; OIL	1-34150-123-0	01	1	1306-
329	PUMP ASM; OIL EXC. PTO ZF TRANS RR(BDM)	1-34150-120-0	01	1	1110-1305
330	RING; RET	1-33129-005-0	01	1	1110-
343	BOLT; CLU HSG TO PLATE M10X75 FLANGE	8-94399-669-1	01	1	1110-
412	CAP; CLU HSG	1-31119-026-0	01	1	1110-
413	BALL; CLU HSG	1-31119-014-0	04	1	1110-
435	CASE; TRANS PTO ZF TRANS RR(BDM) (B)	1-33111-371-0	01	1	1110-1305
435	CASE; TRANS (A)	1-33111-368-0	01	1	1110-1305
435	CASE; TRANS (A)	1-33111-371-0	01	1	1306-
435	CASE; TRANS EXC. PTO ZF TRANS RR(BDM) (B)	1-33111-369-0	01	1	1110-1305
435	CASE; TRANS (B)	1-33111-380-0	01	1	1306-
463	COVER; DUST,FRT COVER	1-33129-004-0	01	1	1110-1305
463	COVER; DUST,FRT COVER	1-33129-018-0	01	1	1306-
468	GASKET; OIL PUMP	1-34159-063-0	01	1	1110-1305
468	GASKET; OIL PUMP	1-34159-122-0	01	1	1306-
477	BOLT; OIL PUMP M8X30	1-33549-172-0	08	1	1110-1305
477	BOLT; OIL PUMP M8X30	1-33549-581-0	08	1	1306-
478	WASHER; LK,OIL PUMP	1-36129-007-0	08	1	1110-1305
478	WASHER; LK,OIL PUMP	1-33549-583-0	08	1	1306-
561	PLUG (A)	1-31119-044-0	02	1	1110-1305
561	PLUG (B)	1-31119-045-0	03	1	1110-1305
561	PLUG (C)	1-31119-046-0	02	1	1110-1305
561	PLUG (D)	1-31119-047-0	01	1	1110-1305
