2-05 — CLUTCH PIPING (#44735) — 44 parça
çizim 113518
109 47 153 131 47
BalonParca AdiParca NoAdetTipApplied Date
47 HOSE; FLEX,CLU CONT
(A) L=500 		1-09363-720-0 01 1 1110-
47 HOSE; FLEX,CLU CONT
(B) L=500 		1-09364-329-0 01 1 1110-
109 PIPE; AIR,UNION TO UNION
L=719 SERVICED BY L=730 		1-47428-758-0 01 1 1110-
131 PIPE; AIR,UNION TO FLEX HOSE
RIGID SEAT WO/ARM REST<TAZ> L=262 		8-98108-925-0 01 1 1110-
131 PIPE; AIR,UNION TO FLEX HOSE
EXC. RIGID SEAT WO/ARM REST<TAZ> L=244 		8-98092-621-0 01 1 1110-
153 PIPE ASM; CLU,UNION TO FLEX
L=2150 SERVICED BY L=2150 		1-47428-770-0 01 1 1110-
çizim 113522

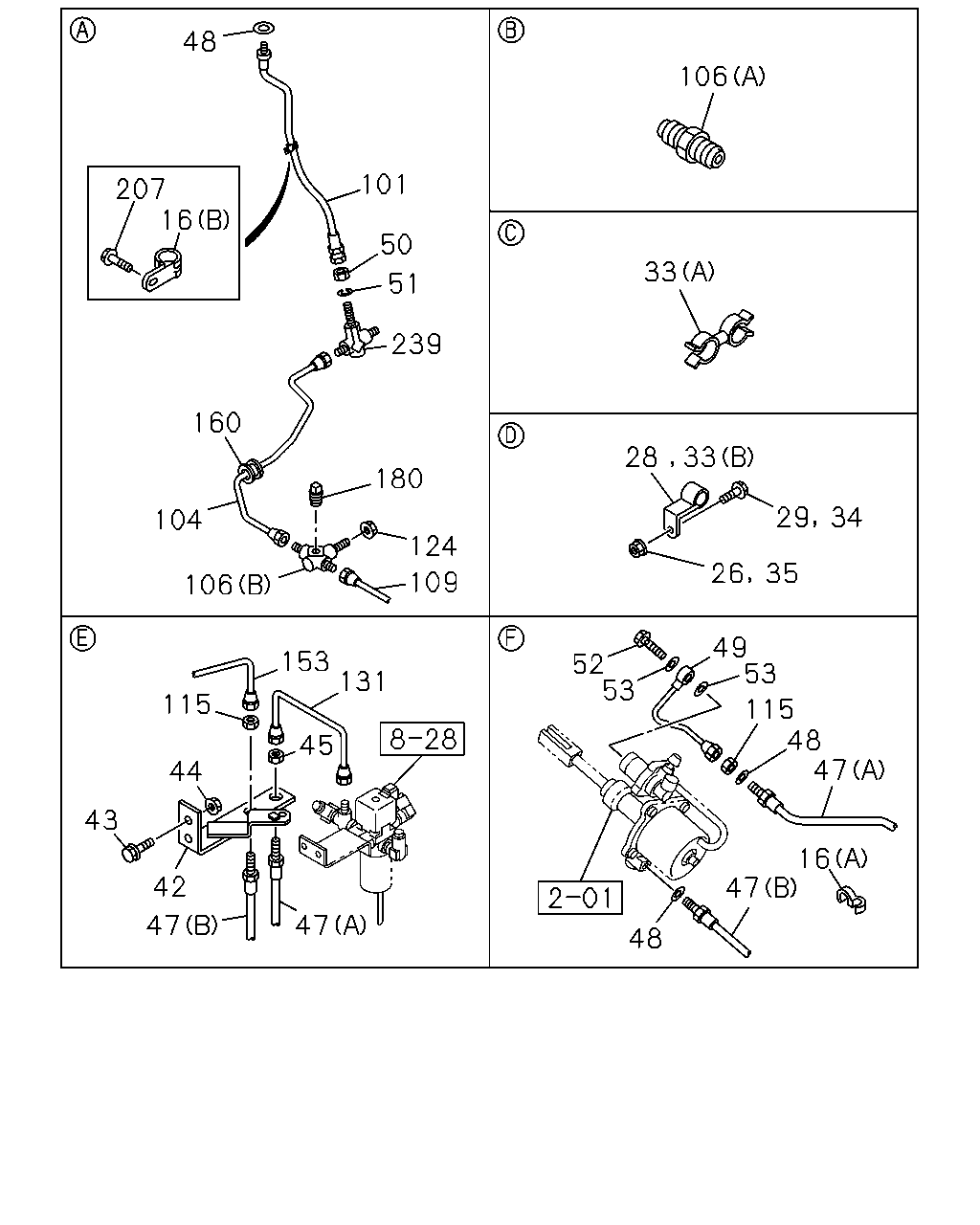

48 106 101 207 16 50 33 51 239 160 28 33 180 29 34 104 124 26 35 109 106 49 53 153 52 53 131 115 115 48 47 45 44 43 16 47 42 47 47 48
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; FLEX HOSE
(B) ID=18 L=28 		1-09701-067-0 01 1 1110-
16 CLIP; FLEX HOSE
(A) ID=10 & 12 		1-09709-278-1 01 1 1110-
26 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91180-108-0 01 1 1110-
28 CLIP; OIL PIPE
ID=8 H=20 L=20 		1-09700-604-0 01 1 1110-
29 BOLT; CLIP,OIL PIPE
M8X30 FLANGE 		0-28650-830-0 01 1 1110-
33 CLIP; OIL PIPE
(B) ID=8 H=20 L=20 		1-09700-604-0 03 1 1110-
33 CLIP; OIL PIPE
(A) ID=8.3 & 10 		8-94176-792-0 01 1 1110-
34 BOLT; PIPE CLIP
M8X30 FLANGE 		0-28650-830-0 03 1 1110-
35 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 03 1 1110-
42 BRACKET; FLEX HOSE,CLU CONT 8-98099-521-1 01 1 1110-
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
M8X30 FLANGE 		0-28650-830-0 02 1 1110-
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
M8 FLANGE 		0-91180-108-0 02 1 1110-
45 NUT; FLEX HOSE,CLU CONT
M12 		9-09840-280-0 02 1 1110-
47 HOSE; FLEX,CLU CONT
(A) L=500 		1-09363-720-0 01 1 1110-
47 HOSE; FLEX,CLU CONT
(B) L=500 		1-09364-329-0 01 1 1110-
48 GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0 		9-09571-410-0 02 1 1110-
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
L=232 		1-49124-795-0 01 1 1110-
50 NUT; UNION
M12 		0-91111-512-0 01 1 1110-
51 WASHER; LK
ID=12.2 		0-91510-812-0 01 1 1110-
52 BOLT; EYE,AIR PIPE
M14X27 FLANGE 		1-09675-086-0 01 1 1110-
53 GASKET; JOINT BOLT
ID=14.2 OD=19.2 		1-09630-085-0 02 1 1110-1312
53 GASKET; JOINT BOLT
ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401-
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
CAB SUSPENSION SEMI FLOATING<SDK> L=480 		8-98072-349-0 01 1 1110-1404
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
CAB SUSPENSION FULL FLOATING<W16> L=530 		8-98072-348-0 01 1 1110-1404
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
L=530 		8-98072-348-0 01 1 1405-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=512 SERVICED BY L=550 		1-47428-753-0 01 1 1110-
106 UNION; OIL PIPE
(A) M14 STRAIGHT 		0-92113-008-0 01 1 1110-
106 UNION; OIL PIPE
(B) M12 & M14 & PT1/4 3WAY 		1-09656-286-2 01 1 1110-
109 PIPE; AIR,UNION TO UNION
L=719 SERVICED BY L=730 		1-47428-758-0 01 1 1110-
115 NUT; FLEX HOSE,CLU CONT
M14 		0-91111-514-0 01 1 1110-
124 NUT; PIPE UNION
M12 		0-91111-512-0 01 1 1110-
131 PIPE; AIR,UNION TO FLEX HOSE
RIGID SEAT WO/ARM REST<TAZ> L=262 		8-98108-925-0 01 1 1110-
131 PIPE; AIR,UNION TO FLEX HOSE
EXC. RIGID SEAT WO/ARM REST<TAZ> L=244 		8-98092-621-0 01 1 1110-
153 PIPE ASM; CLU,UNION TO FLEX
L=2150 SERVICED BY L=2150 		1-47428-770-0 01 1 1110-
160 GROMMET; OIL PIPE
ID=28 OD=35 T=17 		9-09956-256-2 01 1 1110-
180 PLUG; PIPE
PT1/4 		9-99204-513-0 01 1 1110-
207 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1110-
239 UNION; CLU HOSE
M12 & M14 2WAY 		1-09654-141-2 01 1 1110-
