Sayfa 4-42 - Isuzu EPC

4-42 — POWER STEERING OIL PUMP (#4473) — 217 parça

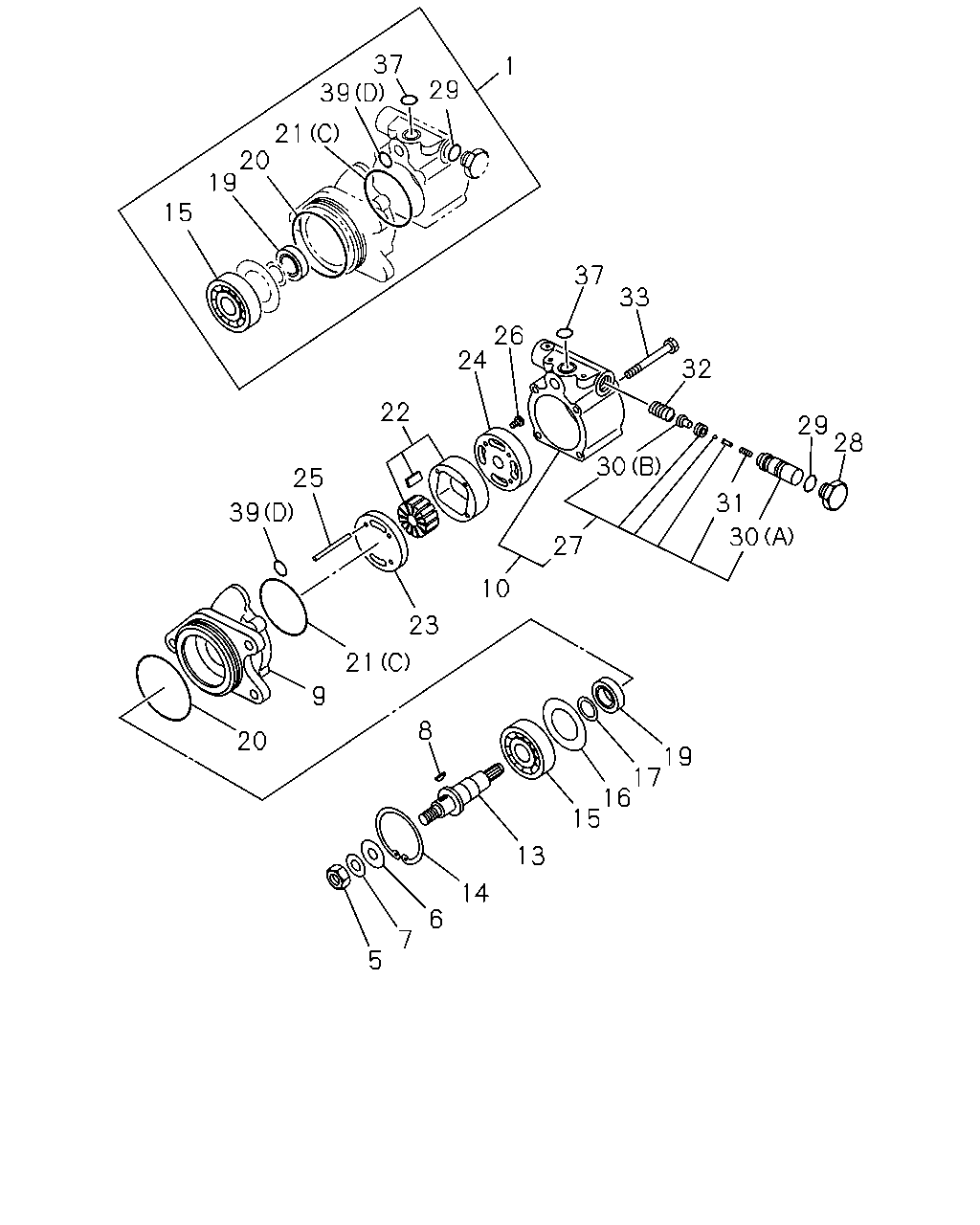

37 39 1 29 21 20 19 15 37 33 26 24 32 22 29 28 30 25 31 39 30 27 10 23 21 9 8 20 19 17 16 15 13 14 6 7 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; OIL PUMP ASM PART: A = 1-19500-285-3	1-85574-008-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: B = 1-19500-532-0	1-85574-025-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: D = 8-98202-669-0	1-85574-074-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: C = 1-19500-596-1	1-85574-081-0	01	1	-
5	NUT; SHAFT,P/S PUMP ASM PART: A = 1-19500-285-3	9-88510-424-0	01	1	-
6	WASHER; PL,OIL PUMP ASM PART: A = 1-19500-285-3	9-19519-088-0	01	1	-
7	WASHER; SHAFT ASM PART: A = 1-19500-285-3	9-09150-016-0	01	1	-
8	KEY; SHAFT,OIL PUMP ASM PART: B = 1-19500-532-0, C = 1-19500-596-1, D = 8-98202-669-0	9-08055-413-0	01	1	-
8	KEY; SHAFT,OIL PUMP ASM PART: A = 1-19500-285-3	9-19519-036-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: A = 1-19500-285-3	1-19511-057-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: B = 1-19500-532-0	1-19511-139-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: C = 1-19500-596-1	1-19511-184-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: D = 8-98202-669-0	8-98203-276-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: A = 1-19500-285-3	1-19511-091-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: B = 1-19500-532-0	1-19511-102-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: D = 8-98202-669-0	1-19511-160-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: C = 1-19500-596-1	8-97182-108-0	01	1	-
13	SHAFT KIT; RET ASM PART: A = 1-19500-285-3	1-19521-018-0	01	1	-
13	SHAFT KIT; RET ASM PART: B = 1-19500-532-0	1-19521-030-0	01	1	-
13	SHAFT KIT; RET ASM PART: C = 1-19500-596-1, D = 8-98202-669-0	1-19521-040-0	01	1	-
14	RING; RET,OIL PUMP ASM PART: A = 1-19500-285-3	1-19519-135-0	01	1	-
14	RING; RET,OIL PUMP ASM PART: B = 1-19500-532-0, C = 1-19500-596-1, D = 8-98202-669-0	1-19519-257-0	01	1	-
15	BEARING; BALL,OIL PUMP ASM PART: A = 1-19500-285-3	1-19515-004-0	01	1	-
15	BEARING; BALL,OIL PUMP ASM PART: B = 1-19500-532-0, C = 1-19500-596-1, D = 8-98202-669-0	1-19519-264-0	01	1	-
16	RING; RET,OIL PUMP ASM PART: B = 1-19500-532-0, C = 1-19500-596-1	1-19519-258-0	01	1	-
16	RING; RET,OIL PUMP ASM PART: A = 1-19500-285-3	9-19519-078-0	01	1	-
17	RING; RET ASM PART: A = 1-19500-285-3	1-19519-177-0	01	1	-
19	SEAL; OIL,OIL PUMP ASM PART: A = 1-19500-285-3	1-19519-252-0	01	1	-
19	SEAL; OIL,OIL PUMP ASM PART: B = 1-19500-532-0, C = 1-19500-596-1, D = 8-98202-669-0	1-19519-256-0	01	1	-
20	GASKET; FRT,OIL PUMP ID=77 ASM PART: A = 1-19500-285-3	1-09623-143-0	01	1	-
21	GASKET; FRT COVER TO BODY (D) ASM PART: D = 8-98202-669-0	1-19519-345-0	01	1	-
21	GASKET; FRT COVER TO BODY (A) ASM PART: B = 1-19500-532-0	8-94475-378-0	01	1	-
21	GASKET; FRT COVER TO BODY (B) ASM PART: B = 1-19500-532-0, C = 1-19500-596-1	8-94475-380-1	01	1	-
21	GASKET; FRT COVER TO BODY (A) ASM PART: C = 1-19500-596-1, D = 8-98202-669-0	8-97182-099-0	01	1	-
21	GASKET; FRT COVER TO BODY (C) ASM PART: A = 1-19500-285-3	9-88510-234-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: A = 1-19500-285-3	1-19519-132-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: B = 1-19500-532-0	1-19519-304-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: C = 1-19500-596-1, D = 8-98202-669-0	1-19519-342-0	01	1	-
23	PLATE; SIDE,OIL PUMP ASM PART: A = 1-19500-285-3	1-19519-234-0	01	1	-
24	PLATE ASM; THRUST ASM PART: B = 1-19500-532-0	1-19515-012-0	01	1	-
24	PLATE ASM; THRUST ASM PART: A = 1-19500-285-3	1-19519-233-0	01	1	-
24	PLATE ASM; THRUST ASM PART: C = 1-19500-596-1, D = 8-98202-669-0	8-97182-103-0	01	1	-
25	PIN; HSG,P/S ASM PART: B = 1-19500-532-0, C = 1-19500-596-1, D = 8-98202-669-0	1-33739-345-0	02	1	-
25	PIN; HSG,P/S ASM PART: A = 1-19500-285-3	9-88510-408-0	02	1	-
26	SCREW; PLATE ASM PART: A = 1-19500-285-3	1-19519-106-0	02	1	-
27	VALVE ASM; OIL PUMP ASM PART: A = 1-19500-285-3	1-19519-236-0	01	1	-
28	PLUG; DRAIN,OIL PUMP ASM PART: A = 1-19500-285-3	1-19519-230-0	01	1	-
29	GASKET; PLUG TO VLV ASM PART: A = 1-19500-285-3	9-88510-248-0	01	1	-
30	VALVE; OIL PUMP (B) ASM PART: A = 1-19500-285-3	1-19519-098-0	01	1	-
30	VALVE; OIL PUMP (A) ASM PART: A = 1-19500-285-3	1-19519-179-0	01	1	-
31	SPRING; INNER,OIL PUMP ASM PART: A = 1-19500-285-3	1-19519-175-0	01	1	-
32	SPRING; OIL PUMP ASM PART: B = 1-19500-532-0, C = 1-19500-596-1, D = 8-98202-669-0	8-94475-376-0	01	1	-
32	SPRING; OIL PUMP ASM PART: A = 1-19500-285-3	9-19529-013-0	01	1	-
33	BOLT; COVER ASM PART: A = 1-19500-285-3	1-19519-244-0	04	1	-
33	BOLT; COVER ASM PART: D = 8-98202-669-0	1-19519-346-1	04	1	-
33	BOLT; COVER ASM PART: B = 1-19500-532-0, C = 1-19500-596-1	1-48119-054-0	04	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: B = 1-19500-532-0, C = 1-19500-596-1, D = 8-98202-669-0	1-33739-070-0	01	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: A = 1-19500-285-3	9-48429-028-0	01	1	-
39	GASKET; OIL PUMP (D) ASM PART: A = 1-19500-285-3	1-19519-100-0	01	1	-
39	GASKET; OIL PUMP (A) ASM PART: B = 1-19500-532-0, D = 8-98202-669-0	1-19519-259-0	01	1	-
39	GASKET; OIL PUMP (B) ASM PART: B = 1-19500-532-0	1-19519-308-0	01	1	-
39	GASKET; OIL PUMP (A) ASM PART: C = 1-19500-596-1	8-94475-379-0	01	1	-
39	GASKET; OIL PUMP (C) ASM PART: B = 1-19500-532-0, C = 1-19500-596-1, D = 8-98202-669-0	9-48429-028-0	01	1	-

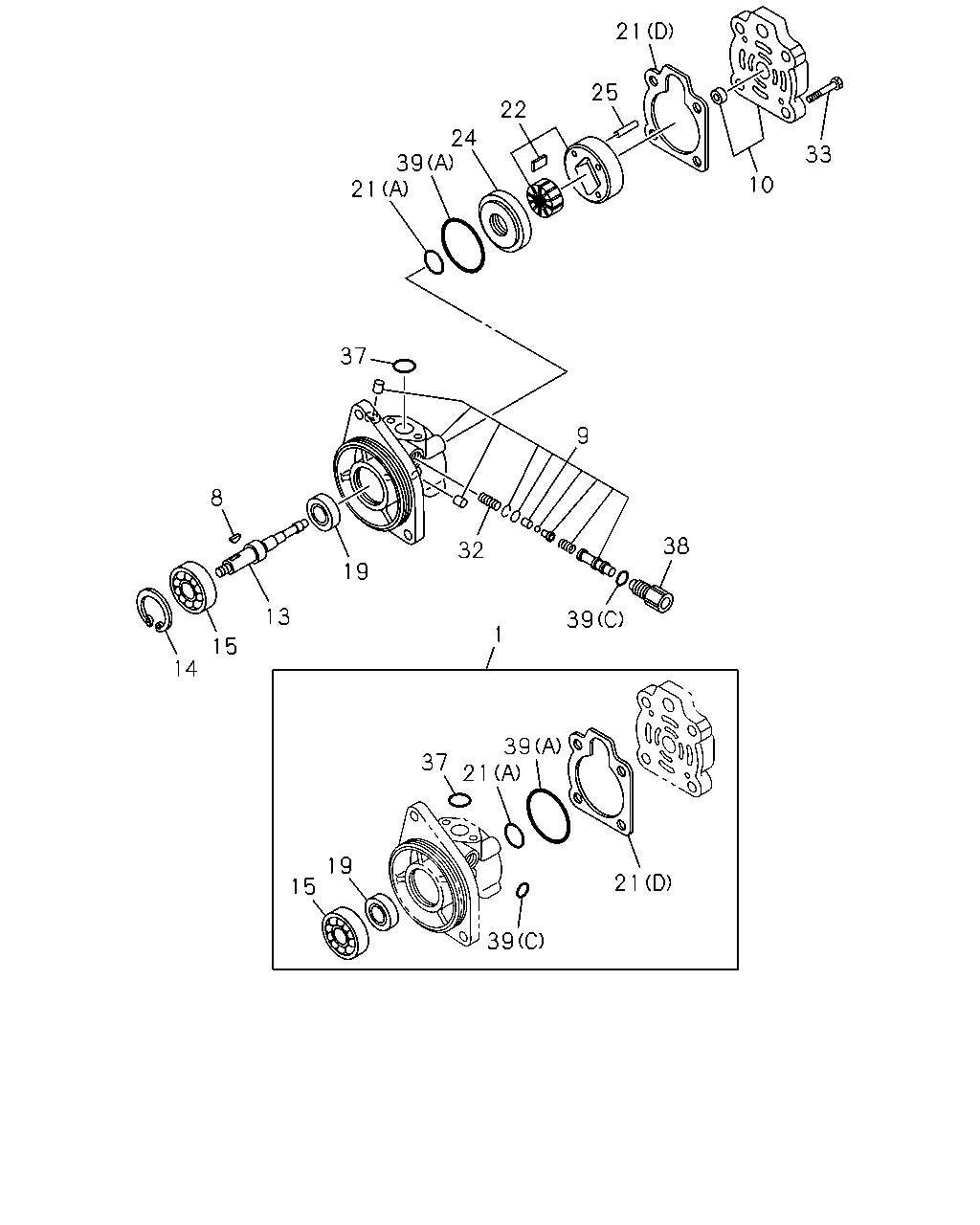

9 39 38 39 14 15 16 8 32 13 19 37 21 39 24 22 25 21 10 33 1 21 39 21 37 19 15 39 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; OIL PUMP ASM PART: A = 1-19500-285-3	1-85574-008-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: B = 1-19500-532-0	1-85574-025-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: D = 8-98202-669-0	1-85574-074-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: C = 1-19500-596-1	1-85574-081-0	01	1	-
8	KEY; SHAFT,OIL PUMP ASM PART: B = 1-19500-532-0, C = 1-19500-596-1, D = 8-98202-669-0	9-08055-413-0	01	1	-
8	KEY; SHAFT,OIL PUMP ASM PART: A = 1-19500-285-3	9-19519-036-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: A = 1-19500-285-3	1-19511-057-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: B = 1-19500-532-0	1-19511-139-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: C = 1-19500-596-1	1-19511-184-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: D = 8-98202-669-0	8-98203-276-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: A = 1-19500-285-3	1-19511-091-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: B = 1-19500-532-0	1-19511-102-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: D = 8-98202-669-0	1-19511-160-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: C = 1-19500-596-1	8-97182-108-0	01	1	-
13	SHAFT KIT; RET ASM PART: A = 1-19500-285-3	1-19521-018-0	01	1	-
13	SHAFT KIT; RET ASM PART: B = 1-19500-532-0	1-19521-030-0	01	1	-
13	SHAFT KIT; RET ASM PART: C = 1-19500-596-1, D = 8-98202-669-0	1-19521-040-0	01	1	-
14	RING; RET,OIL PUMP ASM PART: A = 1-19500-285-3	1-19519-135-0	01	1	-
14	RING; RET,OIL PUMP ASM PART: B = 1-19500-532-0, C = 1-19500-596-1, D = 8-98202-669-0	1-19519-257-0	01	1	-
15	BEARING; BALL,OIL PUMP ASM PART: A = 1-19500-285-3	1-19515-004-0	01	1	-
15	BEARING; BALL,OIL PUMP ASM PART: B = 1-19500-532-0, C = 1-19500-596-1, D = 8-98202-669-0	1-19519-264-0	01	1	-
16	RING; RET,OIL PUMP ASM PART: B = 1-19500-532-0, C = 1-19500-596-1	1-19519-258-0	01	1	-
16	RING; RET,OIL PUMP ASM PART: A = 1-19500-285-3	9-19519-078-0	01	1	-
19	SEAL; OIL,OIL PUMP ASM PART: A = 1-19500-285-3	1-19519-252-0	01	1	-
19	SEAL; OIL,OIL PUMP ASM PART: B = 1-19500-532-0, C = 1-19500-596-1, D = 8-98202-669-0	1-19519-256-0	01	1	-
21	GASKET; FRT COVER TO BODY (D) ASM PART: D = 8-98202-669-0	1-19519-345-0	01	1	-
21	GASKET; FRT COVER TO BODY (A) ASM PART: B = 1-19500-532-0	8-94475-378-0	01	1	-
21	GASKET; FRT COVER TO BODY (B) ASM PART: B = 1-19500-532-0, C = 1-19500-596-1	8-94475-380-1	01	1	-
21	GASKET; FRT COVER TO BODY (A) ASM PART: C = 1-19500-596-1, D = 8-98202-669-0	8-97182-099-0	01	1	-
21	GASKET; FRT COVER TO BODY (C) ASM PART: A = 1-19500-285-3	9-88510-234-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: A = 1-19500-285-3	1-19519-132-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: B = 1-19500-532-0	1-19519-304-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: C = 1-19500-596-1, D = 8-98202-669-0	1-19519-342-0	01	1	-
24	PLATE ASM; THRUST ASM PART: B = 1-19500-532-0	1-19515-012-0	01	1	-
24	PLATE ASM; THRUST ASM PART: A = 1-19500-285-3	1-19519-233-0	01	1	-
24	PLATE ASM; THRUST ASM PART: C = 1-19500-596-1, D = 8-98202-669-0	8-97182-103-0	01	1	-
25	PIN; HSG,P/S ASM PART: B = 1-19500-532-0, C = 1-19500-596-1, D = 8-98202-669-0	1-33739-345-0	02	1	-
25	PIN; HSG,P/S ASM PART: A = 1-19500-285-3	9-88510-408-0	02	1	-
32	SPRING; OIL PUMP ASM PART: B = 1-19500-532-0, C = 1-19500-596-1, D = 8-98202-669-0	8-94475-376-0	01	1	-
32	SPRING; OIL PUMP ASM PART: A = 1-19500-285-3	9-19529-013-0	01	1	-
33	BOLT; COVER ASM PART: A = 1-19500-285-3	1-19519-244-0	04	1	-
33	BOLT; COVER ASM PART: D = 8-98202-669-0	1-19519-346-1	04	1	-
33	BOLT; COVER ASM PART: B = 1-19500-532-0, C = 1-19500-596-1	1-48119-054-0	04	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: B = 1-19500-532-0, C = 1-19500-596-1, D = 8-98202-669-0	1-33739-070-0	01	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: A = 1-19500-285-3	9-48429-028-0	01	1	-
38	CONNECTOR; OIL PUMP ASM PART: B = 1-19500-532-0, C = 1-19500-596-1	1-19519-279-1	01	1	-
38	CONNECTOR; OIL PUMP ASM PART: D = 8-98202-669-0	8-98202-672-0	01	1	-
39	GASKET; OIL PUMP (D) ASM PART: A = 1-19500-285-3	1-19519-100-0	01	1	-
39	GASKET; OIL PUMP (A) ASM PART: B = 1-19500-532-0, D = 8-98202-669-0	1-19519-259-0	01	1	-
39	GASKET; OIL PUMP (B) ASM PART: B = 1-19500-532-0	1-19519-308-0	01	1	-
39	GASKET; OIL PUMP (A) ASM PART: C = 1-19500-596-1	8-94475-379-0	01	1	-
39	GASKET; OIL PUMP (C) ASM PART: B = 1-19500-532-0, C = 1-19500-596-1, D = 8-98202-669-0	9-48429-028-0	01	1	-

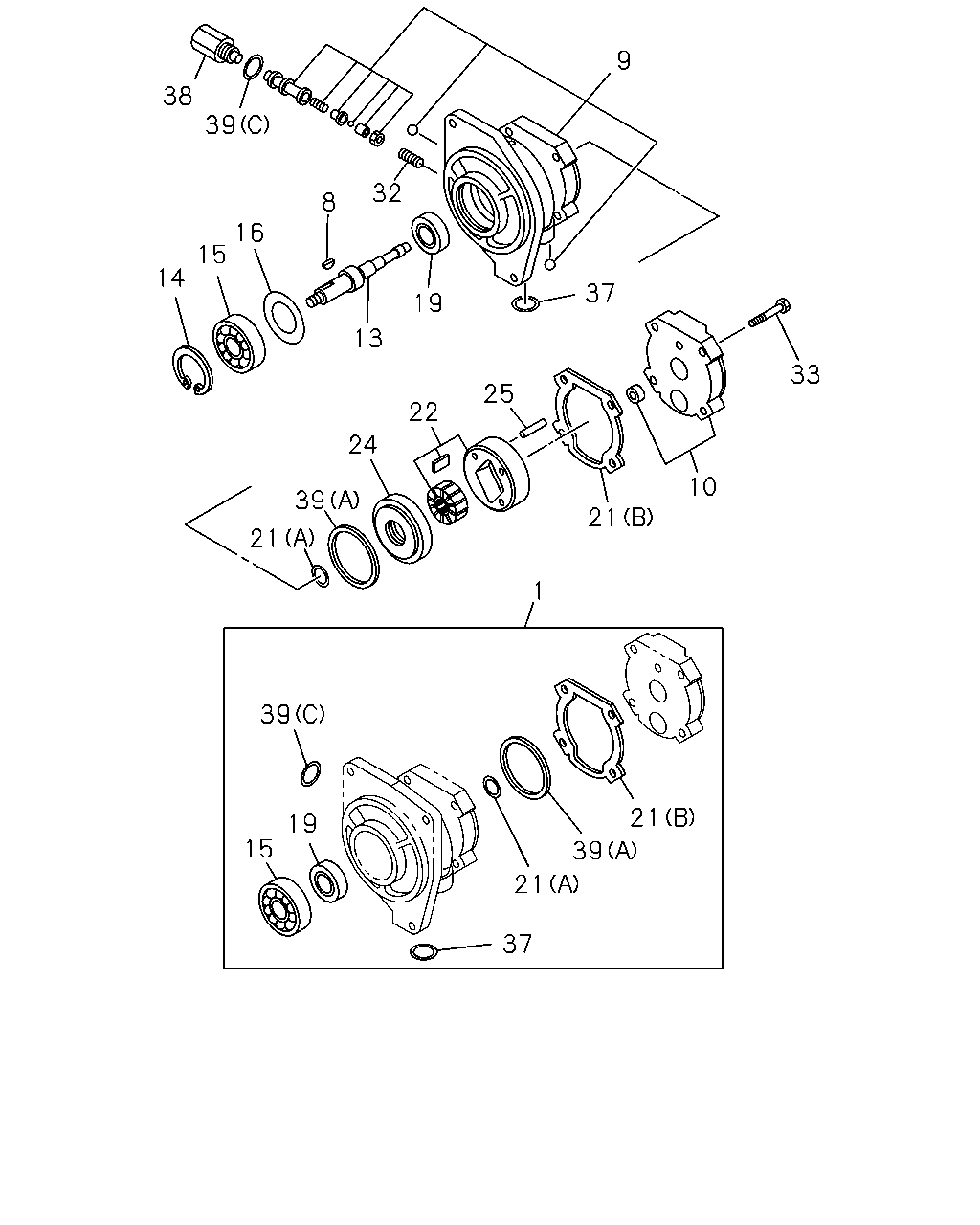

21 25 22 24 39 21 33 10 37 8 14 15 13 19 32 9 39 38 1 39 21 37 19 15 21 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; OIL PUMP ASM PART: A = 1-19500-285-3	1-85574-008-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: B = 1-19500-532-0	1-85574-025-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: D = 8-98202-669-0	1-85574-074-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: C = 1-19500-596-1	1-85574-081-0	01	1	-
8	KEY; SHAFT,OIL PUMP ASM PART: B = 1-19500-532-0, C = 1-19500-596-1, D = 8-98202-669-0	9-08055-413-0	01	1	-
8	KEY; SHAFT,OIL PUMP ASM PART: A = 1-19500-285-3	9-19519-036-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: A = 1-19500-285-3	1-19511-057-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: B = 1-19500-532-0	1-19511-139-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: C = 1-19500-596-1	1-19511-184-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: D = 8-98202-669-0	8-98203-276-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: A = 1-19500-285-3	1-19511-091-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: B = 1-19500-532-0	1-19511-102-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: D = 8-98202-669-0	1-19511-160-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: C = 1-19500-596-1	8-97182-108-0	01	1	-
13	SHAFT KIT; RET ASM PART: A = 1-19500-285-3	1-19521-018-0	01	1	-
13	SHAFT KIT; RET ASM PART: B = 1-19500-532-0	1-19521-030-0	01	1	-
13	SHAFT KIT; RET ASM PART: C = 1-19500-596-1, D = 8-98202-669-0	1-19521-040-0	01	1	-
14	RING; RET,OIL PUMP ASM PART: A = 1-19500-285-3	1-19519-135-0	01	1	-
14	RING; RET,OIL PUMP ASM PART: B = 1-19500-532-0, C = 1-19500-596-1, D = 8-98202-669-0	1-19519-257-0	01	1	-
15	BEARING; BALL,OIL PUMP ASM PART: A = 1-19500-285-3	1-19515-004-0	01	1	-
15	BEARING; BALL,OIL PUMP ASM PART: B = 1-19500-532-0, C = 1-19500-596-1, D = 8-98202-669-0	1-19519-264-0	01	1	-
19	SEAL; OIL,OIL PUMP ASM PART: A = 1-19500-285-3	1-19519-252-0	01	1	-
19	SEAL; OIL,OIL PUMP ASM PART: B = 1-19500-532-0, C = 1-19500-596-1, D = 8-98202-669-0	1-19519-256-0	01	1	-
21	GASKET; FRT COVER TO BODY (D) ASM PART: D = 8-98202-669-0	1-19519-345-0	01	1	-
21	GASKET; FRT COVER TO BODY (A) ASM PART: B = 1-19500-532-0	8-94475-378-0	01	1	-
21	GASKET; FRT COVER TO BODY (B) ASM PART: B = 1-19500-532-0, C = 1-19500-596-1	8-94475-380-1	01	1	-
21	GASKET; FRT COVER TO BODY (A) ASM PART: C = 1-19500-596-1, D = 8-98202-669-0	8-97182-099-0	01	1	-
21	GASKET; FRT COVER TO BODY (C) ASM PART: A = 1-19500-285-3	9-88510-234-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: A = 1-19500-285-3	1-19519-132-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: B = 1-19500-532-0	1-19519-304-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: C = 1-19500-596-1, D = 8-98202-669-0	1-19519-342-0	01	1	-
24	PLATE ASM; THRUST ASM PART: B = 1-19500-532-0	1-19515-012-0	01	1	-
24	PLATE ASM; THRUST ASM PART: A = 1-19500-285-3	1-19519-233-0	01	1	-
24	PLATE ASM; THRUST ASM PART: C = 1-19500-596-1, D = 8-98202-669-0	8-97182-103-0	01	1	-
25	PIN; HSG,P/S ASM PART: B = 1-19500-532-0, C = 1-19500-596-1, D = 8-98202-669-0	1-33739-345-0	02	1	-
25	PIN; HSG,P/S ASM PART: A = 1-19500-285-3	9-88510-408-0	02	1	-
32	SPRING; OIL PUMP ASM PART: B = 1-19500-532-0, C = 1-19500-596-1, D = 8-98202-669-0	8-94475-376-0	01	1	-
32	SPRING; OIL PUMP ASM PART: A = 1-19500-285-3	9-19529-013-0	01	1	-
33	BOLT; COVER ASM PART: A = 1-19500-285-3	1-19519-244-0	04	1	-
33	BOLT; COVER ASM PART: D = 8-98202-669-0	1-19519-346-1	04	1	-
33	BOLT; COVER ASM PART: B = 1-19500-532-0, C = 1-19500-596-1	1-48119-054-0	04	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: B = 1-19500-532-0, C = 1-19500-596-1, D = 8-98202-669-0	1-33739-070-0	01	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: A = 1-19500-285-3	9-48429-028-0	01	1	-
38	CONNECTOR; OIL PUMP ASM PART: B = 1-19500-532-0, C = 1-19500-596-1	1-19519-279-1	01	1	-
38	CONNECTOR; OIL PUMP ASM PART: D = 8-98202-669-0	8-98202-672-0	01	1	-
39	GASKET; OIL PUMP (D) ASM PART: A = 1-19500-285-3	1-19519-100-0	01	1	-
39	GASKET; OIL PUMP (A) ASM PART: B = 1-19500-532-0, D = 8-98202-669-0	1-19519-259-0	01	1	-
39	GASKET; OIL PUMP (B) ASM PART: B = 1-19500-532-0	1-19519-308-0	01	1	-
39	GASKET; OIL PUMP (A) ASM PART: C = 1-19500-596-1	8-94475-379-0	01	1	-
39	GASKET; OIL PUMP (C) ASM PART: B = 1-19500-532-0, C = 1-19500-596-1, D = 8-98202-669-0	9-48429-028-0	01	1	-

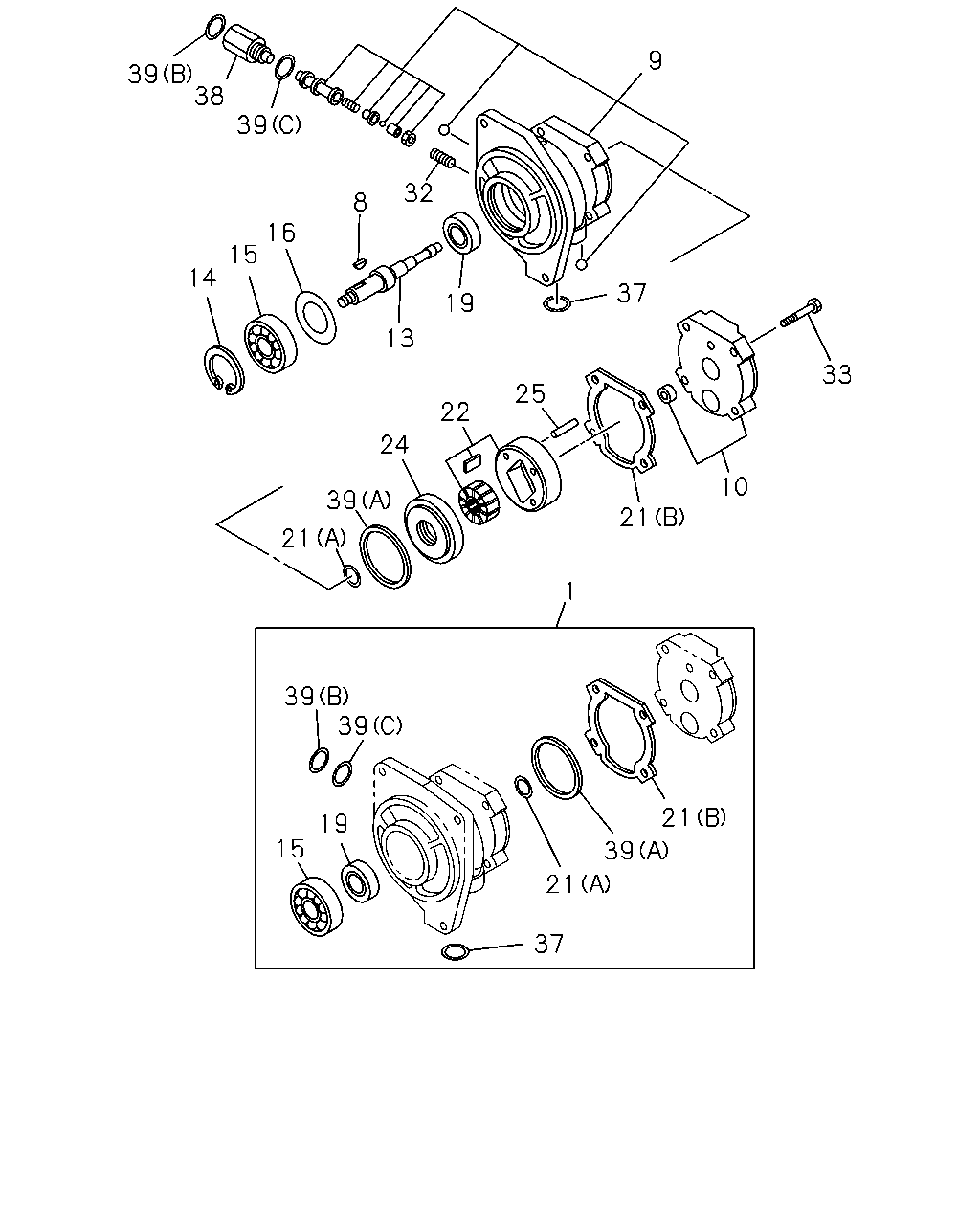

9 38 39 14 15 16 8 32 19 13 37 33 10 21 25 22 24 39 21 1 21 39 21 37 19 15 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; OIL PUMP ASM PART: A = 1-19500-285-3	1-85574-008-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: B = 1-19500-532-0	1-85574-025-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: D = 8-98202-669-0	1-85574-074-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: C = 1-19500-596-1	1-85574-081-0	01	1	-
8	KEY; SHAFT,OIL PUMP ASM PART: B = 1-19500-532-0, C = 1-19500-596-1, D = 8-98202-669-0	9-08055-413-0	01	1	-
8	KEY; SHAFT,OIL PUMP ASM PART: A = 1-19500-285-3	9-19519-036-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: A = 1-19500-285-3	1-19511-057-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: B = 1-19500-532-0	1-19511-139-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: C = 1-19500-596-1	1-19511-184-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: D = 8-98202-669-0	8-98203-276-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: A = 1-19500-285-3	1-19511-091-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: B = 1-19500-532-0	1-19511-102-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: D = 8-98202-669-0	1-19511-160-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: C = 1-19500-596-1	8-97182-108-0	01	1	-
13	SHAFT KIT; RET ASM PART: A = 1-19500-285-3	1-19521-018-0	01	1	-
13	SHAFT KIT; RET ASM PART: B = 1-19500-532-0	1-19521-030-0	01	1	-
13	SHAFT KIT; RET ASM PART: C = 1-19500-596-1, D = 8-98202-669-0	1-19521-040-0	01	1	-
14	RING; RET,OIL PUMP ASM PART: A = 1-19500-285-3	1-19519-135-0	01	1	-
14	RING; RET,OIL PUMP ASM PART: B = 1-19500-532-0, C = 1-19500-596-1, D = 8-98202-669-0	1-19519-257-0	01	1	-
15	BEARING; BALL,OIL PUMP ASM PART: A = 1-19500-285-3	1-19515-004-0	01	1	-
15	BEARING; BALL,OIL PUMP ASM PART: B = 1-19500-532-0, C = 1-19500-596-1, D = 8-98202-669-0	1-19519-264-0	01	1	-
16	RING; RET,OIL PUMP ASM PART: B = 1-19500-532-0, C = 1-19500-596-1	1-19519-258-0	01	1	-
16	RING; RET,OIL PUMP ASM PART: A = 1-19500-285-3	9-19519-078-0	01	1	-
19	SEAL; OIL,OIL PUMP ASM PART: A = 1-19500-285-3	1-19519-252-0	01	1	-
19	SEAL; OIL,OIL PUMP ASM PART: B = 1-19500-532-0, C = 1-19500-596-1, D = 8-98202-669-0	1-19519-256-0	01	1	-
21	GASKET; FRT COVER TO BODY (D) ASM PART: D = 8-98202-669-0	1-19519-345-0	01	1	-
21	GASKET; FRT COVER TO BODY (A) ASM PART: B = 1-19500-532-0	8-94475-378-0	01	1	-
21	GASKET; FRT COVER TO BODY (B) ASM PART: B = 1-19500-532-0, C = 1-19500-596-1	8-94475-380-1	01	1	-
21	GASKET; FRT COVER TO BODY (A) ASM PART: C = 1-19500-596-1, D = 8-98202-669-0	8-97182-099-0	01	1	-
21	GASKET; FRT COVER TO BODY (C) ASM PART: A = 1-19500-285-3	9-88510-234-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: A = 1-19500-285-3	1-19519-132-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: B = 1-19500-532-0	1-19519-304-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: C = 1-19500-596-1, D = 8-98202-669-0	1-19519-342-0	01	1	-
24	PLATE ASM; THRUST ASM PART: B = 1-19500-532-0	1-19515-012-0	01	1	-
24	PLATE ASM; THRUST ASM PART: A = 1-19500-285-3	1-19519-233-0	01	1	-
24	PLATE ASM; THRUST ASM PART: C = 1-19500-596-1, D = 8-98202-669-0	8-97182-103-0	01	1	-
25	PIN; HSG,P/S ASM PART: B = 1-19500-532-0, C = 1-19500-596-1, D = 8-98202-669-0	1-33739-345-0	02	1	-
25	PIN; HSG,P/S ASM PART: A = 1-19500-285-3	9-88510-408-0	02	1	-
32	SPRING; OIL PUMP ASM PART: B = 1-19500-532-0, C = 1-19500-596-1, D = 8-98202-669-0	8-94475-376-0	01	1	-
32	SPRING; OIL PUMP ASM PART: A = 1-19500-285-3	9-19529-013-0	01	1	-
33	BOLT; COVER ASM PART: A = 1-19500-285-3	1-19519-244-0	04	1	-
33	BOLT; COVER ASM PART: D = 8-98202-669-0	1-19519-346-1	04	1	-
33	BOLT; COVER ASM PART: B = 1-19500-532-0, C = 1-19500-596-1	1-48119-054-0	04	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: B = 1-19500-532-0, C = 1-19500-596-1, D = 8-98202-669-0	1-33739-070-0	01	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: A = 1-19500-285-3	9-48429-028-0	01	1	-
38	CONNECTOR; OIL PUMP ASM PART: B = 1-19500-532-0, C = 1-19500-596-1	1-19519-279-1	01	1	-
38	CONNECTOR; OIL PUMP ASM PART: D = 8-98202-669-0	8-98202-672-0	01	1	-
39	GASKET; OIL PUMP (D) ASM PART: A = 1-19500-285-3	1-19519-100-0	01	1	-
39	GASKET; OIL PUMP (A) ASM PART: B = 1-19500-532-0, D = 8-98202-669-0	1-19519-259-0	01	1	-
39	GASKET; OIL PUMP (B) ASM PART: B = 1-19500-532-0	1-19519-308-0	01	1	-
39	GASKET; OIL PUMP (A) ASM PART: C = 1-19500-596-1	8-94475-379-0	01	1	-
39	GASKET; OIL PUMP (C) ASM PART: B = 1-19500-532-0, C = 1-19500-596-1, D = 8-98202-669-0	9-48429-028-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
