◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11418 - FSR(AUST)EU4 EXC.SPA ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-25 - REAR FINAL DRIVE ▶
4-25 — REAR FINAL DRIVE (#44729) — 149 parça

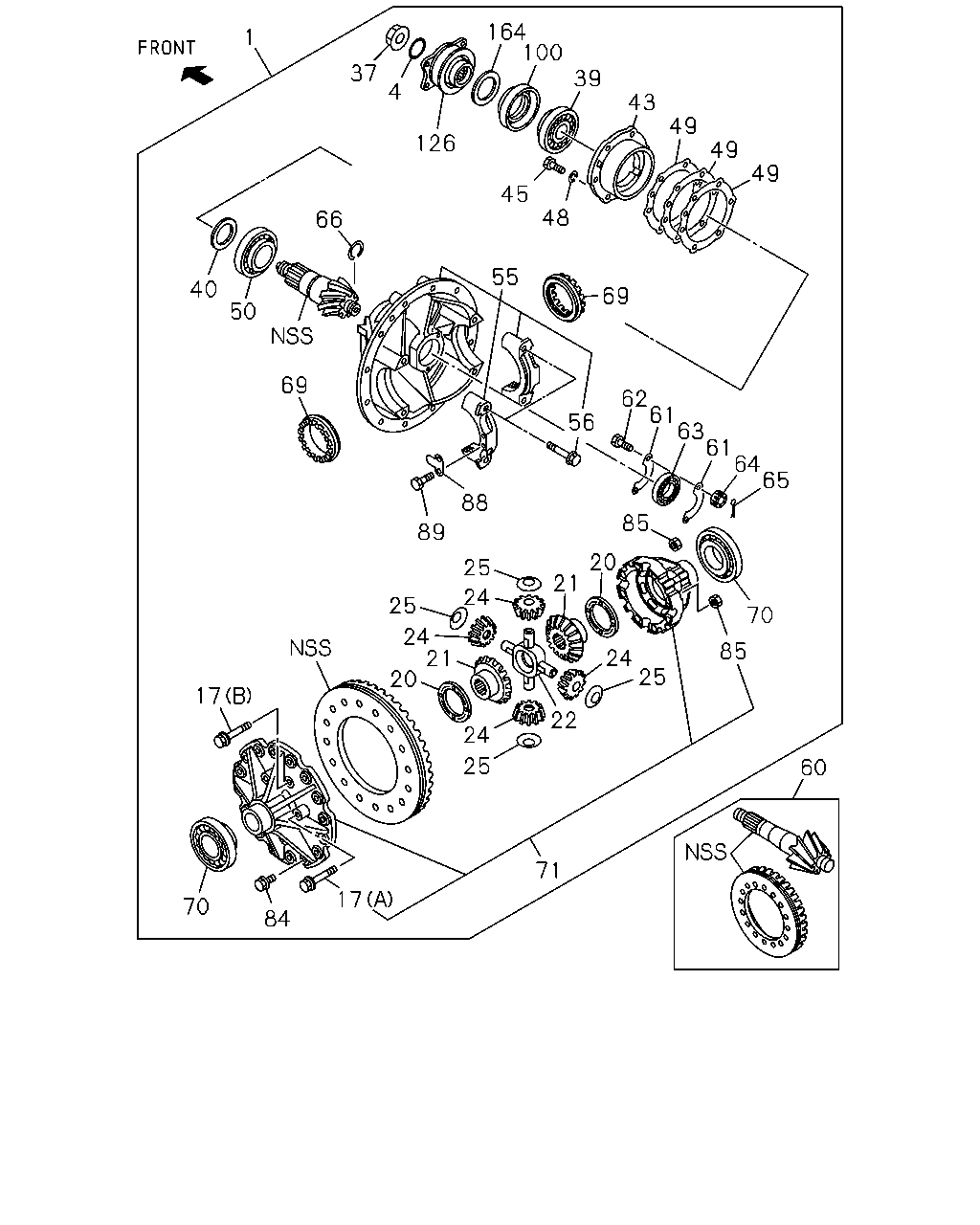

çizim 109473
164 100 1 37 39 4 43 49 126 49 49 45 48 66 55 40 69 50 69 62 61 63 61 64 65 56 88 85 89 20 25 21 24 25 70 24 21 20 85 24 25 24 17 22 25 60 71 17 70 84
BalonParca AdiParca NoAdetTipApplied Date A B C
1 DRIVE ASM; FINAL,RR
39/8 		1-41003-253-0 01 1 0710- ●
1 DRIVE ASM; FINAL,RR
41/9 		1-41003-343-0 01 1 0710- ●
1 DRIVE ASM; FINAL,RR
39/9 		1-41003-250-0 01 1 0805- ●
4 GASKET; FLANGE,FINAL PINION
ID=37.5 T=4 		1-09623-582-0 01 1 0710-0804 ● ●
4 GASKET; FLANGE,FINAL PINION
ID=37.5 T=4 		1-09623-582-0 01 1 0805- ● ● ●
17 BOLT; DIFF CAGE SETTING
(A) M14X121 FLANGE 		1-09044-006-0 04 1 0710-0804 ● ●
17 BOLT; DIFF CAGE SETTING
(A) M14X121 FLANGE 		1-09044-006-0 04 1 0805- ● ● ●
17 BOLT; DIFF CAGE SETTING
(B) M14X95 FLANGE 		1-09044-007-0 04 1 0710-0804 ● ●
17 BOLT; DIFF CAGE SETTING
(B) M14X95 FLANGE 		1-09044-007-0 04 1 0805- ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.80 		1-41562-061-0 AR 1 0710-0804 ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.80 		1-41562-061-0 AR 1 0805- ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.00 		1-41562-062-0 AR 1 0710-0804 ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.00 		1-41562-062-0 AR 1 0805- ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.20 		1-41562-063-0 AR 1 0710-0804 ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.20 		1-41562-063-0 AR 1 0805- ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.40 		1-41562-064-0 AR 1 0710-0804 ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.40 		1-41562-064-0 AR 1 0805- ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.90 		1-41562-080-0 AR 1 0710-0804 ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.90 		1-41562-080-0 AR 1 0805- ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.10 		1-41562-081-0 AR 1 0710-0804 ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.10 		1-41562-081-0 AR 1 0805- ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.30 		1-41562-082-0 AR 1 0710-0804 ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.30 		1-41562-082-0 AR 1 0805- ● ● ●
21 GEAR; SIDE,DIFF
Z=16 		1-41561-125-0 02 1 0710-0804 ● ●
21 GEAR; SIDE,DIFF
Z=16 		1-41561-125-0 02 1 0805-0905 ● ● ●
21 GEAR; SIDE,DIFF
Z=16 		1-41561-149-0 02 1 0906- ● ● ●
22 SPIDER; DIFF PINION 1-41521-050-2 01 1 0710-0804 ● ●
22 SPIDER; DIFF PINION 1-41521-050-2 01 1 0805- ● ● ●
24 GEAR; PINION,DIFF
Z=10 		1-41551-042-0 04 1 0710-0804 ● ●
24 GEAR; PINION,DIFF
Z=10 		1-41551-042-0 04 1 0805-0905 ● ● ●
24 GEAR; PINION,DIFF
Z=10 		1-41551-049-0 04 1 0906- ● ● ●
25 WASHER; THRUST,PINION
ID=29 OD=60 		1-41562-119-0 04 1 0710-0804 ● ●
25 WASHER; THRUST,PINION
ID=29 OD=60 		1-41562-119-0 04 1 0805- ● ● ●
37 NUT; DRIVING PINION
M36 FLANGE 		1-09449-083-0 01 1 0710-0804 ● ●
37 NUT; DRIVING PINION
M36 FLANGE 		1-09449-083-0 01 1 0805- ● ● ●
39 BEARING; FINAL PINION
NSK 		1-09812-026-0 01 1 0710-0804 ● ●
39 BEARING; FINAL PINION
NSK 		1-09812-026-0 01 1 0805-1001 ● ● ●
39 BEARING; FINAL PINION
NSK 		5-09812-063-0 01 1 1002- ● ● ●
39 BEARING; FINAL PINION
JTEKT 		5-09812-062-1 01 1 1001- ● ● ●
40 SHIM; FINAL PINION
T=1.60 		1-41229-179-0 AR 1 0710-0804 ● ●
40 SHIM; FINAL PINION
T=1.60 		1-41229-179-0 AR 1 0805- ● ● ●
40 SHIM; FINAL PINION
T=1.61 		1-41229-180-0 AR 1 0710-0804 ● ●
40 SHIM; FINAL PINION
T=1.61 		1-41229-180-0 AR 1 0805- ● ● ●
40 SHIM; FINAL PINION
T=1.62 		1-41229-181-0 AR 1 0710-0804 ● ●
40 SHIM; FINAL PINION
T=1.62 		1-41229-181-0 AR 1 0805- ● ● ●
40 SHIM; FINAL PINION
T=1.63 		1-41229-182-0 AR 1 0710-0804 ● ●
40 SHIM; FINAL PINION
T=1.63 		1-41229-182-0 AR 1 0805- ● ● ●
40 SHIM; FINAL PINION
T=1.64 		1-41229-183-0 AR 1 0710-0804 ● ●
40 SHIM; FINAL PINION
T=1.64 		1-41229-183-0 AR 1 0805- ● ● ●
40 SHIM; FINAL PINION
T=1.65 		1-41229-184-0 AR 1 0710-0804 ● ●
40 SHIM; FINAL PINION
T=1.65 		1-41229-184-0 AR 1 0805- ● ● ●
40 SHIM; FINAL PINION
T=1.66 		1-41229-185-0 AR 1 0710-0804 ● ●
40 SHIM; FINAL PINION
T=1.66 		1-41229-185-0 AR 1 0805- ● ● ●
40 SHIM; FINAL PINION
T=1.67 		1-41229-186-0 AR 1 0710-0804 ● ●
40 SHIM; FINAL PINION
T=1.67 		1-41229-186-0 AR 1 0805- ● ● ●
40 SHIM; FINAL PINION
T=1.68 		1-41229-187-0 AR 1 0710-0804 ● ●
40 SHIM; FINAL PINION
T=1.68 		1-41229-187-0 AR 1 0805- ● ● ●
40 SHIM; FINAL PINION
T=1.69 		1-41229-188-0 AR 1 0710-0804 ● ●
40 SHIM; FINAL PINION
T=1.69 		1-41229-188-0 AR 1 0805- ● ● ●
40 SHIM; FINAL PINION
T=1.70 		1-41229-189-0 AR 1 0710-0804 ● ●
40 SHIM; FINAL PINION
T=1.70 		1-41229-189-0 AR 1 0805- ● ● ●
43 CAGE; FINAL PINION 1-41151-027-0 01 1 0710-0804 ● ●
43 CAGE; FINAL PINION 1-41151-027-0 01 1 0805- ● ● ●
45 BOLT; FINAL PINION CAGE
M12X40 		0-23951-240-0 06 1 0710-0712 ● ●
45 BOLT; FINAL PINION CAGE
M12X40 		9-02361-240-0 06 1 0801-0804 ● ●
45 BOLT; FINAL PINION CAGE
M12X40 		9-02361-240-0 06 1 0805- ● ● ●
48 WASHER; LK,FINAL PINION
ID=12.2 		0-91510-812-0 06 1 0710-0804 ● ●
48 WASHER; LK,FINAL PINION
ID=12.2 		0-91510-812-0 06 1 0805- ● ● ●
49 SHIM; FINAL PINION CAGE
T=0.50 		1-41154-021-1 AR 1 0710-0804 ● ●
49 SHIM; FINAL PINION CAGE
T=0.50 		1-41154-021-1 AR 1 0805- ● ● ●
49 SHIM; FINAL PINION CAGE
T=0.30 		1-41154-051-1 AR 1 0710-0804 ● ●
49 SHIM; FINAL PINION CAGE
T=0.30 		1-41154-051-1 AR 1 0805- ● ● ●
49 SHIM; FINAL PINION CAGE
T=0.40 		1-41154-052-1 AR 1 0710-0804 ● ●
49 SHIM; FINAL PINION CAGE
T=0.40 		1-41154-052-1 AR 1 0805- ● ● ●
49 SHIM; FINAL PINION CAGE
T=1.00 		1-41154-053-1 AR 1 0710-0804 ● ●
49 SHIM; FINAL PINION CAGE
T=1.00 		1-41154-053-1 AR 1 0805- ● ● ●
50 BEARING; FINAL PINION
NSK 		1-09812-041-2 01 1 0710-0804 ● ●
50 BEARING; FINAL PINION
NSK 		1-09812-041-2 01 1 0805- ● ● ●
50 BEARING; FINAL PINION
JTEKT 		1-09812-042-1 01 1 0710-0804 ● ●
50 BEARING; FINAL PINION
JTEKT 		1-09812-042-1 01 1 0805- ● ● ●
55 CARRIER; DIFF 1-41110-048-1 01 1 0710-0804 ● ●
55 CARRIER; DIFF 1-41110-048-1 01 1 0805-1006 ● ● ●
55 CARRIER; DIFF 1-41110-129-0 01 1 1007- ● ● ●
56 BOLT; BRG CAP
M16X100 FLANGE 		1-09070-047-0 04 1 0710-0804 ● ●
56 BOLT; BRG CAP
M16X100 FLANGE 		1-09070-047-0 04 1 0805- ● ● ●
60 GEAR SET; FINAL DRIVE,RR
39/8 		1-41210-454-0 01 1 0710- ●
60 GEAR SET; FINAL DRIVE,RR
41/9 		1-41210-729-0 01 1 0710- ●
60 GEAR SET; FINAL DRIVE,RR
39/9 		1-41210-455-0 01 1 0805- ●
61 RETAINER; PILOT BRG,PINION
T=2.3 		1-41227-006-0 02 1 0710-0804 ● ●
61 RETAINER; PILOT BRG,PINION
T=2.3 		1-41227-006-0 02 1 0805- ● ● ●
62 BOLT; RET
M8X35 W/PIN HOLE 		1-09042-046-0 02 1 0710-0804 ● ●
62 BOLT; RET
M8X35 W/PIN HOLE 		1-09042-046-0 02 1 0805- ● ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-073-2 01 1 0710-0804 ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-073-2 01 1 0805- ● ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-074-1 01 1 0710-0804 ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-074-1 01 1 0805- ● ● ●
64 NUT; RET
M8 SLOTTED 		0-91117-508-0 02 1 0710-0804 ● ●
64 NUT; RET
M8 SLOTTED 		0-91117-508-0 02 1 0805- ● ● ●
65 PIN; SPLIT,RET 0-81122-012-0 02 1 0710-0804 ● ●
65 PIN; SPLIT,RET 0-81122-012-0 02 1 0805- ● ● ●
66 RING; SNAP,PILOT BRG
OD=34.2 		1-09588-214-0 01 1 0710-0804 ● ●
66 RING; SNAP,PILOT BRG
OD=34.2 		1-09588-214-0 01 1 0805- ● ● ●
69 NUT; ADJ,DIFF CAGE
M128 H=22 		1-41121-013-0 01 1 0710-0804 ● ●
69 NUT; ADJ,DIFF CAGE
M128 H=22 		1-41121-013-0 01 1 0805- ● ● ●
69 NUT; ADJ,DIFF CAGE
M128 H=30 		1-41121-015-0 01 1 0710-0804 ● ●
69 NUT; ADJ,DIFF CAGE
M128 H=30 		1-41121-015-0 01 1 0805- ● ● ●
70 BEARING; DIFF CAGE
NSK ID=70 OD=125 T=33.3 		1-09812-056-1 01 1 0710-0804 ● ●
70 BEARING; DIFF CAGE
NSK ID=70 OD=125 T=33.3 		1-09812-056-1 01 1 0805- ● ● ●
70 BEARING; DIFF CAGE
NSK ID=70 OD=125 T=26.3 		1-09812-058-1 01 1 0710-0804 ● ●
70 BEARING; DIFF CAGE
NSK ID=70 OD=125 T=26.3 		1-09812-058-1 01 1 0805- ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=70 OD=125 T=33.3 		1-09812-062-2 01 1 0710-0804 ● ●
70 BEARING; DIFF CAGE
JTEKT ID=70 OD=125 T=33.3 		1-09812-062-2 01 1 0805- ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=70 OD=125 T=26.3 		1-09812-249-0 01 1 0710-0804 ● ●
70 BEARING; DIFF CAGE
JTEKT ID=70 OD=125 T=26.3 		1-09812-249-0 01 1 0805- ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-112-0 01 1 0710-0804 ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-112-0 01 1 0805-1006 ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-343-0 01 1 1007- ● ● ●
84 BOLT; FINAL DRIVE GEAR
M16X34.5 FLANGE 		9-09802-575-1 16 1 0710-0804 ● ●
84 BOLT; FINAL DRIVE GEAR
M16X34.5 FLANGE 		9-09802-575-1 16 1 0805- ● ● ●
85 NUT; DIFF CAGE SETTING
M14 		1-09400-077-1 08 1 0710-0804 ● ●
85 NUT; DIFF CAGE SETTING
M14 		1-09400-077-1 08 1 0805- ● ● ●
88 PLATE; LK,ADJ NUT
T=2.3 		9-41124-015-0 02 1 0710-0804 ● ●
88 PLATE; LK,ADJ NUT
T=2.3 		9-41124-015-0 02 1 0805- ● ● ●
89 BOLT; LK PLATE
M8X12 FLANGE 		8-94479-696-1 04 1 0710-0804 ● ●
89 BOLT; LK PLATE
M8X12 FLANGE 		8-94479-696-1 04 1 0805- ● ● ●
100 SEAL; OIL,FINAL PINION
NOK 		1-09625-484-1 01 1 0710-0804 ● ●
100 SEAL; OIL,FINAL PINION
NOK 		1-09625-484-1 01 1 0805- ● ● ●
100 SEAL; OIL,FINAL PINION
TKK 		1-09625-637-0 01 1 0710-0804 ● ●
100 SEAL; OIL,FINAL PINION
TKK 		1-09625-637-0 01 1 0805- ● ● ●
126 COUPLING; DRIVING PINION 1-37245-414-0 01 1 0710-0804 ● ●
126 COUPLING; DRIVING PINION 1-37245-414-0 01 1 0805- ● ● ●
164 COLLAR; DIST,PINION
T=10.7 		1-36355-031-0 01 1 0710-0804 ● ●
164 COLLAR; DIST,PINION
T=10.7 		1-36355-031-0 01 1 0805- ● ● ●
164 COLLAR; DIST,PINION
T=10.90 		1-36355-033-0 01 1 0710-0804 ● ●
164 COLLAR; DIST,PINION
T=10.90 		1-36355-033-0 01 1 0805- ● ● ●
164 COLLAR; DIST,PINION
T=11.10 		1-36355-035-0 01 1 0710-0804 ● ●
164 COLLAR; DIST,PINION
T=11.10 		1-36355-035-0 01 1 0805- ● ● ●
164 COLLAR; DIST,PINION
T=11.30 		1-36355-037-0 01 1 0710-0804 ● ●
164 COLLAR; DIST,PINION
T=11.30 		1-36355-037-0 01 1 0805- ● ● ●
164 COLLAR; DIST,PINION
T=11.50 		1-36355-039-0 01 1 0710-0804 ● ●
164 COLLAR; DIST,PINION
T=11.50 		1-36355-039-0 01 1 0805- ● ● ●
164 COLLAR; DIST,PINION
T=11.70 		1-36355-041-0 01 1 0710-0804 ● ●
164 COLLAR; DIST,PINION
T=11.70 		1-36355-041-0 01 1 0805- ● ● ●
164 COLLAR; DIST,PINION
T=11.9 		1-36355-043-0 01 1 0710-0804 ● ●
164 COLLAR; DIST,PINION
T=11.9 		1-36355-043-0 01 1 0805- ● ● ●
164 COLLAR; DIST,PINION
T=12.10 		1-36355-045-0 01 1 0710-0804 ● ●
164 COLLAR; DIST,PINION
T=12.10 		1-36355-045-0 01 1 0805- ● ● ●
164 COLLAR; DIST,PINION
T=12.30 		1-36355-047-0 01 1 0710-0804 ● ●
164 COLLAR; DIST,PINION
T=12.30 		1-36355-047-0 01 1 0805- ● ● ●
