Isuzu WW
▶
TRUCKS
▶
FSR
▶
11418 - FSR(AUST)EU4 EXC.SPA
▶
3 - Brakes, Brake System
▶
3-78 - FIXING PARTS; AIR PIPING
▶
3-78 — FIXING PARTS; AIR PIPING
(#44724) — 59 parça
Tümü
A - FCD5MS
B - FCR5MS
◀
[378A] NO.3 (14 parça)
[378A] NO.2 (23 parça)
[378A] NO.1 (22 parça)
▶
265
63
235
268
4
236
268
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
4
CLIP; AIR PIPE
(B) ID=6.35 & 10.0
1-09709-274-1
02
1
0710-
●
●
4
CLIP; AIR PIPE
(A) ID=10 & 10
1-09709-277-1
03
1
0710-
●
●
63
BOLT; CLIP
WHEEL BASE 5500MM(55W) M8X25 FLANGE
0-28650-825-0
06
1
0710-
●
●
63
BOLT; CLIP
WHEEL BASE 3700MM(37W) M8X25 FLANGE
0-28650-825-0
03
1
0710-0710
●
63
BOLT; CLIP
WHEEL BASE 3700MM(37W) M8X25 FLANGE
0-28650-825-0
02
1
0710-
●
235
CLIP; AIR PIPE
WHEEL BASE 5500MM(55W) ID=11 H=20 L=20
8-98033-780-0
06
1
0710-
●
●
235
CLIP; AIR PIPE
WHEEL BASE 3700MM(37W) ID=11 H=20 L=20
8-98033-780-0
03
1
0710-0710
●
235
CLIP; AIR PIPE
WHEEL BASE 3700MM(37W) ID=11 H=20 L=20
8-98033-780-0
02
1
0710-
●
236
NUT; CLIP
WHEEL BASE 5500MM(55W) M8 FLANGE
0-91180-108-0
06
1
0710-
●
●
236
NUT; CLIP
WHEEL BASE 3700MM(37W) M8 FLANGE
0-91180-108-0
03
1
0710-0710
●
236
NUT; CLIP
WHEEL BASE 3700MM(37W) M8 FLANGE
0-91180-108-0
02
1
0710-
●
265
CLIP; NYLON TUBE
ID=21 H=25.5 L=26
8-94176-806-0
01
1
0710-
●
●
268
NUT; CLIP BRKT
M10 FLANGE
0-91180-210-0
01
1
0710-0710
●
●
268
NUT; CLIP BRKT
WHEEL BASE 5500MM(55W) M10 FLANGE
0-91180-210-0
01
1
0710-
●

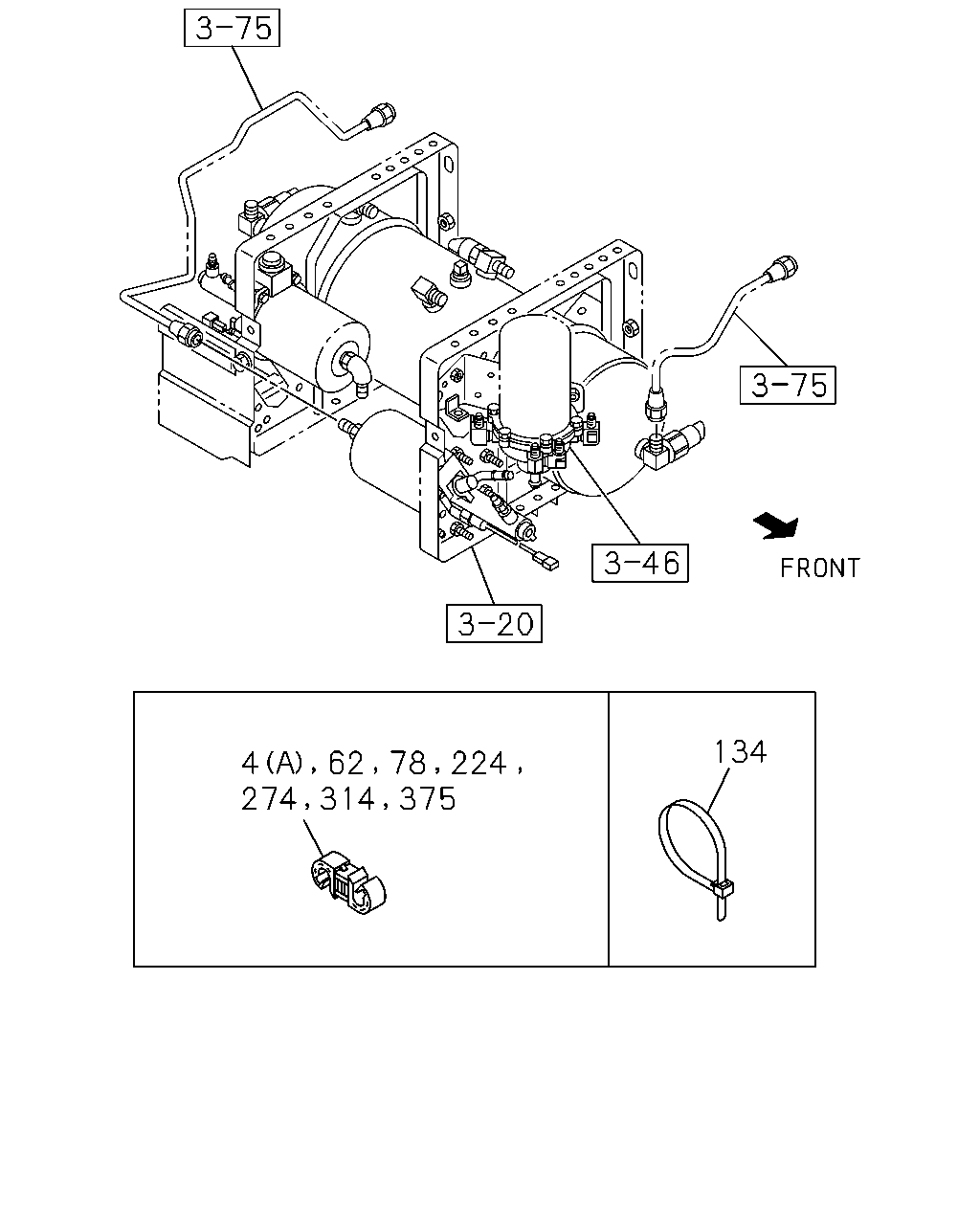

134
4
62
78
224
274
314
375
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
4
CLIP; AIR PIPE
(B) ID=6.35 & 10.0
1-09709-274-1
02
1
0710-
●
●
4
CLIP; AIR PIPE
(A) ID=10 & 10
1-09709-277-1
03
1
0710-
●
●
62
CLIP; AIR PIPE
ID=10 & 10
1-09709-277-1
02
1
0710-0809
●
●
62
CLIP; AIR PIPE
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) ID=10 & 10
1-09709-277-1
02
1
0810-0901
●
●
62
CLIP; AIR PIPE
H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) ID=10 & 10
1-09709-277-1
01
1
0810-0901
●
●
78
CLIP; AIR PIPE
ID=10 & 12
1-09709-278-1
01
1
0710-0901
●
●
134
CLIP; AIR PIPE
L=350
1-09707-183-0
01
1
0804-
●
●
224
CLIP; AIR PIPE
ID=10 & 10
1-09709-277-1
01
1
0710-0808
●
●
224
CLIP; AIR PIPE
ID=10 & 10
1-09709-277-1
01
1
0809-0901
●
●
224
CLIP; AIR PIPE
H.S.A SYSTEM<6EP> ID=10 & 10
1-09709-277-1
01
1
0809-0901
●
●
224
CLIP; AIR PIPE
THROTTLE CONTROL SYSTEM(6XH) ID=10 & 10
1-09709-277-1
01
1
0809-0901
●
●
224
CLIP; AIR PIPE
ID=10 & 10
1-09709-277-1
01
1
0902-
●
●
224
CLIP; AIR PIPE
H.S.A SYSTEM<6EP> ID=10 & 10
1-09709-277-1
01
1
0902-
●
●
224
CLIP; AIR PIPE
EXC. THROTTLE CONTROL SYSTEM(6XH) ID=10 & 10
1-09709-277-1
03
1
0710-0901
●
●
274
CLIP; AIR PIPE
H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) ID=6.35 & 10.0
1-09709-274-1
01
1
0710-0808
●
●
274
CLIP; AIR PIPE
H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) ID=6.35 & 10.0
1-09709-274-1
02
1
0809-
●
●
274
CLIP; AIR PIPE
THROTTLE CONTROL SYSTEM(6XH) ID=6.35 & 10.0
1-09709-274-1
03
1
0710-
●
●
274
CLIP; AIR PIPE
THROTTLE CONTROL SYSTEM(6XH) ID=10 & 10
1-09709-277-1
04
1
0710-0901
●
●
274
CLIP; AIR PIPE
THROTTLE CONTROL SYSTEM(6XH) ID=10 & 10
1-09709-277-1
05
1
0902-
●
●
274
CLIP; AIR PIPE
THROTTLE CONTROL SYSTEM(6XH) ID=10 & 10
1-09709-277-1
01
1
0710-
●
●
274
CLIP; AIR PIPE
THROTTLE CONTROL SYSTEM(6XH) ID=4.76 & 10.0
1-09709-305-0
01
1
0710-
●
●
314
CLIP; AIR PIPE
THROTTLE CONTROL SYSTEM(6XH) ID=6.35 & 10.0
1-09709-274-1
01
1
0710-0901
●
●
375
CLIP; AIR PIPE
H.S.A SYSTEM<6EP> ID=10 & 10
1-09709-277-1
02
1
0710-0901
●
●

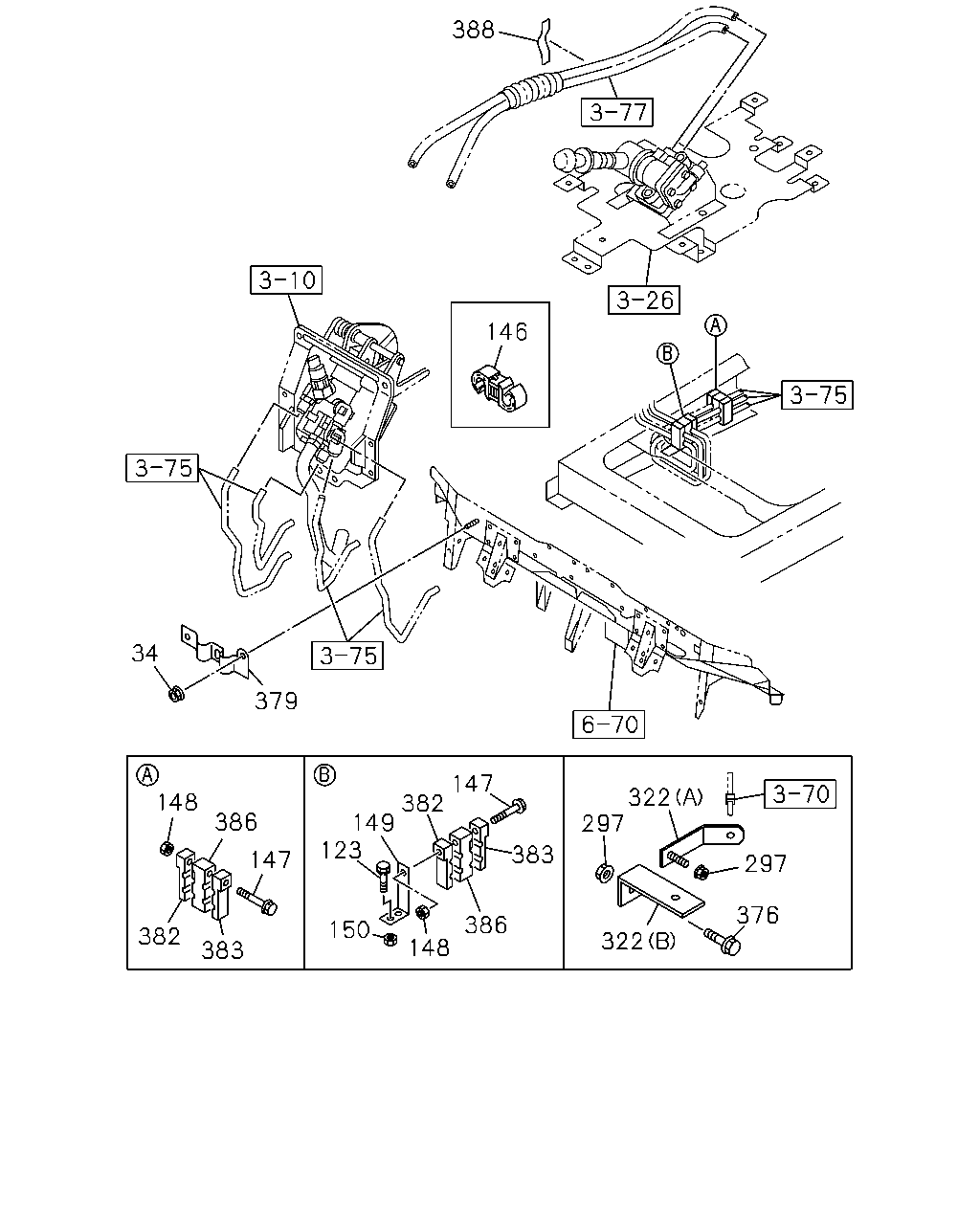

388
146
34
379
148
147
382
149
123
322
297
386
383
147
297
376
386
150
382
322
148
383
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
34
NUT; BRKT
M6 FLANGE
0-91180-106-0
02
1
0710-
●
●
123
BOLT; PIPE CLIP
M8X20 FLANGE
0-28650-820-0
02
1
0710-
●
●
146
CLIP; AIR PIPE
ID=10
1-09709-242-0
02
1
0710-0710
●
●
146
CLIP; AIR PIPE
ID=10 & 10
1-09709-277-1
04
1
0711-0910
●
●
146
CLIP; AIR PIPE
ID=10 & 10
1-09709-277-1
04
1
0911-
●
●
146
CLIP; AIR PIPE
ID=10 & 10
1-09709-277-1
04
1
0911-
●
●
147
BOLT; PIPE CLIP
M8X70 FLANGE
0-28050-870-0
04
1
0710-
●
●
148
NUT; PIPE CLIP
M8 FLANGE
0-91180-108-0
04
1
0710-
●
●
149
BRACKET; PIPE CLIP
1-47476-792-0
01
1
0710-
●
●
150
NUT; CLIP BRKT
M8 FLANGE
0-91180-108-0
02
1
0710-
●
●
297
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
0710-0710
●
●
297
NUT; BRKT
WHEEL BASE 5500MM(55W) M8 FLANGE
0-91180-108-0
01
1
0710-
●
●
297
NUT; BRKT
WHEEL BASE 3700MM(37W) M8 FLANGE
0-91180-108-0
02
1
0710-
●
322
BRACKET; CLIP
WHEEL BASE 5500MM(55W) (B) L=55 B=25
1-47478-439-0
01
1
0710-0710
●
●
322
BRACKET; CLIP
WHEEL BASE 5500MM(55W) (A)
1-47479-936-1
01
1
0710-
●
●
322
BRACKET; CLIP
WHEEL BASE 3700MM(37W) (A)
1-47479-936-1
02
1
0710-
●
376
BOLT; BRKT
WHEEL BASE 5500MM(55W) M8X25 FLANGE
0-28650-825-0
01
1
0710-0710
●
●
379
BRACKET; NYLON TUBE
8-98044-013-0
01
1
0710-
●
●
382
CLIP; UPR
ID=10 & 10
1-09709-241-0
04
1
0710-
●
●
383
CLIP; LWR
ID=10 & 10
1-09709-241-0
04
1
0710-
●
●
386
CLIP; CENTER
ID=10
1-09709-242-0
04
1
0710-
●
●
388
SEAL
100X40
1-72498-022-1
03
1
0710-
●
●
