3-70 — BRAKE PIPING; AIR,AIR MASTER (#44721) — 118 parça

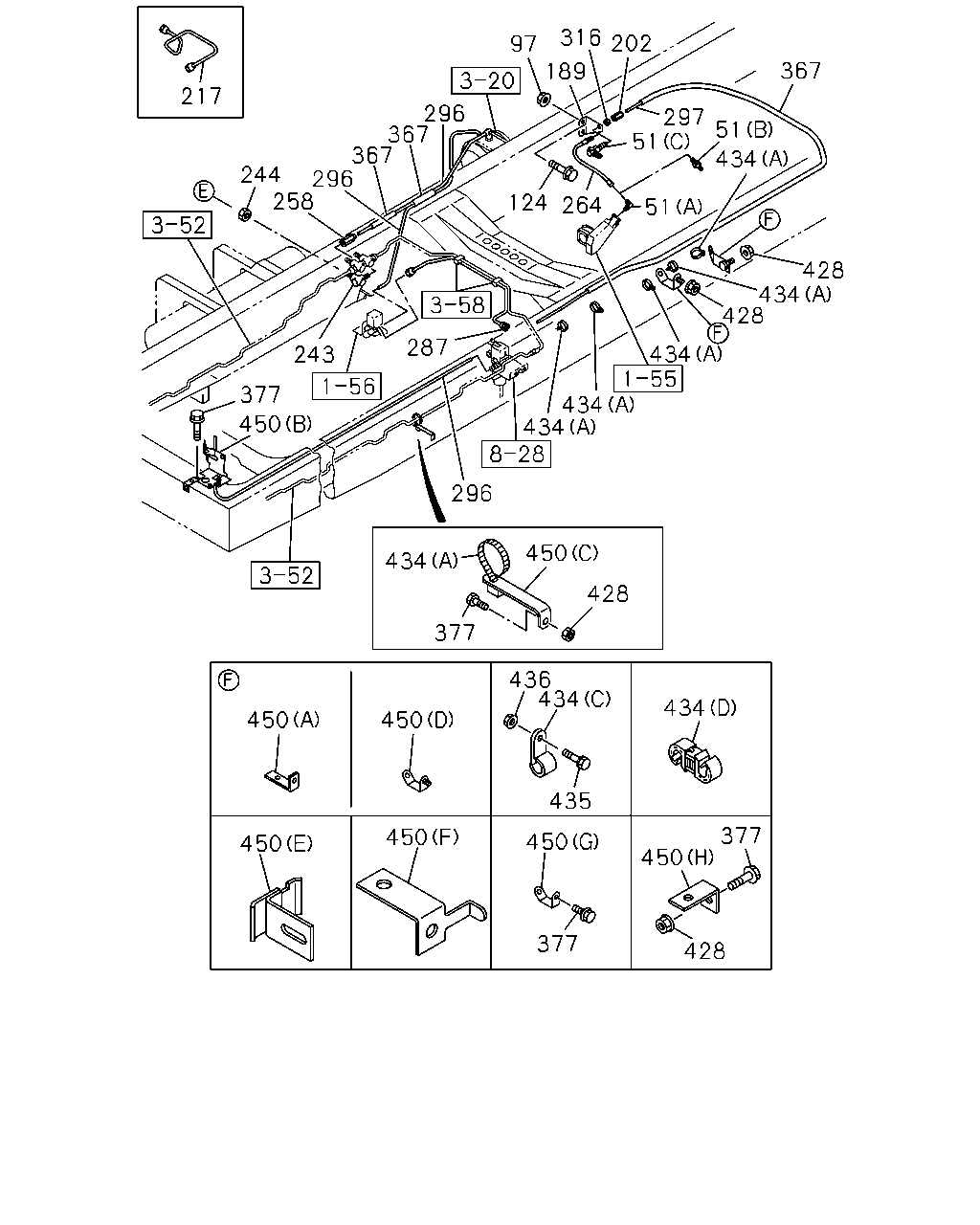

çizim 109287
316 202 97 367 189 217 296 367 367 244 296 258 297 51 51 434 124 264 51 428 434 428 287 434 243 377 434 434 450 296 450 434 428 377 436 434 434 450 450 435 377 450 450 450 450 377 428
BalonParca AdiParca NoAdetTipApplied Date A B
51 UNION
WHEEL BASE 5500MM(55W) (C) M12 ELBOW 		0-92125-006-0 01 1 0710- ● ●
51 UNION
WHEEL BASE 5500MM(55W) (B) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0710- ● ●
51 UNION
WHEEL BASE 3700MM(37W) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0710- ●
97 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0710-0710 ● ●
97 NUT; BRKT
WHEEL BASE 3700MM(37W) M10 FLANGE 		0-91180-210-0 02 1 0710- ●
97 NUT; BRKT
WHEEL BASE 5500MM(55W) M8 FLANGE 		0-91180-108-0 02 1 0710- ● ●
124 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 02 1 0710-0710 ● ●
124 BOLT; BRKT
WHEEL BASE 3700MM(37W) M10X30 FLANGE 		0-28651-030-0 02 1 0710- ●
124 BOLT; BRKT
WHEEL BASE 5500MM(55W) M8X25 FLANGE 		0-28650-825-0 02 1 0710- ● ●
189 BRACKET; FLEX HOSE 8-98054-640-0 01 1 0710-0710 ● ●
189 BRACKET; FLEX HOSE
WHEEL BASE 3700MM(37W) 		8-98054-640-0 01 1 0710- ●
189 BRACKET; FLEX HOSE
WHEEL BASE 5500MM(55W) 		1-47479-914-0 01 1 0710- ● ●
202 ADAPTER
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0710- ● ●
217 PIPE; VAC,UNION TO MAG VLV
L=456 		8-98067-434-0 01 1 0710-0710 ● ●
243 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 01 1 0710- ● ●
244 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 0710- ● ●
258 CONNECTOR; NYLON TUBE
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0710- ● ●
264 HOSE; FLEX
L=340 		1-09363-622-0 01 1 0710-0710 ● ●
264 HOSE; FLEX
WHEEL BASE 3700MM(37W) L=340 		1-09363-622-0 01 1 0710- ●
264 HOSE; FLEX
WHEEL BASE 5500MM(55W) L=240 		1-09363-671-0 01 1 0710- ● ●
287 PIPE; AIR,MAG VLV
L=862 SERVICED BY L=900 		1-47428-813-0 01 1 0710- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 0710- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0710- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0710- ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0710- ● ●
316 NUT; FLEX HOSE
M12 		9-09840-280-0 01 1 0710- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=4000 ID=7 		1-87411-017-0 AR 1 0710- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0710- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=4000 ID=10 		1-87411-020-0 AR 1 0710- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=15 		1-87411-025-0 AR 1 0710- ● ●
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 03 1 0710- ● ●
377 BOLT; BRKT FIX
M10X30 FLANGE 		0-28651-030-0 03 1 0806- ● ●
377 BOLT; BRKT FIX
WHEEL BASE 5500MM(55W) M8X25 FLANGE 		0-28650-825-0 01 1 0710-0710 ● ●
377 BOLT; BRKT FIX
WHEEL BASE 5500MM(55W) M10X30 FLANGE 		0-28651-030-0 03 1 0710-0710 ● ●
377 BOLT; BRKT FIX
M10X30 FLANGE 		0-28651-030-0 01 1 0710-0803 ● ●
377 BOLT; BRKT FIX
WHEEL BASE 5500MM(55W) M10X30 FLANGE 		0-28651-030-0 01 1 0804- ● ●
377 BOLT; BRKT FIX
WHEEL BASE 3700MM(37W) M10X30 FLANGE 		0-28651-030-0 02 1 0710-0710 ●
377 BOLT; BRKT FIX
WHEEL BASE 3700MM(37W) M8X25 FLANGE 		0-28650-825-0 01 1 0804- ●
428 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0710-0710 ● ●
428 NUT; BRKT
WHEEL BASE 5500MM(55W) M8 FLANGE 		0-91180-108-0 01 1 0710-0710 ● ●
428 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0710- ● ●
428 NUT; BRKT
M10 FLANGE 		0-91180-210-0 03 1 0710-0805 ● ●
428 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0811- ● ●
428 NUT; BRKT
WHEEL BASE 5500MM(55W) M10 FLANGE 		0-91180-110-0 03 1 0710-0710 ● ●
428 NUT; BRKT
M10 FLANGE 		0-91180-110-0 01 1 0710-0710 ● ●
428 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0711-0803 ● ●
428 NUT; BRKT
WHEEL BASE 5500MM(55W) M10 FLANGE 		0-91180-210-0 01 1 0804- ● ●
428 NUT; BRKT
WHEEL BASE 3700MM(37W) M10 FLANGE 		0-91180-110-0 02 1 0710-0710 ●
434 CLIP
(C) ID=7 L=20 		0-95234-635-0 01 1 0710- ● ●
434 CLIP
(B) ID=15 H=24 L=20 		1-09700-606-0 02 1 0710- ● ●
434 CLIP
(A) L=350 		1-09707-183-0 02 1 0710-0803 ● ●
434 CLIP
WHEEL BASE 5500MM(55W) (A) L=350 		1-09707-183-0 02 1 0804- ● ●
434 CLIP
(A) L=350 		1-09707-183-0 12 1 0710-1109 ● ●
434 CLIP
(A) L=350 		1-09707-183-0 13 1 1110- ● ●
434 CLIP
(A) L=350 		1-09707-183-0 01 1 0710-1008 ● ●
434 CLIP
(A) L=350 		1-09707-183-0 01 1 1009-1109 ● ●
434 CLIP
(A) L=350 		1-09707-183-0 01 1 1009-1109 ● ●
434 CLIP
(A) L=350 		1-09707-183-0 01 1 1110- ● ●
434 CLIP
(D) ID=10 & 15 		1-09709-279-1 01 1 0711- ● ●
434 CLIP
WHEEL BASE 5500MM(55W) (A) L=250 		1-09707-126-0 04 1 0710-0710 ● ●
434 CLIP
WHEEL BASE 5500MM(55W) (A) L=350 		1-09707-183-0 04 1 0710- ● ●
434 CLIP
WHEEL BASE 3700MM(37W) (A) L=250 		1-09707-126-0 07 1 0710-0710 ●
434 CLIP
WHEEL BASE 3700MM(37W) (A) L=350 		1-09707-183-0 07 1 0710-1109 ●
434 CLIP
WHEEL BASE 3700MM(37W) (A) L=350 		1-09707-183-0 07 1 1110- ●
434 CLIP
WHEEL BASE 3700MM(37W) (A) L=350 		1-09707-183-0 03 1 0804- ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0710-0710 ● ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0711- ● ●
435 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 0710- ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0710-0710 ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0711- ● ●
450 BRACKET; CLIP
(C) L=60 H=30 		1-47477-716-1 01 1 0710-0806 ● ●
450 BRACKET; CLIP
(H) 		1-47477-694-0 01 1 0807- ● ●
450 BRACKET; CLIP
(D) 		8-98021-994-1 03 1 0710-0805 ● ●
450 BRACKET; CLIP
(G) 		8-98117-686-0 03 1 0806- ● ●
450 BRACKET; CLIP
(B) 		8-98070-479-0 01 1 0710- ● ●
450 BRACKET; CLIP
WHEEL BASE 5500MM(55W) (E) 		1-47479-693-0 01 1 0710-0710 ● ●
450 BRACKET; CLIP
(F) 		8-98100-216-0 01 1 0710-0803 ● ●
450 BRACKET; CLIP
WHEEL BASE 5500MM(55W) (F) 		8-98100-216-1 01 1 0804- ● ●
450 BRACKET; CLIP
WHEEL BASE 5500MM(55W) (A) 		8-98097-725-0 03 1 0710-0710 ● ●
450 BRACKET; CLIP
WHEEL BASE 3700MM(37W) (A) 		8-98097-725-0 02 1 0710-0710 ●
450 BRACKET; CLIP
WHEEL BASE 3700MM(37W) (G) 		8-98116-680-0 01 1 0804- ●

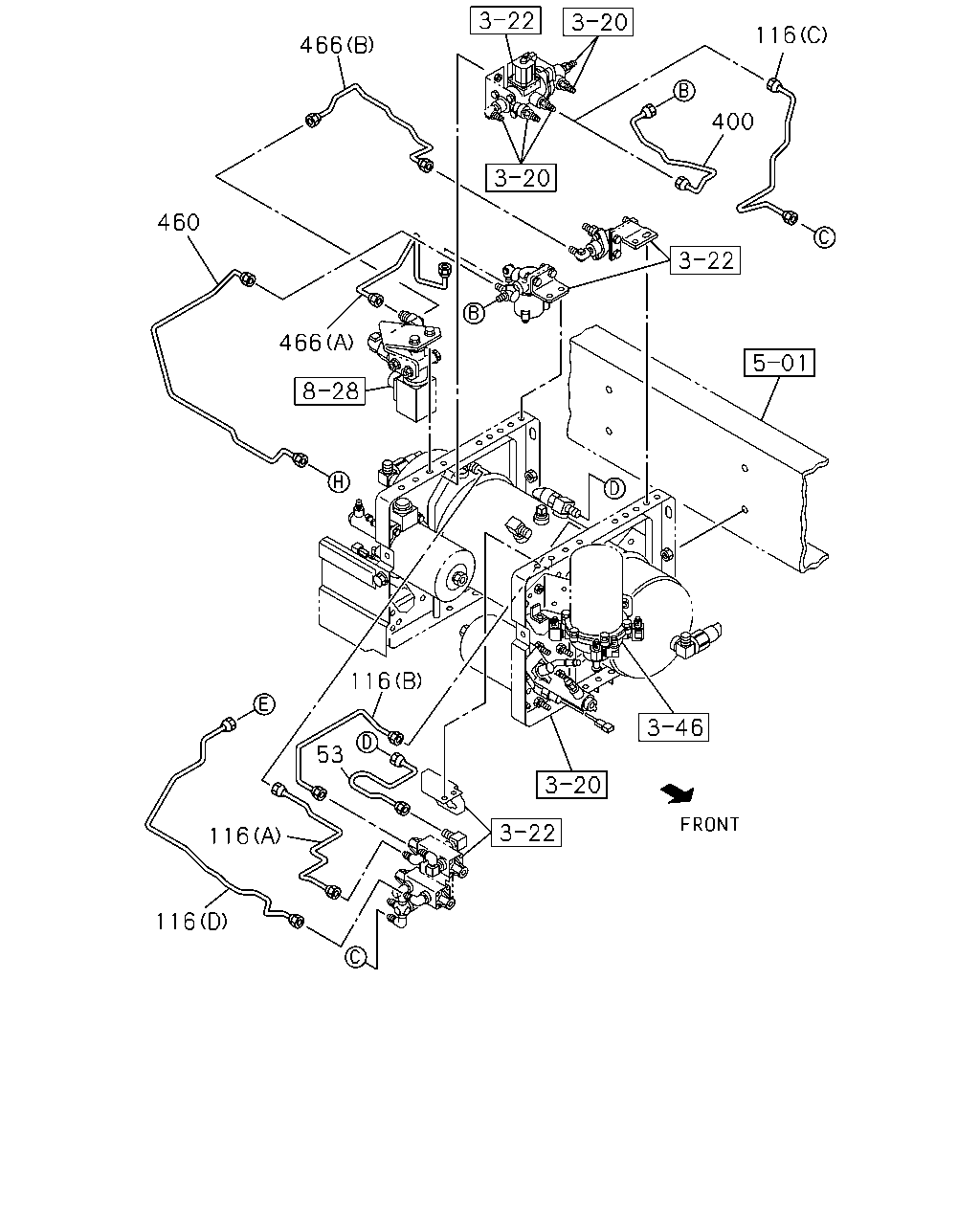

çizim 109320
116 466 400 460 466 116 53 116 116
BalonParca AdiParca NoAdetTipApplied Date A B
53 PIPE; AIR,AIR TANK TO VALVE 8-98061-086-0 01 1 0710- ● ●
116 PIPE; AIR,PROTECTION VLV
(D) L=987 SERVICED BY L=1000 		1-47428-814-0 01 1 0710- ● ●
116 PIPE; AIR,PROTECTION VLV
(A) L=510 SERVICED BY L=550 		1-47428-867-0 01 1 0710- ● ●
116 PIPE; AIR,PROTECTION VLV
(B) L=382 		8-98077-880-0 01 1 0710- ● ●
116 PIPE; AIR,PROTECTION VLV
H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) (C) L=519 SERVICED BY L=550 		1-47428-808-0 01 1 0710- ● ●
400 PIPE; AIR,HSA VLV
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) L=467 		8-98066-848-0 01 1 0710- ● ●
460 PIPE; AIR,PROTECTION VALVE
THROTTLE CONTROL SYSTEM(6XH) 		8-98066-846-0 01 1 0710- ● ●
466 PIPE; AIR,ASR
THROTTLE CONTROL SYSTEM(6XH) (B) L=756 SERVICED BY L=800 		1-47428-872-0 01 1 0710- ● ●
466 PIPE; AIR,ASR
THROTTLE CONTROL SYSTEM(6XH) (A) L=492 		8-98077-879-0 01 1 0710- ● ●

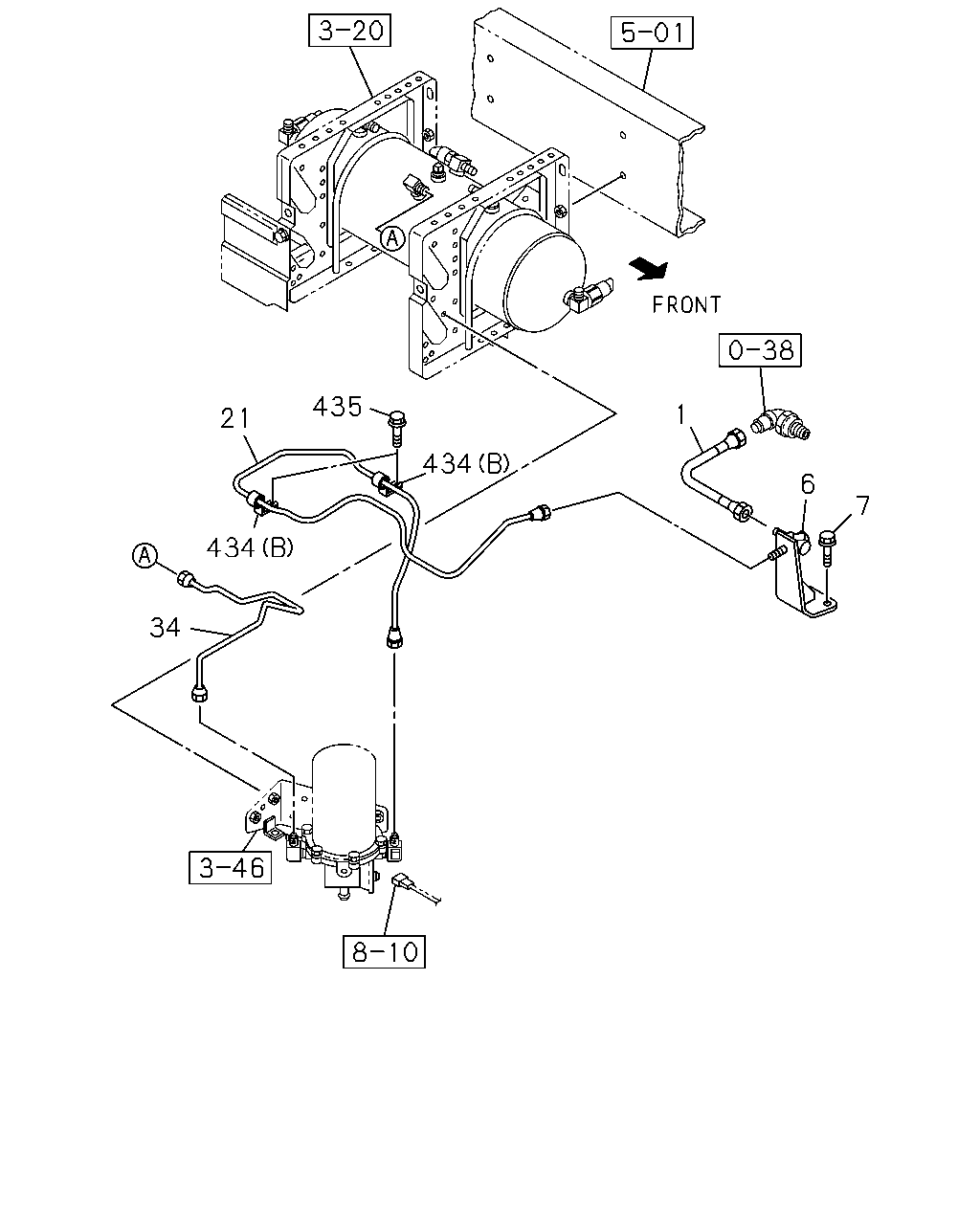

çizim 109541
435 1 21 434 6 7 434 34
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK 8-98079-973-0 01 1 0710-0904 ● ●
1 HOSE; FLEX,AIR TANK 1-09363-958-0 01 1 0905- ● ●
6 BRACKET; FLEX HOSE,AIR TANK 8-98079-987-1 01 1 0710- ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28650-830-0 02 1 0710- ● ●
21 PIPE; AIR,UNION TO AIR DRYER
L=1816 		8-98083-100-0 01 1 0710- ● ●
34 PIPE; AIR
L=673 SERVICED BY L=700 		1-49115-481-0 01 1 0710-0710 ● ●
34 PIPE; AIR
L=676 SERVICED BY L=700 		1-49115-481-0 01 1 0710-1107 ● ●
34 PIPE; AIR
L=676 SERVICED BY L=700 		1-49115-481-0 01 1 1108- ● ●
434 CLIP
(C) ID=7 L=20 		0-95234-635-0 01 1 0710- ● ●
434 CLIP
(B) ID=15 H=24 L=20 		1-09700-606-0 02 1 0710- ● ●
434 CLIP
(A) L=350 		1-09707-183-0 02 1 0710-0803 ● ●
434 CLIP
WHEEL BASE 5500MM(55W) (A) L=350 		1-09707-183-0 02 1 0804- ● ●
434 CLIP
(A) L=350 		1-09707-183-0 12 1 0710-1109 ● ●
434 CLIP
(A) L=350 		1-09707-183-0 13 1 1110- ● ●
434 CLIP
(A) L=350 		1-09707-183-0 01 1 0710-1008 ● ●
434 CLIP
(A) L=350 		1-09707-183-0 01 1 1009-1109 ● ●
434 CLIP
(A) L=350 		1-09707-183-0 01 1 1009-1109 ● ●
434 CLIP
(A) L=350 		1-09707-183-0 01 1 1110- ● ●
434 CLIP
(D) ID=10 & 15 		1-09709-279-1 01 1 0711- ● ●
434 CLIP
WHEEL BASE 5500MM(55W) (A) L=250 		1-09707-126-0 04 1 0710-0710 ● ●
434 CLIP
WHEEL BASE 5500MM(55W) (A) L=350 		1-09707-183-0 04 1 0710- ● ●
434 CLIP
WHEEL BASE 3700MM(37W) (A) L=250 		1-09707-126-0 07 1 0710-0710 ●
434 CLIP
WHEEL BASE 3700MM(37W) (A) L=350 		1-09707-183-0 07 1 0710-1109 ●
434 CLIP
WHEEL BASE 3700MM(37W) (A) L=350 		1-09707-183-0 07 1 1110- ●
434 CLIP
WHEEL BASE 3700MM(37W) (A) L=350 		1-09707-183-0 03 1 0804- ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0710-0710 ● ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0711- ● ●
435 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 0710- ● ●
