4-40 — STEERING UNIT (#4472) — 846 parça

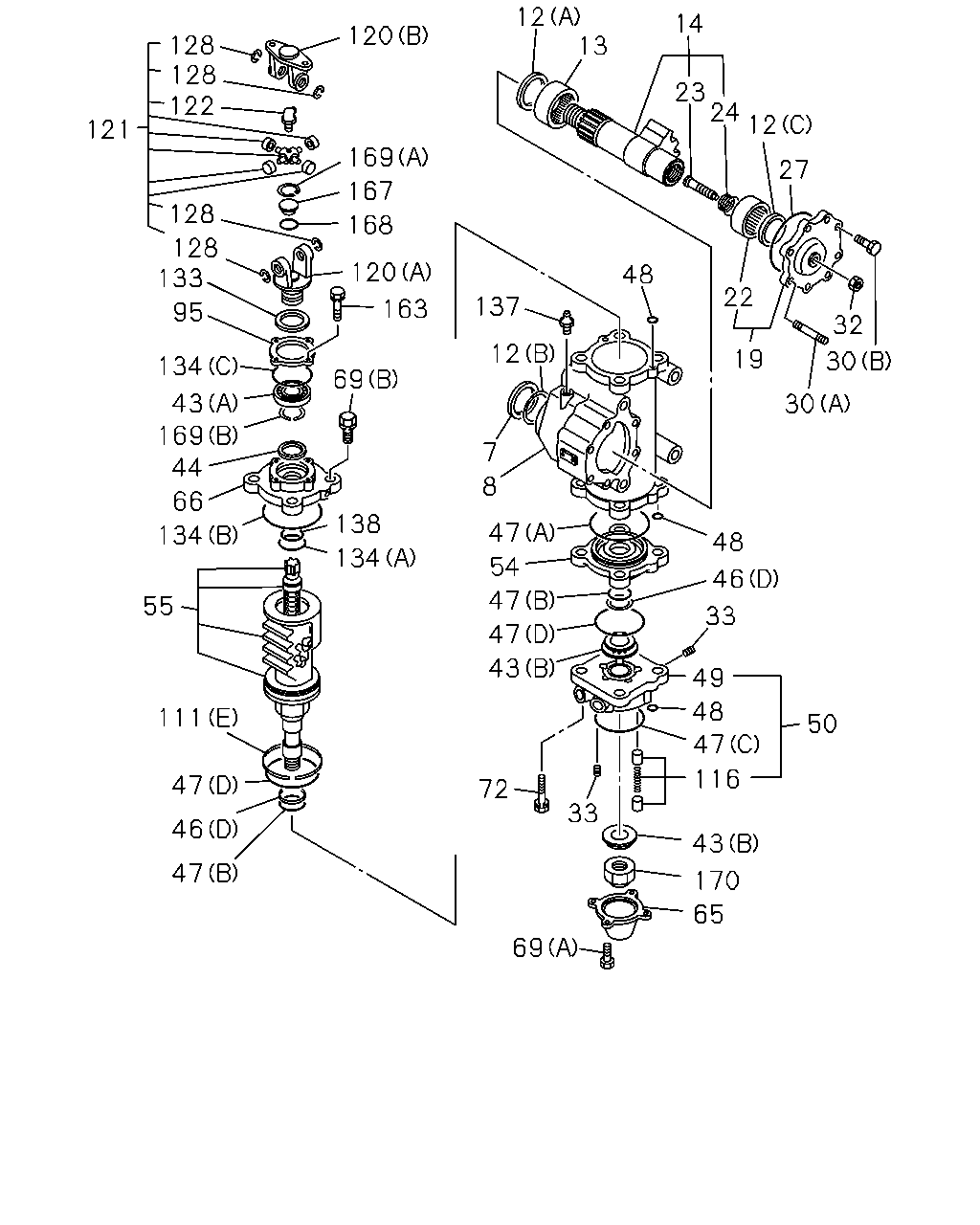

çizim 5406
12 13 14 120 128 128 122 23 24 12 121 169 27 167 128 168 128 133 120 48 22 137 163 95 32 12 19 30 134 69 43 30 169 7 44 8 66 138 47 134 48 134 54 46 47 55 33 47 43 49 48 111 50 47 116 47 72 33 46 43 47 170 65 69
BalonParca AdiParca NoAdetTipApplied Date
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-565-3, D = 1-44000-601-3, E = 1-44000-665-4, F = 1-44000-669-3 		1-09625-247-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44249-036-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: K = 1-44000-836-0, L = 1-44000-837-0 		1-44249-041-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: I = 1-44000-832-3, J = 1-44000-833-3 		1-44249-041-0 01 1 -1002
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-44269-006-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: I = 1-44000-832-3, J = 1-44000-833-3 		8-98159-116-0 01 1 1003-
8 BOX ASM; STRG UNIT
ASM PART: K = 1-44000-836-0 		1-44240-040-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: I = 1-44000-832-3 		1-44240-040-0 01 1 -1002
8 BOX ASM; STRG UNIT
ASM PART: J = 1-44000-833-3 		1-44240-041-0 01 1 -1002
8 BOX ASM; STRG UNIT
ASM PART: L = 1-44000-837-0 		1-44240-041-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: C = 1-44000-583-0 		1-44241-077-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: B = 1-44000-582-0 		1-44241-078-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: A = 1-44000-565-3, D = 1-44000-601-3 		1-44241-082-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: E = 1-44000-665-4, F = 1-44000-669-3 		1-44241-103-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: H = 1-44000-703-1 		1-44241-106-1 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: G = 1-44000-702-1 		1-44241-112-1 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: I = 1-44000-832-3 		8-98159-747-0 01 1 1003-
8 BOX ASM; STRG UNIT
ASM PART: J = 1-44000-833-3 		8-98159-749-0 01 1 1003-
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-09623-044-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(D) ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44249-035-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(F) ASM PART: J = 1-44000-833-3 		1-44249-071-0 01 1 -9709
12 GASKET; SHAFT,STRG UNIT
(F) ASM PART: K = 1-44000-836-0, L = 1-44000-837-0 		1-44249-071-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(F) ASM PART: I = 1-44000-832-3 		1-44249-071-0 01 1 -0203
12 GASKET; SHAFT,STRG UNIT
(F) ASM PART: I = 1-44000-832-3 		1-44249-076-0 01 1 0204-
12 GASKET; SHAFT,STRG UNIT
(F) ASM PART: J = 1-44000-833-3 		1-44249-076-0 01 1 9710-
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-44262-004-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(E) ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44269-013-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(C) ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-44519-069-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(G) ASM PART: I = 1-44000-832-3, J = 1-44000-833-3, K = 1-44000-836-0, L = 1-44000-837-0 		1-44519-226-0 01 1 -
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-09811-185-0 01 1 -
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: A = 1-44000-565-3, D = 1-44000-601-3, E = 1-44000-665-4, F = 1-44000-669-3 		1-09811-287-0 01 1 -
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44249-034-0 01 1 -
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: I = 1-44000-832-3, J = 1-44000-833-3 		1-44249-038-0 01 1 -1002
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: K = 1-44000-836-0, L = 1-44000-837-0 		1-44249-038-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44320-002-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-44321-017-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 1-44000-565-3, D = 1-44000-601-3, E = 1-44000-665-4, F = 1-44000-669-3 		1-44321-019-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: I = 1-44000-832-3, J = 1-44000-833-3, K = 1-44000-836-0, L = 1-44000-837-0 		1-44321-022-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: K = 1-44000-836-0, L = 1-44000-837-0 		1-44260-006-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: I = 1-44000-832-3, J = 1-44000-833-3 		1-44260-006-0 01 1 -1002
19 COVER; SIDE STRG UNIT
ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-44261-026-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: A = 1-44000-565-3, D = 1-44000-601-3, E = 1-44000-665-4, F = 1-44000-669-3 		1-44261-027-1 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44261-032-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: I = 1-44000-832-3, J = 1-44000-833-3 		8-98159-763-0 01 1 1003-
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-09811-184-0 01 1 -
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44269-012-0 01 1 -
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: K = 1-44000-836-0, L = 1-44000-837-0 		1-44519-105-0 01 1 -
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: I = 1-44000-832-3, J = 1-44000-833-3 		1-44519-105-0 01 1 -1002
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: A = 1-44000-565-3, D = 1-44000-601-3, E = 1-44000-665-4, F = 1-44000-669-3 		9-00096-071-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: B = 1-44000-582-0, C = 1-44000-583-0, I = 1-44000-832-3, J = 1-44000-833-3, K = 1-44000-836-0, L = 1-44000-837-0 		1-44277-003-1 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-565-3, D = 1-44000-601-3, E = 1-44000-665-4, F = 1-44000-669-3 		9-44277-010-0 01 1 -
24 RETAINER; STRG UNIT
ASM PART: B = 1-44000-582-0, C = 1-44000-583-0, I = 1-44000-832-3, J = 1-44000-833-3, K = 1-44000-836-0, L = 1-44000-837-0 		1-44279-011-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-09623-223-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44269-014-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: I = 1-44000-832-3 		1-44269-016-0 01 1 -0203
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: J = 1-44000-833-3 		1-44269-016-0 01 1 -9709
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: K = 1-44000-836-0, L = 1-44000-837-0 		1-44269-016-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: I = 1-44000-832-3 		1-44269-035-0 01 1 0204-
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: J = 1-44000-833-3 		1-44269-035-0 01 1 9710-
30 BOLT; COVER STRG UNIT
(B) ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-19519-120-0 05 1 -
30 BOLT; COVER STRG UNIT
(A) ASM PART: B = 1-44000-582-0, C = 1-44000-583-0, I = 1-44000-832-3, J = 1-44000-833-3, K = 1-44000-836-0, L = 1-44000-837-0 		1-19519-121-0 03 1 -
30 BOLT; COVER STRG UNIT
(D) ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44269-015-0 08 1 -
30 BOLT; COVER STRG UNIT
(B) ASM PART: I = 1-44000-832-3, J = 1-44000-833-3, K = 1-44000-836-0, L = 1-44000-837-0 		1-44279-012-0 05 1 -
30 BOLT; COVER STRG UNIT
(C) ASM PART: A = 1-44000-565-3, D = 1-44000-601-3, E = 1-44000-665-4, F = 1-44000-669-3 		9-92051-430-0 04 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: B = 1-44000-582-0, C = 1-44000-583-0, I = 1-44000-832-3, J = 1-44000-833-3, K = 1-44000-836-0, L = 1-44000-837-0 		1-44269-007-0 01 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		5-44277-002-0 01 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 1-44000-565-3, D = 1-44000-601-3, E = 1-44000-665-4, F = 1-44000-669-3 		9-99110-414-0 01 1 -
33 PLUG; DRAIN,STRG UNIT
ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-44519-071-0 02 1 -
33 PLUG; DRAIN,STRG UNIT
ASM PART: I = 1-44000-832-3, J = 1-44000-833-3, K = 1-44000-836-0, L = 1-44000-837-0 		9-83331-704-0 01 1 -
33 PLUG; DRAIN,STRG UNIT
ASM PART: A = 1-44000-565-3, D = 1-44000-601-3 		9-99202-024-0 01 1 -
43 BEARING; WORM SHAFT,STRG UNIT
(C) ASM PART: A = 1-44000-565-3, D = 1-44000-601-3, E = 1-44000-665-4, F = 1-44000-669-3 		1-09803-001-0 02 1 -
43 BEARING; WORM SHAFT,STRG UNIT
(A) ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-19519-062-0 01 1 -
43 BEARING; WORM SHAFT,STRG UNIT
(B) ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		9-88510-196-0 02 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: E = 1-44000-665-4, F = 1-44000-669-3 		1-44139-052-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-44252-002-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: I = 1-44000-832-3, J = 1-44000-833-3, K = 1-44000-836-0, L = 1-44000-837-0 		1-44259-036-1 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44569-116-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: A = 1-44000-565-3, D = 1-44000-601-3 		9-09924-516-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: I = 1-44000-832-3, J = 1-44000-833-3, K = 1-44000-836-0, L = 1-44000-837-0 		1-44159-037-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(D) ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-44259-020-0 02 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: I = 1-44000-832-3, J = 1-44000-833-3, K = 1-44000-836-0, L = 1-44000-837-0 		1-44519-096-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: K = 1-44000-836-0, L = 1-44000-837-0 		1-44519-100-0 03 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: I = 1-44000-832-3 		1-44519-100-0 03 1 -0203
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: J = 1-44000-833-3 		1-44519-100-0 03 1 -9709
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: I = 1-44000-832-3 		1-44519-255-0 03 1 0204-
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: J = 1-44000-833-3 		1-44519-255-0 03 1 9710-
47 GASKET; HSG,STRG UNIT
(A) ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-09623-045-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-09623-222-0 02 1 -
47 GASKET; HSG,STRG UNIT
(F) ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44159-026-0 01 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: G = 1-44000-702-1 		1-44159-027-0 03 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: H = 1-44000-703-1 		1-44159-027-0 04 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44159-028-0 02 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44159-029-0 01 1 -
47 GASKET; HSG,STRG UNIT
(J) ASM PART: I = 1-44000-832-3, J = 1-44000-833-3, K = 1-44000-836-0, L = 1-44000-837-0 		1-44159-036-0 01 1 -
47 GASKET; HSG,STRG UNIT
(H) ASM PART: J = 1-44000-833-3 		1-44519-099-0 01 1 -9709
47 GASKET; HSG,STRG UNIT
(H) ASM PART: K = 1-44000-836-0, L = 1-44000-837-0 		1-44519-099-0 01 1 -
47 GASKET; HSG,STRG UNIT
(H) ASM PART: I = 1-44000-832-3 		1-44519-099-0 01 1 -0203
47 GASKET; HSG,STRG UNIT
(G) ASM PART: I = 1-44000-832-3, J = 1-44000-833-3, K = 1-44000-836-0, L = 1-44000-837-0 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(I) ASM PART: I = 1-44000-832-3, J = 1-44000-833-3, K = 1-44000-836-0, L = 1-44000-837-0 		1-44519-116-0 01 1 -
47 GASKET; HSG,STRG UNIT
(H) ASM PART: J = 1-44000-833-3 		1-44519-260-0 01 1 9710-
47 GASKET; HSG,STRG UNIT
(H) ASM PART: I = 1-44000-832-3 		1-44519-260-0 01 1 0204-
47 GASKET; HSG,STRG UNIT
(D) ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44569-118-0 01 1 -
47 GASKET; HSG,STRG UNIT
(E) ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		5-09623-053-0 01 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		9-83315-087-0 02 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		9-88510-173-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-09623-221-0 04 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: I = 1-44000-832-3 		1-44519-097-0 01 1 -0203
48 GASKET; HSG,STRG UNIT
ASM PART: J = 1-44000-833-3 		1-44519-097-0 01 1 -9709
48 GASKET; HSG,STRG UNIT
ASM PART: K = 1-44000-836-0, L = 1-44000-837-0 		1-44519-097-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: I = 1-44000-832-3 		1-44519-262-0 01 1 0204-
48 GASKET; HSG,STRG UNIT
ASM PART: J = 1-44000-833-3 		1-44519-262-0 01 1 9710-
48 GASKET; HSG,STRG UNIT
ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44569-119-0 01 1 -
49 VALVE ASM; P/S UNIT
ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		9-44563-001-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-44560-035-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
ASM PART: I = 1-44000-832-3, J = 1-44000-833-3, K = 1-44000-836-0, L = 1-44000-837-0 		1-44560-072-0 01 1 -
54 CASE; BEARING STRG UNIT
ASM PART: I = 1-44000-832-3, J = 1-44000-833-3, K = 1-44000-836-0, L = 1-44000-837-0 		1-44241-088-0 01 1 -
54 CASE; BEARING STRG UNIT
ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-44251-049-0 01 1 -
55 WORM & BALL NUT ASM; STRG UNIT
ASM PART: B = 1-44000-582-0 		1-44130-157-0 01 1 -
55 WORM & BALL NUT ASM; STRG UNIT
ASM PART: C = 1-44000-583-0 		1-44130-158-0 01 1 -
55 WORM & BALL NUT ASM; STRG UNIT
ASM PART: D = 1-44000-601-3 		1-44130-179-0 01 1 -
55 WORM & BALL NUT ASM; STRG UNIT
ASM PART: A = 1-44000-565-3 		1-44130-180-0 01 1 -
55 WORM & BALL NUT ASM; STRG UNIT
ASM PART: E = 1-44000-665-4 		1-44130-258-0 01 1 -
55 WORM & BALL NUT ASM; STRG UNIT
ASM PART: F = 1-44000-669-3 		1-44130-321-0 01 1 -
65 COVER; FRT,STRG UNIT
ASM PART: A = 1-44000-565-3, D = 1-44000-601-3, E = 1-44000-665-4, F = 1-44000-669-3 		1-44251-055-0 01 1 -
65 COVER; FRT,STRG UNIT
ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44251-063-0 01 1 -
65 COVER; FRT,STRG UNIT
ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-44562-012-0 01 1 -
66 COVER; REAR STRG UNIT
ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-44251-053-0 01 1 -
66 COVER; REAR STRG UNIT
ASM PART: A = 1-44000-565-3, D = 1-44000-601-3, E = 1-44000-665-4, F = 1-44000-669-3 		1-44251-054-0 01 1 -
69 BOLT; COVER FIX STRG UNIT
(A) ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-19519-124-0 04 1 -
69 BOLT; COVER FIX STRG UNIT
(B) ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-44279-017-0 04 1 -
69 BOLT; COVER FIX STRG UNIT
(C) ASM PART: E = 1-44000-665-4 		9-92051-435-0 04 1 -
69 BOLT; COVER FIX STRG UNIT
(C) ASM PART: A = 1-44000-565-3, D = 1-44000-601-3, F = 1-44000-669-3 		9-92051-435-0 08 1 -
72 BOLT; HSG FIX STRG UNIT
ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-19519-123-0 04 1 -
72 BOLT; HSG FIX STRG UNIT
ASM PART: I = 1-44000-832-3, J = 1-44000-833-3, K = 1-44000-836-0, L = 1-44000-837-0 		1-44259-017-0 04 1 -
72 BOLT; HSG FIX STRG UNIT
ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44569-123-0 04 1 -
95 HOLDER; SEAL
ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-44139-016-0 01 1 -
111 RING; BACKUP
(A) ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44159-024-0 02 1 -
111 RING; BACKUP
(B) ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44159-025-0 01 1 -
111 RING; BACKUP
(E) ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-44259-019-0 01 1 -
111 RING; BACKUP
(C) ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44569-117-0 01 1 -
111 RING; BACKUP
(D) ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		5-09629-004-0 01 1 -
116 SPRING; BOX,STRG UNIT
ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-44139-022-0 05 1 -
120 YOKE; WORM SHAFT
(A) ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-44135-049-0 01 1 -
120 YOKE; WORM SHAFT
(A) ASM PART: A = 1-44000-565-3, D = 1-44000-601-3 		1-44135-058-0 01 1 -
120 YOKE; WORM SHAFT
(B) ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		9-44135-006-0 01 1 -
120 YOKE; WORM SHAFT
(B) ASM PART: A = 1-44000-565-3, D = 1-44000-601-3 		9-44135-081-0 01 1 -
121 SPIDER ASM; YOKE,STRG UNIT
ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-44135-030-1 01 1 -
121 SPIDER ASM; YOKE,STRG UNIT
ASM PART: A = 1-44000-565-3, D = 1-44000-601-3 		1-44135-045-0 01 1 -
122 NIPPLE; GREASE,STRG UNIT
ASM PART: A = 1-44000-565-3, D = 1-44000-601-3 		1-09666-024-0 01 1 -
122 NIPPLE; GREASE,STRG UNIT
ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-44519-081-0 01 1 -
128 RING; SPIDER,STRG UNIT
ASM PART: A = 1-44000-565-3, D = 1-44000-601-3 		1-09587-033-0 04 1 -
128 RING; SPIDER,STRG UNIT
ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		9-09950-110-0 04 1 -
133 SEAL; DUST,STRG UNIT
ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-44269-010-0 01 1 -
134 GASKET; COVER,STRG UNIT
(B) ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-09623-045-0 01 1 -
134 GASKET; COVER,STRG UNIT
(A) ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-09623-222-0 01 1 -
134 GASKET; COVER,STRG UNIT
(D) ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44159-027-0 01 1 -
134 GASKET; COVER,STRG UNIT
(C) ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-44519-082-0 01 1 -
137 PLUG; BREATHER STRG UNIT
ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		5-44249-002-0 01 1 -
137 PLUG; BREATHER STRG UNIT
ASM PART: E = 1-44000-665-4, F = 1-44000-669-3 		9-09204-517-0 01 1 -
137 PLUG; BREATHER STRG UNIT
ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		9-83331-704-0 01 1 -
138 RING; SEAL,RR COVER
ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-44259-020-0 01 1 -
163 BOLT; HOLDER
ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-44519-023-0 04 1 -
167 PLATE; COVER
ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-44259-041-0 01 1 -
168 GASKET; YOKE
ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-09623-046-0 01 1 -
169 RING; RET,YOKE
(B) ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-19519-061-0 01 1 -
169 RING; RET,YOKE
(A) ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-44139-010-0 01 1 -
170 NUT; WARM SHAFT
ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-44569-085-0 01 1 -
çizim 5407
30 13 31 12 32 8 19 27 3 9 12 22 7 14 3 58 134 65 132 45 45 45 59 111 47 47 47 47 47 47 111 71 137 72 62 111 73 44 35 51 111 111 58 47 47 58 48 47
BalonParca AdiParca NoAdetTipApplied Date
3 SEAL KIT; SECTOR SHAFT
ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44329-003-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-565-3, D = 1-44000-601-3, E = 1-44000-665-4, F = 1-44000-669-3 		1-09625-247-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44249-036-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: K = 1-44000-836-0, L = 1-44000-837-0 		1-44249-041-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: I = 1-44000-832-3, J = 1-44000-833-3 		1-44249-041-0 01 1 -1002
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-44269-006-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: I = 1-44000-832-3, J = 1-44000-833-3 		8-98159-116-0 01 1 1003-
8 BOX ASM; STRG UNIT
ASM PART: K = 1-44000-836-0 		1-44240-040-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: I = 1-44000-832-3 		1-44240-040-0 01 1 -1002
8 BOX ASM; STRG UNIT
ASM PART: J = 1-44000-833-3 		1-44240-041-0 01 1 -1002
8 BOX ASM; STRG UNIT
ASM PART: L = 1-44000-837-0 		1-44240-041-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: C = 1-44000-583-0 		1-44241-077-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: B = 1-44000-582-0 		1-44241-078-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: A = 1-44000-565-3, D = 1-44000-601-3 		1-44241-082-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: E = 1-44000-665-4, F = 1-44000-669-3 		1-44241-103-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: H = 1-44000-703-1 		1-44241-106-1 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: G = 1-44000-702-1 		1-44241-112-1 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: I = 1-44000-832-3 		8-98159-747-0 01 1 1003-
8 BOX ASM; STRG UNIT
ASM PART: J = 1-44000-833-3 		8-98159-749-0 01 1 1003-
9 PLUG; FILLER,STRG UNIT
(C) ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44249-037-0 01 1 -
9 PLUG; FILLER,STRG UNIT
(B) ASM PART: A = 1-44000-565-3, D = 1-44000-601-3 		1-44249-045-0 01 1 -
9 PLUG; FILLER,STRG UNIT
(D) ASM PART: I = 1-44000-832-3, J = 1-44000-833-3, K = 1-44000-836-0, L = 1-44000-837-0 		1-44519-071-0 02 1 -
9 PLUG; FILLER,STRG UNIT
(A) ASM PART: E = 1-44000-665-4, F = 1-44000-669-3 		9-99202-024-0 02 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-09623-044-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(D) ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44249-035-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(F) ASM PART: J = 1-44000-833-3 		1-44249-071-0 01 1 -9709
12 GASKET; SHAFT,STRG UNIT
(F) ASM PART: K = 1-44000-836-0, L = 1-44000-837-0 		1-44249-071-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(F) ASM PART: I = 1-44000-832-3 		1-44249-071-0 01 1 -0203
12 GASKET; SHAFT,STRG UNIT
(F) ASM PART: I = 1-44000-832-3 		1-44249-076-0 01 1 0204-
12 GASKET; SHAFT,STRG UNIT
(F) ASM PART: J = 1-44000-833-3 		1-44249-076-0 01 1 9710-
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-44262-004-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(E) ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44269-013-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(C) ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-44519-069-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(G) ASM PART: I = 1-44000-832-3, J = 1-44000-833-3, K = 1-44000-836-0, L = 1-44000-837-0 		1-44519-226-0 01 1 -
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-09811-185-0 01 1 -
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: A = 1-44000-565-3, D = 1-44000-601-3, E = 1-44000-665-4, F = 1-44000-669-3 		1-09811-287-0 01 1 -
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44249-034-0 01 1 -
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: I = 1-44000-832-3, J = 1-44000-833-3 		1-44249-038-0 01 1 -1002
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: K = 1-44000-836-0, L = 1-44000-837-0 		1-44249-038-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44320-002-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-44321-017-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 1-44000-565-3, D = 1-44000-601-3, E = 1-44000-665-4, F = 1-44000-669-3 		1-44321-019-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: I = 1-44000-832-3, J = 1-44000-833-3, K = 1-44000-836-0, L = 1-44000-837-0 		1-44321-022-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: K = 1-44000-836-0, L = 1-44000-837-0 		1-44260-006-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: I = 1-44000-832-3, J = 1-44000-833-3 		1-44260-006-0 01 1 -1002
19 COVER; SIDE STRG UNIT
ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-44261-026-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: A = 1-44000-565-3, D = 1-44000-601-3, E = 1-44000-665-4, F = 1-44000-669-3 		1-44261-027-1 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44261-032-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: I = 1-44000-832-3, J = 1-44000-833-3 		8-98159-763-0 01 1 1003-
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-09811-184-0 01 1 -
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44269-012-0 01 1 -
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: K = 1-44000-836-0, L = 1-44000-837-0 		1-44519-105-0 01 1 -
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: I = 1-44000-832-3, J = 1-44000-833-3 		1-44519-105-0 01 1 -1002
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: A = 1-44000-565-3, D = 1-44000-601-3, E = 1-44000-665-4, F = 1-44000-669-3 		9-00096-071-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-09623-223-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44269-014-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: I = 1-44000-832-3 		1-44269-016-0 01 1 -0203
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: J = 1-44000-833-3 		1-44269-016-0 01 1 -9709
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: K = 1-44000-836-0, L = 1-44000-837-0 		1-44269-016-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: I = 1-44000-832-3 		1-44269-035-0 01 1 0204-
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: J = 1-44000-833-3 		1-44269-035-0 01 1 9710-
30 BOLT; COVER STRG UNIT
(B) ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-19519-120-0 05 1 -
30 BOLT; COVER STRG UNIT
(A) ASM PART: B = 1-44000-582-0, C = 1-44000-583-0, I = 1-44000-832-3, J = 1-44000-833-3, K = 1-44000-836-0, L = 1-44000-837-0 		1-19519-121-0 03 1 -
30 BOLT; COVER STRG UNIT
(D) ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44269-015-0 08 1 -
30 BOLT; COVER STRG UNIT
(B) ASM PART: I = 1-44000-832-3, J = 1-44000-833-3, K = 1-44000-836-0, L = 1-44000-837-0 		1-44279-012-0 05 1 -
30 BOLT; COVER STRG UNIT
(C) ASM PART: A = 1-44000-565-3, D = 1-44000-601-3, E = 1-44000-665-4, F = 1-44000-669-3 		9-92051-430-0 04 1 -
31 WASHER; COVER STRG UNIT
ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		5-09509-011-0 08 1 -
31 WASHER; COVER STRG UNIT
ASM PART: A = 1-44000-565-3, D = 1-44000-601-3, E = 1-44000-665-4, F = 1-44000-669-3 		9-09150-514-0 04 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: B = 1-44000-582-0, C = 1-44000-583-0, I = 1-44000-832-3, J = 1-44000-833-3, K = 1-44000-836-0, L = 1-44000-837-0 		1-44269-007-0 01 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		5-44277-002-0 01 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 1-44000-565-3, D = 1-44000-601-3, E = 1-44000-665-4, F = 1-44000-669-3 		9-99110-414-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: H = 1-44000-703-1 		1-44150-005-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: G = 1-44000-702-1 		1-44150-010-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: I = 1-44000-832-3, K = 1-44000-836-0 		1-44150-065-1 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: J = 1-44000-833-3, L = 1-44000-837-0 		1-44150-066-1 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: E = 1-44000-665-4, F = 1-44000-669-3 		1-44139-052-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-44252-002-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: I = 1-44000-832-3, J = 1-44000-833-3, K = 1-44000-836-0, L = 1-44000-837-0 		1-44259-036-1 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44569-116-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: A = 1-44000-565-3, D = 1-44000-601-3 		9-09924-516-0 01 1 -
45 RING; RET
ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44159-023-0 03 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-09623-045-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-09623-222-0 02 1 -
47 GASKET; HSG,STRG UNIT
(F) ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44159-026-0 01 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: G = 1-44000-702-1 		1-44159-027-0 03 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: H = 1-44000-703-1 		1-44159-027-0 04 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44159-028-0 02 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44159-029-0 01 1 -
47 GASKET; HSG,STRG UNIT
(J) ASM PART: I = 1-44000-832-3, J = 1-44000-833-3, K = 1-44000-836-0, L = 1-44000-837-0 		1-44159-036-0 01 1 -
47 GASKET; HSG,STRG UNIT
(H) ASM PART: J = 1-44000-833-3 		1-44519-099-0 01 1 -9709
47 GASKET; HSG,STRG UNIT
(H) ASM PART: K = 1-44000-836-0, L = 1-44000-837-0 		1-44519-099-0 01 1 -
47 GASKET; HSG,STRG UNIT
(H) ASM PART: I = 1-44000-832-3 		1-44519-099-0 01 1 -0203
47 GASKET; HSG,STRG UNIT
(G) ASM PART: I = 1-44000-832-3, J = 1-44000-833-3, K = 1-44000-836-0, L = 1-44000-837-0 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(I) ASM PART: I = 1-44000-832-3, J = 1-44000-833-3, K = 1-44000-836-0, L = 1-44000-837-0 		1-44519-116-0 01 1 -
47 GASKET; HSG,STRG UNIT
(H) ASM PART: J = 1-44000-833-3 		1-44519-260-0 01 1 9710-
47 GASKET; HSG,STRG UNIT
(H) ASM PART: I = 1-44000-832-3 		1-44519-260-0 01 1 0204-
47 GASKET; HSG,STRG UNIT
(D) ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44569-118-0 01 1 -
47 GASKET; HSG,STRG UNIT
(E) ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		5-09623-053-0 01 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		9-83315-087-0 02 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		9-88510-173-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-09623-221-0 04 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: I = 1-44000-832-3 		1-44519-097-0 01 1 -0203
48 GASKET; HSG,STRG UNIT
ASM PART: J = 1-44000-833-3 		1-44519-097-0 01 1 -9709
48 GASKET; HSG,STRG UNIT
ASM PART: K = 1-44000-836-0, L = 1-44000-837-0 		1-44519-097-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: I = 1-44000-832-3 		1-44519-262-0 01 1 0204-
48 GASKET; HSG,STRG UNIT
ASM PART: J = 1-44000-833-3 		1-44519-262-0 01 1 9710-
48 GASKET; HSG,STRG UNIT
ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44569-119-0 01 1 -
51 HOUSING; VALVE STRG UNIT
ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44561-014-0 01 1 -
58 BEARING; HSG STRG UNIT
(D) ASM PART: I = 1-44000-832-3, J = 1-44000-833-3, K = 1-44000-836-0, L = 1-44000-837-0 		1-44259-029-0 01 1 -
58 BEARING; HSG STRG UNIT
(A) ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44569-115-0 01 1 -
58 BEARING; HSG STRG UNIT
(B) ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44569-122-0 01 1 -
58 BEARING; HSG STRG UNIT
(C) ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		5-09811-041-0 01 1 -
59 NUT; COVER STRG UNIT
ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		5-44259-003-0 01 1 -
62 WASHER; HSG BOLT
ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44569-124-0 04 1 -
65 COVER; FRT,STRG UNIT
ASM PART: A = 1-44000-565-3, D = 1-44000-601-3, E = 1-44000-665-4, F = 1-44000-669-3 		1-44251-055-0 01 1 -
65 COVER; FRT,STRG UNIT
ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44251-063-0 01 1 -
65 COVER; FRT,STRG UNIT
ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-44562-012-0 01 1 -
71 COVER; DUST,STRG UNIT
ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		5-44249-003-0 01 1 -
72 BOLT; HSG FIX STRG UNIT
ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-19519-123-0 04 1 -
72 BOLT; HSG FIX STRG UNIT
ASM PART: I = 1-44000-832-3, J = 1-44000-833-3, K = 1-44000-836-0, L = 1-44000-837-0 		1-44259-017-0 04 1 -
72 BOLT; HSG FIX STRG UNIT
ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44569-123-0 04 1 -
73 COVER; DUST,STRG UNIT
ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44159-030-0 01 1 -
73 COVER; DUST,STRG UNIT
ASM PART: K = 1-44000-836-0, L = 1-44000-837-0 		1-44519-114-0 01 1 -
73 COVER; DUST,STRG UNIT
ASM PART: I = 1-44000-832-3, J = 1-44000-833-3 		1-44519-114-0 01 1 -1003
73 COVER; DUST,STRG UNIT
ASM PART: I = 1-44000-832-3, J = 1-44000-833-3 		8-98166-307-0 01 1 1004-
111 RING; BACKUP
(A) ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44159-024-0 02 1 -
111 RING; BACKUP
(B) ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44159-025-0 01 1 -
111 RING; BACKUP
(E) ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-44259-019-0 01 1 -
111 RING; BACKUP
(C) ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44569-117-0 01 1 -
111 RING; BACKUP
(D) ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		5-09629-004-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: E = 1-44000-665-4, F = 1-44000-669-3 		1-44139-053-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-565-3, D = 1-44000-601-3 		1-44159-056-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44329-002-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: I = 1-44000-832-3, J = 1-44000-833-3, K = 1-44000-836-0, L = 1-44000-837-0 		1-44519-227-0 01 1 -
134 GASKET; COVER,STRG UNIT
(B) ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-09623-045-0 01 1 -
134 GASKET; COVER,STRG UNIT
(A) ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-09623-222-0 01 1 -
134 GASKET; COVER,STRG UNIT
(D) ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44159-027-0 01 1 -
134 GASKET; COVER,STRG UNIT
(C) ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-44519-082-0 01 1 -
137 PLUG; BREATHER STRG UNIT
ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		5-44249-002-0 01 1 -
137 PLUG; BREATHER STRG UNIT
ASM PART: E = 1-44000-665-4, F = 1-44000-669-3 		9-09204-517-0 01 1 -
137 PLUG; BREATHER STRG UNIT
ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		9-83331-704-0 01 1 -
çizim 6627
120 122 121 123 128 120 124 132 69 44 70 137 66 119 43 9 9 55 10 8 14 22 26 23 25 19 129 32 7 13 10 9 33 43 136 65 135 69 31 30
BalonParca AdiParca NoAdetTipApplied Date
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-565-3, D = 1-44000-601-3, E = 1-44000-665-4, F = 1-44000-669-3 		1-09625-247-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44249-036-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: K = 1-44000-836-0, L = 1-44000-837-0 		1-44249-041-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: I = 1-44000-832-3, J = 1-44000-833-3 		1-44249-041-0 01 1 -1002
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-44269-006-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: I = 1-44000-832-3, J = 1-44000-833-3 		8-98159-116-0 01 1 1003-
8 BOX ASM; STRG UNIT
ASM PART: K = 1-44000-836-0 		1-44240-040-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: I = 1-44000-832-3 		1-44240-040-0 01 1 -1002
8 BOX ASM; STRG UNIT
ASM PART: J = 1-44000-833-3 		1-44240-041-0 01 1 -1002
8 BOX ASM; STRG UNIT
ASM PART: L = 1-44000-837-0 		1-44240-041-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: C = 1-44000-583-0 		1-44241-077-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: B = 1-44000-582-0 		1-44241-078-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: A = 1-44000-565-3, D = 1-44000-601-3 		1-44241-082-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: E = 1-44000-665-4, F = 1-44000-669-3 		1-44241-103-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: H = 1-44000-703-1 		1-44241-106-1 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: G = 1-44000-702-1 		1-44241-112-1 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: I = 1-44000-832-3 		8-98159-747-0 01 1 1003-
8 BOX ASM; STRG UNIT
ASM PART: J = 1-44000-833-3 		8-98159-749-0 01 1 1003-
9 PLUG; FILLER,STRG UNIT
(C) ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44249-037-0 01 1 -
9 PLUG; FILLER,STRG UNIT
(B) ASM PART: A = 1-44000-565-3, D = 1-44000-601-3 		1-44249-045-0 01 1 -
9 PLUG; FILLER,STRG UNIT
(D) ASM PART: I = 1-44000-832-3, J = 1-44000-833-3, K = 1-44000-836-0, L = 1-44000-837-0 		1-44519-071-0 02 1 -
9 PLUG; FILLER,STRG UNIT
(A) ASM PART: E = 1-44000-665-4, F = 1-44000-669-3 		9-99202-024-0 02 1 -
10 GASKET; PLUG,STRG UNIT
ID=24.5 OD=32.5 ASM PART: A = 1-44000-565-3, D = 1-44000-601-3 		9-09920-392-0 01 1 -
10 GASKET; PLUG,STRG UNIT
ID=24.5 OD=32.5 ASM PART: E = 1-44000-665-4, F = 1-44000-669-3 		9-09920-392-0 02 1 -
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-09811-185-0 01 1 -
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: A = 1-44000-565-3, D = 1-44000-601-3, E = 1-44000-665-4, F = 1-44000-669-3 		1-09811-287-0 01 1 -
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44249-034-0 01 1 -
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: I = 1-44000-832-3, J = 1-44000-833-3 		1-44249-038-0 01 1 -1002
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: K = 1-44000-836-0, L = 1-44000-837-0 		1-44249-038-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44320-002-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-44321-017-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 1-44000-565-3, D = 1-44000-601-3, E = 1-44000-665-4, F = 1-44000-669-3 		1-44321-019-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: I = 1-44000-832-3, J = 1-44000-833-3, K = 1-44000-836-0, L = 1-44000-837-0 		1-44321-022-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: K = 1-44000-836-0, L = 1-44000-837-0 		1-44260-006-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: I = 1-44000-832-3, J = 1-44000-833-3 		1-44260-006-0 01 1 -1002
19 COVER; SIDE STRG UNIT
ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-44261-026-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: A = 1-44000-565-3, D = 1-44000-601-3, E = 1-44000-665-4, F = 1-44000-669-3 		1-44261-027-1 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44261-032-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: I = 1-44000-832-3, J = 1-44000-833-3 		8-98159-763-0 01 1 1003-
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-09811-184-0 01 1 -
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44269-012-0 01 1 -
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: K = 1-44000-836-0, L = 1-44000-837-0 		1-44519-105-0 01 1 -
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: I = 1-44000-832-3, J = 1-44000-833-3 		1-44519-105-0 01 1 -1002
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: A = 1-44000-565-3, D = 1-44000-601-3, E = 1-44000-665-4, F = 1-44000-669-3 		9-00096-071-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: B = 1-44000-582-0, C = 1-44000-583-0, I = 1-44000-832-3, J = 1-44000-833-3, K = 1-44000-836-0, L = 1-44000-837-0 		1-44277-003-1 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-565-3, D = 1-44000-601-3, E = 1-44000-665-4, F = 1-44000-669-3 		9-44277-010-0 01 1 -
25 SHIM; ADJ SCREW,STRG UNIT
T=2.5 +0.035 +0.015 ASM PART: A = 1-44000-565-3, D = 1-44000-601-3, E = 1-44000-665-4, F = 1-44000-669-3 		9-44279-013-0 AR 1 -
25 SHIM; ADJ SCREW,STRG UNIT
T=2.5 +0.065 +0.045 ASM PART: A = 1-44000-565-3, D = 1-44000-601-3, E = 1-44000-665-4, F = 1-44000-669-3 		9-44279-014-0 AR 1 -
25 SHIM; ADJ SCREW,STRG UNIT
T=2.5 +0.095 +0.075 ASM PART: A = 1-44000-565-3, D = 1-44000-601-3, E = 1-44000-665-4, F = 1-44000-669-3 		9-44279-015-0 AR 1 -
25 SHIM; ADJ SCREW,STRG UNIT
T=2.5 +0.125 +0.105 ASM PART: A = 1-44000-565-3, D = 1-44000-601-3, E = 1-44000-665-4, F = 1-44000-669-3 		9-44279-016-0 AR 1 -
25 SHIM; ADJ SCREW,STRG UNIT
T=2.5 +0.155 +0.135 ASM PART: A = 1-44000-565-3, D = 1-44000-601-3, E = 1-44000-665-4, F = 1-44000-669-3 		9-44279-017-0 AR 1 -
26 GASKET; COVER,STRG UNIT
ASM PART: A = 1-44000-565-3, D = 1-44000-601-3, E = 1-44000-665-4, F = 1-44000-669-3 		1-44262-005-1 01 1 -
30 BOLT; COVER STRG UNIT
(B) ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-19519-120-0 05 1 -
30 BOLT; COVER STRG UNIT
(A) ASM PART: B = 1-44000-582-0, C = 1-44000-583-0, I = 1-44000-832-3, J = 1-44000-833-3, K = 1-44000-836-0, L = 1-44000-837-0 		1-19519-121-0 03 1 -
30 BOLT; COVER STRG UNIT
(D) ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44269-015-0 08 1 -
30 BOLT; COVER STRG UNIT
(B) ASM PART: I = 1-44000-832-3, J = 1-44000-833-3, K = 1-44000-836-0, L = 1-44000-837-0 		1-44279-012-0 05 1 -
30 BOLT; COVER STRG UNIT
(C) ASM PART: A = 1-44000-565-3, D = 1-44000-601-3, E = 1-44000-665-4, F = 1-44000-669-3 		9-92051-430-0 04 1 -
31 WASHER; COVER STRG UNIT
ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		5-09509-011-0 08 1 -
31 WASHER; COVER STRG UNIT
ASM PART: A = 1-44000-565-3, D = 1-44000-601-3, E = 1-44000-665-4, F = 1-44000-669-3 		9-09150-514-0 04 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: B = 1-44000-582-0, C = 1-44000-583-0, I = 1-44000-832-3, J = 1-44000-833-3, K = 1-44000-836-0, L = 1-44000-837-0 		1-44269-007-0 01 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		5-44277-002-0 01 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 1-44000-565-3, D = 1-44000-601-3, E = 1-44000-665-4, F = 1-44000-669-3 		9-99110-414-0 01 1 -
33 PLUG; DRAIN,STRG UNIT
ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-44519-071-0 02 1 -
33 PLUG; DRAIN,STRG UNIT
ASM PART: I = 1-44000-832-3, J = 1-44000-833-3, K = 1-44000-836-0, L = 1-44000-837-0 		9-83331-704-0 01 1 -
33 PLUG; DRAIN,STRG UNIT
ASM PART: A = 1-44000-565-3, D = 1-44000-601-3 		9-99202-024-0 01 1 -
43 BEARING; WORM SHAFT,STRG UNIT
(C) ASM PART: A = 1-44000-565-3, D = 1-44000-601-3, E = 1-44000-665-4, F = 1-44000-669-3 		1-09803-001-0 02 1 -
43 BEARING; WORM SHAFT,STRG UNIT
(A) ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-19519-062-0 01 1 -
43 BEARING; WORM SHAFT,STRG UNIT
(B) ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		9-88510-196-0 02 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: E = 1-44000-665-4, F = 1-44000-669-3 		1-44139-052-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-44252-002-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: I = 1-44000-832-3, J = 1-44000-833-3, K = 1-44000-836-0, L = 1-44000-837-0 		1-44259-036-1 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44569-116-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: A = 1-44000-565-3, D = 1-44000-601-3 		9-09924-516-0 01 1 -
55 WORM & BALL NUT ASM; STRG UNIT
ASM PART: B = 1-44000-582-0 		1-44130-157-0 01 1 -
55 WORM & BALL NUT ASM; STRG UNIT
ASM PART: C = 1-44000-583-0 		1-44130-158-0 01 1 -
55 WORM & BALL NUT ASM; STRG UNIT
ASM PART: D = 1-44000-601-3 		1-44130-179-0 01 1 -
55 WORM & BALL NUT ASM; STRG UNIT
ASM PART: A = 1-44000-565-3 		1-44130-180-0 01 1 -
55 WORM & BALL NUT ASM; STRG UNIT
ASM PART: E = 1-44000-665-4 		1-44130-258-0 01 1 -
55 WORM & BALL NUT ASM; STRG UNIT
ASM PART: F = 1-44000-669-3 		1-44130-321-0 01 1 -
65 COVER; FRT,STRG UNIT
ASM PART: A = 1-44000-565-3, D = 1-44000-601-3, E = 1-44000-665-4, F = 1-44000-669-3 		1-44251-055-0 01 1 -
65 COVER; FRT,STRG UNIT
ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44251-063-0 01 1 -
65 COVER; FRT,STRG UNIT
ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-44562-012-0 01 1 -
66 COVER; REAR STRG UNIT
ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-44251-053-0 01 1 -
66 COVER; REAR STRG UNIT
ASM PART: A = 1-44000-565-3, D = 1-44000-601-3, E = 1-44000-665-4, F = 1-44000-669-3 		1-44251-054-0 01 1 -
69 BOLT; COVER FIX STRG UNIT
(A) ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-19519-124-0 04 1 -
69 BOLT; COVER FIX STRG UNIT
(B) ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-44279-017-0 04 1 -
69 BOLT; COVER FIX STRG UNIT
(C) ASM PART: E = 1-44000-665-4 		9-92051-435-0 04 1 -
69 BOLT; COVER FIX STRG UNIT
(C) ASM PART: A = 1-44000-565-3, D = 1-44000-601-3, F = 1-44000-669-3 		9-92051-435-0 08 1 -
70 WASHER; COVER FIX STRG UNIT
ID=14.2 ASM PART: A = 1-44000-565-3, D = 1-44000-601-3, E = 1-44000-665-4, F = 1-44000-669-3 		9-09150-514-0 04 1 -
119 GASKET; WORM SHAFT,STRG UNIT
ASM PART: A = 1-44000-565-3, D = 1-44000-601-3 		1-44159-057-0 01 1 -
120 YOKE; WORM SHAFT
(A) ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-44135-049-0 01 1 -
120 YOKE; WORM SHAFT
(A) ASM PART: A = 1-44000-565-3, D = 1-44000-601-3 		1-44135-058-0 01 1 -
120 YOKE; WORM SHAFT
(B) ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		9-44135-006-0 01 1 -
120 YOKE; WORM SHAFT
(B) ASM PART: A = 1-44000-565-3, D = 1-44000-601-3 		9-44135-081-0 01 1 -
121 SPIDER ASM; YOKE,STRG UNIT
ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-44135-030-1 01 1 -
121 SPIDER ASM; YOKE,STRG UNIT
ASM PART: A = 1-44000-565-3, D = 1-44000-601-3 		1-44135-045-0 01 1 -
122 NIPPLE; GREASE,STRG UNIT
ASM PART: A = 1-44000-565-3, D = 1-44000-601-3 		1-09666-024-0 01 1 -
122 NIPPLE; GREASE,STRG UNIT
ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-44519-081-0 01 1 -
123 NUT; SHAFT,YOKE,STRG UNIT
ASM PART: A = 1-44000-565-3, D = 1-44000-601-3 		1-44259-037-0 01 1 -
124 WASHER; SHAFT,YOKE,STRG UNIT
ASM PART: A = 1-44000-565-3, D = 1-44000-601-3 		1-44259-038-0 01 1 -
128 RING; SPIDER,STRG UNIT
ASM PART: A = 1-44000-565-3, D = 1-44000-601-3 		1-09587-033-0 04 1 -
128 RING; SPIDER,STRG UNIT
ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		9-09950-110-0 04 1 -
129 WASHER; ADJ SCREW,STRG UNIT
ASM PART: A = 1-44000-565-3, D = 1-44000-601-3, E = 1-44000-665-4, F = 1-44000-669-3 		1-44279-014-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: E = 1-44000-665-4, F = 1-44000-669-3 		1-44139-053-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-565-3, D = 1-44000-601-3 		1-44159-056-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44329-002-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: I = 1-44000-832-3, J = 1-44000-833-3, K = 1-44000-836-0, L = 1-44000-837-0 		1-44519-227-0 01 1 -
135 WASHER; COVER FIX,STRG UNIT
ID=14.2 ASM PART: A = 1-44000-565-3, D = 1-44000-601-3, E = 1-44000-665-4, F = 1-44000-669-3 		9-09150-514-0 04 1 -
136 SHIM; FRT COVER
T=0.04 ASM PART: A = 1-44000-565-3, D = 1-44000-601-3, E = 1-44000-665-4, F = 1-44000-669-3 		1-44253-014-0 AR 1 -
136 SHIM; FRT COVER
T=0.05 ASM PART: A = 1-44000-565-3, D = 1-44000-601-3, E = 1-44000-665-4, F = 1-44000-669-3 		1-44253-015-0 AR 1 -
136 SHIM; FRT COVER
T=0.06 ASM PART: A = 1-44000-565-3, D = 1-44000-601-3, E = 1-44000-665-4, F = 1-44000-669-3 		1-44253-016-0 AR 1 -
136 SHIM; FRT COVER
T=0.07 ASM PART: A = 1-44000-565-3, D = 1-44000-601-3, E = 1-44000-665-4, F = 1-44000-669-3 		1-44253-017-0 AR 1 -
136 SHIM; FRT COVER
T=0.08 ASM PART: A = 1-44000-565-3, D = 1-44000-601-3, E = 1-44000-665-4, F = 1-44000-669-3 		1-44253-018-0 AR 1 -
136 SHIM; FRT COVER
T=0.10 ASM PART: A = 1-44000-565-3, D = 1-44000-601-3, E = 1-44000-665-4, F = 1-44000-669-3 		1-44253-019-0 AR 1 -
136 SHIM; FRT COVER
T=0.20 ASM PART: A = 1-44000-565-3, D = 1-44000-601-3, E = 1-44000-665-4, F = 1-44000-669-3 		1-44253-020-0 AR 1 -
136 SHIM; FRT COVER
T=0.50 ASM PART: A = 1-44000-565-3, D = 1-44000-601-3, E = 1-44000-665-4, F = 1-44000-669-3 		1-44253-021-0 AR 1 -
137 PLUG; BREATHER STRG UNIT
ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		5-44249-002-0 01 1 -
137 PLUG; BREATHER STRG UNIT
ASM PART: E = 1-44000-665-4, F = 1-44000-669-3 		9-09204-517-0 01 1 -
137 PLUG; BREATHER STRG UNIT
ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		9-83331-704-0 01 1 -
çizim 6628
73 35 54 47 52 50 44 56 72 58 48 42 46 47 47 46 46 46 47 47 46 47 33 34 77 75 132 11 7 12 19 14 22 23 9 9 24 13 12 11 27 32 8 30 30
BalonParca AdiParca NoAdetTipApplied Date
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-565-3, D = 1-44000-601-3, E = 1-44000-665-4, F = 1-44000-669-3 		1-09625-247-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44249-036-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: K = 1-44000-836-0, L = 1-44000-837-0 		1-44249-041-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: I = 1-44000-832-3, J = 1-44000-833-3 		1-44249-041-0 01 1 -1002
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-44269-006-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: I = 1-44000-832-3, J = 1-44000-833-3 		8-98159-116-0 01 1 1003-
8 BOX ASM; STRG UNIT
ASM PART: K = 1-44000-836-0 		1-44240-040-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: I = 1-44000-832-3 		1-44240-040-0 01 1 -1002
8 BOX ASM; STRG UNIT
ASM PART: J = 1-44000-833-3 		1-44240-041-0 01 1 -1002
8 BOX ASM; STRG UNIT
ASM PART: L = 1-44000-837-0 		1-44240-041-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: C = 1-44000-583-0 		1-44241-077-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: B = 1-44000-582-0 		1-44241-078-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: A = 1-44000-565-3, D = 1-44000-601-3 		1-44241-082-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: E = 1-44000-665-4, F = 1-44000-669-3 		1-44241-103-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: H = 1-44000-703-1 		1-44241-106-1 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: G = 1-44000-702-1 		1-44241-112-1 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: I = 1-44000-832-3 		8-98159-747-0 01 1 1003-
8 BOX ASM; STRG UNIT
ASM PART: J = 1-44000-833-3 		8-98159-749-0 01 1 1003-
9 PLUG; FILLER,STRG UNIT
(C) ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44249-037-0 01 1 -
9 PLUG; FILLER,STRG UNIT
(B) ASM PART: A = 1-44000-565-3, D = 1-44000-601-3 		1-44249-045-0 01 1 -
9 PLUG; FILLER,STRG UNIT
(D) ASM PART: I = 1-44000-832-3, J = 1-44000-833-3, K = 1-44000-836-0, L = 1-44000-837-0 		1-44519-071-0 02 1 -
9 PLUG; FILLER,STRG UNIT
(A) ASM PART: E = 1-44000-665-4, F = 1-44000-669-3 		9-99202-024-0 02 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: I = 1-44000-832-3 		1-44249-040-0 01 1 -0203
11 RING; BACKUP,STRG UNIT
(A) ASM PART: J = 1-44000-833-3 		1-44249-040-0 01 1 -9709
11 RING; BACKUP,STRG UNIT
(A) ASM PART: K = 1-44000-836-0, L = 1-44000-837-0 		1-44249-040-0 01 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: J = 1-44000-833-3 		1-44249-075-0 01 1 9710-
11 RING; BACKUP,STRG UNIT
(A) ASM PART: I = 1-44000-832-3 		1-44249-075-0 01 1 0204-
11 RING; BACKUP,STRG UNIT
(B) ASM PART: I = 1-44000-832-3, J = 1-44000-833-3, K = 1-44000-836-0, L = 1-44000-837-0 		1-44519-103-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-09623-044-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(D) ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44249-035-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(F) ASM PART: J = 1-44000-833-3 		1-44249-071-0 01 1 -9709
12 GASKET; SHAFT,STRG UNIT
(F) ASM PART: K = 1-44000-836-0, L = 1-44000-837-0 		1-44249-071-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(F) ASM PART: I = 1-44000-832-3 		1-44249-071-0 01 1 -0203
12 GASKET; SHAFT,STRG UNIT
(F) ASM PART: I = 1-44000-832-3 		1-44249-076-0 01 1 0204-
12 GASKET; SHAFT,STRG UNIT
(F) ASM PART: J = 1-44000-833-3 		1-44249-076-0 01 1 9710-
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-44262-004-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(E) ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44269-013-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(C) ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-44519-069-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(G) ASM PART: I = 1-44000-832-3, J = 1-44000-833-3, K = 1-44000-836-0, L = 1-44000-837-0 		1-44519-226-0 01 1 -
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-09811-185-0 01 1 -
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: A = 1-44000-565-3, D = 1-44000-601-3, E = 1-44000-665-4, F = 1-44000-669-3 		1-09811-287-0 01 1 -
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44249-034-0 01 1 -
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: I = 1-44000-832-3, J = 1-44000-833-3 		1-44249-038-0 01 1 -1002
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: K = 1-44000-836-0, L = 1-44000-837-0 		1-44249-038-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44320-002-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-44321-017-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 1-44000-565-3, D = 1-44000-601-3, E = 1-44000-665-4, F = 1-44000-669-3 		1-44321-019-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: I = 1-44000-832-3, J = 1-44000-833-3, K = 1-44000-836-0, L = 1-44000-837-0 		1-44321-022-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: K = 1-44000-836-0, L = 1-44000-837-0 		1-44260-006-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: I = 1-44000-832-3, J = 1-44000-833-3 		1-44260-006-0 01 1 -1002
19 COVER; SIDE STRG UNIT
ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-44261-026-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: A = 1-44000-565-3, D = 1-44000-601-3, E = 1-44000-665-4, F = 1-44000-669-3 		1-44261-027-1 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44261-032-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: I = 1-44000-832-3, J = 1-44000-833-3 		8-98159-763-0 01 1 1003-
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-09811-184-0 01 1 -
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44269-012-0 01 1 -
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: K = 1-44000-836-0, L = 1-44000-837-0 		1-44519-105-0 01 1 -
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: I = 1-44000-832-3, J = 1-44000-833-3 		1-44519-105-0 01 1 -1002
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: A = 1-44000-565-3, D = 1-44000-601-3, E = 1-44000-665-4, F = 1-44000-669-3 		9-00096-071-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: B = 1-44000-582-0, C = 1-44000-583-0, I = 1-44000-832-3, J = 1-44000-833-3, K = 1-44000-836-0, L = 1-44000-837-0 		1-44277-003-1 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-565-3, D = 1-44000-601-3, E = 1-44000-665-4, F = 1-44000-669-3 		9-44277-010-0 01 1 -
24 RETAINER; STRG UNIT
ASM PART: B = 1-44000-582-0, C = 1-44000-583-0, I = 1-44000-832-3, J = 1-44000-833-3, K = 1-44000-836-0, L = 1-44000-837-0 		1-44279-011-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-09623-223-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44269-014-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: I = 1-44000-832-3 		1-44269-016-0 01 1 -0203
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: J = 1-44000-833-3 		1-44269-016-0 01 1 -9709
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: K = 1-44000-836-0, L = 1-44000-837-0 		1-44269-016-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: I = 1-44000-832-3 		1-44269-035-0 01 1 0204-
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: J = 1-44000-833-3 		1-44269-035-0 01 1 9710-
30 BOLT; COVER STRG UNIT
(B) ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-19519-120-0 05 1 -
30 BOLT; COVER STRG UNIT
(A) ASM PART: B = 1-44000-582-0, C = 1-44000-583-0, I = 1-44000-832-3, J = 1-44000-833-3, K = 1-44000-836-0, L = 1-44000-837-0 		1-19519-121-0 03 1 -
30 BOLT; COVER STRG UNIT
(D) ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44269-015-0 08 1 -
30 BOLT; COVER STRG UNIT
(B) ASM PART: I = 1-44000-832-3, J = 1-44000-833-3, K = 1-44000-836-0, L = 1-44000-837-0 		1-44279-012-0 05 1 -
30 BOLT; COVER STRG UNIT
(C) ASM PART: A = 1-44000-565-3, D = 1-44000-601-3, E = 1-44000-665-4, F = 1-44000-669-3 		9-92051-430-0 04 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: B = 1-44000-582-0, C = 1-44000-583-0, I = 1-44000-832-3, J = 1-44000-833-3, K = 1-44000-836-0, L = 1-44000-837-0 		1-44269-007-0 01 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		5-44277-002-0 01 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 1-44000-565-3, D = 1-44000-601-3, E = 1-44000-665-4, F = 1-44000-669-3 		9-99110-414-0 01 1 -
33 PLUG; DRAIN,STRG UNIT
ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-44519-071-0 02 1 -
33 PLUG; DRAIN,STRG UNIT
ASM PART: I = 1-44000-832-3, J = 1-44000-833-3, K = 1-44000-836-0, L = 1-44000-837-0 		9-83331-704-0 01 1 -
33 PLUG; DRAIN,STRG UNIT
ASM PART: A = 1-44000-565-3, D = 1-44000-601-3 		9-99202-024-0 01 1 -
34 PROTECTOR; STRG UNIT
ASM PART: I = 1-44000-832-3, J = 1-44000-833-3, K = 1-44000-836-0, L = 1-44000-837-0 		9-83335-044-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: H = 1-44000-703-1 		1-44150-005-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: G = 1-44000-702-1 		1-44150-010-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: I = 1-44000-832-3, K = 1-44000-836-0 		1-44150-065-1 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: J = 1-44000-833-3, L = 1-44000-837-0 		1-44150-066-1 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
ASM PART: I = 1-44000-832-3, J = 1-44000-833-3, K = 1-44000-836-0, L = 1-44000-837-0 		1-44560-073-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: E = 1-44000-665-4, F = 1-44000-669-3 		1-44139-052-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-44252-002-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: I = 1-44000-832-3, J = 1-44000-833-3, K = 1-44000-836-0, L = 1-44000-837-0 		1-44259-036-1 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44569-116-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: A = 1-44000-565-3, D = 1-44000-601-3 		9-09924-516-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: I = 1-44000-832-3, J = 1-44000-833-3, K = 1-44000-836-0, L = 1-44000-837-0 		1-44159-037-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(D) ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-44259-020-0 02 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: I = 1-44000-832-3, J = 1-44000-833-3, K = 1-44000-836-0, L = 1-44000-837-0 		1-44519-096-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: K = 1-44000-836-0, L = 1-44000-837-0 		1-44519-100-0 03 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: I = 1-44000-832-3 		1-44519-100-0 03 1 -0203
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: J = 1-44000-833-3 		1-44519-100-0 03 1 -9709
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: I = 1-44000-832-3 		1-44519-255-0 03 1 0204-
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: J = 1-44000-833-3 		1-44519-255-0 03 1 9710-
47 GASKET; HSG,STRG UNIT
(A) ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-09623-045-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-09623-222-0 02 1 -
47 GASKET; HSG,STRG UNIT
(F) ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44159-026-0 01 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: G = 1-44000-702-1 		1-44159-027-0 03 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: H = 1-44000-703-1 		1-44159-027-0 04 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44159-028-0 02 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44159-029-0 01 1 -
47 GASKET; HSG,STRG UNIT
(J) ASM PART: I = 1-44000-832-3, J = 1-44000-833-3, K = 1-44000-836-0, L = 1-44000-837-0 		1-44159-036-0 01 1 -
47 GASKET; HSG,STRG UNIT
(H) ASM PART: J = 1-44000-833-3 		1-44519-099-0 01 1 -9709
47 GASKET; HSG,STRG UNIT
(H) ASM PART: K = 1-44000-836-0, L = 1-44000-837-0 		1-44519-099-0 01 1 -
47 GASKET; HSG,STRG UNIT
(H) ASM PART: I = 1-44000-832-3 		1-44519-099-0 01 1 -0203
47 GASKET; HSG,STRG UNIT
(G) ASM PART: I = 1-44000-832-3, J = 1-44000-833-3, K = 1-44000-836-0, L = 1-44000-837-0 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(I) ASM PART: I = 1-44000-832-3, J = 1-44000-833-3, K = 1-44000-836-0, L = 1-44000-837-0 		1-44519-116-0 01 1 -
47 GASKET; HSG,STRG UNIT
(H) ASM PART: J = 1-44000-833-3 		1-44519-260-0 01 1 9710-
47 GASKET; HSG,STRG UNIT
(H) ASM PART: I = 1-44000-832-3 		1-44519-260-0 01 1 0204-
47 GASKET; HSG,STRG UNIT
(D) ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44569-118-0 01 1 -
47 GASKET; HSG,STRG UNIT
(E) ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		5-09623-053-0 01 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		9-83315-087-0 02 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		9-88510-173-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-09623-221-0 04 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: I = 1-44000-832-3 		1-44519-097-0 01 1 -0203
48 GASKET; HSG,STRG UNIT
ASM PART: J = 1-44000-833-3 		1-44519-097-0 01 1 -9709
48 GASKET; HSG,STRG UNIT
ASM PART: K = 1-44000-836-0, L = 1-44000-837-0 		1-44519-097-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: I = 1-44000-832-3 		1-44519-262-0 01 1 0204-
48 GASKET; HSG,STRG UNIT
ASM PART: J = 1-44000-833-3 		1-44519-262-0 01 1 9710-
48 GASKET; HSG,STRG UNIT
ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44569-119-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-44560-035-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
ASM PART: I = 1-44000-832-3, J = 1-44000-833-3, K = 1-44000-836-0, L = 1-44000-837-0 		1-44560-072-0 01 1 -
52 PLUG; HSG STRG UNIT
ASM PART: I = 1-44000-832-3, J = 1-44000-833-3, K = 1-44000-836-0, L = 1-44000-837-0 		1-44519-071-0 01 1 -
54 CASE; BEARING STRG UNIT
ASM PART: I = 1-44000-832-3, J = 1-44000-833-3, K = 1-44000-836-0, L = 1-44000-837-0 		1-44241-088-0 01 1 -
54 CASE; BEARING STRG UNIT
ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-44251-049-0 01 1 -
56 PLUG & SEAL ASM; STRG UNIT
ASM PART: I = 1-44000-832-3, J = 1-44000-833-3, K = 1-44000-836-0, L = 1-44000-837-0 		1-44250-006-1 01 1 -
58 BEARING; HSG STRG UNIT
(D) ASM PART: I = 1-44000-832-3, J = 1-44000-833-3, K = 1-44000-836-0, L = 1-44000-837-0 		1-44259-029-0 01 1 -
58 BEARING; HSG STRG UNIT
(A) ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44569-115-0 01 1 -
58 BEARING; HSG STRG UNIT
(B) ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44569-122-0 01 1 -
58 BEARING; HSG STRG UNIT
(C) ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		5-09811-041-0 01 1 -
72 BOLT; HSG FIX STRG UNIT
ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-19519-123-0 04 1 -
72 BOLT; HSG FIX STRG UNIT
ASM PART: I = 1-44000-832-3, J = 1-44000-833-3, K = 1-44000-836-0, L = 1-44000-837-0 		1-44259-017-0 04 1 -
72 BOLT; HSG FIX STRG UNIT
ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44569-123-0 04 1 -
73 COVER; DUST,STRG UNIT
ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44159-030-0 01 1 -
73 COVER; DUST,STRG UNIT
ASM PART: K = 1-44000-836-0, L = 1-44000-837-0 		1-44519-114-0 01 1 -
73 COVER; DUST,STRG UNIT
ASM PART: I = 1-44000-832-3, J = 1-44000-833-3 		1-44519-114-0 01 1 -1003
73 COVER; DUST,STRG UNIT
ASM PART: I = 1-44000-832-3, J = 1-44000-833-3 		8-98166-307-0 01 1 1004-
75 CONNECTOR; HSG STRG UNIT
M20 FROM PUMP ASM PART: I = 1-44000-832-3, J = 1-44000-833-3 		1-44259-034-1 01 1 -
75 CONNECTOR; HSG STRG UNIT
M22 TO TANK ASM PART: I = 1-44000-832-3, J = 1-44000-833-3 		1-44259-035-1 01 1 -
77 GASKET; CONNECTOR,STRG UNIT
ASM PART: I = 1-44000-832-3, J = 1-44000-833-3 		9-89970-787-0 02 1 -
132 COVER; DUST,STRG UNIT
ASM PART: E = 1-44000-665-4, F = 1-44000-669-3 		1-44139-053-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-565-3, D = 1-44000-601-3 		1-44159-056-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44329-002-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: I = 1-44000-832-3, J = 1-44000-833-3, K = 1-44000-836-0, L = 1-44000-837-0 		1-44519-227-0 01 1 -
çizim 36561
2 73 47 44 48 46 46 47 46 47 46 47 47 46 132 47 7 11 12 12 27 11
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; STRG UNIT,2 YEAR
2 YEAR ASM PART: K = 1-44000-836-0, L = 1-44000-837-0 		1-85574-030-0 01 1 -
2 REPAIR KIT; STRG UNIT,2 YEAR
2 YEAR ASM PART: I = 1-44000-832-3, J = 1-44000-833-3 		1-85574-030-0 01 1 -1003
2 REPAIR KIT; STRG UNIT,2 YEAR
2 YEAR ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-87520-136-0 01 1 -
2 REPAIR KIT; STRG UNIT,2 YEAR
2 YEAR ASM PART: I = 1-44000-832-3, J = 1-44000-833-3 		8-98176-079-0 01 1 1004-
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-565-3, D = 1-44000-601-3, E = 1-44000-665-4, F = 1-44000-669-3 		1-09625-247-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44249-036-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: K = 1-44000-836-0, L = 1-44000-837-0 		1-44249-041-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: I = 1-44000-832-3, J = 1-44000-833-3 		1-44249-041-0 01 1 -1002
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-44269-006-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: I = 1-44000-832-3, J = 1-44000-833-3 		8-98159-116-0 01 1 1003-
11 RING; BACKUP,STRG UNIT
(A) ASM PART: I = 1-44000-832-3 		1-44249-040-0 01 1 -0203
11 RING; BACKUP,STRG UNIT
(A) ASM PART: J = 1-44000-833-3 		1-44249-040-0 01 1 -9709
11 RING; BACKUP,STRG UNIT
(A) ASM PART: K = 1-44000-836-0, L = 1-44000-837-0 		1-44249-040-0 01 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: J = 1-44000-833-3 		1-44249-075-0 01 1 9710-
11 RING; BACKUP,STRG UNIT
(A) ASM PART: I = 1-44000-832-3 		1-44249-075-0 01 1 0204-
11 RING; BACKUP,STRG UNIT
(B) ASM PART: I = 1-44000-832-3, J = 1-44000-833-3, K = 1-44000-836-0, L = 1-44000-837-0 		1-44519-103-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-09623-044-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(D) ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44249-035-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(F) ASM PART: J = 1-44000-833-3 		1-44249-071-0 01 1 -9709
12 GASKET; SHAFT,STRG UNIT
(F) ASM PART: K = 1-44000-836-0, L = 1-44000-837-0 		1-44249-071-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(F) ASM PART: I = 1-44000-832-3 		1-44249-071-0 01 1 -0203
12 GASKET; SHAFT,STRG UNIT
(F) ASM PART: I = 1-44000-832-3 		1-44249-076-0 01 1 0204-
12 GASKET; SHAFT,STRG UNIT
(F) ASM PART: J = 1-44000-833-3 		1-44249-076-0 01 1 9710-
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-44262-004-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(E) ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44269-013-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(C) ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-44519-069-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(G) ASM PART: I = 1-44000-832-3, J = 1-44000-833-3, K = 1-44000-836-0, L = 1-44000-837-0 		1-44519-226-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-09623-223-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44269-014-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: I = 1-44000-832-3 		1-44269-016-0 01 1 -0203
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: J = 1-44000-833-3 		1-44269-016-0 01 1 -9709
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: K = 1-44000-836-0, L = 1-44000-837-0 		1-44269-016-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: I = 1-44000-832-3 		1-44269-035-0 01 1 0204-
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: J = 1-44000-833-3 		1-44269-035-0 01 1 9710-
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: E = 1-44000-665-4, F = 1-44000-669-3 		1-44139-052-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-44252-002-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: I = 1-44000-832-3, J = 1-44000-833-3, K = 1-44000-836-0, L = 1-44000-837-0 		1-44259-036-1 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44569-116-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: A = 1-44000-565-3, D = 1-44000-601-3 		9-09924-516-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: I = 1-44000-832-3, J = 1-44000-833-3, K = 1-44000-836-0, L = 1-44000-837-0 		1-44159-037-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(D) ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-44259-020-0 02 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: I = 1-44000-832-3, J = 1-44000-833-3, K = 1-44000-836-0, L = 1-44000-837-0 		1-44519-096-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: K = 1-44000-836-0, L = 1-44000-837-0 		1-44519-100-0 03 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: I = 1-44000-832-3 		1-44519-100-0 03 1 -0203
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: J = 1-44000-833-3 		1-44519-100-0 03 1 -9709
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: I = 1-44000-832-3 		1-44519-255-0 03 1 0204-
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: J = 1-44000-833-3 		1-44519-255-0 03 1 9710-
47 GASKET; HSG,STRG UNIT
(A) ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-09623-045-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-09623-222-0 02 1 -
47 GASKET; HSG,STRG UNIT
(F) ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44159-026-0 01 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: G = 1-44000-702-1 		1-44159-027-0 03 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: H = 1-44000-703-1 		1-44159-027-0 04 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44159-028-0 02 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44159-029-0 01 1 -
47 GASKET; HSG,STRG UNIT
(J) ASM PART: I = 1-44000-832-3, J = 1-44000-833-3, K = 1-44000-836-0, L = 1-44000-837-0 		1-44159-036-0 01 1 -
47 GASKET; HSG,STRG UNIT
(H) ASM PART: J = 1-44000-833-3 		1-44519-099-0 01 1 -9709
47 GASKET; HSG,STRG UNIT
(H) ASM PART: K = 1-44000-836-0, L = 1-44000-837-0 		1-44519-099-0 01 1 -
47 GASKET; HSG,STRG UNIT
(H) ASM PART: I = 1-44000-832-3 		1-44519-099-0 01 1 -0203
47 GASKET; HSG,STRG UNIT
(G) ASM PART: I = 1-44000-832-3, J = 1-44000-833-3, K = 1-44000-836-0, L = 1-44000-837-0 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(I) ASM PART: I = 1-44000-832-3, J = 1-44000-833-3, K = 1-44000-836-0, L = 1-44000-837-0 		1-44519-116-0 01 1 -
47 GASKET; HSG,STRG UNIT
(H) ASM PART: J = 1-44000-833-3 		1-44519-260-0 01 1 9710-
47 GASKET; HSG,STRG UNIT
(H) ASM PART: I = 1-44000-832-3 		1-44519-260-0 01 1 0204-
47 GASKET; HSG,STRG UNIT
(D) ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44569-118-0 01 1 -
47 GASKET; HSG,STRG UNIT
(E) ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		5-09623-053-0 01 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		9-83315-087-0 02 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		9-88510-173-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-09623-221-0 04 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: I = 1-44000-832-3 		1-44519-097-0 01 1 -0203
48 GASKET; HSG,STRG UNIT
ASM PART: J = 1-44000-833-3 		1-44519-097-0 01 1 -9709
48 GASKET; HSG,STRG UNIT
ASM PART: K = 1-44000-836-0, L = 1-44000-837-0 		1-44519-097-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: I = 1-44000-832-3 		1-44519-262-0 01 1 0204-
48 GASKET; HSG,STRG UNIT
ASM PART: J = 1-44000-833-3 		1-44519-262-0 01 1 9710-
48 GASKET; HSG,STRG UNIT
ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44569-119-0 01 1 -
73 COVER; DUST,STRG UNIT
ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44159-030-0 01 1 -
73 COVER; DUST,STRG UNIT
ASM PART: K = 1-44000-836-0, L = 1-44000-837-0 		1-44519-114-0 01 1 -
73 COVER; DUST,STRG UNIT
ASM PART: I = 1-44000-832-3, J = 1-44000-833-3 		1-44519-114-0 01 1 -1003
73 COVER; DUST,STRG UNIT
ASM PART: I = 1-44000-832-3, J = 1-44000-833-3 		8-98166-307-0 01 1 1004-
132 COVER; DUST,STRG UNIT
ASM PART: E = 1-44000-665-4, F = 1-44000-669-3 		1-44139-053-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-565-3, D = 1-44000-601-3 		1-44159-056-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44329-002-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: I = 1-44000-832-3, J = 1-44000-833-3, K = 1-44000-836-0, L = 1-44000-837-0 		1-44519-227-0 01 1 -
çizim 36866
1 27 12 3 12 7 3 132 45 45 45 134 111 47 47 47 47 47 111 47 111 73 44 111 111 47 47
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; STRG UNIT,1 YEAR
1 YEAR ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44159-042-0 01 1 -
1 REPAIR KIT; STRG UNIT,1 YEAR
1 YEAR ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-87520-135-0 01 1 -
3 SEAL KIT; SECTOR SHAFT
ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44329-003-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-565-3, D = 1-44000-601-3, E = 1-44000-665-4, F = 1-44000-669-3 		1-09625-247-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44249-036-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: K = 1-44000-836-0, L = 1-44000-837-0 		1-44249-041-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: I = 1-44000-832-3, J = 1-44000-833-3 		1-44249-041-0 01 1 -1002
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-44269-006-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: I = 1-44000-832-3, J = 1-44000-833-3 		8-98159-116-0 01 1 1003-
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-09623-044-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(D) ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44249-035-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(F) ASM PART: J = 1-44000-833-3 		1-44249-071-0 01 1 -9709
12 GASKET; SHAFT,STRG UNIT
(F) ASM PART: K = 1-44000-836-0, L = 1-44000-837-0 		1-44249-071-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(F) ASM PART: I = 1-44000-832-3 		1-44249-071-0 01 1 -0203
12 GASKET; SHAFT,STRG UNIT
(F) ASM PART: I = 1-44000-832-3 		1-44249-076-0 01 1 0204-
12 GASKET; SHAFT,STRG UNIT
(F) ASM PART: J = 1-44000-833-3 		1-44249-076-0 01 1 9710-
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-44262-004-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(E) ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44269-013-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(C) ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-44519-069-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(G) ASM PART: I = 1-44000-832-3, J = 1-44000-833-3, K = 1-44000-836-0, L = 1-44000-837-0 		1-44519-226-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-09623-223-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44269-014-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: I = 1-44000-832-3 		1-44269-016-0 01 1 -0203
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: J = 1-44000-833-3 		1-44269-016-0 01 1 -9709
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: K = 1-44000-836-0, L = 1-44000-837-0 		1-44269-016-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: I = 1-44000-832-3 		1-44269-035-0 01 1 0204-
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: J = 1-44000-833-3 		1-44269-035-0 01 1 9710-
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: E = 1-44000-665-4, F = 1-44000-669-3 		1-44139-052-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-44252-002-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: I = 1-44000-832-3, J = 1-44000-833-3, K = 1-44000-836-0, L = 1-44000-837-0 		1-44259-036-1 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44569-116-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: A = 1-44000-565-3, D = 1-44000-601-3 		9-09924-516-0 01 1 -
45 RING; RET
ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44159-023-0 03 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-09623-045-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-09623-222-0 02 1 -
47 GASKET; HSG,STRG UNIT
(F) ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44159-026-0 01 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: G = 1-44000-702-1 		1-44159-027-0 03 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: H = 1-44000-703-1 		1-44159-027-0 04 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44159-028-0 02 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44159-029-0 01 1 -
47 GASKET; HSG,STRG UNIT
(J) ASM PART: I = 1-44000-832-3, J = 1-44000-833-3, K = 1-44000-836-0, L = 1-44000-837-0 		1-44159-036-0 01 1 -
47 GASKET; HSG,STRG UNIT
(H) ASM PART: J = 1-44000-833-3 		1-44519-099-0 01 1 -9709
47 GASKET; HSG,STRG UNIT
(H) ASM PART: K = 1-44000-836-0, L = 1-44000-837-0 		1-44519-099-0 01 1 -
47 GASKET; HSG,STRG UNIT
(H) ASM PART: I = 1-44000-832-3 		1-44519-099-0 01 1 -0203
47 GASKET; HSG,STRG UNIT
(G) ASM PART: I = 1-44000-832-3, J = 1-44000-833-3, K = 1-44000-836-0, L = 1-44000-837-0 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(I) ASM PART: I = 1-44000-832-3, J = 1-44000-833-3, K = 1-44000-836-0, L = 1-44000-837-0 		1-44519-116-0 01 1 -
47 GASKET; HSG,STRG UNIT
(H) ASM PART: J = 1-44000-833-3 		1-44519-260-0 01 1 9710-
47 GASKET; HSG,STRG UNIT
(H) ASM PART: I = 1-44000-832-3 		1-44519-260-0 01 1 0204-
47 GASKET; HSG,STRG UNIT
(D) ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44569-118-0 01 1 -
47 GASKET; HSG,STRG UNIT
(E) ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		5-09623-053-0 01 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		9-83315-087-0 02 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		9-88510-173-0 01 1 -
73 COVER; DUST,STRG UNIT
ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44159-030-0 01 1 -
73 COVER; DUST,STRG UNIT
ASM PART: K = 1-44000-836-0, L = 1-44000-837-0 		1-44519-114-0 01 1 -
73 COVER; DUST,STRG UNIT
ASM PART: I = 1-44000-832-3, J = 1-44000-833-3 		1-44519-114-0 01 1 -1003
73 COVER; DUST,STRG UNIT
ASM PART: I = 1-44000-832-3, J = 1-44000-833-3 		8-98166-307-0 01 1 1004-
111 RING; BACKUP
(A) ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44159-024-0 02 1 -
111 RING; BACKUP
(B) ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44159-025-0 01 1 -
111 RING; BACKUP
(E) ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-44259-019-0 01 1 -
111 RING; BACKUP
(C) ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44569-117-0 01 1 -
111 RING; BACKUP
(D) ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		5-09629-004-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: E = 1-44000-665-4, F = 1-44000-669-3 		1-44139-053-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-565-3, D = 1-44000-601-3 		1-44159-056-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44329-002-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: I = 1-44000-832-3, J = 1-44000-833-3, K = 1-44000-836-0, L = 1-44000-837-0 		1-44519-227-0 01 1 -
134 GASKET; COVER,STRG UNIT
(B) ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-09623-045-0 01 1 -
134 GASKET; COVER,STRG UNIT
(A) ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-09623-222-0 01 1 -
134 GASKET; COVER,STRG UNIT
(D) ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44159-027-0 01 1 -
134 GASKET; COVER,STRG UNIT
(C) ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-44519-082-0 01 1 -
çizim 36869
1 12 27 168 133 48 134 44 12 134 48 47 47 48 47
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; STRG UNIT,1 YEAR
1 YEAR ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44159-042-0 01 1 -
1 REPAIR KIT; STRG UNIT,1 YEAR
1 YEAR ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-87520-135-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-09623-044-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(D) ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44249-035-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(F) ASM PART: J = 1-44000-833-3 		1-44249-071-0 01 1 -9709
12 GASKET; SHAFT,STRG UNIT
(F) ASM PART: K = 1-44000-836-0, L = 1-44000-837-0 		1-44249-071-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(F) ASM PART: I = 1-44000-832-3 		1-44249-071-0 01 1 -0203
12 GASKET; SHAFT,STRG UNIT
(F) ASM PART: I = 1-44000-832-3 		1-44249-076-0 01 1 0204-
12 GASKET; SHAFT,STRG UNIT
(F) ASM PART: J = 1-44000-833-3 		1-44249-076-0 01 1 9710-
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-44262-004-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(E) ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44269-013-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(C) ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-44519-069-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(G) ASM PART: I = 1-44000-832-3, J = 1-44000-833-3, K = 1-44000-836-0, L = 1-44000-837-0 		1-44519-226-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-09623-223-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44269-014-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: I = 1-44000-832-3 		1-44269-016-0 01 1 -0203
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: J = 1-44000-833-3 		1-44269-016-0 01 1 -9709
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: K = 1-44000-836-0, L = 1-44000-837-0 		1-44269-016-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: I = 1-44000-832-3 		1-44269-035-0 01 1 0204-
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: J = 1-44000-833-3 		1-44269-035-0 01 1 9710-
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: E = 1-44000-665-4, F = 1-44000-669-3 		1-44139-052-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-44252-002-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: I = 1-44000-832-3, J = 1-44000-833-3, K = 1-44000-836-0, L = 1-44000-837-0 		1-44259-036-1 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44569-116-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: A = 1-44000-565-3, D = 1-44000-601-3 		9-09924-516-0 01 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-09623-045-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-09623-222-0 02 1 -
47 GASKET; HSG,STRG UNIT
(F) ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44159-026-0 01 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: G = 1-44000-702-1 		1-44159-027-0 03 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: H = 1-44000-703-1 		1-44159-027-0 04 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44159-028-0 02 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44159-029-0 01 1 -
47 GASKET; HSG,STRG UNIT
(J) ASM PART: I = 1-44000-832-3, J = 1-44000-833-3, K = 1-44000-836-0, L = 1-44000-837-0 		1-44159-036-0 01 1 -
47 GASKET; HSG,STRG UNIT
(H) ASM PART: J = 1-44000-833-3 		1-44519-099-0 01 1 -9709
47 GASKET; HSG,STRG UNIT
(H) ASM PART: K = 1-44000-836-0, L = 1-44000-837-0 		1-44519-099-0 01 1 -
47 GASKET; HSG,STRG UNIT
(H) ASM PART: I = 1-44000-832-3 		1-44519-099-0 01 1 -0203
47 GASKET; HSG,STRG UNIT
(G) ASM PART: I = 1-44000-832-3, J = 1-44000-833-3, K = 1-44000-836-0, L = 1-44000-837-0 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(I) ASM PART: I = 1-44000-832-3, J = 1-44000-833-3, K = 1-44000-836-0, L = 1-44000-837-0 		1-44519-116-0 01 1 -
47 GASKET; HSG,STRG UNIT
(H) ASM PART: J = 1-44000-833-3 		1-44519-260-0 01 1 9710-
47 GASKET; HSG,STRG UNIT
(H) ASM PART: I = 1-44000-832-3 		1-44519-260-0 01 1 0204-
47 GASKET; HSG,STRG UNIT
(D) ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44569-118-0 01 1 -
47 GASKET; HSG,STRG UNIT
(E) ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		5-09623-053-0 01 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		9-83315-087-0 02 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		9-88510-173-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-09623-221-0 04 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: I = 1-44000-832-3 		1-44519-097-0 01 1 -0203
48 GASKET; HSG,STRG UNIT
ASM PART: J = 1-44000-833-3 		1-44519-097-0 01 1 -9709
48 GASKET; HSG,STRG UNIT
ASM PART: K = 1-44000-836-0, L = 1-44000-837-0 		1-44519-097-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: I = 1-44000-832-3 		1-44519-262-0 01 1 0204-
48 GASKET; HSG,STRG UNIT
ASM PART: J = 1-44000-833-3 		1-44519-262-0 01 1 9710-
48 GASKET; HSG,STRG UNIT
ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44569-119-0 01 1 -
133 SEAL; DUST,STRG UNIT
ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-44269-010-0 01 1 -
134 GASKET; COVER,STRG UNIT
(B) ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-09623-045-0 01 1 -
134 GASKET; COVER,STRG UNIT
(A) ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-09623-222-0 01 1 -
134 GASKET; COVER,STRG UNIT
(D) ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44159-027-0 01 1 -
134 GASKET; COVER,STRG UNIT
(C) ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-44519-082-0 01 1 -
168 GASKET; YOKE
ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-09623-046-0 01 1 -
çizim 36982
2 168 12 27 133 134 48 12 134 134 48 46 47 47 47 46 48 47 170
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; STRG UNIT,2 YEAR
2 YEAR ASM PART: K = 1-44000-836-0, L = 1-44000-837-0 		1-85574-030-0 01 1 -
2 REPAIR KIT; STRG UNIT,2 YEAR
2 YEAR ASM PART: I = 1-44000-832-3, J = 1-44000-833-3 		1-85574-030-0 01 1 -1003
2 REPAIR KIT; STRG UNIT,2 YEAR
2 YEAR ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-87520-136-0 01 1 -
2 REPAIR KIT; STRG UNIT,2 YEAR
2 YEAR ASM PART: I = 1-44000-832-3, J = 1-44000-833-3 		8-98176-079-0 01 1 1004-
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-09623-044-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(D) ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44249-035-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(F) ASM PART: J = 1-44000-833-3 		1-44249-071-0 01 1 -9709
12 GASKET; SHAFT,STRG UNIT
(F) ASM PART: K = 1-44000-836-0, L = 1-44000-837-0 		1-44249-071-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(F) ASM PART: I = 1-44000-832-3 		1-44249-071-0 01 1 -0203
12 GASKET; SHAFT,STRG UNIT
(F) ASM PART: I = 1-44000-832-3 		1-44249-076-0 01 1 0204-
12 GASKET; SHAFT,STRG UNIT
(F) ASM PART: J = 1-44000-833-3 		1-44249-076-0 01 1 9710-
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-44262-004-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(E) ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44269-013-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(C) ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-44519-069-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(G) ASM PART: I = 1-44000-832-3, J = 1-44000-833-3, K = 1-44000-836-0, L = 1-44000-837-0 		1-44519-226-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-09623-223-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44269-014-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: I = 1-44000-832-3 		1-44269-016-0 01 1 -0203
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: J = 1-44000-833-3 		1-44269-016-0 01 1 -9709
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: K = 1-44000-836-0, L = 1-44000-837-0 		1-44269-016-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: I = 1-44000-832-3 		1-44269-035-0 01 1 0204-
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: J = 1-44000-833-3 		1-44269-035-0 01 1 9710-
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: I = 1-44000-832-3, J = 1-44000-833-3, K = 1-44000-836-0, L = 1-44000-837-0 		1-44159-037-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(D) ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-44259-020-0 02 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: I = 1-44000-832-3, J = 1-44000-833-3, K = 1-44000-836-0, L = 1-44000-837-0 		1-44519-096-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: K = 1-44000-836-0, L = 1-44000-837-0 		1-44519-100-0 03 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: I = 1-44000-832-3 		1-44519-100-0 03 1 -0203
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: J = 1-44000-833-3 		1-44519-100-0 03 1 -9709
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: I = 1-44000-832-3 		1-44519-255-0 03 1 0204-
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: J = 1-44000-833-3 		1-44519-255-0 03 1 9710-
47 GASKET; HSG,STRG UNIT
(A) ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-09623-045-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-09623-222-0 02 1 -
47 GASKET; HSG,STRG UNIT
(F) ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44159-026-0 01 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: G = 1-44000-702-1 		1-44159-027-0 03 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: H = 1-44000-703-1 		1-44159-027-0 04 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44159-028-0 02 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44159-029-0 01 1 -
47 GASKET; HSG,STRG UNIT
(J) ASM PART: I = 1-44000-832-3, J = 1-44000-833-3, K = 1-44000-836-0, L = 1-44000-837-0 		1-44159-036-0 01 1 -
47 GASKET; HSG,STRG UNIT
(H) ASM PART: J = 1-44000-833-3 		1-44519-099-0 01 1 -9709
47 GASKET; HSG,STRG UNIT
(H) ASM PART: K = 1-44000-836-0, L = 1-44000-837-0 		1-44519-099-0 01 1 -
47 GASKET; HSG,STRG UNIT
(H) ASM PART: I = 1-44000-832-3 		1-44519-099-0 01 1 -0203
47 GASKET; HSG,STRG UNIT
(G) ASM PART: I = 1-44000-832-3, J = 1-44000-833-3, K = 1-44000-836-0, L = 1-44000-837-0 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(I) ASM PART: I = 1-44000-832-3, J = 1-44000-833-3, K = 1-44000-836-0, L = 1-44000-837-0 		1-44519-116-0 01 1 -
47 GASKET; HSG,STRG UNIT
(H) ASM PART: J = 1-44000-833-3 		1-44519-260-0 01 1 9710-
47 GASKET; HSG,STRG UNIT
(H) ASM PART: I = 1-44000-832-3 		1-44519-260-0 01 1 0204-
47 GASKET; HSG,STRG UNIT
(D) ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44569-118-0 01 1 -
47 GASKET; HSG,STRG UNIT
(E) ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		5-09623-053-0 01 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		9-83315-087-0 02 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		9-88510-173-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-09623-221-0 04 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: I = 1-44000-832-3 		1-44519-097-0 01 1 -0203
48 GASKET; HSG,STRG UNIT
ASM PART: J = 1-44000-833-3 		1-44519-097-0 01 1 -9709
48 GASKET; HSG,STRG UNIT
ASM PART: K = 1-44000-836-0, L = 1-44000-837-0 		1-44519-097-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: I = 1-44000-832-3 		1-44519-262-0 01 1 0204-
48 GASKET; HSG,STRG UNIT
ASM PART: J = 1-44000-833-3 		1-44519-262-0 01 1 9710-
48 GASKET; HSG,STRG UNIT
ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44569-119-0 01 1 -
133 SEAL; DUST,STRG UNIT
ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-44269-010-0 01 1 -
134 GASKET; COVER,STRG UNIT
(B) ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-09623-045-0 01 1 -
134 GASKET; COVER,STRG UNIT
(A) ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-09623-222-0 01 1 -
134 GASKET; COVER,STRG UNIT
(D) ASM PART: G = 1-44000-702-1, H = 1-44000-703-1 		1-44159-027-0 01 1 -
134 GASKET; COVER,STRG UNIT
(C) ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-44519-082-0 01 1 -
168 GASKET; YOKE
ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-09623-046-0 01 1 -
170 NUT; WARM SHAFT
ASM PART: B = 1-44000-582-0, C = 1-44000-583-0 		1-44569-085-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
