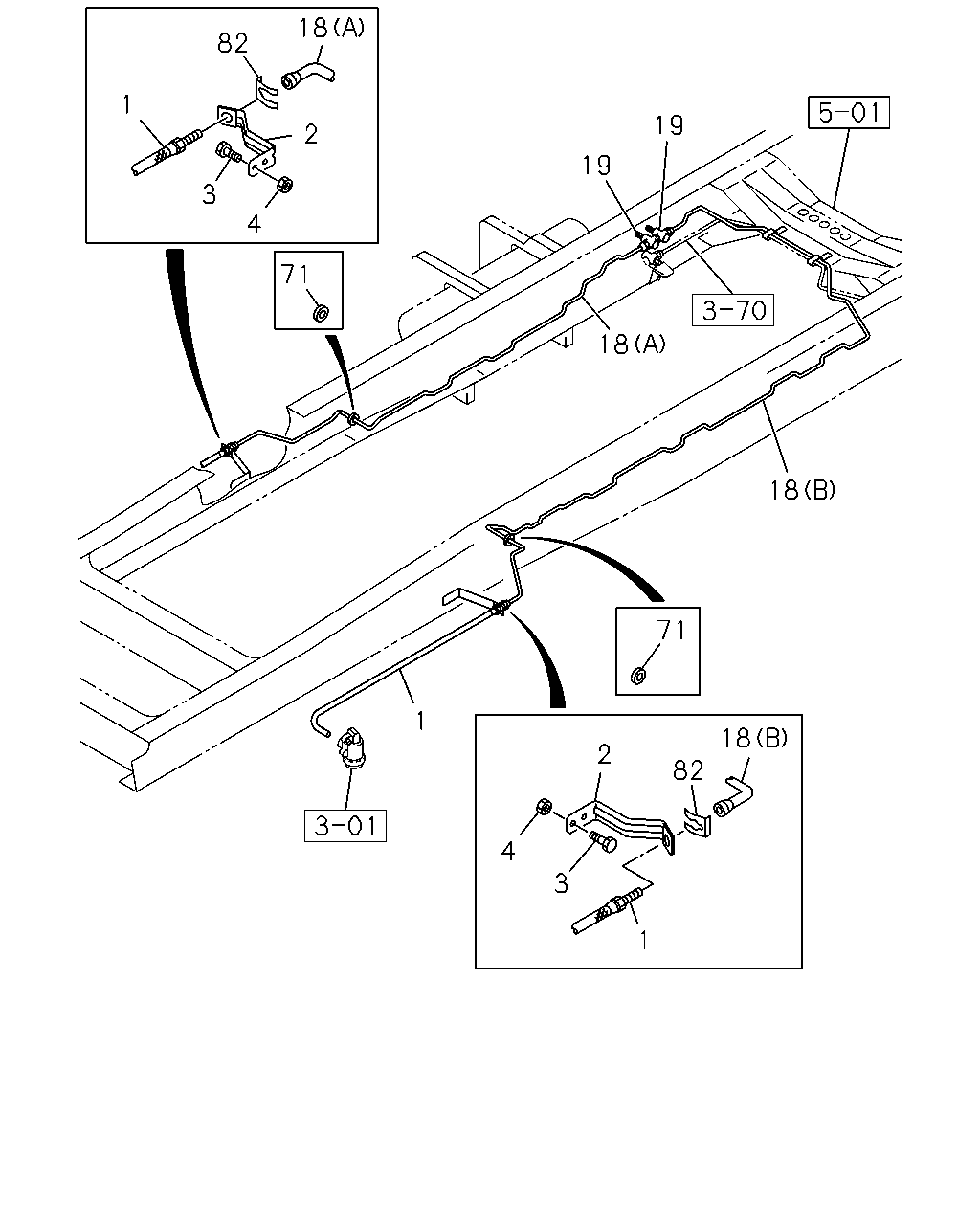

3-52 — BRAKE PIPING; OIL,FRONT (#44718) — 21 parça

18 82 1 19 2 19 3 4 71 18 18 71 1 18 2 82 4 3 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,FRT BRK L=330	8-98024-433-0	02	1	0710-	●	●
2	BRACKET; FLEX HOSE,FRT BRK	8-98012-343-1	02	1	0710-	●	●
3	BOLT; BRKT,FLEX HOSE,FRT BRK M8X25 FLANGE	0-28650-825-0	04	1	0710-0801	●	●
3	BOLT; BRKT,FLEX HOSE,FRT BRK M8X25 FLANGE	0-28650-825-0	02	1	0802-0805	●	●
3	BOLT; BRKT,FLEX HOSE,FRT BRK M8X25 FLANGE	0-28650-825-0	04	1	0806-	●	●
3	BOLT; BRKT,FLEX HOSE,FRT BRK M8X20 FLANGE	0-28650-820-0	02	1	0802-0805	●	●
4	NUT; FLEX HOSE BRKT,FRT BRK M8 FLANGE	0-91180-108-0	04	1	0710-0803	●	●
4	NUT; FLEX HOSE BRKT,FRT BRK M8 FLANGE	0-91180-108-0	04	1	0907-	●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (B) LH LINE L=3240	8-98078-161-0	01	1	0710-	●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (A) RH LINE L=1940	8-98067-420-1	01	1	0710-	●	●
19	UNION; OIL PIPE	8-98018-438-0	02	1	0710-	●	●
71	GROMMET; OIL PIPE ID=24 OD=30 T=17	9-09956-092-1	02	1	0710-	●	●
82	PLATE; FLEX HOSE	8-97360-054-0	02	1	0710-	●	●

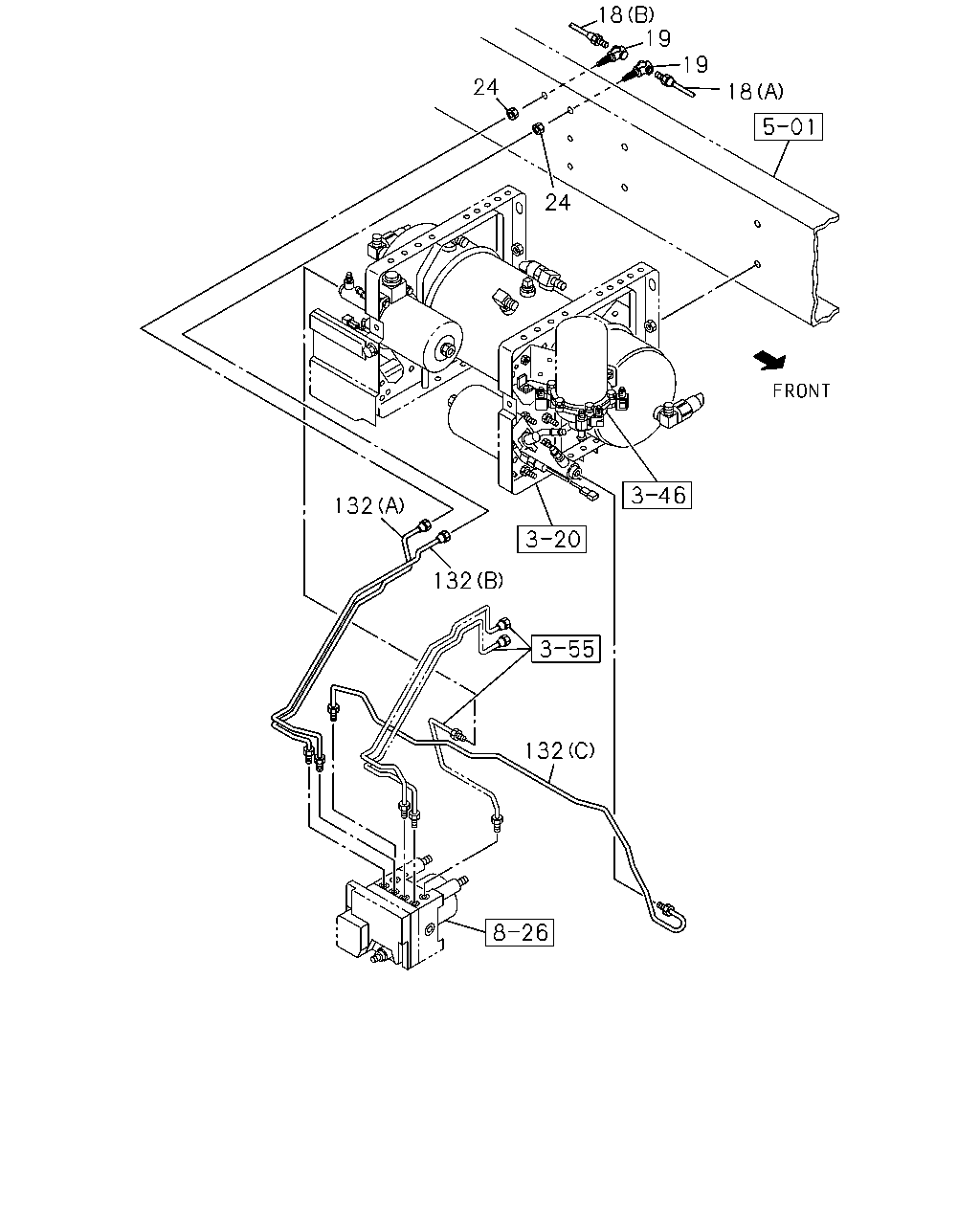

18 19 19 24 18 24 132 132 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
18	PIPE; OIL,UNION TO FRT FLEX HOSE (B) LH LINE L=3240	8-98078-161-0	01	1	0710-	●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (A) RH LINE L=1940	8-98067-420-1	01	1	0710-	●	●
19	UNION; OIL PIPE	8-98018-438-0	02	1	0710-	●	●
24	NUT; UNION,OIL PIPE M10 H=8	1-09400-029-0	02	1	0710-	●	●
132	PIPE; OIL,BRK,HYD UNIT (C) L=949	8-98078-732-0	01	1	0710-	●	●
132	PIPE; OIL,BRK,HYD UNIT (A) LH LINE L=621	8-98011-941-0	01	1	0710-0803	●	●
132	PIPE; OIL,BRK,HYD UNIT (A) LH LINE L=625	8-98116-095-0	01	1	0804-	●	●
132	PIPE; OIL,BRK,HYD UNIT (B) RH LINE L=645	8-98011-949-0	01	1	0710-	●	●
