◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11418 - FSR(AUST)EU4 EXC.SPA ▶ 3 - Brakes, Brake System ▶ 3-46 - AIR DRYER ▶
3-46 — AIR DRYER (#44717) — 60 parça

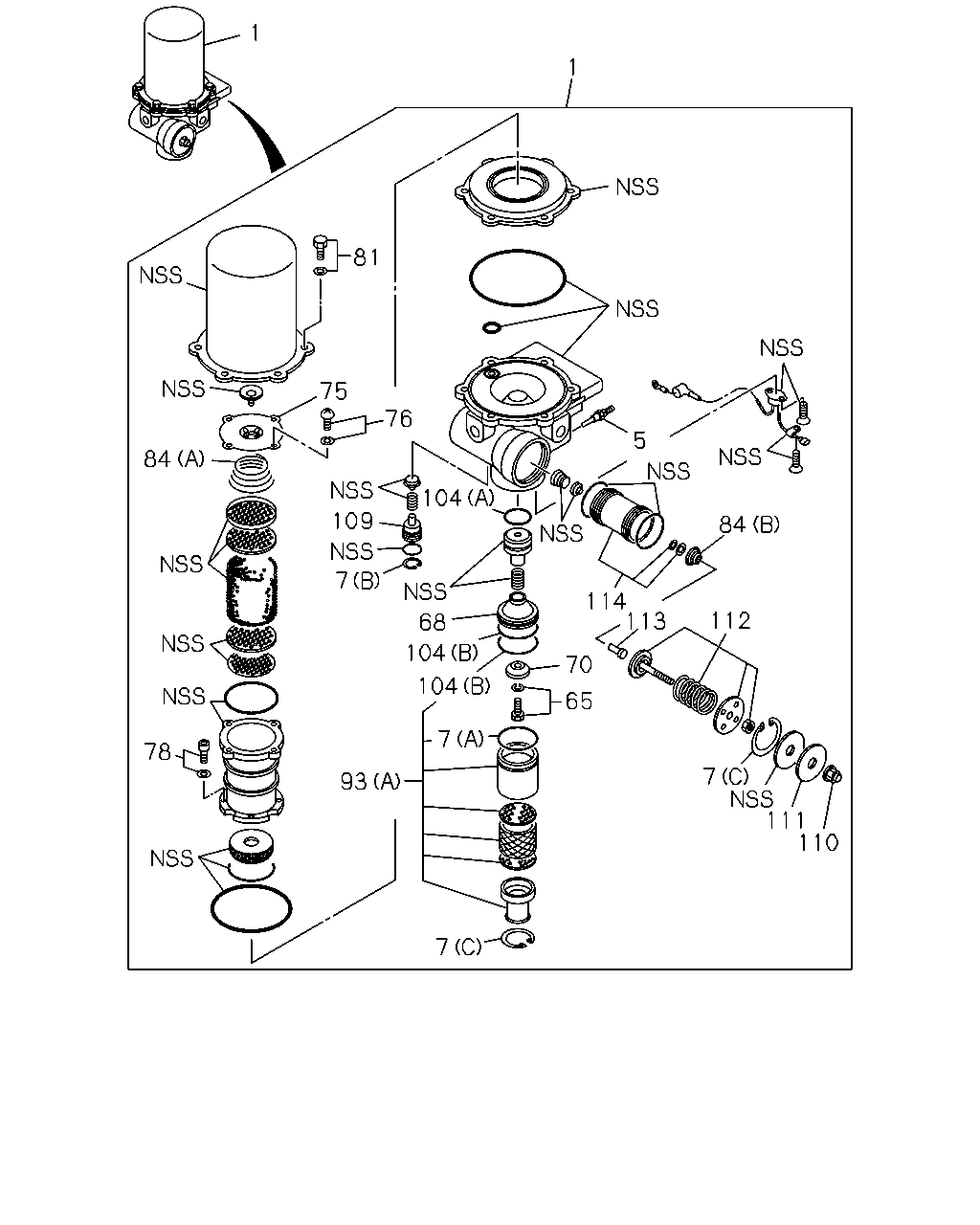

çizim 109313
1 1 84 5 112 114 113 7 111 110 7 93 7 104 104 68 70 65 7 109 76 75 81 84 78 104
BalonParca AdiParca NoAdetTipApplied Date A B
1 DRYER; AIR 1-48190-370-2 01 1 0710-1211 ● ●
1 DRYER; AIR 8-98225-285-0 01 1 1212- ● ●
5 HEATER ASM; AIR DRYER 1-48199-530-0 01 1 0710- ● ●
7 RING; SNAP,AIR DRYER
(D) 		1-47769-017-0 01 1 0710- ● ●
7 RING; SNAP,AIR DRYER
(C) 		1-48199-520-0 02 1 0710- ● ●
7 RING; SNAP,AIR DRYER
(B) 		1-48199-529-0 01 1 0710- ● ●
7 RING; SNAP,AIR DRYER
(A) 		1-48199-579-0 01 1 0710- ● ●
65 BOLT; PURGE VLV 1-48199-517-0 01 1 0710- ● ●
68 BODY; VALVE 1-48199-515-0 01 1 0710- ● ●
70 VALVE; AIR DRYER 1-48199-504-0 01 1 0710- ● ●
75 COVER; CASE,AIR DRYER 1-48199-427-0 01 1 0710- ● ●
76 BOLT; COVER,AIR DRYER 1-48199-412-0 04 1 0710- ● ●
78 BOLT; OIL FILTER,AIR DRYER 1-48199-417-0 04 1 0710- ● ●
81 BOLT; CASE,AIR DRYER 1-48199-436-0 06 1 0710- ● ●
84 SPRING; AIR DRYER
(A) 		1-48199-425-0 01 1 0710- ● ●
84 SPRING; AIR DRYER
(B) 		1-48199-523-0 01 1 0710- ● ●
93 SILENCER; AIR DRYER
(B) 		1-48199-581-0 01 1 0710- ● ●
93 SILENCER; AIR DRYER
(A) 		1-48199-619-0 01 1 0710- ● ●
104 GASKET
(A) 		1-48199-495-0 01 1 0710-1211 ● ●
104 GASKET
(A) 		8-98226-321-0 01 1 1212- ● ●
104 GASKET
(B) 		1-48199-496-0 02 1 0710- ● ●
109 STOPPER; CHECK VALVE 1-48199-539-0 01 1 0710- ● ●
110 NUT; CAP 1-48199-527-0 01 1 0710- ● ●
111 PLATE; GOVERNOR 1-48199-526-0 01 1 0710- ● ●
112 SCREW & SPRING ASM; AIR DRYER 1-48199-524-0 01 1 0710- ● ●
113 STEM; EXHAUST 1-48199-522-0 01 1 0710- ● ●
114 PISTON ASM; GOVERNOR 1-48199-521-0 01 1 0710- ● ●

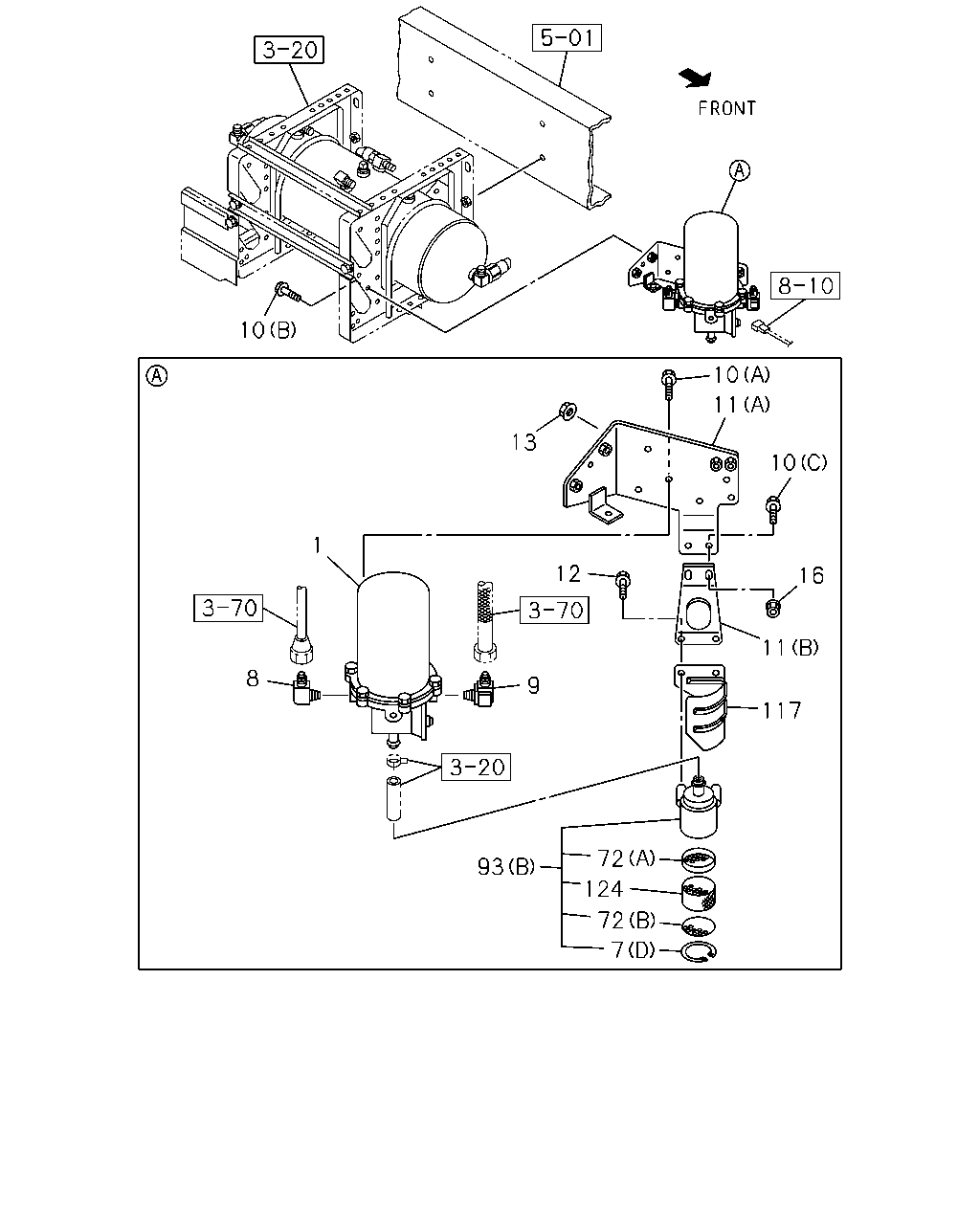

çizim 109478
10 10 11 13 10 1 12 16 11 8 9 117 72 93 124 72 7
BalonParca AdiParca NoAdetTipApplied Date A B
1 DRYER; AIR 1-48190-370-2 01 1 0710-1211 ● ●
1 DRYER; AIR 8-98225-285-0 01 1 1212- ● ●
7 RING; SNAP,AIR DRYER
(D) 		1-47769-017-0 01 1 0710- ● ●
7 RING; SNAP,AIR DRYER
(C) 		1-48199-520-0 02 1 0710- ● ●
7 RING; SNAP,AIR DRYER
(B) 		1-48199-529-0 01 1 0710- ● ●
7 RING; SNAP,AIR DRYER
(A) 		1-48199-579-0 01 1 0710- ● ●
8 CONNECTOR; OUT,AIR DRYER
M20 & PT1/2 ELBOW 		1-09650-443-0 01 1 0710- ● ●
9 CONNECTOR; PIPE,AIR DRYER
M22 & PT1/2 ELBOW 		0-92134-315-0 01 1 0710- ● ●
10 BOLT; AIR DRYER
(B) M8X20 FLANGE 		0-28050-820-0 02 1 0710- ● ●
10 BOLT; AIR DRYER
(A) M10X25 FLANGE 		0-28051-025-0 03 1 0710- ● ●
10 BOLT; AIR DRYER
(C) M8X25 W/LK&PL WASHER 		1-09980-548-0 02 1 0710- ● ●
11 BRACKET; AIR DRYER
(B) 		8-98039-092-0 01 1 0710- ● ●
11 BRACKET; AIR DRYER
(A) 		8-98044-548-4 01 1 0710- ● ●
12 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0710- ● ●
13 NUT; AIR DRYER
M8 FLANGE 		0-91180-108-0 02 1 0710- ● ●
16 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0710- ● ●
72 PLATE; FILTER,AIR DRYER
(A) 		1-48199-585-0 01 1 0710- ● ●
72 PLATE; FILTER,AIR DRYER
(B) 		1-48199-602-0 01 1 0710- ● ●
93 SILENCER; AIR DRYER
(B) 		1-48199-581-0 01 1 0710- ● ●
93 SILENCER; AIR DRYER
(A) 		1-48199-619-0 01 1 0710- ● ●
117 COVER; SILENCER 8-98065-972-1 01 1 0710- ● ●
124 FILTER; SILENCER 1-48199-465-0 01 1 0710- ● ●

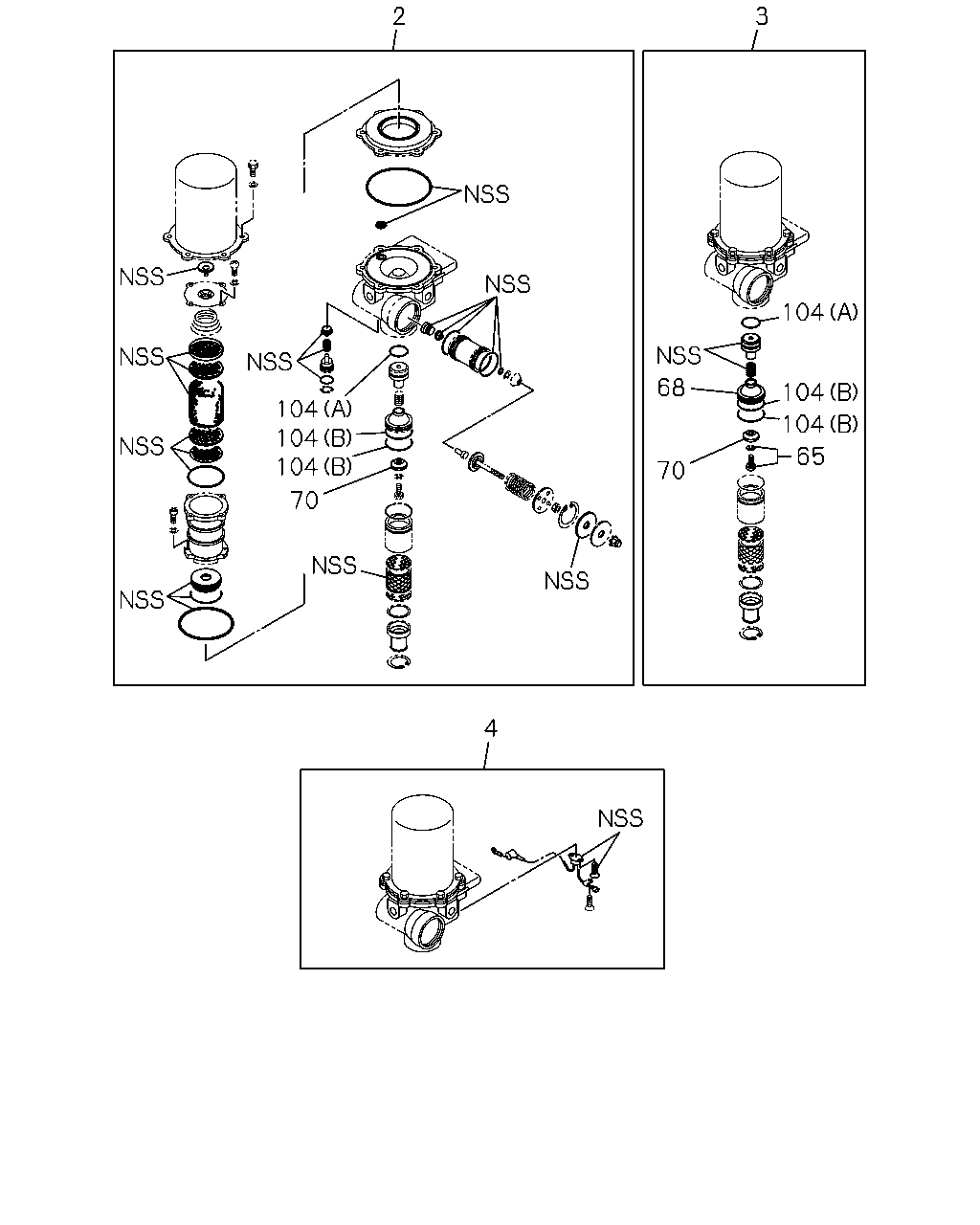

çizim 109616
2 3 104 68 104 104 104 104 104 65 70 70 4
BalonParca AdiParca NoAdetTipApplied Date A B
2 REPAIR KIT; AIR DRYER 1-85576-457-0 01 1 0710-1211 ● ●
2 REPAIR KIT; AIR DRYER 8-98226-323-0 01 1 1212- ● ●
3 PISTON KIT; AIR DRYER 1-85576-383-0 01 1 0710-1211 ● ●
3 PISTON KIT; AIR DRYER 8-98226-322-0 01 1 1212- ● ●
4 THERMOSTAT KIT; AIR DRYER 1-85576-443-0 01 1 0710- ● ●
65 BOLT; PURGE VLV 1-48199-517-0 01 1 0710- ● ●
68 BODY; VALVE 1-48199-515-0 01 1 0710- ● ●
70 VALVE; AIR DRYER 1-48199-504-0 01 1 0710- ● ●
104 GASKET
(A) 		1-48199-495-0 01 1 0710-1211 ● ●
104 GASKET
(A) 		8-98226-321-0 01 1 1212- ● ●
104 GASKET
(B) 		1-48199-496-0 02 1 0710- ● ●
