4-36 — POWER STEERING CONTROL; ENGINE SIDE (#4471) — 38 parça

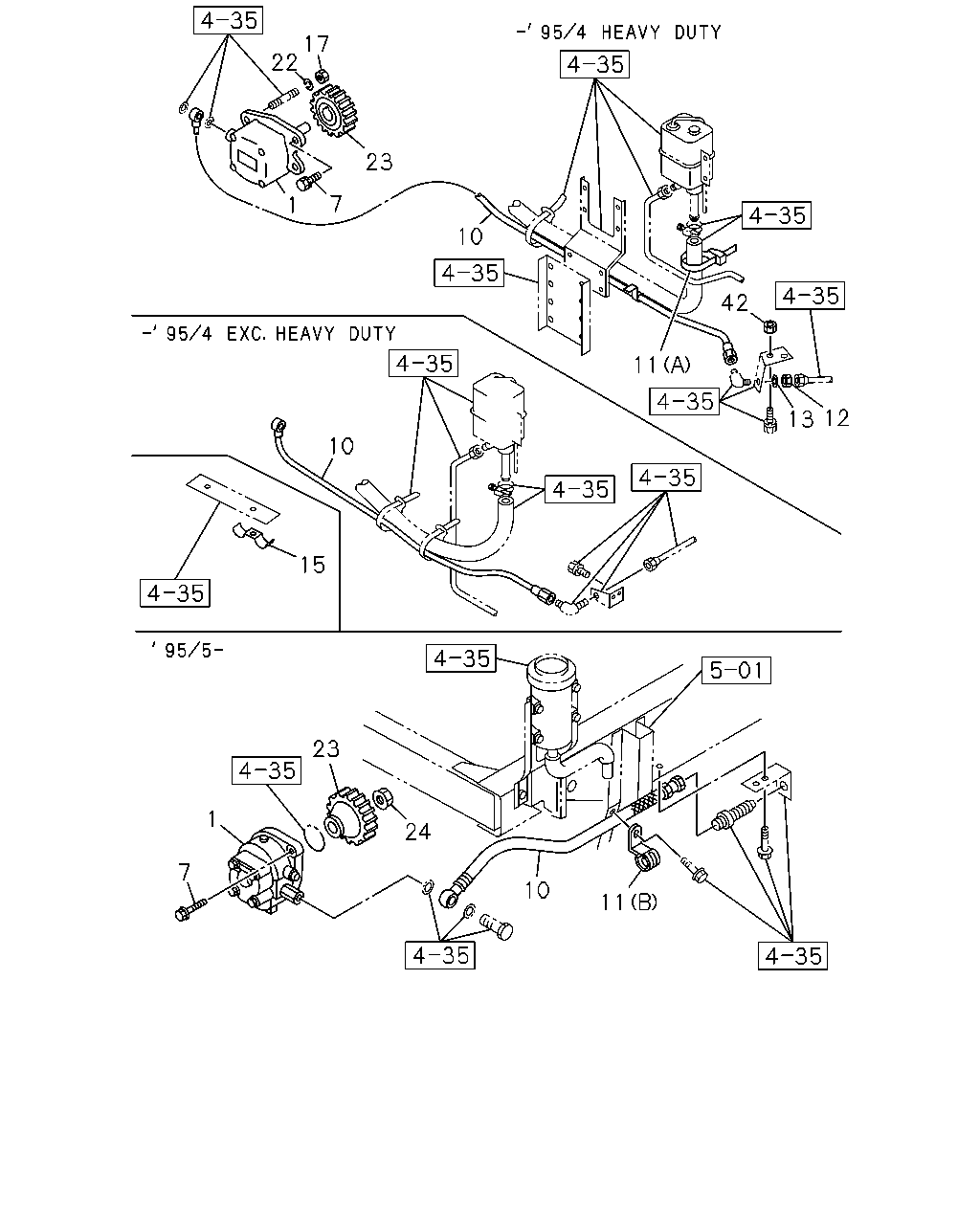

çizim 36892
17 22 23 7 1 10 42 11 12 13 10 15 23 1 24 7 10 11
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. POWER STRG(N40) 		1-19500-285-3 01 1 9101-9504 ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-532-0 01 1 9505-0202 ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-596-1 01 1 0203-1112 ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		8-98202-669-0 01 1 1201- ● ●
7 BOLT; OIL PUMP,P/S
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> POWER STRG(N40) ENG OVERRUN BUZZER<SK4>,TACHOMETER<UD7> ISUZU M/T<X9A> M10X75 		0-10806-075-0 01 1 9101-9504 ● ●
7 BOLT; OIL PUMP,P/S
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER STRG(N40) M10X75 		0-10806-075-0 01 1 9101-9504 ●
7 BOLT; OIL PUMP,P/S
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> POWER STRG(N40) ISUZU M/T<X9A> EXC. ENG OVERRUN BUZZER<SK4>,TACHOMETER<UD7> M10X85 		0-10806-085-0 01 1 9101-9504 ● ●
7 BOLT; OIL PUMP,P/S
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> POWER STRG(N40) ENG OVERRUN BUZZER<SK4>,TACHOMETER<UD7> ISUZU M/T<X9A> M10X40 W/LK WASHER 		0-50041-040-0 01 1 9101-9504 ● ●
7 BOLT; OIL PUMP,P/S
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER STRG(N40) M10X40 W/LK WASHER 		0-50041-040-0 01 1 9101-9504 ●
7 BOLT; OIL PUMP,P/S
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> POWER STRG(N40) ISUZU M/T<X9A> EXC. ENG OVERRUN BUZZER<SK4>,TACHOMETER<UD7> M10X50 W/LK WASHER 		0-50041-050-0 01 1 9101-9504 ● ●
7 BOLT; OIL PUMP,P/S
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER STRG(N40) ISUZU M/T<X9A> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M10X25 W/LK WASHER 		0-50041-025-0 01 1 9101-9504 ● ●
7 BOLT; OIL PUMP,P/S
M10X55 FLANGE 		8-94399-863-1 02 1 9505-0805 ● ●
7 BOLT; OIL PUMP,P/S
M10X55 FLANGE 		8-97365-449-0 02 1 0806- ● ●
7 BOLT; OIL PUMP,P/S
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER STRG(N40) ISUZU M/T<X9A> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M10X60 W/LK WASHER 		0-50041-060-0 01 1 9101-9504 ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> POWER STRG(N40) L=900 		0-09546-900-0 01 1 9101-9504 ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
L=550 		0-09546-550-0 01 1 9505-0606 ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
L=550 		0-89546-550-0 01 1 0607- ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
POWER STRG(N40) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=800 		1-09364-529-1 01 1 9101-9504 ● ●
11 CLIP; FLEX HOSE
POWER STRG(N40) (A) L=140 		5-09707-031-0 01 1 9101-9504 ● ●
11 CLIP; FLEX HOSE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> POWER STRG(N40) (A) L=140 		5-09707-031-0 01 1 9101-9504 ● ●
11 CLIP; FLEX HOSE
(B) ID=18 H=23 L=28 		1-09700-860-0 01 1 9505- ● ●
12 NUT; UNION,FLEX HOSE,P/S
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> POWER STRG(N40) M14 		9-99110-414-0 01 1 9101-9504 ● ●
13 WASHER; LK,FLEX HOSE,P/S
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> POWER STRG(N40) ID=14.2 		9-09150-514-0 01 1 9101-9312 ● ●
15 CLIP; OIL PIPE SUCTION
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER STRG(N40) ID=13 & 13 		1-09700-801-0 02 1 9101-9504 ●
15 CLIP; OIL PIPE SUCTION
WHEEL BASE 4500MM(45W) POWER STRG(N40) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ID=13 & 13 L=16 & 16 		1-09700-666-0 04 1 9101-9504 ●
15 CLIP; OIL PIPE SUCTION
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> POWER STRG(N40) ID=13 & 13 L=18 & 18 		1-09700-833-0 02 1 9101-9504 ● ●
15 CLIP; OIL PIPE SUCTION
ID=16 & 13 L=21.5 & 21.5 		1-09700-668-0 02 1 9505- ● ●
15 CLIP; OIL PIPE SUCTION
WHEEL BASE 5000MM(50W) POWER STRG(N40) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ID=13 & 13 L=16 & 16 		1-09700-666-0 05 1 9101-9504 ● ●
15 CLIP; OIL PIPE SUCTION
WHEEL BASE 5000MM(50W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER STRG(N40) ID=13 & 13 L=18 & 18 		1-09700-833-0 04 1 9101-9504 ●
15 CLIP; OIL PIPE SUCTION
WHEEL BASE 5000MM(50W) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER STRG(N40) ID=11 & 13 L=17 & 18 		1-09700-748-0 02 1 9111-9504 ●
17 NUT; POWER STRG PUMP
POWER STRG(N40) M10 		9-09110-510-0 01 1 9101-9504 ● ●
22 WASHER; LK,OIL PUMP,P/S
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER STRG(N40) ISUZU M/T<X9A> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ID=10.2 		9-09150-510-0 01 1 9101-9504 ● ●
22 WASHER; LK,OIL PUMP,P/S
POWER STRG(N40) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ID=10.2 		9-09150-510-0 02 1 9101-9504 ● ●
23 GEAR; OIL PUMP
POWER STRG(N40) Z=28 		5-19581-001-3 01 1 9101-9504 ● ●
23 GEAR; OIL PUMP
Z=30 		8-94396-957-3 01 1 9505- ● ●
24 NUT; GEAR,P/S PUMP
M14 FLANGE 		0-91150-114-0 01 1 9505-0712 ● ●
24 NUT; GEAR,P/S PUMP
M14 FLANGE 		0-91180-114-0 01 1 0801- ● ●
42 NUT; ADJ PLATE
POWER STRG(N40) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8 		9-09110-508-0 01 1 9101-9504 ● ●
