6-70 — FLOOR PANEL (#44709) — 366 parça

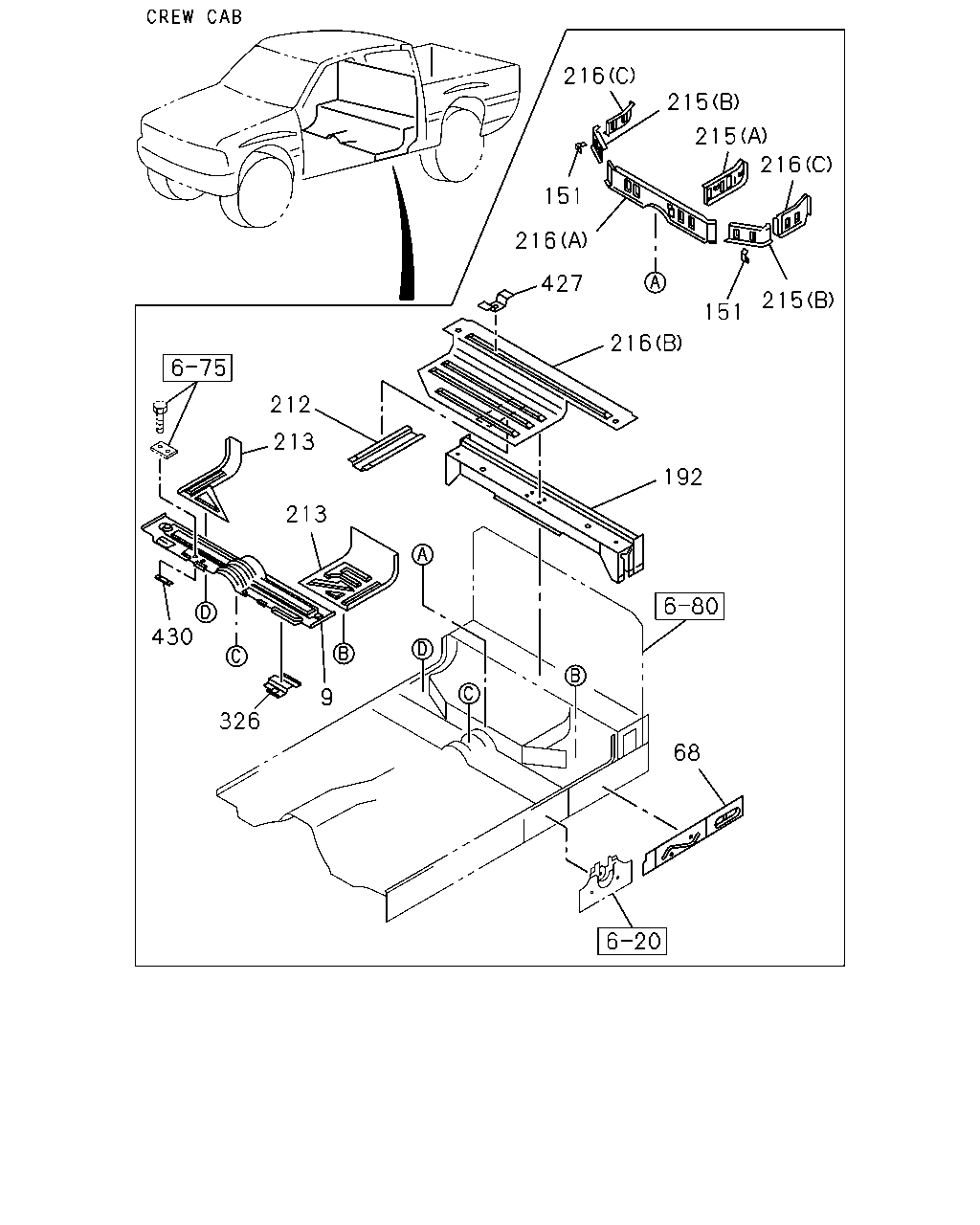

çizim 64116
216 215 215 216 151 216 427 215 151 216 212 213 192 213 430 9 326 68
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
9 16.545 PANEL; RR FLOOR,FRT 8-97139-102-0 01 1 9804-0007 ● ●
9 16.545 PANEL; RR FLOOR,FRT 8-97286-937-0 01 1 0008- ● ●
68 16.570 PANEL; ROCKER INNER,CENTER
4JG2 ENG(RJC),4JA1 ENG(RLE) EXC. AIR BAG DRIVER(AJ3) 16.545 		8-94454-055-3 02 1 9804-0107 ●
68 16.570 PANEL; ROCKER INNER,CENTER
AIR BAG DRIVER(AJ3) 16.545 		8-94454-055-3 02 1 9804-0107 ●
68 16.570 PANEL; ROCKER INNER,CENTER
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 16.545 		8-94454-055-3 02 1 9804-0107 ●
68 16.570 PANEL; ROCKER INNER,CENTER
16.545 		8-94454-055-3 02 1 0108- ● ●
68 16.570 PANEL; ROCKER INNER,CENTER
16.545 		8-94454-358-1 01 1 9804-0107 ● ●
68 16.570 PANEL; ROCKER INNER,CENTER
16.545 		8-94454-358-1 01 1 0108- ● ●
68 16.570 PANEL; ROCKER INNER,CENTER
16.545 		8-94454-357-1 01 1 9804-0107 ● ●
68 16.570 PANEL; ROCKER INNER,CENTER
16.545 		8-94454-357-1 01 1 0108- ● ●
151 16.670 BRACKET; SEAT CUSHION STOPPER 8-94454-355-0 02 1 9804- ● ●
192 16.545 MEMBER; RR FLOOR PANEL
4JG2 ENG(RJC),4JA1 ENG(RLE) EXC. AIR BAG DRIVER(AJ3) 		8-94454-041-0 01 1 9804-0107 ●
192 16.545 MEMBER; RR FLOOR PANEL
AIR BAG DRIVER(AJ3) 		8-94454-041-0 01 1 9804-0107 ●
192 16.545 MEMBER; RR FLOOR PANEL
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 		8-94454-041-0 01 1 9804-0107 ●
192 16.545 MEMBER; RR FLOOR PANEL 8-94454-041-0 01 1 0108- ● ●
192 16.545 MEMBER; RR FLOOR PANEL 8-94454-344-0 01 1 9804-9906 ● ●
192 16.545 MEMBER; RR FLOOR PANEL 8-97216-704-0 01 1 9907-0107 ● ●
192 16.545 MEMBER; RR FLOOR PANEL 8-97318-704-0 01 1 0108- ● ●
212 16.670 PANEL; REINF,SEAT RISER UPR 8-94473-966-0 01 1 9804- ● ●
213 16.545 PANEL; RR FLOOR SIDE 8-97070-586-2 01 1 9804-9906 ● ●
213 16.545 PANEL; RR FLOOR SIDE 8-97227-382-0 01 1 9907- ● ●
213 16.545 PANEL; RR FLOOR SIDE 8-94454-325-0 01 1 9804- ● ●
215 16.670 PANEL; SEAT RISER,CENTER
(A) 		8-97070-581-1 01 1 9804- ● ●
215 16.670 PANEL; SEAT RISER,CENTER
(B) 		8-97070-585-0 01 1 9804- ● ●
215 16.670 PANEL; SEAT RISER,CENTER
(B) 		8-97070-584-0 01 1 9804- ● ●
216 16.670 PANEL; SEAT RISER
(A) 		8-94454-332-0 01 1 9804- ● ●
216 16.670 PANEL; SEAT RISER
(B) 		8-94454-338-1 01 1 9804-9906 ● ●
216 16.670 PANEL; SEAT RISER
(B) 		8-97216-703-1 01 1 9907- ● ●
216 16.670 PANEL; SEAT RISER
(C) 		8-97132-317-1 01 1 9804-0003 ● ●
216 16.670 PANEL; SEAT RISER
(C) 		8-97257-872-0 01 1 0004- ● ●
216 16.670 PANEL; SEAT RISER
(C) 		8-97132-316-0 01 1 9804-0003 ● ●
216 16.670 PANEL; SEAT RISER
(C) 		8-97257-870-0 01 1 0004- ● ●
326 16.545 PATCH; RR FLOOR 8-97226-254-0 01 1 9907- ● ●
427 16.545 BRACKET; CABLE 8-97212-925-0 01 1 9907- ● ●
430 16.545 PATCH; DUMPER 8-97139-101-0 01 1 9804- ● ●

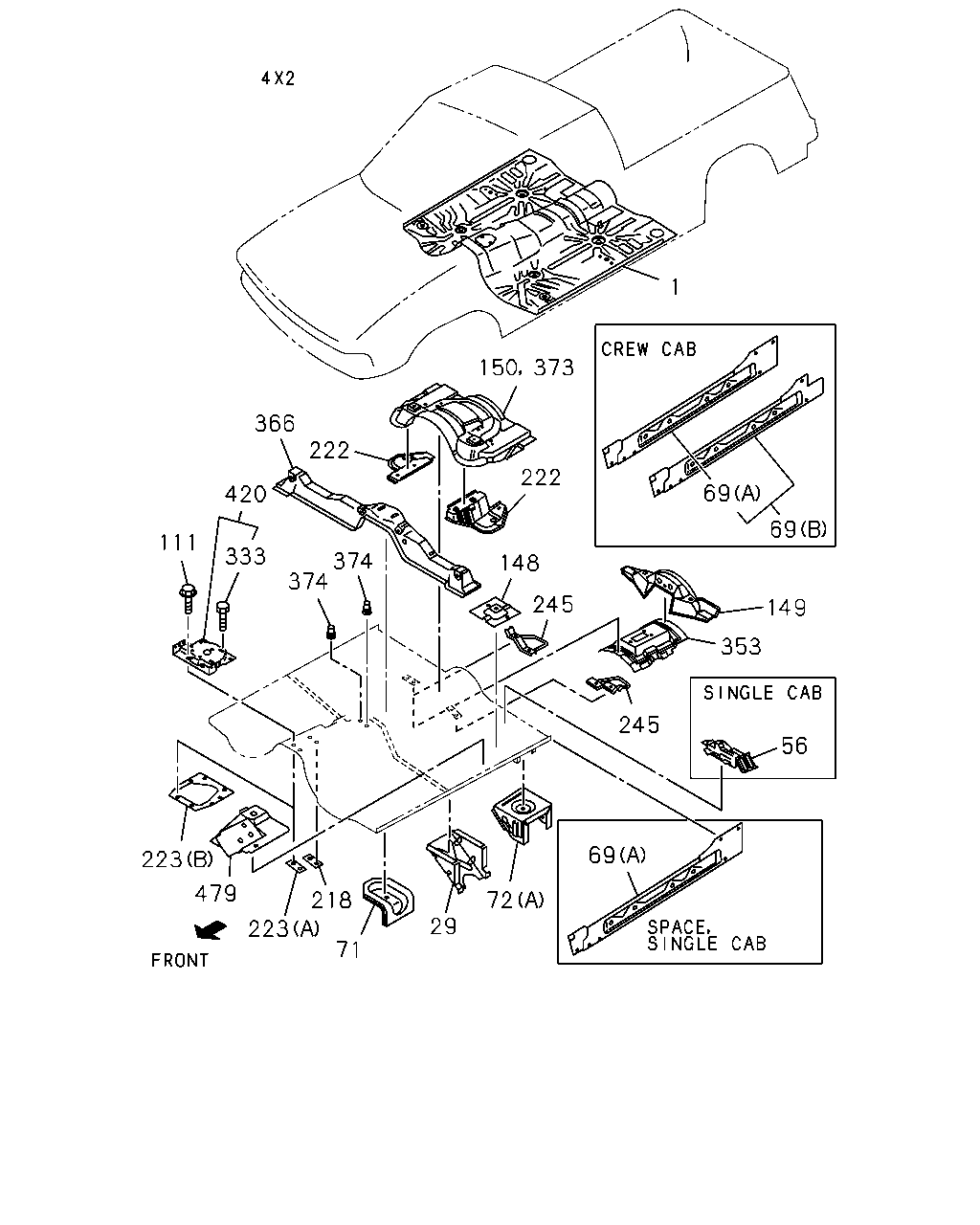

çizim 64466
1 366 222 69 222 420 374 374 69 111 333 148 245 149 353 245 56 218 223 69 223 479 72 29 71 150 373
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.545 PANEL; FLOOR 8-97012-956-0 01 1 9804-9906 ● ● ●
1 16.545 PANEL; FLOOR
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. AIR BAG DRIVER(AJ3) 		8-97012-956-0 01 1 9907-0011 ● ● ●
1 16.545 PANEL; FLOOR
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. AIR BAG DRIVER(AJ3),TURKISH EQUIPMENT(S6S) 		8-97012-956-1 01 1 0012-0101 ● ● ●
1 16.545 PANEL; FLOOR
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. AIR BAG DRIVER(AJ3),TURKISH EQUIPMENT(S6S) 		8-97300-837-2 01 1 0102- ● ● ●
1 16.545 PANEL; FLOOR
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 		8-94359-283-0 01 1 9804-9906 ●
1 16.545 PANEL; FLOOR 8-94359-283-0 01 1 9804-9906 ● ●
1 16.545 PANEL; FLOOR
AIR BAG DRIVER(AJ3) 		8-97214-390-0 01 1 9907-0011 ● ● ●
1 16.545 PANEL; FLOOR
A/T AISIN(RMD) EXC. AIR BAG DRIVER(AJ3) 		8-97214-390-0 01 1 9907-0011 ●
1 16.545 PANEL; FLOOR 8-97214-390-0 01 1 9907-0011 ● ● ●
1 16.545 PANEL; FLOOR
AIR BAG DRIVER(AJ3) 		8-97214-390-0 01 1 0012-0101 ● ● ●
1 16.545 PANEL; FLOOR
A/T AISIN(RMD) EXC. AIR BAG DRIVER(AJ3) 		8-97214-390-0 01 1 0012-0101 ●
1 16.545 PANEL; FLOOR
TURKISH EQUIPMENT(S6S) EXC. AIR BAG DRIVER(AJ3) 		8-97214-390-0 01 1 0012-0101 ●
1 16.545 PANEL; FLOOR 8-97214-390-0 01 1 0012-0101 ● ● ●
1 16.545 PANEL; FLOOR
AIR BAG DRIVER(AJ3) 		8-97300-839-1 01 1 0102- ● ● ●
1 16.545 PANEL; FLOOR
A/T AISIN(RMD) EXC. AIR BAG DRIVER(AJ3) 		8-97300-839-1 01 1 0102- ●
1 16.545 PANEL; FLOOR
TURKISH EQUIPMENT(S6S) EXC. AIR BAG DRIVER(AJ3) 		8-97300-839-1 01 1 0102- ●
1 16.545 PANEL; FLOOR 8-97300-839-1 01 1 0102- ● ● ●
29 16.545 GUSSET 8-94359-305-0 02 1 9804- ● ● ● ● ● ●
56 08.820 BRACKET; JACK 8-94473-876-1 01 1 9804- ● ●
69 16.545 PANEL; ROCKER INNER
(A) 		8-94455-733-4 01 1 9804- ● ● ● ● ● ●
69 16.545 PANEL; ROCKER INNER
(A) 		8-94455-732-4 01 1 9804- ● ● ● ● ● ●
69 16.545 PANEL; ROCKER INNER
(B) 		8-94343-385-0 01 1 9804- ● ●
69 16.545 PANEL; ROCKER INNER
(B) 		8-94343-384-0 01 1 9804- ● ●
71 16.545 BRACKET; CAB MTG,CENTER 8-94359-298-1 01 1 9804-9904 ● ● ● ● ● ●
71 16.545 BRACKET; CAB MTG,CENTER 8-97167-614-1 01 1 9905- ● ● ● ● ● ●
71 16.545 BRACKET; CAB MTG,CENTER 8-94359-297-1 01 1 9804-9904 ● ● ● ● ● ●
71 16.545 BRACKET; CAB MTG,CENTER 8-97167-613-1 01 1 9905- ● ● ● ● ● ●
72 16.545 BRACKET; CAB MTG,RR
4JG2 ENG(RJC),4JA1 ENG(RLE) EXC. AIR BAG DRIVER(AJ3) (B) 		8-94454-047-0 01 1 9804-0107 ●
72 16.545 BRACKET; CAB MTG,RR
AIR BAG DRIVER(AJ3) (B) 		8-94454-047-0 01 1 9804-0107 ●
72 16.545 BRACKET; CAB MTG,RR
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) (B) 		8-94454-047-0 01 1 9804-0107 ●
72 16.545 BRACKET; CAB MTG,RR
(B) 		8-94454-047-0 01 1 0108- ● ●
72 16.545 BRACKET; CAB MTG,RR
4JG2 ENG(RJC),4JA1 ENG(RLE) EXC. AIR BAG DRIVER(AJ3) (B) 		8-94454-046-0 01 1 9804-0107 ●
72 16.545 BRACKET; CAB MTG,RR
AIR BAG DRIVER(AJ3) (B) 		8-94454-046-0 01 1 9804-0107 ●
72 16.545 BRACKET; CAB MTG,RR
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) (B) 		8-94454-046-0 01 1 9804-0107 ●
72 16.545 BRACKET; CAB MTG,RR
(B) 		8-94454-046-0 01 1 0108- ● ●
72 16.545 BRACKET; CAB MTG,RR
(A) 		8-97803-497-0 01 1 9804- ● ● ● ● ● ●
72 16.545 BRACKET; CAB MTG,RR
(A) 		8-97803-496-0 01 1 9804- ● ● ● ● ● ●
111 16.549 BOLT; PANEL
AIR BAG DRIVER(AJ3) 16.505 M6X12 FLANGE 		0-28480-612-0 06 1 9907-0004 ● ●
111 16.549 BOLT; PANEL
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 16.505 M6X12 FLANGE 		0-28480-612-0 06 1 9907-0004 ●
111 16.549 BOLT; PANEL
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) GRADE LS(RBD) 16.505 M6X12 FLANGE 		0-28480-612-0 06 1 9907-0004 ●
111 16.549 BOLT; PANEL
16.505 M6X12 FLANGE 		0-28480-612-0 06 1 9907-0004 ●
111 16.549 BOLT; PANEL
AIR BAG DRIVER(AJ3) 16.505 M6X12 FLANGE 		0-28480-612-0 06 1 0005-0011 ● ● ●
111 16.549 BOLT; PANEL
A/T AISIN(RMD) EXC. AIR BAG DRIVER(AJ3) 16.505 M6X12 FLANGE 		0-28480-612-0 06 1 0005-0011 ●
111 16.549 BOLT; PANEL
16.505 M6X12 FLANGE 		0-28480-612-0 06 1 0005-0011 ● ● ●
111 16.549 BOLT; PANEL
AIR BAG DRIVER(AJ3) 16.505 M6X12 FLANGE 		0-28480-612-0 06 1 0012- ● ● ●
111 16.549 BOLT; PANEL
A/T AISIN(RMD) EXC. AIR BAG DRIVER(AJ3) 16.505 M6X12 FLANGE 		0-28480-612-0 06 1 0012- ●
111 16.549 BOLT; PANEL
TURKISH EQUIPMENT(S6S) EXC. AIR BAG DRIVER(AJ3) 16.505 M6X12 FLANGE 		0-28480-612-0 06 1 0012- ●
111 16.549 BOLT; PANEL
16.505 M6X12 FLANGE 		0-28480-612-0 06 1 0012- ● ● ●
148 16.674 BRACKET; SEAT 8-94435-642-0 02 1 9804- ● ● ● ● ● ●
149 16.545 BRACKET; SEAT BELT ROD
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 		8-97112-416-2 01 1 9804-9906 ●
149 16.545 BRACKET; SEAT BELT ROD 8-97112-416-2 01 1 9804-9906 ● ●
149 16.545 BRACKET; SEAT BELT ROD
AIR BAG DRIVER(AJ3) 		8-97112-416-2 01 1 9907-0011 ● ● ●
149 16.545 BRACKET; SEAT BELT ROD
A/T AISIN(RMD) EXC. AIR BAG DRIVER(AJ3) 		8-97112-416-2 01 1 9907-0011 ●
149 16.545 BRACKET; SEAT BELT ROD 8-97112-416-2 01 1 9907-0011 ● ● ●
149 16.545 BRACKET; SEAT BELT ROD
AIR BAG DRIVER(AJ3) 		8-97112-416-2 01 1 0012- ● ● ●
149 16.545 BRACKET; SEAT BELT ROD
A/T AISIN(RMD) EXC. AIR BAG DRIVER(AJ3) 		8-97112-416-2 01 1 0012- ●
149 16.545 BRACKET; SEAT BELT ROD
TURKISH EQUIPMENT(S6S) EXC. AIR BAG DRIVER(AJ3) 		8-97112-416-2 01 1 0012- ●
149 16.545 BRACKET; SEAT BELT ROD 8-97112-416-2 01 1 0012- ● ● ●
150 16.545 BRACKET; SEAT BELT,ANCHOR 8-97013-535-1 01 1 9804-9906 ● ● ●
150 16.545 BRACKET; SEAT BELT,ANCHOR
EXC. AIR BAG DRIVER(AJ3) 		8-97013-535-1 01 1 9907-0011 ● ●
150 16.545 BRACKET; SEAT BELT,ANCHOR
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. AIR BAG DRIVER(AJ3) 		8-97013-535-1 01 1 9907-0011 ●
150 16.545 BRACKET; SEAT BELT,ANCHOR
EXC. AIR BAG DRIVER(AJ3) 		8-97013-535-1 01 1 0012- ● ●
150 16.545 BRACKET; SEAT BELT,ANCHOR
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. AIR BAG DRIVER(AJ3),TURKISH EQUIPMENT(S6S) 		8-97013-535-1 01 1 0012- ●
218 04.008 PATCH; A/T CONT LEVER 8-97800-803-1 01 1 9804-9906 ● ● ● ● ● ●
218 04.008 PATCH; A/T CONT LEVER
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. AIR BAG DRIVER(AJ3) 		8-97800-803-1 01 1 9907-0011 ● ● ●
218 04.008 PATCH; A/T CONT LEVER
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. AIR BAG DRIVER(AJ3),TURKISH EQUIPMENT(S6S) 		8-97800-803-1 01 1 0012- ● ● ●
222 16.545 PATCH; BRKT
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 		8-94199-260-2 01 1 9804-9906 ●
222 16.545 PATCH; BRKT 8-94199-260-2 01 1 9804-9906 ● ●
222 16.545 PATCH; BRKT
AIR BAG DRIVER(AJ3) 		8-94199-260-2 01 1 9907-0011 ● ● ●
222 16.545 PATCH; BRKT
A/T AISIN(RMD) EXC. AIR BAG DRIVER(AJ3) 		8-94199-260-2 01 1 9907-0011 ●
222 16.545 PATCH; BRKT 8-94199-260-2 01 1 9907-0011 ● ● ●
222 16.545 PATCH; BRKT
AIR BAG DRIVER(AJ3) 		8-94199-260-2 01 1 0012-0107 ● ● ●
222 16.545 PATCH; BRKT
A/T AISIN(RMD) EXC. AIR BAG DRIVER(AJ3) 		8-94199-260-2 01 1 0012-0107 ●
222 16.545 PATCH; BRKT
TURKISH EQUIPMENT(S6S) EXC. AIR BAG DRIVER(AJ3) 		8-94199-260-2 01 1 0012-0107 ●
222 16.545 PATCH; BRKT 8-94199-260-2 01 1 0012-0107 ● ● ●
222 16.545 PATCH; BRKT
AIR BAG DRIVER(AJ3) 		8-94199-260-2 01 1 0108- ● ● ●
222 16.545 PATCH; BRKT
A/T AISIN(RMD) EXC. AIR BAG DRIVER(AJ3) 		8-94199-260-2 01 1 0108- ●
222 16.545 PATCH; BRKT
TURKISH EQUIPMENT(S6S) EXC. AIR BAG DRIVER(AJ3) 		8-94199-260-2 01 1 0108- ●
222 16.545 PATCH; BRKT 8-94199-260-2 01 1 0108- ● ● ●
222 16.545 PATCH; BRKT
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 		8-94199-259-2 01 1 9804-9906 ●
222 16.545 PATCH; BRKT 8-94199-259-2 01 1 9804-9906 ● ●
222 16.545 PATCH; BRKT
AIR BAG DRIVER(AJ3) 		8-94199-259-2 01 1 9907-0011 ● ● ●
222 16.545 PATCH; BRKT
A/T AISIN(RMD) EXC. AIR BAG DRIVER(AJ3) 		8-94199-259-2 01 1 9907-0011 ●
222 16.545 PATCH; BRKT 8-94199-259-2 01 1 9907-0011 ● ● ●
222 16.545 PATCH; BRKT
AIR BAG DRIVER(AJ3) 		8-94199-259-2 01 1 0012-0107 ● ● ●
222 16.545 PATCH; BRKT
A/T AISIN(RMD) EXC. AIR BAG DRIVER(AJ3) 		8-94199-259-2 01 1 0012-0107 ●
222 16.545 PATCH; BRKT
TURKISH EQUIPMENT(S6S) EXC. AIR BAG DRIVER(AJ3) 		8-94199-259-2 01 1 0012-0107 ●
222 16.545 PATCH; BRKT 8-94199-259-2 01 1 0012-0107 ● ● ●
222 16.545 PATCH; BRKT
AIR BAG DRIVER(AJ3) 		8-94199-259-2 01 1 0108- ● ● ●
222 16.545 PATCH; BRKT
A/T AISIN(RMD) EXC. AIR BAG DRIVER(AJ3) 		8-94199-259-2 01 1 0108- ●
222 16.545 PATCH; BRKT
TURKISH EQUIPMENT(S6S) EXC. AIR BAG DRIVER(AJ3) 		8-94199-259-2 01 1 0108- ●
222 16.545 PATCH; BRKT 8-94199-259-2 01 1 0108- ● ● ●
223 16.650 PATCH; CONSOLE BOX
AIR BAG DRIVER(AJ3) (B) 		8-94197-591-1 01 1 9907-0011 ● ● ●
223 16.650 PATCH; CONSOLE BOX
A/T AISIN(RMD) EXC. AIR BAG DRIVER(AJ3) (B) 		8-94197-591-1 01 1 9907-0011 ●
223 16.650 PATCH; CONSOLE BOX
(B) 		8-94197-591-1 01 1 9907-0011 ● ● ●
223 16.650 PATCH; CONSOLE BOX
AIR BAG DRIVER(AJ3) (B) 		8-94197-591-1 01 1 0012- ● ● ●
223 16.650 PATCH; CONSOLE BOX
A/T AISIN(RMD) EXC. AIR BAG DRIVER(AJ3) (B) 		8-94197-591-1 01 1 0012- ●
223 16.650 PATCH; CONSOLE BOX
TURKISH EQUIPMENT(S6S) EXC. AIR BAG DRIVER(AJ3) (B) 		8-94197-591-1 01 1 0012- ●
223 16.650 PATCH; CONSOLE BOX
(B) 		8-94197-591-1 01 1 0012- ● ● ●
223 16.650 PATCH; CONSOLE BOX
(A) 		8-94447-561-0 01 1 9804-9906 ● ● ● ● ● ●
223 16.650 PATCH; CONSOLE BOX
EXC. AIR BAG DRIVER(AJ3) (A) 		8-94447-561-0 01 1 9907-0011 ● ●
223 16.650 PATCH; CONSOLE BOX
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. AIR BAG DRIVER(AJ3) (A) 		8-94447-561-0 01 1 9907-0011 ●
223 16.650 PATCH; CONSOLE BOX
EXC. AIR BAG DRIVER(AJ3) (A) 		8-94447-561-0 01 1 0012- ● ●
223 16.650 PATCH; CONSOLE BOX
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. AIR BAG DRIVER(AJ3),TURKISH EQUIPMENT(S6S) (A) 		8-94447-561-0 01 1 0012- ●
245 16.545 ROD; FRT SEAT BELT,ANCHOR 8-94471-128-3 01 1 9804-9906 ● ● ●
245 16.545 ROD; FRT SEAT BELT,ANCHOR
EXC. AIR BAG DRIVER(AJ3) 		8-94471-128-3 01 1 9907-0011 ● ●
245 16.545 ROD; FRT SEAT BELT,ANCHOR
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. AIR BAG DRIVER(AJ3) 		8-94471-128-3 01 1 9907-0011 ●
245 16.545 ROD; FRT SEAT BELT,ANCHOR
EXC. AIR BAG DRIVER(AJ3) 		8-94471-128-3 01 1 0012- ● ●
245 16.545 ROD; FRT SEAT BELT,ANCHOR
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. AIR BAG DRIVER(AJ3),TURKISH EQUIPMENT(S6S) 		8-94471-128-3 01 1 0012- ●
245 16.545 ROD; FRT SEAT BELT,ANCHOR 8-94471-127-1 01 1 9804-9906 ● ● ●
245 16.545 ROD; FRT SEAT BELT,ANCHOR
EXC. AIR BAG DRIVER(AJ3) 		8-94471-127-1 01 1 9907-0011 ● ●
245 16.545 ROD; FRT SEAT BELT,ANCHOR
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. AIR BAG DRIVER(AJ3) 		8-94471-127-1 01 1 9907-0011 ●
245 16.545 ROD; FRT SEAT BELT,ANCHOR
EXC. AIR BAG DRIVER(AJ3) 		8-94471-127-1 01 1 0012- ● ●
245 16.545 ROD; FRT SEAT BELT,ANCHOR
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. AIR BAG DRIVER(AJ3),TURKISH EQUIPMENT(S6S) 		8-94471-127-1 01 1 0012- ●
333 16.545 BOLT; BRKT
AIR BAG DRIVER(AJ3) 02.500 M6X10 FLANGE 		0-28080-610-0 04 1 9907-0011 ● ● ●
333 16.545 BOLT; BRKT
A/T AISIN(RMD) EXC. AIR BAG DRIVER(AJ3) 02.500 M6X10 FLANGE 		0-28080-610-0 04 1 9907-0011 ●
333 16.545 BOLT; BRKT
02.500 M6X10 FLANGE 		0-28080-610-0 04 1 9907-0011 ● ● ●
333 16.545 BOLT; BRKT
AIR BAG DRIVER(AJ3) 02.500 M6X10 FLANGE 		0-28080-610-0 04 1 0012- ● ● ●
333 16.545 BOLT; BRKT
A/T AISIN(RMD) EXC. AIR BAG DRIVER(AJ3) 02.500 M6X10 FLANGE 		0-28080-610-0 04 1 0012- ●
333 16.545 BOLT; BRKT
TURKISH EQUIPMENT(S6S) EXC. AIR BAG DRIVER(AJ3) 02.500 M6X10 FLANGE 		0-28080-610-0 04 1 0012- ●
333 16.545 BOLT; BRKT
02.500 M6X10 FLANGE 		0-28080-610-0 04 1 0012- ● ● ●
353 16.545 REINFORCEMENT; HAND BRAKE
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 		8-97801-237-2 01 1 9804-9906 ●
353 16.545 REINFORCEMENT; HAND BRAKE 8-97801-237-2 01 1 9804-9906 ● ●
353 16.545 REINFORCEMENT; HAND BRAKE
AIR BAG DRIVER(AJ3) 		8-97801-237-2 01 1 9907-0011 ● ● ●
353 16.545 REINFORCEMENT; HAND BRAKE
A/T AISIN(RMD) EXC. AIR BAG DRIVER(AJ3) 		8-97801-237-2 01 1 9907-0011 ●
353 16.545 REINFORCEMENT; HAND BRAKE 8-97801-237-2 01 1 9907-0011 ● ● ●
353 16.545 REINFORCEMENT; HAND BRAKE
AIR BAG DRIVER(AJ3) 		8-97801-237-2 01 1 0012- ● ● ●
353 16.545 REINFORCEMENT; HAND BRAKE
A/T AISIN(RMD) EXC. AIR BAG DRIVER(AJ3) 		8-97801-237-2 01 1 0012- ●
353 16.545 REINFORCEMENT; HAND BRAKE
TURKISH EQUIPMENT(S6S) EXC. AIR BAG DRIVER(AJ3) 		8-97801-237-2 01 1 0012- ●
353 16.545 REINFORCEMENT; HAND BRAKE 8-97801-237-2 01 1 0012- ● ● ●
366 16.674 BAR ASM; FRT SEAT MTG 8-97079-422-0 01 1 9804- ● ● ● ● ● ●
373 16.545 REINFORCEMENT; SEAT BELT
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 		8-97112-251-2 01 1 9804-9906 ●
373 16.545 REINFORCEMENT; SEAT BELT 8-97112-251-2 01 1 9804-9906 ● ●
373 16.545 REINFORCEMENT; SEAT BELT
AIR BAG DRIVER(AJ3) 		8-97112-251-2 01 1 9907-0011 ● ● ●
373 16.545 REINFORCEMENT; SEAT BELT
A/T AISIN(RMD) EXC. AIR BAG DRIVER(AJ3) 		8-97112-251-2 01 1 9907-0011 ●
373 16.545 REINFORCEMENT; SEAT BELT 8-97112-251-2 01 1 9907-0011 ● ● ●
373 16.545 REINFORCEMENT; SEAT BELT
AIR BAG DRIVER(AJ3) 		8-97112-251-2 01 1 0012- ● ● ●
373 16.545 REINFORCEMENT; SEAT BELT
A/T AISIN(RMD) EXC. AIR BAG DRIVER(AJ3) 		8-97112-251-2 01 1 0012- ●
373 16.545 REINFORCEMENT; SEAT BELT
TURKISH EQUIPMENT(S6S) EXC. AIR BAG DRIVER(AJ3) 		8-97112-251-2 01 1 0012- ●
373 16.545 REINFORCEMENT; SEAT BELT 8-97112-251-2 01 1 0012- ● ● ●
374 16.545 NUT; FLOOR
16.570 M8 POP NUT 		8-94279-538-0 02 1 9804- ● ● ● ● ● ●
420 16.545 BRACKET; SENSOR,SIR
AIR BAG DRIVER(AJ3) 		8-97209-628-1 01 1 9907-0011 ● ● ●
420 16.545 BRACKET; SENSOR,SIR
A/T AISIN(RMD) EXC. AIR BAG DRIVER(AJ3) 		8-97209-628-1 01 1 9907-0011 ●
420 16.545 BRACKET; SENSOR,SIR 8-97209-628-1 01 1 9907-0011 ● ● ●
420 16.545 BRACKET; SENSOR,SIR
AIR BAG DRIVER(AJ3) 		8-97209-628-1 01 1 0012- ● ● ●
420 16.545 BRACKET; SENSOR,SIR
A/T AISIN(RMD) EXC. AIR BAG DRIVER(AJ3) 		8-97209-628-1 01 1 0012- ●
420 16.545 BRACKET; SENSOR,SIR
TURKISH EQUIPMENT(S6S) EXC. AIR BAG DRIVER(AJ3) 		8-97209-628-1 01 1 0012- ●
420 16.545 BRACKET; SENSOR,SIR 8-97209-628-1 01 1 0012- ● ● ●
479 16.545 BRACKET; FLOOR,OPENER 8-97216-738-0 01 1 9907-0012 ● ●
479 16.545 BRACKET; FLOOR,OPENER 8-97216-738-0 01 1 0101- ● ● ● ● ● ●
479 16.545 BRACKET; FLOOR,OPENER 8-94199-329-0 01 1 9907-0012 ● ●
479 16.545 BRACKET; FLOOR,OPENER 8-94199-329-0 01 1 0101- ● ● ● ● ● ●

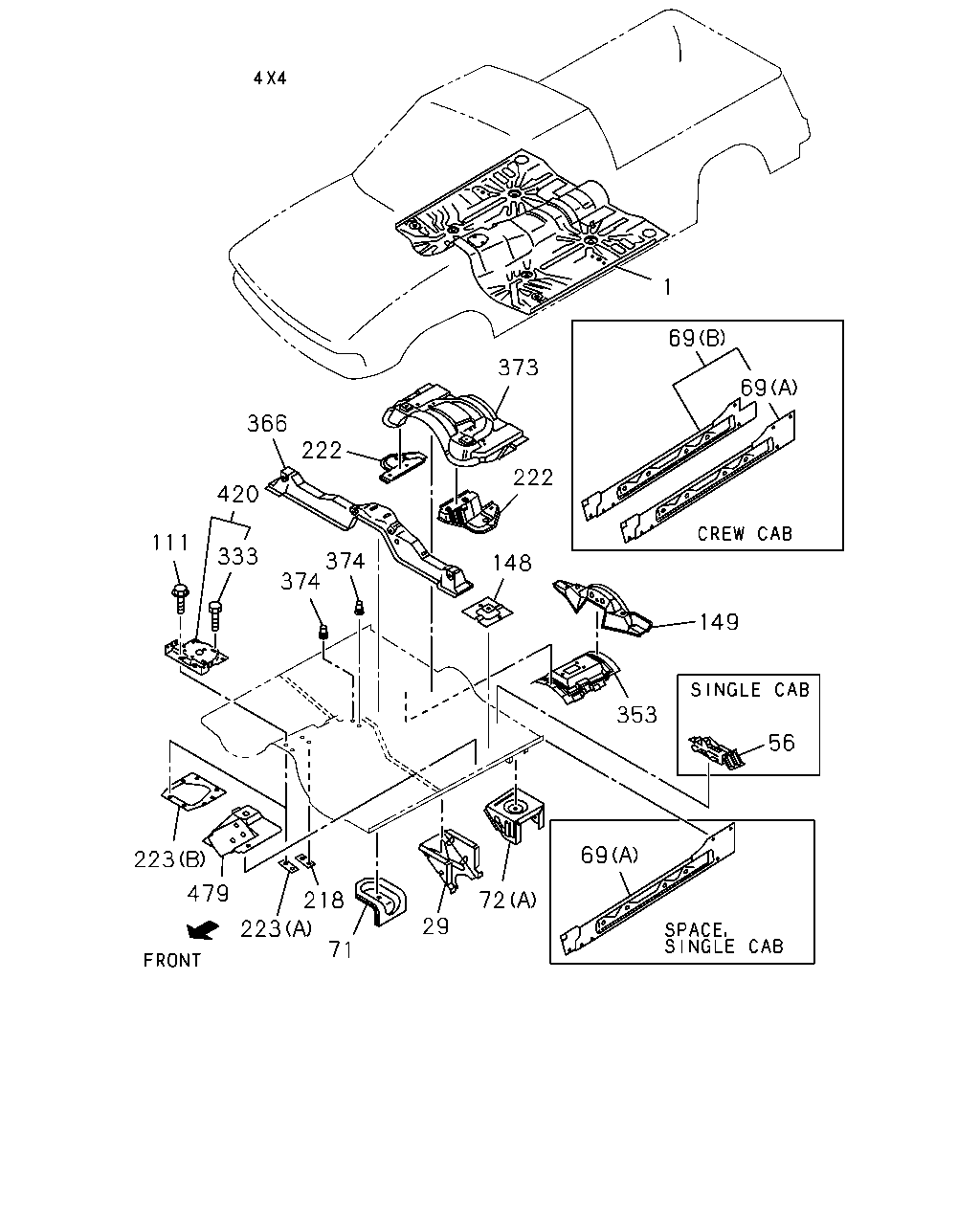

çizim 64467
1 69 373 69 366 222 222 420 374 374 111 333 148 149 353 56 218 223 69 223 479 72 29 71
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.545 PANEL; FLOOR 8-97012-956-0 01 1 9804-9906 ● ● ●
1 16.545 PANEL; FLOOR
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. AIR BAG DRIVER(AJ3) 		8-97012-956-0 01 1 9907-0011 ● ● ●
1 16.545 PANEL; FLOOR
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. AIR BAG DRIVER(AJ3),TURKISH EQUIPMENT(S6S) 		8-97012-956-1 01 1 0012-0101 ● ● ●
1 16.545 PANEL; FLOOR
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. AIR BAG DRIVER(AJ3),TURKISH EQUIPMENT(S6S) 		8-97300-837-2 01 1 0102- ● ● ●
1 16.545 PANEL; FLOOR
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 		8-94359-283-0 01 1 9804-9906 ●
1 16.545 PANEL; FLOOR 8-94359-283-0 01 1 9804-9906 ● ●
1 16.545 PANEL; FLOOR
AIR BAG DRIVER(AJ3) 		8-97214-390-0 01 1 9907-0011 ● ● ●
1 16.545 PANEL; FLOOR
A/T AISIN(RMD) EXC. AIR BAG DRIVER(AJ3) 		8-97214-390-0 01 1 9907-0011 ●
1 16.545 PANEL; FLOOR 8-97214-390-0 01 1 9907-0011 ● ● ●
1 16.545 PANEL; FLOOR
AIR BAG DRIVER(AJ3) 		8-97214-390-0 01 1 0012-0101 ● ● ●
1 16.545 PANEL; FLOOR
A/T AISIN(RMD) EXC. AIR BAG DRIVER(AJ3) 		8-97214-390-0 01 1 0012-0101 ●
1 16.545 PANEL; FLOOR
TURKISH EQUIPMENT(S6S) EXC. AIR BAG DRIVER(AJ3) 		8-97214-390-0 01 1 0012-0101 ●
1 16.545 PANEL; FLOOR 8-97214-390-0 01 1 0012-0101 ● ● ●
1 16.545 PANEL; FLOOR
AIR BAG DRIVER(AJ3) 		8-97300-839-1 01 1 0102- ● ● ●
1 16.545 PANEL; FLOOR
A/T AISIN(RMD) EXC. AIR BAG DRIVER(AJ3) 		8-97300-839-1 01 1 0102- ●
1 16.545 PANEL; FLOOR
TURKISH EQUIPMENT(S6S) EXC. AIR BAG DRIVER(AJ3) 		8-97300-839-1 01 1 0102- ●
1 16.545 PANEL; FLOOR 8-97300-839-1 01 1 0102- ● ● ●
29 16.545 GUSSET 8-94359-305-0 02 1 9804- ● ● ● ● ● ●
56 08.820 BRACKET; JACK 8-94473-876-1 01 1 9804- ● ●
69 16.545 PANEL; ROCKER INNER
(A) 		8-94455-733-4 01 1 9804- ● ● ● ● ● ●
69 16.545 PANEL; ROCKER INNER
(A) 		8-94455-732-4 01 1 9804- ● ● ● ● ● ●
69 16.545 PANEL; ROCKER INNER
(B) 		8-94343-385-0 01 1 9804- ● ●
69 16.545 PANEL; ROCKER INNER
(B) 		8-94343-384-0 01 1 9804- ● ●
71 16.545 BRACKET; CAB MTG,CENTER 8-94359-298-1 01 1 9804-9904 ● ● ● ● ● ●
71 16.545 BRACKET; CAB MTG,CENTER 8-97167-614-1 01 1 9905- ● ● ● ● ● ●
71 16.545 BRACKET; CAB MTG,CENTER 8-94359-297-1 01 1 9804-9904 ● ● ● ● ● ●
71 16.545 BRACKET; CAB MTG,CENTER 8-97167-613-1 01 1 9905- ● ● ● ● ● ●
72 16.545 BRACKET; CAB MTG,RR
4JG2 ENG(RJC),4JA1 ENG(RLE) EXC. AIR BAG DRIVER(AJ3) (B) 		8-94454-047-0 01 1 9804-0107 ●
72 16.545 BRACKET; CAB MTG,RR
AIR BAG DRIVER(AJ3) (B) 		8-94454-047-0 01 1 9804-0107 ●
72 16.545 BRACKET; CAB MTG,RR
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) (B) 		8-94454-047-0 01 1 9804-0107 ●
72 16.545 BRACKET; CAB MTG,RR
(B) 		8-94454-047-0 01 1 0108- ● ●
72 16.545 BRACKET; CAB MTG,RR
4JG2 ENG(RJC),4JA1 ENG(RLE) EXC. AIR BAG DRIVER(AJ3) (B) 		8-94454-046-0 01 1 9804-0107 ●
72 16.545 BRACKET; CAB MTG,RR
AIR BAG DRIVER(AJ3) (B) 		8-94454-046-0 01 1 9804-0107 ●
72 16.545 BRACKET; CAB MTG,RR
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) (B) 		8-94454-046-0 01 1 9804-0107 ●
72 16.545 BRACKET; CAB MTG,RR
(B) 		8-94454-046-0 01 1 0108- ● ●
72 16.545 BRACKET; CAB MTG,RR
(A) 		8-97803-497-0 01 1 9804- ● ● ● ● ● ●
72 16.545 BRACKET; CAB MTG,RR
(A) 		8-97803-496-0 01 1 9804- ● ● ● ● ● ●
111 16.549 BOLT; PANEL
AIR BAG DRIVER(AJ3) 16.505 M6X12 FLANGE 		0-28480-612-0 06 1 9907-0004 ● ●
111 16.549 BOLT; PANEL
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 16.505 M6X12 FLANGE 		0-28480-612-0 06 1 9907-0004 ●
111 16.549 BOLT; PANEL
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) GRADE LS(RBD) 16.505 M6X12 FLANGE 		0-28480-612-0 06 1 9907-0004 ●
111 16.549 BOLT; PANEL
16.505 M6X12 FLANGE 		0-28480-612-0 06 1 9907-0004 ●
111 16.549 BOLT; PANEL
AIR BAG DRIVER(AJ3) 16.505 M6X12 FLANGE 		0-28480-612-0 06 1 0005-0011 ● ● ●
111 16.549 BOLT; PANEL
A/T AISIN(RMD) EXC. AIR BAG DRIVER(AJ3) 16.505 M6X12 FLANGE 		0-28480-612-0 06 1 0005-0011 ●
111 16.549 BOLT; PANEL
16.505 M6X12 FLANGE 		0-28480-612-0 06 1 0005-0011 ● ● ●
111 16.549 BOLT; PANEL
AIR BAG DRIVER(AJ3) 16.505 M6X12 FLANGE 		0-28480-612-0 06 1 0012- ● ● ●
111 16.549 BOLT; PANEL
A/T AISIN(RMD) EXC. AIR BAG DRIVER(AJ3) 16.505 M6X12 FLANGE 		0-28480-612-0 06 1 0012- ●
111 16.549 BOLT; PANEL
TURKISH EQUIPMENT(S6S) EXC. AIR BAG DRIVER(AJ3) 16.505 M6X12 FLANGE 		0-28480-612-0 06 1 0012- ●
111 16.549 BOLT; PANEL
16.505 M6X12 FLANGE 		0-28480-612-0 06 1 0012- ● ● ●
148 16.674 BRACKET; SEAT 8-94435-642-0 02 1 9804- ● ● ● ● ● ●
149 16.545 BRACKET; SEAT BELT ROD
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 		8-97112-416-2 01 1 9804-9906 ●
149 16.545 BRACKET; SEAT BELT ROD 8-97112-416-2 01 1 9804-9906 ● ●
149 16.545 BRACKET; SEAT BELT ROD
AIR BAG DRIVER(AJ3) 		8-97112-416-2 01 1 9907-0011 ● ● ●
149 16.545 BRACKET; SEAT BELT ROD
A/T AISIN(RMD) EXC. AIR BAG DRIVER(AJ3) 		8-97112-416-2 01 1 9907-0011 ●
149 16.545 BRACKET; SEAT BELT ROD 8-97112-416-2 01 1 9907-0011 ● ● ●
149 16.545 BRACKET; SEAT BELT ROD
AIR BAG DRIVER(AJ3) 		8-97112-416-2 01 1 0012- ● ● ●
149 16.545 BRACKET; SEAT BELT ROD
A/T AISIN(RMD) EXC. AIR BAG DRIVER(AJ3) 		8-97112-416-2 01 1 0012- ●
149 16.545 BRACKET; SEAT BELT ROD
TURKISH EQUIPMENT(S6S) EXC. AIR BAG DRIVER(AJ3) 		8-97112-416-2 01 1 0012- ●
149 16.545 BRACKET; SEAT BELT ROD 8-97112-416-2 01 1 0012- ● ● ●
218 04.008 PATCH; A/T CONT LEVER 8-97800-803-1 01 1 9804-9906 ● ● ● ● ● ●
218 04.008 PATCH; A/T CONT LEVER
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. AIR BAG DRIVER(AJ3) 		8-97800-803-1 01 1 9907-0011 ● ● ●
218 04.008 PATCH; A/T CONT LEVER
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. AIR BAG DRIVER(AJ3),TURKISH EQUIPMENT(S6S) 		8-97800-803-1 01 1 0012- ● ● ●
222 16.545 PATCH; BRKT
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 		8-94199-260-2 01 1 9804-9906 ●
222 16.545 PATCH; BRKT 8-94199-260-2 01 1 9804-9906 ● ●
222 16.545 PATCH; BRKT
AIR BAG DRIVER(AJ3) 		8-94199-260-2 01 1 9907-0011 ● ● ●
222 16.545 PATCH; BRKT
A/T AISIN(RMD) EXC. AIR BAG DRIVER(AJ3) 		8-94199-260-2 01 1 9907-0011 ●
222 16.545 PATCH; BRKT 8-94199-260-2 01 1 9907-0011 ● ● ●
222 16.545 PATCH; BRKT
AIR BAG DRIVER(AJ3) 		8-94199-260-2 01 1 0012-0107 ● ● ●
222 16.545 PATCH; BRKT
A/T AISIN(RMD) EXC. AIR BAG DRIVER(AJ3) 		8-94199-260-2 01 1 0012-0107 ●
222 16.545 PATCH; BRKT
TURKISH EQUIPMENT(S6S) EXC. AIR BAG DRIVER(AJ3) 		8-94199-260-2 01 1 0012-0107 ●
222 16.545 PATCH; BRKT 8-94199-260-2 01 1 0012-0107 ● ● ●
222 16.545 PATCH; BRKT
AIR BAG DRIVER(AJ3) 		8-94199-260-2 01 1 0108- ● ● ●
222 16.545 PATCH; BRKT
A/T AISIN(RMD) EXC. AIR BAG DRIVER(AJ3) 		8-94199-260-2 01 1 0108- ●
222 16.545 PATCH; BRKT
TURKISH EQUIPMENT(S6S) EXC. AIR BAG DRIVER(AJ3) 		8-94199-260-2 01 1 0108- ●
222 16.545 PATCH; BRKT 8-94199-260-2 01 1 0108- ● ● ●
222 16.545 PATCH; BRKT
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 		8-94199-259-2 01 1 9804-9906 ●
222 16.545 PATCH; BRKT 8-94199-259-2 01 1 9804-9906 ● ●
222 16.545 PATCH; BRKT
AIR BAG DRIVER(AJ3) 		8-94199-259-2 01 1 9907-0011 ● ● ●
222 16.545 PATCH; BRKT
A/T AISIN(RMD) EXC. AIR BAG DRIVER(AJ3) 		8-94199-259-2 01 1 9907-0011 ●
222 16.545 PATCH; BRKT 8-94199-259-2 01 1 9907-0011 ● ● ●
222 16.545 PATCH; BRKT
AIR BAG DRIVER(AJ3) 		8-94199-259-2 01 1 0012-0107 ● ● ●
222 16.545 PATCH; BRKT
A/T AISIN(RMD) EXC. AIR BAG DRIVER(AJ3) 		8-94199-259-2 01 1 0012-0107 ●
222 16.545 PATCH; BRKT
TURKISH EQUIPMENT(S6S) EXC. AIR BAG DRIVER(AJ3) 		8-94199-259-2 01 1 0012-0107 ●
222 16.545 PATCH; BRKT 8-94199-259-2 01 1 0012-0107 ● ● ●
222 16.545 PATCH; BRKT
AIR BAG DRIVER(AJ3) 		8-94199-259-2 01 1 0108- ● ● ●
222 16.545 PATCH; BRKT
A/T AISIN(RMD) EXC. AIR BAG DRIVER(AJ3) 		8-94199-259-2 01 1 0108- ●
222 16.545 PATCH; BRKT
TURKISH EQUIPMENT(S6S) EXC. AIR BAG DRIVER(AJ3) 		8-94199-259-2 01 1 0108- ●
222 16.545 PATCH; BRKT 8-94199-259-2 01 1 0108- ● ● ●
223 16.650 PATCH; CONSOLE BOX
AIR BAG DRIVER(AJ3) (B) 		8-94197-591-1 01 1 9907-0011 ● ● ●
223 16.650 PATCH; CONSOLE BOX
A/T AISIN(RMD) EXC. AIR BAG DRIVER(AJ3) (B) 		8-94197-591-1 01 1 9907-0011 ●
223 16.650 PATCH; CONSOLE BOX
(B) 		8-94197-591-1 01 1 9907-0011 ● ● ●
223 16.650 PATCH; CONSOLE BOX
AIR BAG DRIVER(AJ3) (B) 		8-94197-591-1 01 1 0012- ● ● ●
223 16.650 PATCH; CONSOLE BOX
A/T AISIN(RMD) EXC. AIR BAG DRIVER(AJ3) (B) 		8-94197-591-1 01 1 0012- ●
223 16.650 PATCH; CONSOLE BOX
TURKISH EQUIPMENT(S6S) EXC. AIR BAG DRIVER(AJ3) (B) 		8-94197-591-1 01 1 0012- ●
223 16.650 PATCH; CONSOLE BOX
(B) 		8-94197-591-1 01 1 0012- ● ● ●
223 16.650 PATCH; CONSOLE BOX
(A) 		8-94447-561-0 01 1 9804-9906 ● ● ● ● ● ●
223 16.650 PATCH; CONSOLE BOX
EXC. AIR BAG DRIVER(AJ3) (A) 		8-94447-561-0 01 1 9907-0011 ● ●
223 16.650 PATCH; CONSOLE BOX
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. AIR BAG DRIVER(AJ3) (A) 		8-94447-561-0 01 1 9907-0011 ●
223 16.650 PATCH; CONSOLE BOX
EXC. AIR BAG DRIVER(AJ3) (A) 		8-94447-561-0 01 1 0012- ● ●
223 16.650 PATCH; CONSOLE BOX
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. AIR BAG DRIVER(AJ3),TURKISH EQUIPMENT(S6S) (A) 		8-94447-561-0 01 1 0012- ●
333 16.545 BOLT; BRKT
AIR BAG DRIVER(AJ3) 02.500 M6X10 FLANGE 		0-28080-610-0 04 1 9907-0011 ● ● ●
333 16.545 BOLT; BRKT
A/T AISIN(RMD) EXC. AIR BAG DRIVER(AJ3) 02.500 M6X10 FLANGE 		0-28080-610-0 04 1 9907-0011 ●
333 16.545 BOLT; BRKT
02.500 M6X10 FLANGE 		0-28080-610-0 04 1 9907-0011 ● ● ●
333 16.545 BOLT; BRKT
AIR BAG DRIVER(AJ3) 02.500 M6X10 FLANGE 		0-28080-610-0 04 1 0012- ● ● ●
333 16.545 BOLT; BRKT
A/T AISIN(RMD) EXC. AIR BAG DRIVER(AJ3) 02.500 M6X10 FLANGE 		0-28080-610-0 04 1 0012- ●
333 16.545 BOLT; BRKT
TURKISH EQUIPMENT(S6S) EXC. AIR BAG DRIVER(AJ3) 02.500 M6X10 FLANGE 		0-28080-610-0 04 1 0012- ●
333 16.545 BOLT; BRKT
02.500 M6X10 FLANGE 		0-28080-610-0 04 1 0012- ● ● ●
353 16.545 REINFORCEMENT; HAND BRAKE
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 		8-97801-237-2 01 1 9804-9906 ●
353 16.545 REINFORCEMENT; HAND BRAKE 8-97801-237-2 01 1 9804-9906 ● ●
353 16.545 REINFORCEMENT; HAND BRAKE
AIR BAG DRIVER(AJ3) 		8-97801-237-2 01 1 9907-0011 ● ● ●
353 16.545 REINFORCEMENT; HAND BRAKE
A/T AISIN(RMD) EXC. AIR BAG DRIVER(AJ3) 		8-97801-237-2 01 1 9907-0011 ●
353 16.545 REINFORCEMENT; HAND BRAKE 8-97801-237-2 01 1 9907-0011 ● ● ●
353 16.545 REINFORCEMENT; HAND BRAKE
AIR BAG DRIVER(AJ3) 		8-97801-237-2 01 1 0012- ● ● ●
353 16.545 REINFORCEMENT; HAND BRAKE
A/T AISIN(RMD) EXC. AIR BAG DRIVER(AJ3) 		8-97801-237-2 01 1 0012- ●
353 16.545 REINFORCEMENT; HAND BRAKE
TURKISH EQUIPMENT(S6S) EXC. AIR BAG DRIVER(AJ3) 		8-97801-237-2 01 1 0012- ●
353 16.545 REINFORCEMENT; HAND BRAKE 8-97801-237-2 01 1 0012- ● ● ●
366 16.674 BAR ASM; FRT SEAT MTG 8-97079-422-0 01 1 9804- ● ● ● ● ● ●
373 16.545 REINFORCEMENT; SEAT BELT
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 		8-97112-251-2 01 1 9804-9906 ●
373 16.545 REINFORCEMENT; SEAT BELT 8-97112-251-2 01 1 9804-9906 ● ●
373 16.545 REINFORCEMENT; SEAT BELT
AIR BAG DRIVER(AJ3) 		8-97112-251-2 01 1 9907-0011 ● ● ●
373 16.545 REINFORCEMENT; SEAT BELT
A/T AISIN(RMD) EXC. AIR BAG DRIVER(AJ3) 		8-97112-251-2 01 1 9907-0011 ●
373 16.545 REINFORCEMENT; SEAT BELT 8-97112-251-2 01 1 9907-0011 ● ● ●
373 16.545 REINFORCEMENT; SEAT BELT
AIR BAG DRIVER(AJ3) 		8-97112-251-2 01 1 0012- ● ● ●
373 16.545 REINFORCEMENT; SEAT BELT
A/T AISIN(RMD) EXC. AIR BAG DRIVER(AJ3) 		8-97112-251-2 01 1 0012- ●
373 16.545 REINFORCEMENT; SEAT BELT
TURKISH EQUIPMENT(S6S) EXC. AIR BAG DRIVER(AJ3) 		8-97112-251-2 01 1 0012- ●
373 16.545 REINFORCEMENT; SEAT BELT 8-97112-251-2 01 1 0012- ● ● ●
374 16.545 NUT; FLOOR
16.570 M8 POP NUT 		8-94279-538-0 02 1 9804- ● ● ● ● ● ●
420 16.545 BRACKET; SENSOR,SIR
AIR BAG DRIVER(AJ3) 		8-97209-628-1 01 1 9907-0011 ● ● ●
420 16.545 BRACKET; SENSOR,SIR
A/T AISIN(RMD) EXC. AIR BAG DRIVER(AJ3) 		8-97209-628-1 01 1 9907-0011 ●
420 16.545 BRACKET; SENSOR,SIR 8-97209-628-1 01 1 9907-0011 ● ● ●
420 16.545 BRACKET; SENSOR,SIR
AIR BAG DRIVER(AJ3) 		8-97209-628-1 01 1 0012- ● ● ●
420 16.545 BRACKET; SENSOR,SIR
A/T AISIN(RMD) EXC. AIR BAG DRIVER(AJ3) 		8-97209-628-1 01 1 0012- ●
420 16.545 BRACKET; SENSOR,SIR
TURKISH EQUIPMENT(S6S) EXC. AIR BAG DRIVER(AJ3) 		8-97209-628-1 01 1 0012- ●
420 16.545 BRACKET; SENSOR,SIR 8-97209-628-1 01 1 0012- ● ● ●
479 16.545 BRACKET; FLOOR,OPENER 8-97216-738-0 01 1 9907-0012 ● ●
479 16.545 BRACKET; FLOOR,OPENER 8-97216-738-0 01 1 0101- ● ● ● ● ● ●
479 16.545 BRACKET; FLOOR,OPENER 8-94199-329-0 01 1 9907-0012 ● ●
479 16.545 BRACKET; FLOOR,OPENER 8-94199-329-0 01 1 0101- ● ● ● ● ● ●

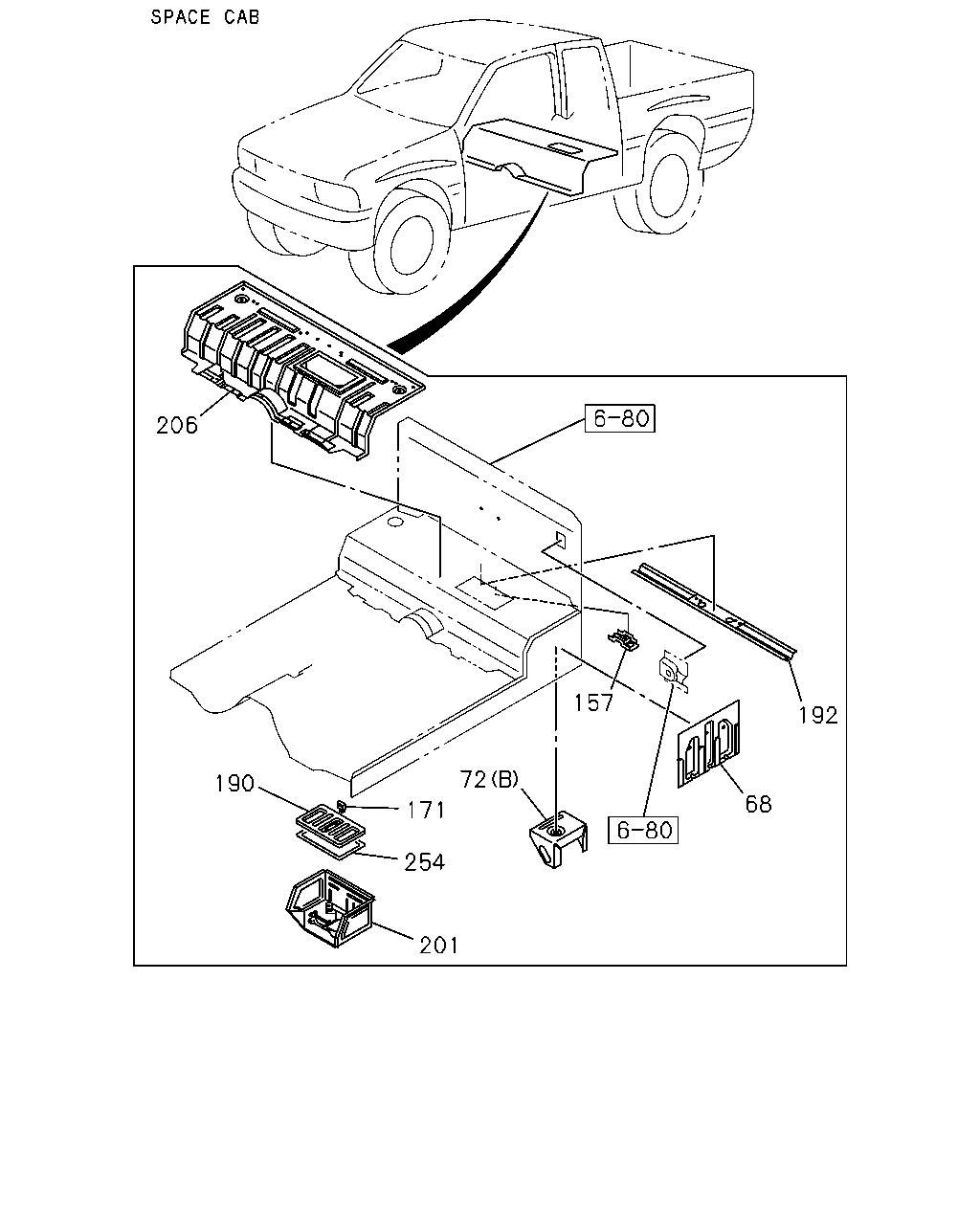

çizim 65268
206 157 192 72 190 68 171 254 201
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
68 16.570 PANEL; ROCKER INNER,CENTER
4JG2 ENG(RJC),4JA1 ENG(RLE) EXC. AIR BAG DRIVER(AJ3) 16.545 		8-94454-055-3 02 1 9804-0107 ●
68 16.570 PANEL; ROCKER INNER,CENTER
AIR BAG DRIVER(AJ3) 16.545 		8-94454-055-3 02 1 9804-0107 ●
68 16.570 PANEL; ROCKER INNER,CENTER
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 16.545 		8-94454-055-3 02 1 9804-0107 ●
68 16.570 PANEL; ROCKER INNER,CENTER
16.545 		8-94454-055-3 02 1 0108- ● ●
68 16.570 PANEL; ROCKER INNER,CENTER
16.545 		8-94454-358-1 01 1 9804-0107 ● ●
68 16.570 PANEL; ROCKER INNER,CENTER
16.545 		8-94454-358-1 01 1 0108- ● ●
68 16.570 PANEL; ROCKER INNER,CENTER
16.545 		8-94454-357-1 01 1 9804-0107 ● ●
68 16.570 PANEL; ROCKER INNER,CENTER
16.545 		8-94454-357-1 01 1 0108- ● ●
72 16.545 BRACKET; CAB MTG,RR
4JG2 ENG(RJC),4JA1 ENG(RLE) EXC. AIR BAG DRIVER(AJ3) (B) 		8-94454-047-0 01 1 9804-0107 ●
72 16.545 BRACKET; CAB MTG,RR
AIR BAG DRIVER(AJ3) (B) 		8-94454-047-0 01 1 9804-0107 ●
72 16.545 BRACKET; CAB MTG,RR
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) (B) 		8-94454-047-0 01 1 9804-0107 ●
72 16.545 BRACKET; CAB MTG,RR
(B) 		8-94454-047-0 01 1 0108- ● ●
72 16.545 BRACKET; CAB MTG,RR
4JG2 ENG(RJC),4JA1 ENG(RLE) EXC. AIR BAG DRIVER(AJ3) (B) 		8-94454-046-0 01 1 9804-0107 ●
72 16.545 BRACKET; CAB MTG,RR
AIR BAG DRIVER(AJ3) (B) 		8-94454-046-0 01 1 9804-0107 ●
72 16.545 BRACKET; CAB MTG,RR
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) (B) 		8-94454-046-0 01 1 9804-0107 ●
72 16.545 BRACKET; CAB MTG,RR
(B) 		8-94454-046-0 01 1 0108- ● ●
72 16.545 BRACKET; CAB MTG,RR
(A) 		8-97803-497-0 01 1 9804- ● ● ● ● ● ●
72 16.545 BRACKET; CAB MTG,RR
(A) 		8-97803-496-0 01 1 9804- ● ● ● ● ● ●
157 16.520 BRACKET; TOOL BOX LID
4JG2 ENG(RJC),4JA1 ENG(RLE) EXC. AIR BAG DRIVER(AJ3) 		8-94455-757-0 01 1 9804-0107 ●
157 16.520 BRACKET; TOOL BOX LID
AIR BAG DRIVER(AJ3) 		8-94455-757-0 01 1 9804-0107 ●
157 16.520 BRACKET; TOOL BOX LID
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 		8-94455-757-0 01 1 9804-0107 ●
157 16.520 BRACKET; TOOL BOX LID 8-94455-757-0 01 1 0108- ● ●
171 16.520 FASTENER; TOOL BOX LID 8-94328-345-0 03 1 9804- ● ●
190 16.520 LID; TOOL BOX 8-94455-755-1 01 1 9804- ● ●
192 16.545 MEMBER; RR FLOOR PANEL
4JG2 ENG(RJC),4JA1 ENG(RLE) EXC. AIR BAG DRIVER(AJ3) 		8-94454-041-0 01 1 9804-0107 ●
192 16.545 MEMBER; RR FLOOR PANEL
AIR BAG DRIVER(AJ3) 		8-94454-041-0 01 1 9804-0107 ●
192 16.545 MEMBER; RR FLOOR PANEL
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 		8-94454-041-0 01 1 9804-0107 ●
192 16.545 MEMBER; RR FLOOR PANEL 8-94454-041-0 01 1 0108- ● ●
192 16.545 MEMBER; RR FLOOR PANEL 8-94454-344-0 01 1 9804-9906 ● ●
192 16.545 MEMBER; RR FLOOR PANEL 8-97216-704-0 01 1 9907-0107 ● ●
192 16.545 MEMBER; RR FLOOR PANEL 8-97318-704-0 01 1 0108- ● ●
201 16.520 PANEL ASM; TOOL BOX
4JG2 ENG(RJC),4JA1 ENG(RLE) EXC. AIR BAG DRIVER(AJ3) 		8-94454-049-2 01 1 9804-0107 ●
201 16.520 PANEL ASM; TOOL BOX
AIR BAG DRIVER(AJ3) 		8-94454-049-2 01 1 9804-0107 ●
201 16.520 PANEL ASM; TOOL BOX
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 		8-94454-049-2 01 1 9804-0107 ●
201 16.520 PANEL ASM; TOOL BOX 8-94454-049-2 01 1 0108- ● ●
206 16.545 PANEL; FLOOR BOARD RR 8-94454-040-3 01 1 9804-0012 ●
206 16.545 PANEL; FLOOR BOARD RR
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 		8-94454-040-3 01 1 9804-0012 ●
206 16.545 PANEL; FLOOR BOARD RR
4JG2 ENG(RJC),4JA1 ENG(RLE) EXC. AIR BAG DRIVER(AJ3) 		8-97258-906-0 01 1 0101-0107 ●
206 16.545 PANEL; FLOOR BOARD RR
AIR BAG DRIVER(AJ3) 		8-97258-906-0 01 1 0101-0107 ●
206 16.545 PANEL; FLOOR BOARD RR
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 		8-97258-906-0 01 1 0101-0107 ●
206 16.545 PANEL; FLOOR BOARD RR 8-97258-906-0 01 1 0108- ● ●
254 16.520 SEAL; TOOL BOX LID 8-94456-785-1 01 1 9804- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
