50802 - TFR/TFS(EUROPE)-LHD
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

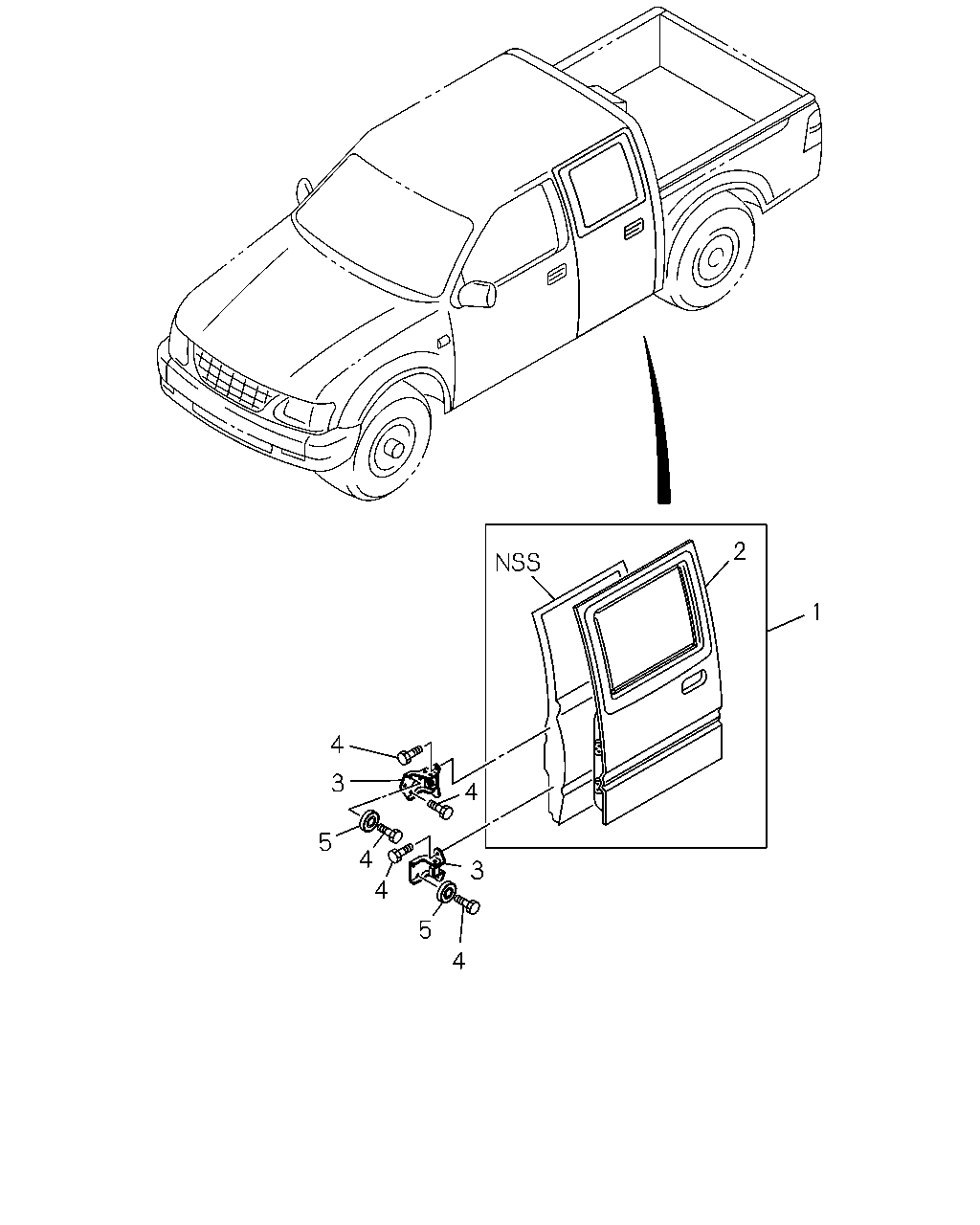

6-50 - REAR DOOR AND HINGE
▶
6-50 — REAR DOOR AND HINGE
(#44703) — 21 parça
Tümü
A - TFB6WF
B - TFS6WF
2
1
4
3
4
5
4
3
4
5
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
16.150 DOOR ASM; REAR
8-97112-215-0
01
1
9804-9906
●
●
1
16.150 DOOR ASM; REAR
EXC. DOOR BEAM<7YD>
8-97112-215-1
01
1
9907-0301
●
●
1
16.150 DOOR ASM; REAR
EXC. DOOR BEAM<7YD>
8-97364-851-0
01
1
0302-
●
●
1
16.150 DOOR ASM; REAR
8-97112-214-0
01
1
9804-9906
●
●
1
16.150 DOOR ASM; REAR
EXC. DOOR BEAM<7YD>
8-97112-214-1
01
1
9907-0301
●
●
1
16.150 DOOR ASM; REAR
EXC. DOOR BEAM<7YD>
8-97364-850-0
01
1
0302-
●
●
1
16.150 DOOR ASM; REAR
DOOR BEAM<7YD>
8-97146-834-1
01
1
9907-0301
●
●
1
16.150 DOOR ASM; REAR
DOOR BEAM<7YD>
8-97364-853-0
01
1
0302-
●
●
1
16.150 DOOR ASM; REAR
DOOR BEAM<7YD>
8-97146-833-1
01
1
9907-0301
●
●
1
16.150 DOOR ASM; REAR
DOOR BEAM<7YD>
8-97364-852-0
01
1
0302-
●
●
2
16.152 PANEL; RR DOOR OUTER
8-94472-546-1
01
1
9804-
●
●
2
16.152 PANEL; RR DOOR OUTER
8-94472-545-1
01
1
9804-
●
●
3
16.335 HINGE; RR DOOR
LOWER
8-94183-176-2
01
1
9804-
●
●
3
16.335 HINGE; RR DOOR
16.320 UPPER
8-94474-102-1
01
1
9804-
●
●
3
16.335 HINGE; RR DOOR
LOWER
8-94183-175-2
01
1
9804-
●
●
3
16.335 HINGE; RR DOOR
16.320 UPPER
8-94474-101-1
01
1
9804-
●
●
4
16.335 BOLT; HINGE
10.463 M8X23 FLANGE
8-94174-559-2
08
1
9804-
●
●
4
16.335 BOLT; HINGE
10.463 M8X23 FLANGE
8-94174-559-2
10
1
9804-0012
●
●
4
16.335 BOLT; HINGE
10.463 M8X23 FLANGE
8-94174-559-2
20
1
0101-
●
●
5
16.320 WASHER; PL,HINGE TO DOOR
ID=8.1 W/PL WASHER
8-97173-691-0
04
1
9804-0106
●
●
5
16.320 WASHER; PL,HINGE TO DOOR
8-97308-583-0
04
1
0107-
●
●
