6-45 — MOLDING AND STRIPE (#44701) — 78 parça

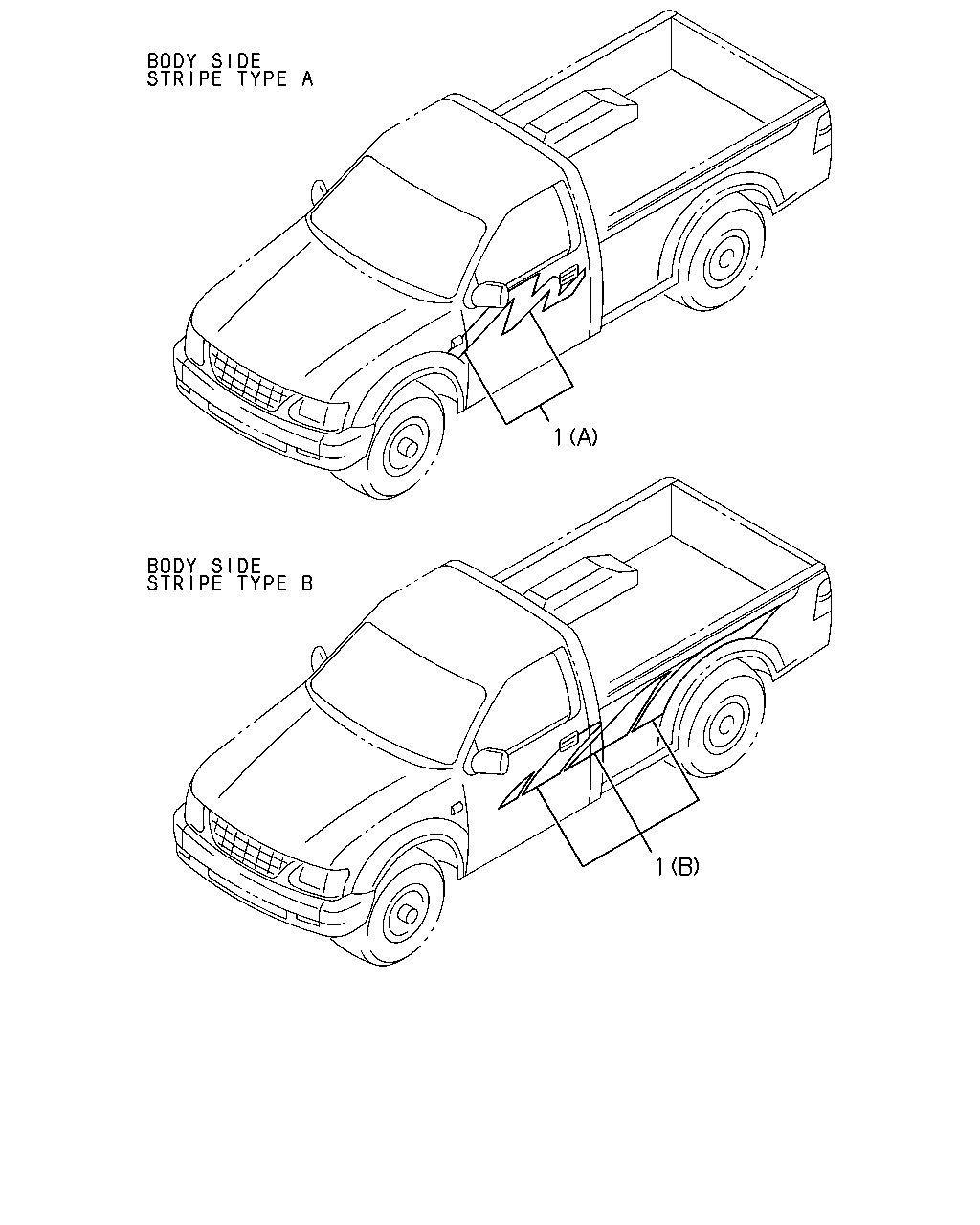

1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	08.304 STRIPE SET; BODY SIDE BODY STRIPE HEDGEHOG GRADATION<230> BODY SIDE STRIPE TYPE A(7RA) (A)	5-87831-570-0	01	1	9804-	●	●
1	08.304 STRIPE SET; BODY SIDE BODY STRIPE HEDGEHOG GRADATION<230> BODY SIDE STRIPE TYPE A(7RA) (A)	5-87831-569-0	01	1	9804-	●	●
1	08.304 STRIPE SET; BODY SIDE SINGLE CAB(TF*S) BODY STRIPE FLAMING GRADATION<234> BODY SIDE STRIPE TYPE B(7RB) (B)	5-87831-714-0	01	1	9804-0012	●	●
1	08.304 STRIPE SET; BODY SIDE SINGLE CAB(TF*S) BODY STRIPE FLAMING GRADATION<234> BODY SIDE STRIPE TYPE B(7RB) (B)	5-87832-012-0	01	1	0101-	●	●
1	08.304 STRIPE SET; BODY SIDE SINGLE CAB(TF*S) BODY STRIPE FLAMING GRADATION<234> BODY SIDE STRIPE TYPE B(7RB) (B)	5-87831-713-0	01	1	9804-0012	●	●
1	08.304 STRIPE SET; BODY SIDE SINGLE CAB(TF*S) BODY STRIPE FLAMING GRADATION<234> BODY SIDE STRIPE TYPE B(7RB) (B)	5-87832-013-0	01	1	0101-	●	●
1	08.304 STRIPE SET; BODY SIDE CREW CAB(TF*W) BODY STRIPE COOL LIGHTNING GRADATION<233> BODY SIDE STRIPE TYPE D(7RD) (D)	5-87831-580-0	01	1	9804-	●	●
1	08.304 STRIPE SET; BODY SIDE CREW CAB(TF*W) BODY STRIPE COOL LIGHTNING GRADATION<233> BODY SIDE STRIPE TYPE D(7RD) (D)	5-87831-579-0	01	1	9804-	●	●
1	08.304 STRIPE SET; BODY SIDE CREW CAB(TF*W) BODY STRIPE COOL WAVE GRADATION<236> BODY SIDE STRIPE TYPE C(7RC) (C)	5-87831-712-0	01	1	9804-	●	●
1	08.304 STRIPE SET; BODY SIDE CREW CAB(TF*W) BODY STRIPE COOL WAVE GRADATION<236> BODY SIDE STRIPE TYPE C(7RC) (C)	5-87831-711-0	01	1	9804-	●	●
1	08.304 STRIPE SET; BODY SIDE CREW CAB(TF*W) BODY STRIPE HOT LIGHTNING GRADATION<232> BODY SIDE STRIPE TYPE D(7RD) (D)	5-87831-578-0	01	1	9804-	●	●
1	08.304 STRIPE SET; BODY SIDE CREW CAB(TF*W) BODY STRIPE HOT LIGHTNING GRADATION<232> BODY SIDE STRIPE TYPE D(7RD) (D)	5-87831-577-0	01	1	9804-	●	●
1	08.304 STRIPE SET; BODY SIDE CREW CAB(TF*W) BODY STRIPE HOT WAVE GRADATION<235> BODY SIDE STRIPE TYPE C(7RC) (C)	5-87831-710-0	01	1	9804-	●	●
1	08.304 STRIPE SET; BODY SIDE CREW CAB(TF*W) BODY STRIPE HOT WAVE GRADATION<235> BODY SIDE STRIPE TYPE C(7RC) (C)	5-87831-709-0	01	1	9804-	●	●

1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	08.304 STRIPE SET; BODY SIDE BODY STRIPE HEDGEHOG GRADATION<230> BODY SIDE STRIPE TYPE A(7RA) (A)	5-87831-570-0	01	1	9804-	●	●
1	08.304 STRIPE SET; BODY SIDE BODY STRIPE HEDGEHOG GRADATION<230> BODY SIDE STRIPE TYPE A(7RA) (A)	5-87831-569-0	01	1	9804-	●	●
1	08.304 STRIPE SET; BODY SIDE SINGLE CAB(TF*S) BODY STRIPE FLAMING GRADATION<234> BODY SIDE STRIPE TYPE B(7RB) (B)	5-87831-714-0	01	1	9804-0012	●	●
1	08.304 STRIPE SET; BODY SIDE SINGLE CAB(TF*S) BODY STRIPE FLAMING GRADATION<234> BODY SIDE STRIPE TYPE B(7RB) (B)	5-87832-012-0	01	1	0101-	●	●
1	08.304 STRIPE SET; BODY SIDE SINGLE CAB(TF*S) BODY STRIPE FLAMING GRADATION<234> BODY SIDE STRIPE TYPE B(7RB) (B)	5-87831-713-0	01	1	9804-0012	●	●
1	08.304 STRIPE SET; BODY SIDE SINGLE CAB(TF*S) BODY STRIPE FLAMING GRADATION<234> BODY SIDE STRIPE TYPE B(7RB) (B)	5-87832-013-0	01	1	0101-	●	●
1	08.304 STRIPE SET; BODY SIDE CREW CAB(TF*W) BODY STRIPE COOL LIGHTNING GRADATION<233> BODY SIDE STRIPE TYPE D(7RD) (D)	5-87831-580-0	01	1	9804-	●	●
1	08.304 STRIPE SET; BODY SIDE CREW CAB(TF*W) BODY STRIPE COOL LIGHTNING GRADATION<233> BODY SIDE STRIPE TYPE D(7RD) (D)	5-87831-579-0	01	1	9804-	●	●
1	08.304 STRIPE SET; BODY SIDE CREW CAB(TF*W) BODY STRIPE COOL WAVE GRADATION<236> BODY SIDE STRIPE TYPE C(7RC) (C)	5-87831-712-0	01	1	9804-	●	●
1	08.304 STRIPE SET; BODY SIDE CREW CAB(TF*W) BODY STRIPE COOL WAVE GRADATION<236> BODY SIDE STRIPE TYPE C(7RC) (C)	5-87831-711-0	01	1	9804-	●	●
1	08.304 STRIPE SET; BODY SIDE CREW CAB(TF*W) BODY STRIPE HOT LIGHTNING GRADATION<232> BODY SIDE STRIPE TYPE D(7RD) (D)	5-87831-578-0	01	1	9804-	●	●
1	08.304 STRIPE SET; BODY SIDE CREW CAB(TF*W) BODY STRIPE HOT LIGHTNING GRADATION<232> BODY SIDE STRIPE TYPE D(7RD) (D)	5-87831-577-0	01	1	9804-	●	●
1	08.304 STRIPE SET; BODY SIDE CREW CAB(TF*W) BODY STRIPE HOT WAVE GRADATION<235> BODY SIDE STRIPE TYPE C(7RC) (C)	5-87831-710-0	01	1	9804-	●	●
1	08.304 STRIPE SET; BODY SIDE CREW CAB(TF*W) BODY STRIPE HOT WAVE GRADATION<235> BODY SIDE STRIPE TYPE C(7RC) (C)	5-87831-709-0	01	1	9804-	●	●

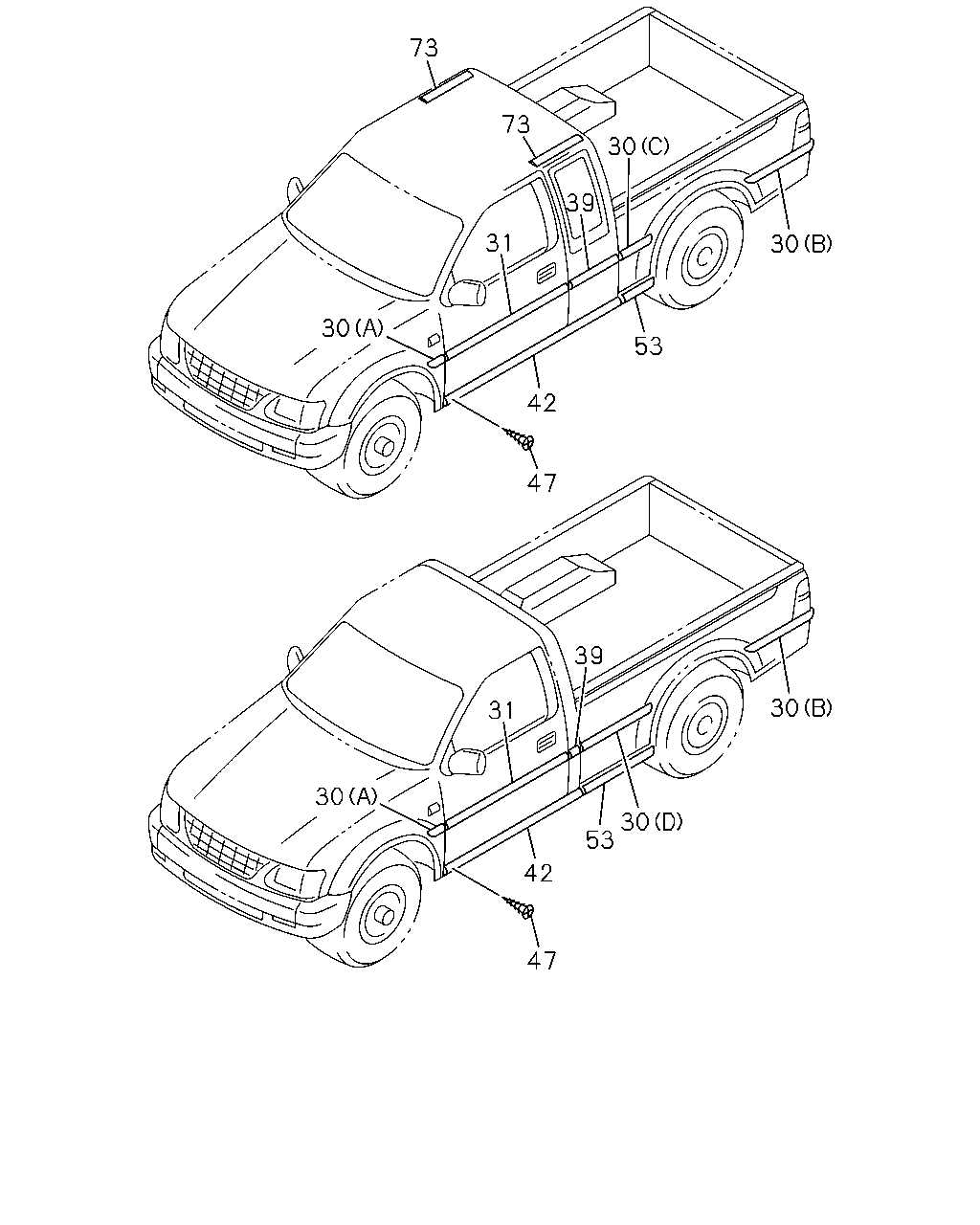

73 73 30 39 31 30 30 53 42 47 39 30 31 30 30 53 42 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
30	08.132 MOLDING; FENDER BODY SIDE MOLDING WIDE<BX4> (A)	8-97112-361-1	01	1	9804-	●	●
30	08.132 MOLDING; FENDER BODY SIDE MOLDING WIDE<BX4> (B)	8-97112-377-2	01	1	9804-	●	●
30	08.132 MOLDING; FENDER BODY SIDE MOLDING WIDE<BX4> (A)	8-97112-360-1	01	1	9804-	●	●
30	08.132 MOLDING; FENDER BODY SIDE MOLDING WIDE<BX4> (B)	8-97112-376-2	01	1	9804-	●	●
30	08.132 MOLDING; FENDER SPACE CAB(TF*C) BODY SIDE MOLDING WIDE<BX4> (C)	8-97112-375-0	01	1	9804-	●	●
30	08.132 MOLDING; FENDER SPACE CAB(TF*C) BODY SIDE MOLDING WIDE<BX4> (C)	8-97112-374-0	01	1	9804-	●	●
30	08.132 MOLDING; FENDER SINGLE CAB(TF*S) BODY SIDE MOLDING WIDE<BX4> (D)	8-97112-371-0	01	1	9804-	●	●
30	08.132 MOLDING; FENDER SINGLE CAB(TF*S) BODY SIDE MOLDING WIDE<BX4> (D)	8-97112-370-0	01	1	9804-	●	●
31	16.445 MOLDING; FRT DOOR BODY SIDE MOLDING WIDE<BX4>	8-97110-193-2	01	1	9804-	●	●
31	16.445 MOLDING; FRT DOOR BODY SIDE MOLDING WIDE<BX4>	8-97110-192-2	01	1	9804-	●	●
39	16.450 MOLDING; QUARTER SPACE CAB(TF*C) BODY SIDE MOLDING WIDE<BX4>	8-97112-369-1	01	1	9804-	●	●
39	16.450 MOLDING; QUARTER SPACE CAB(TF*C) BODY SIDE MOLDING WIDE<BX4>	8-97112-368-1	01	1	9804-	●	●
39	16.450 MOLDING; QUARTER 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB LONG(TFB6WF) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB LONG(TFS6WF) BODY SIDE MOLDING WIDE<BX4>	8-97112-367-1	01	1	9804-	●	●
39	16.450 MOLDING; QUARTER 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB LONG(TFB6WF) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB LONG(TFS6WF) BODY SIDE MOLDING WIDE<BX4>	8-97112-366-1	01	1	9804-	●	●
42	17.507 MOLDING; ROCKER CREW CAB(TF*W) BODY SIDE MOLDING BRIGHT<7HR>	8-97115-663-0	01	1	9907-		●
42	17.507 MOLDING; ROCKER CREW CAB(TF*W) BODY SIDE MOLDING BRIGHT<7HR>	8-97115-662-0	01	1	9907-		●
42	17.507 MOLDING; ROCKER 4X4 SPACE CAB(TFSC) BODY SIDE MOLDING BRIGHT<7HR>	8-97115-661-0	01	1	9907-		●
42	17.507 MOLDING; ROCKER 4X4 SPACE CAB(TFSC) BODY SIDE MOLDING BRIGHT<7HR>	8-97115-660-0	01	1	9907-		●
42	17.507 MOLDING; ROCKER 4X4 SINGLE CAB(TFSS) BODY SIDE MOLDING BRIGHT<7HR>	8-97115-659-0	01	1	9907-		●
42	17.507 MOLDING; ROCKER 4X4 SINGLE CAB(TFSS) BODY SIDE MOLDING BRIGHT<7HR>	8-97115-658-0	01	1	9907-		●
47	17.507 SCREW; ROCKER MOLDING 4X2 CREW CAB LONG(TFB6WF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB LONG(TFS6WF) BODY SIDE MOLDING BRIGHT<7HR>	0-70090-620-0	02	1	9907-		●
53	17.507 MOLDING; ROCKER,PICKUP BOX,FRT 4X4 SPACE CAB(TFSC) BODY SIDE MOLDING BRIGHT<7HR>	8-94474-011-4	01	1	9907-		●
53	17.507 MOLDING; ROCKER,PICKUP BOX,FRT 4X4 SPACE CAB(TFSC) BODY SIDE MOLDING BRIGHT<7HR>	8-94474-010-4	01	1	9907-		●
53	17.507 MOLDING; ROCKER,PICKUP BOX,FRT 4X4 SINGLE CAB(TFSS) BODY SIDE MOLDING BRIGHT<7HR>	8-94473-907-4	01	1	9907-		●
53	17.507 MOLDING; ROCKER,PICKUP BOX,FRT 4X4 SINGLE CAB(TFSS) BODY SIDE MOLDING BRIGHT<7HR>	8-94473-906-4	01	1	9907-		●
73	16.642 MOLDING; DRIP,BODY SIDE SPACE CAB(TF*C)	8-94465-494-6	01	1	9804-	●	●
73	16.642 MOLDING; DRIP,BODY SIDE SPACE CAB(TF*C)	8-94465-493-6	01	1	9804-	●	●

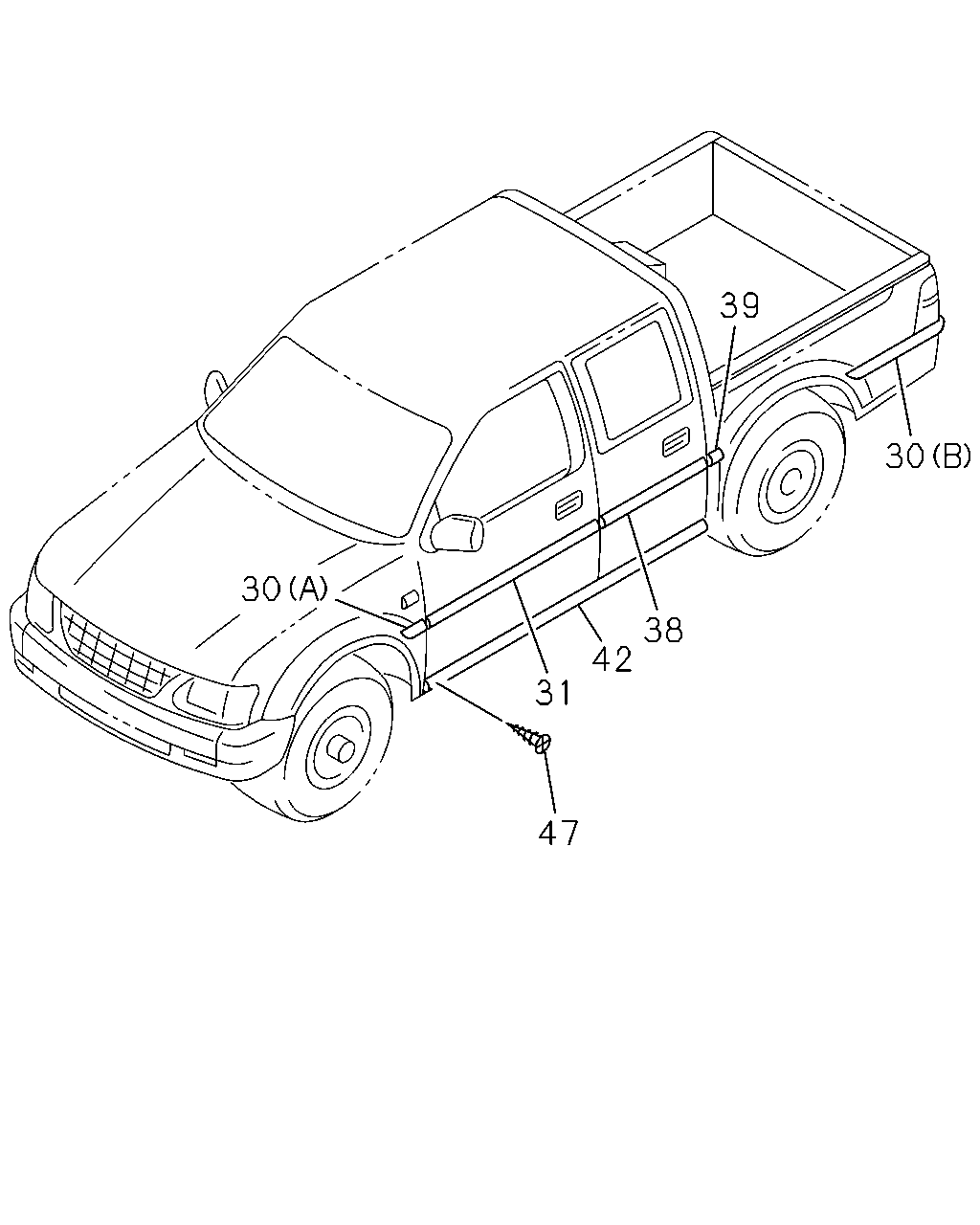

39 30 30 38 42 31 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
30	08.132 MOLDING; FENDER BODY SIDE MOLDING WIDE<BX4> (A)	8-97112-361-1	01	1	9804-	●	●
30	08.132 MOLDING; FENDER BODY SIDE MOLDING WIDE<BX4> (B)	8-97112-377-2	01	1	9804-	●	●
30	08.132 MOLDING; FENDER BODY SIDE MOLDING WIDE<BX4> (A)	8-97112-360-1	01	1	9804-	●	●
30	08.132 MOLDING; FENDER BODY SIDE MOLDING WIDE<BX4> (B)	8-97112-376-2	01	1	9804-	●	●
30	08.132 MOLDING; FENDER SPACE CAB(TF*C) BODY SIDE MOLDING WIDE<BX4> (C)	8-97112-375-0	01	1	9804-	●	●
30	08.132 MOLDING; FENDER SPACE CAB(TF*C) BODY SIDE MOLDING WIDE<BX4> (C)	8-97112-374-0	01	1	9804-	●	●
30	08.132 MOLDING; FENDER SINGLE CAB(TF*S) BODY SIDE MOLDING WIDE<BX4> (D)	8-97112-371-0	01	1	9804-	●	●
30	08.132 MOLDING; FENDER SINGLE CAB(TF*S) BODY SIDE MOLDING WIDE<BX4> (D)	8-97112-370-0	01	1	9804-	●	●
31	16.445 MOLDING; FRT DOOR BODY SIDE MOLDING WIDE<BX4>	8-97110-193-2	01	1	9804-	●	●
31	16.445 MOLDING; FRT DOOR BODY SIDE MOLDING WIDE<BX4>	8-97110-192-2	01	1	9804-	●	●
38	16.445 MOLDING; RR DOOR CREW CAB(TF*W) BODY SIDE MOLDING WIDE<BX4>	8-97112-365-0	01	1	9804-	●	●
38	16.445 MOLDING; RR DOOR CREW CAB(TF*W) BODY SIDE MOLDING WIDE<BX4>	8-97112-364-0	01	1	9804-	●	●
39	16.450 MOLDING; QUARTER SPACE CAB(TF*C) BODY SIDE MOLDING WIDE<BX4>	8-97112-369-1	01	1	9804-	●	●
39	16.450 MOLDING; QUARTER SPACE CAB(TF*C) BODY SIDE MOLDING WIDE<BX4>	8-97112-368-1	01	1	9804-	●	●
39	16.450 MOLDING; QUARTER 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB LONG(TFB6WF) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB LONG(TFS6WF) BODY SIDE MOLDING WIDE<BX4>	8-97112-367-1	01	1	9804-	●	●
39	16.450 MOLDING; QUARTER 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB LONG(TFB6WF) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB LONG(TFS6WF) BODY SIDE MOLDING WIDE<BX4>	8-97112-366-1	01	1	9804-	●	●
42	17.507 MOLDING; ROCKER CREW CAB(TF*W) BODY SIDE MOLDING BRIGHT<7HR>	8-97115-663-0	01	1	9907-		●
42	17.507 MOLDING; ROCKER CREW CAB(TF*W) BODY SIDE MOLDING BRIGHT<7HR>	8-97115-662-0	01	1	9907-		●
42	17.507 MOLDING; ROCKER 4X4 SPACE CAB(TFSC) BODY SIDE MOLDING BRIGHT<7HR>	8-97115-661-0	01	1	9907-		●
42	17.507 MOLDING; ROCKER 4X4 SPACE CAB(TFSC) BODY SIDE MOLDING BRIGHT<7HR>	8-97115-660-0	01	1	9907-		●
42	17.507 MOLDING; ROCKER 4X4 SINGLE CAB(TFSS) BODY SIDE MOLDING BRIGHT<7HR>	8-97115-659-0	01	1	9907-		●
42	17.507 MOLDING; ROCKER 4X4 SINGLE CAB(TFSS) BODY SIDE MOLDING BRIGHT<7HR>	8-97115-658-0	01	1	9907-		●
47	17.507 SCREW; ROCKER MOLDING 4X2 CREW CAB LONG(TFB6WF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB LONG(TFS6WF) BODY SIDE MOLDING BRIGHT<7HR>	0-70090-620-0	02	1	9907-		●
