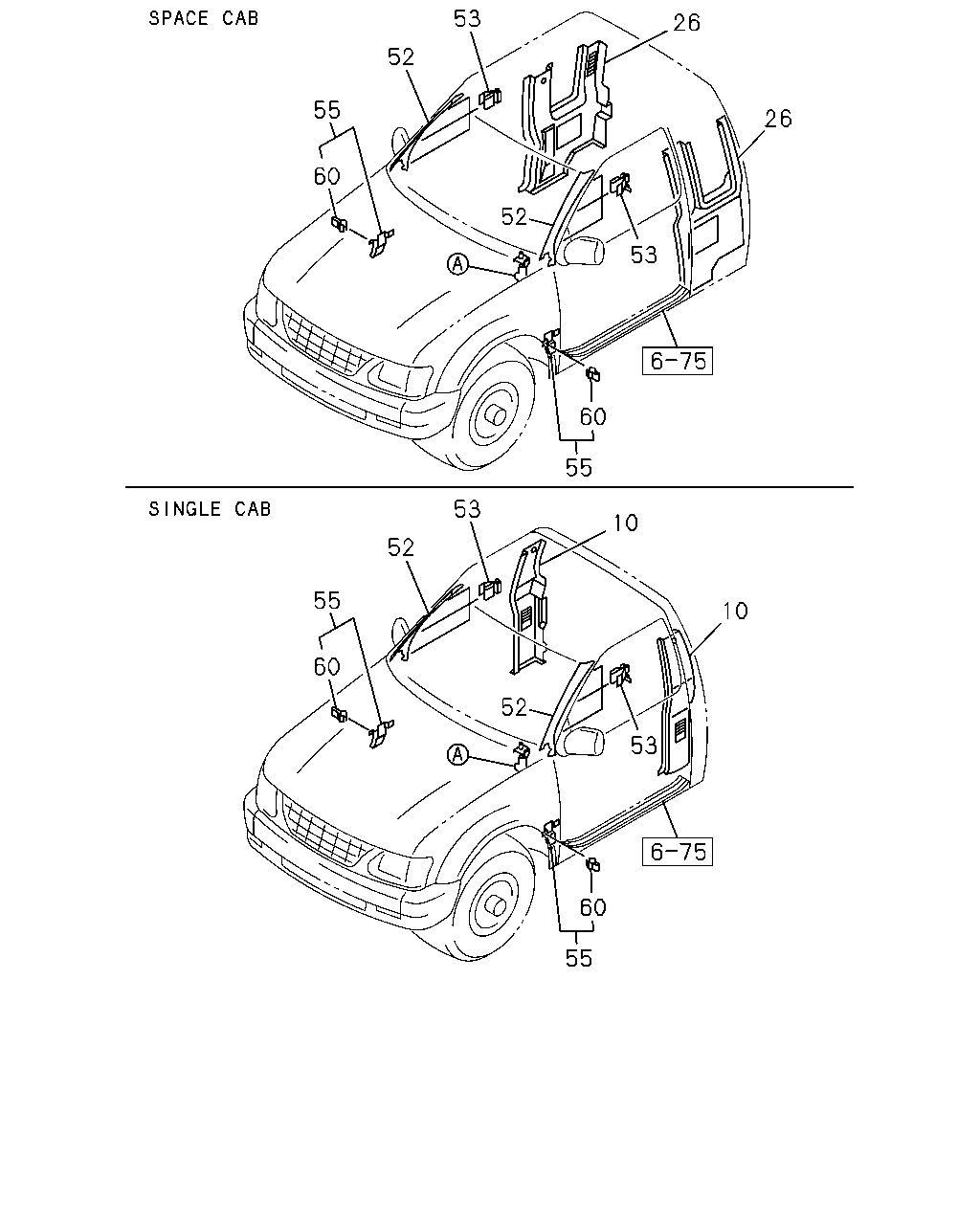

6-43 — SIDE TRIM (#44700) — 68 parça

53 26 52 55 26 60 52 53 60 55 53 10 52 55 10 60 52 53 60 55

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
10	16.578 TRIM; B-POST 4X4 SINGLE CAB(TFSS) GRAY	8-97154-634-2	01	1	9907-	●
10	16.578 TRIM; B-POST 4X4 SINGLE CAB(TFSS) GRAY	8-97154-633-4	01	1	9907-0012	●
10	16.578 TRIM; B-POST 4X4 SINGLE CAB(TFSS) EXC. RR BODY DBL WALL CTR PULL(6MW) GRAY	8-97154-633-4	01	1	0101-	●
10	16.578 TRIM; B-POST 4X4 SINGLE CAB(TFSS) RR BODY DBL WALL CTR PULL(6MW) GRAY	8-97297-845-0	01	1	0101-	●
26	16.578 COVER; TRIM,RR COMPT SIDE SPACE CAB(TF*C) JUMP SEAT<AJ2> NOISE INSULATION PACK 2<7MW> EXC. REAR DEFOGGER<C49> GRAY	8-97156-053-0	01	1	9804-9906		●
26	16.578 COVER; TRIM,RR COMPT SIDE SPACE CAB(TF*C) JUMP SEAT<AJ2> NOISE INSULATION PACK 2<7MW> EXC. REAR DEFOGGER<C49> GRAY	8-97156-053-0	01	1	9907-	●	●
26	16.578 COVER; TRIM,RR COMPT SIDE SPACE CAB(TF*C) JUMP SEAT<AJ2> NOISE INSULATION PACK 2<7MW> EXC. REAR DEFOGGER<C49> GRAY	8-97156-052-0	01	1	9804-9906		●
26	16.578 COVER; TRIM,RR COMPT SIDE SPACE CAB(TF*C) JUMP SEAT<AJ2> NOISE INSULATION PACK 2<7MW> EXC. REAR DEFOGGER<C49> GRAY	8-97156-052-1	01	1	9907-	●	●
26	16.578 COVER; TRIM,RR COMPT SIDE SPACE CAB(TF*C) JUMP SEAT<AJ2> REAR DEFOGGER<C49> NOISE INSULATION PACK 2<7MW> GRAY	8-97156-057-0	01	1	9804-9906		●
26	16.578 COVER; TRIM,RR COMPT SIDE SPACE CAB(TF*C) JUMP SEAT<AJ2> REAR DEFOGGER<C49> NOISE INSULATION PACK 2<7MW> GRAY	8-97156-057-0	01	1	9907-	●	●
26	16.578 COVER; TRIM,RR COMPT SIDE SPACE CAB(TF*C) JUMP SEAT<AJ2> REAR DEFOGGER<C49> NOISE INSULATION PACK 2<7MW> GRAY	8-97156-056-0	01	1	9804-9906		●
26	16.578 COVER; TRIM,RR COMPT SIDE SPACE CAB(TF*C) JUMP SEAT<AJ2> REAR DEFOGGER<C49> NOISE INSULATION PACK 2<7MW> GRAY	8-97156-056-1	01	1	9907-	●	●
26	16.578 COVER; TRIM,RR COMPT SIDE SPACE CAB(TF*C) JUMP SEAT<AJ2> REAR DEFOGGER<C49> EXC. NOISE INSULATION PACK 2<7MW> GRAY	8-97154-652-0	01	1	9804-9906		●
26	16.578 COVER; TRIM,RR COMPT SIDE SPACE CAB(TF*C) JUMP SEAT<AJ2> REAR DEFOGGER<C49> EXC. NOISE INSULATION PACK 2<7MW> GRAY	8-97154-652-0	01	1	9907-0107	●	●
26	16.578 COVER; TRIM,RR COMPT SIDE SPACE CAB(TF*C) JUMP SEAT<AJ2> REAR DEFOGGER<C49> EXC. NOISE INSULATION PACK 2<7MW> GRAY	8-97154-654-0	01	1	9804-9906		●
26	16.578 COVER; TRIM,RR COMPT SIDE SPACE CAB(TF*C) JUMP SEAT<AJ2> REAR DEFOGGER<C49> EXC. NOISE INSULATION PACK 2<7MW> GRAY	8-97154-654-1	01	1	9907-0107	●	●
26	16.578 COVER; TRIM,RR COMPT SIDE SPACE CAB(TF*C) JUMP SEAT<AJ2> EXC. REAR DEFOGGER<C49>,NOISE INSULATION PACK 2<7MW> GRAY	8-97154-651-3	01	1	9804-9906		●
26	16.578 COVER; TRIM,RR COMPT SIDE SPACE CAB(TF*C) JUMP SEAT<AJ2> EXC. REAR DEFOGGER<C49>,NOISE INSULATION PACK 2<7MW> GRAY	8-97154-651-3	01	1	9907-0107	●	●
26	16.578 COVER; TRIM,RR COMPT SIDE SPACE CAB(TF*C) JUMP SEAT<AJ2> EXC. REAR DEFOGGER<C49>,NOISE INSULATION PACK 2<7MW> GRAY	8-97154-650-3	01	1	9804-9906		●
26	16.578 COVER; TRIM,RR COMPT SIDE SPACE CAB(TF*C) JUMP SEAT<AJ2> EXC. REAR DEFOGGER<C49>,NOISE INSULATION PACK 2<7MW> GRAY	8-97154-650-4	01	1	9907-0107	●	●
26	16.578 COVER; TRIM,RR COMPT SIDE SPACE CAB(TF*C) EXC. JUMP SEAT<AJ2>,REAR DEFOGGER<C49>, NOISE INSULATION PACK 2<7MW> GRAY	8-97154-649-3	01	1	9804-0107	●	●
26	16.578 COVER; TRIM,RR COMPT SIDE SPACE CAB(TF*C) EXC. JUMP SEAT<AJ2>,REAR DEFOGGER<C49>, NOISE INSULATION PACK 2<7MW> GRAY	8-97154-648-4	01	1	9804-0107	●	●
26	16.578 COVER; TRIM,RR COMPT SIDE SPACE CAB(TF*C) NOISE INSULATION PACK 2<7MW> EXC. JUMP SEAT<AJ2>,REAR DEFOGGER<C49> GRAY	8-97156-055-0	01	1	9804-	●	●
26	16.578 COVER; TRIM,RR COMPT SIDE SPACE CAB(TF*C) NOISE INSULATION PACK 2<7MW> EXC. JUMP SEAT<AJ2>,REAR DEFOGGER<C49> GRAY	8-97156-054-1	01	1	9804-	●	●
26	16.578 COVER; TRIM,RR COMPT SIDE SPACE CAB(TF*C) NOISE INSULATION PACK 2<7MW> REAR DEFOGGER<C49> EXC. JUMP SEAT<AJ2> GRAY	8-97156-059-0	01	1	9804-	●	●
26	16.578 COVER; TRIM,RR COMPT SIDE SPACE CAB(TF*C) NOISE INSULATION PACK 2<7MW> REAR DEFOGGER<C49> EXC. JUMP SEAT<AJ2> GRAY	8-97156-058-1	01	1	9804-	●	●
26	16.578 COVER; TRIM,RR COMPT SIDE SPACE CAB(TF*C) REAR DEFOGGER<C49> EXC. JUMP SEAT<AJ2>,NOISE INSULATION PACK2<7MW> GRAY	8-97154-653-0	01	1	9804-0107	●	●
26	16.578 COVER; TRIM,RR COMPT SIDE SPACE CAB(TF*C) REAR DEFOGGER<C49> EXC. JUMP SEAT<AJ2>,NOISE INSULATION PACK2<7MW> GRAY	8-97154-655-1	01	1	9804-0107	●	●
52	16.165 COVER; TRIM,FRT PILLAR GRAY	8-97152-700-0	01	1	9804-9811		●
52	16.165 COVER; TRIM,FRT PILLAR GRAY	8-97199-830-0	01	1	9812-9906		●
52	16.165 COVER; TRIM,FRT PILLAR GRAY	8-97199-830-0	01	1	9907-	●	●
52	16.165 COVER; TRIM,FRT PILLAR GRAY	8-97152-699-0	01	1	9804-9811		●
52	16.165 COVER; TRIM,FRT PILLAR GRAY	8-97199-829-0	01	1	9812-9906		●
52	16.165 COVER; TRIM,FRT PILLAR GRAY	8-97199-829-0	01	1	9907-	●	●
53	16.165 RETAINER; TRIM,FRT PILLAR 10.056	8-94117-873-3	06	1	9804-9901		●
53	16.165 RETAINER; TRIM,FRT PILLAR 10.056	8-94117-873-3	04	1	9902-9906		●
53	16.165 RETAINER; TRIM,FRT PILLAR 10.056	8-94117-873-3	04	1	9907-	●	●
55	16.166 PAD; TRIM,DASH SIDE GRAY	8-97154-609-0	01	1	9804-	●	●
55	16.166 PAD; TRIM,DASH SIDE GRAY	8-97154-607-0	01	1	9804-	●	●
60	16.166 CLIP; ANCHOR,TRIM PAD	8-94321-034-0	04	1	9804-	●	●

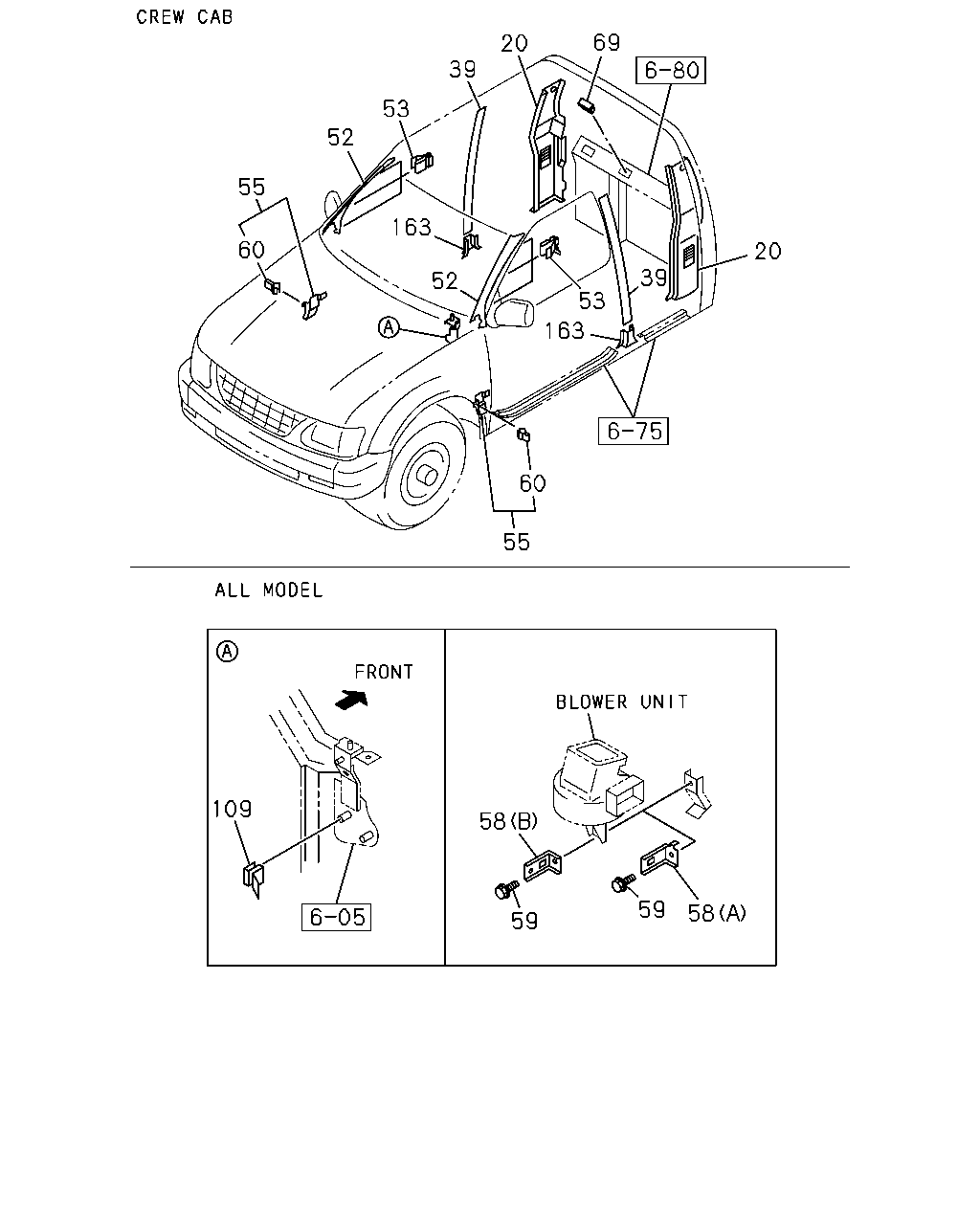

69 20 39 53 52 55 163 39 60 20 52 53 163 60 55 109 58 59 58 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
20	16.165 COVER; TRIM,RR PILLAR CREW CAB(TF*W) REAR DEFOGGER<C49> GRAY	8-97158-334-0	01	1	9804-	●	●
20	16.165 COVER; TRIM,RR PILLAR CREW CAB(TF*W) REAR DEFOGGER<C49> GRAY	8-97158-333-0	01	1	9804-	●	●
20	16.165 COVER; TRIM,RR PILLAR CREW CAB(TF*W) EXC. REAR DEFOGGER<C49> GRAY	8-97158-330-0	01	1	9804-	●	●
20	16.165 COVER; TRIM,RR PILLAR CREW CAB(TF*W) EXC. REAR DEFOGGER<C49> GRAY	8-97158-329-0	01	1	9804-	●	●
39	16.575 COVER; TRIM,CENTER PILLAR CREW CAB(TF*W) GRAY	8-97154-629-0	02	1	9804-	●
52	16.165 COVER; TRIM,FRT PILLAR GRAY	8-97152-700-0	01	1	9804-9811		●
52	16.165 COVER; TRIM,FRT PILLAR GRAY	8-97199-830-0	01	1	9812-9906		●
52	16.165 COVER; TRIM,FRT PILLAR GRAY	8-97199-830-0	01	1	9907-	●	●
52	16.165 COVER; TRIM,FRT PILLAR GRAY	8-97152-699-0	01	1	9804-9811		●
52	16.165 COVER; TRIM,FRT PILLAR GRAY	8-97199-829-0	01	1	9812-9906		●
52	16.165 COVER; TRIM,FRT PILLAR GRAY	8-97199-829-0	01	1	9907-	●	●
53	16.165 RETAINER; TRIM,FRT PILLAR 10.056	8-94117-873-3	06	1	9804-9901		●
53	16.165 RETAINER; TRIM,FRT PILLAR 10.056	8-94117-873-3	04	1	9902-9906		●
53	16.165 RETAINER; TRIM,FRT PILLAR 10.056	8-94117-873-3	04	1	9907-	●	●
55	16.166 PAD; TRIM,DASH SIDE GRAY	8-97154-609-0	01	1	9804-	●	●
55	16.166 PAD; TRIM,DASH SIDE GRAY	8-97154-607-0	01	1	9804-	●	●
58	16.551 BRACKET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97132-075-0	01	1	9804-9906		●
58	16.551 BRACKET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97132-075-0	01	1	9907-	●	●
58	16.551 BRACKET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97132-073-0	01	1	9804-	●	●
59	16.560 BOLT; DASH SIDE TRIM BRKT 16.085 M6X16	8-94220-097-0	01	1	9804-0112		●
59	16.560 BOLT; DASH SIDE TRIM BRKT 10.701 M6X16	8-94206-784-0	01	1	0201-		●
59	16.560 BOLT; DASH SIDE TRIM BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.085 M6X16	8-94220-097-0	02	1	0108-0112	●	●
59	16.560 BOLT; DASH SIDE TRIM BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 10.701 M6X16	8-94206-784-0	02	1	0201-	●	●
60	16.166 CLIP; ANCHOR,TRIM PAD	8-94321-034-0	04	1	9804-	●	●
69	16.585 PLUG; HOLE CREW CAB(TF*W)	8-97012-841-1	03	1	9804-		●
109	16.225 CLIP; DOOR FINISHER	8-97175-995-0	01	1	9804-	●	●
163	16.575 COVER; TRIM,CENTER PILLAR,LWR CREW CAB(TF*W) GRAY	8-97154-631-1	01	1	9804-	●	●
163	16.575 COVER; TRIM,CENTER PILLAR,LWR CREW CAB(TF*W) GRAY	8-97154-630-1	01	1	9804-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
