1 |

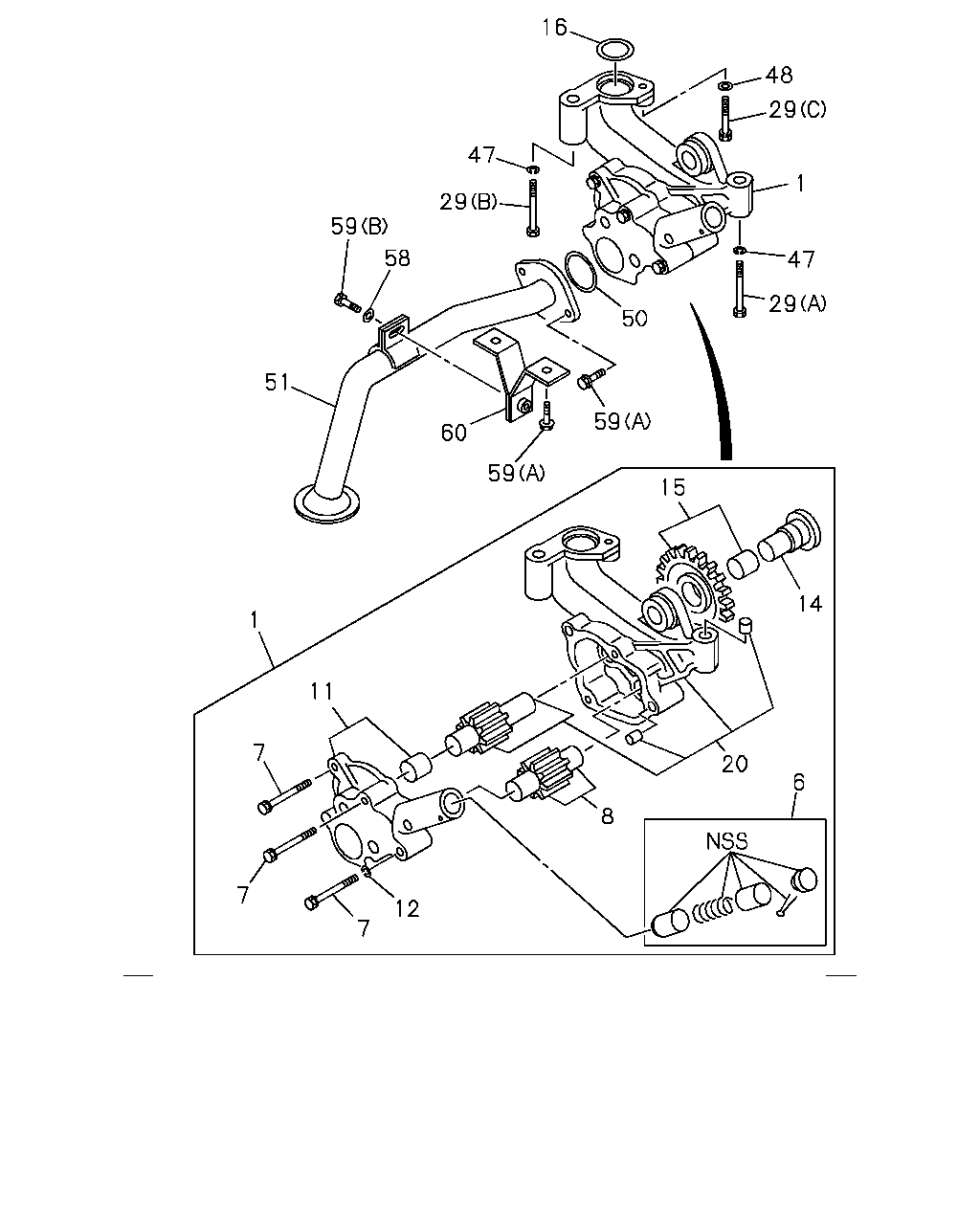

PUMP ASM; OIL
|
1-13100-186-2 |
01 |
1 |
8712-9001 |
● |
|
| |
1 |
PUMP ASM; OIL
|
1-13100-183-2 |
01 |
1 |
9002- |
|
● |
| |
6 |
VALVE ASM; RELIEF,OIL PUMP
|
1-13160-012-0 |
01 |
1 |
8712- |
● |
● |
| |
7 |
BOLT; COVER,OIL PUMP
M10X50
|
9-01656-050-0 |
01 |
1 |
8712-9004 |
● |
● |
| |
7 |
BOLT; COVER,OIL PUMP
M10X50
|
0-16806-050-0 |
01 |
1 |
9005- |
|
● |
| |
7 |
BOLT; COVER,OIL PUMP
M10X55
|
9-01656-055-0 |
01 |
1 |
8712-9004 |
● |
● |
| |
7 |
BOLT; COVER,OIL PUMP
M10X55
|
0-16806-055-0 |
01 |
1 |
9005- |
|
● |
| |
7 |
BOLT; COVER,OIL PUMP
M10X35 W/LK WASHER
|
9-01931-035-0 |
01 |
1 |
8712-9002 |
● |
● |
| |
7 |
BOLT; COVER,OIL PUMP
M10X35 W/LK WASHER
|
0-50051-035-0 |
01 |
1 |
9003- |
|
● |
| |
7 |
BOLT; COVER,OIL PUMP
M10X45 W/LK WASHER
|
9-01931-045-0 |
01 |
1 |
8712-9002 |
● |
● |
| |
7 |
BOLT; COVER,OIL PUMP
M10X45 W/LK WASHER
|
0-50051-045-0 |
01 |
1 |
9003- |
|
● |
| |
8 |
GEAR; DRIVEN,OIL PUMP
|
1-13125-036-0 |
01 |
1 |
8712-9001 |
● |
|
| |
8 |
GEAR; DRIVEN,OIL PUMP
|
1-13125-037-0 |
01 |
1 |
9002- |
|
● |
| |
11 |
COVER ASM; OIL PUMP
|
1-13113-054-0 |
01 |
1 |
8712- |
● |
● |
| |
12 |
WASHER; LK,BOLT COVER
ID=10.2
|
9-09150-510-0 |
02 |
1 |
8712- |
● |
● |
| |
14 |
SPINDLE; DRIVEN GEAR
|
1-13129-010-1 |
01 |
1 |
8712- |
● |
● |
| |
15 |
GEAR ASM; IDLE
|
1-13128-027-0 |
01 |
1 |
8712- |
● |
● |
| |
16 |
GASKET; OIL PUMP,C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
ID=31.2
|
1-09623-220-0 |
01 |
1 |
8712- |
● |
● |
| |
20 |
GEAR; DRIVE,OIL PUMP
|
1-13120-053-0 |
01 |
1 |
8712-9001 |
● |
|
| |
20 |
GEAR; DRIVE,OIL PUMP
|
1-13120-054-0 |
01 |
1 |
9002- |
|
● |
| |
29 |
BOLT; OIL PUMP
(A)
M12X55
|
9-01666-255-0 |
01 |
1 |
8712- |
● |
● |
| |
29 |
BOLT; OIL PUMP
(B)
M12X70
|
9-01666-270-0 |
01 |
1 |
8712- |
● |
● |
| |
29 |
BOLT; OIL PUMP
(C)
M10X30
|
9-02361-030-0 |
01 |
1 |
8712- |
● |
● |
| |
47 |
WASHER; LK,OIL PUMP
ID=12.5
|
9-09851-682-0 |
02 |
1 |
8712- |
● |
● |
| |
48 |
WASHER; PL,OIL PUMP
ID=10
|
1-09503-033-1 |
01 |
1 |
8712- |
● |
● |
| |
50 |
GASKET; OIL PIPE,STRAINER TO PUMP
ALSO INCLUDED IN GASKET SET(ENGINE).
|
1-09623-397-0 |
01 |
1 |
8712-9306 |
● |
● |
| |
50 |
GASKET; OIL PIPE,STRAINER TO PUMP
ALSO INCLUDED IN GASKET SET(ENGINE).
|
1-09623-397-0 |
01 |
1 |
9307- |
|
● |
| |
51 |
STRAINER & PIPE ASM; OIL
|
1-13140-081-0 |
01 |
1 |
8712-8903 |
● |
|
| |
51 |
STRAINER & PIPE ASM; OIL
|
1-13140-095-0 |
01 |
1 |
8904-9001 |
● |
|
| |
51 |
STRAINER & PIPE ASM; OIL
|
1-13140-101-0 |
01 |
1 |
9002- |
|
● |
| |
58 |
WASHER; PL,BRKT,STRAINER
ID=8.4 OD=18
|
9-09160-608-0 |
01 |
1 |
8904- |
● |
● |
| |
59 |
BOLT; BRKT,STRAINER
(A),(B)
M8X20
|
9-01970-820-0 |
05 |
1 |
8712-8903 |
● |
|
| |
59 |
BOLT; BRKT,STRAINER
(A)
M8X18
|
0-28020-818-0 |
04 |
1 |
8904-9005 |
● |
● |
| |
59 |
BOLT; BRKT,STRAINER
(A)
M8X18 FLANGE
|
0-28080-818-0 |
04 |
1 |
9006- |
|
● |
| |
59 |
BOLT; BRKT,STRAINER
(B)
M8X25 W/LK WASHER
|
9-01910-825-0 |
01 |
1 |
8904-9005 |
● |
● |
| |
59 |
BOLT; BRKT,STRAINER
(B)
M8X25 W/LK WASHER
|
0-50040-825-0 |
01 |
1 |
9006- |
|
● |
| |
60 |
BRACKET; OIL STRAINER
|
1-13145-028-0 |
01 |
1 |
8712-8903 |
● |
|
| |
60 |
BRACKET; OIL STRAINER
|
1-13145-047-0 |
01 |
1 |
8904-9001 |
● |
|
| |
60 |
BRACKET; OIL STRAINER
|
1-13145-048-0 |
01 |
1 |
9002- |
|
● |
