6-05 — FRONT PANEL (#44690) — 38 parça

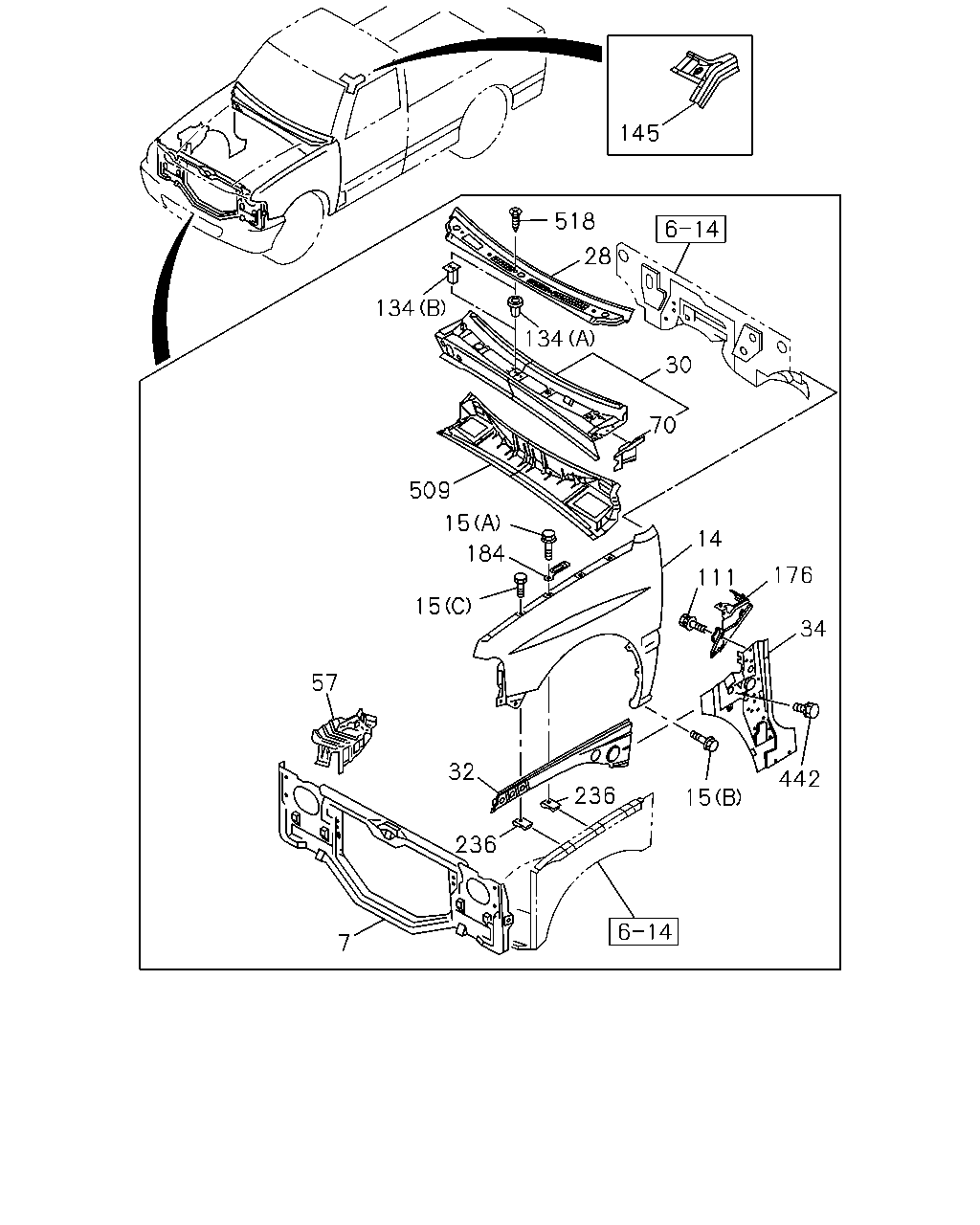

çizim 65435
145 518 28 134 134 30 70 509 15 14 184 176 111 15 34 57 442 32 236 15 236 7
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
7 01.271 PANEL; DEFLECTOR 8-97170-898-0 01 1 9804-0105 ● ● ● ● ● ●
7 01.271 PANEL; DEFLECTOR 8-97310-920-0 01 1 0106- ● ● ● ● ● ●
14 08.130 FENDER; FRT 8-97111-813-9 01 1 9804-0110 ● ● ● ● ● ●
14 08.130 FENDER; FRT 8-97326-682-0 01 1 0111- ● ● ● ● ● ●
14 08.130 FENDER; FRT
ANTENNA<U73> 		8-97107-981-9 01 1 9804-0110 ● ● ● ● ● ●
14 08.130 FENDER; FRT
ANTENNA<U73> 		8-97326-679-0 01 1 0111- ● ● ● ● ● ●
14 08.130 FENDER; FRT
EXC. ANTENNA<U73> 		8-97111-812-9 01 1 9804-0110 ● ● ● ● ● ●
14 08.130 FENDER; FRT
EXC. ANTENNA<U73> 		8-97326-680-0 01 1 0111- ● ● ● ● ● ●
15 08.143 BOLT; FENDER
(A) M6X16 		0-28800-616-0 02 1 9804- ● ● ● ● ● ●
15 08.143 BOLT; FENDER
(C) M6X12 W/PL WASHER 		8-94232-078-0 14 1 9804-0110 ● ● ● ● ● ●
15 08.143 BOLT; FENDER
(C) M6X12 W/PL WASHER 		8-94232-078-0 12 1 0111- ● ● ● ● ● ●
15 08.143 BOLT; FENDER
16.545 (B) M6X20 W/PL WASHER 		8-97808-622-0 02 1 9804- ● ● ● ● ● ●
28 16.125 COVER; DASH COWL 8-97142-702-3 01 1 9804- ● ● ● ● ● ●
30 16.125 PANEL; COWL UPR 8-97176-921-0 01 1 9804- ● ● ● ● ● ●
32 08.155 REINFORCEMENT; COWL SIDE,ENG ROO 8-97078-329-2 01 1 9804- ● ● ● ● ● ●
32 08.155 REINFORCEMENT; COWL SIDE,ENG ROO 8-97078-328-2 01 1 9804- ● ● ● ● ● ●
34 16.570 PANEL; DASH SIDE 8-97132-033-1 01 1 9804-9905 ● ● ● ● ● ●
34 16.570 PANEL; DASH SIDE 8-97225-950-0 01 1 9906- ● ● ● ● ● ●
34 16.570 PANEL; DASH SIDE 8-97132-032-1 01 1 9804-9905 ● ● ● ● ● ●
34 16.570 PANEL; DASH SIDE 8-97225-949-0 01 1 9906- ● ● ● ● ● ●
57 02.333 TRAY; BATTERY 8-97084-957-3 01 1 9804- ● ● ● ● ● ●
70 16.551 PANEL ASM; COWL SIDE 8-94435-660-5 01 1 9804- ● ● ● ● ● ●
70 16.551 PANEL ASM; COWL SIDE 8-94435-659-5 01 1 9804- ● ● ● ● ● ●
111 16.550 BOLT; INST SUPPORT BAR
M8X16 W/LK&PL WASHER 		8-94310-730-0 08 1 9804- ● ● ● ● ● ●
134 16.125 GROMMET; SCREW,COVER TO BODY
EXC. KD PREPARATORY PACK<6HF> 02.679 (A) D=7.9X7.9 L=20 M5 		8-94441-539-0 01 1 0202- ● ● ● ● ● ●
134 16.125 GROMMET; SCREW,COVER TO BODY
EXC. KD PREPARATORY PACK<6HF> (B) 		8-97333-955-0 04 1 0202- ● ● ● ● ● ●
134 16.125 GROMMET; SCREW,COVER TO BODY
02.679 (A) D=7.9X7.9 L=20 M5 		8-94441-539-0 05 1 9804-0201 ● ● ● ● ● ●
134 16.125 GROMMET; SCREW,COVER TO BODY
KD PREPARATORY PACK<6HF> 02.679 (A) D=7.9X7.9 L=20 M5 		8-94441-539-0 05 1 0202- ● ● ● ● ● ●
145 16.570 GUSSET; FRT PILLAR,UPR 8-94455-358-3 01 1 9804- ● ● ● ●
145 16.570 GUSSET; FRT PILLAR,UPR 8-94455-357-3 01 1 9804- ● ● ● ●
176 16.550 BRACKET; INST SUPPORT BAR 8-97132-021-1 01 1 9804- ● ● ● ● ● ●
176 16.550 BRACKET; INST SUPPORT BAR 8-97132-020-0 01 1 9804- ● ● ● ● ● ●
184 08.143 CLIP; REST,FENDER 8-94443-017-1 02 1 9804- ● ● ● ● ● ●
236 08.143 NUT; CLIP FENDER 8-94334-769-0 10 1 9804-0110 ● ● ● ● ● ●
236 08.143 NUT; CLIP FENDER 8-94334-769-0 08 1 0111- ● ● ● ● ● ●
442 16.570 BOLT; SEAL,DASH SIDE
03.342 M6X16 		8-97012-496-0 01 1 9804- ● ● ● ● ● ●
509 16.550 PANEL; DASH 8-97112-447-0 01 1 9804- ● ● ● ● ● ●
518 16.125 SCREW; BRKT,COWL COVER
M5X19 		8-97142-720-1 05 1 9804- ● ● ● ● ● ●
