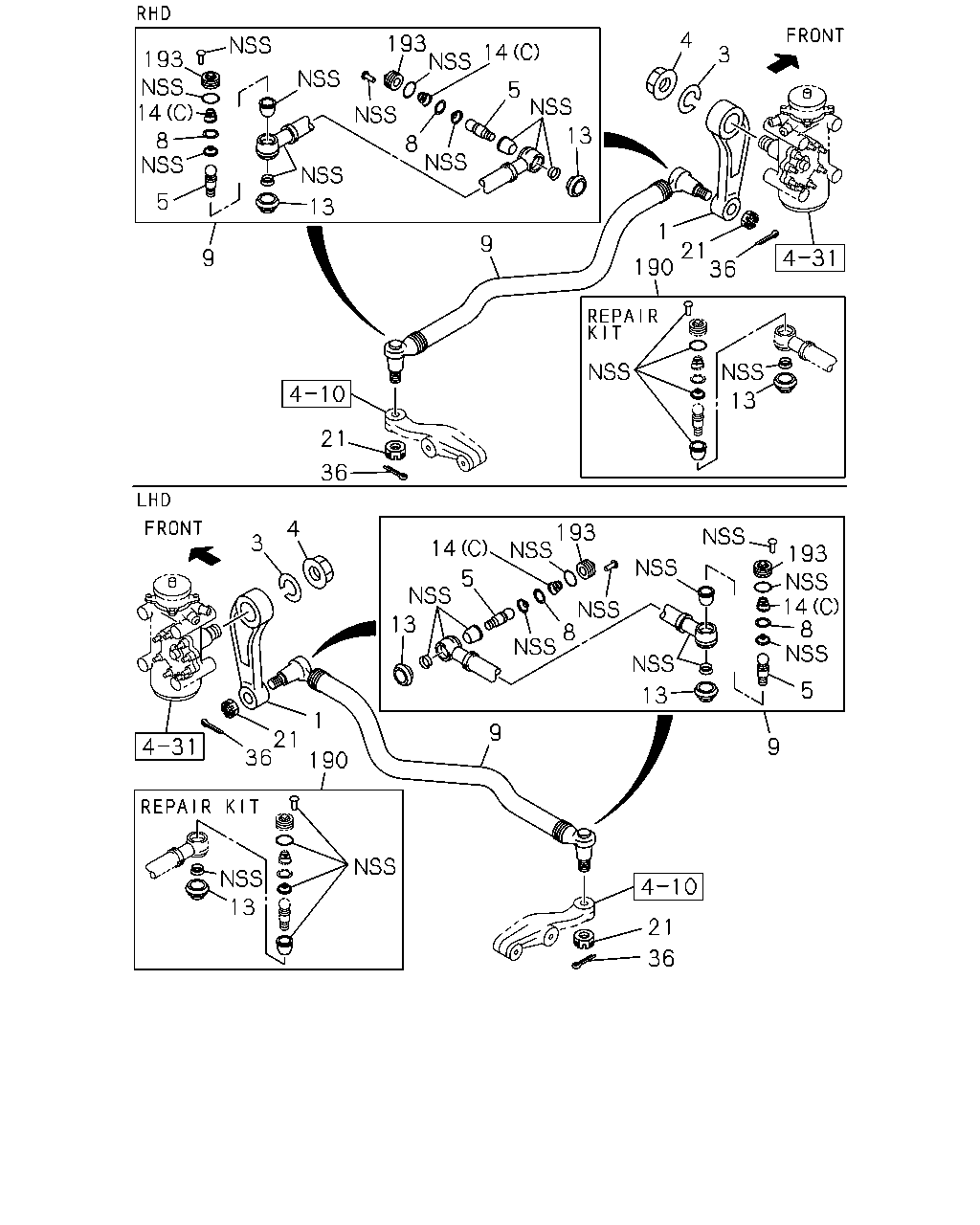

4-33 — STEERING LINKAGE (#4469) — 90 parça

4 193 14 3 193 14 8 5 13 8 5 13 1 9 21 9 13 21 36 4 193 3 14 193 14 8 5 8 13 5 13 1 9 21 36 9 190 13 21 36 190 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	ARM; PITMAN,STRG BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> POWER STRG(N40)	1-44340-403-0	01	1	9101-9504	●
1	ARM; PITMAN,STRG	1-44341-377-0	01	1	9505-	●
1	ARM; PITMAN,STRG BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. POWER STRG(N40)	1-44340-405-0	01	1	9101-9504	●
1	ARM; PITMAN,STRG EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>,POWER STRG(N40)	1-44340-355-0	01	1	9101-9504	●
1	ARM; PITMAN,STRG POWER STRG(N40) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-44340-360-0	01	1	9101-9504	●
1	ARM; PITMAN,STRG BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> POWER STRG(N40)	1-44340-399-0	01	1	9101-9504		●
1	ARM; PITMAN,STRG	1-44341-426-0	01	1	9505-		●
1	ARM; PITMAN,STRG BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. POWER STRG(N40)	1-44340-407-0	01	1	9101-9504		●
1	ARM; PITMAN,STRG EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>,POWER STRG(N40)	1-44340-340-0	01	1	9101-9504		●
1	ARM; PITMAN,STRG POWER STRG(N40) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-44340-346-1	01	1	9101-9504		●
3	WASHER; LK,PITMAN ARM POWER STRG(N40) ID=36.5	1-09500-021-0	01	1	9101-9504	●	●
3	WASHER; LK,PITMAN ARM ID=36.5	1-09500-021-0	01	1	9505-	●	●
3	WASHER; LK,PITMAN ARM EXC. POWER STRG(N40) ID=30.5	1-09500-026-0	01	1	9101-9504	●	●
4	NUT; PITMAN ARM POWER STRG(N40) M36 FLANGE	1-09440-013-0	01	1	9101-9504	●	●
4	NUT; PITMAN ARM M36 FLANGE	1-09440-013-0	01	1	9505-0805	●	●
4	NUT; PITMAN ARM M36 FLANGE	1-09440-098-0	01	1	0806-	●	●
4	NUT; PITMAN ARM EXC. POWER STRG(N40) M30	1-09400-050-0	01	1	9101-9504	●	●
5	BALL; JOINT,DRAG LINK	1-44361-105-1	02	1	9505-	●	●
8	SEAT; SPR,ROD END OD=40	1-09763-007-0	04	1	9101-9504	●	●
8	SEAT; SPR,ROD END	1-43159-075-0	02	1	9505-	●	●
9	LINK; DRAG BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> POWER STRG(N40)	1-44350-813-2	01	1	9101-9201	●
9	LINK; DRAG BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> POWER STRG(N40)	1-44380-033-1	01	1	9202-9504	●
9	LINK; DRAG	1-44380-137-3	01	1	9505-		●
9	LINK; DRAG BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. POWER STRG(N40)	1-44350-811-2	01	1	9101-9201	●
9	LINK; DRAG BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. POWER STRG(N40)	1-44380-028-1	01	1	9202-9504	●
9	LINK; DRAG EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>,POWER STRG(N40)	1-44350-606-3	01	1	9101-9504	●
9	LINK; DRAG POWER STRG(N40) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-44350-605-3	01	1	9101-9504	●
9	LINK; DRAG BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> POWER STRG(N40)	1-44350-814-2	01	1	9101-9201		●
9	LINK; DRAG BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> POWER STRG(N40)	1-44380-034-1	01	1	9202-9504		●
9	LINK; DRAG	1-44380-138-3	01	1	9505-	●
9	LINK; DRAG BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. POWER STRG(N40)	1-44350-812-2	01	1	9101-9201		●
9	LINK; DRAG BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. POWER STRG(N40)	1-44380-029-1	01	1	9202-9504		●
9	LINK; DRAG EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>,POWER STRG(N40)	1-44350-604-3	01	1	9101-9504		●
9	LINK; DRAG POWER STRG(N40) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-44350-525-3	01	1	9101-9504		●
13	BOOT; DRAG LINK	1-43159-078-0	02	1	9505-9603	●	●
13	BOOT; DRAG LINK	1-43159-107-0	02	1	9604-	●	●
14	SPRING; COIL,DRAG LINK (A)	1-09580-037-1	02	1	9101-9504	●	●
14	SPRING; COIL,DRAG LINK (B)	1-09580-038-1	02	1	9101-9504	●	●
14	SPRING; COIL,DRAG LINK (C)	1-43159-074-0	02	1	9505-	●	●
21	NUT; LK,JOINT BALL M24 SLOTTED	1-09442-020-0	02	1	9505-0805	●	●
21	NUT; LK,JOINT BALL M24	1-09442-032-0	02	1	0806-	●	●
36	PIN; SPLIT,DRAG LINK	9-08115-065-0	02	1	9101-9504	●	●
36	PIN; SPLIT,DRAG LINK OD=4.6 L=35	9-08115-035-0	02	1	9505-0606	●	●
36	PIN; SPLIT,DRAG LINK OD=4.6 L=35	0-81125-035-0	02	1	0607-	●	●
190	REPAIR KIT; DRAG LINK	1-85574-041-0	02	1	9505-	●	●
193	PLUG; END,DRAG LINK	1-43159-093-0	02	1	9505-	●	●

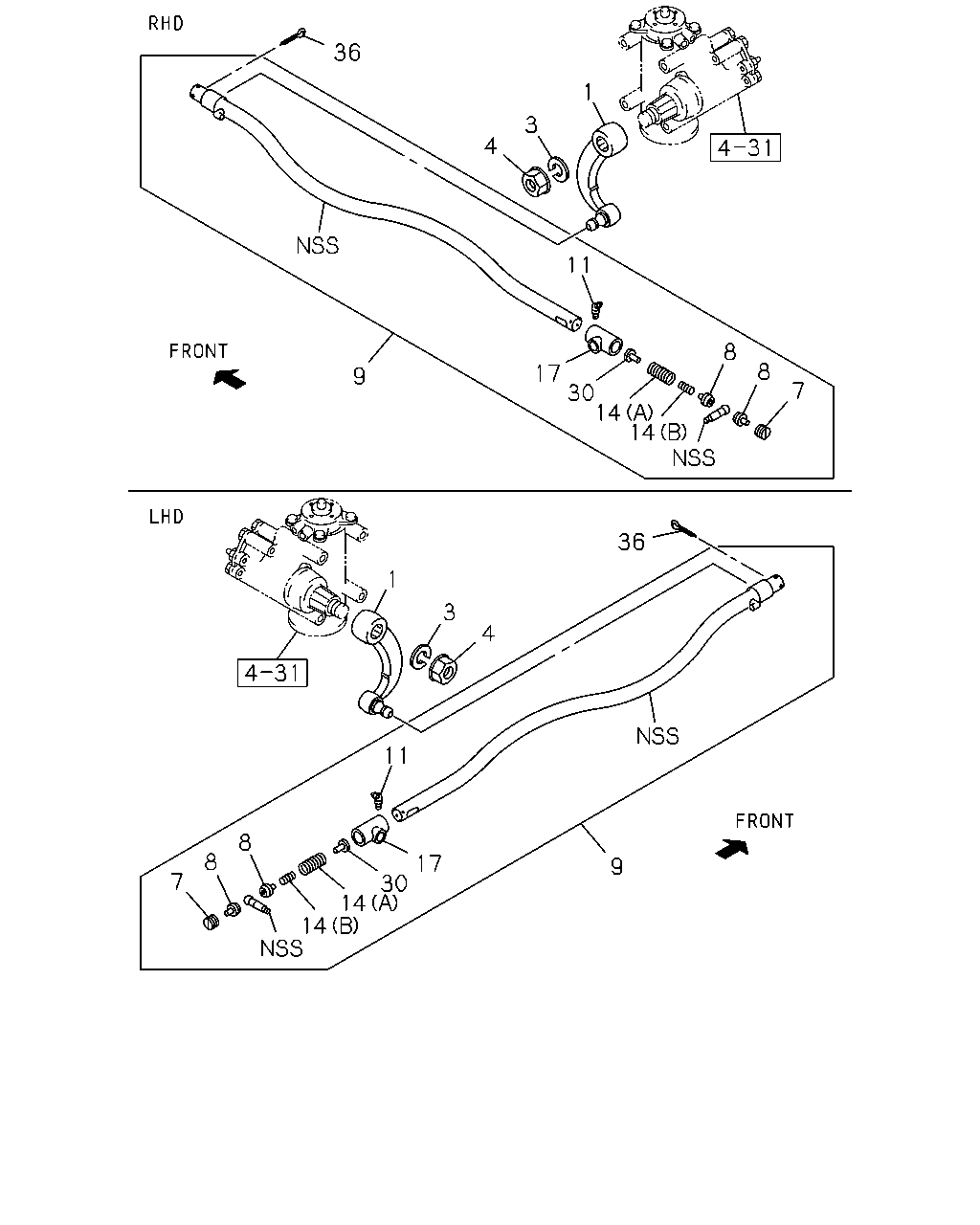

36 1 3 4 11 8 8 17 30 14 14 9 7 36 1 3 4 11 8 8 17 9 7 30 14 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	ARM; PITMAN,STRG BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> POWER STRG(N40)	1-44340-403-0	01	1	9101-9504	●
1	ARM; PITMAN,STRG	1-44341-377-0	01	1	9505-	●
1	ARM; PITMAN,STRG BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. POWER STRG(N40)	1-44340-405-0	01	1	9101-9504	●
1	ARM; PITMAN,STRG EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>,POWER STRG(N40)	1-44340-355-0	01	1	9101-9504	●
1	ARM; PITMAN,STRG POWER STRG(N40) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-44340-360-0	01	1	9101-9504	●
1	ARM; PITMAN,STRG BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> POWER STRG(N40)	1-44340-399-0	01	1	9101-9504		●
1	ARM; PITMAN,STRG	1-44341-426-0	01	1	9505-		●
1	ARM; PITMAN,STRG BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. POWER STRG(N40)	1-44340-407-0	01	1	9101-9504		●
1	ARM; PITMAN,STRG EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>,POWER STRG(N40)	1-44340-340-0	01	1	9101-9504		●
1	ARM; PITMAN,STRG POWER STRG(N40) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-44340-346-1	01	1	9101-9504		●
3	WASHER; LK,PITMAN ARM POWER STRG(N40) ID=36.5	1-09500-021-0	01	1	9101-9504	●	●
3	WASHER; LK,PITMAN ARM ID=36.5	1-09500-021-0	01	1	9505-	●	●
3	WASHER; LK,PITMAN ARM EXC. POWER STRG(N40) ID=30.5	1-09500-026-0	01	1	9101-9504	●	●
4	NUT; PITMAN ARM POWER STRG(N40) M36 FLANGE	1-09440-013-0	01	1	9101-9504	●	●
4	NUT; PITMAN ARM M36 FLANGE	1-09440-013-0	01	1	9505-0805	●	●
4	NUT; PITMAN ARM M36 FLANGE	1-09440-098-0	01	1	0806-	●	●
4	NUT; PITMAN ARM EXC. POWER STRG(N40) M30	1-09400-050-0	01	1	9101-9504	●	●
7	SCREW; ADJ,JOINT	1-44375-008-0	02	1	9101-9504	●	●
8	SEAT; SPR,ROD END OD=40	1-09763-007-0	04	1	9101-9504	●	●
8	SEAT; SPR,ROD END	1-43159-075-0	02	1	9505-	●	●
9	LINK; DRAG BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> POWER STRG(N40)	1-44350-813-2	01	1	9101-9201	●
9	LINK; DRAG BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> POWER STRG(N40)	1-44380-033-1	01	1	9202-9504	●
9	LINK; DRAG	1-44380-137-3	01	1	9505-		●
9	LINK; DRAG BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. POWER STRG(N40)	1-44350-811-2	01	1	9101-9201	●
9	LINK; DRAG BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. POWER STRG(N40)	1-44380-028-1	01	1	9202-9504	●
9	LINK; DRAG EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>,POWER STRG(N40)	1-44350-606-3	01	1	9101-9504	●
9	LINK; DRAG POWER STRG(N40) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-44350-605-3	01	1	9101-9504	●
9	LINK; DRAG BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> POWER STRG(N40)	1-44350-814-2	01	1	9101-9201		●
9	LINK; DRAG BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> POWER STRG(N40)	1-44380-034-1	01	1	9202-9504		●
9	LINK; DRAG	1-44380-138-3	01	1	9505-	●
9	LINK; DRAG BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. POWER STRG(N40)	1-44350-812-2	01	1	9101-9201		●
9	LINK; DRAG BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. POWER STRG(N40)	1-44380-029-1	01	1	9202-9504		●
9	LINK; DRAG EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>,POWER STRG(N40)	1-44350-604-3	01	1	9101-9504		●
9	LINK; DRAG POWER STRG(N40) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-44350-525-3	01	1	9101-9504		●
11	NIPPLE; GREASE,DRAG LINK PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	02	1	9101-9504	●	●
14	SPRING; COIL,DRAG LINK (A)	1-09580-037-1	02	1	9101-9504	●	●
14	SPRING; COIL,DRAG LINK (B)	1-09580-038-1	02	1	9101-9504	●	●
14	SPRING; COIL,DRAG LINK (C)	1-43159-074-0	02	1	9505-	●	●
17	GUARD; MUD,DRAG LINK	1-44365-033-1	02	1	9101-9504	●	●
30	SPACER; DRAG LINK POWER STRG(N40)	1-44379-004-0	02	1	9101-9504	●	●
30	SPACER; DRAG LINK EXC. POWER STRG(N40)	1-44379-003-0	02	1	9101-9504	●	●
36	PIN; SPLIT,DRAG LINK	9-08115-065-0	02	1	9101-9504	●	●
36	PIN; SPLIT,DRAG LINK OD=4.6 L=35	9-08115-035-0	02	1	9505-0606	●	●
36	PIN; SPLIT,DRAG LINK OD=4.6 L=35	0-81125-035-0	02	1	0607-	●	●
