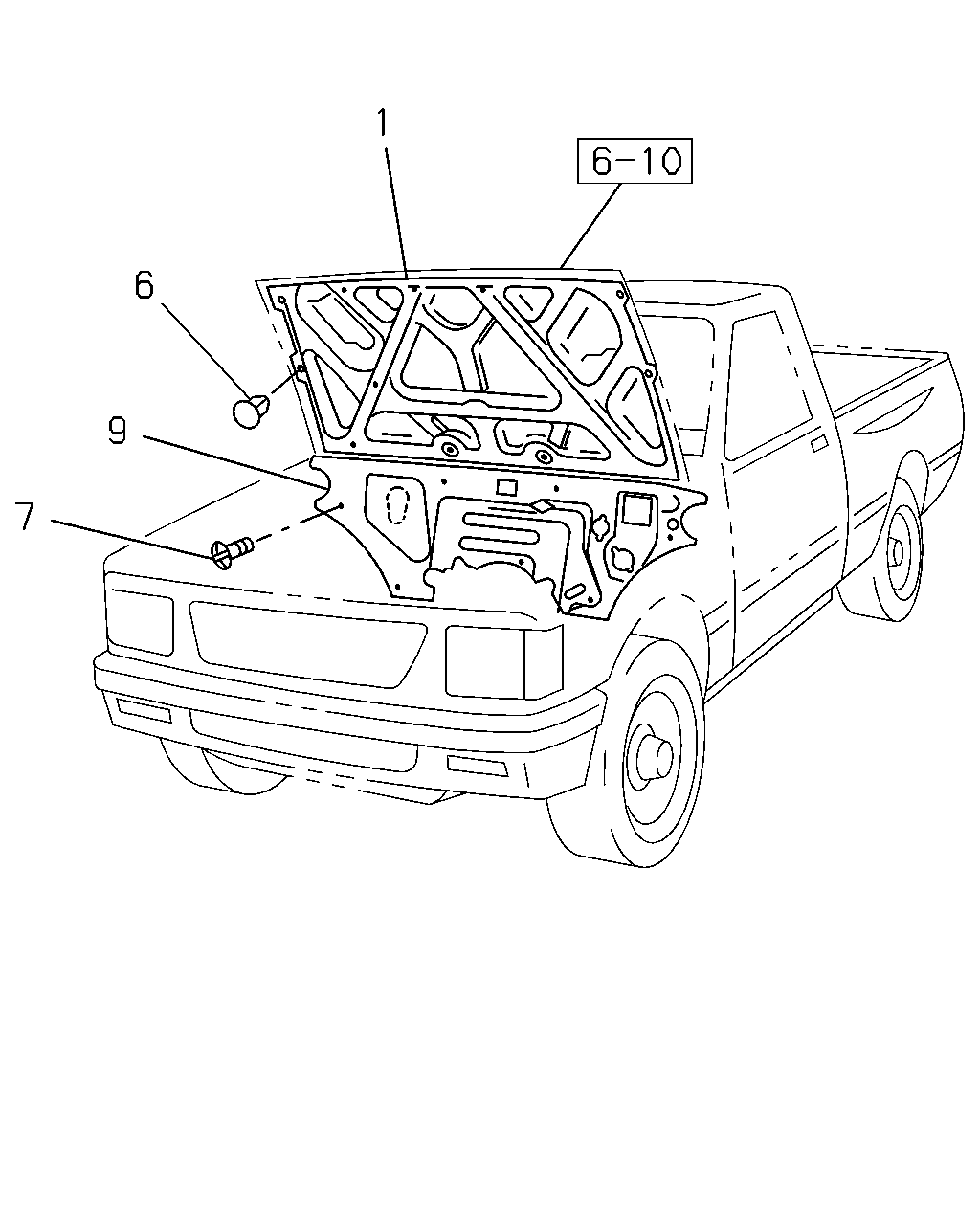

5-40 — ENGINE ROOM INSULATOR (#44686) — 18 parça

1 6 9 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	08.021 INSULATION; ENG HOOD	8-97111-847-0	01	1	9804-9807	●	●	●	●	●	●
1	08.021 INSULATION; ENG HOOD	8-97213-768-0	01	1	9808-0107	●	●	●	●	●	●
1	08.021 INSULATION; ENG HOOD EXC. CHARGE AIR COOLER<6PL>	8-97213-768-0	01	1	0108-		●	●		●	●
1	08.021 INSULATION; ENG HOOD	8-97289-075-1	01	1	0108-	●			●
1	08.021 INSULATION; ENG HOOD CHARGE AIR COOLER<6PL>	8-97289-075-1	01	1	0108-		●	●		●	●
6	08.021 CLIP; ENG HOOD INSULATION ID=6.2 L=11.4	8-97808-623-0	13	1	9804-0107	●	●	●	●	●	●
6	08.021 CLIP; ENG HOOD INSULATION EXC. CHARGE AIR COOLER<6PL> ID=6.2 L=11.4	8-97808-623-0	13	1	0108-		●	●		●	●
6	08.021 CLIP; ENG HOOD INSULATION ID=6.2 L=11.4	8-97808-623-0	12	1	0108-	●			●
6	08.021 CLIP; ENG HOOD INSULATION CHARGE AIR COOLER<6PL> ID=6.2 L=11.4	8-97808-623-0	12	1	0108-		●	●		●	●
7	08.021 CLIP; INSULATION 16.550 H=10.5	8-94441-810-0	06	1	9804-0107	●	●	●	●	●	●
7	08.021 CLIP; INSULATION 16.550 H=10.5	8-94441-810-0	06	1	0108-	●
7	08.021 CLIP; INSULATION 4JG2 ENG(RJC),4JA1 ENG(RLE) 16.550 H=10.5	8-94441-810-0	06	1	0108-		●	●		●	●
7	08.021 CLIP; INSULATION 4JA1 ENG(RLE) 16.550 H=10.5	8-94441-810-0	06	1	0108-				●
9	08.021 INSULATION; DASH ENG ROOM	8-97147-025-2	01	1	9804-0107	●	●	●	●	●	●
9	08.021 INSULATION; DASH ENG ROOM KD PREPARATORY PACK<6HF>	8-97147-025-2	01	1	0108-0211	●	●	●	●	●	●
9	08.021 INSULATION; DASH ENG ROOM KD PREPARATORY PACK<6HF>	8-97361-159-0	01	1	0212-	●	●	●	●	●	●
9	08.021 INSULATION; DASH ENG ROOM EXC. KD PREPARATORY PACK<6HF>	8-97311-548-1	01	1	0108-0211	●	●	●	●	●	●
9	08.021 INSULATION; DASH ENG ROOM EXC. KD PREPARATORY PACK<6HF>	8-97361-160-0	01	1	0212-	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
