5-20 — BATTERY CARRIER (#44684) — 11 parça

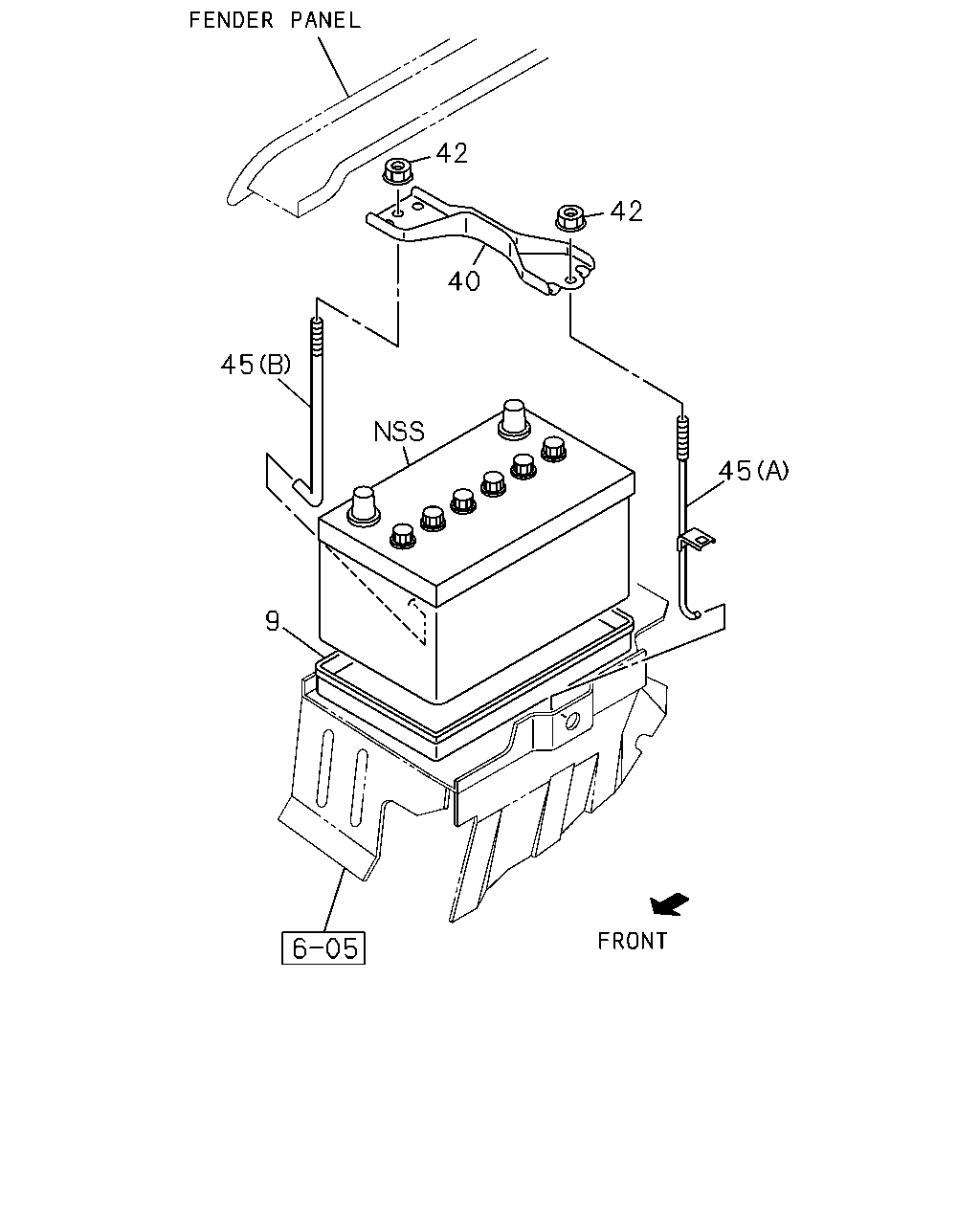

çizim 15704
42 42 40 45 45 9
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
9 02.333 SEAT; BATTERY 8-94405-030-1 01 1 9804- ● ● ● ● ● ●
40 02.335 CLAMP; BATTERY 8-97125-377-0 01 1 9804-9905 ● ● ● ● ● ●
40 02.335 CLAMP; BATTERY 8-97226-672-0 01 1 9906-9906 ● ● ● ● ● ●
40 02.335 CLAMP; BATTERY 8-97125-377-0 01 1 9907- ● ● ● ● ● ●
42 02.334 NUT; CLAMP
07.833 M6 W/DISHED WASHER 		8-94170-192-0 02 1 9804- ● ● ● ● ● ●
45 02.334 ROD; TENSION,BATTERY
L=202 		8-97039-079-1 01 1 0301- ●
45 02.334 ROD; TENSION,BATTERY
4JA1 ENG(RLE) L=202 		8-97039-079-1 01 1 0301- ● ● ● ● ●
45 02.334 ROD; TENSION,BATTERY
(B) L=180 		8-94407-451-2 01 1 9804- ● ● ● ● ● ●
45 02.334 ROD; TENSION,BATTERY
(A) L=202 		8-97039-079-1 01 1 9804-0211 ● ● ● ● ● ●
45 02.334 ROD; TENSION,BATTERY
(A) L=202 		8-97221-728-0 01 1 0212-0212 ● ● ● ● ● ●
45 02.334 ROD; TENSION,BATTERY
4JG2 ENG(RJC) L=202 		8-97221-728-0 01 1 0301- ● ● ● ●
