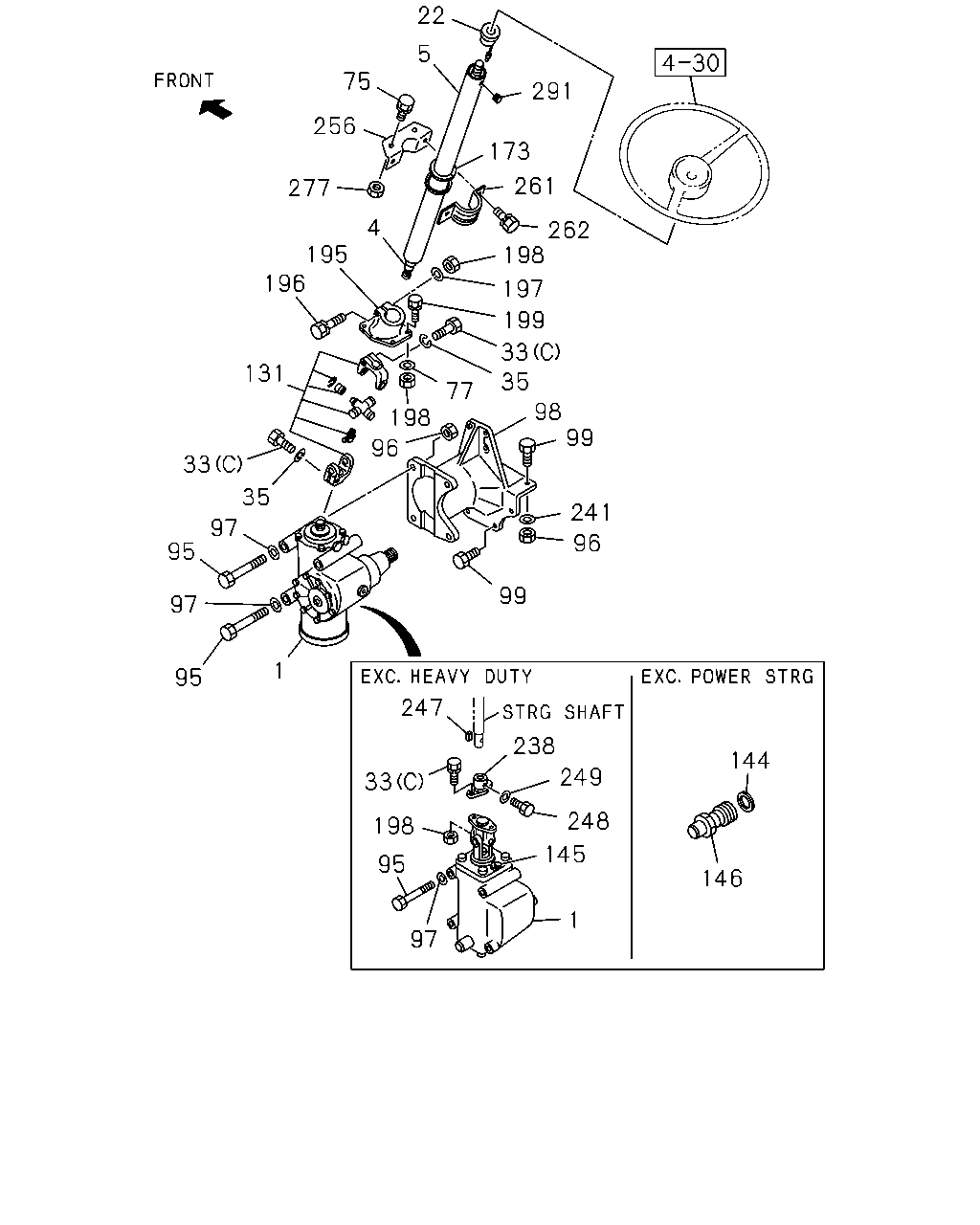

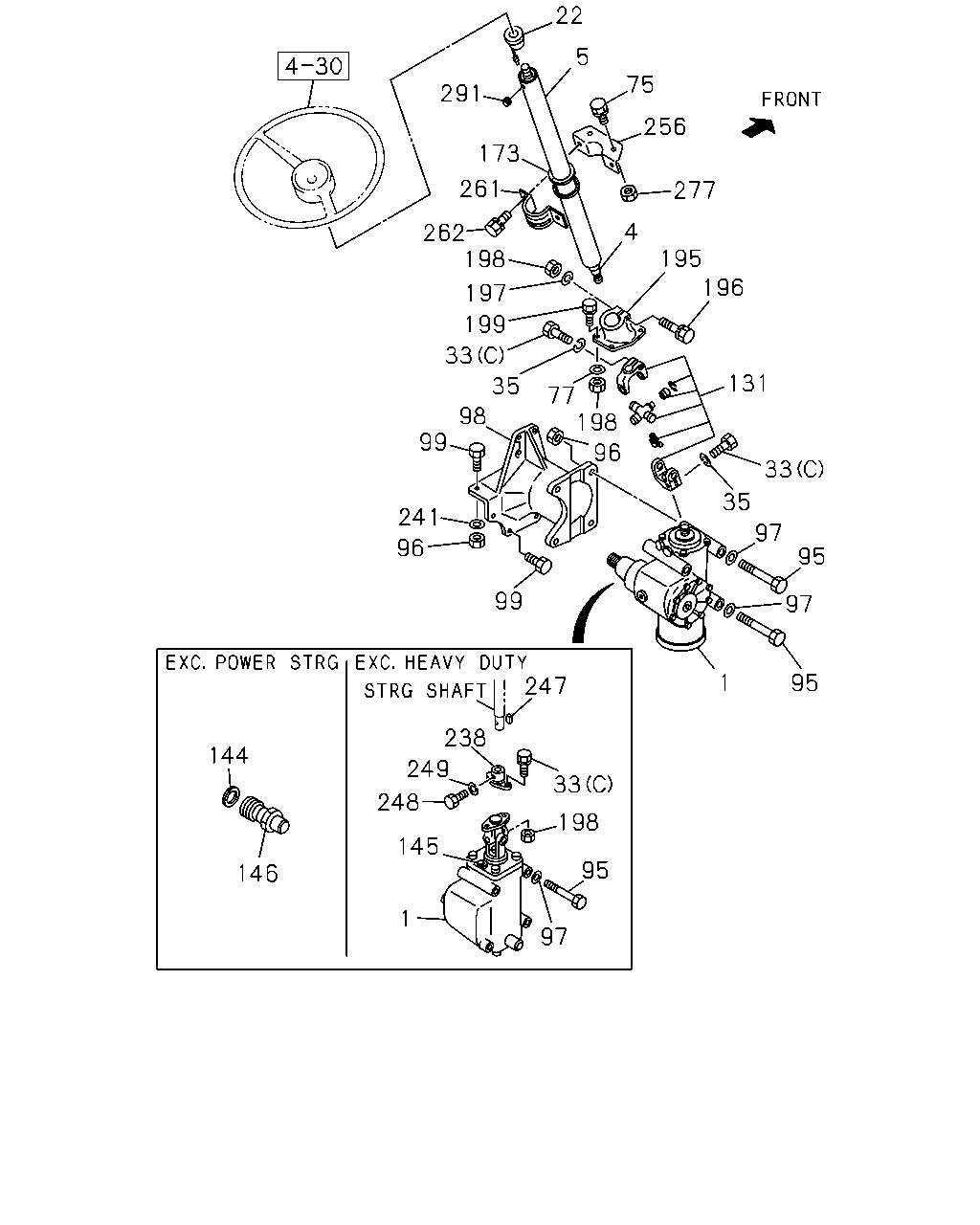

4-31 — STEERING COLUMN AND SHAFT (#4468) — 546 parça

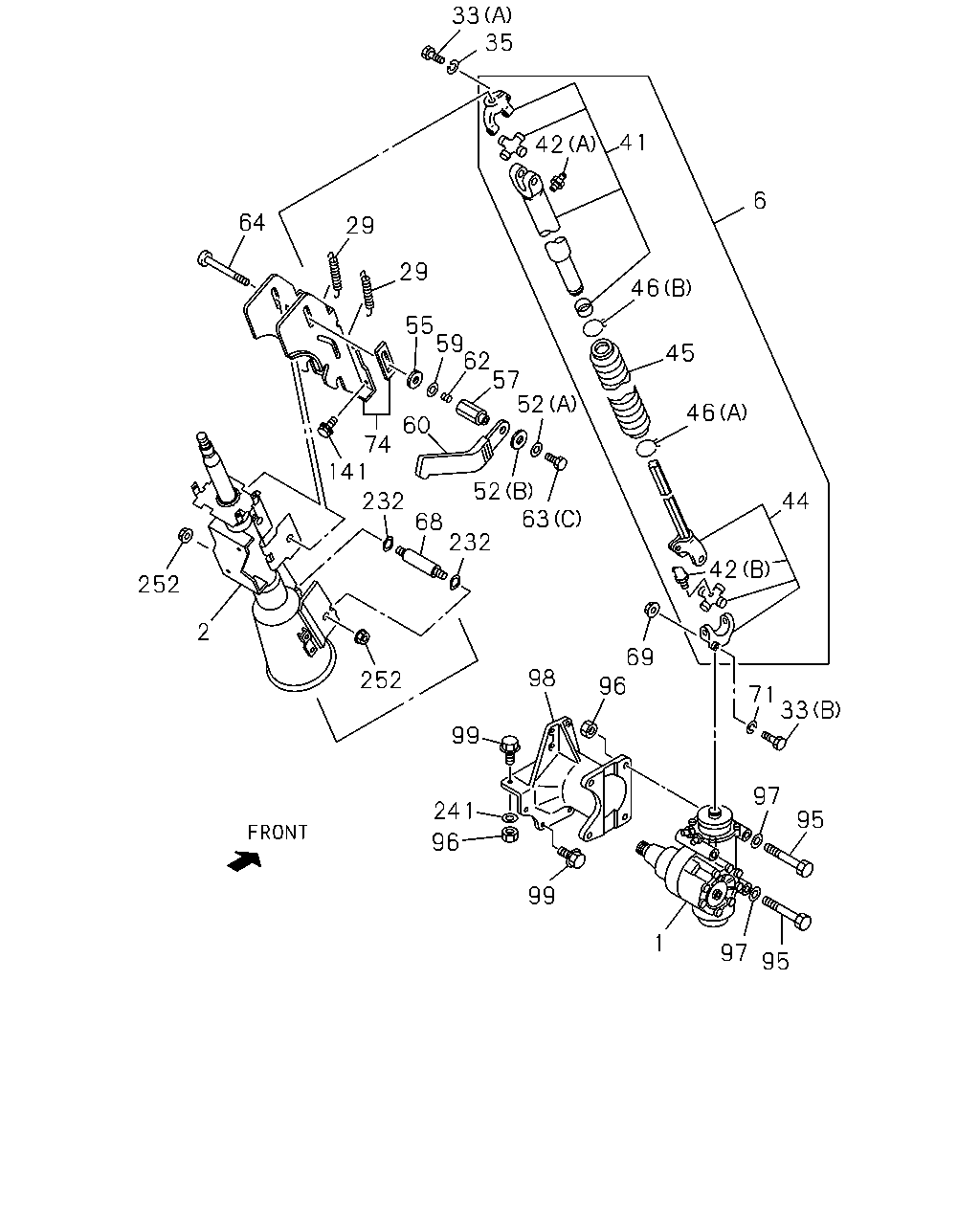

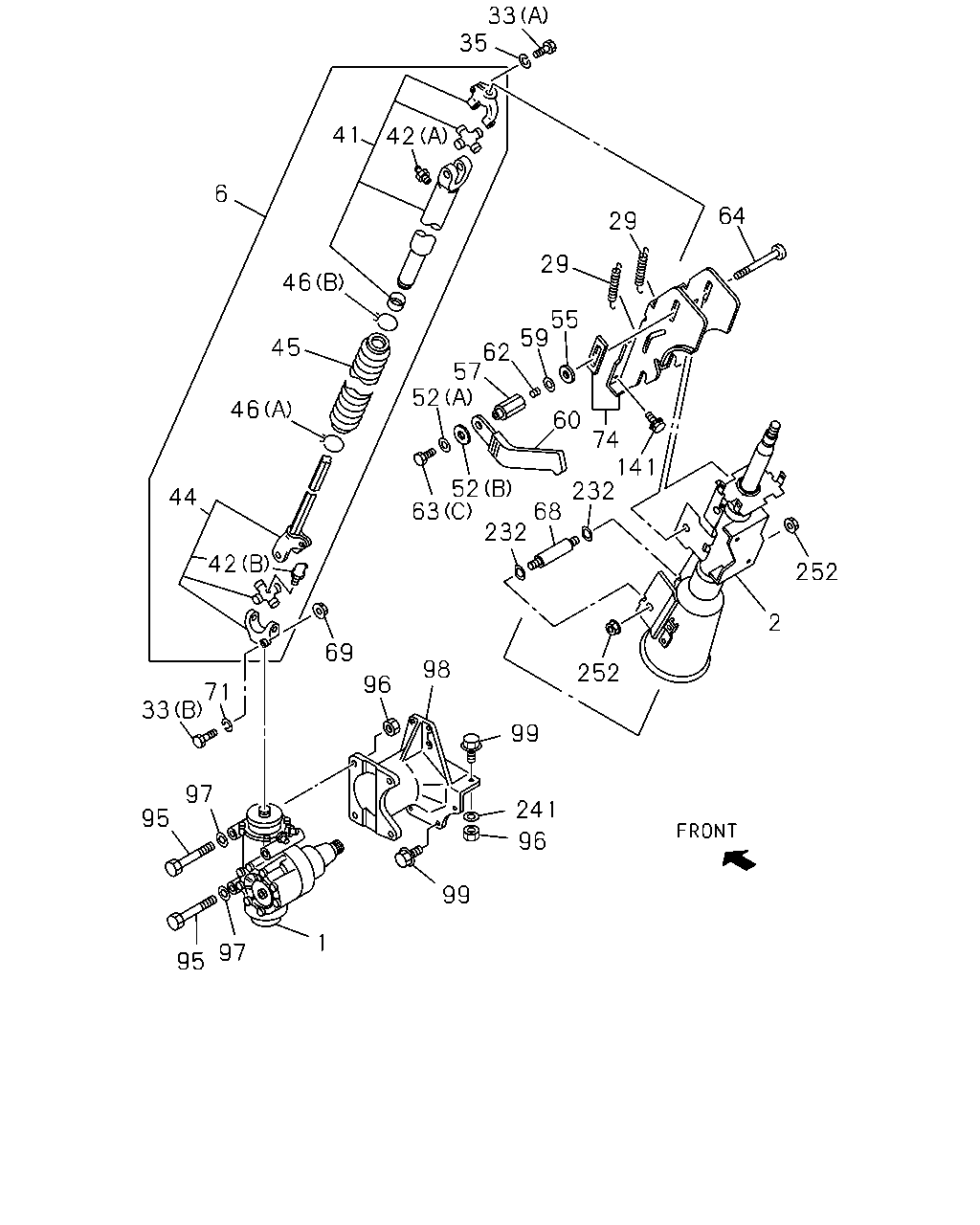

55 29 29 64 141 74 60 59 52 52 62 57 232 232 68 2 252 252 99 241 98 96 99 96 69 71 33 97 1 97 95 95 33 46 42 35 41 6 45 46 44 42 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> POWER STRG(N40)	1-44000-703-1	01	1	9101-9401	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> POWER STRG(N40)	1-44000-836-0	01	1	9402-9504	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	1-44000-832-3	01	1	9505-	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. POWER STRG(N40)	1-44000-665-4	01	1	9101-9504	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>,POWER STRG(N40)	1-44000-601-3	01	1	9101-9504	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. POWER STRG(N40) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-44000-582-0	01	1	9101-9504	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> POWER STRG(N40)	1-44000-702-1	01	1	9101-9401		●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> POWER STRG(N40)	1-44000-837-0	01	1	9402-9504		●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	1-44000-833-3	01	1	9505-		●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. POWER STRG(N40)	1-44000-669-3	01	1	9101-9504		●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>,POWER STRG(N40)	1-44000-565-3	01	1	9101-9504		●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. POWER STRG(N40) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-44000-583-0	01	1	9101-9504		●
2	SHAFT ASM; STRG	1-44130-556-1	01	1	9505-9804	●	●
2	SHAFT ASM; STRG	1-44130-689-1	01	1	9805-	●	●
6	SHAFT; STRG LWR	1-44135-298-0	01	1	9505-9804	●	●
29	SPRING; COLUMN	1-44227-136-0	02	1	9505-9804	●	●
33	BOLT; STRG SHAFT TO UNIT BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (C) M10X35	1-09009-126-1	02	1	9101-9504	●	●
33	BOLT; STRG SHAFT TO UNIT (B) M10X50	1-09000-489-0	01	1	9505-0709	●	●
33	BOLT; STRG SHAFT TO UNIT (B) M10X50	1-09000-786-0	01	1	0710-	●	●
33	BOLT; STRG SHAFT TO UNIT EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (C) M10X22 W/LK WASHER	0-50041-022-0	02	1	9101-9504	●	●
33	BOLT; STRG SHAFT TO UNIT (A)	1-44139-141-0	01	1	9505-9804	●	●
33	BOLT; STRG SHAFT TO UNIT (A)	1-44139-153-0	01	1	9805-	●	●
35	WASHER; LK,STRG SHAFT BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ID=10.2	9-09150-810-0	01	1	9101-9110	●	●
35	WASHER; LK,STRG SHAFT BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ID=10.2	9-09150-810-0	02	1	9111-9504	●	●
35	WASHER; LK,STRG SHAFT	1-44139-142-0	01	1	9505-9804	●	●
35	WASHER; LK,STRG SHAFT	1-44139-154-0	01	1	9805-	●	●
41	YOKE; SLEEVE,STRG	1-44135-299-0	01	1	9505-9804	●	●
42	NIPPLE; GREASE,SLEEVE YOKE (A) STRAIGHT	1-44135-375-0	01	1	9805-	●	●
42	NIPPLE; GREASE,SLEEVE YOKE (B) ELBOW	1-44135-376-0	01	1	9805-	●	●
42	NIPPLE; GREASE,SLEEVE YOKE (A) M6 STRAIGHT	9-09031-006-0	01	1	9505-9804	●	●
42	NIPPLE; GREASE,SLEEVE YOKE (B) PT1/8 ELBOW	9-09031-210-0	01	1	9505-9804	●	●
44	SHAFT; SPLINE,STRG	1-44135-300-0	01	1	9505-9804	●	●
45	BOOT; STRG SHAFT	1-44139-138-0	01	1	9505-9804	●	●
45	BOOT; STRG SHAFT	1-44139-155-0	01	1	9805-	●	●
46	CLIP; BOOT (A)	1-44139-139-0	01	1	9505-9804	●	●
46	CLIP; BOOT (C)	1-44139-156-0	02	1	9805-	●	●
46	CLIP; BOOT (B)	1-44139-140-0	01	1	9505-9804	●	●
52	WASHER; PL,ADJ LEVER (A)	1-44227-127-0	01	1	9505-9804	●	●
52	WASHER; PL,ADJ LEVER (B)	1-44227-137-0	01	1	9505-9804	●	●
55	PLATE; GUIDE	1-44227-132-0	01	1	9505-9804	●	●
57	NUT; ADJ BOLT	1-44227-129-1	01	1	9505-9804	●	●
57	NUT; ADJ BOLT	1-44227-151-0	01	1	9805-	●	●
59	COLLAR; DIST,ADJ BOLT	1-44227-131-0	01	1	9505-9804	●	●
60	LEVER; ADJ,STRG COLUMN	1-44227-125-1	01	1	9505-9804	●	●
60	LEVER; ADJ,STRG COLUMN	1-44227-144-0	01	1	9805-	●	●
62	SPRING; LK,LEVER	1-44227-130-0	01	1	9505-9804	●	●
62	SPRING; LK,LEVER	1-44227-153-0	02	1	9805-0111	●	●
62	SPRING; LK,LEVER	1-44227-153-0	01	1	0112-	●	●
63	BOLT; ADJ LEVER,TILT STRG (C)	1-44227-126-0	01	1	9505-9804	●	●
63	BOLT; ADJ LEVER,TILT STRG (A)	1-44227-145-0	01	1	9805-	●	●
63	BOLT; ADJ LEVER,TILT STRG (B)	1-44227-149-0	01	1	9805-	●	●
64	BOLT; ADJ,PROTECTOR	1-44227-128-0	01	1	9505-9804	●	●
68	PIN; TILT CENTER	1-44227-133-1	01	1	9505-9804	●	●
69	NUT; TILT CENTER M10	9-09110-510-0	01	1	9505-9606	●	●
69	NUT; TILT CENTER M10 FLANGE	0-91150-210-0	01	1	9607-0106	●	●
69	NUT; TILT CENTER M10	9-09110-510-0	01	1	0107-0512	●	●
69	NUT; TILT CENTER M10	0-91110-510-0	01	1	0601-	●	●
71	WASHER; LK,SHAFT TO UNIT ID=10.2	9-09150-810-0	01	1	9709-0106	●	●
71	WASHER; LK,SHAFT TO UNIT ID=10.2	9-09150-810-0	02	1	0107-0603	●	●
71	WASHER; LK,SHAFT TO UNIT ID=10.2	0-91510-810-0	02	1	0604-1006	●	●
71	WASHER; LK,SHAFT TO UNIT ID=10.2	0-91510-810-0	01	1	1007-	●	●
74	BRACKET; SUPPORT,STRG	1-44221-075-1	01	1	9505-9804	●	●
95	BOLT; STRG UNIT POWER STRG(N40) M16X177	1-09000-426-0	02	1	9101-9504	●	●
95	BOLT; STRG UNIT M16X177	1-09000-426-0	02	1	9505-	●	●
95	BOLT; STRG UNIT POWER STRG(N40) M16X163	1-09040-078-0	02	1	9101-9504	●	●
95	BOLT; STRG UNIT M16X163	1-09040-078-0	02	1	9505-	●	●
95	BOLT; STRG UNIT EXC. POWER STRG(N40) M14X165	1-09000-115-1	02	1	9101-9504	●	●
95	BOLT; STRG UNIT EXC. POWER STRG(N40) M14X156	1-09000-496-0	02	1	9101-9504	●	●
96	NUT; STRG UNIT M14	9-99110-514-0	06	1	9101-9504	●	●
96	NUT; STRG UNIT M14	9-99110-514-0	06	1	9505-0512	●	●
96	NUT; STRG UNIT M14	0-91110-514-0	06	1	0601-	●	●
96	NUT; STRG UNIT POWER STRG(N40) M16	9-99110-516-0	02	1	9101-9504	●	●
96	NUT; STRG UNIT M16	9-99110-516-0	02	1	9505-0512	●	●
96	NUT; STRG UNIT M16	0-91110-516-0	02	1	0601-	●	●
96	NUT; STRG UNIT EXC. POWER STRG(N40) M14	9-99110-514-0	02	1	9101-9504	●	●
97	WASHER; PL,STRG UNIT POWER STRG(N40) ID=16.2	1-09503-223-0	06	1	9101-9504	●	●
97	WASHER; PL,STRG UNIT ID=16.2	1-09503-223-0	06	1	9505-	●	●
97	WASHER; PL,STRG UNIT EXC. POWER STRG(N40) ID=15	9-09651-069-0	06	1	9101-9504	●	●
98	BRACKET; STRG GEAR BOX POWER STRG(N40)	1-44226-069-1	01	1	9101-9102	●
98	BRACKET; STRG GEAR BOX POWER STRG(N40)	1-44226-133-1	01	1	9103-9504	●
98	BRACKET; STRG GEAR BOX	1-44226-133-2	01	1	9505-	●
98	BRACKET; STRG GEAR BOX EXC. POWER STRG(N40)	1-44226-068-1	01	1	9101-9102	●
98	BRACKET; STRG GEAR BOX EXC. POWER STRG(N40)	1-44226-132-1	01	1	9103-9504	●
98	BRACKET; STRG GEAR BOX POWER STRG(N40)	1-44226-066-3	01	1	9101-9102		●
98	BRACKET; STRG GEAR BOX POWER STRG(N40)	1-44226-131-0	01	1	9103-9504		●
98	BRACKET; STRG GEAR BOX	1-44226-131-1	01	1	9505-		●
98	BRACKET; STRG GEAR BOX EXC. POWER STRG(N40)	1-44226-059-1	01	1	9101-9102		●
98	BRACKET; STRG GEAR BOX EXC. POWER STRG(N40)	1-44226-130-0	01	1	9103-9504		●
99	BOLT; BRKT TO FRAME M14X45	9-92061-445-0	06	1	9101-9606	●	●
99	BOLT; BRKT TO FRAME M14X50 FLANGE	0-28891-450-0	06	1	9607-9710	●	●
99	BOLT; BRKT TO FRAME M14X45	9-92061-445-0	06	1	9711-	●	●
141	BOLT; BRKT TO STRG COLUMN M8X20 W/LK&PL WASHER	0-50140-820-0	04	1	9505-9606	●	●
141	BOLT; BRKT TO STRG COLUMN M8X16 FLANGE	0-28080-816-0	04	1	9607-0512	●	●
141	BOLT; BRKT TO STRG COLUMN M8X16 FLANGE	0-28050-816-0	04	1	0601-	●	●
232	SPACER; STRG SHAFT	1-44227-134-0	02	1	9505-9804	●	●
241	WASHER; PL ID=15	9-09651-069-0	12	1	9101-1201	●	●
241	WASHER; PL ID=15	8-98010-627-1	12	1	1202-	●	●
252	NUT; TILT CENTER BOLT	1-44227-135-0	02	1	9505-9804	●	●

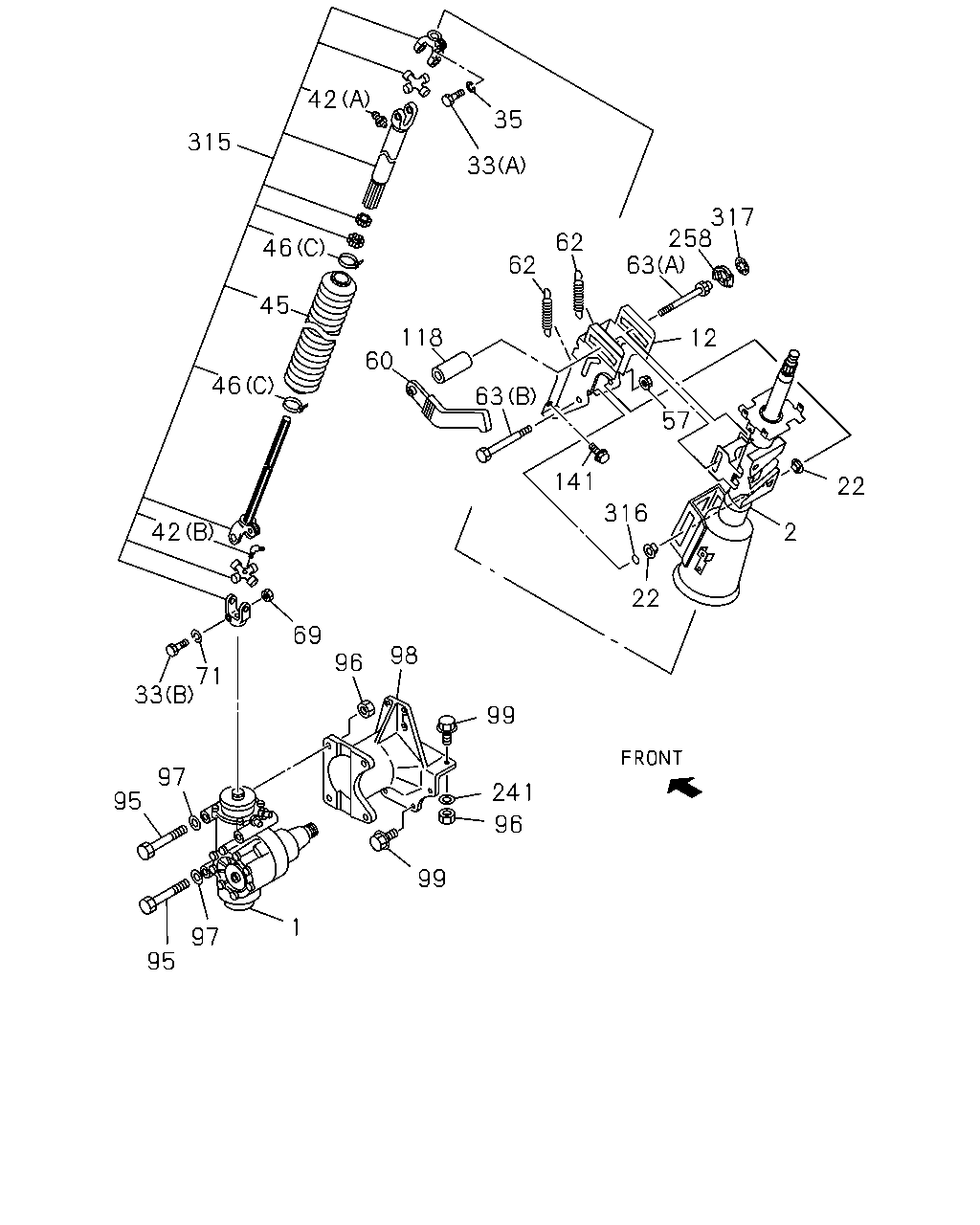

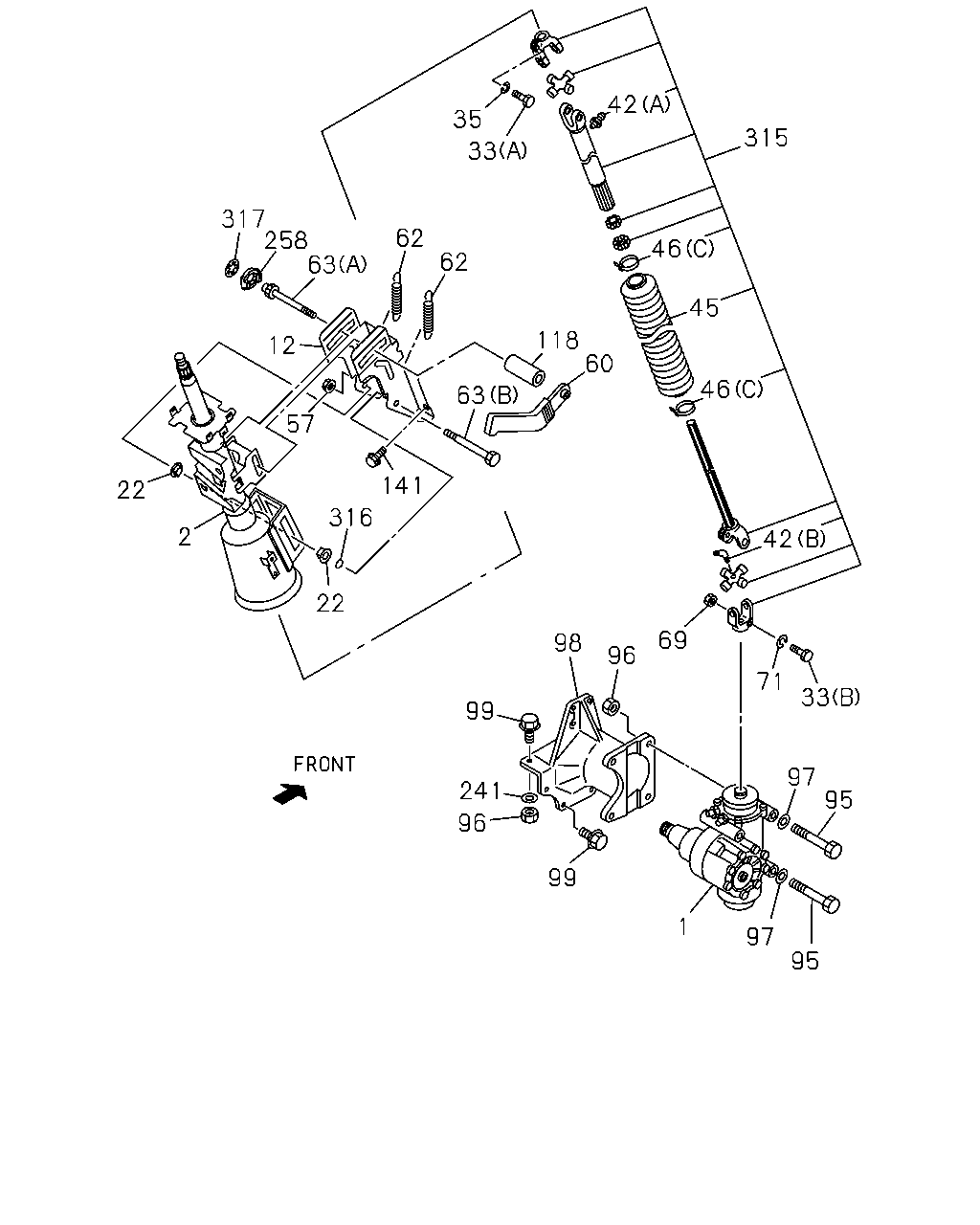

42 35 315 33 317 258 63 62 46 62 45 118 60 12 46 63 57 141 22 316 42 2 22 69 98 96 71 33 99 97 241 95 96 99 1 97 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> POWER STRG(N40)	1-44000-703-1	01	1	9101-9401	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> POWER STRG(N40)	1-44000-836-0	01	1	9402-9504	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	1-44000-832-3	01	1	9505-	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. POWER STRG(N40)	1-44000-665-4	01	1	9101-9504	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>,POWER STRG(N40)	1-44000-601-3	01	1	9101-9504	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. POWER STRG(N40) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-44000-582-0	01	1	9101-9504	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> POWER STRG(N40)	1-44000-702-1	01	1	9101-9401		●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> POWER STRG(N40)	1-44000-837-0	01	1	9402-9504		●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	1-44000-833-3	01	1	9505-		●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. POWER STRG(N40)	1-44000-669-3	01	1	9101-9504		●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>,POWER STRG(N40)	1-44000-565-3	01	1	9101-9504		●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. POWER STRG(N40) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-44000-583-0	01	1	9101-9504		●
2	SHAFT ASM; STRG	1-44130-556-1	01	1	9505-9804	●	●
2	SHAFT ASM; STRG	1-44130-689-1	01	1	9805-	●	●
12	BRACKET; LWR,STRG COLUMN	1-44227-143-0	01	1	9805-0811	●	●
12	BRACKET; LWR,STRG COLUMN	1-44227-167-0	01	1	0812-	●	●
22	BUSHING; STRG COLUMN	9-44133-031-0	01	1	9101-9504	●	●
22	BUSHING; STRG COLUMN	1-44227-150-0	02	1	9805-	●	●
33	BOLT; STRG SHAFT TO UNIT BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (C) M10X35	1-09009-126-1	02	1	9101-9504	●	●
33	BOLT; STRG SHAFT TO UNIT (B) M10X50	1-09000-489-0	01	1	9505-0709	●	●
33	BOLT; STRG SHAFT TO UNIT (B) M10X50	1-09000-786-0	01	1	0710-	●	●
33	BOLT; STRG SHAFT TO UNIT EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (C) M10X22 W/LK WASHER	0-50041-022-0	02	1	9101-9504	●	●
33	BOLT; STRG SHAFT TO UNIT (A)	1-44139-141-0	01	1	9505-9804	●	●
33	BOLT; STRG SHAFT TO UNIT (A)	1-44139-153-0	01	1	9805-	●	●
35	WASHER; LK,STRG SHAFT BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ID=10.2	9-09150-810-0	01	1	9101-9110	●	●
35	WASHER; LK,STRG SHAFT BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ID=10.2	9-09150-810-0	02	1	9111-9504	●	●
35	WASHER; LK,STRG SHAFT	1-44139-142-0	01	1	9505-9804	●	●
35	WASHER; LK,STRG SHAFT	1-44139-154-0	01	1	9805-	●	●
42	NIPPLE; GREASE,SLEEVE YOKE (A) STRAIGHT	1-44135-375-0	01	1	9805-	●	●
42	NIPPLE; GREASE,SLEEVE YOKE (B) ELBOW	1-44135-376-0	01	1	9805-	●	●
42	NIPPLE; GREASE,SLEEVE YOKE (A) M6 STRAIGHT	9-09031-006-0	01	1	9505-9804	●	●
42	NIPPLE; GREASE,SLEEVE YOKE (B) PT1/8 ELBOW	9-09031-210-0	01	1	9505-9804	●	●
45	BOOT; STRG SHAFT	1-44139-138-0	01	1	9505-9804	●	●
45	BOOT; STRG SHAFT	1-44139-155-0	01	1	9805-	●	●
46	CLIP; BOOT (A)	1-44139-139-0	01	1	9505-9804	●	●
46	CLIP; BOOT (C)	1-44139-156-0	02	1	9805-	●	●
46	CLIP; BOOT (B)	1-44139-140-0	01	1	9505-9804	●	●
57	NUT; ADJ BOLT	1-44227-129-1	01	1	9505-9804	●	●
57	NUT; ADJ BOLT	1-44227-151-0	01	1	9805-	●	●
60	LEVER; ADJ,STRG COLUMN	1-44227-125-1	01	1	9505-9804	●	●
60	LEVER; ADJ,STRG COLUMN	1-44227-144-0	01	1	9805-	●	●
62	SPRING; LK,LEVER	1-44227-130-0	01	1	9505-9804	●	●
62	SPRING; LK,LEVER	1-44227-153-0	02	1	9805-0111	●	●
62	SPRING; LK,LEVER	1-44227-153-0	01	1	0112-	●	●
63	BOLT; ADJ LEVER,TILT STRG (C)	1-44227-126-0	01	1	9505-9804	●	●
63	BOLT; ADJ LEVER,TILT STRG (A)	1-44227-145-0	01	1	9805-	●	●
63	BOLT; ADJ LEVER,TILT STRG (B)	1-44227-149-0	01	1	9805-	●	●
69	NUT; TILT CENTER M10	9-09110-510-0	01	1	9505-9606	●	●
69	NUT; TILT CENTER M10 FLANGE	0-91150-210-0	01	1	9607-0106	●	●
69	NUT; TILT CENTER M10	9-09110-510-0	01	1	0107-0512	●	●
69	NUT; TILT CENTER M10	0-91110-510-0	01	1	0601-	●	●
71	WASHER; LK,SHAFT TO UNIT ID=10.2	9-09150-810-0	01	1	9709-0106	●	●
71	WASHER; LK,SHAFT TO UNIT ID=10.2	9-09150-810-0	02	1	0107-0603	●	●
71	WASHER; LK,SHAFT TO UNIT ID=10.2	0-91510-810-0	02	1	0604-1006	●	●
71	WASHER; LK,SHAFT TO UNIT ID=10.2	0-91510-810-0	01	1	1007-	●	●
95	BOLT; STRG UNIT POWER STRG(N40) M16X177	1-09000-426-0	02	1	9101-9504	●	●
95	BOLT; STRG UNIT M16X177	1-09000-426-0	02	1	9505-	●	●
95	BOLT; STRG UNIT POWER STRG(N40) M16X163	1-09040-078-0	02	1	9101-9504	●	●
95	BOLT; STRG UNIT M16X163	1-09040-078-0	02	1	9505-	●	●
95	BOLT; STRG UNIT EXC. POWER STRG(N40) M14X165	1-09000-115-1	02	1	9101-9504	●	●
95	BOLT; STRG UNIT EXC. POWER STRG(N40) M14X156	1-09000-496-0	02	1	9101-9504	●	●
96	NUT; STRG UNIT M14	9-99110-514-0	06	1	9101-9504	●	●
96	NUT; STRG UNIT M14	9-99110-514-0	06	1	9505-0512	●	●
96	NUT; STRG UNIT M14	0-91110-514-0	06	1	0601-	●	●
96	NUT; STRG UNIT POWER STRG(N40) M16	9-99110-516-0	02	1	9101-9504	●	●
96	NUT; STRG UNIT M16	9-99110-516-0	02	1	9505-0512	●	●
96	NUT; STRG UNIT M16	0-91110-516-0	02	1	0601-	●	●
96	NUT; STRG UNIT EXC. POWER STRG(N40) M14	9-99110-514-0	02	1	9101-9504	●	●
97	WASHER; PL,STRG UNIT POWER STRG(N40) ID=16.2	1-09503-223-0	06	1	9101-9504	●	●
97	WASHER; PL,STRG UNIT ID=16.2	1-09503-223-0	06	1	9505-	●	●
97	WASHER; PL,STRG UNIT EXC. POWER STRG(N40) ID=15	9-09651-069-0	06	1	9101-9504	●	●
98	BRACKET; STRG GEAR BOX POWER STRG(N40)	1-44226-069-1	01	1	9101-9102	●
98	BRACKET; STRG GEAR BOX POWER STRG(N40)	1-44226-133-1	01	1	9103-9504	●
98	BRACKET; STRG GEAR BOX	1-44226-133-2	01	1	9505-	●
98	BRACKET; STRG GEAR BOX EXC. POWER STRG(N40)	1-44226-068-1	01	1	9101-9102	●
98	BRACKET; STRG GEAR BOX EXC. POWER STRG(N40)	1-44226-132-1	01	1	9103-9504	●
98	BRACKET; STRG GEAR BOX POWER STRG(N40)	1-44226-066-3	01	1	9101-9102		●
98	BRACKET; STRG GEAR BOX POWER STRG(N40)	1-44226-131-0	01	1	9103-9504		●
98	BRACKET; STRG GEAR BOX	1-44226-131-1	01	1	9505-		●
98	BRACKET; STRG GEAR BOX EXC. POWER STRG(N40)	1-44226-059-1	01	1	9101-9102		●
98	BRACKET; STRG GEAR BOX EXC. POWER STRG(N40)	1-44226-130-0	01	1	9103-9504		●
99	BOLT; BRKT TO FRAME M14X45	9-92061-445-0	06	1	9101-9606	●	●
99	BOLT; BRKT TO FRAME M14X50 FLANGE	0-28891-450-0	06	1	9607-9710	●	●
99	BOLT; BRKT TO FRAME M14X45	9-92061-445-0	06	1	9711-	●	●
118	NUT; LEVER,TILT BOLT	1-44227-146-0	01	1	9805-0506	●	●
118	NUT; LEVER,TILT BOLT	1-44227-163-0	01	1	0507-	●	●
141	BOLT; BRKT TO STRG COLUMN M8X20 W/LK&PL WASHER	0-50140-820-0	04	1	9505-9606	●	●
141	BOLT; BRKT TO STRG COLUMN M8X16 FLANGE	0-28080-816-0	04	1	9607-0512	●	●
141	BOLT; BRKT TO STRG COLUMN M8X16 FLANGE	0-28050-816-0	04	1	0601-	●	●
241	WASHER; PL ID=15	9-09651-069-0	12	1	9101-1201	●	●
241	WASHER; PL ID=15	8-98010-627-1	12	1	1202-	●	●
258	STOPPER; STRG COLUMN,TILT & TELESCOPIC	1-44227-147-0	01	1	9805-	●	●
315	JOINT; SPLINE	1-44135-341-1	01	1	9805-	●	●
316	RING	1-44227-152-0	01	1	9805-	●	●
317	NUT; PUSH	1-44227-148-0	01	1	9805-	●	●

42 35 315 33 317 258 63 62 46 62 45 118 60 12 46 63 57 141 22 316 2 42 22 69 98 96 71 33 99 97 95 241 96 99 1 97 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> POWER STRG(N40)	1-44000-703-1	01	1	9101-9401	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> POWER STRG(N40)	1-44000-836-0	01	1	9402-9504	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	1-44000-832-3	01	1	9505-	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. POWER STRG(N40)	1-44000-665-4	01	1	9101-9504	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>,POWER STRG(N40)	1-44000-601-3	01	1	9101-9504	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. POWER STRG(N40) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-44000-582-0	01	1	9101-9504	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> POWER STRG(N40)	1-44000-702-1	01	1	9101-9401		●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> POWER STRG(N40)	1-44000-837-0	01	1	9402-9504		●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	1-44000-833-3	01	1	9505-		●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. POWER STRG(N40)	1-44000-669-3	01	1	9101-9504		●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>,POWER STRG(N40)	1-44000-565-3	01	1	9101-9504		●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. POWER STRG(N40) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-44000-583-0	01	1	9101-9504		●
2	SHAFT ASM; STRG	1-44130-556-1	01	1	9505-9804	●	●
2	SHAFT ASM; STRG	1-44130-689-1	01	1	9805-	●	●
12	BRACKET; LWR,STRG COLUMN	1-44227-143-0	01	1	9805-0811	●	●
12	BRACKET; LWR,STRG COLUMN	1-44227-167-0	01	1	0812-	●	●
22	BUSHING; STRG COLUMN	9-44133-031-0	01	1	9101-9504	●	●
22	BUSHING; STRG COLUMN	1-44227-150-0	02	1	9805-	●	●
33	BOLT; STRG SHAFT TO UNIT BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (C) M10X35	1-09009-126-1	02	1	9101-9504	●	●
33	BOLT; STRG SHAFT TO UNIT (B) M10X50	1-09000-489-0	01	1	9505-0709	●	●
33	BOLT; STRG SHAFT TO UNIT (B) M10X50	1-09000-786-0	01	1	0710-	●	●
33	BOLT; STRG SHAFT TO UNIT EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (C) M10X22 W/LK WASHER	0-50041-022-0	02	1	9101-9504	●	●
33	BOLT; STRG SHAFT TO UNIT (A)	1-44139-141-0	01	1	9505-9804	●	●
33	BOLT; STRG SHAFT TO UNIT (A)	1-44139-153-0	01	1	9805-	●	●
35	WASHER; LK,STRG SHAFT BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ID=10.2	9-09150-810-0	01	1	9101-9110	●	●
35	WASHER; LK,STRG SHAFT BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ID=10.2	9-09150-810-0	02	1	9111-9504	●	●
35	WASHER; LK,STRG SHAFT	1-44139-142-0	01	1	9505-9804	●	●
35	WASHER; LK,STRG SHAFT	1-44139-154-0	01	1	9805-	●	●
42	NIPPLE; GREASE,SLEEVE YOKE (A) STRAIGHT	1-44135-375-0	01	1	9805-	●	●
42	NIPPLE; GREASE,SLEEVE YOKE (B) ELBOW	1-44135-376-0	01	1	9805-	●	●
42	NIPPLE; GREASE,SLEEVE YOKE (A) M6 STRAIGHT	9-09031-006-0	01	1	9505-9804	●	●
42	NIPPLE; GREASE,SLEEVE YOKE (B) PT1/8 ELBOW	9-09031-210-0	01	1	9505-9804	●	●
45	BOOT; STRG SHAFT	1-44139-138-0	01	1	9505-9804	●	●
45	BOOT; STRG SHAFT	1-44139-155-0	01	1	9805-	●	●
46	CLIP; BOOT (A)	1-44139-139-0	01	1	9505-9804	●	●
46	CLIP; BOOT (C)	1-44139-156-0	02	1	9805-	●	●
46	CLIP; BOOT (B)	1-44139-140-0	01	1	9505-9804	●	●
57	NUT; ADJ BOLT	1-44227-129-1	01	1	9505-9804	●	●
57	NUT; ADJ BOLT	1-44227-151-0	01	1	9805-	●	●
60	LEVER; ADJ,STRG COLUMN	1-44227-125-1	01	1	9505-9804	●	●
60	LEVER; ADJ,STRG COLUMN	1-44227-144-0	01	1	9805-	●	●
62	SPRING; LK,LEVER	1-44227-130-0	01	1	9505-9804	●	●
62	SPRING; LK,LEVER	1-44227-153-0	02	1	9805-0111	●	●
62	SPRING; LK,LEVER	1-44227-153-0	01	1	0112-	●	●
63	BOLT; ADJ LEVER,TILT STRG (C)	1-44227-126-0	01	1	9505-9804	●	●
63	BOLT; ADJ LEVER,TILT STRG (A)	1-44227-145-0	01	1	9805-	●	●
63	BOLT; ADJ LEVER,TILT STRG (B)	1-44227-149-0	01	1	9805-	●	●
69	NUT; TILT CENTER M10	9-09110-510-0	01	1	9505-9606	●	●
69	NUT; TILT CENTER M10 FLANGE	0-91150-210-0	01	1	9607-0106	●	●
69	NUT; TILT CENTER M10	9-09110-510-0	01	1	0107-0512	●	●
69	NUT; TILT CENTER M10	0-91110-510-0	01	1	0601-	●	●
71	WASHER; LK,SHAFT TO UNIT ID=10.2	9-09150-810-0	01	1	9709-0106	●	●
71	WASHER; LK,SHAFT TO UNIT ID=10.2	9-09150-810-0	02	1	0107-0603	●	●
71	WASHER; LK,SHAFT TO UNIT ID=10.2	0-91510-810-0	02	1	0604-1006	●	●
71	WASHER; LK,SHAFT TO UNIT ID=10.2	0-91510-810-0	01	1	1007-	●	●
95	BOLT; STRG UNIT POWER STRG(N40) M16X177	1-09000-426-0	02	1	9101-9504	●	●
95	BOLT; STRG UNIT M16X177	1-09000-426-0	02	1	9505-	●	●
95	BOLT; STRG UNIT POWER STRG(N40) M16X163	1-09040-078-0	02	1	9101-9504	●	●
95	BOLT; STRG UNIT M16X163	1-09040-078-0	02	1	9505-	●	●
95	BOLT; STRG UNIT EXC. POWER STRG(N40) M14X165	1-09000-115-1	02	1	9101-9504	●	●
95	BOLT; STRG UNIT EXC. POWER STRG(N40) M14X156	1-09000-496-0	02	1	9101-9504	●	●
96	NUT; STRG UNIT M14	9-99110-514-0	06	1	9101-9504	●	●
96	NUT; STRG UNIT M14	9-99110-514-0	06	1	9505-0512	●	●
96	NUT; STRG UNIT M14	0-91110-514-0	06	1	0601-	●	●
96	NUT; STRG UNIT POWER STRG(N40) M16	9-99110-516-0	02	1	9101-9504	●	●
96	NUT; STRG UNIT M16	9-99110-516-0	02	1	9505-0512	●	●
96	NUT; STRG UNIT M16	0-91110-516-0	02	1	0601-	●	●
96	NUT; STRG UNIT EXC. POWER STRG(N40) M14	9-99110-514-0	02	1	9101-9504	●	●
97	WASHER; PL,STRG UNIT POWER STRG(N40) ID=16.2	1-09503-223-0	06	1	9101-9504	●	●
97	WASHER; PL,STRG UNIT ID=16.2	1-09503-223-0	06	1	9505-	●	●
97	WASHER; PL,STRG UNIT EXC. POWER STRG(N40) ID=15	9-09651-069-0	06	1	9101-9504	●	●
98	BRACKET; STRG GEAR BOX POWER STRG(N40)	1-44226-069-1	01	1	9101-9102	●
98	BRACKET; STRG GEAR BOX POWER STRG(N40)	1-44226-133-1	01	1	9103-9504	●
98	BRACKET; STRG GEAR BOX	1-44226-133-2	01	1	9505-	●
98	BRACKET; STRG GEAR BOX EXC. POWER STRG(N40)	1-44226-068-1	01	1	9101-9102	●
98	BRACKET; STRG GEAR BOX EXC. POWER STRG(N40)	1-44226-132-1	01	1	9103-9504	●
98	BRACKET; STRG GEAR BOX POWER STRG(N40)	1-44226-066-3	01	1	9101-9102		●
98	BRACKET; STRG GEAR BOX POWER STRG(N40)	1-44226-131-0	01	1	9103-9504		●
98	BRACKET; STRG GEAR BOX	1-44226-131-1	01	1	9505-		●
98	BRACKET; STRG GEAR BOX EXC. POWER STRG(N40)	1-44226-059-1	01	1	9101-9102		●
98	BRACKET; STRG GEAR BOX EXC. POWER STRG(N40)	1-44226-130-0	01	1	9103-9504		●
99	BOLT; BRKT TO FRAME M14X45	9-92061-445-0	06	1	9101-9606	●	●
99	BOLT; BRKT TO FRAME M14X50 FLANGE	0-28891-450-0	06	1	9607-9710	●	●
99	BOLT; BRKT TO FRAME M14X45	9-92061-445-0	06	1	9711-	●	●
118	NUT; LEVER,TILT BOLT	1-44227-146-0	01	1	9805-0506	●	●
118	NUT; LEVER,TILT BOLT	1-44227-163-0	01	1	0507-	●	●
141	BOLT; BRKT TO STRG COLUMN M8X20 W/LK&PL WASHER	0-50140-820-0	04	1	9505-9606	●	●
141	BOLT; BRKT TO STRG COLUMN M8X16 FLANGE	0-28080-816-0	04	1	9607-0512	●	●
141	BOLT; BRKT TO STRG COLUMN M8X16 FLANGE	0-28050-816-0	04	1	0601-	●	●
241	WASHER; PL ID=15	9-09651-069-0	12	1	9101-1201	●	●
241	WASHER; PL ID=15	8-98010-627-1	12	1	1202-	●	●
258	STOPPER; STRG COLUMN,TILT & TELESCOPIC	1-44227-147-0	01	1	9805-	●	●
315	JOINT; SPLINE	1-44135-341-1	01	1	9805-	●	●
316	RING	1-44227-152-0	01	1	9805-	●	●
317	NUT; PUSH	1-44227-148-0	01	1	9805-	●	●

22 5 75 291 256 173 261 277 4 262 198 195 196 197 199 33 131 35 77 98 99 198 96 33 35 241 97 96 95 99 97 1 95 247 238 144 249 33 248 198 145 95 146 1 97

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> POWER STRG(N40)	1-44000-703-1	01	1	9101-9401	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> POWER STRG(N40)	1-44000-836-0	01	1	9402-9504	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	1-44000-832-3	01	1	9505-	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. POWER STRG(N40)	1-44000-665-4	01	1	9101-9504	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>,POWER STRG(N40)	1-44000-601-3	01	1	9101-9504	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. POWER STRG(N40) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-44000-582-0	01	1	9101-9504	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> POWER STRG(N40)	1-44000-702-1	01	1	9101-9401		●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> POWER STRG(N40)	1-44000-837-0	01	1	9402-9504		●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	1-44000-833-3	01	1	9505-		●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. POWER STRG(N40)	1-44000-669-3	01	1	9101-9504		●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>,POWER STRG(N40)	1-44000-565-3	01	1	9101-9504		●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. POWER STRG(N40) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-44000-583-0	01	1	9101-9504		●
4	SHAFT; STRG BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	8-94300-606-0	01	1	9101-9504	●	●
4	SHAFT; STRG EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-44131-066-1	01	1	9101-9504	●	●
5	COLUMN; STRG BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	8-94300-607-0	01	1	9101-9504	●	●
5	COLUMN; STRG EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-44211-106-1	01	1	9101-9504	●	●
22	BUSHING; STRG COLUMN	9-44133-031-0	01	1	9101-9504	●	●
22	BUSHING; STRG COLUMN	1-44227-150-0	02	1	9805-	●	●
33	BOLT; STRG SHAFT TO UNIT BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (C) M10X35	1-09009-126-1	02	1	9101-9504	●	●
33	BOLT; STRG SHAFT TO UNIT (B) M10X50	1-09000-489-0	01	1	9505-0709	●	●
33	BOLT; STRG SHAFT TO UNIT (B) M10X50	1-09000-786-0	01	1	0710-	●	●
33	BOLT; STRG SHAFT TO UNIT EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (C) M10X22 W/LK WASHER	0-50041-022-0	02	1	9101-9504	●	●
33	BOLT; STRG SHAFT TO UNIT (A)	1-44139-141-0	01	1	9505-9804	●	●
33	BOLT; STRG SHAFT TO UNIT (A)	1-44139-153-0	01	1	9805-	●	●
35	WASHER; LK,STRG SHAFT BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ID=10.2	9-09150-810-0	01	1	9101-9110	●	●
35	WASHER; LK,STRG SHAFT BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ID=10.2	9-09150-810-0	02	1	9111-9504	●	●
35	WASHER; LK,STRG SHAFT	1-44139-142-0	01	1	9505-9804	●	●
35	WASHER; LK,STRG SHAFT	1-44139-154-0	01	1	9805-	●	●
75	BOLT; STRG COLUMN M10X20 W/LK WASHER	0-50041-020-0	02	1	9101-9504	●	●
77	WASHER; PL,COLUMN ID=10.5 OD=18	9-09160-510-0	04	1	9405-9504	●	●
95	BOLT; STRG UNIT POWER STRG(N40) M16X177	1-09000-426-0	02	1	9101-9504	●	●
95	BOLT; STRG UNIT M16X177	1-09000-426-0	02	1	9505-	●	●
95	BOLT; STRG UNIT POWER STRG(N40) M16X163	1-09040-078-0	02	1	9101-9504	●	●
95	BOLT; STRG UNIT M16X163	1-09040-078-0	02	1	9505-	●	●
95	BOLT; STRG UNIT EXC. POWER STRG(N40) M14X165	1-09000-115-1	02	1	9101-9504	●	●
95	BOLT; STRG UNIT EXC. POWER STRG(N40) M14X156	1-09000-496-0	02	1	9101-9504	●	●
96	NUT; STRG UNIT M14	9-99110-514-0	06	1	9101-9504	●	●
96	NUT; STRG UNIT M14	9-99110-514-0	06	1	9505-0512	●	●
96	NUT; STRG UNIT M14	0-91110-514-0	06	1	0601-	●	●
96	NUT; STRG UNIT POWER STRG(N40) M16	9-99110-516-0	02	1	9101-9504	●	●
96	NUT; STRG UNIT M16	9-99110-516-0	02	1	9505-0512	●	●
96	NUT; STRG UNIT M16	0-91110-516-0	02	1	0601-	●	●
96	NUT; STRG UNIT EXC. POWER STRG(N40) M14	9-99110-514-0	02	1	9101-9504	●	●
97	WASHER; PL,STRG UNIT POWER STRG(N40) ID=16.2	1-09503-223-0	06	1	9101-9504	●	●
97	WASHER; PL,STRG UNIT ID=16.2	1-09503-223-0	06	1	9505-	●	●
97	WASHER; PL,STRG UNIT EXC. POWER STRG(N40) ID=15	9-09651-069-0	06	1	9101-9504	●	●
98	BRACKET; STRG GEAR BOX POWER STRG(N40)	1-44226-069-1	01	1	9101-9102	●
98	BRACKET; STRG GEAR BOX POWER STRG(N40)	1-44226-133-1	01	1	9103-9504	●
98	BRACKET; STRG GEAR BOX	1-44226-133-2	01	1	9505-	●
98	BRACKET; STRG GEAR BOX EXC. POWER STRG(N40)	1-44226-068-1	01	1	9101-9102	●
98	BRACKET; STRG GEAR BOX EXC. POWER STRG(N40)	1-44226-132-1	01	1	9103-9504	●
98	BRACKET; STRG GEAR BOX POWER STRG(N40)	1-44226-066-3	01	1	9101-9102		●
98	BRACKET; STRG GEAR BOX POWER STRG(N40)	1-44226-131-0	01	1	9103-9504		●
98	BRACKET; STRG GEAR BOX	1-44226-131-1	01	1	9505-		●
98	BRACKET; STRG GEAR BOX EXC. POWER STRG(N40)	1-44226-059-1	01	1	9101-9102		●
98	BRACKET; STRG GEAR BOX EXC. POWER STRG(N40)	1-44226-130-0	01	1	9103-9504		●
99	BOLT; BRKT TO FRAME M14X45	9-92061-445-0	06	1	9101-9606	●	●
99	BOLT; BRKT TO FRAME M14X50 FLANGE	0-28891-450-0	06	1	9607-9710	●	●
99	BOLT; BRKT TO FRAME M14X45	9-92061-445-0	06	1	9711-	●	●
131	BRACKET; ANCHOR PIN BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-44135-106-1	01	1	9101-9504	●	●
144	GASKET; OIL FILLER TO UNIT EXC. POWER STRG(N40)	9-09571-324-0	01	1	9101-9504	●	●
145	PLUG; AIR BREATHER EXC. POWER STRG(N40)	1-09893-002-0	01	1	9101-9504	●	●
146	FILLER ASM; OIL,STRG UNIT EXC. POWER STRG(N40)	9-44249-189-0	01	1	9101-9504	●	●
173	SEAT; RUBBER,STRG COLUMN	9-44224-028-0	01	1	9101-9504	●	●
195	END; STRG COLUMN	1-44215-007-1	01	1	9101-9504	●	●
196	BOLT; COLUMN END M10X55	0-10806-055-0	01	1	9101-9504	●	●
197	WASHER; LK,COLUMN END ID=10.2	9-09150-510-0	01	1	9101-9504	●	●
198	NUT; COLUMN END M10	9-09110-510-0	05	1	9101-9504	●	●
199	BOLT; COLUMN END TO PEDAL BOARD M10X25 W/LK WASHER	0-50041-025-0	04	1	9101-9504	●	●
238	FLANGE; STRG SHAFT EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	9-44135-007-0	01	1	9101-9504	●	●
241	WASHER; PL ID=15	9-09651-069-0	12	1	9101-1201	●	●
241	WASHER; PL ID=15	8-98010-627-1	12	1	1202-	●	●
247	KEY; WOODRUFF,YOKE TO SHAFT EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	9-09866-014-0	01	1	9101-9504	●	●
248	SCREW; YOKE EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	9-06130-812-0	01	1	9101-9504	●	●
249	WASHER; LK,YOKE EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ID=8.2	9-09150-508-0	01	1	9101-9504	●	●
256	BRACKET ASM; STEERING COLUMN	9-44221-182-1	01	1	9101-9504	●	●
261	CAP; STRG COLUMN	9-44222-014-0	01	1	9101-9504	●	●
262	BOLT; CAP TO BRKT M8X16 W/LK WASHER	0-50040-816-0	02	1	9101-9504	●	●
277	NUT; COLUMN BRKT M10	9-09110-510-0	02	1	9101-9504	●	●
291	GROMMET; STRG SHAFT COVER	9-09956-575-0	01	1	9101-9504	●	●

22 5 75 291 256 173 261 277 4 262 198 195 196 197 199 33 131 35 77 198 98 99 96 33 35 241 97 96 95 99 97 247 1 95 238 144 249 33 248 198 145 95 146 1 97

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> POWER STRG(N40)	1-44000-703-1	01	1	9101-9401	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> POWER STRG(N40)	1-44000-836-0	01	1	9402-9504	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	1-44000-832-3	01	1	9505-	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. POWER STRG(N40)	1-44000-665-4	01	1	9101-9504	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>,POWER STRG(N40)	1-44000-601-3	01	1	9101-9504	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. POWER STRG(N40) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-44000-582-0	01	1	9101-9504	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> POWER STRG(N40)	1-44000-702-1	01	1	9101-9401		●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> POWER STRG(N40)	1-44000-837-0	01	1	9402-9504		●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	1-44000-833-3	01	1	9505-		●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. POWER STRG(N40)	1-44000-669-3	01	1	9101-9504		●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>,POWER STRG(N40)	1-44000-565-3	01	1	9101-9504		●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. POWER STRG(N40) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-44000-583-0	01	1	9101-9504		●
4	SHAFT; STRG BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	8-94300-606-0	01	1	9101-9504	●	●
4	SHAFT; STRG EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-44131-066-1	01	1	9101-9504	●	●
5	COLUMN; STRG BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	8-94300-607-0	01	1	9101-9504	●	●
5	COLUMN; STRG EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-44211-106-1	01	1	9101-9504	●	●
22	BUSHING; STRG COLUMN	9-44133-031-0	01	1	9101-9504	●	●
22	BUSHING; STRG COLUMN	1-44227-150-0	02	1	9805-	●	●
33	BOLT; STRG SHAFT TO UNIT BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (C) M10X35	1-09009-126-1	02	1	9101-9504	●	●
33	BOLT; STRG SHAFT TO UNIT (B) M10X50	1-09000-489-0	01	1	9505-0709	●	●
33	BOLT; STRG SHAFT TO UNIT (B) M10X50	1-09000-786-0	01	1	0710-	●	●
33	BOLT; STRG SHAFT TO UNIT EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (C) M10X22 W/LK WASHER	0-50041-022-0	02	1	9101-9504	●	●
33	BOLT; STRG SHAFT TO UNIT (A)	1-44139-141-0	01	1	9505-9804	●	●
33	BOLT; STRG SHAFT TO UNIT (A)	1-44139-153-0	01	1	9805-	●	●
35	WASHER; LK,STRG SHAFT BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ID=10.2	9-09150-810-0	01	1	9101-9110	●	●
35	WASHER; LK,STRG SHAFT BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ID=10.2	9-09150-810-0	02	1	9111-9504	●	●
35	WASHER; LK,STRG SHAFT	1-44139-142-0	01	1	9505-9804	●	●
35	WASHER; LK,STRG SHAFT	1-44139-154-0	01	1	9805-	●	●
75	BOLT; STRG COLUMN M10X20 W/LK WASHER	0-50041-020-0	02	1	9101-9504	●	●
77	WASHER; PL,COLUMN ID=10.5 OD=18	9-09160-510-0	04	1	9405-9504	●	●
95	BOLT; STRG UNIT POWER STRG(N40) M16X177	1-09000-426-0	02	1	9101-9504	●	●
95	BOLT; STRG UNIT M16X177	1-09000-426-0	02	1	9505-	●	●
95	BOLT; STRG UNIT POWER STRG(N40) M16X163	1-09040-078-0	02	1	9101-9504	●	●
95	BOLT; STRG UNIT M16X163	1-09040-078-0	02	1	9505-	●	●
95	BOLT; STRG UNIT EXC. POWER STRG(N40) M14X165	1-09000-115-1	02	1	9101-9504	●	●
95	BOLT; STRG UNIT EXC. POWER STRG(N40) M14X156	1-09000-496-0	02	1	9101-9504	●	●
96	NUT; STRG UNIT M14	9-99110-514-0	06	1	9101-9504	●	●
96	NUT; STRG UNIT M14	9-99110-514-0	06	1	9505-0512	●	●
96	NUT; STRG UNIT M14	0-91110-514-0	06	1	0601-	●	●
96	NUT; STRG UNIT POWER STRG(N40) M16	9-99110-516-0	02	1	9101-9504	●	●
96	NUT; STRG UNIT M16	9-99110-516-0	02	1	9505-0512	●	●
96	NUT; STRG UNIT M16	0-91110-516-0	02	1	0601-	●	●
96	NUT; STRG UNIT EXC. POWER STRG(N40) M14	9-99110-514-0	02	1	9101-9504	●	●
97	WASHER; PL,STRG UNIT POWER STRG(N40) ID=16.2	1-09503-223-0	06	1	9101-9504	●	●
97	WASHER; PL,STRG UNIT ID=16.2	1-09503-223-0	06	1	9505-	●	●
97	WASHER; PL,STRG UNIT EXC. POWER STRG(N40) ID=15	9-09651-069-0	06	1	9101-9504	●	●
98	BRACKET; STRG GEAR BOX POWER STRG(N40)	1-44226-069-1	01	1	9101-9102	●
98	BRACKET; STRG GEAR BOX POWER STRG(N40)	1-44226-133-1	01	1	9103-9504	●
98	BRACKET; STRG GEAR BOX	1-44226-133-2	01	1	9505-	●
98	BRACKET; STRG GEAR BOX EXC. POWER STRG(N40)	1-44226-068-1	01	1	9101-9102	●
98	BRACKET; STRG GEAR BOX EXC. POWER STRG(N40)	1-44226-132-1	01	1	9103-9504	●
98	BRACKET; STRG GEAR BOX POWER STRG(N40)	1-44226-066-3	01	1	9101-9102		●
98	BRACKET; STRG GEAR BOX POWER STRG(N40)	1-44226-131-0	01	1	9103-9504		●
98	BRACKET; STRG GEAR BOX	1-44226-131-1	01	1	9505-		●
98	BRACKET; STRG GEAR BOX EXC. POWER STRG(N40)	1-44226-059-1	01	1	9101-9102		●
98	BRACKET; STRG GEAR BOX EXC. POWER STRG(N40)	1-44226-130-0	01	1	9103-9504		●
99	BOLT; BRKT TO FRAME M14X45	9-92061-445-0	06	1	9101-9606	●	●
99	BOLT; BRKT TO FRAME M14X50 FLANGE	0-28891-450-0	06	1	9607-9710	●	●
99	BOLT; BRKT TO FRAME M14X45	9-92061-445-0	06	1	9711-	●	●
131	BRACKET; ANCHOR PIN BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-44135-106-1	01	1	9101-9504	●	●
144	GASKET; OIL FILLER TO UNIT EXC. POWER STRG(N40)	9-09571-324-0	01	1	9101-9504	●	●
145	PLUG; AIR BREATHER EXC. POWER STRG(N40)	1-09893-002-0	01	1	9101-9504	●	●
146	FILLER ASM; OIL,STRG UNIT EXC. POWER STRG(N40)	9-44249-189-0	01	1	9101-9504	●	●
173	SEAT; RUBBER,STRG COLUMN	9-44224-028-0	01	1	9101-9504	●	●
195	END; STRG COLUMN	1-44215-007-1	01	1	9101-9504	●	●
196	BOLT; COLUMN END M10X55	0-10806-055-0	01	1	9101-9504	●	●
197	WASHER; LK,COLUMN END ID=10.2	9-09150-510-0	01	1	9101-9504	●	●
198	NUT; COLUMN END M10	9-09110-510-0	05	1	9101-9504	●	●
199	BOLT; COLUMN END TO PEDAL BOARD M10X25 W/LK WASHER	0-50041-025-0	04	1	9101-9504	●	●
238	FLANGE; STRG SHAFT EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	9-44135-007-0	01	1	9101-9504	●	●
241	WASHER; PL ID=15	9-09651-069-0	12	1	9101-1201	●	●
241	WASHER; PL ID=15	8-98010-627-1	12	1	1202-	●	●
247	KEY; WOODRUFF,YOKE TO SHAFT EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	9-09866-014-0	01	1	9101-9504	●	●
248	SCREW; YOKE EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	9-06130-812-0	01	1	9101-9504	●	●
249	WASHER; LK,YOKE EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ID=8.2	9-09150-508-0	01	1	9101-9504	●	●
256	BRACKET ASM; STEERING COLUMN	9-44221-182-1	01	1	9101-9504	●	●
261	CAP; STRG COLUMN	9-44222-014-0	01	1	9101-9504	●	●
262	BOLT; CAP TO BRKT M8X16 W/LK WASHER	0-50040-816-0	02	1	9101-9504	●	●
277	NUT; COLUMN BRKT M10	9-09110-510-0	02	1	9101-9504	●	●
291	GROMMET; STRG SHAFT COVER	9-09956-575-0	01	1	9101-9504	●	●

33 35 41 6 46 45 46 44 42 33 95 71 97 97 95 1 69 96 99 241 96 99 52 63 232 52 232 141 74 60 59 62 57 55 29 29 64 2 252 252 98 68 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> POWER STRG(N40)	1-44000-703-1	01	1	9101-9401	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> POWER STRG(N40)	1-44000-836-0	01	1	9402-9504	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	1-44000-832-3	01	1	9505-	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. POWER STRG(N40)	1-44000-665-4	01	1	9101-9504	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>,POWER STRG(N40)	1-44000-601-3	01	1	9101-9504	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. POWER STRG(N40) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-44000-582-0	01	1	9101-9504	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> POWER STRG(N40)	1-44000-702-1	01	1	9101-9401		●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> POWER STRG(N40)	1-44000-837-0	01	1	9402-9504		●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	1-44000-833-3	01	1	9505-		●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. POWER STRG(N40)	1-44000-669-3	01	1	9101-9504		●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>,POWER STRG(N40)	1-44000-565-3	01	1	9101-9504		●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. POWER STRG(N40) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-44000-583-0	01	1	9101-9504		●
2	SHAFT ASM; STRG	1-44130-556-1	01	1	9505-9804	●	●
2	SHAFT ASM; STRG	1-44130-689-1	01	1	9805-	●	●
6	SHAFT; STRG LWR	1-44135-298-0	01	1	9505-9804	●	●
29	SPRING; COLUMN	1-44227-136-0	02	1	9505-9804	●	●
33	BOLT; STRG SHAFT TO UNIT BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (C) M10X35	1-09009-126-1	02	1	9101-9504	●	●
33	BOLT; STRG SHAFT TO UNIT (B) M10X50	1-09000-489-0	01	1	9505-0709	●	●
33	BOLT; STRG SHAFT TO UNIT (B) M10X50	1-09000-786-0	01	1	0710-	●	●
33	BOLT; STRG SHAFT TO UNIT EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (C) M10X22 W/LK WASHER	0-50041-022-0	02	1	9101-9504	●	●
33	BOLT; STRG SHAFT TO UNIT (A)	1-44139-141-0	01	1	9505-9804	●	●
33	BOLT; STRG SHAFT TO UNIT (A)	1-44139-153-0	01	1	9805-	●	●
35	WASHER; LK,STRG SHAFT BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ID=10.2	9-09150-810-0	01	1	9101-9110	●	●
35	WASHER; LK,STRG SHAFT BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ID=10.2	9-09150-810-0	02	1	9111-9504	●	●
35	WASHER; LK,STRG SHAFT	1-44139-142-0	01	1	9505-9804	●	●
35	WASHER; LK,STRG SHAFT	1-44139-154-0	01	1	9805-	●	●
41	YOKE; SLEEVE,STRG	1-44135-299-0	01	1	9505-9804	●	●
42	NIPPLE; GREASE,SLEEVE YOKE (A) STRAIGHT	1-44135-375-0	01	1	9805-	●	●
42	NIPPLE; GREASE,SLEEVE YOKE (B) ELBOW	1-44135-376-0	01	1	9805-	●	●
42	NIPPLE; GREASE,SLEEVE YOKE (A) M6 STRAIGHT	9-09031-006-0	01	1	9505-9804	●	●
42	NIPPLE; GREASE,SLEEVE YOKE (B) PT1/8 ELBOW	9-09031-210-0	01	1	9505-9804	●	●
44	SHAFT; SPLINE,STRG	1-44135-300-0	01	1	9505-9804	●	●
45	BOOT; STRG SHAFT	1-44139-138-0	01	1	9505-9804	●	●
45	BOOT; STRG SHAFT	1-44139-155-0	01	1	9805-	●	●
46	CLIP; BOOT (A)	1-44139-139-0	01	1	9505-9804	●	●
46	CLIP; BOOT (C)	1-44139-156-0	02	1	9805-	●	●
46	CLIP; BOOT (B)	1-44139-140-0	01	1	9505-9804	●	●
52	WASHER; PL,ADJ LEVER (A)	1-44227-127-0	01	1	9505-9804	●	●
52	WASHER; PL,ADJ LEVER (B)	1-44227-137-0	01	1	9505-9804	●	●
55	PLATE; GUIDE	1-44227-132-0	01	1	9505-9804	●	●
57	NUT; ADJ BOLT	1-44227-129-1	01	1	9505-9804	●	●
57	NUT; ADJ BOLT	1-44227-151-0	01	1	9805-	●	●
59	COLLAR; DIST,ADJ BOLT	1-44227-131-0	01	1	9505-9804	●	●
60	LEVER; ADJ,STRG COLUMN	1-44227-125-1	01	1	9505-9804	●	●
60	LEVER; ADJ,STRG COLUMN	1-44227-144-0	01	1	9805-	●	●
62	SPRING; LK,LEVER	1-44227-130-0	01	1	9505-9804	●	●
62	SPRING; LK,LEVER	1-44227-153-0	02	1	9805-0111	●	●
62	SPRING; LK,LEVER	1-44227-153-0	01	1	0112-	●	●
63	BOLT; ADJ LEVER,TILT STRG (C)	1-44227-126-0	01	1	9505-9804	●	●
63	BOLT; ADJ LEVER,TILT STRG (A)	1-44227-145-0	01	1	9805-	●	●
63	BOLT; ADJ LEVER,TILT STRG (B)	1-44227-149-0	01	1	9805-	●	●
64	BOLT; ADJ,PROTECTOR	1-44227-128-0	01	1	9505-9804	●	●
68	PIN; TILT CENTER	1-44227-133-1	01	1	9505-9804	●	●
69	NUT; TILT CENTER M10	9-09110-510-0	01	1	9505-9606	●	●
69	NUT; TILT CENTER M10 FLANGE	0-91150-210-0	01	1	9607-0106	●	●
69	NUT; TILT CENTER M10	9-09110-510-0	01	1	0107-0512	●	●
69	NUT; TILT CENTER M10	0-91110-510-0	01	1	0601-	●	●
71	WASHER; LK,SHAFT TO UNIT ID=10.2	9-09150-810-0	01	1	9709-0106	●	●
71	WASHER; LK,SHAFT TO UNIT ID=10.2	9-09150-810-0	02	1	0107-0603	●	●
71	WASHER; LK,SHAFT TO UNIT ID=10.2	0-91510-810-0	02	1	0604-1006	●	●
71	WASHER; LK,SHAFT TO UNIT ID=10.2	0-91510-810-0	01	1	1007-	●	●
74	BRACKET; SUPPORT,STRG	1-44221-075-1	01	1	9505-9804	●	●
95	BOLT; STRG UNIT POWER STRG(N40) M16X177	1-09000-426-0	02	1	9101-9504	●	●
95	BOLT; STRG UNIT M16X177	1-09000-426-0	02	1	9505-	●	●
95	BOLT; STRG UNIT POWER STRG(N40) M16X163	1-09040-078-0	02	1	9101-9504	●	●
95	BOLT; STRG UNIT M16X163	1-09040-078-0	02	1	9505-	●	●
95	BOLT; STRG UNIT EXC. POWER STRG(N40) M14X165	1-09000-115-1	02	1	9101-9504	●	●
95	BOLT; STRG UNIT EXC. POWER STRG(N40) M14X156	1-09000-496-0	02	1	9101-9504	●	●
96	NUT; STRG UNIT M14	9-99110-514-0	06	1	9101-9504	●	●
96	NUT; STRG UNIT M14	9-99110-514-0	06	1	9505-0512	●	●
96	NUT; STRG UNIT M14	0-91110-514-0	06	1	0601-	●	●
96	NUT; STRG UNIT POWER STRG(N40) M16	9-99110-516-0	02	1	9101-9504	●	●
96	NUT; STRG UNIT M16	9-99110-516-0	02	1	9505-0512	●	●
96	NUT; STRG UNIT M16	0-91110-516-0	02	1	0601-	●	●
96	NUT; STRG UNIT EXC. POWER STRG(N40) M14	9-99110-514-0	02	1	9101-9504	●	●
97	WASHER; PL,STRG UNIT POWER STRG(N40) ID=16.2	1-09503-223-0	06	1	9101-9504	●	●
97	WASHER; PL,STRG UNIT ID=16.2	1-09503-223-0	06	1	9505-	●	●
97	WASHER; PL,STRG UNIT EXC. POWER STRG(N40) ID=15	9-09651-069-0	06	1	9101-9504	●	●
98	BRACKET; STRG GEAR BOX POWER STRG(N40)	1-44226-069-1	01	1	9101-9102	●
98	BRACKET; STRG GEAR BOX POWER STRG(N40)	1-44226-133-1	01	1	9103-9504	●
98	BRACKET; STRG GEAR BOX	1-44226-133-2	01	1	9505-	●
98	BRACKET; STRG GEAR BOX EXC. POWER STRG(N40)	1-44226-068-1	01	1	9101-9102	●
98	BRACKET; STRG GEAR BOX EXC. POWER STRG(N40)	1-44226-132-1	01	1	9103-9504	●
98	BRACKET; STRG GEAR BOX POWER STRG(N40)	1-44226-066-3	01	1	9101-9102		●
98	BRACKET; STRG GEAR BOX POWER STRG(N40)	1-44226-131-0	01	1	9103-9504		●
98	BRACKET; STRG GEAR BOX	1-44226-131-1	01	1	9505-		●
98	BRACKET; STRG GEAR BOX EXC. POWER STRG(N40)	1-44226-059-1	01	1	9101-9102		●
98	BRACKET; STRG GEAR BOX EXC. POWER STRG(N40)	1-44226-130-0	01	1	9103-9504		●
99	BOLT; BRKT TO FRAME M14X45	9-92061-445-0	06	1	9101-9606	●	●
99	BOLT; BRKT TO FRAME M14X50 FLANGE	0-28891-450-0	06	1	9607-9710	●	●
99	BOLT; BRKT TO FRAME M14X45	9-92061-445-0	06	1	9711-	●	●
141	BOLT; BRKT TO STRG COLUMN M8X20 W/LK&PL WASHER	0-50140-820-0	04	1	9505-9606	●	●
141	BOLT; BRKT TO STRG COLUMN M8X16 FLANGE	0-28080-816-0	04	1	9607-0512	●	●
141	BOLT; BRKT TO STRG COLUMN M8X16 FLANGE	0-28050-816-0	04	1	0601-	●	●
232	SPACER; STRG SHAFT	1-44227-134-0	02	1	9505-9804	●	●
241	WASHER; PL ID=15	9-09651-069-0	12	1	9101-1201	●	●
241	WASHER; PL ID=15	8-98010-627-1	12	1	1202-	●	●
252	NUT; TILT CENTER BOLT	1-44227-135-0	02	1	9505-9804	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
