4-42 — POWER STEERING OIL PUMP (#44676) — 74 parça

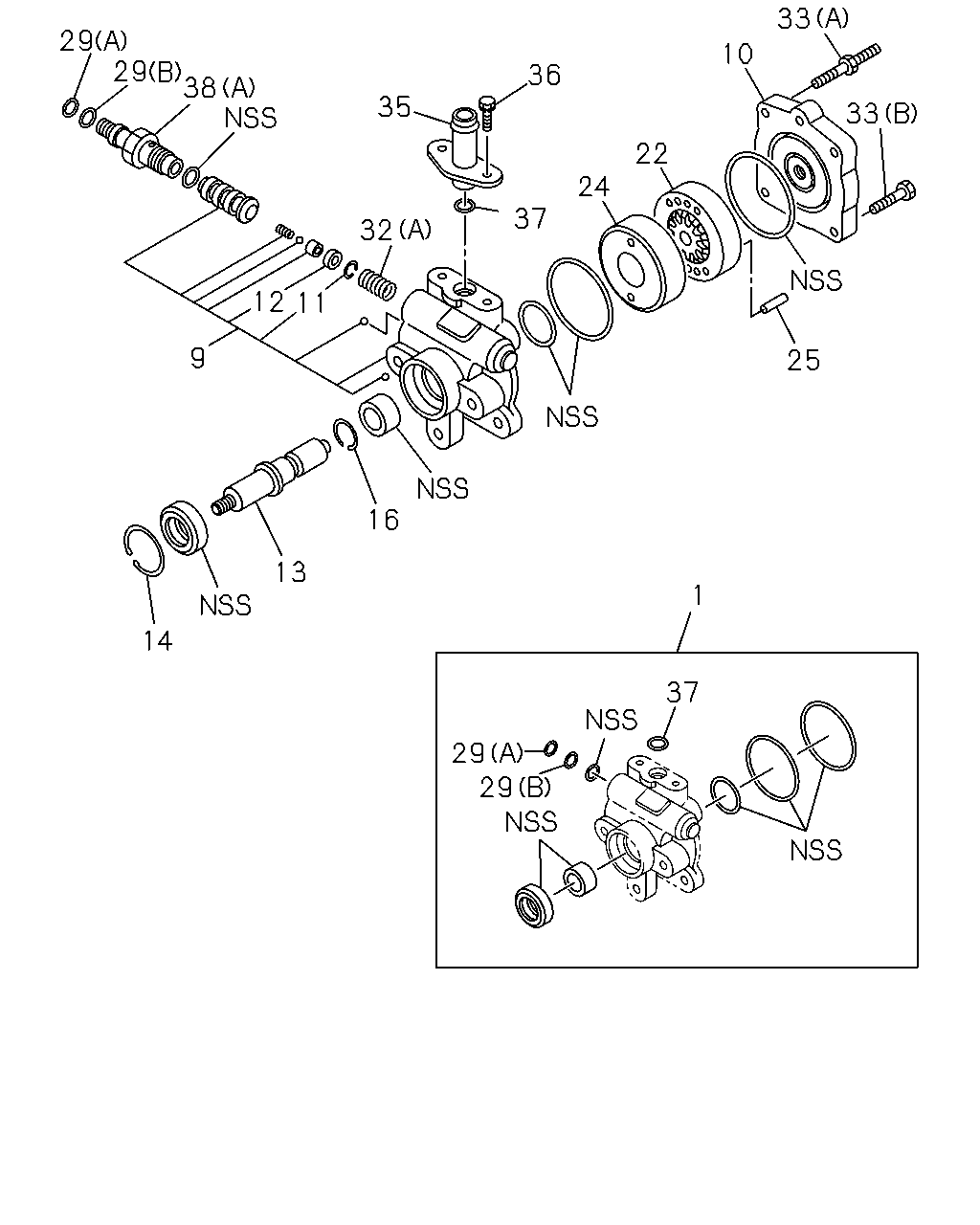

33 29 38 10 36 35 33 22 24 37 32 12 11 9 25 16 13 1 14 37 29 29 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	06.609 REPAIR KIT; OIL PUMP ASM PART: A = 8-97129-593-5, 97129593	8-97131-341-0	01	1	-9906
1	06.609 REPAIR KIT; OIL PUMP ASM PART: A = 8-97129-593-5, 97129593	8-97217-288-0	01	1	9907-0012
1	06.609 REPAIR KIT; OIL PUMP ASM PART: A = 8-97129-593-5, 97129593	8-97302-232-0	01	1	0101-
1	06.609 REPAIR KIT; OIL PUMP ASM PART: B = 8-97331-940-0, 97331940	8-97356-583-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: A = 8-97129-593-5, 97129593	8-97061-642-0	01	1	-9906
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: A = 8-97129-593-5, 97129593	8-97217-285-0	01	1	9907-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: B = 8-97331-940-0, 97331940	8-97357-483-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: A = 8-97129-593-5, 97129593	8-97061-638-0	01	1	-9906
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: B = 8-97331-940-0, 97331940	8-97102-294-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: A = 8-97129-593-5, 97129593	8-97217-286-0	01	1	9907-0201
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: A = 8-97129-593-5, 97129593	8-97331-596-0	01	1	0202-
11	06.616 RING; RET,OIL TANK ASM PART: A = 8-97129-593-5, 97129593	8-94175-185-0	01	1	-
12	06.616 FILTER; OIL PUMP 06.630 ASM PART: A = 8-97129-593-5, 97129593	8-94175-184-0	01	1	-
13	06.605 SHAFT KIT; RET 06.614 ASM PART: A = 8-97129-593-5, 97129593	8-97061-633-0	01	1	-
13	06.605 SHAFT KIT; RET ASM PART: B = 8-97331-940-0, 97331940	8-97357-485-0	01	1	-
14	06.616 RING; RET,OIL PUMP ASM PART: A = 8-97129-593-5, 97129593	8-97061-636-0	01	1	-
14	06.616 RING; RET,OIL PUMP ASM PART: B = 8-97331-940-0, 97331940	8-97081-855-0	01	1	-
16	06.616 RING; RET,OIL PUMP ASM PART: A = 8-97129-593-5, 97129593	8-97061-637-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: A = 8-97129-593-5, 97129593	8-97110-274-0	01	1	-9906
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: A = 8-97129-593-5, 97129593	8-97217-283-0	01	1	9907-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: B = 8-97331-940-0, 97331940	8-97357-499-0	01	1	-
24	06.612 PLATE ASM; THRUST 06.609 ASM PART: A = 8-97129-593-5, 97129593	8-97063-133-0	01	1	-9906
24	06.612 PLATE ASM; THRUST ASM PART: A = 8-97129-593-5, 97129593	8-97217-284-0	01	1	9907-
25	06.608 PIN; HSG,P/S ASM PART: A = 8-97129-593-5, 97129593	8-94475-371-0	02	1	-
25	06.608 PIN; HSG,P/S ASM PART: B = 8-97331-940-0, 97331940	8-97081-859-0	02	1	-
29	06.609 GASKET; PLUG TO VLV (A), ID=11.0 ASM PART: A = 8-97129-593-5, 97129593	9-09561-111-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (B), ID=13.0 ASM PART: A = 8-97129-593-5, 97129593	9-09561-113-0	01	1	-
32	06.606 SPRING; OIL PUMP 06.612, (A) ASM PART: A = 8-97129-593-5, 97129593	8-94475-376-0	01	1	-
32	06.606 SPRING; OIL PUMP (C) ASM PART: B = 8-97331-940-0, 97331940	8-97064-982-0	01	1	-
32	06.606 SPRING; OIL PUMP (B) ASM PART: B = 8-97331-940-0, 97331940	8-97064-987-0	01	1	-
33	06.606 BOLT; COVER 06.608, (B) ASM PART: A = 8-97129-593-5, 97129593	8-94475-381-1	03	1	-
33	06.606 BOLT; COVER (C) ASM PART: B = 8-97331-940-0, 97331940	8-97064-979-0	03	1	-
33	06.606 BOLT; COVER (A) ASM PART: A = 8-97129-593-5, 97129593	8-97131-502-0	01	1	-0201
33	06.606 BOLT; COVER (A) ASM PART: A = 8-97129-593-5, 97129593	8-97331-591-0	01	1	0202-
33	06.606 BOLT; COVER (D) ASM PART: B = 8-97331-940-0, 97331940	8-97357-481-0	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP ASM PART: A = 8-97129-593-5, 97129593	8-94461-138-2	01	1	-
36	06.602 BOLT; CONN,PIPE ASM PART: A = 8-97129-593-5, 97129593	8-94461-139-1	02	1	-
37	06.635 GASKET; PIPE CONN,OIL PUMP 06.609, ID=11.0 ASM PART: A = 8-97129-593-5, 97129593	9-09561-111-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (A) ASM PART: A = 8-97129-593-5, 97129593	8-94311-981-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (B) ASM PART: B = 8-97331-940-0, 97331940	8-97356-582-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (C) ASM PART: B = 8-97331-940-0, 97331940	8-97357-288-0	01	1	-

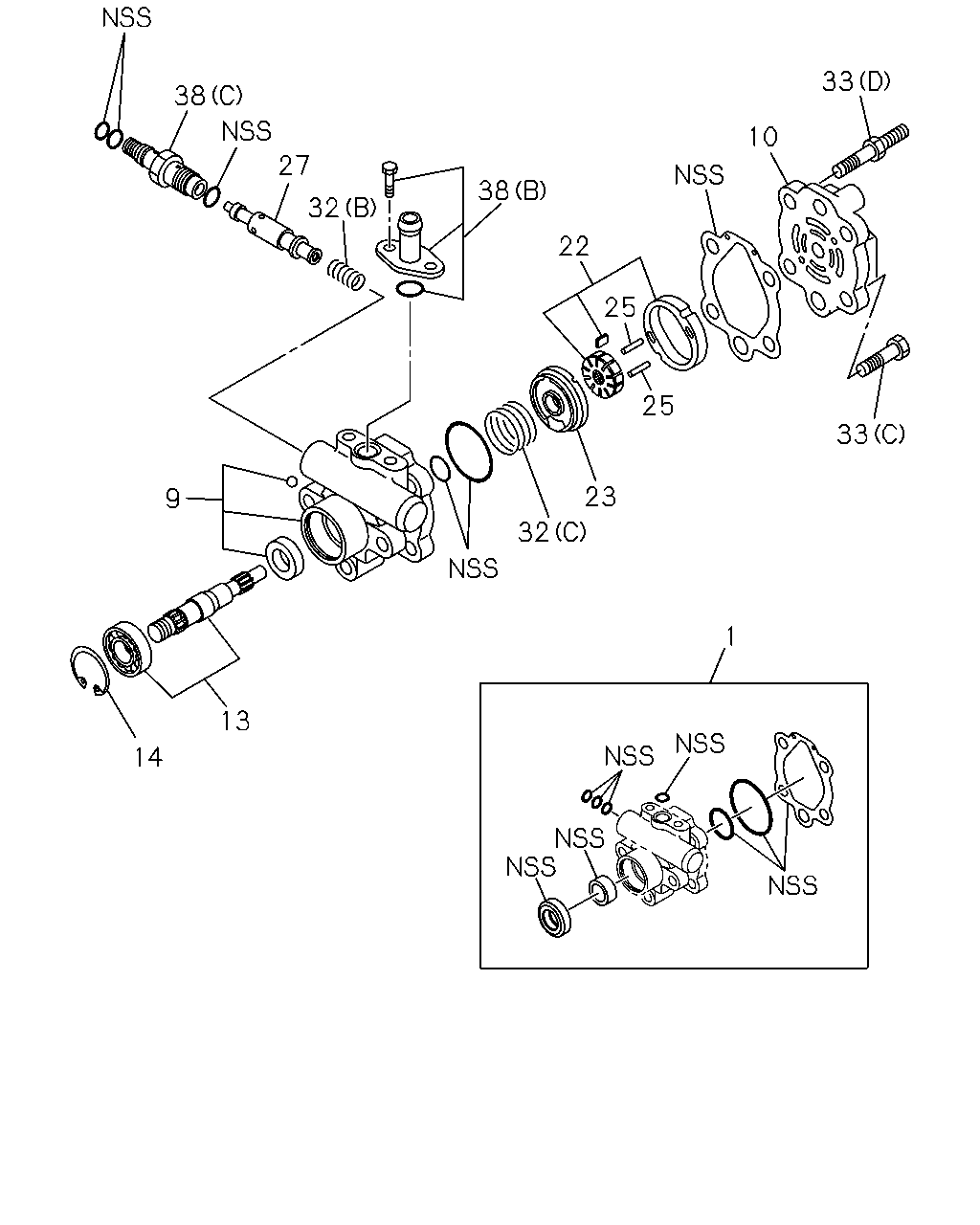

33 38 10 27 38 32 22 25 25 33 23 9 32 1 13 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	06.609 REPAIR KIT; OIL PUMP ASM PART: A = 8-97129-593-5, 97129593	8-97131-341-0	01	1	-9906
1	06.609 REPAIR KIT; OIL PUMP ASM PART: A = 8-97129-593-5, 97129593	8-97217-288-0	01	1	9907-0012
1	06.609 REPAIR KIT; OIL PUMP ASM PART: A = 8-97129-593-5, 97129593	8-97302-232-0	01	1	0101-
1	06.609 REPAIR KIT; OIL PUMP ASM PART: B = 8-97331-940-0, 97331940	8-97356-583-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: A = 8-97129-593-5, 97129593	8-97061-642-0	01	1	-9906
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: A = 8-97129-593-5, 97129593	8-97217-285-0	01	1	9907-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: B = 8-97331-940-0, 97331940	8-97357-483-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: A = 8-97129-593-5, 97129593	8-97061-638-0	01	1	-9906
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: B = 8-97331-940-0, 97331940	8-97102-294-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: A = 8-97129-593-5, 97129593	8-97217-286-0	01	1	9907-0201
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: A = 8-97129-593-5, 97129593	8-97331-596-0	01	1	0202-
13	06.605 SHAFT KIT; RET 06.614 ASM PART: A = 8-97129-593-5, 97129593	8-97061-633-0	01	1	-
13	06.605 SHAFT KIT; RET ASM PART: B = 8-97331-940-0, 97331940	8-97357-485-0	01	1	-
14	06.616 RING; RET,OIL PUMP ASM PART: A = 8-97129-593-5, 97129593	8-97061-636-0	01	1	-
14	06.616 RING; RET,OIL PUMP ASM PART: B = 8-97331-940-0, 97331940	8-97081-855-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: A = 8-97129-593-5, 97129593	8-97110-274-0	01	1	-9906
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: A = 8-97129-593-5, 97129593	8-97217-283-0	01	1	9907-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: B = 8-97331-940-0, 97331940	8-97357-499-0	01	1	-
23	06.609 PLATE; SIDE,OIL PUMP ASM PART: B = 8-97331-940-0, 97331940	8-97354-679-0	01	1	-
25	06.608 PIN; HSG,P/S ASM PART: A = 8-97129-593-5, 97129593	8-94475-371-0	02	1	-
25	06.608 PIN; HSG,P/S ASM PART: B = 8-97331-940-0, 97331940	8-97081-859-0	02	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: B = 8-97331-940-0, 97331940	8-97357-486-0	01	1	-
32	06.606 SPRING; OIL PUMP 06.612, (A) ASM PART: A = 8-97129-593-5, 97129593	8-94475-376-0	01	1	-
32	06.606 SPRING; OIL PUMP (C) ASM PART: B = 8-97331-940-0, 97331940	8-97064-982-0	01	1	-
32	06.606 SPRING; OIL PUMP (B) ASM PART: B = 8-97331-940-0, 97331940	8-97064-987-0	01	1	-
33	06.606 BOLT; COVER 06.608, (B) ASM PART: A = 8-97129-593-5, 97129593	8-94475-381-1	03	1	-
33	06.606 BOLT; COVER (C) ASM PART: B = 8-97331-940-0, 97331940	8-97064-979-0	03	1	-
33	06.606 BOLT; COVER (A) ASM PART: A = 8-97129-593-5, 97129593	8-97131-502-0	01	1	-0201
33	06.606 BOLT; COVER (A) ASM PART: A = 8-97129-593-5, 97129593	8-97331-591-0	01	1	0202-
33	06.606 BOLT; COVER (D) ASM PART: B = 8-97331-940-0, 97331940	8-97357-481-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (A) ASM PART: A = 8-97129-593-5, 97129593	8-94311-981-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (B) ASM PART: B = 8-97331-940-0, 97331940	8-97356-582-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (C) ASM PART: B = 8-97331-940-0, 97331940	8-97357-288-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
