◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50802 - TFR/TFS(EUROPE)-LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-36 - POWER STEERING CONTROL; ENGINE SIDE ▶
4-36 — POWER STEERING CONTROL; ENGINE SIDE (#44674) — 71 parça

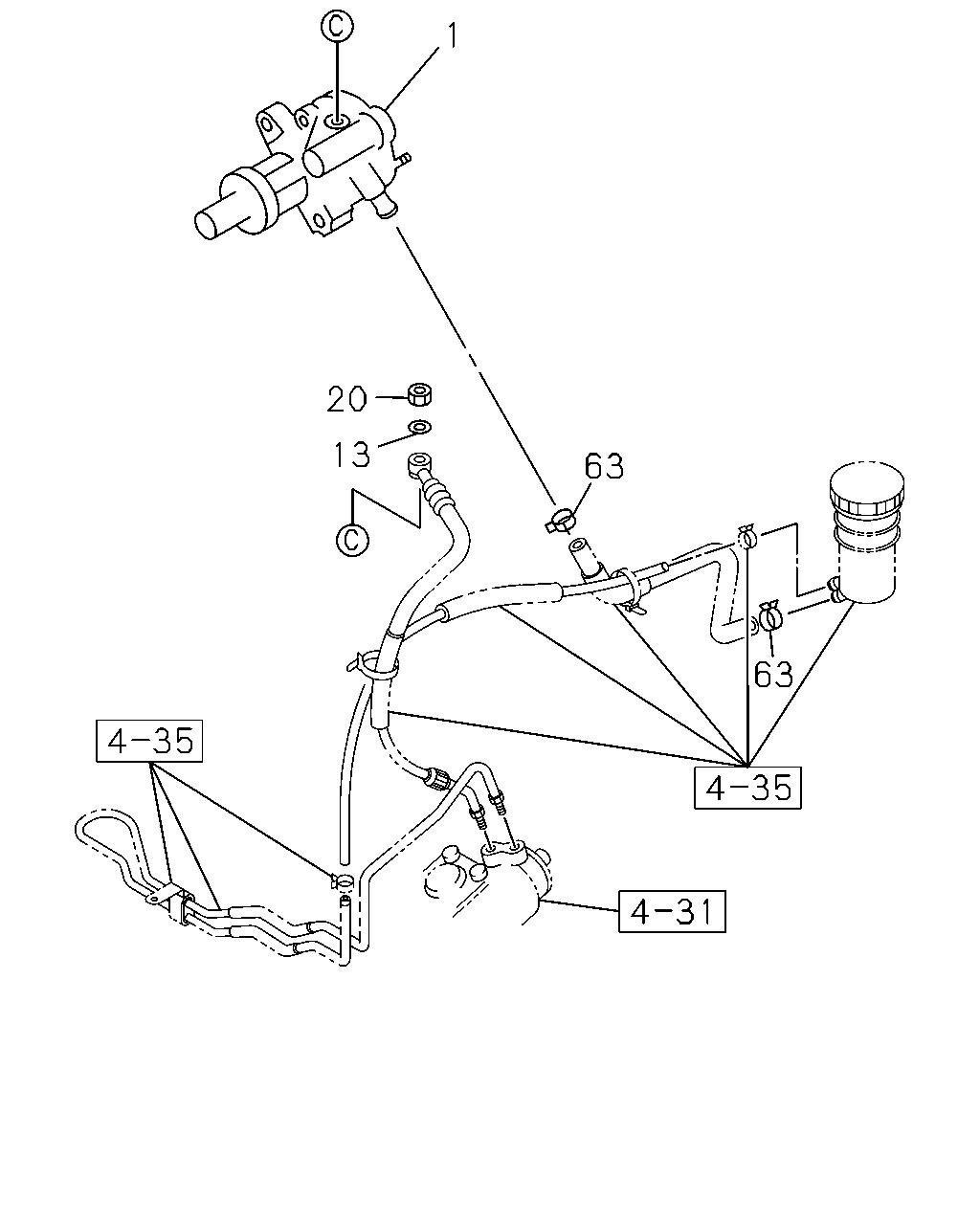

çizim 15694
1 20 13 63 63
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JG2 ENG(RJC),4JA1 ENG(RLE) POWER STEERING<N40> 		8-97129-593-1 01 1 9804-9906 ● ● ● ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JG2 ENG(RJC),4JA1 ENG(RLE) 		8-97129-593-5 01 1 9907-0206 ● ● ● ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JG2 ENG(RJC),4JA1 ENG(RLE) 		8-97331-940-0 01 1 0207- ● ● ● ● ● ●
13 06.673 WASHER; LK,FLEX HOSE,P/S
04.634 ID=12.2 		9-09150-512-0 01 1 9804- ● ● ● ● ● ●
20 06.673 NUT; HOSE TO PUMP
07.347 M12 		9-99111-412-0 01 1 9804- ● ● ● ● ● ●
63 01.762 CLIP; HOSE,P/S
06.672 ID=21 		8-94242-034-0 02 1 9804- ● ● ● ● ● ●

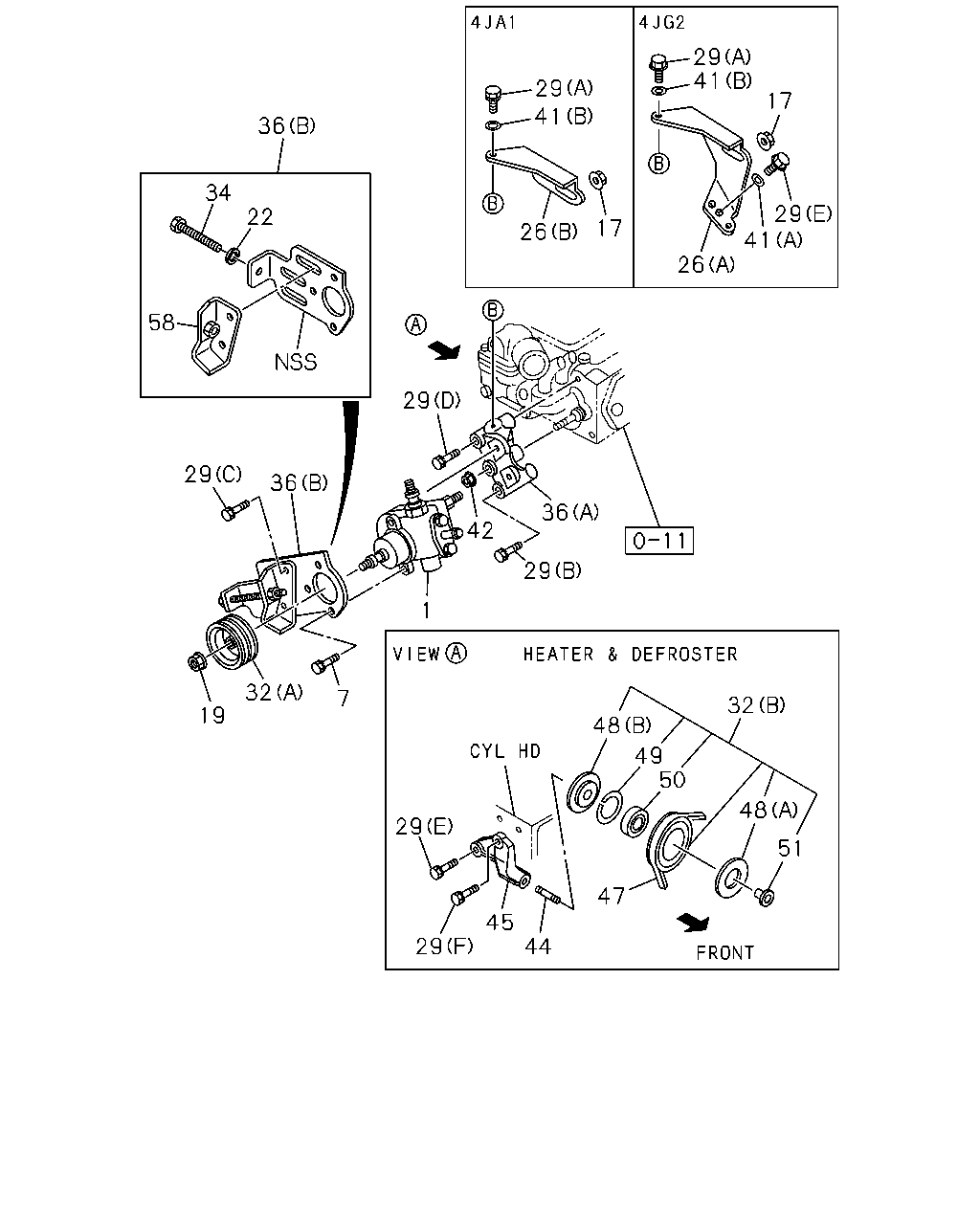

çizim 15696
29 41 29 41 17 36 34 29 41 22 17 26 26 58 29 29 36 36 42 29 1 32 7 32 19 48 49 50 48 29 51 47 45 29 44
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JG2 ENG(RJC),4JA1 ENG(RLE) POWER STEERING<N40> 		8-97129-593-1 01 1 9804-9906 ● ● ● ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JG2 ENG(RJC),4JA1 ENG(RLE) 		8-97129-593-5 01 1 9907-0206 ● ● ● ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JG2 ENG(RJC),4JA1 ENG(RLE) 		8-97331-940-0 01 1 0207- ● ● ● ● ● ●
7 09.181 BOLT; OIL PUMP,P/S
4JG2 ENG(RJC),4JA1 ENG(RLE) POWER STEERING<N40> 06.606 M10X20 W/LK WASHER 		8-97033-053-1 03 1 9804-9906 ● ● ● ● ● ●
7 09.181 BOLT; OIL PUMP,P/S
4JG2 ENG(RJC),4JA1 ENG(RLE) 06.606 M10X20 W/LK WASHER 		8-97033-053-1 03 1 9907- ● ● ● ● ● ●
17 06.606 NUT; POWER STRG PUMP
4JG2 ENG(RJC),4JA1 ENG(RLE) POWER STEERING<N40> 08.917 M10 FLANGE 		0-91150-210-0 01 1 9804-9906 ● ● ● ● ● ●
17 06.606 NUT; POWER STRG PUMP
4JG2 ENG(RJC),4JA1 ENG(RLE) 08.917 M10 FLANGE 		0-91150-210-0 01 1 9907- ● ● ● ● ● ●
19 07.874 NUT; PULLEY,OIL PUMP
4JG2 ENG(RJC),4JA1 ENG(RLE) POWER STEERING<N40> 06.606 M12 		8-94139-015-0 01 1 9804-9906 ● ● ● ● ● ●
19 07.874 NUT; PULLEY,OIL PUMP
4JG2 ENG(RJC),4JA1 ENG(RLE) 06.606 M12 		8-94139-015-0 01 1 9907- ● ● ● ● ● ●
22 06.606 WASHER; LK,OIL PUMP,P/S
4JG2 ENG(RJC),4JA1 ENG(RLE) POWER STEERING<N40> 00.002 ID=10.2 		9-09150-510-0 01 1 9804-9906 ● ● ● ● ● ●
22 06.606 WASHER; LK,OIL PUMP,P/S
4JG2 ENG(RJC),4JA1 ENG(RLE) 00.002 ID=10.2 		9-09150-510-0 01 1 9907- ● ● ● ● ● ●
26 06.635 BRACKET; P/S PUMP,RR
4JA1 ENG(RLE) POWER STEERING<N40> (B) 		8-97134-259-0 01 1 9804-9906 ● ● ● ● ● ●
26 06.635 BRACKET; P/S PUMP,RR
4JA1 ENG(RLE) (B) 		8-97134-259-0 01 1 9907- ● ● ● ● ● ●
26 06.635 BRACKET; P/S PUMP,RR
4JG2 ENG(RJC) POWER STEERING<N40> (A) 		8-97134-149-0 01 1 9804-9906 ● ● ● ● ● ●
26 06.635 BRACKET; P/S PUMP,RR
4JG2 ENG(RJC) (A) 		8-97134-149-0 01 1 9907- ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
HEATER & DEFROSTER(C41) POWER STEERING<N40> 00.780 (E) M8X30 W/LK WASHER 		0-50040-830-0 01 1 9804-9906 ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
HEATER & DEFROSTER(C41) 00.780 (E) M8X30 W/LK WASHER 		0-50040-830-0 01 1 9907- ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
HEATER & DEFROSTER(C41) POWER STEERING<N40> (F) M10X35 W/LK WASHER 		0-50041-035-0 01 1 9804-9906 ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
HEATER & DEFROSTER(C41) (F) M10X35 W/LK WASHER 		0-50041-035-0 01 1 9907- ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC),4JA1 ENG(RLE) POWER STEERING<N40> 03.417 (C) M10X25 FLANGE 		0-28081-025-0 02 1 9804-9906 ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC),4JA1 ENG(RLE) 03.417 (C) M10X25 FLANGE 		0-28081-025-0 02 1 9907- ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC),4JA1 ENG(RLE) POWER STEERING<N40> 04.785 (A) M8X18 W/LK WASHER 		0-50040-818-0 01 1 9804-9906 ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC),4JA1 ENG(RLE) 04.785 (A) M8X18 W/LK WASHER 		0-50040-818-0 01 1 9907- ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC),4JA1 ENG(RLE) POWER STEERING<N40> 01.252 (B) M8X60 W/LK WASHER 		0-50040-860-0 01 1 9804-9906 ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC),4JA1 ENG(RLE) 01.252 (B) M8X60 W/LK WASHER 		0-50040-860-0 01 1 9907- ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC),4JA1 ENG(RLE) POWER STEERING<N40> 04.104 (D) M10X60 W/LK WASHER 		0-50041-060-0 01 1 9804-9906 ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC),4JA1 ENG(RLE) 04.104 (D) M10X60 W/LK WASHER 		0-50041-060-0 01 1 9907- ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC) POWER STEERING<N40> 03.415 (E) M8X35 FLANGE 		0-28080-835-0 01 1 9804-9906 ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC) 03.415 (E) M8X35 FLANGE 		0-28080-835-0 01 1 9907- ● ● ● ● ● ●
32 06.665 PULLEY; IDLER,P/S
HEATER & DEFROSTER(C41) POWER STEERING<N40> (B) 		8-97112-740-0 01 1 9804-9906 ● ● ● ● ● ●
32 06.665 PULLEY; IDLER,P/S
HEATER & DEFROSTER(C41) (B) 		8-97112-740-0 01 1 9907- ● ● ● ● ● ●
32 06.665 PULLEY; IDLER,P/S
4JG2 ENG(RJC),4JA1 ENG(RLE) POWER STEERING<N40> 06.655 (A) 		8-97042-266-1 01 1 9804-9906 ● ● ● ● ● ●
32 06.665 PULLEY; IDLER,P/S
4JG2 ENG(RJC),4JA1 ENG(RLE) 06.655 (A) 		8-97042-266-1 01 1 9907- ● ● ● ● ● ●
34 09.181 BOLT; ADJ PLATE
4JG2 ENG(RJC),4JA1 ENG(RLE) POWER STEERING<N40> M10X70 		0-20801-070-0 01 1 9804-9906 ● ● ● ● ● ●
34 09.181 BOLT; ADJ PLATE
4JG2 ENG(RJC),4JA1 ENG(RLE) M10X70 		0-20801-070-0 01 1 9907- ● ● ● ● ● ●
36 06.606 BRACKET; PLATE,P/S PUMP
4JG2 ENG(RJC),4JA1 ENG(RLE) POWER STEERING<N40> (A) W/WASHER 		8-94478-880-1 01 1 9804-9906 ● ● ● ● ● ●
36 06.606 BRACKET; PLATE,P/S PUMP
4JG2 ENG(RJC),4JA1 ENG(RLE) (A) W/WASHER 		8-94478-880-1 01 1 9907- ● ● ● ● ● ●
36 06.606 BRACKET; PLATE,P/S PUMP
4JG2 ENG(RJC),4JA1 ENG(RLE) POWER STEERING<N40> (B) 		8-97066-758-1 01 1 9804-9906 ● ● ● ● ● ●
36 06.606 BRACKET; PLATE,P/S PUMP
4JG2 ENG(RJC),4JA1 ENG(RLE) (B) 		8-97066-758-1 01 1 9907- ● ● ● ● ● ●
41 06.168 WASHER; PL,BRKT
4JG2 ENG(RJC),4JA1 ENG(RLE) POWER STEERING<N40> 00.029 (B) ID=10.5 OD=22 T=4 		1-09503-045-0 01 1 9804-9906 ● ● ● ● ● ●
41 06.168 WASHER; PL,BRKT
4JG2 ENG(RJC),4JA1 ENG(RLE) 00.029 (B) ID=10.5 OD=22 T=4 		1-09503-045-0 01 1 9907- ● ● ● ● ● ●
41 06.168 WASHER; PL,BRKT
4JG2 ENG(RJC) POWER STEERING<N40> 00.206 (A) ID=8.4 		9-09164-508-0 01 1 9804-9906 ● ● ● ● ● ●
41 06.168 WASHER; PL,BRKT
4JG2 ENG(RJC) 00.206 (A) ID=8.4 		9-09164-508-0 01 1 9907- ● ● ● ● ● ●
42 06.672 NUT; ADJ PLATE
4JG2 ENG(RJC),4JA1 ENG(RLE) POWER STEERING<N40> 01.540 M8 FLANGE 		0-91150-208-0 01 1 9804-9906 ● ● ● ● ● ●
42 06.672 NUT; ADJ PLATE
4JG2 ENG(RJC),4JA1 ENG(RLE) 01.540 M8 FLANGE 		0-91150-208-0 01 1 9907- ● ● ● ● ● ●
44 06.665 STUD; IDLER PULLEY
HEATER & DEFROSTER(C41) POWER STEERING<N40> 03.275 M10X25 L=40 		9-04411-025-0 01 1 9804-9906 ● ● ● ● ● ●
44 06.665 STUD; IDLER PULLEY
HEATER & DEFROSTER(C41) 03.275 M10X25 L=40 		9-04411-025-0 01 1 9907- ● ● ● ● ● ●
45 06.655 BRACKET; IDLE PULLEY,P/S
HEATER & DEFROSTER(C41) POWER STEERING<N40> 		8-94449-652-0 01 1 9804-9906 ● ● ● ● ● ●
45 06.655 BRACKET; IDLE PULLEY,P/S
HEATER & DEFROSTER(C41) 		8-94449-652-0 01 1 9907- ● ● ● ● ● ●
47 01.066 BELT; P/S PUMP
4JG2 ENG(RJC) HEATER & DEFROSTER(C41) POWER STEERING<N40> L=1451 MITSUBOSHI 		1-13671-301-0 01 1 9804-9906 ● ● ● ● ● ●
47 01.066 BELT; P/S PUMP
4JG2 ENG(RJC) HEATER & DEFROSTER(C41) L=1451 MITSUBOSHI 		1-13671-301-0 01 1 9907- ● ● ● ● ● ●
47 01.066 BELT; P/S PUMP
4JA1 ENG(RLE) HEATER & DEFROSTER(C41) POWER STEERING<N40> L=1399 		5-13671-111-0 01 1 9804-9906 ● ● ● ● ● ●
47 01.066 BELT; P/S PUMP
4JA1 ENG(RLE) HEATER & DEFROSTER(C41) L=1399 		5-13671-111-0 01 1 9907- ● ● ● ● ● ●
48 06.665 COVER; IDLER
HEATER & DEFROSTER(C41) POWER STEERING<N40> (B) 		8-97092-819-0 01 1 9804-9906 ● ● ● ● ● ●
48 06.665 COVER; IDLER
HEATER & DEFROSTER(C41) (B) 		8-97092-819-0 01 1 9907- ● ● ● ● ● ●
48 06.665 COVER; IDLER
HEATER & DEFROSTER(C41) POWER STEERING<N40> 09.181 (A) 		9-13669-603-0 01 1 9804-9906 ● ● ● ● ● ●
48 06.665 COVER; IDLER
HEATER & DEFROSTER(C41) 09.181 (A) 		9-13669-603-0 01 1 9907- ● ● ● ● ● ●
49 06.665 RING; SNAP,IDLER
HEATER & DEFROSTER(C41) POWER STEERING<N40> 		8-94175-036-0 01 1 9804-9906 ● ● ● ● ● ●
49 06.665 RING; SNAP,IDLER
HEATER & DEFROSTER(C41) 		8-94175-036-0 01 1 9907- ● ● ● ● ● ●
50 06.665 BEARING; IDLER
HEATER & DEFROSTER(C41) POWER STEERING<N40> 		8-94251-052-0 01 1 9804-9906 ● ● ● ● ● ●
50 06.665 BEARING; IDLER
HEATER & DEFROSTER(C41) 		8-94251-052-0 01 1 9907- ● ● ● ● ● ●
51 06.665 NUT; IDLER
HEATER & DEFROSTER(C41) POWER STEERING<N40> 		8-97092-813-0 01 1 9804-9906 ● ● ● ● ● ●
51 06.665 NUT; IDLER
HEATER & DEFROSTER(C41) 		8-97092-813-0 01 1 9907- ● ● ● ● ● ●
58 06.655 SLIDER; BELT ADJ,P/S OIL PUMP
4JG2 ENG(RJC),4JA1 ENG(RLE) POWER STEERING<N40> 		8-94479-122-0 01 1 9804-9906 ● ● ● ● ● ●
58 06.655 SLIDER; BELT ADJ,P/S OIL PUMP
4JG2 ENG(RJC),4JA1 ENG(RLE) 		8-94479-122-0 01 1 9907- ● ● ● ● ● ●
