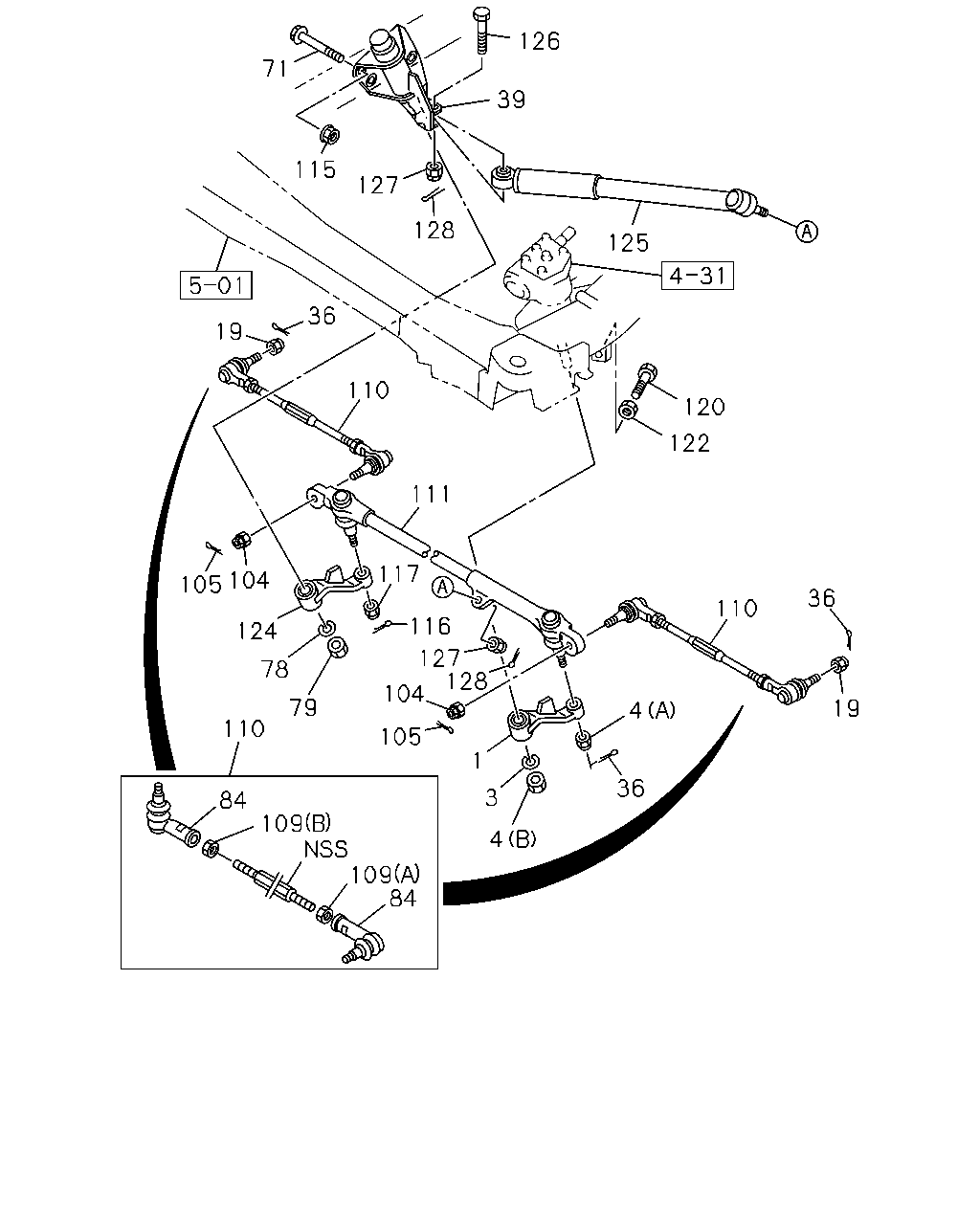

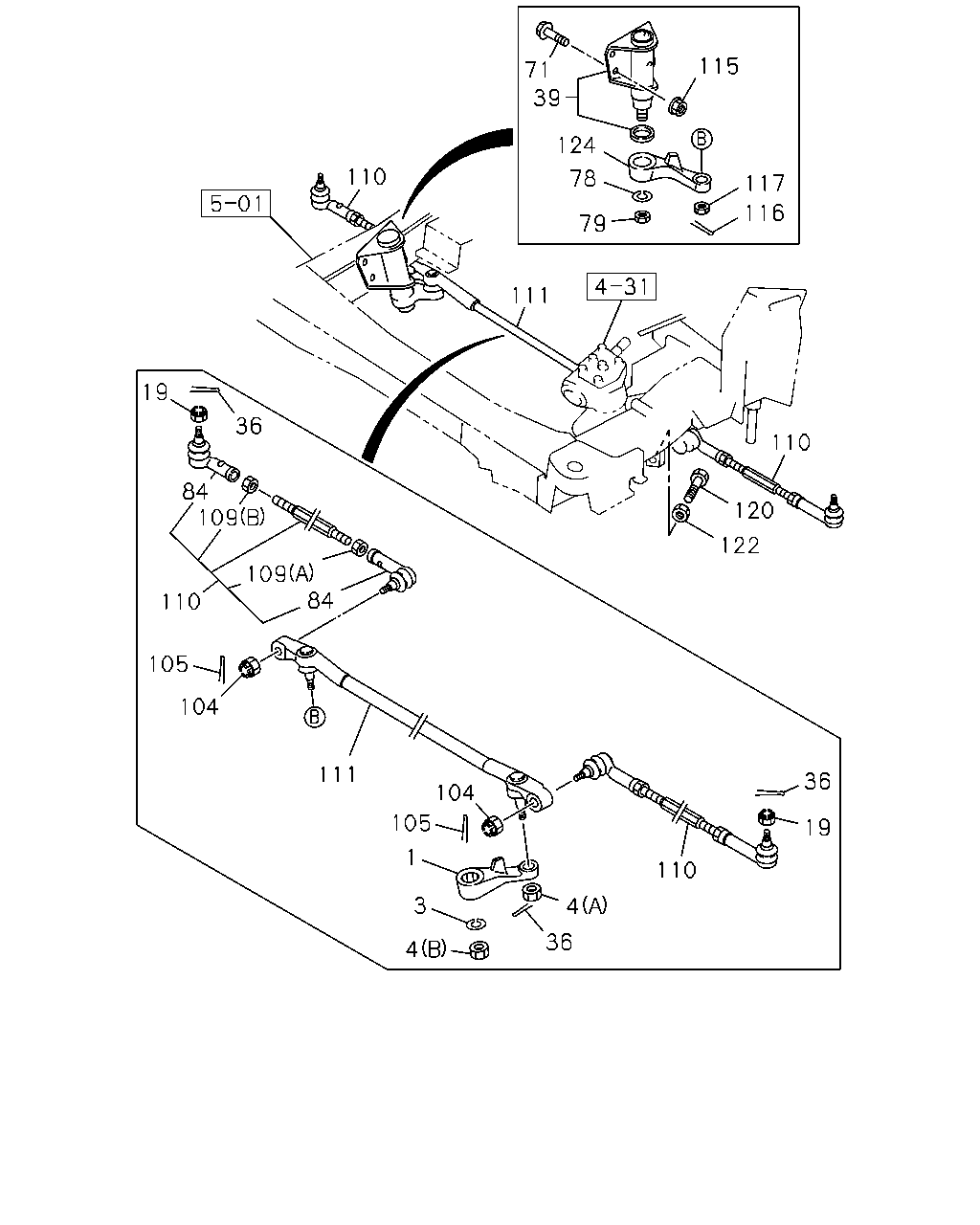

4-33 — STEERING LINKAGE (#44672) — 90 parça

126 71 39 115 127 128 125 36 19 110 120 122 111 117 105 104 36 110 116 124 127 128 78 104 79 19 4 110 105 1 36 3 84 109 109 84 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	06.859 ARM; PITMAN,STRG	8-94440-892-3	01	1	9804-0105	●	●	●
1	06.859 ARM; PITMAN,STRG	8-97315-931-0	01	1	0106-	●	●	●
1	06.859 ARM; PITMAN,STRG	8-97026-252-0	01	1	9804-0105				●	●	●
1	06.859 ARM; PITMAN,STRG	8-97315-932-0	01	1	0106-				●	●	●
3	06.861 WASHER; LK,PITMAN ARM ID=22.5	9-09150-522-0	01	1	9804-	●	●	●	●	●	●
4	06.861 NUT; PITMAN ARM 06.865 (A) M14	8-94465-411-0	01	1	9804-	●	●	●	●	●	●
4	06.861 NUT; PITMAN ARM 08.915 (B) M22	9-09111-522-0	01	1	9804-	●	●	●	●	●	●
19	06.865 NUT; PITMAN ARM,STOPPER M14	8-94465-411-0	02	1	9804-	●	●	●	●	●	●
36	06.881 PIN; SPLIT,DRAG LINK 06.865 OD=2.8 L=25	9-08113-025-0	01	1	9804-9808	●	●	●	●	●	●
36	06.881 PIN; SPLIT,DRAG LINK 06.865 OD=2.7 L=17	8-97171-453-0	01	1	9809-	●	●	●	●	●	●
36	06.881 PIN; SPLIT,DRAG LINK 06.865 OD=2.8 L=25	9-08113-025-0	02	1	9804-	●	●	●	●	●	●
39	06.896 LEVER ASM; RELAY,STRG LINKAGE PORTUGAL EQUIPMENT(6JK)	8-97102-823-0	01	1	9804-	●	●	●	●	●	●
39	06.896 LEVER ASM; RELAY,STRG LINKAGE EXC. PORTUGAL EQUIPMENT(6JK) W/DUST SEAL	8-97039-326-1	01	1	9804-0108	●	●	●	●	●	●
39	06.896 LEVER ASM; RELAY,STRG LINKAGE EXC. PORTUGAL EQUIPMENT(6JK)	8-97039-326-1	01	1	0109-0208	●	●	●	●	●	●
39	06.896 LEVER ASM; RELAY,STRG LINKAGE FRT&RR 195R14-8 5.5JJX20(ANN),FRT&RR 195R14-8 5.5JJ-20 P RANGE STYLED(ANQ) ,FRT&RR 205/80R16 6JJX16 STYLED(BXY), FRT&RR 205/80R16 6JJX16 MICHELIN STYL ED(BXZ),FRT&RR 205/80R16 6JJX16 MICHELIN ALUMI(BYA),FRT&RR 205/80R16 6JJX1 6 ALUMI(BYB)	8-97039-326-1	01	1	0109-0208	●	●	●	●	●	●
39	06.896 LEVER ASM; RELAY,STRG LINKAGE EXC. PORTUGAL EQUIPMENT(6JK)	8-97039-326-1	01	1	0209-	●	●	●	●	●	●
71	06.896 BOLT; RELAY LEVER BRKT 06.509 M10X92 FLANGE	8-94313-798-1	04	1	9804-	●	●	●	●	●	●
78	06.897 WASHER; LINK,RELAY LEVER 07.247 ID=16.2	9-09150-816-0	01	1	9804-	●	●	●	●	●	●
79	06.897 NUT; RELAY LEVER 04.681 M16	9-99111-516-0	01	1	9804-	●	●	●	●	●	●
84	06.874 ROD END; TRACK ROD RH THREAD	8-97020-953-1	02	1	9804-	●	●	●	●	●	●
84	06.874 ROD END; TRACK ROD LH THREAD	8-97020-954-2	02	1	9804-	●	●	●	●	●	●
104	06.233 NUT; ROD END 06.865 M14	8-94465-411-0	02	1	9804-	●	●	●	●	●	●
105	06.865 PIN; SPLIT,ROD END OD=2.8 L=25	9-08113-025-0	02	1	9804-9808	●	●	●	●	●	●
105	06.865 PIN; SPLIT,ROD END OD=2.7 L=17	8-97171-453-0	02	1	9809-	●	●	●	●	●	●
109	06.897 NUT; ROD (A) M14 LH THREAD	5-09400-010-0	02	1	9804-	●	●	●	●	●	●
109	06.897 NUT; ROD 06.232 (B) M14	9-99110-414-0	02	1	9804-	●	●	●	●	●	●
110	06.870 ROD; TRACK,OUTER L=306.9	8-94459-478-2	02	1	9804-	●	●	●
110	06.870 ROD; TRACK,OUTER L=262	8-94459-493-2	02	1	9804-				●	●	●
111	06.870 ROD; TRACK,CENTER PORTUGAL EQUIPMENT(6JK)	8-94389-210-2	01	1	9804-0203	●	●	●
111	06.870 ROD; TRACK,CENTER	8-97316-967-1	01	1	0204-	●	●	●
111	06.870 ROD; TRACK,CENTER EXC. PORTUGAL EQUIPMENT(6JK)	8-94459-477-2	01	1	9804-0203	●	●	●
111	06.870 ROD; TRACK,CENTER PORTUGAL EQUIPMENT(6JK)	8-94389-222-2	01	1	9804-0203				●	●	●
111	06.870 ROD; TRACK,CENTER	8-97102-701-2	01	1	0204-				●	●	●
111	06.870 ROD; TRACK,CENTER EXC. PORTUGAL EQUIPMENT(6JK)	8-94459-490-2	01	1	9804-0203				●	●	●
115	06.896 NUT; RELAY LEVER BRKT 06.509 M10 FLANGE	8-94313-797-0	04	1	9804-	●	●	●	●	●	●
116	06.897 PIN; SPLIT,TRACK ROD,CENTER 06.870 OD=2.8 L=20	9-08113-020-0	01	1	9804-9808	●	●	●	●	●	●
116	06.897 PIN; SPLIT,TRACK ROD,CENTER OD=2.7 L=15	8-97171-452-0	01	1	9809-	●	●	●	●	●	●
117	06.233 NUT; DRAG LINK M12 SLOTTED	9-99117-512-0	01	1	9804-	●	●	●	●	●	●
120	06.897 BOLT; RELAY LEVER STOPPER 06.861 L=35	9-09802-280-0	02	1	9804-	●	●	●
120	06.897 BOLT; RELAY LEVER STOPPER L=57	8-94403-347-1	02	1	9804-				●	●	●
122	06.896 NUT; RELAY LEVER STOPPER 06.822 M10	9-09111-410-0	02	1	9804-	●	●	●	●	●	●
124	06.859 LEVER; RELAY,STRG LINKAGE	8-94440-893-3	01	1	9804-	●	●	●
124	06.859 LEVER; RELAY,STRG LINKAGE	8-94404-000-6	01	1	9804-				●	●	●
125	06.865 DAMPER; STEERING PORTUGAL EQUIPMENT(6JK)	8-97161-106-1	01	1	9804-	●	●	●	●	●	●
126	06.865 BOLT; STRG DAMPER TO RELAY LEVER PORTUGAL EQUIPMENT(6JK)	8-94241-456-0	01	1	9804-	●	●	●	●	●	●
127	06.865 NUT; STRG DAMPER PORTUGAL EQUIPMENT(6JK) 05.511 M10	9-09116-510-0	02	1	9804-	●	●	●	●	●	●
128	06.865 PIN; SPLIT,STRG DAMPER PORTUGAL EQUIPMENT(6JK) 00.793 OD=1.8 L=15	9-08112-015-0	02	1	9804-	●	●	●	●	●	●

115 71 39 124 110 78 117 116 79 111 19 36 110 84 109 120 122 109 84 110 105 104 111 36 104 105 19 1 110 3 4 36 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	06.859 ARM; PITMAN,STRG	8-94440-892-3	01	1	9804-0105	●	●	●
1	06.859 ARM; PITMAN,STRG	8-97315-931-0	01	1	0106-	●	●	●
1	06.859 ARM; PITMAN,STRG	8-97026-252-0	01	1	9804-0105				●	●	●
1	06.859 ARM; PITMAN,STRG	8-97315-932-0	01	1	0106-				●	●	●
3	06.861 WASHER; LK,PITMAN ARM ID=22.5	9-09150-522-0	01	1	9804-	●	●	●	●	●	●
4	06.861 NUT; PITMAN ARM 06.865 (A) M14	8-94465-411-0	01	1	9804-	●	●	●	●	●	●
4	06.861 NUT; PITMAN ARM 08.915 (B) M22	9-09111-522-0	01	1	9804-	●	●	●	●	●	●
19	06.865 NUT; PITMAN ARM,STOPPER M14	8-94465-411-0	02	1	9804-	●	●	●	●	●	●
36	06.881 PIN; SPLIT,DRAG LINK 06.865 OD=2.8 L=25	9-08113-025-0	01	1	9804-9808	●	●	●	●	●	●
36	06.881 PIN; SPLIT,DRAG LINK 06.865 OD=2.7 L=17	8-97171-453-0	01	1	9809-	●	●	●	●	●	●
36	06.881 PIN; SPLIT,DRAG LINK 06.865 OD=2.8 L=25	9-08113-025-0	02	1	9804-	●	●	●	●	●	●
39	06.896 LEVER ASM; RELAY,STRG LINKAGE PORTUGAL EQUIPMENT(6JK)	8-97102-823-0	01	1	9804-	●	●	●	●	●	●
39	06.896 LEVER ASM; RELAY,STRG LINKAGE EXC. PORTUGAL EQUIPMENT(6JK) W/DUST SEAL	8-97039-326-1	01	1	9804-0108	●	●	●	●	●	●
39	06.896 LEVER ASM; RELAY,STRG LINKAGE EXC. PORTUGAL EQUIPMENT(6JK)	8-97039-326-1	01	1	0109-0208	●	●	●	●	●	●
39	06.896 LEVER ASM; RELAY,STRG LINKAGE FRT&RR 195R14-8 5.5JJX20(ANN),FRT&RR 195R14-8 5.5JJ-20 P RANGE STYLED(ANQ) ,FRT&RR 205/80R16 6JJX16 STYLED(BXY), FRT&RR 205/80R16 6JJX16 MICHELIN STYL ED(BXZ),FRT&RR 205/80R16 6JJX16 MICHELIN ALUMI(BYA),FRT&RR 205/80R16 6JJX1 6 ALUMI(BYB)	8-97039-326-1	01	1	0109-0208	●	●	●	●	●	●
39	06.896 LEVER ASM; RELAY,STRG LINKAGE EXC. PORTUGAL EQUIPMENT(6JK)	8-97039-326-1	01	1	0209-	●	●	●	●	●	●
71	06.896 BOLT; RELAY LEVER BRKT 06.509 M10X92 FLANGE	8-94313-798-1	04	1	9804-	●	●	●	●	●	●
78	06.897 WASHER; LINK,RELAY LEVER 07.247 ID=16.2	9-09150-816-0	01	1	9804-	●	●	●	●	●	●
79	06.897 NUT; RELAY LEVER 04.681 M16	9-99111-516-0	01	1	9804-	●	●	●	●	●	●
84	06.874 ROD END; TRACK ROD RH THREAD	8-97020-953-1	02	1	9804-	●	●	●	●	●	●
84	06.874 ROD END; TRACK ROD LH THREAD	8-97020-954-2	02	1	9804-	●	●	●	●	●	●
104	06.233 NUT; ROD END 06.865 M14	8-94465-411-0	02	1	9804-	●	●	●	●	●	●
105	06.865 PIN; SPLIT,ROD END OD=2.8 L=25	9-08113-025-0	02	1	9804-9808	●	●	●	●	●	●
105	06.865 PIN; SPLIT,ROD END OD=2.7 L=17	8-97171-453-0	02	1	9809-	●	●	●	●	●	●
109	06.897 NUT; ROD (A) M14 LH THREAD	5-09400-010-0	02	1	9804-	●	●	●	●	●	●
109	06.897 NUT; ROD 06.232 (B) M14	9-99110-414-0	02	1	9804-	●	●	●	●	●	●
110	06.870 ROD; TRACK,OUTER L=306.9	8-94459-478-2	02	1	9804-	●	●	●
110	06.870 ROD; TRACK,OUTER L=262	8-94459-493-2	02	1	9804-				●	●	●
111	06.870 ROD; TRACK,CENTER PORTUGAL EQUIPMENT(6JK)	8-94389-210-2	01	1	9804-0203	●	●	●
111	06.870 ROD; TRACK,CENTER	8-97316-967-1	01	1	0204-	●	●	●
111	06.870 ROD; TRACK,CENTER EXC. PORTUGAL EQUIPMENT(6JK)	8-94459-477-2	01	1	9804-0203	●	●	●
111	06.870 ROD; TRACK,CENTER PORTUGAL EQUIPMENT(6JK)	8-94389-222-2	01	1	9804-0203				●	●	●
111	06.870 ROD; TRACK,CENTER	8-97102-701-2	01	1	0204-				●	●	●
111	06.870 ROD; TRACK,CENTER EXC. PORTUGAL EQUIPMENT(6JK)	8-94459-490-2	01	1	9804-0203				●	●	●
115	06.896 NUT; RELAY LEVER BRKT 06.509 M10 FLANGE	8-94313-797-0	04	1	9804-	●	●	●	●	●	●
116	06.897 PIN; SPLIT,TRACK ROD,CENTER 06.870 OD=2.8 L=20	9-08113-020-0	01	1	9804-9808	●	●	●	●	●	●
116	06.897 PIN; SPLIT,TRACK ROD,CENTER OD=2.7 L=15	8-97171-452-0	01	1	9809-	●	●	●	●	●	●
117	06.233 NUT; DRAG LINK M12 SLOTTED	9-99117-512-0	01	1	9804-	●	●	●	●	●	●
120	06.897 BOLT; RELAY LEVER STOPPER 06.861 L=35	9-09802-280-0	02	1	9804-	●	●	●
120	06.897 BOLT; RELAY LEVER STOPPER L=57	8-94403-347-1	02	1	9804-				●	●	●
122	06.896 NUT; RELAY LEVER STOPPER 06.822 M10	9-09111-410-0	02	1	9804-	●	●	●	●	●	●
124	06.859 LEVER; RELAY,STRG LINKAGE	8-94440-893-3	01	1	9804-	●	●	●
124	06.859 LEVER; RELAY,STRG LINKAGE	8-94404-000-6	01	1	9804-				●	●	●
