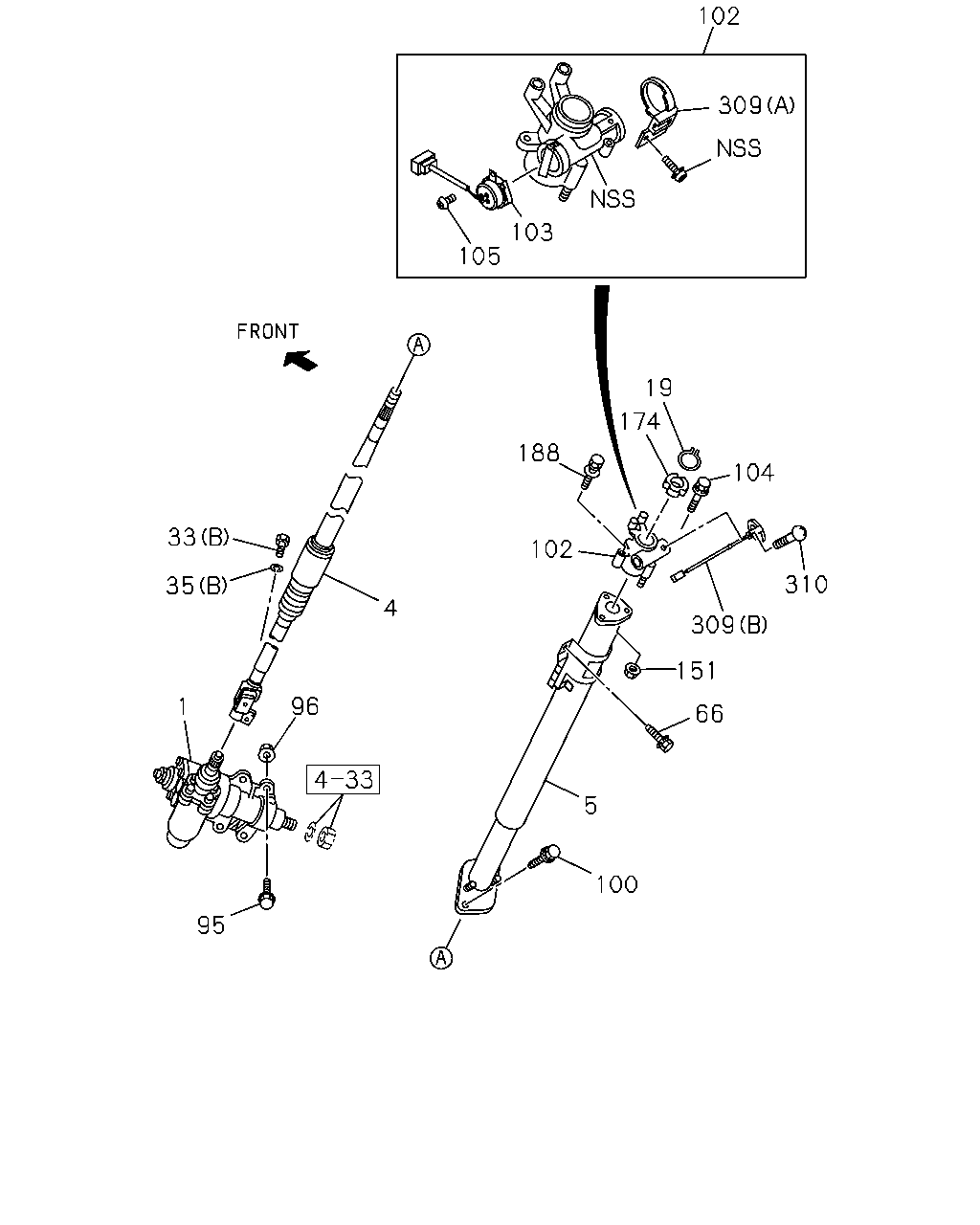

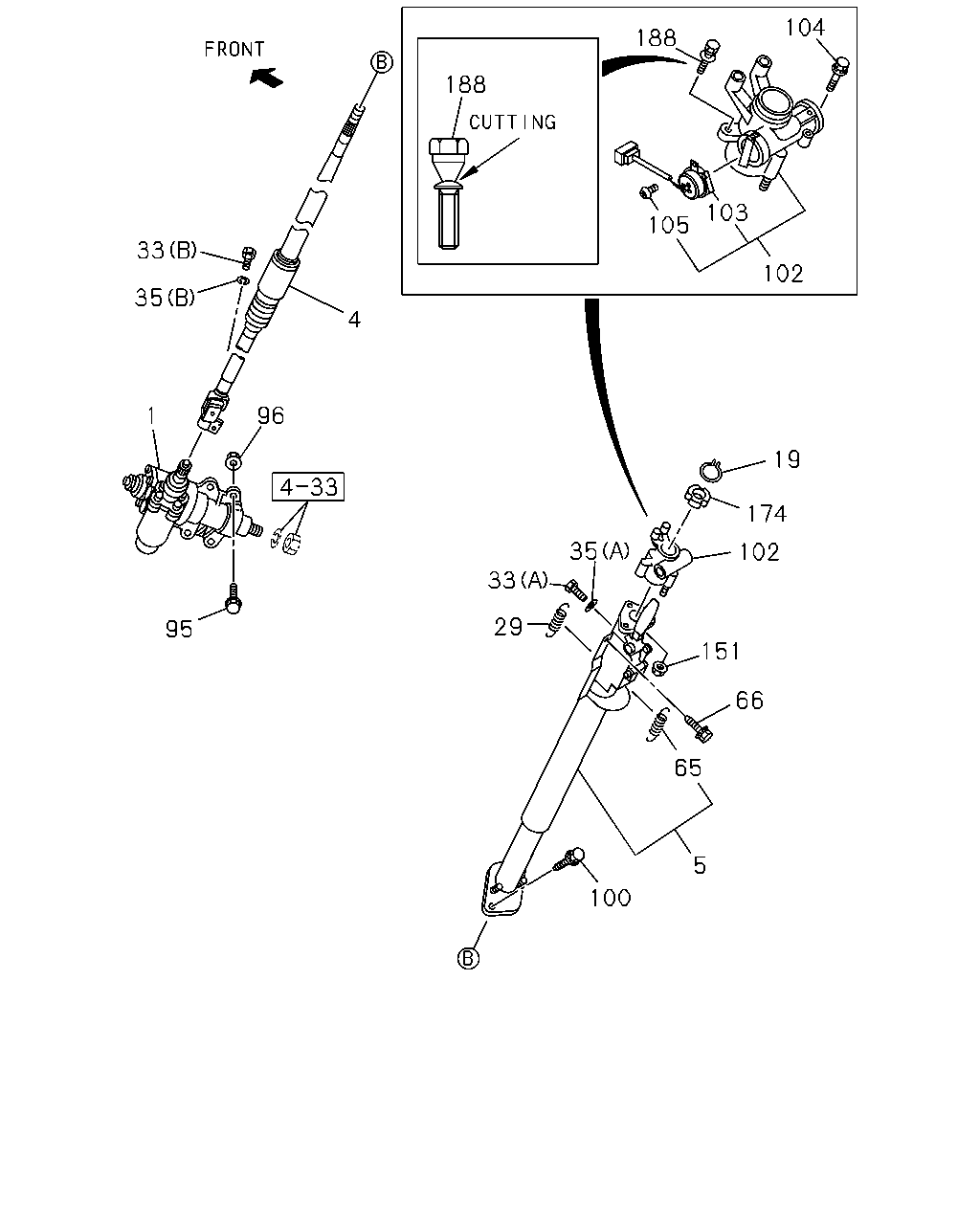

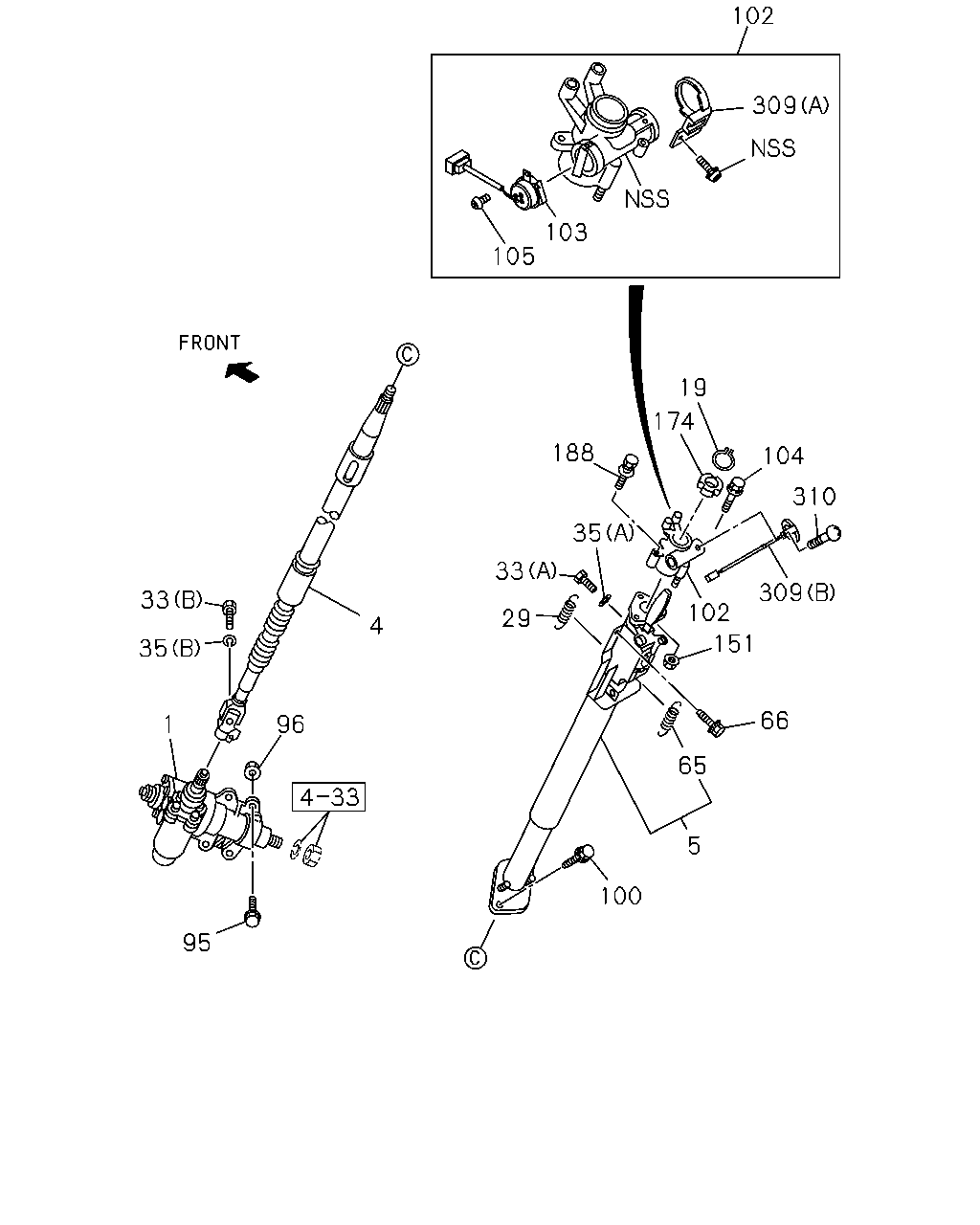

4-31 — STEERING COLUMN AND SHAFT (#44671) — 140 parça

104 188 188 103 105 33 102 35 4 96 1 19 174 35 102 33 29 95 151 66 65 5 100

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40>	8-97101-354-4	01	1	9804-0202	●	●	●	●	●	●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	8-97101-355-6	01	1	0203-	●	●	●	●	●	●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. EXC. POWER STEERING<N40>	8-97045-345-0	01	1	9804-9906	●	●	●	●	●	●
4	06.524 SHAFT; STRG AIR BAG DRIVER(AJ3) TILT STEERING<N33>	8-97289-286-0	01	1	0009-0210	●	●	●
4	06.524 SHAFT; STRG TILT STEERING<N33>	8-97289-286-0	01	1	0211-	●	●	●	●	●	●
4	06.524 SHAFT; STRG AIR BAG DRIVER(AJ3) TILT STEERING<N33>	8-97108-695-0	01	1	9907-0008	●	●	●	●	●	●
4	06.524 SHAFT; STRG AIR BAG DRIVER(AJ3) TILT STEERING<N33>	8-97108-695-0	01	1	0009-0210				●	●	●
4	06.524 SHAFT; STRG TILT STEERING<N33>	8-97112-174-0	01	1	9804-9906	●	●	●	●	●	●
4	06.524 SHAFT; STRG TILT STEERING<N33> EXC. AIR BAG DRIVER(AJ3)	8-97112-174-0	01	1	9907-0002	●	●	●	●	●	●
4	06.524 SHAFT; STRG TILT STEERING<N33> EXC. AIR BAG DRIVER(AJ3)	8-97207-517-0	01	1	0003-0210	●	●	●	●	●	●
4	06.524 SHAFT; STRG EXC. TILT STEERING<N33>	8-97203-778-0	01	1	9804-	●	●	●	●	●	●
5	06.518 COLUMN; STRG AIR BAG DRIVER(AJ3) TILT STEERING<N33>	8-97203-776-2	01	1	9907-0210	●	●	●	●	●	●
5	06.518 COLUMN; STRG TILT STEERING<N33>	8-97203-776-2	01	1	0211-	●	●	●	●	●	●
5	06.518 COLUMN; STRG TILT STEERING<N33>	8-97203-777-0	01	1	9804-9906	●	●	●	●	●	●
5	06.518 COLUMN; STRG TILT STEERING<N33> EXC. AIR BAG DRIVER(AJ3)	8-97203-777-0	01	1	9907-0210	●	●	●	●	●	●
5	06.518 COLUMN; STRG EXC. TILT STEERING<N33>	8-97207-516-0	01	1	9907-0308	●	●	●	●	●	●
19	06.515 RING; SNAP,STRG SHAFT 06.525 ID=20.5	9-09180-022-0	01	1	9804-	●	●	●	●	●	●
29	06.514 SPRING; COLUMN TILT STEERING<N33>	8-97069-501-0	01	1	9804-9906	●	●	●	●	●	●
29	06.514 SPRING; COLUMN AIR BAG DRIVER(AJ3) TILT STEERING<N33>	8-97069-501-1	01	1	9907-0210	●	●	●	●	●	●
29	06.514 SPRING; COLUMN TILT STEERING<N33>	8-97069-501-1	01	1	0211-	●	●	●	●	●	●
29	06.514 SPRING; COLUMN TILT STEERING<N33> EXC. AIR BAG DRIVER(AJ3)	8-97069-501-0	01	1	9907-0107	●	●	●	●	●	●
29	06.514 SPRING; COLUMN TILT STEERING<N33> EXC. AIR BAG DRIVER(AJ3)	8-97069-501-1	02	1	0108-0210	●	●	●	●	●	●
33	06.525 BOLT; STRG SHAFT TO UNIT (B) M8X30	8-94247-692-0	01	1	9804-	●	●	●	●	●	●
33	06.525 BOLT; STRG SHAFT TO UNIT TILT STEERING<N33> (A)	8-94477-976-1	01	1	9804-9906	●	●	●	●	●	●
33	06.525 BOLT; STRG SHAFT TO UNIT TILT STEERING<N33> (A)	8-94477-976-1	01	1	9907-	●	●	●	●	●	●
35	06.525 WASHER; LK,STRG SHAFT 00.002 (B) ID=8.2	9-09150-508-0	01	1	9804-	●	●	●	●	●	●
35	06.525 WASHER; LK,STRG SHAFT TILT STEERING<N33> (A)	8-94477-979-0	01	1	9804-9906	●	●	●	●	●	●
35	06.525 WASHER; LK,STRG SHAFT TILT STEERING<N33> (A)	8-94477-979-0	01	1	9907-	●	●	●	●	●	●
65	06.521 SPRING; STRG COLUMN TILT STEERING<N33>	8-97078-241-0	01	1	9804-9906	●	●	●	●	●	●
65	06.521 SPRING; STRG COLUMN TILT STEERING<N33>	8-97078-241-0	01	1	9907-	●	●	●	●	●	●
66	06.514 BOLT; STRG COLUMN 03.417 M8X35	8-97100-457-0	02	1	9804-	●	●	●	●	●	●
95	06.509 BOLT; STRG UNIT M10X92 FLANGE	8-94313-798-1	04	1	9804-	●	●	●	●	●	●
96	06.509 NUT; STRG UNIT M10 FLANGE	8-94313-797-0	04	1	9804-	●	●	●	●	●	●
100	03.670 BOLT; COLUMN TO FLOOR 10.455 M8X25	8-94152-496-1	02	1	9804-	●	●	●	●	●	●
102	06.500 LOCK ASM; STRG	8-97170-877-0	01	1	9804-0012	●	●	●	●	●	●
102	06.500 LOCK ASM; STRG	8-97260-963-0	01	1	0101-0107	●	●	●	●	●	●
102	06.500 LOCK ASM; STRG EXC. CHARGE AIR COOLER<6PL>	8-97260-963-0	01	1	0108-		●	●		●	●
102	06.500 LOCK ASM; STRG	8-97170-877-0	01	1	0108-	●			●
102	06.500 LOCK ASM; STRG CHARGE AIR COOLER<6PL>	8-97170-877-0	01	1	0108-		●	●		●	●
103	02.188 SWITCH; IGNITION	8-97145-348-0	01	1	9804-	●	●	●	●	●	●
104	06.500 BOLT; STRG LOCK TO COLUMN M6X25 W/LK&PL WASHER	8-97122-790-0	01	1	9804-	●	●	●	●	●	●
105	06.500 SCREW; IGN SW M4X12	9-03465-412-0	01	1	9804-	●	●	●	●	●	●
151	06.521 NUT; FLANGE 04.594 M6 FLANGE	0-91150-106-0	01	1	9804-	●	●	●	●	●	●
174	06.521 RUBBER; CUSHION,STRG COLUMN	8-97170-762-0	01	1	9804-	●	●	●	●	●	●
188	06.500 BOLT; TORQUE,STEERING	8-94474-206-0	01	1	9804-	●	●	●	●	●	●

102 309 103 105 19 174 188 104 310 35 33 309 33 102 29 4 151 35 66 1 96 65 5 100 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40>	8-97101-354-4	01	1	9804-0202	●	●	●	●	●	●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	8-97101-355-6	01	1	0203-	●	●	●	●	●	●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. EXC. POWER STEERING<N40>	8-97045-345-0	01	1	9804-9906	●	●	●	●	●	●
4	06.524 SHAFT; STRG AIR BAG DRIVER(AJ3) TILT STEERING<N33>	8-97289-286-0	01	1	0009-0210	●	●	●
4	06.524 SHAFT; STRG TILT STEERING<N33>	8-97289-286-0	01	1	0211-	●	●	●	●	●	●
4	06.524 SHAFT; STRG AIR BAG DRIVER(AJ3) TILT STEERING<N33>	8-97108-695-0	01	1	9907-0008	●	●	●	●	●	●
4	06.524 SHAFT; STRG AIR BAG DRIVER(AJ3) TILT STEERING<N33>	8-97108-695-0	01	1	0009-0210				●	●	●
4	06.524 SHAFT; STRG TILT STEERING<N33>	8-97112-174-0	01	1	9804-9906	●	●	●	●	●	●
4	06.524 SHAFT; STRG TILT STEERING<N33> EXC. AIR BAG DRIVER(AJ3)	8-97112-174-0	01	1	9907-0002	●	●	●	●	●	●
4	06.524 SHAFT; STRG TILT STEERING<N33> EXC. AIR BAG DRIVER(AJ3)	8-97207-517-0	01	1	0003-0210	●	●	●	●	●	●
4	06.524 SHAFT; STRG EXC. TILT STEERING<N33>	8-97203-778-0	01	1	9804-	●	●	●	●	●	●
5	06.518 COLUMN; STRG AIR BAG DRIVER(AJ3) TILT STEERING<N33>	8-97203-776-2	01	1	9907-0210	●	●	●	●	●	●
5	06.518 COLUMN; STRG TILT STEERING<N33>	8-97203-776-2	01	1	0211-	●	●	●	●	●	●
5	06.518 COLUMN; STRG TILT STEERING<N33>	8-97203-777-0	01	1	9804-9906	●	●	●	●	●	●
5	06.518 COLUMN; STRG TILT STEERING<N33> EXC. AIR BAG DRIVER(AJ3)	8-97203-777-0	01	1	9907-0210	●	●	●	●	●	●
5	06.518 COLUMN; STRG EXC. TILT STEERING<N33>	8-97207-516-0	01	1	9907-0308	●	●	●	●	●	●
19	06.515 RING; SNAP,STRG SHAFT 06.525 ID=20.5	9-09180-022-0	01	1	9804-	●	●	●	●	●	●
29	06.514 SPRING; COLUMN TILT STEERING<N33>	8-97069-501-0	01	1	9804-9906	●	●	●	●	●	●
29	06.514 SPRING; COLUMN AIR BAG DRIVER(AJ3) TILT STEERING<N33>	8-97069-501-1	01	1	9907-0210	●	●	●	●	●	●
29	06.514 SPRING; COLUMN TILT STEERING<N33>	8-97069-501-1	01	1	0211-	●	●	●	●	●	●
29	06.514 SPRING; COLUMN TILT STEERING<N33> EXC. AIR BAG DRIVER(AJ3)	8-97069-501-0	01	1	9907-0107	●	●	●	●	●	●
29	06.514 SPRING; COLUMN TILT STEERING<N33> EXC. AIR BAG DRIVER(AJ3)	8-97069-501-1	02	1	0108-0210	●	●	●	●	●	●
33	06.525 BOLT; STRG SHAFT TO UNIT (B) M8X30	8-94247-692-0	01	1	9804-	●	●	●	●	●	●
33	06.525 BOLT; STRG SHAFT TO UNIT TILT STEERING<N33> (A)	8-94477-976-1	01	1	9804-9906	●	●	●	●	●	●
33	06.525 BOLT; STRG SHAFT TO UNIT TILT STEERING<N33> (A)	8-94477-976-1	01	1	9907-	●	●	●	●	●	●
35	06.525 WASHER; LK,STRG SHAFT 00.002 (B) ID=8.2	9-09150-508-0	01	1	9804-	●	●	●	●	●	●
35	06.525 WASHER; LK,STRG SHAFT TILT STEERING<N33> (A)	8-94477-979-0	01	1	9804-9906	●	●	●	●	●	●
35	06.525 WASHER; LK,STRG SHAFT TILT STEERING<N33> (A)	8-94477-979-0	01	1	9907-	●	●	●	●	●	●
65	06.521 SPRING; STRG COLUMN TILT STEERING<N33>	8-97078-241-0	01	1	9804-9906	●	●	●	●	●	●
65	06.521 SPRING; STRG COLUMN TILT STEERING<N33>	8-97078-241-0	01	1	9907-	●	●	●	●	●	●
66	06.514 BOLT; STRG COLUMN 03.417 M8X35	8-97100-457-0	02	1	9804-	●	●	●	●	●	●
95	06.509 BOLT; STRG UNIT M10X92 FLANGE	8-94313-798-1	04	1	9804-	●	●	●	●	●	●
96	06.509 NUT; STRG UNIT M10 FLANGE	8-94313-797-0	04	1	9804-	●	●	●	●	●	●
100	03.670 BOLT; COLUMN TO FLOOR 10.455 M8X25	8-94152-496-1	02	1	9804-	●	●	●	●	●	●
102	06.500 LOCK ASM; STRG	8-97170-877-0	01	1	9804-0012	●	●	●	●	●	●
102	06.500 LOCK ASM; STRG	8-97260-963-0	01	1	0101-0107	●	●	●	●	●	●
102	06.500 LOCK ASM; STRG EXC. CHARGE AIR COOLER<6PL>	8-97260-963-0	01	1	0108-		●	●		●	●
102	06.500 LOCK ASM; STRG	8-97170-877-0	01	1	0108-	●			●
102	06.500 LOCK ASM; STRG CHARGE AIR COOLER<6PL>	8-97170-877-0	01	1	0108-		●	●		●	●
103	02.188 SWITCH; IGNITION	8-97145-348-0	01	1	9804-	●	●	●	●	●	●
104	06.500 BOLT; STRG LOCK TO COLUMN M6X25 W/LK&PL WASHER	8-97122-790-0	01	1	9804-	●	●	●	●	●	●
105	06.500 SCREW; IGN SW M4X12	9-03465-412-0	01	1	9804-	●	●	●	●	●	●
151	06.521 NUT; FLANGE 04.594 M6 FLANGE	0-91150-106-0	01	1	9804-	●	●	●	●	●	●
174	06.521 RUBBER; CUSHION,STRG COLUMN	8-97170-762-0	01	1	9804-	●	●	●	●	●	●
188	06.500 BOLT; TORQUE,STEERING	8-94474-206-0	01	1	9804-	●	●	●	●	●	●
309	06.500 COIL; IMMOBILIZER (A)	8-97365-495-0	01	1	0101-0107	●	●	●	●	●	●
309	06.500 COIL; IMMOBILIZER EXC. CHARGE AIR COOLER<6PL> (A)	8-97365-495-0	01	1	0108-		●	●		●	●
309	06.500 COIL; IMMOBILIZER (B)	8-97251-755-0	01	1	0108-	●			●
309	06.500 COIL; IMMOBILIZER CHARGE AIR COOLER<6PL> (B)	8-97251-755-0	01	1	0108-		●	●		●	●
310	06.500 SCREW; COIL 02.819 M4X12 W/LK&PL WASHER	9-03920-412-0	01	1	0108-	●			●
310	06.500 SCREW; COIL CHARGE AIR COOLER<6PL> 02.819 M4X12 W/LK&PL WASHER	9-03920-412-0	01	1	0108-		●	●		●	●

102 309 103 105 19 174 188 104 33 102 310 35 4 309 151 96 1 66 5 100 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40>	8-97101-354-4	01	1	9804-0202	●	●	●	●	●	●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	8-97101-355-6	01	1	0203-	●	●	●	●	●	●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. EXC. POWER STEERING<N40>	8-97045-345-0	01	1	9804-9906	●	●	●	●	●	●
4	06.524 SHAFT; STRG AIR BAG DRIVER(AJ3) TILT STEERING<N33>	8-97289-286-0	01	1	0009-0210	●	●	●
4	06.524 SHAFT; STRG TILT STEERING<N33>	8-97289-286-0	01	1	0211-	●	●	●	●	●	●
4	06.524 SHAFT; STRG AIR BAG DRIVER(AJ3) TILT STEERING<N33>	8-97108-695-0	01	1	9907-0008	●	●	●	●	●	●
4	06.524 SHAFT; STRG AIR BAG DRIVER(AJ3) TILT STEERING<N33>	8-97108-695-0	01	1	0009-0210				●	●	●
4	06.524 SHAFT; STRG TILT STEERING<N33>	8-97112-174-0	01	1	9804-9906	●	●	●	●	●	●
4	06.524 SHAFT; STRG TILT STEERING<N33> EXC. AIR BAG DRIVER(AJ3)	8-97112-174-0	01	1	9907-0002	●	●	●	●	●	●
4	06.524 SHAFT; STRG TILT STEERING<N33> EXC. AIR BAG DRIVER(AJ3)	8-97207-517-0	01	1	0003-0210	●	●	●	●	●	●
4	06.524 SHAFT; STRG EXC. TILT STEERING<N33>	8-97203-778-0	01	1	9804-	●	●	●	●	●	●
5	06.518 COLUMN; STRG AIR BAG DRIVER(AJ3) TILT STEERING<N33>	8-97203-776-2	01	1	9907-0210	●	●	●	●	●	●
5	06.518 COLUMN; STRG TILT STEERING<N33>	8-97203-776-2	01	1	0211-	●	●	●	●	●	●
5	06.518 COLUMN; STRG TILT STEERING<N33>	8-97203-777-0	01	1	9804-9906	●	●	●	●	●	●
5	06.518 COLUMN; STRG TILT STEERING<N33> EXC. AIR BAG DRIVER(AJ3)	8-97203-777-0	01	1	9907-0210	●	●	●	●	●	●
5	06.518 COLUMN; STRG EXC. TILT STEERING<N33>	8-97207-516-0	01	1	9907-0308	●	●	●	●	●	●
19	06.515 RING; SNAP,STRG SHAFT 06.525 ID=20.5	9-09180-022-0	01	1	9804-	●	●	●	●	●	●
33	06.525 BOLT; STRG SHAFT TO UNIT (B) M8X30	8-94247-692-0	01	1	9804-	●	●	●	●	●	●
33	06.525 BOLT; STRG SHAFT TO UNIT TILT STEERING<N33> (A)	8-94477-976-1	01	1	9804-9906	●	●	●	●	●	●
33	06.525 BOLT; STRG SHAFT TO UNIT TILT STEERING<N33> (A)	8-94477-976-1	01	1	9907-	●	●	●	●	●	●
35	06.525 WASHER; LK,STRG SHAFT 00.002 (B) ID=8.2	9-09150-508-0	01	1	9804-	●	●	●	●	●	●
35	06.525 WASHER; LK,STRG SHAFT TILT STEERING<N33> (A)	8-94477-979-0	01	1	9804-9906	●	●	●	●	●	●
35	06.525 WASHER; LK,STRG SHAFT TILT STEERING<N33> (A)	8-94477-979-0	01	1	9907-	●	●	●	●	●	●
66	06.514 BOLT; STRG COLUMN 03.417 M8X35	8-97100-457-0	02	1	9804-	●	●	●	●	●	●
95	06.509 BOLT; STRG UNIT M10X92 FLANGE	8-94313-798-1	04	1	9804-	●	●	●	●	●	●
96	06.509 NUT; STRG UNIT M10 FLANGE	8-94313-797-0	04	1	9804-	●	●	●	●	●	●
100	03.670 BOLT; COLUMN TO FLOOR 10.455 M8X25	8-94152-496-1	02	1	9804-	●	●	●	●	●	●
102	06.500 LOCK ASM; STRG	8-97170-877-0	01	1	9804-0012	●	●	●	●	●	●
102	06.500 LOCK ASM; STRG	8-97260-963-0	01	1	0101-0107	●	●	●	●	●	●
102	06.500 LOCK ASM; STRG EXC. CHARGE AIR COOLER<6PL>	8-97260-963-0	01	1	0108-		●	●		●	●
102	06.500 LOCK ASM; STRG	8-97170-877-0	01	1	0108-	●			●
102	06.500 LOCK ASM; STRG CHARGE AIR COOLER<6PL>	8-97170-877-0	01	1	0108-		●	●		●	●
103	02.188 SWITCH; IGNITION	8-97145-348-0	01	1	9804-	●	●	●	●	●	●
104	06.500 BOLT; STRG LOCK TO COLUMN M6X25 W/LK&PL WASHER	8-97122-790-0	01	1	9804-	●	●	●	●	●	●
105	06.500 SCREW; IGN SW M4X12	9-03465-412-0	01	1	9804-	●	●	●	●	●	●
151	06.521 NUT; FLANGE 04.594 M6 FLANGE	0-91150-106-0	01	1	9804-	●	●	●	●	●	●
174	06.521 RUBBER; CUSHION,STRG COLUMN	8-97170-762-0	01	1	9804-	●	●	●	●	●	●
188	06.500 BOLT; TORQUE,STEERING	8-94474-206-0	01	1	9804-	●	●	●	●	●	●
309	06.500 COIL; IMMOBILIZER (A)	8-97365-495-0	01	1	0101-0107	●	●	●	●	●	●
309	06.500 COIL; IMMOBILIZER EXC. CHARGE AIR COOLER<6PL> (A)	8-97365-495-0	01	1	0108-		●	●		●	●
309	06.500 COIL; IMMOBILIZER (B)	8-97251-755-0	01	1	0108-	●			●
309	06.500 COIL; IMMOBILIZER CHARGE AIR COOLER<6PL> (B)	8-97251-755-0	01	1	0108-		●	●		●	●
310	06.500 SCREW; COIL 02.819 M4X12 W/LK&PL WASHER	9-03920-412-0	01	1	0108-	●			●
310	06.500 SCREW; COIL CHARGE AIR COOLER<6PL> 02.819 M4X12 W/LK&PL WASHER	9-03920-412-0	01	1	0108-		●	●		●	●
