Sayfa 4-30 - Isuzu EPC

4-30 — STEERING WHEEL AND COWL (#44670) — 191 parça

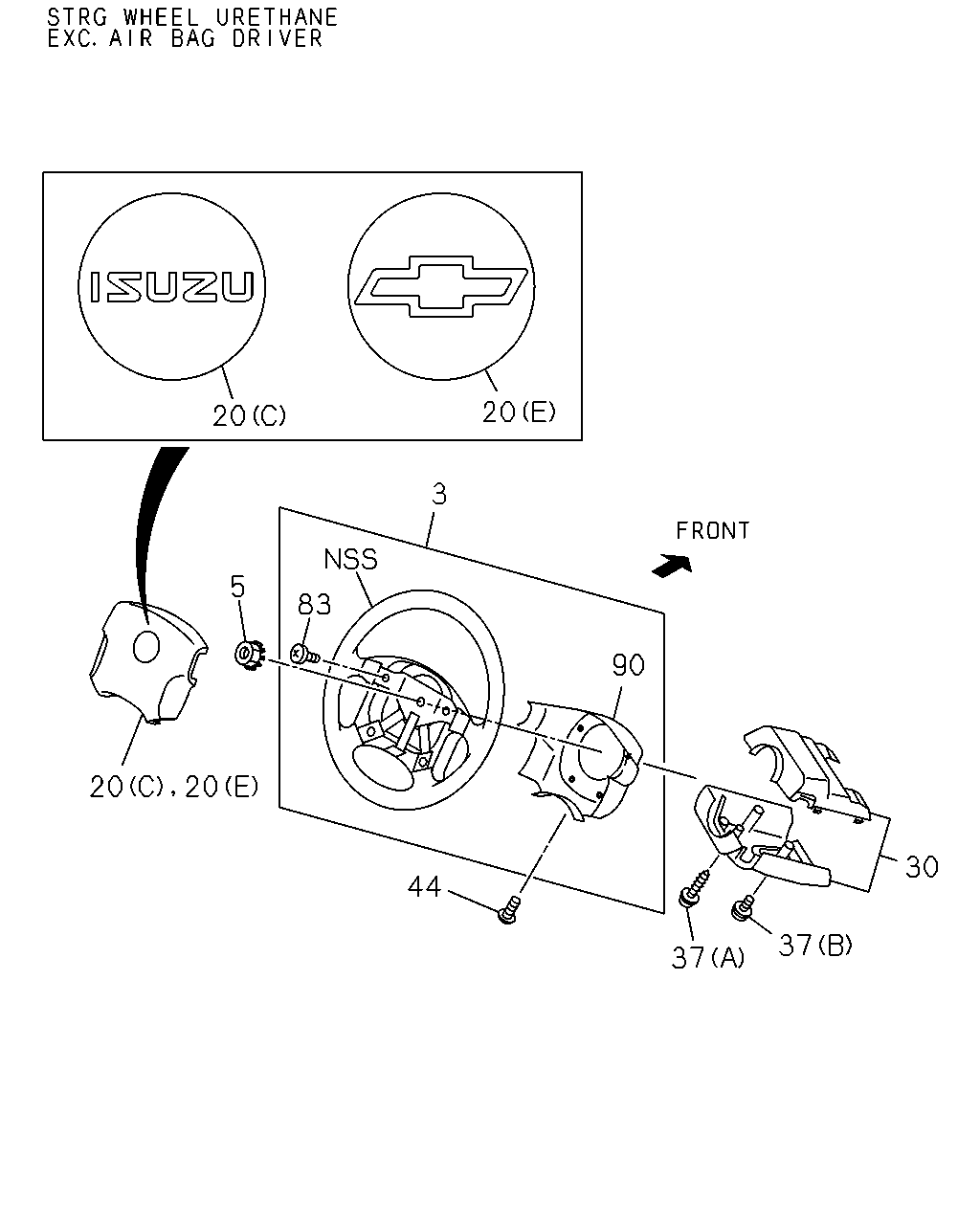

20 20 3 5 83 90 30 44 37 37 20 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
3	06.513 WHEEL; STRG AIR BAG DRIVER(AJ3) STRG WHEEL URETHANE<NK4> BLACK	8-97155-250-4	01	1	9907-	●	●	●	●	●	●
3	06.513 WHEEL; STRG STRG WHEEL URETHANE<NK4> BLACK	8-97155-240-0	01	1	9804-9906	●	●	●	●	●	●
3	06.513 WHEEL; STRG STRG WHEEL URETHANE<NK4> EXC. AIR BAG DRIVER(AJ3) BLACK	8-97155-240-0	01	1	9907-0209	●	●	●	●	●	●
3	06.513 WHEEL; STRG STRG WHEEL URETHANE<NK4> EXC. AIR BAG DRIVER(AJ3) BLACK	8-97395-928-0	01	1	0210-	●	●	●	●	●	●
3	06.513 WHEEL; STRG EXC. STRG WHEEL URETHANE<NK4> BLACK	8-97154-756-2	01	1	9804-9906	●	●	●	●	●	●
3	06.513 WHEEL; STRG EXC. AIR BAG DRIVER(AJ3),STRG WHEEL URETHANE<NK4> BLACK	8-97154-756-3	01	1	9907-0012	●	●	●	●	●	●
3	06.513 WHEEL; STRG EXC. AIR BAG DRIVER(AJ3),STRG WHEEL LEATHER<NK3>,STRG WHEEL URETHANE<NK4> BLACK	8-97154-756-3	01	1	0101-	●	●	●	●	●	●
3	06.513 WHEEL; STRG AIR BAG DRIVER(AJ3) STRG WHEEL LEATHER<NK3> BLACK	8-97155-689-4	01	1	0101-			●	●	●	●
3	06.513 WHEEL; STRG STRG WHEEL LEATHER<NK3> EXC. AIR BAG DRIVER(AJ3) BLACK	8-97155-688-3	01	1	0101-			●	●	●	●
5	06.515 NUT; STRG WHEEL TO SHAFT M12 W/TOOTH WASHER	8-94455-487-1	01	1	9804-	●	●	●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL STRG WHEEL URETHANE<NK4> CHEVROLET BRAND(RWE) EXC. AIR BAG DRIVER(AJ3) (E) BLACK	8-97159-162-0	01	1	0201-0209	●	●	●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL STRG WHEEL URETHANE<NK4> CHEVROLET BRAND(RWE) EXC. AIR BAG DRIVER(AJ3) (E) BLACK	8-97395-930-0	01	1	0210-	●	●	●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL CHEVROLET BRAND(RWE) EXC. AIR BAG DRIVER(AJ3),STRG WHEEL LEATHER<NK3>,STRG WHEEL URETHANE<NK4> (F) CHEVROLET BLACK	8-97154-758-1	01	1	0201-	●	●	●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL CANARY ISLANDS SPEC(6KF),ISRAEL EQUIPMENT(7LX) EXC. STRG WHEEL URETHANE<NK4> (A) ISUZU BLACK	8-97154-757-1	01	1	9804-9906	●	●	●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL ITALY EQUIPMENT(RWS),CANARY ISLANDS SPEC(6KF),ISRAEL EQUIPMENT(7LX) EXC. AIR BAG DRIVER(AJ3),STRG WHEEL URETHANE<NK4> (A) ISUZU BLACK	8-97154-757-1	01	1	9907-0009	●	●	●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL ITALY EQUIPMENT(RWS),TURKISH EQUIPMENT(S6S),CANARY ISLANDS SPEC(6KF), ISRAEL EQUIPMENT(7LX) EXC. AIR BAG DRIVER(AJ3),STRG WHEEL URETHANE<NK4> (A) ISUZU BLACK	8-97154-757-1	01	1	0010-0012	●	●	●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL EXC. AIR BAG DRIVER(AJ3),STRG WHEEL LEATHER<NK3>,STRG WHEEL URETHANE<NK4>, OPEL BRAND<6XX> (A) ISUZU BLACK	8-97154-757-1	01	1	0101-0112	●	●	●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL EXC. AIR BAG DRIVER(AJ3),STRG WHEEL LEATHER<NK3>,STRG WHEEL URETHANE<NK4>, CHEVROLET BRAND(RWE),OPEL BRAND<6XX> (A) ISUZU BLACK	8-97154-757-1	01	1	0201-0204	●	●	●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL EXC. AIR BAG DRIVER(AJ3),STRG WHEEL LEATHER<NK3>,STRG WHEEL URETHANE<NK4>, CHEVROLET BRAND(RWE) (A) ISUZU BLACK	8-97154-757-1	01	1	0205-	●	●	●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL STRG WHEEL URETHANE<NK4> ISRAEL EQUIPMENT(7LX) (C) ISUZU BLACK	8-97159-161-0	01	1	9804-9906	●	●	●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL STRG WHEEL URETHANE<NK4> ISRAEL EQUIPMENT(7LX) EXC. AIR BAG DRIVER(AJ3) (C) ISUZU BLACK	8-97159-161-0	01	1	9907-0009		●	●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL STRG WHEEL URETHANE<NK4> TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) EXC. AIR BAG DRIVER(AJ3) (C) ISUZU BLACK	8-97159-161-0	01	1	0010-0012		●	●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL STRG WHEEL URETHANE<NK4> EXC. AIR BAG DRIVER(AJ3),OPEL BRAND<6XX> (C) ISUZU BLACK	8-97159-161-0	01	1	0101-0112	●	●	●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL STRG WHEEL URETHANE<NK4> EXC. AIR BAG DRIVER(AJ3),CHEVROLET BRAND(RWE),OPEL BRAND<6XX> (C) ISUZU BLACK	8-97159-161-0	01	1	0201-0204	●	●	●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL STRG WHEEL URETHANE<NK4> EXC. AIR BAG DRIVER(AJ3),CHEVROLET BRAND(RWE) (C) ISUZU BLACK	8-97159-161-0	01	1	0205-0209	●	●	●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL STRG WHEEL URETHANE<NK4> EXC. AIR BAG DRIVER(AJ3),CHEVROLET BRAND(RWE) (C) ISUZU BLACK	8-97395-929-0	01	1	0210-	●	●	●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL EXC. STRG WHEEL URETHANE<NK4>,CANARY ISLANDS SPEC(6KF),ISRAEL EQUIPMENT(7LX) (B) OPEL BLACK	8-97154-759-1	01	1	9804-9906	●	●	●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL EXC. AIR BAG DRIVER(AJ3),STRG WHEEL URETHANE<NK4>,ITALY EQUIPMENT(RWS), CANARY ISLANDS SPEC(6KF),ISRAEL EQUIPMEN T(7LX) (B) OPEL BLACK	8-97154-759-1	01	1	9907-0009	●	●	●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL EXC. AIR BAG DRIVER(AJ3),STRG WHEEL URETHANE<NK4>,ITALY EQUIPMENT(RWS), TURKISH EQUIPMENT(S6S),CANARY ISLANDS SP EC(6KF),ISRAEL EQUIPMENT(7LX) (B) OPEL BLACK	8-97154-759-1	01	1	0010-0012	●	●	●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL OPEL BRAND<6XX> EXC. AIR BAG DRIVER(AJ3),STRG WHEEL LEATHER<NK3>,STRG WHEEL URETHANE<NK4> (B) OPEL BLACK	8-97154-759-1	01	1	0101-0204	●	●	●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL STRG WHEEL LEATHER<NK3> EXC. AIR BAG DRIVER(AJ3),OPEL BRAND<6XX> (D) ISUZU BLACK	8-97151-448-2	01	1	0101-0112			●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL STRG WHEEL LEATHER<NK3> EXC. AIR BAG DRIVER(AJ3),CHEVROLET BRAND(RWE),OPEL BRAND<6XX> (D) ISUZU BLACK	8-97151-448-2	01	1	0201-0204			●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL STRG WHEEL LEATHER<NK3> EXC. AIR BAG DRIVER(AJ3),CHEVROLET BRAND(RWE) (D) ISUZU BLACK	8-97151-448-2	01	1	0205-			●	●	●	●
30	06.518 COWL; STEERING BLACK	8-97098-330-6	01	1	9804-0012	●	●	●	●	●	●
30	06.518 COWL; STEERING BLACK	8-97153-245-7	01	1	0101-	●	●	●	●	●	●
37	06.518 SCREW; STRG COWL UPR 16.085 (A) M5X16	5-09981-053-0	04	1	9804-	●	●	●	●	●	●
37	06.518 SCREW; STRG COWL UPR (B) M4X12 W/PL WASHER	9-03900-412-0	03	1	9804-0107	●	●	●	●	●	●
37	06.518 SCREW; STRG COWL UPR 02.819 (B) M4X12 W/LK&PL WASHER	9-03920-412-0	03	1	0108-	●	●	●	●	●	●
44	06.514 SCREW; STRG COWL STRG WHEEL URETHANE<NK4> 06.512 M5X19 W/LK&PL WASHER	8-94104-815-1	01	1	9804-9906	●	●	●	●	●	●
44	06.514 SCREW; STRG COWL STRG WHEEL URETHANE<NK4> EXC. AIR BAG DRIVER(AJ3) 06.512 M5X19 W/LK&PL WASHER	8-94104-815-1	01	1	9907-0012	●	●	●	●	●	●
44	06.514 SCREW; STRG COWL STRG WHEEL LEATHER<NK3>,STRG WHEEL URETHANE<NK4> EXC. AIR BAG DRIVER(AJ3) 06.512 M5X19 W/LK&PL WASHER	8-94104-815-1	01	1	0101-	●	●	●	●	●	●
83	06.514 SCREW; LWR COVER TO WHEEL AIR BAG DRIVER(AJ3) STRG WHEEL URETHANE<NK4>	8-97122-619-0	04	1	9907-0012	●	●	●	●	●	●
83	06.514 SCREW; LWR COVER TO WHEEL AIR BAG DRIVER(AJ3) STRG WHEEL LEATHER<NK3>,STRG WHEEL URETHANE<NK4>	8-97122-619-0	04	1	0101-	●	●	●	●	●	●
83	06.514 SCREW; LWR COVER TO WHEEL STRG WHEEL URETHANE<NK4>	8-97164-606-0	04	1	9804-9906	●	●	●	●	●	●
83	06.514 SCREW; LWR COVER TO WHEEL STRG WHEEL URETHANE<NK4> EXC. AIR BAG DRIVER(AJ3)	8-97164-606-0	04	1	9907-	●	●	●	●	●	●
83	06.514 SCREW; LWR COVER TO WHEEL STRG WHEEL LEATHER<NK3> EXC. AIR BAG DRIVER(AJ3)	8-97124-009-0	04	1	0101-			●	●	●	●
90	06.578 COVER ASM; STRG WHEEL,LWR STRG WHEEL URETHANE<NK4> 06.514 BLACK	8-97158-297-0	01	1	9804-9906	●	●	●	●	●	●
90	06.578 COVER ASM; STRG WHEEL,LWR STRG WHEEL URETHANE<NK4> EXC. AIR BAG DRIVER(AJ3) 06.514 BLACK	8-97158-297-0	01	1	9907-	●	●	●	●	●	●

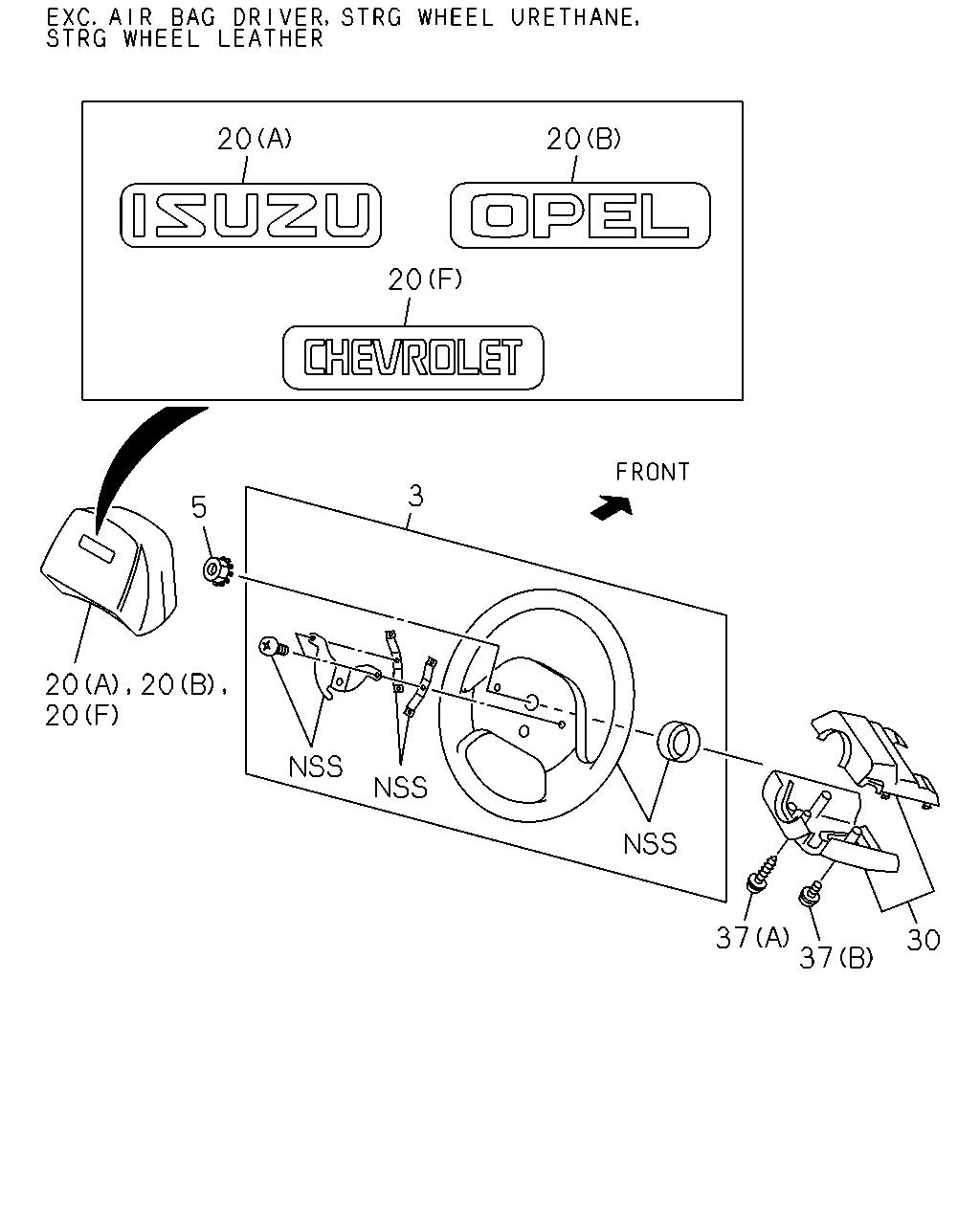

20 20 20 3 5 20 37 37 30 20 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
3	06.513 WHEEL; STRG AIR BAG DRIVER(AJ3) STRG WHEEL URETHANE<NK4> BLACK	8-97155-250-4	01	1	9907-	●	●	●	●	●	●
3	06.513 WHEEL; STRG STRG WHEEL URETHANE<NK4> BLACK	8-97155-240-0	01	1	9804-9906	●	●	●	●	●	●
3	06.513 WHEEL; STRG STRG WHEEL URETHANE<NK4> EXC. AIR BAG DRIVER(AJ3) BLACK	8-97155-240-0	01	1	9907-0209	●	●	●	●	●	●
3	06.513 WHEEL; STRG STRG WHEEL URETHANE<NK4> EXC. AIR BAG DRIVER(AJ3) BLACK	8-97395-928-0	01	1	0210-	●	●	●	●	●	●
3	06.513 WHEEL; STRG EXC. STRG WHEEL URETHANE<NK4> BLACK	8-97154-756-2	01	1	9804-9906	●	●	●	●	●	●
3	06.513 WHEEL; STRG EXC. AIR BAG DRIVER(AJ3),STRG WHEEL URETHANE<NK4> BLACK	8-97154-756-3	01	1	9907-0012	●	●	●	●	●	●
3	06.513 WHEEL; STRG EXC. AIR BAG DRIVER(AJ3),STRG WHEEL LEATHER<NK3>,STRG WHEEL URETHANE<NK4> BLACK	8-97154-756-3	01	1	0101-	●	●	●	●	●	●
3	06.513 WHEEL; STRG AIR BAG DRIVER(AJ3) STRG WHEEL LEATHER<NK3> BLACK	8-97155-689-4	01	1	0101-			●	●	●	●
3	06.513 WHEEL; STRG STRG WHEEL LEATHER<NK3> EXC. AIR BAG DRIVER(AJ3) BLACK	8-97155-688-3	01	1	0101-			●	●	●	●
5	06.515 NUT; STRG WHEEL TO SHAFT M12 W/TOOTH WASHER	8-94455-487-1	01	1	9804-	●	●	●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL STRG WHEEL URETHANE<NK4> CHEVROLET BRAND(RWE) EXC. AIR BAG DRIVER(AJ3) (E) BLACK	8-97159-162-0	01	1	0201-0209	●	●	●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL STRG WHEEL URETHANE<NK4> CHEVROLET BRAND(RWE) EXC. AIR BAG DRIVER(AJ3) (E) BLACK	8-97395-930-0	01	1	0210-	●	●	●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL CHEVROLET BRAND(RWE) EXC. AIR BAG DRIVER(AJ3),STRG WHEEL LEATHER<NK3>,STRG WHEEL URETHANE<NK4> (F) CHEVROLET BLACK	8-97154-758-1	01	1	0201-	●	●	●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL CANARY ISLANDS SPEC(6KF),ISRAEL EQUIPMENT(7LX) EXC. STRG WHEEL URETHANE<NK4> (A) ISUZU BLACK	8-97154-757-1	01	1	9804-9906	●	●	●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL ITALY EQUIPMENT(RWS),CANARY ISLANDS SPEC(6KF),ISRAEL EQUIPMENT(7LX) EXC. AIR BAG DRIVER(AJ3),STRG WHEEL URETHANE<NK4> (A) ISUZU BLACK	8-97154-757-1	01	1	9907-0009	●	●	●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL ITALY EQUIPMENT(RWS),TURKISH EQUIPMENT(S6S),CANARY ISLANDS SPEC(6KF), ISRAEL EQUIPMENT(7LX) EXC. AIR BAG DRIVER(AJ3),STRG WHEEL URETHANE<NK4> (A) ISUZU BLACK	8-97154-757-1	01	1	0010-0012	●	●	●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL EXC. AIR BAG DRIVER(AJ3),STRG WHEEL LEATHER<NK3>,STRG WHEEL URETHANE<NK4>, OPEL BRAND<6XX> (A) ISUZU BLACK	8-97154-757-1	01	1	0101-0112	●	●	●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL EXC. AIR BAG DRIVER(AJ3),STRG WHEEL LEATHER<NK3>,STRG WHEEL URETHANE<NK4>, CHEVROLET BRAND(RWE),OPEL BRAND<6XX> (A) ISUZU BLACK	8-97154-757-1	01	1	0201-0204	●	●	●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL EXC. AIR BAG DRIVER(AJ3),STRG WHEEL LEATHER<NK3>,STRG WHEEL URETHANE<NK4>, CHEVROLET BRAND(RWE) (A) ISUZU BLACK	8-97154-757-1	01	1	0205-	●	●	●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL STRG WHEEL URETHANE<NK4> ISRAEL EQUIPMENT(7LX) (C) ISUZU BLACK	8-97159-161-0	01	1	9804-9906	●	●	●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL STRG WHEEL URETHANE<NK4> ISRAEL EQUIPMENT(7LX) EXC. AIR BAG DRIVER(AJ3) (C) ISUZU BLACK	8-97159-161-0	01	1	9907-0009		●	●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL STRG WHEEL URETHANE<NK4> TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) EXC. AIR BAG DRIVER(AJ3) (C) ISUZU BLACK	8-97159-161-0	01	1	0010-0012		●	●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL STRG WHEEL URETHANE<NK4> EXC. AIR BAG DRIVER(AJ3),OPEL BRAND<6XX> (C) ISUZU BLACK	8-97159-161-0	01	1	0101-0112	●	●	●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL STRG WHEEL URETHANE<NK4> EXC. AIR BAG DRIVER(AJ3),CHEVROLET BRAND(RWE),OPEL BRAND<6XX> (C) ISUZU BLACK	8-97159-161-0	01	1	0201-0204	●	●	●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL STRG WHEEL URETHANE<NK4> EXC. AIR BAG DRIVER(AJ3),CHEVROLET BRAND(RWE) (C) ISUZU BLACK	8-97159-161-0	01	1	0205-0209	●	●	●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL STRG WHEEL URETHANE<NK4> EXC. AIR BAG DRIVER(AJ3),CHEVROLET BRAND(RWE) (C) ISUZU BLACK	8-97395-929-0	01	1	0210-	●	●	●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL EXC. STRG WHEEL URETHANE<NK4>,CANARY ISLANDS SPEC(6KF),ISRAEL EQUIPMENT(7LX) (B) OPEL BLACK	8-97154-759-1	01	1	9804-9906	●	●	●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL EXC. AIR BAG DRIVER(AJ3),STRG WHEEL URETHANE<NK4>,ITALY EQUIPMENT(RWS), CANARY ISLANDS SPEC(6KF),ISRAEL EQUIPMEN T(7LX) (B) OPEL BLACK	8-97154-759-1	01	1	9907-0009	●	●	●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL EXC. AIR BAG DRIVER(AJ3),STRG WHEEL URETHANE<NK4>,ITALY EQUIPMENT(RWS), TURKISH EQUIPMENT(S6S),CANARY ISLANDS SP EC(6KF),ISRAEL EQUIPMENT(7LX) (B) OPEL BLACK	8-97154-759-1	01	1	0010-0012	●	●	●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL OPEL BRAND<6XX> EXC. AIR BAG DRIVER(AJ3),STRG WHEEL LEATHER<NK3>,STRG WHEEL URETHANE<NK4> (B) OPEL BLACK	8-97154-759-1	01	1	0101-0204	●	●	●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL STRG WHEEL LEATHER<NK3> EXC. AIR BAG DRIVER(AJ3),OPEL BRAND<6XX> (D) ISUZU BLACK	8-97151-448-2	01	1	0101-0112			●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL STRG WHEEL LEATHER<NK3> EXC. AIR BAG DRIVER(AJ3),CHEVROLET BRAND(RWE),OPEL BRAND<6XX> (D) ISUZU BLACK	8-97151-448-2	01	1	0201-0204			●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL STRG WHEEL LEATHER<NK3> EXC. AIR BAG DRIVER(AJ3),CHEVROLET BRAND(RWE) (D) ISUZU BLACK	8-97151-448-2	01	1	0205-			●	●	●	●
30	06.518 COWL; STEERING BLACK	8-97098-330-6	01	1	9804-0012	●	●	●	●	●	●
30	06.518 COWL; STEERING BLACK	8-97153-245-7	01	1	0101-	●	●	●	●	●	●
37	06.518 SCREW; STRG COWL UPR 16.085 (A) M5X16	5-09981-053-0	04	1	9804-	●	●	●	●	●	●
37	06.518 SCREW; STRG COWL UPR (B) M4X12 W/PL WASHER	9-03900-412-0	03	1	9804-0107	●	●	●	●	●	●
37	06.518 SCREW; STRG COWL UPR 02.819 (B) M4X12 W/LK&PL WASHER	9-03920-412-0	03	1	0108-	●	●	●	●	●	●

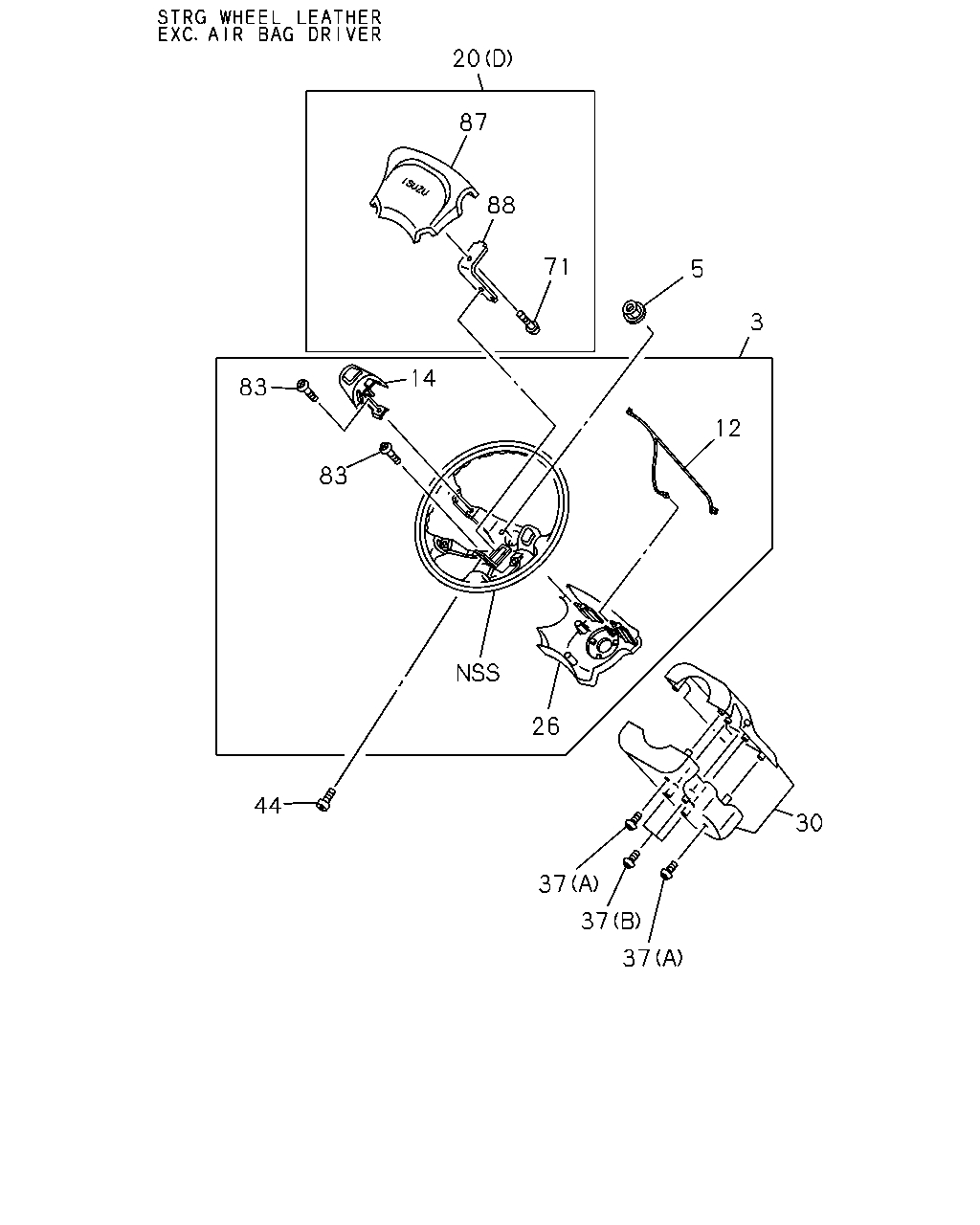

20 87 88 71 5 3 14 83 12 83 26 44 30 37 37 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
3	06.513 WHEEL; STRG AIR BAG DRIVER(AJ3) STRG WHEEL URETHANE<NK4> BLACK	8-97155-250-4	01	1	9907-	●	●	●	●	●	●
3	06.513 WHEEL; STRG STRG WHEEL URETHANE<NK4> BLACK	8-97155-240-0	01	1	9804-9906	●	●	●	●	●	●
3	06.513 WHEEL; STRG STRG WHEEL URETHANE<NK4> EXC. AIR BAG DRIVER(AJ3) BLACK	8-97155-240-0	01	1	9907-0209	●	●	●	●	●	●
3	06.513 WHEEL; STRG STRG WHEEL URETHANE<NK4> EXC. AIR BAG DRIVER(AJ3) BLACK	8-97395-928-0	01	1	0210-	●	●	●	●	●	●
3	06.513 WHEEL; STRG EXC. STRG WHEEL URETHANE<NK4> BLACK	8-97154-756-2	01	1	9804-9906	●	●	●	●	●	●
3	06.513 WHEEL; STRG EXC. AIR BAG DRIVER(AJ3),STRG WHEEL URETHANE<NK4> BLACK	8-97154-756-3	01	1	9907-0012	●	●	●	●	●	●
3	06.513 WHEEL; STRG EXC. AIR BAG DRIVER(AJ3),STRG WHEEL LEATHER<NK3>,STRG WHEEL URETHANE<NK4> BLACK	8-97154-756-3	01	1	0101-	●	●	●	●	●	●
3	06.513 WHEEL; STRG AIR BAG DRIVER(AJ3) STRG WHEEL LEATHER<NK3> BLACK	8-97155-689-4	01	1	0101-			●	●	●	●
3	06.513 WHEEL; STRG STRG WHEEL LEATHER<NK3> EXC. AIR BAG DRIVER(AJ3) BLACK	8-97155-688-3	01	1	0101-			●	●	●	●
5	06.515 NUT; STRG WHEEL TO SHAFT M12 W/TOOTH WASHER	8-94455-487-1	01	1	9804-	●	●	●	●	●	●
12	02.819 CORD; HORN AIR BAG DRIVER(AJ3) STRG WHEEL URETHANE<NK4>	8-97122-397-0	01	1	9907-0012	●	●	●	●	●	●
12	02.819 CORD; HORN AIR BAG DRIVER(AJ3) STRG WHEEL LEATHER<NK3>,STRG WHEEL URETHANE<NK4>	8-97122-397-0	01	1	0101-	●	●	●	●	●	●
12	02.819 CORD; HORN STRG WHEEL LEATHER<NK3> EXC. AIR BAG DRIVER(AJ3)	8-97124-010-0	01	1	0101-			●	●	●	●
14	02.820 BUTTON; HORN,STRG WHEEL AIR BAG DRIVER(AJ3) STRG WHEEL URETHANE<NK4> BLACK	8-97155-253-0	01	1	9907-0012	●	●	●	●	●	●
14	02.820 BUTTON; HORN,STRG WHEEL AIR BAG DRIVER(AJ3) STRG WHEEL LEATHER<NK3>,STRG WHEEL URETHANE<NK4> BLACK	8-97155-253-0	01	1	0101-	●	●	●	●	●	●
14	02.820 BUTTON; HORN,STRG WHEEL AIR BAG DRIVER(AJ3) STRG WHEEL URETHANE<NK4> BLACK	8-97155-252-0	01	1	9907-0012	●	●	●	●	●	●
14	02.820 BUTTON; HORN,STRG WHEEL AIR BAG DRIVER(AJ3) STRG WHEEL LEATHER<NK3>,STRG WHEEL URETHANE<NK4> BLACK	8-97155-252-0	01	1	0101-	●	●	●	●	●	●
14	02.820 BUTTON; HORN,STRG WHEEL STRG WHEEL LEATHER<NK3> EXC. AIR BAG DRIVER(AJ3) BLACK	8-97155-693-0	01	1	0101-			●	●	●	●
14	02.820 BUTTON; HORN,STRG WHEEL STRG WHEEL LEATHER<NK3> EXC. AIR BAG DRIVER(AJ3) BLACK	8-97155-692-0	01	1	0101-			●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL STRG WHEEL URETHANE<NK4> CHEVROLET BRAND(RWE) EXC. AIR BAG DRIVER(AJ3) (E) BLACK	8-97159-162-0	01	1	0201-0209	●	●	●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL STRG WHEEL URETHANE<NK4> CHEVROLET BRAND(RWE) EXC. AIR BAG DRIVER(AJ3) (E) BLACK	8-97395-930-0	01	1	0210-	●	●	●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL CHEVROLET BRAND(RWE) EXC. AIR BAG DRIVER(AJ3),STRG WHEEL LEATHER<NK3>,STRG WHEEL URETHANE<NK4> (F) CHEVROLET BLACK	8-97154-758-1	01	1	0201-	●	●	●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL CANARY ISLANDS SPEC(6KF),ISRAEL EQUIPMENT(7LX) EXC. STRG WHEEL URETHANE<NK4> (A) ISUZU BLACK	8-97154-757-1	01	1	9804-9906	●	●	●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL ITALY EQUIPMENT(RWS),CANARY ISLANDS SPEC(6KF),ISRAEL EQUIPMENT(7LX) EXC. AIR BAG DRIVER(AJ3),STRG WHEEL URETHANE<NK4> (A) ISUZU BLACK	8-97154-757-1	01	1	9907-0009	●	●	●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL ITALY EQUIPMENT(RWS),TURKISH EQUIPMENT(S6S),CANARY ISLANDS SPEC(6KF), ISRAEL EQUIPMENT(7LX) EXC. AIR BAG DRIVER(AJ3),STRG WHEEL URETHANE<NK4> (A) ISUZU BLACK	8-97154-757-1	01	1	0010-0012	●	●	●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL EXC. AIR BAG DRIVER(AJ3),STRG WHEEL LEATHER<NK3>,STRG WHEEL URETHANE<NK4>, OPEL BRAND<6XX> (A) ISUZU BLACK	8-97154-757-1	01	1	0101-0112	●	●	●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL EXC. AIR BAG DRIVER(AJ3),STRG WHEEL LEATHER<NK3>,STRG WHEEL URETHANE<NK4>, CHEVROLET BRAND(RWE),OPEL BRAND<6XX> (A) ISUZU BLACK	8-97154-757-1	01	1	0201-0204	●	●	●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL EXC. AIR BAG DRIVER(AJ3),STRG WHEEL LEATHER<NK3>,STRG WHEEL URETHANE<NK4>, CHEVROLET BRAND(RWE) (A) ISUZU BLACK	8-97154-757-1	01	1	0205-	●	●	●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL STRG WHEEL URETHANE<NK4> ISRAEL EQUIPMENT(7LX) (C) ISUZU BLACK	8-97159-161-0	01	1	9804-9906	●	●	●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL STRG WHEEL URETHANE<NK4> ISRAEL EQUIPMENT(7LX) EXC. AIR BAG DRIVER(AJ3) (C) ISUZU BLACK	8-97159-161-0	01	1	9907-0009		●	●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL STRG WHEEL URETHANE<NK4> TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) EXC. AIR BAG DRIVER(AJ3) (C) ISUZU BLACK	8-97159-161-0	01	1	0010-0012		●	●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL STRG WHEEL URETHANE<NK4> EXC. AIR BAG DRIVER(AJ3),OPEL BRAND<6XX> (C) ISUZU BLACK	8-97159-161-0	01	1	0101-0112	●	●	●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL STRG WHEEL URETHANE<NK4> EXC. AIR BAG DRIVER(AJ3),CHEVROLET BRAND(RWE),OPEL BRAND<6XX> (C) ISUZU BLACK	8-97159-161-0	01	1	0201-0204	●	●	●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL STRG WHEEL URETHANE<NK4> EXC. AIR BAG DRIVER(AJ3),CHEVROLET BRAND(RWE) (C) ISUZU BLACK	8-97159-161-0	01	1	0205-0209	●	●	●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL STRG WHEEL URETHANE<NK4> EXC. AIR BAG DRIVER(AJ3),CHEVROLET BRAND(RWE) (C) ISUZU BLACK	8-97395-929-0	01	1	0210-	●	●	●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL EXC. STRG WHEEL URETHANE<NK4>,CANARY ISLANDS SPEC(6KF),ISRAEL EQUIPMENT(7LX) (B) OPEL BLACK	8-97154-759-1	01	1	9804-9906	●	●	●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL EXC. AIR BAG DRIVER(AJ3),STRG WHEEL URETHANE<NK4>,ITALY EQUIPMENT(RWS), CANARY ISLANDS SPEC(6KF),ISRAEL EQUIPMEN T(7LX) (B) OPEL BLACK	8-97154-759-1	01	1	9907-0009	●	●	●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL EXC. AIR BAG DRIVER(AJ3),STRG WHEEL URETHANE<NK4>,ITALY EQUIPMENT(RWS), TURKISH EQUIPMENT(S6S),CANARY ISLANDS SP EC(6KF),ISRAEL EQUIPMENT(7LX) (B) OPEL BLACK	8-97154-759-1	01	1	0010-0012	●	●	●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL OPEL BRAND<6XX> EXC. AIR BAG DRIVER(AJ3),STRG WHEEL LEATHER<NK3>,STRG WHEEL URETHANE<NK4> (B) OPEL BLACK	8-97154-759-1	01	1	0101-0204	●	●	●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL STRG WHEEL LEATHER<NK3> EXC. AIR BAG DRIVER(AJ3),OPEL BRAND<6XX> (D) ISUZU BLACK	8-97151-448-2	01	1	0101-0112			●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL STRG WHEEL LEATHER<NK3> EXC. AIR BAG DRIVER(AJ3),CHEVROLET BRAND(RWE),OPEL BRAND<6XX> (D) ISUZU BLACK	8-97151-448-2	01	1	0201-0204			●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL STRG WHEEL LEATHER<NK3> EXC. AIR BAG DRIVER(AJ3),CHEVROLET BRAND(RWE) (D) ISUZU BLACK	8-97151-448-2	01	1	0205-			●	●	●	●
26	06.514 COVER; STRG WHEEL,LWR AIR BAG DRIVER(AJ3) STRG WHEEL URETHANE<NK4> BLACK	8-97153-000-0	01	1	9907-0012	●	●	●	●	●	●
26	06.514 COVER; STRG WHEEL,LWR AIR BAG DRIVER(AJ3) STRG WHEEL LEATHER<NK3>,STRG WHEEL URETHANE<NK4> BLACK	8-97153-000-1	01	1	0101-	●	●	●	●	●	●
26	06.514 COVER; STRG WHEEL,LWR STRG WHEEL URETHANE<NK4> EXC. AIR BAG DRIVER(AJ3) BLACK	8-97158-297-0	01	1	0108-	●	●	●	●	●	●
26	06.514 COVER; STRG WHEEL,LWR STRG WHEEL LEATHER<NK3> EXC. AIR BAG DRIVER(AJ3) BLACK	8-97153-234-1	01	1	0101-			●	●	●	●
30	06.518 COWL; STEERING BLACK	8-97098-330-6	01	1	9804-0012	●	●	●	●	●	●
30	06.518 COWL; STEERING BLACK	8-97153-245-7	01	1	0101-	●	●	●	●	●	●
37	06.518 SCREW; STRG COWL UPR 16.085 (A) M5X16	5-09981-053-0	04	1	9804-	●	●	●	●	●	●
37	06.518 SCREW; STRG COWL UPR (B) M4X12 W/PL WASHER	9-03900-412-0	03	1	9804-0107	●	●	●	●	●	●
37	06.518 SCREW; STRG COWL UPR 02.819 (B) M4X12 W/LK&PL WASHER	9-03920-412-0	03	1	0108-	●	●	●	●	●	●
44	06.514 SCREW; STRG COWL STRG WHEEL URETHANE<NK4> 06.512 M5X19 W/LK&PL WASHER	8-94104-815-1	01	1	9804-9906	●	●	●	●	●	●
44	06.514 SCREW; STRG COWL STRG WHEEL URETHANE<NK4> EXC. AIR BAG DRIVER(AJ3) 06.512 M5X19 W/LK&PL WASHER	8-94104-815-1	01	1	9907-0012	●	●	●	●	●	●
44	06.514 SCREW; STRG COWL STRG WHEEL LEATHER<NK3>,STRG WHEEL URETHANE<NK4> EXC. AIR BAG DRIVER(AJ3) 06.512 M5X19 W/LK&PL WASHER	8-94104-815-1	01	1	0101-	●	●	●	●	●	●
71	06.512 SCREW; BRKT,STRG WHEEL STRG WHEEL LEATHER<NK3> EXC. AIR BAG DRIVER(AJ3),OPEL BRAND<6XX>	8-97124-023-0	01	1	0101-0112			●	●	●	●
71	06.512 SCREW; BRKT,STRG WHEEL STRG WHEEL LEATHER<NK3> EXC. AIR BAG DRIVER(AJ3),CHEVROLET BRAND(RWE),OPEL BRAND<6XX>	8-97124-023-0	01	1	0201-0204			●	●	●	●
71	06.512 SCREW; BRKT,STRG WHEEL STRG WHEEL LEATHER<NK3> EXC. AIR BAG DRIVER(AJ3),CHEVROLET BRAND(RWE)	8-97124-023-0	01	1	0205-			●	●	●	●
83	06.514 SCREW; LWR COVER TO WHEEL AIR BAG DRIVER(AJ3) STRG WHEEL URETHANE<NK4>	8-97122-619-0	04	1	9907-0012	●	●	●	●	●	●
83	06.514 SCREW; LWR COVER TO WHEEL AIR BAG DRIVER(AJ3) STRG WHEEL LEATHER<NK3>,STRG WHEEL URETHANE<NK4>	8-97122-619-0	04	1	0101-	●	●	●	●	●	●
83	06.514 SCREW; LWR COVER TO WHEEL STRG WHEEL URETHANE<NK4>	8-97164-606-0	04	1	9804-9906	●	●	●	●	●	●
83	06.514 SCREW; LWR COVER TO WHEEL STRG WHEEL URETHANE<NK4> EXC. AIR BAG DRIVER(AJ3)	8-97164-606-0	04	1	9907-	●	●	●	●	●	●
83	06.514 SCREW; LWR COVER TO WHEEL STRG WHEEL LEATHER<NK3> EXC. AIR BAG DRIVER(AJ3)	8-97124-009-0	04	1	0101-			●	●	●	●
87	06.518 PAD; STEERING STRG WHEEL LEATHER<NK3> EXC. AIR BAG DRIVER(AJ3),OPEL BRAND<6XX> BLACK	8-97153-238-0	01	1	0101-0112			●	●	●	●
87	06.518 PAD; STEERING STRG WHEEL LEATHER<NK3> EXC. AIR BAG DRIVER(AJ3),CHEVROLET BRAND(RWE),OPEL BRAND<6XX> BLACK	8-97153-238-0	01	1	0201-0204			●	●	●	●
87	06.518 PAD; STEERING STRG WHEEL LEATHER<NK3> EXC. AIR BAG DRIVER(AJ3),CHEVROLET BRAND(RWE) BLACK	8-97153-238-0	01	1	0205-			●	●	●	●
88	06.518 BRACKET PAD; STEERING STRG WHEEL LEATHER<NK3> EXC. AIR BAG DRIVER(AJ3),OPEL BRAND<6XX>	8-97124-022-0	01	1	0101-0112			●	●	●	●
88	06.518 BRACKET PAD; STEERING STRG WHEEL LEATHER<NK3> EXC. AIR BAG DRIVER(AJ3),CHEVROLET BRAND(RWE),OPEL BRAND<6XX>	8-97124-022-0	01	1	0201-0204			●	●	●	●
88	06.518 BRACKET PAD; STEERING STRG WHEEL LEATHER<NK3> EXC. AIR BAG DRIVER(AJ3),CHEVROLET BRAND(RWE)	8-97124-022-0	01	1	0205-			●	●	●	●

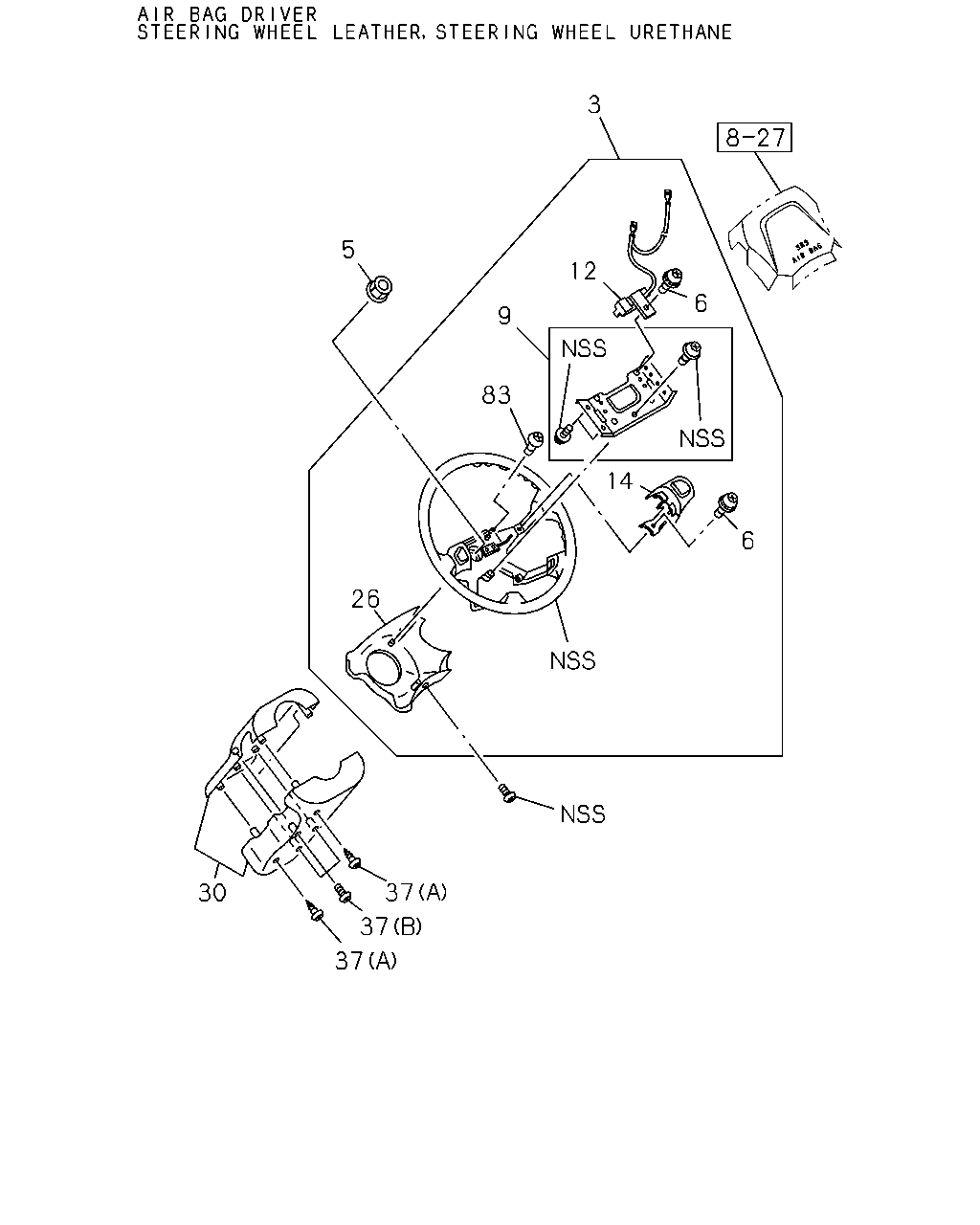

3 5 12 6 9 83 14 6 26 37 30 37 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
3	06.513 WHEEL; STRG AIR BAG DRIVER(AJ3) STRG WHEEL URETHANE<NK4> BLACK	8-97155-250-4	01	1	9907-	●	●	●	●	●	●
3	06.513 WHEEL; STRG STRG WHEEL URETHANE<NK4> BLACK	8-97155-240-0	01	1	9804-9906	●	●	●	●	●	●
3	06.513 WHEEL; STRG STRG WHEEL URETHANE<NK4> EXC. AIR BAG DRIVER(AJ3) BLACK	8-97155-240-0	01	1	9907-0209	●	●	●	●	●	●
3	06.513 WHEEL; STRG STRG WHEEL URETHANE<NK4> EXC. AIR BAG DRIVER(AJ3) BLACK	8-97395-928-0	01	1	0210-	●	●	●	●	●	●
3	06.513 WHEEL; STRG EXC. STRG WHEEL URETHANE<NK4> BLACK	8-97154-756-2	01	1	9804-9906	●	●	●	●	●	●
3	06.513 WHEEL; STRG EXC. AIR BAG DRIVER(AJ3),STRG WHEEL URETHANE<NK4> BLACK	8-97154-756-3	01	1	9907-0012	●	●	●	●	●	●
3	06.513 WHEEL; STRG EXC. AIR BAG DRIVER(AJ3),STRG WHEEL LEATHER<NK3>,STRG WHEEL URETHANE<NK4> BLACK	8-97154-756-3	01	1	0101-	●	●	●	●	●	●
3	06.513 WHEEL; STRG AIR BAG DRIVER(AJ3) STRG WHEEL LEATHER<NK3> BLACK	8-97155-689-4	01	1	0101-			●	●	●	●
3	06.513 WHEEL; STRG STRG WHEEL LEATHER<NK3> EXC. AIR BAG DRIVER(AJ3) BLACK	8-97155-688-3	01	1	0101-			●	●	●	●
5	06.515 NUT; STRG WHEEL TO SHAFT M12 W/TOOTH WASHER	8-94455-487-1	01	1	9804-	●	●	●	●	●	●
6	02.820 SCREW; HORN SPR CONTACT AIR BAG DRIVER(AJ3) STRG WHEEL URETHANE<NK4>	8-97122-618-0	03	1	9907-0012	●	●	●	●	●	●
6	02.820 SCREW; HORN SPR CONTACT AIR BAG DRIVER(AJ3) STRG WHEEL LEATHER<NK3>,STRG WHEEL URETHANE<NK4>	8-97122-618-0	03	1	0101-	●	●	●	●	●	●
9	02.819 PLATE; HORN CONTACT AIR BAG DRIVER(AJ3) STRG WHEEL URETHANE<NK4>	8-97122-394-0	01	1	9907-0012	●	●	●	●	●	●
9	02.819 PLATE; HORN CONTACT AIR BAG DRIVER(AJ3) STRG WHEEL LEATHER<NK3>,STRG WHEEL URETHANE<NK4>	8-97122-394-0	01	1	0101-	●	●	●	●	●	●
12	02.819 CORD; HORN AIR BAG DRIVER(AJ3) STRG WHEEL URETHANE<NK4>	8-97122-397-0	01	1	9907-0012	●	●	●	●	●	●
12	02.819 CORD; HORN AIR BAG DRIVER(AJ3) STRG WHEEL LEATHER<NK3>,STRG WHEEL URETHANE<NK4>	8-97122-397-0	01	1	0101-	●	●	●	●	●	●
12	02.819 CORD; HORN STRG WHEEL LEATHER<NK3> EXC. AIR BAG DRIVER(AJ3)	8-97124-010-0	01	1	0101-			●	●	●	●
14	02.820 BUTTON; HORN,STRG WHEEL AIR BAG DRIVER(AJ3) STRG WHEEL URETHANE<NK4> BLACK	8-97155-253-0	01	1	9907-0012	●	●	●	●	●	●
14	02.820 BUTTON; HORN,STRG WHEEL AIR BAG DRIVER(AJ3) STRG WHEEL LEATHER<NK3>,STRG WHEEL URETHANE<NK4> BLACK	8-97155-253-0	01	1	0101-	●	●	●	●	●	●
14	02.820 BUTTON; HORN,STRG WHEEL AIR BAG DRIVER(AJ3) STRG WHEEL URETHANE<NK4> BLACK	8-97155-252-0	01	1	9907-0012	●	●	●	●	●	●
14	02.820 BUTTON; HORN,STRG WHEEL AIR BAG DRIVER(AJ3) STRG WHEEL LEATHER<NK3>,STRG WHEEL URETHANE<NK4> BLACK	8-97155-252-0	01	1	0101-	●	●	●	●	●	●
14	02.820 BUTTON; HORN,STRG WHEEL STRG WHEEL LEATHER<NK3> EXC. AIR BAG DRIVER(AJ3) BLACK	8-97155-693-0	01	1	0101-			●	●	●	●
14	02.820 BUTTON; HORN,STRG WHEEL STRG WHEEL LEATHER<NK3> EXC. AIR BAG DRIVER(AJ3) BLACK	8-97155-692-0	01	1	0101-			●	●	●	●
26	06.514 COVER; STRG WHEEL,LWR AIR BAG DRIVER(AJ3) STRG WHEEL URETHANE<NK4> BLACK	8-97153-000-0	01	1	9907-0012	●	●	●	●	●	●
26	06.514 COVER; STRG WHEEL,LWR AIR BAG DRIVER(AJ3) STRG WHEEL LEATHER<NK3>,STRG WHEEL URETHANE<NK4> BLACK	8-97153-000-1	01	1	0101-	●	●	●	●	●	●
26	06.514 COVER; STRG WHEEL,LWR STRG WHEEL URETHANE<NK4> EXC. AIR BAG DRIVER(AJ3) BLACK	8-97158-297-0	01	1	0108-	●	●	●	●	●	●
26	06.514 COVER; STRG WHEEL,LWR STRG WHEEL LEATHER<NK3> EXC. AIR BAG DRIVER(AJ3) BLACK	8-97153-234-1	01	1	0101-			●	●	●	●
30	06.518 COWL; STEERING BLACK	8-97098-330-6	01	1	9804-0012	●	●	●	●	●	●
30	06.518 COWL; STEERING BLACK	8-97153-245-7	01	1	0101-	●	●	●	●	●	●
37	06.518 SCREW; STRG COWL UPR 16.085 (A) M5X16	5-09981-053-0	04	1	9804-	●	●	●	●	●	●
37	06.518 SCREW; STRG COWL UPR (B) M4X12 W/PL WASHER	9-03900-412-0	03	1	9804-0107	●	●	●	●	●	●
37	06.518 SCREW; STRG COWL UPR 02.819 (B) M4X12 W/LK&PL WASHER	9-03920-412-0	03	1	0108-	●	●	●	●	●	●
83	06.514 SCREW; LWR COVER TO WHEEL AIR BAG DRIVER(AJ3) STRG WHEEL URETHANE<NK4>	8-97122-619-0	04	1	9907-0012	●	●	●	●	●	●
83	06.514 SCREW; LWR COVER TO WHEEL AIR BAG DRIVER(AJ3) STRG WHEEL LEATHER<NK3>,STRG WHEEL URETHANE<NK4>	8-97122-619-0	04	1	0101-	●	●	●	●	●	●
83	06.514 SCREW; LWR COVER TO WHEEL STRG WHEEL URETHANE<NK4>	8-97164-606-0	04	1	9804-9906	●	●	●	●	●	●
83	06.514 SCREW; LWR COVER TO WHEEL STRG WHEEL URETHANE<NK4> EXC. AIR BAG DRIVER(AJ3)	8-97164-606-0	04	1	9907-	●	●	●	●	●	●
83	06.514 SCREW; LWR COVER TO WHEEL STRG WHEEL LEATHER<NK3> EXC. AIR BAG DRIVER(AJ3)	8-97124-009-0	04	1	0101-			●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
