◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LT ▶ 10676 - LT 111,112,132,133 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-30 - STEERING WHEEL AND COWL ▶
4-30 — STEERING WHEEL AND COWL (#4467) — 34 parça

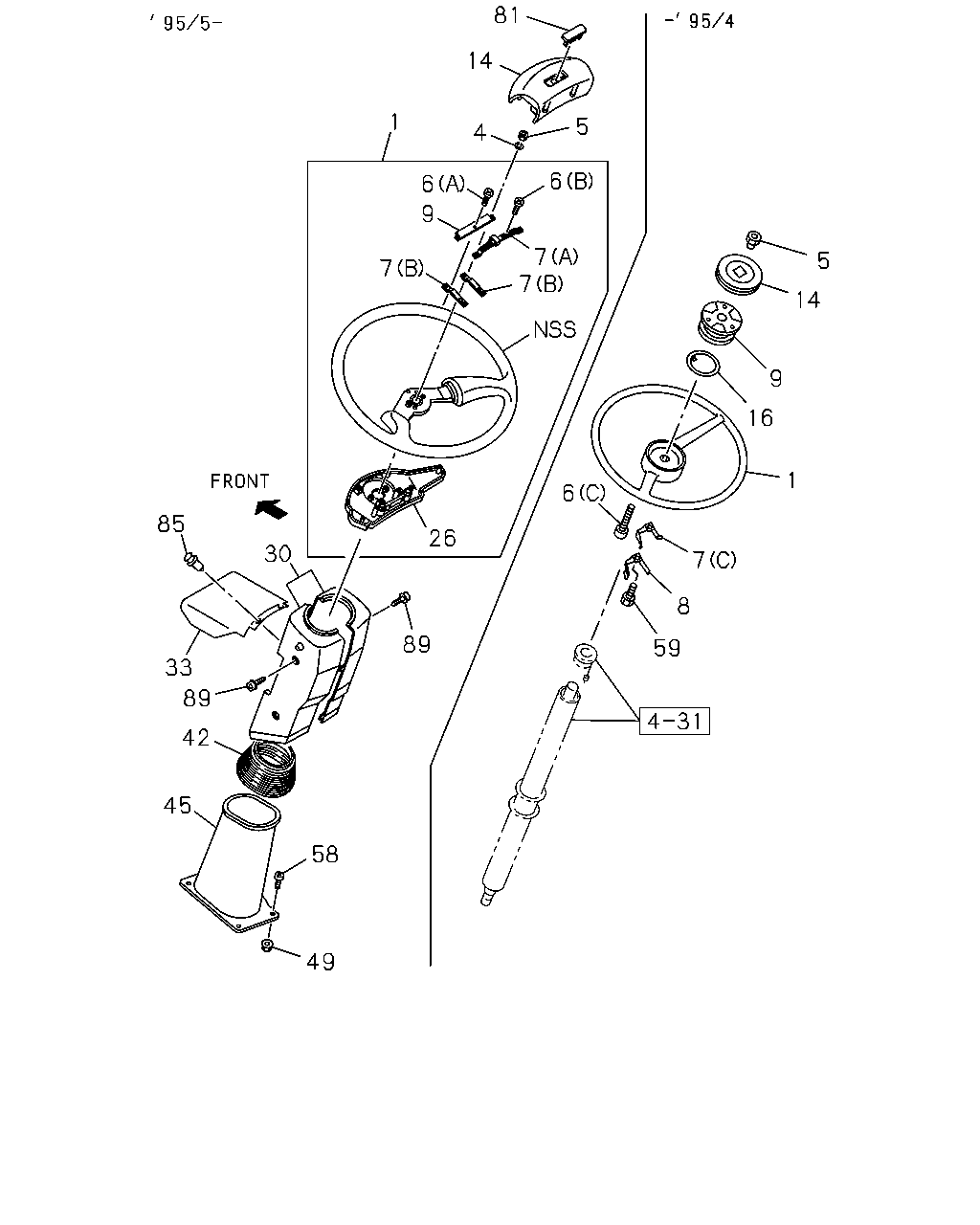

çizim 38610
81 14 1 5 4 6 6 9 7 7 5 7 14 9 16 1 6 85 26 30 7 8 89 59 33 89 42 45 58 49
BalonParca AdiParca NoAdetTipApplied Date A B
1 WHEEL; STRG 1-44110-032-2 01 1 9101-9504 ● ●
1 WHEEL; STRG 1-44110-146-1 01 1 9505- ● ●
4 WASHER; LK,STRG WHEEL
ID=20.2 		9-09150-520-0 01 1 9505-0603 ● ●
4 WASHER; LK,STRG WHEEL
ID=20.2 		0-91510-520-0 01 1 0604- ● ●
5 NUT; STRG WHEEL TO SHAFT
M20 LOCK 		1-09449-029-0 01 1 9101-9504 ● ●
5 NUT; STRG WHEEL TO SHAFT
M20 		9-99110-420-0 01 1 9505-9608 ● ●
5 NUT; STRG WHEEL TO SHAFT
M20 		9-99111-420-0 01 1 9609-0512 ● ●
5 NUT; STRG WHEEL TO SHAFT
M20 		0-91111-520-0 01 1 0601- ● ●
6 SCREW; HORN SPR CONTACT
(C) M3X8 		1-09140-003-0 02 1 9101-9504 ● ●
6 SCREW; HORN SPR CONTACT
(A) M4X10 		1-44129-034-0 01 1 9505- ● ●
6 SCREW; HORN SPR CONTACT
(B) M4X16 		1-44129-036-0 04 1 9505- ● ●
7 SPRING; HORN CONTACT
(C) 		9-44129-126-0 01 1 9101-9504 ● ●
7 SPRING; HORN CONTACT
(B) 		1-44129-033-0 02 1 9505- ● ●
7 SPRING; HORN CONTACT
(A) 		1-44129-037-0 01 1 9505- ● ●
8 BRUSH; CONTACT 9-44129-125-0 01 1 9101-9504 ● ●
9 PLATE; HORN CONTACT 1-44129-016-1 01 1 9101-9504 ● ●
9 PLATE; HORN CONTACT 1-44129-038-0 01 1 9505- ● ●
14 BUTTON; HORN,STRG WHEEL 1-44120-013-0 01 1 9101-9504 ● ●
14 BUTTON; HORN,STRG WHEEL 1-44120-045-2 01 1 9505- ● ●
16 PLATE; LEAD 1-44129-004-0 01 1 9101-9504 ● ●
26 COVER; STRG WHEEL,LWR 1-44129-039-1 01 1 9505- ● ●
30 COWL; STEERING 1-79997-342-3 01 1 9505- ● ●
33 COVER; STRG COWL 1-72438-121-3 01 1 9505- ● ●
42 BOOT; STEERING COLUMN 1-79998-803-1 01 1 9505-9804 ● ●
42 BOOT; STEERING COLUMN 1-79996-385-1 01 1 9805- ● ●
45 BOOT; STRG SHAFT 1-79998-738-2 01 1 9505- ● ●
49 NUT; BOOT,STRG SHAFT
M6 		9-09110-406-0 02 1 9505-9606 ● ●
49 NUT; BOOT,STRG SHAFT
M6 FLANGE 		0-91150-106-0 02 1 9607-0602 ● ●
49 NUT; BOOT,STRG SHAFT
M6 FLANGE 		0-91180-106-0 02 1 0603- ● ●
58 SCREW; SET
M6X30 		9-03494-630-0 02 1 9505- ● ●
59 SCREW; BRUSH
M4X28 W/LK WASHER 		1-09169-003-0 01 1 9101-9504 ● ●
81 EMBLEM; STRG WHEEL 1-76210-638-1 01 1 9505- ● ●
85 CLIP; STRG COWL
D6X12.5 		8-94146-425-0 02 1 9505- ● ●
89 SCREW; COWL
M6X16 W/LK&PL WASHER 		8-94279-402-0 04 1 9505- ● ●
