Sayfa 4-25 - Isuzu EPC

4-25 — REAR FINAL DRIVE (#44669) — 433 parça

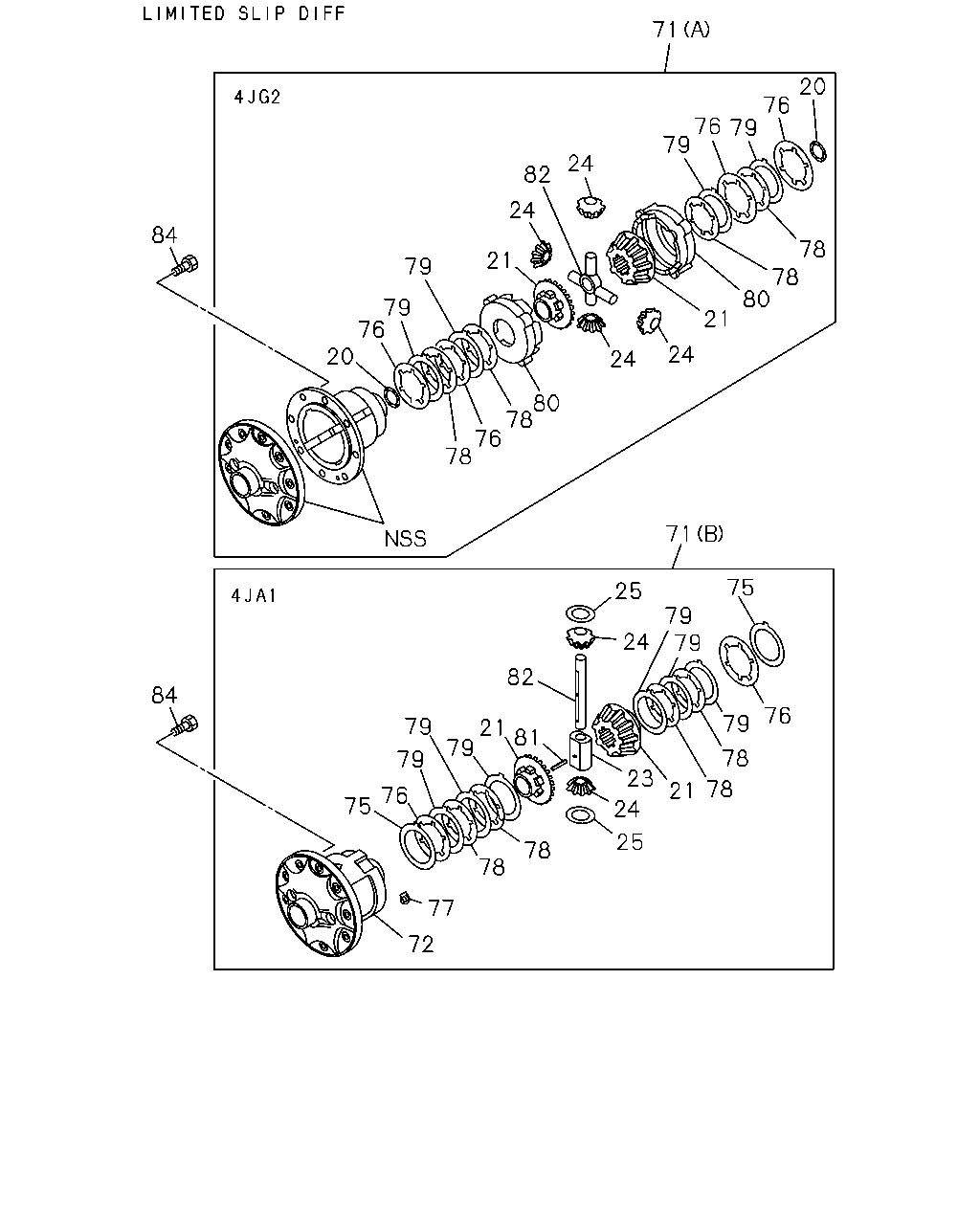

71 20 76 79 24 82 24 84 78 78 80 21 79 79 76 20 21 24 24 80 78 76 78 71 75 25 79 79 24 82 84 76 79 79 21 79 81 78 79 23 78 21 76 75 24 25 78 78 77 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
20	05.543 WASHER; THRUST,SIDE GEAR 4JA1 ENG(RLE) EXC. LIMITED SLIP DIFF(G80) T=1.00	5-41562-005-1	02	1	9804-0107	●	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JA1 ENG(RLE) EXC. LIMITED SLIP DIFF(G80),CHARGE AIR COOLER<6PL> T=1.00	5-41562-005-1	02	1	0108-		●	●		●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JA1 ENG(RLE) EXC. LIMITED SLIP DIFF(G80) T=1.05	5-41562-006-1	02	1	9804-0107	●	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JA1 ENG(RLE) EXC. LIMITED SLIP DIFF(G80),CHARGE AIR COOLER<6PL> T=1.05	5-41562-006-1	02	1	0108-		●	●		●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JA1 ENG(RLE) EXC. LIMITED SLIP DIFF(G80) T=1.10	5-41562-007-1	02	1	9804-0107	●	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JA1 ENG(RLE) EXC. LIMITED SLIP DIFF(G80),CHARGE AIR COOLER<6PL> T=1.10	5-41562-007-1	02	1	0108-		●	●		●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JG2 ENG(RJC) LIMITED SLIP DIFF(G80) T=1.60	8-94365-187-0	02	1	9804-0107	●	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> LIMITED SLIP DIFF(G80) T=1.60	8-94365-187-0	02	1	0108-	●	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JG2 ENG(RJC) LIMITED SLIP DIFF(G80) T=1.60	8-94365-187-0	02	1	0108-	●	●	●		●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JG2 ENG(RJC) LIMITED SLIP DIFF(G80) T=1.70	8-94365-188-0	02	1	9804-0107	●	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> LIMITED SLIP DIFF(G80) T=1.70	8-94365-188-0	02	1	0108-	●	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JG2 ENG(RJC) LIMITED SLIP DIFF(G80) T=1.70	8-94365-188-0	02	1	0108-	●	●	●		●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JG2 ENG(RJC) LIMITED SLIP DIFF(G80) T=1.50	8-94453-935-0	02	1	9804-0107	●	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> LIMITED SLIP DIFF(G80) T=1.50	8-94453-935-0	02	1	0108-	●	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JG2 ENG(RJC) LIMITED SLIP DIFF(G80) T=1.50	8-94453-935-0	02	1	0108-	●	●	●		●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JG2 ENG(RJC) LIMITED SLIP DIFF(G80) T=1.80	8-97066-412-0	02	1	9804-0107	●	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> LIMITED SLIP DIFF(G80) T=1.80	8-97066-412-0	02	1	0108-	●	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JG2 ENG(RJC) LIMITED SLIP DIFF(G80) T=1.80	8-97066-412-0	02	1	0108-	●	●	●		●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JG2 ENG(RJC) EXC. LIMITED SLIP DIFF(G80) T=0.80	8-94435-343-0	02	1	9804-0107	●	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> EXC. LIMITED SLIP DIFF(G80) T=0.80	8-94435-343-0	02	1	0108-	●	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JG2 ENG(RJC) EXC. LIMITED SLIP DIFF(G80) T=0.80	8-94435-343-0	02	1	0108-	●	●	●		●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JG2 ENG(RJC) EXC. LIMITED SLIP DIFF(G80) T=0.90	8-94435-344-0	02	1	9804-0107	●	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> EXC. LIMITED SLIP DIFF(G80) T=0.90	8-94435-344-0	02	1	0108-	●	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JG2 ENG(RJC) EXC. LIMITED SLIP DIFF(G80) T=0.90	8-94435-344-0	02	1	0108-	●	●	●		●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JG2 ENG(RJC) EXC. LIMITED SLIP DIFF(G80) T=1.10	8-94435-345-0	02	1	9804-0107	●	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> EXC. LIMITED SLIP DIFF(G80) T=1.10	8-94435-345-0	02	1	0108-	●	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JG2 ENG(RJC) EXC. LIMITED SLIP DIFF(G80) T=1.10	8-94435-345-0	02	1	0108-	●	●	●		●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JG2 ENG(RJC) EXC. LIMITED SLIP DIFF(G80) T=1.20	8-94435-346-0	02	1	9804-0107	●	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> EXC. LIMITED SLIP DIFF(G80) T=1.20	8-94435-346-0	02	1	0108-	●	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JG2 ENG(RJC) EXC. LIMITED SLIP DIFF(G80) T=1.20	8-94435-346-0	02	1	0108-	●	●	●		●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JG2 ENG(RJC) EXC. LIMITED SLIP DIFF(G80) T=1.30	8-94435-347-0	02	1	9804-0107	●	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> EXC. LIMITED SLIP DIFF(G80) T=1.30	8-94435-347-0	02	1	0108-	●	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JG2 ENG(RJC) EXC. LIMITED SLIP DIFF(G80) T=1.30	8-94435-347-0	02	1	0108-	●	●	●		●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JG2 ENG(RJC) EXC. LIMITED SLIP DIFF(G80) T=1.00	9-41562-602-0	02	1	9804-0107	●	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> EXC. LIMITED SLIP DIFF(G80) T=1.00	9-41562-602-0	02	1	0108-	●	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JG2 ENG(RJC) EXC. LIMITED SLIP DIFF(G80) T=1.00	9-41562-602-0	02	1	0108-	●	●	●		●	●
21	05.528 GEAR; SIDE,DIFF 4JA1 ENG(RLE) LIMITED SLIP DIFF(G80)	8-94118-094-0	02	1	9804-0107	●	●	●	●	●	●
21	05.528 GEAR; SIDE,DIFF 4JA1 ENG(RLE) LIMITED SLIP DIFF(G80) EXC. CHARGE AIR COOLER<6PL>	8-94118-094-0	02	1	0108-		●	●		●	●
21	05.528 GEAR; SIDE,DIFF 4JA1 ENG(RLE) EXC. LIMITED SLIP DIFF(G80) Z=17	8-97079-519-1	02	1	9804-0107	●	●	●	●	●	●
21	05.528 GEAR; SIDE,DIFF 4JA1 ENG(RLE) EXC. LIMITED SLIP DIFF(G80),CHARGE AIR COOLER<6PL> Z=17	8-97079-519-1	02	1	0108-		●	●		●	●
21	05.528 GEAR; SIDE,DIFF 4JG2 ENG(RJC) LIMITED SLIP DIFF(G80)	8-97023-090-0	02	1	9804-9804	●	●	●	●	●	●
21	05.528 GEAR; SIDE,DIFF 4JG2 ENG(RJC) LIMITED SLIP DIFF(G80)	8-97200-286-0	02	1	9805-0107	●	●	●	●	●	●
21	05.528 GEAR; SIDE,DIFF 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> LIMITED SLIP DIFF(G80)	8-97200-286-0	02	1	0108-	●	●	●	●	●	●
21	05.528 GEAR; SIDE,DIFF 4JG2 ENG(RJC) LIMITED SLIP DIFF(G80)	8-97200-286-0	02	1	0108-	●	●	●		●	●
21	05.528 GEAR; SIDE,DIFF 4JG2 ENG(RJC) EXC. LIMITED SLIP DIFF(G80) Z=18	8-97033-028-0	02	1	9804-9911	●	●	●	●	●	●
21	05.528 GEAR; SIDE,DIFF 4JG2 ENG(RJC) EXC. LIMITED SLIP DIFF(G80) Z=18	8-97226-763-0	02	1	9912-0107	●	●	●	●	●	●
21	05.528 GEAR; SIDE,DIFF 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> EXC. LIMITED SLIP DIFF(G80) Z=18	8-97226-763-0	02	1	0108-	●	●	●	●	●	●
21	05.528 GEAR; SIDE,DIFF 4JG2 ENG(RJC) EXC. LIMITED SLIP DIFF(G80) Z=18	8-97226-763-0	02	1	0108-	●	●	●		●	●
23	05.517 BLOCK; THRUST,DIFF BOX 4JA1 ENG(RLE) LIMITED SLIP DIFF(G80) 05.511	8-94118-097-0	01	1	9804-0107	●	●	●	●	●	●
23	05.517 BLOCK; THRUST,DIFF BOX 4JA1 ENG(RLE) LIMITED SLIP DIFF(G80) EXC. CHARGE AIR COOLER<6PL> 05.511	8-94118-097-0	01	1	0108-		●	●		●	●
23	05.517 BLOCK; THRUST,DIFF BOX 4JA1 ENG(RLE) EXC. LIMITED SLIP DIFF(G80)	9-41525-015-2	01	1	9804-0107	●	●	●	●	●	●
23	05.517 BLOCK; THRUST,DIFF BOX 4JA1 ENG(RLE) EXC. LIMITED SLIP DIFF(G80),CHARGE AIR COOLER<6PL>	9-41525-015-2	01	1	0108-		●	●		●	●
23	05.517 BLOCK; THRUST,DIFF BOX 4JG2 ENG(RJC) LIMITED SLIP DIFF(G80)	8-94320-495-0	01	1	9907-0107	●	●	●	●	●	●
23	05.517 BLOCK; THRUST,DIFF BOX 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> LIMITED SLIP DIFF(G80)	8-94320-495-0	01	1	0108-	●	●	●	●	●	●
23	05.517 BLOCK; THRUST,DIFF BOX 4JG2 ENG(RJC) LIMITED SLIP DIFF(G80)	8-94320-495-0	01	1	0108-	●	●	●		●	●
23	05.517 BLOCK; THRUST,DIFF BOX 4JG2 ENG(RJC) EXC. LIMITED SLIP DIFF(G80)	8-94320-494-0	01	1	9804-0107	●	●	●	●	●	●
23	05.517 BLOCK; THRUST,DIFF BOX 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> EXC. LIMITED SLIP DIFF(G80)	8-94320-494-0	01	1	0108-	●	●	●	●	●	●
23	05.517 BLOCK; THRUST,DIFF BOX 4JG2 ENG(RJC) EXC. LIMITED SLIP DIFF(G80)	8-94320-494-0	01	1	0108-	●	●	●		●	●
24	05.526 GEAR; PINION,DIFF 4JA1 ENG(RLE) LIMITED SLIP DIFF(G80)	8-94118-095-0	02	1	9804-0107	●	●	●	●	●	●
24	05.526 GEAR; PINION,DIFF 4JA1 ENG(RLE) LIMITED SLIP DIFF(G80) EXC. CHARGE AIR COOLER<6PL>	8-94118-095-0	02	1	0108-		●	●		●	●
24	05.526 GEAR; PINION,DIFF 4JA1 ENG(RLE) EXC. LIMITED SLIP DIFF(G80) 05.527 Z=10	8-97079-518-0	02	1	9804-0107	●	●	●	●	●	●
24	05.526 GEAR; PINION,DIFF 4JA1 ENG(RLE) EXC. LIMITED SLIP DIFF(G80),CHARGE AIR COOLER<6PL> 05.527 Z=10	8-97079-518-0	02	1	0108-		●	●		●	●
24	05.526 GEAR; PINION,DIFF 4JG2 ENG(RJC) LIMITED SLIP DIFF(G80)	8-97023-089-0	04	1	9804-9804	●	●	●	●	●	●
24	05.526 GEAR; PINION,DIFF 4JG2 ENG(RJC) LIMITED SLIP DIFF(G80)	8-97200-285-0	04	1	9805-0107	●	●	●	●	●	●
24	05.526 GEAR; PINION,DIFF 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> LIMITED SLIP DIFF(G80)	8-97200-285-0	04	1	0108-	●	●	●	●	●	●
24	05.526 GEAR; PINION,DIFF 4JG2 ENG(RJC) LIMITED SLIP DIFF(G80)	8-97200-285-0	04	1	0108-	●	●	●		●	●
24	05.526 GEAR; PINION,DIFF 4JG2 ENG(RJC) EXC. LIMITED SLIP DIFF(G80) Z=10	8-97033-027-0	02	1	9804-9911	●	●	●	●	●	●
24	05.526 GEAR; PINION,DIFF 4JG2 ENG(RJC) EXC. LIMITED SLIP DIFF(G80) Z=10	8-97226-762-0	02	1	9912-0107	●	●	●	●	●	●
24	05.526 GEAR; PINION,DIFF 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> EXC. LIMITED SLIP DIFF(G80) Z=10	8-97226-762-0	02	1	0108-	●	●	●	●	●	●
24	05.526 GEAR; PINION,DIFF 4JG2 ENG(RJC) EXC. LIMITED SLIP DIFF(G80) Z=10	8-97226-762-0	02	1	0108-	●	●	●		●	●
25	05.528 WASHER; THRUST,PINION 4JA1 ENG(RLE) LIMITED SLIP DIFF(G80) 05.542	8-94118-099-0	02	1	9804-0107	●	●	●	●	●	●
25	05.528 WASHER; THRUST,PINION 4JA1 ENG(RLE) LIMITED SLIP DIFF(G80) EXC. CHARGE AIR COOLER<6PL> 05.542	8-94118-099-0	02	1	0108-		●	●		●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4JA1 ENG(RLE) LIMITED SLIP DIFF(G80) (B)	8-94328-477-0	01	1	9804-0107	●	●	●	●	●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4JA1 ENG(RLE) LIMITED SLIP DIFF(G80) EXC. CHARGE AIR COOLER<6PL> (B)	8-94328-477-0	01	1	0108-		●	●		●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4JG2 ENG(RJC) LIMITED SLIP DIFF(G80) (A)	8-97062-975-1	01	1	9804-0107	●	●	●	●	●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> LIMITED SLIP DIFF(G80) (A)	8-97062-975-1	01	1	0108-	●	●	●	●	●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4JG2 ENG(RJC) LIMITED SLIP DIFF(G80) (A)	8-97062-975-1	01	1	0108-	●	●	●		●	●
72	05.510 CAGE; DIFF 4JA1 ENG(RLE) LIMITED SLIP DIFF(G80)	8-94118-093-0	01	1	9804-0107	●	●	●	●	●	●
72	05.510 CAGE; DIFF 4JA1 ENG(RLE) LIMITED SLIP DIFF(G80) EXC. CHARGE AIR COOLER<6PL>	8-94118-093-0	01	1	0108-		●	●		●	●
72	05.510 CAGE; DIFF 4JA1 ENG(RLE) EXC. LIMITED SLIP DIFF(G80) 05.453	8-97038-515-1	01	1	9804-0107	●	●	●	●	●	●
72	05.510 CAGE; DIFF 4JA1 ENG(RLE) EXC. LIMITED SLIP DIFF(G80),CHARGE AIR COOLER<6PL> 05.453	8-97038-515-1	01	1	0108-		●	●		●	●
72	05.510 CAGE; DIFF 4JG2 ENG(RJC) EXC. LIMITED SLIP DIFF(G80)	8-94325-448-0	01	1	9804-0107	●	●	●	●	●	●
72	05.510 CAGE; DIFF 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> EXC. LIMITED SLIP DIFF(G80)	8-94325-448-0	01	1	0108-	●	●	●	●	●	●
72	05.510 CAGE; DIFF 4JG2 ENG(RJC) EXC. LIMITED SLIP DIFF(G80)	8-94325-448-0	01	1	0108-	●	●	●		●	●
75	05.511 PLATE; BEVEL 4JA1 ENG(RLE) LIMITED SLIP DIFF(G80) 05.518	8-94118-103-0	02	1	9804-0107	●	●	●	●	●	●
75	05.511 PLATE; BEVEL 4JA1 ENG(RLE) LIMITED SLIP DIFF(G80) EXC. CHARGE AIR COOLER<6PL> 05.518	8-94118-103-0	02	1	0108-		●	●		●	●
76	05.511 DISC; BEVEL 4JA1 ENG(RLE) LIMITED SLIP DIFF(G80)	8-94118-102-0	02	1	9804-0107	●	●	●	●	●	●
76	05.511 DISC; BEVEL 4JA1 ENG(RLE) LIMITED SLIP DIFF(G80) EXC. CHARGE AIR COOLER<6PL>	8-94118-102-0	02	1	0108-		●	●		●	●
76	05.511 DISC; BEVEL 4JG2 ENG(RJC) LIMITED SLIP DIFF(G80)	8-97096-209-0	04	1	9804-0107	●	●	●	●	●	●
76	05.511 DISC; BEVEL 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> LIMITED SLIP DIFF(G80)	8-97096-209-0	04	1	0108-	●	●	●	●	●	●
76	05.511 DISC; BEVEL 4JG2 ENG(RJC) LIMITED SLIP DIFF(G80)	8-97096-209-0	04	1	0108-	●	●	●		●	●
77	05.511 SLEEVE 4JA1 ENG(RLE) LIMITED SLIP DIFF(G80)	8-94118-101-0	04	1	9804-0107	●	●	●
77	05.511 SLEEVE 4JA1 ENG(RLE) LIMITED SLIP DIFF(G80) EXC. CHARGE AIR COOLER<6PL>	8-94118-101-0	04	1	0108-		●	●
77	05.511 SLEEVE 4JA1 ENG(RLE) LIMITED SLIP DIFF(G80)	8-94118-101-0	02	1	9804-0107				●	●	●
77	05.511 SLEEVE 4JA1 ENG(RLE) LIMITED SLIP DIFF(G80) EXC. CHARGE AIR COOLER<6PL>	8-94118-101-0	02	1	0108-					●	●
78	05.511 DISC; FRICTION 4JA1 ENG(RLE) LIMITED SLIP DIFF(G80) T=1.40	8-94118-104-0	04	1	9804-0107	●	●	●	●	●	●
78	05.511 DISC; FRICTION 4JA1 ENG(RLE) LIMITED SLIP DIFF(G80) EXC. CHARGE AIR COOLER<6PL> T=1.40	8-94118-104-0	04	1	0108-		●	●		●	●
78	05.511 DISC; FRICTION 4JA1 ENG(RLE) LIMITED SLIP DIFF(G80) T=1.50	8-94118-105-0	04	1	9804-0107	●	●	●	●	●	●
78	05.511 DISC; FRICTION 4JA1 ENG(RLE) LIMITED SLIP DIFF(G80) EXC. CHARGE AIR COOLER<6PL> T=1.50	8-94118-105-0	04	1	0108-		●	●		●	●
78	05.511 DISC; FRICTION 4JG2 ENG(RJC) LIMITED SLIP DIFF(G80)	8-94453-937-0	04	1	9804-0107	●	●	●	●	●	●
78	05.511 DISC; FRICTION 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> LIMITED SLIP DIFF(G80)	8-94453-937-0	04	1	0108-	●	●	●	●	●	●
78	05.511 DISC; FRICTION 4JG2 ENG(RJC) LIMITED SLIP DIFF(G80)	8-94453-937-0	04	1	0108-	●	●	●		●	●
79	05.511 PLATE; FRICTION 4JA1 ENG(RLE) LIMITED SLIP DIFF(G80)	8-94118-106-0	06	1	9804-0107	●	●	●	●	●	●
79	05.511 PLATE; FRICTION 4JA1 ENG(RLE) LIMITED SLIP DIFF(G80) EXC. CHARGE AIR COOLER<6PL>	8-94118-106-0	06	1	0108-		●	●		●	●
79	05.511 PLATE; FRICTION 4JG2 ENG(RJC) LIMITED SLIP DIFF(G80) T=1.85	8-94365-189-0	04	1	9804-0107	●	●	●	●	●	●
79	05.511 PLATE; FRICTION 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> LIMITED SLIP DIFF(G80) T=1.85	8-94365-189-0	04	1	0108-	●	●	●	●	●	●
79	05.511 PLATE; FRICTION 4JG2 ENG(RJC) LIMITED SLIP DIFF(G80) T=1.85	8-94365-189-0	04	1	0108-	●	●	●		●	●
79	05.511 PLATE; FRICTION 4JG2 ENG(RJC) LIMITED SLIP DIFF(G80) T=1.75	8-94453-936-0	04	1	9804-0107	●	●	●	●	●	●
79	05.511 PLATE; FRICTION 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> LIMITED SLIP DIFF(G80) T=1.75	8-94453-936-0	04	1	0108-	●	●	●	●	●	●
79	05.511 PLATE; FRICTION 4JG2 ENG(RJC) LIMITED SLIP DIFF(G80) T=1.75	8-94453-936-0	04	1	0108-	●	●	●		●	●
80	05.511 RING; PRESSURE 4JG2 ENG(RJC) LIMITED SLIP DIFF(G80)	8-94453-931-0	02	1	9804-0107	●	●	●	●	●	●
80	05.511 RING; PRESSURE 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> LIMITED SLIP DIFF(G80)	8-94453-931-0	02	1	0108-	●	●	●	●	●	●
80	05.511 RING; PRESSURE 4JG2 ENG(RJC) LIMITED SLIP DIFF(G80)	8-94453-931-0	02	1	0108-	●	●	●		●	●
81	05.511 PIN; SPR,SLIP LK DIFF 4JA1 ENG(RLE) LIMITED SLIP DIFF(G80)	8-94118-098-0	01	1	9804-0107	●	●	●	●	●	●
81	05.511 PIN; SPR,SLIP LK DIFF 4JA1 ENG(RLE) LIMITED SLIP DIFF(G80) EXC. CHARGE AIR COOLER<6PL>	8-94118-098-0	01	1	0108-		●	●		●	●
82	05.517 SPIDER; DIFF PINION 4JA1 ENG(RLE) LIMITED SLIP DIFF(G80)	8-94118-096-0	01	1	9804-0107	●	●	●	●	●	●
82	05.517 SPIDER; DIFF PINION 4JA1 ENG(RLE) LIMITED SLIP DIFF(G80) EXC. CHARGE AIR COOLER<6PL>	8-94118-096-0	01	1	0108-		●	●		●	●
82	05.517 SPIDER; DIFF PINION 4JG2 ENG(RJC) LIMITED SLIP DIFF(G80)	8-94453-932-0	01	1	9804-0107	●	●	●	●	●	●
82	05.517 SPIDER; DIFF PINION 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> LIMITED SLIP DIFF(G80)	8-94453-932-0	01	1	0108-	●	●	●	●	●	●
82	05.517 SPIDER; DIFF PINION 4JG2 ENG(RJC) LIMITED SLIP DIFF(G80)	8-94453-932-0	01	1	0108-	●	●	●		●	●
84	05.531 BOLT; FINAL DRIVE GEAR 4JA1 ENG(RLE) M10X17	8-97038-065-0	10	1	9804-0107	●	●	●	●	●	●
84	05.531 BOLT; FINAL DRIVE GEAR 4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL> M10X17	8-97038-065-0	10	1	0108-		●	●		●	●
84	05.531 BOLT; FINAL DRIVE GEAR 4JG2 ENG(RJC) M10X18.5	8-97038-064-0	12	1	9804-0107	●	●	●	●	●	●
84	05.531 BOLT; FINAL DRIVE GEAR 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> M10X18.5	8-97038-064-0	12	1	0108-	●	●	●	●	●	●
84	05.531 BOLT; FINAL DRIVE GEAR 4JG2 ENG(RJC) M10X18.5	8-97038-064-0	12	1	0108-		●	●		●	●

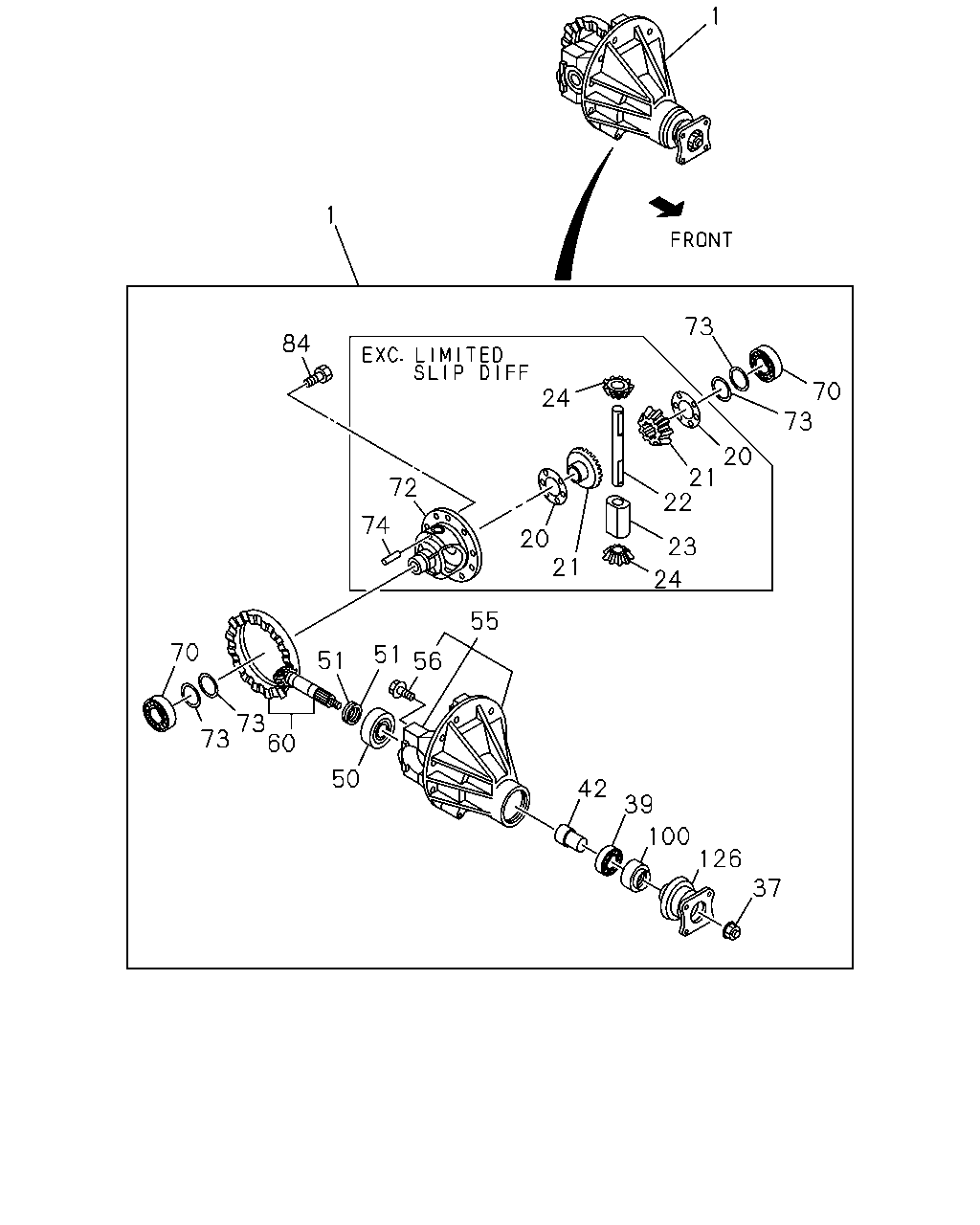

1 1 73 84 70 73 24 20 21 22 72 74 20 21 23 24 55 70 51 51 56 73 73 60 50 42 39 100 126 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	05.505 DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G80) 43/11	8-97228-808-0	01	1	0108-	●
1	05.505 DRIVE ASM; FINAL,RR 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> EXC. LIMITED SLIP DIFF(G80) 43/11	8-97228-808-0	01	1	0108-		●	●
1	05.505 DRIVE ASM; FINAL,RR 4JA1 ENG(RLE) LIMITED SLIP DIFF(G80) 41/10	8-94468-538-3	01	1	9804-0107	●	●	●
1	05.505 DRIVE ASM; FINAL,RR 4JA1 ENG(RLE) LIMITED SLIP DIFF(G80) EXC. CHARGE AIR COOLER<6PL> 41/10	8-94468-538-3	01	1	0108-		●	●
1	05.505 DRIVE ASM; FINAL,RR LIMITED SLIP DIFF(G80) 43/11	8-97302-690-0	01	1	0108-	●
1	05.505 DRIVE ASM; FINAL,RR 4JA1 ENG(RLE) LIMITED SLIP DIFF(G80) CHARGE AIR COOLER<6PL> 43/11	8-97302-690-0	01	1	0108-		●	●
1	05.505 DRIVE ASM; FINAL,RR 4JA1 ENG(RLE) EXC. LIMITED SLIP DIFF(G80) 41/10	8-94474-305-3	01	1	9804-0107	●	●	●
1	05.505 DRIVE ASM; FINAL,RR 4JA1 ENG(RLE) EXC. LIMITED SLIP DIFF(G80),CHARGE AIR COOLER<6PL> 41/10	8-94474-305-3	01	1	0108-		●	●
1	05.505 DRIVE ASM; FINAL,RR 4JG2 ENG(RJC) LIMITED SLIP DIFF(G80) 41/10	8-97021-091-3	01	1	9804-		●	●
1	05.505 DRIVE ASM; FINAL,RR 4JG2 ENG(RJC) EXC. LIMITED SLIP DIFF(G80) 41/9	8-94387-987-3	01	1	9804-		●	●
1	05.505 DRIVE ASM; FINAL,RR 4JA1 ENG(RLE) LIMITED SLIP DIFF(G80) 41/9	8-94468-547-3	01	1	9804-0107				●	●	●
1	05.505 DRIVE ASM; FINAL,RR 4JA1 ENG(RLE) LIMITED SLIP DIFF(G80) EXC. CHARGE AIR COOLER<6PL> 41/9	8-94468-547-3	01	1	0108-					●	●
1	05.505 DRIVE ASM; FINAL,RR 4JA1 ENG(RLE) EXC. LIMITED SLIP DIFF(G80) 41/9	8-94474-306-3	01	1	9804-0107				●	●	●
1	05.505 DRIVE ASM; FINAL,RR 4JA1 ENG(RLE) EXC. LIMITED SLIP DIFF(G80),CHARGE AIR COOLER<6PL> 41/9	8-94474-306-3	01	1	0108-					●	●
1	05.505 DRIVE ASM; FINAL,RR 4JG2 ENG(RJC) LIMITED SLIP DIFF(G80) 43/10	8-97021-092-3	01	1	9804-0107				●	●	●
1	05.505 DRIVE ASM; FINAL,RR 4JA1 ENG(RLE) LIMITED SLIP DIFF(G80) 43/10	8-97021-092-3	01	1	0108-				●
1	05.505 DRIVE ASM; FINAL,RR 4JG2 ENG(RJC) LIMITED SLIP DIFF(G80) 43/10	8-97021-092-3	01	1	0108-					●	●
1	05.505 DRIVE ASM; FINAL,RR 4JA1 ENG(RLE) LIMITED SLIP DIFF(G80) CHARGE AIR COOLER<6PL> 43/10	8-97021-092-3	01	1	0108-					●	●
1	05.505 DRIVE ASM; FINAL,RR 4JG2 ENG(RJC) EXC. LIMITED SLIP DIFF(G80) 43/10	8-94320-490-3	01	1	9804-0107				●	●	●
1	05.505 DRIVE ASM; FINAL,RR 4JA1 ENG(RLE) EXC. LIMITED SLIP DIFF(G80) 43/10	8-94320-490-3	01	1	0108-				●
1	05.505 DRIVE ASM; FINAL,RR 4JG2 ENG(RJC) EXC. LIMITED SLIP DIFF(G80) 43/10	8-94320-490-3	01	1	0108-					●	●
1	05.505 DRIVE ASM; FINAL,RR 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> EXC. LIMITED SLIP DIFF(G80) 43/10	8-94320-490-3	01	1	0108-					●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JA1 ENG(RLE) EXC. LIMITED SLIP DIFF(G80) T=1.00	5-41562-005-1	02	1	9804-0107	●	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JA1 ENG(RLE) EXC. LIMITED SLIP DIFF(G80),CHARGE AIR COOLER<6PL> T=1.00	5-41562-005-1	02	1	0108-		●	●		●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JA1 ENG(RLE) EXC. LIMITED SLIP DIFF(G80) T=1.05	5-41562-006-1	02	1	9804-0107	●	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JA1 ENG(RLE) EXC. LIMITED SLIP DIFF(G80),CHARGE AIR COOLER<6PL> T=1.05	5-41562-006-1	02	1	0108-		●	●		●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JA1 ENG(RLE) EXC. LIMITED SLIP DIFF(G80) T=1.10	5-41562-007-1	02	1	9804-0107	●	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JA1 ENG(RLE) EXC. LIMITED SLIP DIFF(G80),CHARGE AIR COOLER<6PL> T=1.10	5-41562-007-1	02	1	0108-		●	●		●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JG2 ENG(RJC) LIMITED SLIP DIFF(G80) T=1.60	8-94365-187-0	02	1	9804-0107	●	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> LIMITED SLIP DIFF(G80) T=1.60	8-94365-187-0	02	1	0108-	●	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JG2 ENG(RJC) LIMITED SLIP DIFF(G80) T=1.60	8-94365-187-0	02	1	0108-	●	●	●		●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JG2 ENG(RJC) LIMITED SLIP DIFF(G80) T=1.70	8-94365-188-0	02	1	9804-0107	●	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> LIMITED SLIP DIFF(G80) T=1.70	8-94365-188-0	02	1	0108-	●	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JG2 ENG(RJC) LIMITED SLIP DIFF(G80) T=1.70	8-94365-188-0	02	1	0108-	●	●	●		●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JG2 ENG(RJC) LIMITED SLIP DIFF(G80) T=1.50	8-94453-935-0	02	1	9804-0107	●	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> LIMITED SLIP DIFF(G80) T=1.50	8-94453-935-0	02	1	0108-	●	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JG2 ENG(RJC) LIMITED SLIP DIFF(G80) T=1.50	8-94453-935-0	02	1	0108-	●	●	●		●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JG2 ENG(RJC) LIMITED SLIP DIFF(G80) T=1.80	8-97066-412-0	02	1	9804-0107	●	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> LIMITED SLIP DIFF(G80) T=1.80	8-97066-412-0	02	1	0108-	●	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JG2 ENG(RJC) LIMITED SLIP DIFF(G80) T=1.80	8-97066-412-0	02	1	0108-	●	●	●		●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JG2 ENG(RJC) EXC. LIMITED SLIP DIFF(G80) T=0.80	8-94435-343-0	02	1	9804-0107	●	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> EXC. LIMITED SLIP DIFF(G80) T=0.80	8-94435-343-0	02	1	0108-	●	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JG2 ENG(RJC) EXC. LIMITED SLIP DIFF(G80) T=0.80	8-94435-343-0	02	1	0108-	●	●	●		●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JG2 ENG(RJC) EXC. LIMITED SLIP DIFF(G80) T=0.90	8-94435-344-0	02	1	9804-0107	●	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> EXC. LIMITED SLIP DIFF(G80) T=0.90	8-94435-344-0	02	1	0108-	●	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JG2 ENG(RJC) EXC. LIMITED SLIP DIFF(G80) T=0.90	8-94435-344-0	02	1	0108-	●	●	●		●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JG2 ENG(RJC) EXC. LIMITED SLIP DIFF(G80) T=1.10	8-94435-345-0	02	1	9804-0107	●	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> EXC. LIMITED SLIP DIFF(G80) T=1.10	8-94435-345-0	02	1	0108-	●	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JG2 ENG(RJC) EXC. LIMITED SLIP DIFF(G80) T=1.10	8-94435-345-0	02	1	0108-	●	●	●		●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JG2 ENG(RJC) EXC. LIMITED SLIP DIFF(G80) T=1.20	8-94435-346-0	02	1	9804-0107	●	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> EXC. LIMITED SLIP DIFF(G80) T=1.20	8-94435-346-0	02	1	0108-	●	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JG2 ENG(RJC) EXC. LIMITED SLIP DIFF(G80) T=1.20	8-94435-346-0	02	1	0108-	●	●	●		●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JG2 ENG(RJC) EXC. LIMITED SLIP DIFF(G80) T=1.30	8-94435-347-0	02	1	9804-0107	●	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> EXC. LIMITED SLIP DIFF(G80) T=1.30	8-94435-347-0	02	1	0108-	●	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JG2 ENG(RJC) EXC. LIMITED SLIP DIFF(G80) T=1.30	8-94435-347-0	02	1	0108-	●	●	●		●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JG2 ENG(RJC) EXC. LIMITED SLIP DIFF(G80) T=1.00	9-41562-602-0	02	1	9804-0107	●	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> EXC. LIMITED SLIP DIFF(G80) T=1.00	9-41562-602-0	02	1	0108-	●	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JG2 ENG(RJC) EXC. LIMITED SLIP DIFF(G80) T=1.00	9-41562-602-0	02	1	0108-	●	●	●		●	●
21	05.528 GEAR; SIDE,DIFF 4JA1 ENG(RLE) LIMITED SLIP DIFF(G80)	8-94118-094-0	02	1	9804-0107	●	●	●	●	●	●
21	05.528 GEAR; SIDE,DIFF 4JA1 ENG(RLE) LIMITED SLIP DIFF(G80) EXC. CHARGE AIR COOLER<6PL>	8-94118-094-0	02	1	0108-		●	●		●	●
21	05.528 GEAR; SIDE,DIFF 4JA1 ENG(RLE) EXC. LIMITED SLIP DIFF(G80) Z=17	8-97079-519-1	02	1	9804-0107	●	●	●	●	●	●
21	05.528 GEAR; SIDE,DIFF 4JA1 ENG(RLE) EXC. LIMITED SLIP DIFF(G80),CHARGE AIR COOLER<6PL> Z=17	8-97079-519-1	02	1	0108-		●	●		●	●
21	05.528 GEAR; SIDE,DIFF 4JG2 ENG(RJC) LIMITED SLIP DIFF(G80)	8-97023-090-0	02	1	9804-9804	●	●	●	●	●	●
21	05.528 GEAR; SIDE,DIFF 4JG2 ENG(RJC) LIMITED SLIP DIFF(G80)	8-97200-286-0	02	1	9805-0107	●	●	●	●	●	●
21	05.528 GEAR; SIDE,DIFF 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> LIMITED SLIP DIFF(G80)	8-97200-286-0	02	1	0108-	●	●	●	●	●	●
21	05.528 GEAR; SIDE,DIFF 4JG2 ENG(RJC) LIMITED SLIP DIFF(G80)	8-97200-286-0	02	1	0108-	●	●	●		●	●
21	05.528 GEAR; SIDE,DIFF 4JG2 ENG(RJC) EXC. LIMITED SLIP DIFF(G80) Z=18	8-97033-028-0	02	1	9804-9911	●	●	●	●	●	●
21	05.528 GEAR; SIDE,DIFF 4JG2 ENG(RJC) EXC. LIMITED SLIP DIFF(G80) Z=18	8-97226-763-0	02	1	9912-0107	●	●	●	●	●	●
21	05.528 GEAR; SIDE,DIFF 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> EXC. LIMITED SLIP DIFF(G80) Z=18	8-97226-763-0	02	1	0108-	●	●	●	●	●	●
21	05.528 GEAR; SIDE,DIFF 4JG2 ENG(RJC) EXC. LIMITED SLIP DIFF(G80) Z=18	8-97226-763-0	02	1	0108-	●	●	●		●	●
22	05.520 SPIDER; DIFF PINION 4JA1 ENG(RLE) EXC. LIMITED SLIP DIFF(G80) 05.517	9-41521-044-1	01	1	9804-0107	●	●	●	●	●	●
22	05.520 SPIDER; DIFF PINION 4JA1 ENG(RLE) EXC. LIMITED SLIP DIFF(G80),CHARGE AIR COOLER<6PL> 05.517	9-41521-044-1	01	1	0108-		●	●		●	●
22	05.520 SPIDER; DIFF PINION 4JG2 ENG(RJC) EXC. LIMITED SLIP DIFF(G80)	8-94435-308-1	01	1	9804-0107	●	●	●	●	●	●
22	05.520 SPIDER; DIFF PINION 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> EXC. LIMITED SLIP DIFF(G80)	8-94435-308-1	01	1	0108-	●	●	●	●	●	●
22	05.520 SPIDER; DIFF PINION 4JG2 ENG(RJC) EXC. LIMITED SLIP DIFF(G80)	8-94435-308-1	01	1	0108-	●	●	●		●	●
23	05.517 BLOCK; THRUST,DIFF BOX 4JA1 ENG(RLE) LIMITED SLIP DIFF(G80) 05.511	8-94118-097-0	01	1	9804-0107	●	●	●	●	●	●
23	05.517 BLOCK; THRUST,DIFF BOX 4JA1 ENG(RLE) LIMITED SLIP DIFF(G80) EXC. CHARGE AIR COOLER<6PL> 05.511	8-94118-097-0	01	1	0108-		●	●		●	●
23	05.517 BLOCK; THRUST,DIFF BOX 4JA1 ENG(RLE) EXC. LIMITED SLIP DIFF(G80)	9-41525-015-2	01	1	9804-0107	●	●	●	●	●	●
23	05.517 BLOCK; THRUST,DIFF BOX 4JA1 ENG(RLE) EXC. LIMITED SLIP DIFF(G80),CHARGE AIR COOLER<6PL>	9-41525-015-2	01	1	0108-		●	●		●	●
23	05.517 BLOCK; THRUST,DIFF BOX 4JG2 ENG(RJC) LIMITED SLIP DIFF(G80)	8-94320-495-0	01	1	9907-0107	●	●	●	●	●	●
23	05.517 BLOCK; THRUST,DIFF BOX 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> LIMITED SLIP DIFF(G80)	8-94320-495-0	01	1	0108-	●	●	●	●	●	●
23	05.517 BLOCK; THRUST,DIFF BOX 4JG2 ENG(RJC) LIMITED SLIP DIFF(G80)	8-94320-495-0	01	1	0108-	●	●	●		●	●
23	05.517 BLOCK; THRUST,DIFF BOX 4JG2 ENG(RJC) EXC. LIMITED SLIP DIFF(G80)	8-94320-494-0	01	1	9804-0107	●	●	●	●	●	●
23	05.517 BLOCK; THRUST,DIFF BOX 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> EXC. LIMITED SLIP DIFF(G80)	8-94320-494-0	01	1	0108-	●	●	●	●	●	●
23	05.517 BLOCK; THRUST,DIFF BOX 4JG2 ENG(RJC) EXC. LIMITED SLIP DIFF(G80)	8-94320-494-0	01	1	0108-	●	●	●		●	●
24	05.526 GEAR; PINION,DIFF 4JA1 ENG(RLE) LIMITED SLIP DIFF(G80)	8-94118-095-0	02	1	9804-0107	●	●	●	●	●	●
24	05.526 GEAR; PINION,DIFF 4JA1 ENG(RLE) LIMITED SLIP DIFF(G80) EXC. CHARGE AIR COOLER<6PL>	8-94118-095-0	02	1	0108-		●	●		●	●
24	05.526 GEAR; PINION,DIFF 4JA1 ENG(RLE) EXC. LIMITED SLIP DIFF(G80) 05.527 Z=10	8-97079-518-0	02	1	9804-0107	●	●	●	●	●	●
24	05.526 GEAR; PINION,DIFF 4JA1 ENG(RLE) EXC. LIMITED SLIP DIFF(G80),CHARGE AIR COOLER<6PL> 05.527 Z=10	8-97079-518-0	02	1	0108-		●	●		●	●
24	05.526 GEAR; PINION,DIFF 4JG2 ENG(RJC) LIMITED SLIP DIFF(G80)	8-97023-089-0	04	1	9804-9804	●	●	●	●	●	●
24	05.526 GEAR; PINION,DIFF 4JG2 ENG(RJC) LIMITED SLIP DIFF(G80)	8-97200-285-0	04	1	9805-0107	●	●	●	●	●	●
24	05.526 GEAR; PINION,DIFF 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> LIMITED SLIP DIFF(G80)	8-97200-285-0	04	1	0108-	●	●	●	●	●	●
24	05.526 GEAR; PINION,DIFF 4JG2 ENG(RJC) LIMITED SLIP DIFF(G80)	8-97200-285-0	04	1	0108-	●	●	●		●	●
24	05.526 GEAR; PINION,DIFF 4JG2 ENG(RJC) EXC. LIMITED SLIP DIFF(G80) Z=10	8-97033-027-0	02	1	9804-9911	●	●	●	●	●	●
24	05.526 GEAR; PINION,DIFF 4JG2 ENG(RJC) EXC. LIMITED SLIP DIFF(G80) Z=10	8-97226-762-0	02	1	9912-0107	●	●	●	●	●	●
24	05.526 GEAR; PINION,DIFF 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> EXC. LIMITED SLIP DIFF(G80) Z=10	8-97226-762-0	02	1	0108-	●	●	●	●	●	●
24	05.526 GEAR; PINION,DIFF 4JG2 ENG(RJC) EXC. LIMITED SLIP DIFF(G80) Z=10	8-97226-762-0	02	1	0108-	●	●	●		●	●
37	05.595 NUT; DRIVING PINION 4JA1 ENG(RLE) M18 LOCK NUT	8-94376-262-0	01	1	9804-0107	●	●	●	●	●	●
37	05.595 NUT; DRIVING PINION 4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL> M18 LOCK NUT	8-94376-262-0	01	1	0108-		●	●		●	●
37	05.595 NUT; DRIVING PINION 4JG2 ENG(RJC) M24 FLANGE	8-94376-261-1	01	1	9804-0107	●	●	●	●	●	●
37	05.595 NUT; DRIVING PINION 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> M24 FLANGE	8-94376-261-1	01	1	0108-	●	●	●	●	●	●
37	05.595 NUT; DRIVING PINION 4JG2 ENG(RJC) M24 FLANGE	8-94376-261-1	01	1	0108-		●	●		●	●
39	05.484 BEARING; FINAL PINION 4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL> JTEKT	8-94472-100-1	01	1	0108-		●	●		●	●
39	05.484 BEARING; FINAL PINION 4JA1 ENG(RLE) NSK	8-94472-099-0	01	1	9804-0107	●	●	●	●	●	●
39	05.484 BEARING; FINAL PINION 4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL> NSK	8-94472-099-0	01	1	0108-		●	●		●	●
39	05.484 BEARING; FINAL PINION 4JG2 ENG(RJC) NSK	9-00093-078-0	01	1	9804-0107	●	●	●	●	●	●
39	05.484 BEARING; FINAL PINION 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> NSK	9-00093-078-0	01	1	0108-	●	●	●	●	●	●
39	05.484 BEARING; FINAL PINION 4JG2 ENG(RJC) NSK	9-00093-078-0	01	1	0108-		●	●		●	●
42	05.453 COLLAR; DIST,COLLAPSIBLE 4JA1 ENG(RLE)	8-94472-118-0	01	1	9804-0107	●	●	●	●	●	●
42	05.453 COLLAR; DIST,COLLAPSIBLE 4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL>	8-94472-118-0	01	1	0108-		●	●		●	●
42	05.453 COLLAR; DIST,COLLAPSIBLE 4JG2 ENG(RJC)	8-97035-399-0	01	1	9804-0107	●	●	●	●	●	●
42	05.453 COLLAR; DIST,COLLAPSIBLE 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL>	8-97035-399-0	01	1	0108-	●	●	●	●	●	●
42	05.453 COLLAR; DIST,COLLAPSIBLE 4JG2 ENG(RJC)	8-97035-399-0	01	1	0108-		●	●		●	●
50	05.447 BEARING; FINAL PINION 4JA1 ENG(RLE) 05.484 NSK	9-00093-621-0	01	1	9804-0107	●	●	●	●	●	●
50	05.447 BEARING; FINAL PINION 4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL> 05.484 NSK	9-00093-621-0	01	1	0108-		●	●		●	●
50	05.447 BEARING; FINAL PINION 4JG2 ENG(RJC) NSK	8-94435-342-0	01	1	9804-0107	●	●	●	●	●	●
50	05.447 BEARING; FINAL PINION 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> NSK	8-94435-342-0	01	1	0108-	●	●	●	●	●	●
50	05.447 BEARING; FINAL PINION 4JG2 ENG(RJC) NSK	8-94435-342-0	01	1	0108-		●	●		●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JA1 ENG(RLE) 05.460 T=2.18	9-41519-153-1	AR	1	9804-0107	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL> 05.460 T=2.18	9-41519-153-1	AR	1	0108-		●	●		●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JA1 ENG(RLE) 05.460 T=2.20	9-41519-154-1	AR	1	9804-0107	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL> 05.460 T=2.20	9-41519-154-1	AR	1	0108-		●	●		●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JA1 ENG(RLE) 05.460 T=2.22	9-41519-155-1	AR	1	9804-0107	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL> 05.460 T=2.22	9-41519-155-1	AR	1	0108-		●	●		●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JA1 ENG(RLE) 05.460 T=2.24	9-41519-156-1	AR	1	9804-0107	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL> 05.460 T=2.24	9-41519-156-1	AR	1	0108-		●	●		●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JA1 ENG(RLE) 05.460 T=2.26	9-41519-157-1	AR	1	9804-0107	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL> 05.460 T=2.26	9-41519-157-1	AR	1	0108-		●	●		●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JA1 ENG(RLE) 05.460 T=2.28	9-41519-158-1	AR	1	9804-0107	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL> 05.460 T=2.28	9-41519-158-1	AR	1	0108-		●	●		●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JA1 ENG(RLE) 05.460 T=2.30	9-41519-159-1	AR	1	9804-0107	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL> 05.460 T=2.30	9-41519-159-1	AR	1	0108-		●	●		●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JA1 ENG(RLE) 05.460 T=2.32	9-41519-160-1	AR	1	9804-0107	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL> 05.460 T=2.32	9-41519-160-1	AR	1	0108-		●	●		●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JA1 ENG(RLE) 05.460 T=2.34	9-41519-161-1	AR	1	9804-0107	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL> 05.460 T=2.34	9-41519-161-1	AR	1	0108-		●	●		●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JA1 ENG(RLE) 05.460 T=2.36	9-41519-162-1	AR	1	9804-0107	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL> 05.460 T=2.36	9-41519-162-1	AR	1	0108-		●	●		●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JA1 ENG(RLE) 05.460 T=2.38	9-41519-163-1	AR	1	9804-0107	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL> 05.460 T=2.38	9-41519-163-1	AR	1	0108-		●	●		●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JA1 ENG(RLE) 05.460 T=2.40	9-41519-164-1	AR	1	9804-0107	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL> 05.460 T=2.40	9-41519-164-1	AR	1	0108-		●	●		●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JA1 ENG(RLE) 05.460 T=2.42	9-41519-165-1	AR	1	9804-0107	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL> 05.460 T=2.42	9-41519-165-1	AR	1	0108-		●	●		●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JA1 ENG(RLE) 05.460 T=2.44	9-41519-166-1	AR	1	9804-0107	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL> 05.460 T=2.44	9-41519-166-1	AR	1	0108-		●	●		●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JA1 ENG(RLE) 05.460 T=2.46	9-41519-167-1	AR	1	9804-0107	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL> 05.460 T=2.46	9-41519-167-1	AR	1	0108-		●	●		●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JA1 ENG(RLE) 05.460 T=2.48	9-41519-168-1	AR	1	9804-0107	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL> 05.460 T=2.48	9-41519-168-1	AR	1	0108-		●	●		●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JA1 ENG(RLE) 05.460 T=2.50	9-41519-169-1	AR	1	9804-0107	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL> 05.460 T=2.50	9-41519-169-1	AR	1	0108-		●	●		●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JA1 ENG(RLE) 05.460 T=2.52	9-41519-170-1	AR	1	9804-0107	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL> 05.460 T=2.52	9-41519-170-1	AR	1	0108-		●	●		●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JA1 ENG(RLE) 05.460 T=2.54	9-41519-171-1	AR	1	9804-0107	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL> 05.460 T=2.54	9-41519-171-1	AR	1	0108-		●	●		●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JA1 ENG(RLE) 05.460 T=2.56	9-41519-172-1	AR	1	9804-0107	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL> 05.460 T=2.56	9-41519-172-1	AR	1	0108-		●	●		●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JG2 ENG(RJC) T=1.94	8-94435-356-0	AR	1	9804-0107	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> T=1.94	8-94435-356-0	AR	1	0108-	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JG2 ENG(RJC) T=1.94	8-94435-356-0	AR	1	0108-		●	●		●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JG2 ENG(RJC) T=1.96	8-94435-357-0	AR	1	9804-0107	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> T=1.96	8-94435-357-0	AR	1	0108-	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JG2 ENG(RJC) T=1.96	8-94435-357-0	AR	1	0108-		●	●		●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JG2 ENG(RJC) T=1.98	8-94435-358-0	AR	1	9804-0107	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> T=1.98	8-94435-358-0	AR	1	0108-	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JG2 ENG(RJC) T=1.98	8-94435-358-0	AR	1	0108-		●	●		●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JG2 ENG(RJC) T=2.00	8-94435-359-0	AR	1	9804-0107	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> T=2.00	8-94435-359-0	AR	1	0108-	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JG2 ENG(RJC) T=2.00	8-94435-359-0	AR	1	0108-		●	●		●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JG2 ENG(RJC) T=2.02	8-94435-360-0	AR	1	9804-0107	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> T=2.02	8-94435-360-0	AR	1	0108-	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JG2 ENG(RJC) T=2.02	8-94435-360-0	AR	1	0108-		●	●		●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JG2 ENG(RJC) T=2.04	8-94435-361-0	AR	1	9804-0107	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> T=2.04	8-94435-361-0	AR	1	0108-	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JG2 ENG(RJC) T=2.04	8-94435-361-0	AR	1	0108-		●	●		●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JG2 ENG(RJC) T=2.06	8-94435-362-0	AR	1	9804-0107	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> T=2.06	8-94435-362-0	AR	1	0108-	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JG2 ENG(RJC) T=2.06	8-94435-362-0	AR	1	0108-		●	●		●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JG2 ENG(RJC) T=2.08	8-94435-363-0	AR	1	9804-0107	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> T=2.08	8-94435-363-0	AR	1	0108-	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JG2 ENG(RJC) T=2.08	8-94435-363-0	AR	1	0108-		●	●		●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JG2 ENG(RJC) T=2.10	8-94435-364-0	AR	1	9804-0107	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> T=2.10	8-94435-364-0	AR	1	0108-	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JG2 ENG(RJC) T=2.10	8-94435-364-0	AR	1	0108-		●	●		●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JG2 ENG(RJC) T=2.12	8-94435-365-0	AR	1	9804-0107	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> T=2.12	8-94435-365-0	AR	1	0108-	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JG2 ENG(RJC) T=2.12	8-94435-365-0	AR	1	0108-		●	●		●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JG2 ENG(RJC) T=2.14	8-94435-366-0	AR	1	9804-0107	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> T=2.14	8-94435-366-0	AR	1	0108-	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JG2 ENG(RJC) T=2.14	8-94435-366-0	AR	1	0108-		●	●		●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JG2 ENG(RJC) T=2.16	8-94435-367-0	AR	1	9804-0107	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> T=2.16	8-94435-367-0	AR	1	0108-	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JG2 ENG(RJC) T=2.16	8-94435-367-0	AR	1	0108-		●	●		●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JG2 ENG(RJC) T=2.18	8-94435-368-0	AR	1	9804-0107	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> T=2.18	8-94435-368-0	AR	1	0108-	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JG2 ENG(RJC) T=2.18	8-94435-368-0	AR	1	0108-		●	●		●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JG2 ENG(RJC) T=2.20	8-94435-369-0	AR	1	9804-0107	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> T=2.20	8-94435-369-0	AR	1	0108-	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JG2 ENG(RJC) T=2.20	8-94435-369-0	AR	1	0108-		●	●		●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JG2 ENG(RJC) T=2.22	8-94435-370-0	AR	1	9804-0107	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> T=2.22	8-94435-370-0	AR	1	0108-	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JG2 ENG(RJC) T=2.22	8-94435-370-0	AR	1	0108-		●	●		●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JG2 ENG(RJC) T=2.24	8-94435-371-0	AR	1	9804-0107	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> T=2.24	8-94435-371-0	AR	1	0108-	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JG2 ENG(RJC) T=2.24	8-94435-371-0	AR	1	0108-		●	●		●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JG2 ENG(RJC) T=2.26	8-94435-372-0	AR	1	9804-0107	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> T=2.26	8-94435-372-0	AR	1	0108-	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JG2 ENG(RJC) T=2.26	8-94435-372-0	AR	1	0108-		●	●		●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JG2 ENG(RJC) T=2.28	8-94435-373-0	AR	1	9804-0107	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> T=2.28	8-94435-373-0	AR	1	0108-	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JG2 ENG(RJC) T=2.28	8-94435-373-0	AR	1	0108-		●	●		●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JG2 ENG(RJC) T=2.30	8-94435-374-0	AR	1	9804-0107	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> T=2.30	8-94435-374-0	AR	1	0108-	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JG2 ENG(RJC) T=2.30	8-94435-374-0	AR	1	0108-		●	●		●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JG2 ENG(RJC) T=2.32	8-94435-375-0	AR	1	9804-0107	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> T=2.32	8-94435-375-0	AR	1	0108-	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JG2 ENG(RJC) T=2.32	8-94435-375-0	AR	1	0108-		●	●		●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JG2 ENG(RJC) T=2.34	8-94435-376-0	AR	1	9804-0107	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> T=2.34	8-94435-376-0	AR	1	0108-	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JG2 ENG(RJC) T=2.34	8-94435-376-0	AR	1	0108-		●	●		●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JG2 ENG(RJC) T=2.36	8-94435-377-0	AR	1	9804-0107	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> T=2.36	8-94435-377-0	AR	1	0108-	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JG2 ENG(RJC) T=2.36	8-94435-377-0	AR	1	0108-		●	●		●	●
55	05.505 CARRIER; DIFF 4JA1 ENG(RLE)	5-41110-014-3	01	1	9804-0006	●	●	●
55	05.505 CARRIER; DIFF 4JA1 ENG(RLE)	5-41110-014-3	01	1	0007-0107	●	●	●	●	●	●
55	05.505 CARRIER; DIFF 4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL>	5-41110-014-3	01	1	0108-		●	●		●	●
55	05.505 CARRIER; DIFF 4JG2 ENG(RJC)	8-94435-290-4	01	1	9804-0107	●	●	●	●	●	●
55	05.505 CARRIER; DIFF 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL>	8-94435-290-4	01	1	0108-	●	●	●	●	●	●
55	05.505 CARRIER; DIFF 4JG2 ENG(RJC)	8-94435-290-4	01	1	0108-		●	●		●	●
55	05.505 CARRIER; DIFF 4JA1 ENG(RLE)	5-41110-016-3	01	1	9804-0006				●	●	●
56	05.506 BOLT; BRG CAP 4JA1 ENG(RLE) 05.387 M12X62	8-94376-322-0	04	1	9804-0107	●	●	●	●	●	●
56	05.506 BOLT; BRG CAP 4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL> 05.387 M12X62	8-94376-322-0	04	1	0108-		●	●		●	●
56	05.506 BOLT; BRG CAP 4JG2 ENG(RJC) 05.387 M12X75	8-94435-341-0	04	1	9804-0107	●	●	●	●	●	●
56	05.506 BOLT; BRG CAP 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> 05.387 M12X75	8-94435-341-0	04	1	0108-	●	●	●	●	●	●
56	05.506 BOLT; BRG CAP 4JG2 ENG(RJC) 05.387 M12X75	8-94435-341-0	04	1	0108-		●	●		●	●
60	05.529 GEAR SET; FINAL DRIVE,RR 4JA1 ENG(RLE) 41/10	8-97063-573-0	01	1	9804-0107	●	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR 4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL> 41/10	8-97063-573-0	01	1	0108-		●	●
60	05.529 GEAR SET; FINAL DRIVE,RR 43/11	8-97228-809-0	01	1	0108-	●
60	05.529 GEAR SET; FINAL DRIVE,RR 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> 43/11	8-97228-809-0	01	1	0108-		●	●
60	05.529 GEAR SET; FINAL DRIVE,RR 4JG2 ENG(RJC) 41/10	8-97063-394-2	01	1	9804-		●	●
60	05.529 GEAR SET; FINAL DRIVE,RR 4JA1 ENG(RLE) 41/9	8-97065-093-0	01	1	9804-0006				●	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR 4JA1 ENG(RLE) 41/9	8-94376-223-1	01	1	0007-0107				●	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR 4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL> 41/9	8-94376-223-1	01	1	0108-					●	●
60	05.529 GEAR SET; FINAL DRIVE,RR 4JG2 ENG(RJC) 43/10	8-97039-238-1	01	1	9804-0107				●	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> 43/10	8-97039-238-1	01	1	0108-				●	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR 4JG2 ENG(RJC) 43/10	8-97039-238-1	01	1	0108-					●	●
70	05.536 BEARING; DIFF CAGE 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> JTEKT	8-94452-449-1	02	1	0209-	●	●	●	●	●	●
70	05.536 BEARING; DIFF CAGE 4JG2 ENG(RJC) JTEKT	8-94452-449-1	02	1	0209-		●	●		●	●
70	05.536 BEARING; DIFF CAGE 4JA1 ENG(RLE) NSK	9-00093-074-0	02	1	9804-0107	●	●	●	●	●	●
70	05.536 BEARING; DIFF CAGE 4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL> NSK	9-00093-074-0	02	1	0108-		●	●		●	●
70	05.536 BEARING; DIFF CAGE 4JG2 ENG(RJC) NSK	8-94435-355-0	02	1	9804-0107	●	●	●	●	●	●
70	05.536 BEARING; DIFF CAGE 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> NSK	8-94435-355-0	02	1	0108-	●	●	●	●	●	●
70	05.536 BEARING; DIFF CAGE 4JG2 ENG(RJC) NSK	8-94435-355-0	02	1	0108-		●	●		●	●
72	05.510 CAGE; DIFF 4JA1 ENG(RLE) LIMITED SLIP DIFF(G80)	8-94118-093-0	01	1	9804-0107	●	●	●	●	●	●
72	05.510 CAGE; DIFF 4JA1 ENG(RLE) LIMITED SLIP DIFF(G80) EXC. CHARGE AIR COOLER<6PL>	8-94118-093-0	01	1	0108-		●	●		●	●
72	05.510 CAGE; DIFF 4JA1 ENG(RLE) EXC. LIMITED SLIP DIFF(G80) 05.453	8-97038-515-1	01	1	9804-0107	●	●	●	●	●	●
72	05.510 CAGE; DIFF 4JA1 ENG(RLE) EXC. LIMITED SLIP DIFF(G80),CHARGE AIR COOLER<6PL> 05.453	8-97038-515-1	01	1	0108-		●	●		●	●
72	05.510 CAGE; DIFF 4JG2 ENG(RJC) EXC. LIMITED SLIP DIFF(G80)	8-94325-448-0	01	1	9804-0107	●	●	●	●	●	●
72	05.510 CAGE; DIFF 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> EXC. LIMITED SLIP DIFF(G80)	8-94325-448-0	01	1	0108-	●	●	●	●	●	●
72	05.510 CAGE; DIFF 4JG2 ENG(RJC) EXC. LIMITED SLIP DIFF(G80)	8-94325-448-0	01	1	0108-	●	●	●		●	●
73	05.537 SHIM; DIFF SIDE BRG 4JA1 ENG(RLE) T=0.10	8-97130-386-0	AR	1	9804-0107	●	●	●	●	●	●
73	05.537 SHIM; DIFF SIDE BRG 4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL> T=0.10	8-97130-386-0	AR	1	0108-		●	●		●	●
73	05.537 SHIM; DIFF SIDE BRG 4JA1 ENG(RLE) T=0.50	8-97130-387-0	AR	1	9804-0107	●	●	●	●	●	●
73	05.537 SHIM; DIFF SIDE BRG 4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL> T=0.50	8-97130-387-0	AR	1	0108-		●	●		●	●
73	05.537 SHIM; DIFF SIDE BRG 4JA1 ENG(RLE) T=0.24	9-41519-109-0	AR	1	9804-0107	●	●	●	●	●	●
73	05.537 SHIM; DIFF SIDE BRG 4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL> T=0.24	9-41519-109-0	AR	1	0108-		●	●		●	●
73	05.537 SHIM; DIFF SIDE BRG 4JA1 ENG(RLE) T=0.15	9-41519-111-0	AR	1	9804-0107	●	●	●	●	●	●
73	05.537 SHIM; DIFF SIDE BRG 4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL> T=0.15	9-41519-111-0	AR	1	0108-		●	●		●	●
73	05.537 SHIM; DIFF SIDE BRG 4JG2 ENG(RJC) T=0.12	8-94435-348-0	AR	1	9804-0107	●	●	●	●	●	●
73	05.537 SHIM; DIFF SIDE BRG 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> T=0.12	8-94435-348-0	AR	1	0108-	●	●	●	●	●	●
73	05.537 SHIM; DIFF SIDE BRG 4JG2 ENG(RJC) T=0.12	8-94435-348-0	AR	1	0108-		●	●		●	●
73	05.537 SHIM; DIFF SIDE BRG 4JG2 ENG(RJC) T=0.15	8-94435-349-0	AR	1	9804-0107	●	●	●	●	●	●
73	05.537 SHIM; DIFF SIDE BRG 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> T=0.15	8-94435-349-0	AR	1	0108-	●	●	●	●	●	●
73	05.537 SHIM; DIFF SIDE BRG 4JG2 ENG(RJC) T=0.15	8-94435-349-0	AR	1	0108-		●	●		●	●
73	05.537 SHIM; DIFF SIDE BRG 4JG2 ENG(RJC) T=0.18	8-94435-350-0	AR	1	9804-0107	●	●	●	●	●	●
73	05.537 SHIM; DIFF SIDE BRG 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> T=0.18	8-94435-350-0	AR	1	0108-	●	●	●	●	●	●
73	05.537 SHIM; DIFF SIDE BRG 4JG2 ENG(RJC) T=0.18	8-94435-350-0	AR	1	0108-		●	●		●	●
73	05.537 SHIM; DIFF SIDE BRG 4JG2 ENG(RJC) T=0.25	8-94435-351-0	AR	1	9804-0107	●	●	●	●	●	●
73	05.537 SHIM; DIFF SIDE BRG 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> T=0.25	8-94435-351-0	AR	1	0108-	●	●	●	●	●	●
73	05.537 SHIM; DIFF SIDE BRG 4JG2 ENG(RJC) T=0.25	8-94435-351-0	AR	1	0108-		●	●		●	●
73	05.537 SHIM; DIFF SIDE BRG 4JG2 ENG(RJC) T=0.30	8-94435-352-0	AR	1	9804-0107	●	●	●	●	●	●
73	05.537 SHIM; DIFF SIDE BRG 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> T=0.30	8-94435-352-0	AR	1	0108-	●	●	●	●	●	●
73	05.537 SHIM; DIFF SIDE BRG 4JG2 ENG(RJC) T=0.30	8-94435-352-0	AR	1	0108-		●	●		●	●
73	05.537 SHIM; DIFF SIDE BRG 4JG2 ENG(RJC) T=0.50	8-94435-353-0	AR	1	9804-0107	●	●	●	●	●	●
73	05.537 SHIM; DIFF SIDE BRG 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> T=0.50	8-94435-353-0	AR	1	0108-	●	●	●	●	●	●
73	05.537 SHIM; DIFF SIDE BRG 4JG2 ENG(RJC) T=0.50	8-94435-353-0	AR	1	0108-		●	●		●	●
74	05.518 PIN; LK,CROSS PIN EXC. LIMITED SLIP DIFF(G80) OD=5 L=35	9-09878-096-0	01	1	9804-	●	●	●	●	●	●
84	05.531 BOLT; FINAL DRIVE GEAR 4JA1 ENG(RLE) M10X17	8-97038-065-0	10	1	9804-0107	●	●	●	●	●	●
84	05.531 BOLT; FINAL DRIVE GEAR 4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL> M10X17	8-97038-065-0	10	1	0108-		●	●		●	●
84	05.531 BOLT; FINAL DRIVE GEAR 4JG2 ENG(RJC) M10X18.5	8-97038-064-0	12	1	9804-0107	●	●	●	●	●	●
84	05.531 BOLT; FINAL DRIVE GEAR 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> M10X18.5	8-97038-064-0	12	1	0108-	●	●	●	●	●	●
84	05.531 BOLT; FINAL DRIVE GEAR 4JG2 ENG(RJC) M10X18.5	8-97038-064-0	12	1	0108-		●	●		●	●
100	05.469 SEAL; OIL,FINAL PINION 4JA1 ENG(RLE) NOK	8-97146-826-0	01	1	9804-0107	●	●	●	●	●	●
100	05.469 SEAL; OIL,FINAL PINION 4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL> NOK	8-97146-826-0	01	1	0108-		●	●		●	●
100	05.469 SEAL; OIL,FINAL PINION 4JA1 ENG(RLE) TKK	8-97207-784-0	01	1	9809-0107	●	●	●	●	●	●
100	05.469 SEAL; OIL,FINAL PINION 4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL> TKK	8-97207-784-0	01	1	0108-		●	●		●	●
100	05.469 SEAL; OIL,FINAL PINION 4JG2 ENG(RJC) NOK	8-94408-084-1	01	1	9804-0107	●	●	●	●	●	●
100	05.469 SEAL; OIL,FINAL PINION 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> NOK	8-94408-084-1	01	1	0108-	●	●	●	●	●	●
100	05.469 SEAL; OIL,FINAL PINION 4JG2 ENG(RJC) NOK	8-94408-084-1	01	1	0108-		●	●		●	●
100	05.469 SEAL; OIL,FINAL PINION 4JG2 ENG(RJC) TKK	8-94408-085-1	01	1	9808-0107	●	●	●	●	●	●
100	05.469 SEAL; OIL,FINAL PINION 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> TKK	8-94408-085-1	01	1	0108-	●	●	●	●	●	●
100	05.469 SEAL; OIL,FINAL PINION 4JG2 ENG(RJC) TKK	8-94408-085-1	01	1	0108-		●	●		●	●
126	05.545 COUPLING; DRIVING PINION 4JA1 ENG(RLE)	8-94426-786-7	01	1	9804-0107	●	●	●	●	●	●
126	05.545 COUPLING; DRIVING PINION 4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL>	8-94426-786-7	01	1	0108-		●	●		●	●
126	05.545 COUPLING; DRIVING PINION 4JG2 ENG(RJC)	8-97075-216-3	01	1	9804-0107	●	●	●	●	●	●
126	05.545 COUPLING; DRIVING PINION 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL>	8-97075-216-3	01	1	0108-	●	●	●	●	●	●
126	05.545 COUPLING; DRIVING PINION 4JG2 ENG(RJC)	8-97075-216-3	01	1	0108-		●	●		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
