Sayfa 4-12 - Isuzu EPC

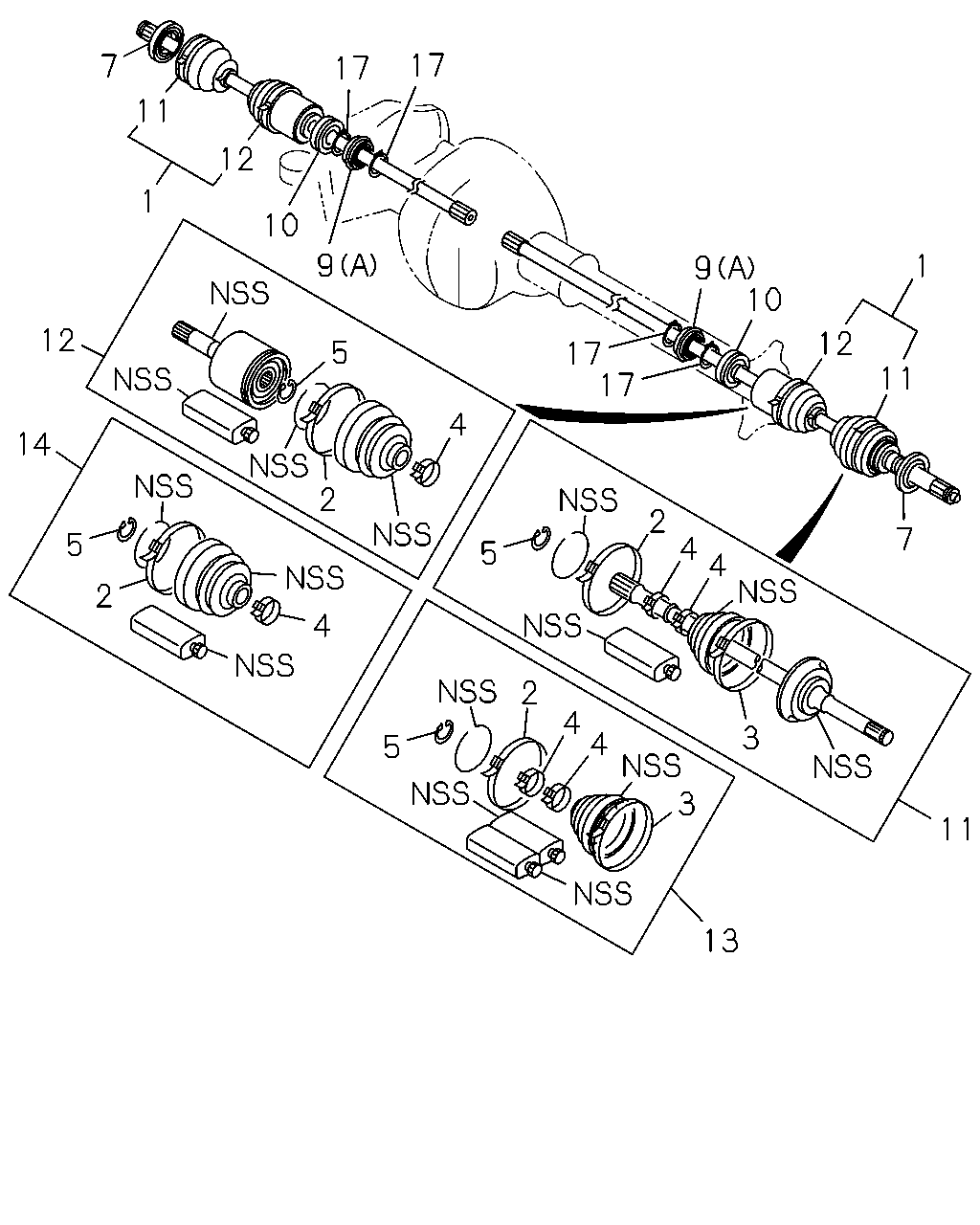

4-12 — FRONT DRIVE SHAFT (#44665) — 232 parça

17 7 17 11 12 1 10 9 1 9 10 12 12 5 17 17 11 4 14 2 2 4 4 7 5 5 2 4 2 4 4 3 3 5 11 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	06.055 SHAFT ASM; FRT DRIVE 4JA1 ENG(RLE)	8-94423-038-1	01	1	9804-0107	●	●	●
1	06.055 SHAFT ASM; FRT DRIVE 4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL>	8-94423-038-1	01	1	0108-0212		●	●
1	06.055 SHAFT ASM; FRT DRIVE 4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL>	8-97361-344-0	01	1	0301-		●	●
1	06.055 SHAFT ASM; FRT DRIVE 4JA1 ENG(RLE)	8-94423-037-1	01	1	9804-0107	●	●	●
1	06.055 SHAFT ASM; FRT DRIVE 4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL>	8-94423-037-1	01	1	0108-0212		●	●
1	06.055 SHAFT ASM; FRT DRIVE 4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL>	8-97361-343-0	01	1	0301-		●	●
1	06.055 SHAFT ASM; FRT DRIVE 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> EXC. SHIFT ON THE FLY(7EX)	8-97139-095-0	01	1	0108-0212	●	●	●
1	06.055 SHAFT ASM; FRT DRIVE 4JG2 ENG(RJC)	8-97139-095-0	01	1	0108-0212		●	●
1	06.055 SHAFT ASM; FRT DRIVE 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> EXC. SHIFT ON THE FLY(7EX)	8-97361-345-0	01	1	0301-	●	●	●
1	06.055 SHAFT ASM; FRT DRIVE 4JG2 ENG(RJC)	8-97361-345-0	01	1	0301-		●	●
1	06.055 SHAFT ASM; FRT DRIVE 4JG2 ENG(RJC)	8-97139-096-0	01	1	9804-0107	●	●	●
1	06.055 SHAFT ASM; FRT DRIVE 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> EXC. SHIFT ON THE FLY(7EX)	8-97139-096-0	01	1	0108-0212	●	●	●
1	06.055 SHAFT ASM; FRT DRIVE 4JG2 ENG(RJC)	8-97139-096-0	01	1	0108-0212		●	●
1	06.055 SHAFT ASM; FRT DRIVE 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> EXC. SHIFT ON THE FLY(7EX)	8-97361-346-0	01	1	0301-	●	●	●
1	06.055 SHAFT ASM; FRT DRIVE 4JG2 ENG(RJC)	8-97361-346-0	01	1	0301-		●	●
1	06.055 SHAFT ASM; FRT DRIVE 4JG2 ENG(RJC)	8-97139-095-0	01	1	9804-0107	●	●	●
1	06.055 SHAFT ASM; FRT DRIVE 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> SHIFT ON THE FLY(7EX)	8-97139-095-0	02	1	0108-0212	●	●	●
1	06.055 SHAFT ASM; FRT DRIVE 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> SHIFT ON THE FLY(7EX)	8-97361-345-0	02	1	0301-	●	●	●
2	06.061 BAND; "A",FRT DRIVE SHAFT 4JA1 ENG(RLE)	8-94312-682-0	02	1	9804-0107	●	●	●
2	06.061 BAND; "A",FRT DRIVE SHAFT 4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL>	8-94312-682-0	02	1	0108-		●	●
2	06.061 BAND; "A",FRT DRIVE SHAFT 4JG2 ENG(RJC)	8-97131-401-0	02	1	9804-0107	●	●	●
2	06.061 BAND; "A",FRT DRIVE SHAFT 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL>	8-97131-401-0	02	1	0108-	●	●	●
2	06.061 BAND; "A",FRT DRIVE SHAFT 4JG2 ENG(RJC)	8-97131-401-0	02	1	0108-		●	●
3	06.061 BAND; "B",FRT DRIVE SHAFT 4JA1 ENG(RLE)	8-94462-593-0	02	1	9804-0107	●	●	●
3	06.061 BAND; "B",FRT DRIVE SHAFT 4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL>	8-94462-593-0	02	1	0108-		●	●
3	06.061 BAND; "B",FRT DRIVE SHAFT 4JG2 ENG(RJC)	8-94312-929-0	02	1	9804-0107	●	●	●
3	06.061 BAND; "B",FRT DRIVE SHAFT 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL>	8-94312-929-0	02	1	0108-	●	●	●
3	06.061 BAND; "B",FRT DRIVE SHAFT 4JG2 ENG(RJC)	8-94312-929-0	02	1	0108-		●	●
4	06.061 BAND; "C",FRT DRIVE SHAFT 4JA1 ENG(RLE)	8-94462-597-0	04	1	9804-0107	●	●	●
4	06.061 BAND; "C",FRT DRIVE SHAFT 4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL>	8-94462-597-0	04	1	0108-		●	●
4	06.061 BAND; "C",FRT DRIVE SHAFT 4JG2 ENG(RJC)	8-94312-931-0	02	1	9804-0107	●	●	●
4	06.061 BAND; "C",FRT DRIVE SHAFT 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL>	8-94312-931-0	02	1	0108-	●	●	●
4	06.061 BAND; "C",FRT DRIVE SHAFT 4JG2 ENG(RJC)	8-94312-931-0	02	1	0108-		●	●
4	06.061 BAND; "C",FRT DRIVE SHAFT 4JG2 ENG(RJC)	8-97138-938-0	02	1	9804-0107	●	●	●
4	06.061 BAND; "C",FRT DRIVE SHAFT 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL>	8-97138-938-0	02	1	0108-	●	●	●
4	06.061 BAND; "C",FRT DRIVE SHAFT 4JG2 ENG(RJC)	8-97138-938-0	02	1	0108-		●	●
5	06.061 RING; RET,FRT DRIVE SHAFT 4JA1 ENG(RLE) ID=24.2	9-09180-026-0	02	1	9804-0107	●	●	●
5	06.061 RING; RET,FRT DRIVE SHAFT 4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL> ID=24.2	9-09180-026-0	02	1	0108-		●	●
5	06.061 RING; RET,FRT DRIVE SHAFT 4JG2 ENG(RJC)	8-97131-402-0	02	1	9804-0107	●	●	●
5	06.061 RING; RET,FRT DRIVE SHAFT 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL>	8-97131-402-0	02	1	0108-	●	●	●
5	06.061 RING; RET,FRT DRIVE SHAFT 4JG2 ENG(RJC)	8-97131-402-0	02	1	0108-		●	●
7	06.061 SEAL; DUST,DRIVE SHAFT	8-97123-692-0	02	1	9804-	●	●	●
9	06.056 BEARING; AXLE SHAFT,INNER 4JA1 ENG(RLE) 06.061 (A) NSK	5-09800-045-1	02	1	9804-0107	●	●	●
9	06.056 BEARING; AXLE SHAFT,INNER 4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL> 06.061 (A) NSK	5-09800-045-1	02	1	0108-		●	●
9	06.056 BEARING; AXLE SHAFT,INNER 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> SHIFT ON THE FLY(7EX) (B)	8-97101-878-0	01	1	0108-	●	●	●
9	06.056 BEARING; AXLE SHAFT,INNER 4JG2 ENG(RJC) (A)	8-94407-724-0	02	1	9804-0107	●	●	●
9	06.056 BEARING; AXLE SHAFT,INNER 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> (A)	8-94407-724-0	02	1	0108-	●	●	●
9	06.056 BEARING; AXLE SHAFT,INNER 4JG2 ENG(RJC) (A)	8-94407-724-0	02	1	0108-		●	●
10	06.061 SEAL; OIL,AXLE SHAFT,INNER 4JA1 ENG(RLE)	8-94366-611-0	02	1	9804-0107	●	●	●
10	06.061 SEAL; OIL,AXLE SHAFT,INNER 4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL>	8-94366-611-0	02	1	0108-		●	●
10	06.061 SEAL; OIL,AXLE SHAFT,INNER 4JG2 ENG(RJC)	8-94366-610-0	02	1	9804-0107	●	●	●
10	06.061 SEAL; OIL,AXLE SHAFT,INNER 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL>	8-94366-610-0	02	1	0108-	●	●	●
10	06.061 SEAL; OIL,AXLE SHAFT,INNER 4JG2 ENG(RJC)	8-94366-610-0	02	1	0108-		●	●
11	06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA 4JA1 ENG(RLE)	8-94312-673-0	01	1	9804-0107	●	●	●
11	06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA 4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL>	8-94312-673-0	01	1	0108-0212		●	●
11	06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA 4JA1 ENG(RLE)	8-94312-672-0	01	1	9804-0107	●	●	●
11	06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA 4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL>	8-94312-672-0	01	1	0108-0212		●	●
11	06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA 4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL>	8-94312-672-1	02	1	0301-		●	●
11	06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA 4JG2 ENG(RJC)	8-97131-396-0	02	1	9804-0107	●	●	●
11	06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL>	8-97131-396-1	02	1	0108-	●	●	●
11	06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA 4JG2 ENG(RJC)	8-97131-396-1	02	1	0108-		●	●
12	06.060 JOINT ASM 4JA1 ENG(RLE)	8-94313-103-0	01	1	9804-0107	●	●	●
12	06.060 JOINT ASM 4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL>	8-94313-103-1	01	1	0108-		●	●
12	06.060 JOINT ASM 4JA1 ENG(RLE)	8-94312-676-0	01	1	9804-0107	●	●	●
12	06.060 JOINT ASM 4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL>	8-94312-676-1	01	1	0108-		●	●
12	06.060 JOINT ASM 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> EXC. SHIFT ON THE FLY(7EX)	8-97138-978-0	01	1	0108-0212	●	●	●
12	06.060 JOINT ASM 4JG2 ENG(RJC)	8-97138-978-0	01	1	0108-0212		●	●
12	06.060 JOINT ASM 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> EXC. SHIFT ON THE FLY(7EX)	8-97201-316-1	01	1	0301-	●	●	●
12	06.060 JOINT ASM 4JG2 ENG(RJC)	8-97201-316-1	01	1	0301-		●	●
12	06.060 JOINT ASM 4JG2 ENG(RJC)	8-97138-979-0	01	1	9804-0107	●	●	●
12	06.060 JOINT ASM 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> EXC. SHIFT ON THE FLY(7EX)	8-97138-979-0	01	1	0108-0212	●	●	●
12	06.060 JOINT ASM 4JG2 ENG(RJC)	8-97138-979-0	01	1	0108-0212		●	●
12	06.060 JOINT ASM 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> EXC. SHIFT ON THE FLY(7EX)	8-97201-315-1	01	1	0301-	●	●	●
12	06.060 JOINT ASM 4JG2 ENG(RJC)	8-97201-315-1	01	1	0301-		●	●
12	06.060 JOINT ASM 4JG2 ENG(RJC)	8-97138-978-0	01	1	9804-0107	●	●	●
12	06.060 JOINT ASM 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> SHIFT ON THE FLY(7EX)	8-97138-978-0	02	1	0108-0212	●	●	●
12	06.060 JOINT ASM 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> SHIFT ON THE FLY(7EX)	8-97201-316-1	02	1	0301-	●	●	●
13	06.061 BOOT KIT; OUTSIDE,FRT DRIVE SHAF 4JA1 ENG(RLE)	8-94312-678-0	02	1	9804-0107	●	●	●
13	06.061 BOOT KIT; OUTSIDE,FRT DRIVE SHAF 4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL>	8-94312-678-1	02	1	0108-		●	●
13	06.061 BOOT KIT; OUTSIDE,FRT DRIVE SHAF 4JG2 ENG(RJC)	8-97138-981-0	02	1	9804-0107	●	●	●
13	06.061 BOOT KIT; OUTSIDE,FRT DRIVE SHAF 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL>	8-97138-981-1	02	1	0108-	●	●	●
13	06.061 BOOT KIT; OUTSIDE,FRT DRIVE SHAF 4JG2 ENG(RJC)	8-97138-981-1	02	1	0108-		●	●
14	06.061 BOOT KIT; IN SIDE,FRT DRIVE SHAF 4JA1 ENG(RLE)	8-94312-680-0	02	1	9804-0107	●	●	●
14	06.061 BOOT KIT; IN SIDE,FRT DRIVE SHAF 4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL>	8-94312-680-1	02	1	0108-		●	●
14	06.061 BOOT KIT; IN SIDE,FRT DRIVE SHAF 4JG2 ENG(RJC)	8-97138-980-0	02	1	9804-0107	●	●	●
14	06.061 BOOT KIT; IN SIDE,FRT DRIVE SHAF 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL>	8-97138-980-0	02	1	0108-0212	●	●	●
14	06.061 BOOT KIT; IN SIDE,FRT DRIVE SHAF 4JG2 ENG(RJC)	8-97138-980-0	02	1	0108-0212		●	●
14	06.061 BOOT KIT; IN SIDE,FRT DRIVE SHAF 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL>	8-97201-314-1	02	1	0301-	●	●	●
14	06.061 BOOT KIT; IN SIDE,FRT DRIVE SHAF 4JG2 ENG(RJC)	8-97201-314-1	02	1	0301-		●	●
17	06.061 RING; SNAP,DRIVE SHAFT TO TRANS 4JA1 ENG(RLE) 08.934 ID=25.9	9-09180-028-0	04	1	9804-0107	●	●	●
17	06.061 RING; SNAP,DRIVE SHAFT TO TRANS 4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL> 08.934 ID=25.9	9-09180-028-0	04	1	0108-		●	●
17	06.061 RING; SNAP,DRIVE SHAFT TO TRANS 4JG2 ENG(RJC) 04.416 ID=27.9	9-09180-030-0	04	1	9804-0107	●	●	●
17	06.061 RING; SNAP,DRIVE SHAFT TO TRANS 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> 04.416 ID=27.9	9-09180-030-0	04	1	0108-	●	●	●
17	06.061 RING; SNAP,DRIVE SHAFT TO TRANS 4JG2 ENG(RJC) 04.416 ID=27.9	9-09180-030-0	04	1	0108-		●	●

35 34 19 26 22 20 35 36 27 23 26 24 28 36 19 26 18 35 30 19 35 34 49 48 50 62 95 144 62 79 69 9 138 37 132 44 43 48 84 137 18 43 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
9	06.056 BEARING; AXLE SHAFT,INNER 4JA1 ENG(RLE) 06.061 (A) NSK	5-09800-045-1	02	1	9804-0107	●	●	●
9	06.056 BEARING; AXLE SHAFT,INNER 4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL> 06.061 (A) NSK	5-09800-045-1	02	1	0108-		●	●
9	06.056 BEARING; AXLE SHAFT,INNER 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> SHIFT ON THE FLY(7EX) (B)	8-97101-878-0	01	1	0108-	●	●	●
9	06.056 BEARING; AXLE SHAFT,INNER 4JG2 ENG(RJC) (A)	8-94407-724-0	02	1	9804-0107	●	●	●
9	06.056 BEARING; AXLE SHAFT,INNER 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> (A)	8-94407-724-0	02	1	0108-	●	●	●
9	06.056 BEARING; AXLE SHAFT,INNER 4JG2 ENG(RJC) (A)	8-94407-724-0	02	1	0108-		●	●

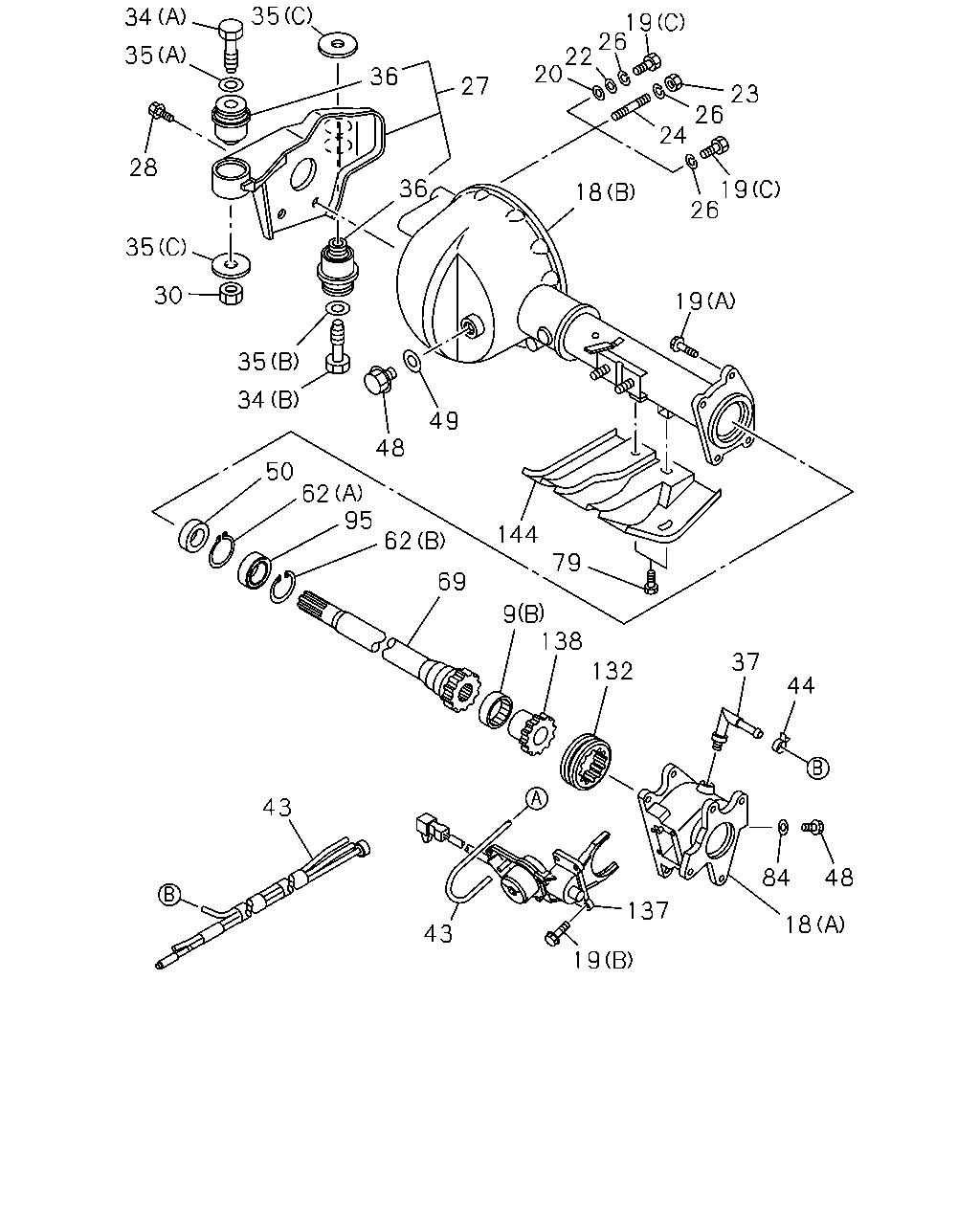

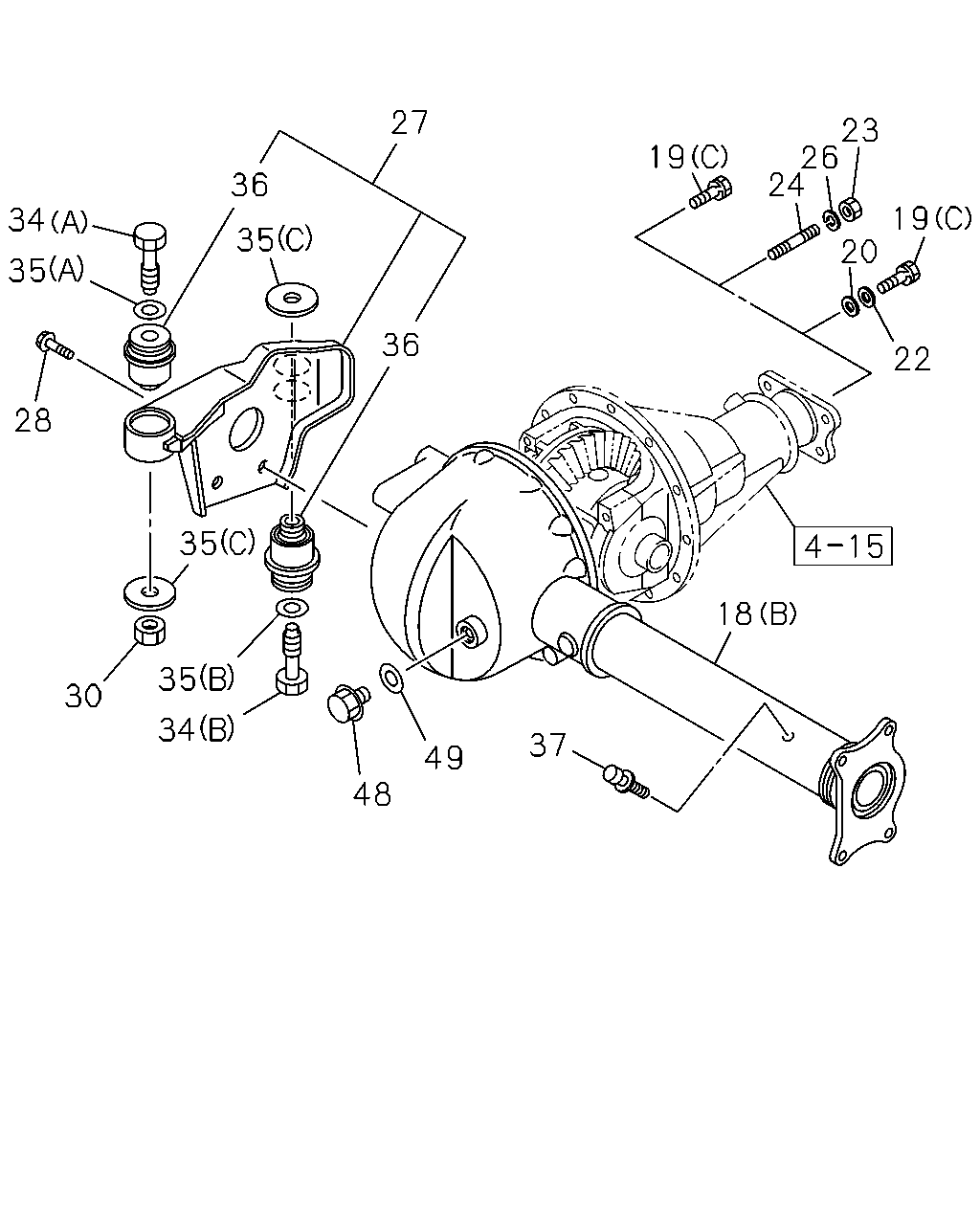

18	06.008 CASE; FRT AXLE 4JA1 ENG(RLE) (B)	5-43212-001-1	01	1	9804-0107	●	●	●
18	06.008 CASE; FRT AXLE 4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL> (B)	5-43212-001-1	01	1	0108-		●	●
18	06.008 CASE; FRT AXLE 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> SHIFT ON THE FLY(7EX) (A)	8-97081-658-3	01	1	0108-	●	●	●
18	06.008 CASE; FRT AXLE 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> SHIFT ON THE FLY(7EX) (B)	8-97217-847-0	01	1	0108-	●	●	●
18	06.008 CASE; FRT AXLE 4JG2 ENG(RJC) (B)	8-97018-230-0	01	1	9804-0107	●	●	●
18	06.008 CASE; FRT AXLE 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> EXC. SHIFT ON THE FLY(7EX) (B)	8-97018-230-0	01	1	0108-	●	●	●
18	06.008 CASE; FRT AXLE 4JG2 ENG(RJC) (B)	8-97018-230-0	01	1	0108-		●	●
19	06.156 BOLT; FRT AXLE 4JA1 ENG(RLE) 01.428 (C) M8X18 W/LK&PL WASHER	1-09030-004-0	06	1	9804-0107	●	●	●
19	06.156 BOLT; FRT AXLE 4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL> 01.428 (C) M8X18 W/LK&PL WASHER	1-09030-004-0	06	1	0108-		●	●
19	06.156 BOLT; FRT AXLE 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> SHIFT ON THE FLY(7EX) 06.056 (A) M12X22 FLANGE	0-28081-222-0	04	1	0108-	●	●	●
19	06.156 BOLT; FRT AXLE 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> SHIFT ON THE FLY(7EX) 16.335 (B) M8X20 FLANGE	0-28280-820-0	04	1	0108-	●	●	●
19	06.156 BOLT; FRT AXLE 4JG2 ENG(RJC) (C) M8X25 W/LK WASHER	8-97093-664-0	06	1	9804-0107	●	●	●
19	06.156 BOLT; FRT AXLE 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> (C) M8X25 W/LK WASHER	8-97093-664-1	06	1	0108-	●	●	●
19	06.156 BOLT; FRT AXLE 4JG2 ENG(RJC) (C) M8X25 W/LK WASHER	8-97093-664-1	06	1	0108-		●	●
19	06.156 BOLT; FRT AXLE 4JG2 ENG(RJC) (C) M8X30 W/LK WASHER	8-97093-665-0	02	1	9804-0107	●	●	●
19	06.156 BOLT; FRT AXLE 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> (C) M8X30 W/LK WASHER	8-97093-665-1	02	1	0108-	●	●	●
19	06.156 BOLT; FRT AXLE 4JG2 ENG(RJC) (C) M8X30 W/LK WASHER	8-97093-665-1	02	1	0108-		●	●
19	06.156 BOLT; FRT AXLE 4JG2 ENG(RJC) (C) M8X90 W/LK WASHER	8-97093-666-0	02	1	9804-0107	●	●	●
19	06.156 BOLT; FRT AXLE 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> (C) M8X90 W/LK WASHER	8-97093-666-1	02	1	0108-	●	●	●
19	06.156 BOLT; FRT AXLE 4JG2 ENG(RJC) (C) M8X90 W/LK WASHER	8-97093-666-1	02	1	0108-		●	●
20	06.156 GASKET; AXLE CASE 05.398 ID=8.2 OD=14.0 T=1.0	9-09571-408-0	01	1	9804-	●	●	●
22	06.056 WASHER; PL,AXLE CASE 00.206 ID=8.4	9-09164-508-0	01	1	9804-	●	●	●
23	06.056 NUT; FRT AXLE 00.002 M8	9-09110-508-0	02	1	9804-	●	●	●
24	06.056 STUD; CASE,FRT AXLE 03.901 M8X25 L=37	9-04110-825-0	02	1	9804-	●	●	●
26	06.056 WASHER; LK,CASE,FRT AXLE 00.002 ID=8.2	9-09150-608-0	02	1	9804-	●	●	●
27	06.056 BRACKET; AXLE CASE 4JA1 ENG(RLE)	8-94462-172-1	01	1	9804-0107	●	●	●
27	06.056 BRACKET; AXLE CASE 4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL>	8-94462-172-2	01	1	0108-		●	●
27	06.056 BRACKET; AXLE CASE 4JA1 ENG(RLE)	8-94462-171-1	01	1	9804-0107	●	●	●
27	06.056 BRACKET; AXLE CASE 4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL>	8-94462-171-2	01	1	0108-		●	●
27	06.056 BRACKET; AXLE CASE 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> W/BUSHING	8-94462-170-3	01	1	0108-	●	●	●
27	06.056 BRACKET; AXLE CASE 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> W/BUSHING	8-94462-169-3	01	1	0108-	●	●	●
27	06.056 BRACKET; AXLE CASE 4JG2 ENG(RJC)	8-97113-948-1	01	1	9804-0107	●	●	●
27	06.056 BRACKET; AXLE CASE 4JG2 ENG(RJC)	8-97113-948-1	01	1	0108-		●	●
27	06.056 BRACKET; AXLE CASE 4JG2 ENG(RJC)	8-94382-042-1	01	1	9804-0107	●	●	●
27	06.056 BRACKET; AXLE CASE 4JG2 ENG(RJC)	8-94382-042-1	01	1	0108-		●	●
28	06.056 BOLT; BRKT TO AXLE CASE M12X22 FLANGE	0-28081-222-0	08	1	9804-	●	●	●
30	06.008 NUT; FRT AXLE MTG 07.529 M14	9-99110-514-0	02	1	9804-	●	●	●
34	06.008 BOLT; FRT AXLE MTG (B) M14X84	8-94452-339-2	02	1	9804-	●	●	●
34	06.008 BOLT; FRT AXLE MTG (A) M14X75	9-91066-475-0	02	1	9804-9804	●	●	●
34	06.008 BOLT; FRT AXLE MTG 00.029 (A) M14X80	9-91066-480-0	02	1	9805-	●	●	●
35	06.008 WASHER; FRT AXLE MTG (A) ID=14 OD=40	8-94457-273-0	02	1	9804-	●	●	●
35	06.008 WASHER; FRT AXLE MTG (C) ID=14 OD=50	8-97093-581-0	04	1	9804-	●	●	●
35	06.008 WASHER; FRT AXLE MTG 08.929 (B) ID=15 OD=36	9-09164-714-0	02	1	9804-	●	●	●
36	06.008 BUSHING; RUBBER,FRT AXLE MTG 4JA1 ENG(RLE) ID=15 L=49.3	8-94481-466-0	04	1	9804-0303	●	●	●
36	06.008 BUSHING; RUBBER,FRT AXLE MTG 4JG2 ENG(RJC)	8-97018-240-0	04	1	9804-0107	●	●	●
36	06.008 BUSHING; RUBBER,FRT AXLE MTG 4JG2 ENG(RJC)	8-97018-240-0	04	1	0108-0303		●	●
36	06.008 BUSHING; RUBBER,FRT AXLE MTG	8-97018-240-0	04	1	0304-	●	●	●
37	06.008 BREATHER; FRT AXLE CASE	8-94311-349-0	01	1	9804-0107	●	●	●
37	06.008 BREATHER; FRT AXLE CASE EXC. SHIFT ON THE FLY(7EX)	8-94311-349-0	01	1	0108-	●	●	●
37	06.008 BREATHER; FRT AXLE CASE SHIFT ON THE FLY(7EX)	8-94226-943-0	01	1	0108-	●	●	●
37	06.008 BREATHER; FRT AXLE CASE 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> SHIFT ON THE FLY(7EX)	8-94226-943-0	01	1	0108-	●	●	●

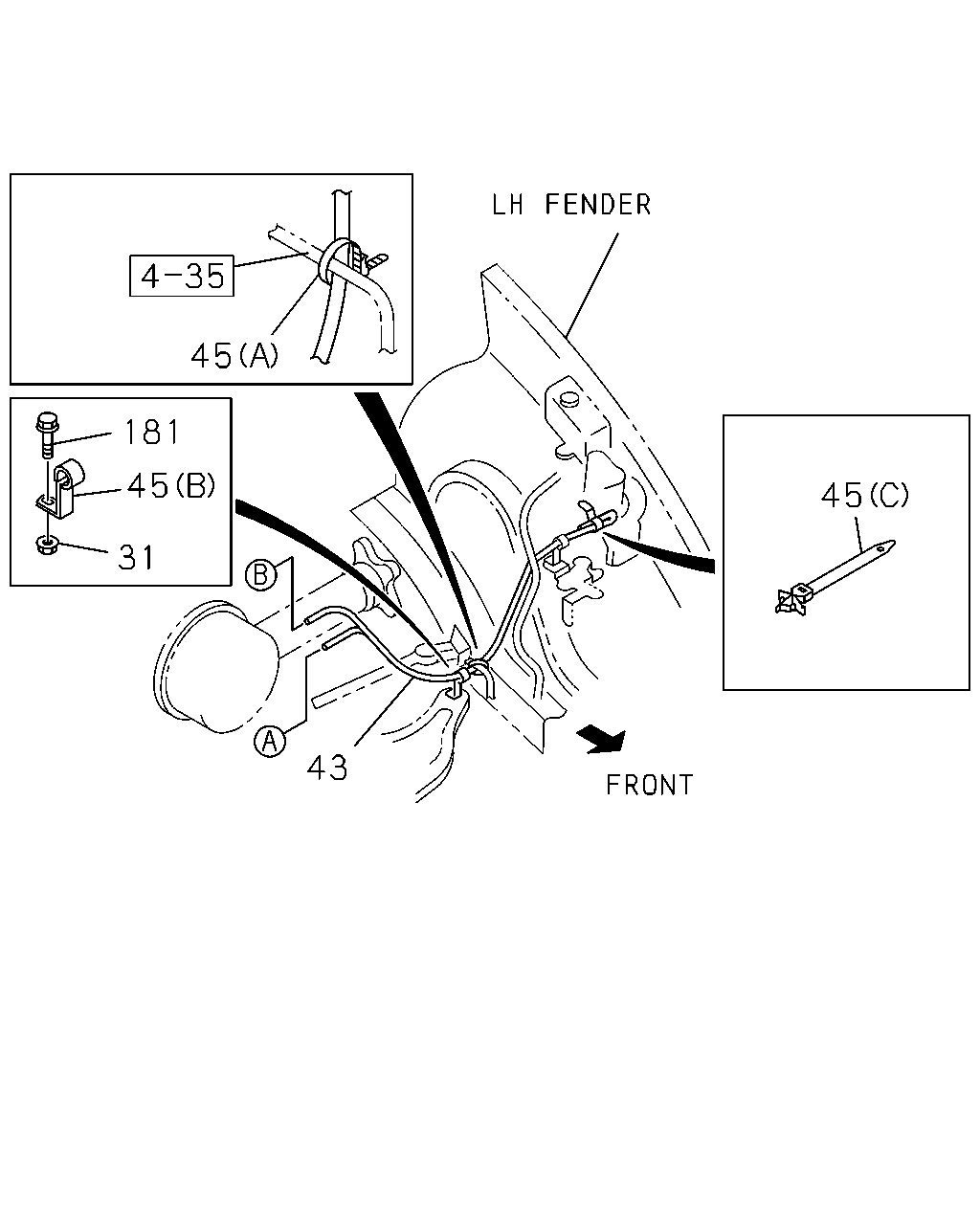

43	06.008 HOSE; RUBBER,AIR BREATHER 4JA1 ENG(RLE) SHIFT ON THE FLY(7EX)	8-97260-166-0	01	1	0108-	●	●	●
44	06.008 CLIP; AIR BREATHER HOSE SHIFT ON THE FLY(7EX) 03.163 ID=11	8-97173-219-0	01	1	0108-	●	●	●
44	06.008 CLIP; AIR BREATHER HOSE SHIFT ON THE FLY(7EX) 03.163 ID=11	8-97173-219-0	01	1	0108-	●	●	●
48	05.400 PLUG; DRAIN,AXLE CASE 04.103 M20X10.5	9-09662-005-0	01	1	9804-0107	●	●	●
48	05.400 PLUG; DRAIN,AXLE CASE 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> SHIFT ON THE FLY(7EX) 04.103 M20X10.5	9-09662-005-0	02	1	0108-	●	●	●
48	05.400 PLUG; DRAIN,AXLE CASE EXC. SHIFT ON THE FLY(7EX) 04.103 M20X10.5	9-09662-005-0	01	1	0108-	●	●	●
49	05.400 GASKET; DRAIN PLUG ID=20 OD=30	8-94462-734-0	01	1	9804-	●	●	●
50	06.061 SEAL; OIL,SHAFT,FRT AXLE 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> SHIFT ON THE FLY(7EX)	8-97084-507-0	01	1	0108-	●	●	●
62	06.061 RING; SNAP,AXLE SHAFT 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> SHIFT ON THE FLY(7EX) 08.934 (A) ID=37.0	9-09180-040-0	01	1	0108-	●	●	●
62	06.061 RING; SNAP,AXLE SHAFT 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> SHIFT ON THE FLY(7EX) 01.105 (B) ID=57.9	9-09180-162-0	01	1	0108-	●	●	●
69	06.055 SHAFT; AXLE,FRT INNER 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> SHIFT ON THE FLY(7EX)	8-97188-174-1	01	1	0108-	●	●	●
79	06.008 BOLT; BRKT SHIFT ON THE FLY(7EX)	0-28481-016-0	02	1	0108-	●	●	●
84	06.326 GASKET; PLUG,OIL FILLER 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> SHIFT ON THE FLY(7EX) 05.400 ID=20 OD=30	8-94462-734-0	01	1	0108-	●	●	●
95	06.008 BEARING; AXLE SHAFT,FRT 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> SHIFT ON THE FLY(7EX)	8-97103-392-0	01	1	0108-	●	●	●
132	06.008 SLEEVE; RUBBER,HOSE 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> SHIFT ON THE FLY(7EX)	8-97130-567-1	01	1	0108-	●	●	●
137	06.008 ACTUATOR; AXLE 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> SHIFT ON THE FLY(7EX)	8-97208-683-8	01	1	0108-	●	●	●
138	06.008 GEAR; CLUTCH 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> SHIFT ON THE FLY(7EX) Z=17	8-97134-857-1	01	1	0108-	●	●	●
144	06.008 PROTECTOR SHIFT ON THE FLY(7EX) 02.440	8-97220-537-2	01	1	0108-	●	●	●

45 181 45 45 31 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
31	06.008 NUT; MUD COVER TO BRKT 4JA1 ENG(RLE) SHIFT ON THE FLY(7EX) 04.594 M6 FLANGE	0-91150-106-0	01	1	0108-	●	●	●
43	06.008 HOSE; RUBBER,AIR BREATHER 4JA1 ENG(RLE) SHIFT ON THE FLY(7EX)	8-97260-166-0	01	1	0108-	●	●	●
45	06.008 CLIP 4JA1 ENG(RLE) SHIFT ON THE FLY(7EX) 02.559 (C) L=135	8-94473-399-0	01	1	0108-	●
45	06.008 CLIP 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> SHIFT ON THE FLY(7EX) 02.559 (C) L=135	8-94473-399-0	01	1	0108-		●	●
45	06.008 CLIP 4JA1 ENG(RLE) SHIFT ON THE FLY(7EX) 03.162 (A) L=170	5-09707-054-0	01	1	0108-	●	●	●
45	06.008 CLIP 4JA1 ENG(RLE) SHIFT ON THE FLY(7EX) 03.162 (A) L=170	5-09707-054-0	01	1	0108-	●	●	●
45	06.008 CLIP 4JA1 ENG(RLE) SHIFT ON THE FLY(7EX) 02.559 (B)	8-94121-003-0	01	1	0108-	●	●	●
181	06.008 BOLT; CLIP TO BRKT 4JA1 ENG(RLE) SHIFT ON THE FLY(7EX) 02.334 M6X25 FLANGE	0-28680-625-0	01	1	0108-	●	●	●

27 23 26 24 19 36 19 34 35 20 35 36 22 28 35 18 35 30 34 37 49 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
18	06.008 CASE; FRT AXLE 4JA1 ENG(RLE) (B)	5-43212-001-1	01	1	9804-0107	●	●	●
18	06.008 CASE; FRT AXLE 4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL> (B)	5-43212-001-1	01	1	0108-		●	●
18	06.008 CASE; FRT AXLE 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> SHIFT ON THE FLY(7EX) (A)	8-97081-658-3	01	1	0108-	●	●	●
18	06.008 CASE; FRT AXLE 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> SHIFT ON THE FLY(7EX) (B)	8-97217-847-0	01	1	0108-	●	●	●
18	06.008 CASE; FRT AXLE 4JG2 ENG(RJC) (B)	8-97018-230-0	01	1	9804-0107	●	●	●
18	06.008 CASE; FRT AXLE 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> EXC. SHIFT ON THE FLY(7EX) (B)	8-97018-230-0	01	1	0108-	●	●	●
18	06.008 CASE; FRT AXLE 4JG2 ENG(RJC) (B)	8-97018-230-0	01	1	0108-		●	●
19	06.156 BOLT; FRT AXLE 4JA1 ENG(RLE) 01.428 (C) M8X18 W/LK&PL WASHER	1-09030-004-0	06	1	9804-0107	●	●	●
19	06.156 BOLT; FRT AXLE 4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL> 01.428 (C) M8X18 W/LK&PL WASHER	1-09030-004-0	06	1	0108-		●	●
19	06.156 BOLT; FRT AXLE 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> SHIFT ON THE FLY(7EX) 06.056 (A) M12X22 FLANGE	0-28081-222-0	04	1	0108-	●	●	●
19	06.156 BOLT; FRT AXLE 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> SHIFT ON THE FLY(7EX) 16.335 (B) M8X20 FLANGE	0-28280-820-0	04	1	0108-	●	●	●
19	06.156 BOLT; FRT AXLE 4JG2 ENG(RJC) (C) M8X25 W/LK WASHER	8-97093-664-0	06	1	9804-0107	●	●	●
19	06.156 BOLT; FRT AXLE 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> (C) M8X25 W/LK WASHER	8-97093-664-1	06	1	0108-	●	●	●
19	06.156 BOLT; FRT AXLE 4JG2 ENG(RJC) (C) M8X25 W/LK WASHER	8-97093-664-1	06	1	0108-		●	●
19	06.156 BOLT; FRT AXLE 4JG2 ENG(RJC) (C) M8X30 W/LK WASHER	8-97093-665-0	02	1	9804-0107	●	●	●
19	06.156 BOLT; FRT AXLE 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> (C) M8X30 W/LK WASHER	8-97093-665-1	02	1	0108-	●	●	●
19	06.156 BOLT; FRT AXLE 4JG2 ENG(RJC) (C) M8X30 W/LK WASHER	8-97093-665-1	02	1	0108-		●	●
19	06.156 BOLT; FRT AXLE 4JG2 ENG(RJC) (C) M8X90 W/LK WASHER	8-97093-666-0	02	1	9804-0107	●	●	●
19	06.156 BOLT; FRT AXLE 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> (C) M8X90 W/LK WASHER	8-97093-666-1	02	1	0108-	●	●	●
19	06.156 BOLT; FRT AXLE 4JG2 ENG(RJC) (C) M8X90 W/LK WASHER	8-97093-666-1	02	1	0108-		●	●
20	06.156 GASKET; AXLE CASE 05.398 ID=8.2 OD=14.0 T=1.0	9-09571-408-0	01	1	9804-	●	●	●
22	06.056 WASHER; PL,AXLE CASE 00.206 ID=8.4	9-09164-508-0	01	1	9804-	●	●	●
23	06.056 NUT; FRT AXLE 00.002 M8	9-09110-508-0	02	1	9804-	●	●	●
24	06.056 STUD; CASE,FRT AXLE 03.901 M8X25 L=37	9-04110-825-0	02	1	9804-	●	●	●
26	06.056 WASHER; LK,CASE,FRT AXLE 00.002 ID=8.2	9-09150-608-0	02	1	9804-	●	●	●
27	06.056 BRACKET; AXLE CASE 4JA1 ENG(RLE)	8-94462-172-1	01	1	9804-0107	●	●	●
27	06.056 BRACKET; AXLE CASE 4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL>	8-94462-172-2	01	1	0108-		●	●
27	06.056 BRACKET; AXLE CASE 4JA1 ENG(RLE)	8-94462-171-1	01	1	9804-0107	●	●	●
27	06.056 BRACKET; AXLE CASE 4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL>	8-94462-171-2	01	1	0108-		●	●
27	06.056 BRACKET; AXLE CASE 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> W/BUSHING	8-94462-170-3	01	1	0108-	●	●	●
27	06.056 BRACKET; AXLE CASE 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> W/BUSHING	8-94462-169-3	01	1	0108-	●	●	●
27	06.056 BRACKET; AXLE CASE 4JG2 ENG(RJC)	8-97113-948-1	01	1	9804-0107	●	●	●
27	06.056 BRACKET; AXLE CASE 4JG2 ENG(RJC)	8-97113-948-1	01	1	0108-		●	●
27	06.056 BRACKET; AXLE CASE 4JG2 ENG(RJC)	8-94382-042-1	01	1	9804-0107	●	●	●
27	06.056 BRACKET; AXLE CASE 4JG2 ENG(RJC)	8-94382-042-1	01	1	0108-		●	●
28	06.056 BOLT; BRKT TO AXLE CASE M12X22 FLANGE	0-28081-222-0	08	1	9804-	●	●	●
30	06.008 NUT; FRT AXLE MTG 07.529 M14	9-99110-514-0	02	1	9804-	●	●	●
34	06.008 BOLT; FRT AXLE MTG (B) M14X84	8-94452-339-2	02	1	9804-	●	●	●
34	06.008 BOLT; FRT AXLE MTG (A) M14X75	9-91066-475-0	02	1	9804-9804	●	●	●
34	06.008 BOLT; FRT AXLE MTG 00.029 (A) M14X80	9-91066-480-0	02	1	9805-	●	●	●
35	06.008 WASHER; FRT AXLE MTG (A) ID=14 OD=40	8-94457-273-0	02	1	9804-	●	●	●
35	06.008 WASHER; FRT AXLE MTG (C) ID=14 OD=50	8-97093-581-0	04	1	9804-	●	●	●
35	06.008 WASHER; FRT AXLE MTG 08.929 (B) ID=15 OD=36	9-09164-714-0	02	1	9804-	●	●	●
36	06.008 BUSHING; RUBBER,FRT AXLE MTG 4JA1 ENG(RLE) ID=15 L=49.3	8-94481-466-0	04	1	9804-0303	●	●	●
36	06.008 BUSHING; RUBBER,FRT AXLE MTG 4JG2 ENG(RJC)	8-97018-240-0	04	1	9804-0107	●	●	●
36	06.008 BUSHING; RUBBER,FRT AXLE MTG 4JG2 ENG(RJC)	8-97018-240-0	04	1	0108-0303		●	●
36	06.008 BUSHING; RUBBER,FRT AXLE MTG	8-97018-240-0	04	1	0304-	●	●	●
37	06.008 BREATHER; FRT AXLE CASE	8-94311-349-0	01	1	9804-0107	●	●	●
37	06.008 BREATHER; FRT AXLE CASE EXC. SHIFT ON THE FLY(7EX)	8-94311-349-0	01	1	0108-	●	●	●
37	06.008 BREATHER; FRT AXLE CASE SHIFT ON THE FLY(7EX)	8-94226-943-0	01	1	0108-	●	●	●
37	06.008 BREATHER; FRT AXLE CASE 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> SHIFT ON THE FLY(7EX)	8-94226-943-0	01	1	0108-	●	●	●
48	05.400 PLUG; DRAIN,AXLE CASE 04.103 M20X10.5	9-09662-005-0	01	1	9804-0107	●	●	●
48	05.400 PLUG; DRAIN,AXLE CASE 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> SHIFT ON THE FLY(7EX) 04.103 M20X10.5	9-09662-005-0	02	1	0108-	●	●	●
48	05.400 PLUG; DRAIN,AXLE CASE EXC. SHIFT ON THE FLY(7EX) 04.103 M20X10.5	9-09662-005-0	01	1	0108-	●	●	●
49	05.400 GASKET; DRAIN PLUG ID=20 OD=30	8-94462-734-0	01	1	9804-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
