3-60 — BRAKE PIPING; VACUUM (#44661) — 46 parça

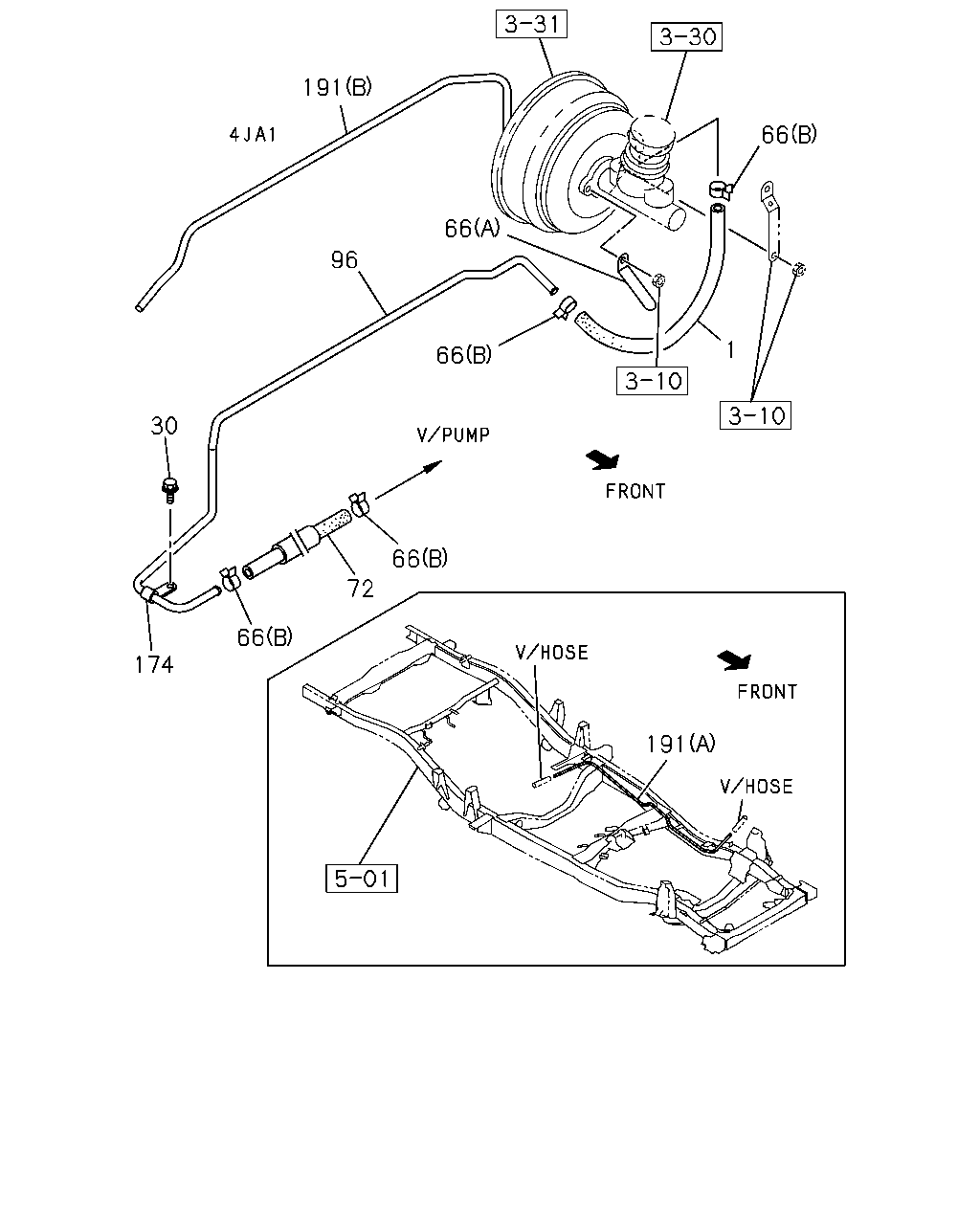

çizim 65566
191 66 66 96 1 66 30 66 72 66 174 191
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 04.931 HOSE; VAC,M/VAC TO VAC PIPE
4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> L=330 SERVICED BY L=3000 		0-08358-300-0 01 1 0108-0207 ● ● ● ● ● ●
1 04.931 HOSE; VAC,M/VAC TO VAC PIPE
4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> L=330 SERVICED BY L=3000 		0-08158-300-0 01 1 0208- ● ● ● ● ● ●
1 04.931 HOSE; VAC,M/VAC TO VAC PIPE
L=420 SERVICED BY L=3000 		0-08358-300-0 01 1 9804-0107 ● ● ● ● ● ●
1 04.931 HOSE; VAC,M/VAC TO VAC PIPE
4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL> L=420 SERVICED BY L=3000 		0-08358-300-0 01 1 0108-0207 ● ● ● ●
1 04.931 HOSE; VAC,M/VAC TO VAC PIPE
4JG2 ENG(RJC) L=420 SERVICED BY L=3000 		0-08358-300-0 01 1 0108-0207 ● ● ● ●
1 04.931 HOSE; VAC,M/VAC TO VAC PIPE
4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL> L=420 SERVICED BY L=3000 		0-08158-300-0 01 1 0208- ● ● ● ●
1 04.931 HOSE; VAC,M/VAC TO VAC PIPE
4JG2 ENG(RJC) L=420 SERVICED BY L=3000 		0-08158-300-0 01 1 0208- ● ● ● ●
30 04.686 BOLT; CLIP,VAC PIPE
4JA1 ENG(RLE) 08.900 M6X14 W/LK&PL WASHER 		0-50140-614-0 01 1 9804-9911 ● ● ● ● ● ●
30 04.686 BOLT; CLIP,VAC PIPE
06.635 M6X16 FLANGE 		0-28480-616-0 01 1 9912- ●
30 04.686 BOLT; CLIP,VAC PIPE
4JA1 ENG(RLE) 06.635 M6X16 FLANGE 		0-28480-616-0 01 1 9912- ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
(A) L=91 ID=8.5 		8-94329-956-0 01 1 9804- ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
04.681 (B) ID=16 		8-97173-222-0 04 1 9804- ● ● ● ● ● ●
72 04.931 HOSE; VAC,VAC PUMP TO PIPE 8-97073-616-0 01 1 9804- ● ● ● ● ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
4JG2 ENG(RJC),4JA1 ENG(RLE) HEADLAMP WASHER<CE3> 		8-97110-878-0 01 1 9804-0107 ● ● ● ● ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
4JG2 ENG(RJC),4JA1 ENG(RLE) HEADLAMP WASHER<CE3> EXC. CHARGE AIR COOLER<6PL> 		8-97110-878-0 01 1 0108- ● ● ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
4JG2 ENG(RJC),4JA1 ENG(RLE) EXC. HEADLAMP WASHER<CE3> 		8-97110-877-0 01 1 9804-0107 ● ● ● ● ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
4JG2 ENG(RJC),4JA1 ENG(RLE) EXC. HEADLAMP WASHER<CE3>,CHARGE AIR COOLER<6PL> 		8-97110-877-0 01 1 0108- ● ● ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> 		8-97310-900-1 01 1 0108- ● ● ● ● ● ●
174 04.930 CLIP; VAC HOSE
ID=11 H=20 L=20 		9-09527-010-0 01 1 9804- ● ● ● ● ● ●
191 04.685 PIPE; VAC
4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> ENG QUICK WARM UP SYSTEM<6JZ> (B) 		8-97320-497-0 01 1 0108- ● ● ● ● ● ●
191 04.685 PIPE; VAC
(A) 		8-97061-335-2 01 1 9804-9906 ● ● ●
191 04.685 PIPE; VAC
(A) 		8-97225-226-0 01 1 9907-0009 ●
191 04.685 PIPE; VAC
EXC. ISRAEL EQUIPMENT(7LX) (A) 		8-97225-226-0 01 1 9907-0009 ● ●
191 04.685 PIPE; VAC
(A) 		8-97225-226-0 01 1 0010-0012 ●
191 04.685 PIPE; VAC
EXC. TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) (A) 		8-97225-226-0 01 1 0010-0012 ● ●
191 04.685 PIPE; VAC
4JG2 ENG(RJC),4JA1 ENG(RLE) (A) 		8-97225-226-1 01 1 0101-0107 ●
191 04.685 PIPE; VAC
4JA1 ENG(RLE) (A) 		8-97225-226-1 01 1 0101-0107 ● ●
191 04.685 PIPE; VAC
4JG2 ENG(RJC) EXC. ISRAEL EQUIPMENT(7LX) (A) 		8-97225-226-1 01 1 0101-0107 ● ●
191 04.685 PIPE; VAC
4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL> (A) 		8-97225-226-1 01 1 0108- ● ●
191 04.685 PIPE; VAC
ENG QUICK WARM UP SYSTEM<6JZ> (A) 		8-97301-002-1 01 1 0108- ●
191 04.685 PIPE; VAC
4JA1 ENG(RLE) ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> (A) 		8-97301-002-1 01 1 0108- ● ●
191 04.685 PIPE; VAC
4JA1 ENG(RLE) (B) 		8-97109-386-1 01 1 9804-9906 ● ● ● ● ● ●
191 04.685 PIPE; VAC
4JA1 ENG(RLE) (B) 		8-97109-386-1 01 1 9907-0009 ●
191 04.685 PIPE; VAC
4JA1 ENG(RLE) EXC. ISRAEL EQUIPMENT(7LX) (B) 		8-97109-386-1 01 1 9907-0009 ● ● ● ● ●
191 04.685 PIPE; VAC
4JA1 ENG(RLE) (B) 		8-97109-386-1 01 1 0010-0012 ●
191 04.685 PIPE; VAC
4JA1 ENG(RLE) EXC. TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) (B) 		8-97109-386-1 01 1 0010-0012 ● ● ● ● ●
191 04.685 PIPE; VAC
4JA1 ENG(RLE) (B) 		8-97109-386-1 01 1 0101-0107 ● ● ● ● ● ●
191 04.685 PIPE; VAC
4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL> (B) 		8-97109-386-1 01 1 0108- ● ● ● ●
191 04.685 PIPE; VAC
(A) 		8-97189-642-0 01 1 9804-9904 ● ● ●
191 04.685 PIPE; VAC
(A) 		8-97219-158-0 01 1 9905-9906 ● ● ●
191 04.685 PIPE; VAC
4JG2 ENG(RJC),4JA1 ENG(RLE) EXC. ISRAEL EQUIPMENT(7LX) (A) 		8-97225-227-0 01 1 9907-0012 ● ● ●
191 04.685 PIPE; VAC
4JG2 ENG(RJC) EXC. ISRAEL EQUIPMENT(7LX) (A) 		8-97225-227-1 01 1 0101-0107 ● ● ●
191 04.685 PIPE; VAC
4JA1 ENG(RLE) (A) 		8-97225-227-1 01 1 0101-0107 ● ● ●
191 04.685 PIPE; VAC
4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL> (A) 		8-97225-227-1 01 1 0108-0302 ● ●
191 04.685 PIPE; VAC
4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL> (A) 		8-97365-523-0 01 1 0303- ● ●
191 04.685 PIPE; VAC
4JA1 ENG(RLE) ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> (A) 		8-97301-003-1 01 1 0108- ● ● ●
