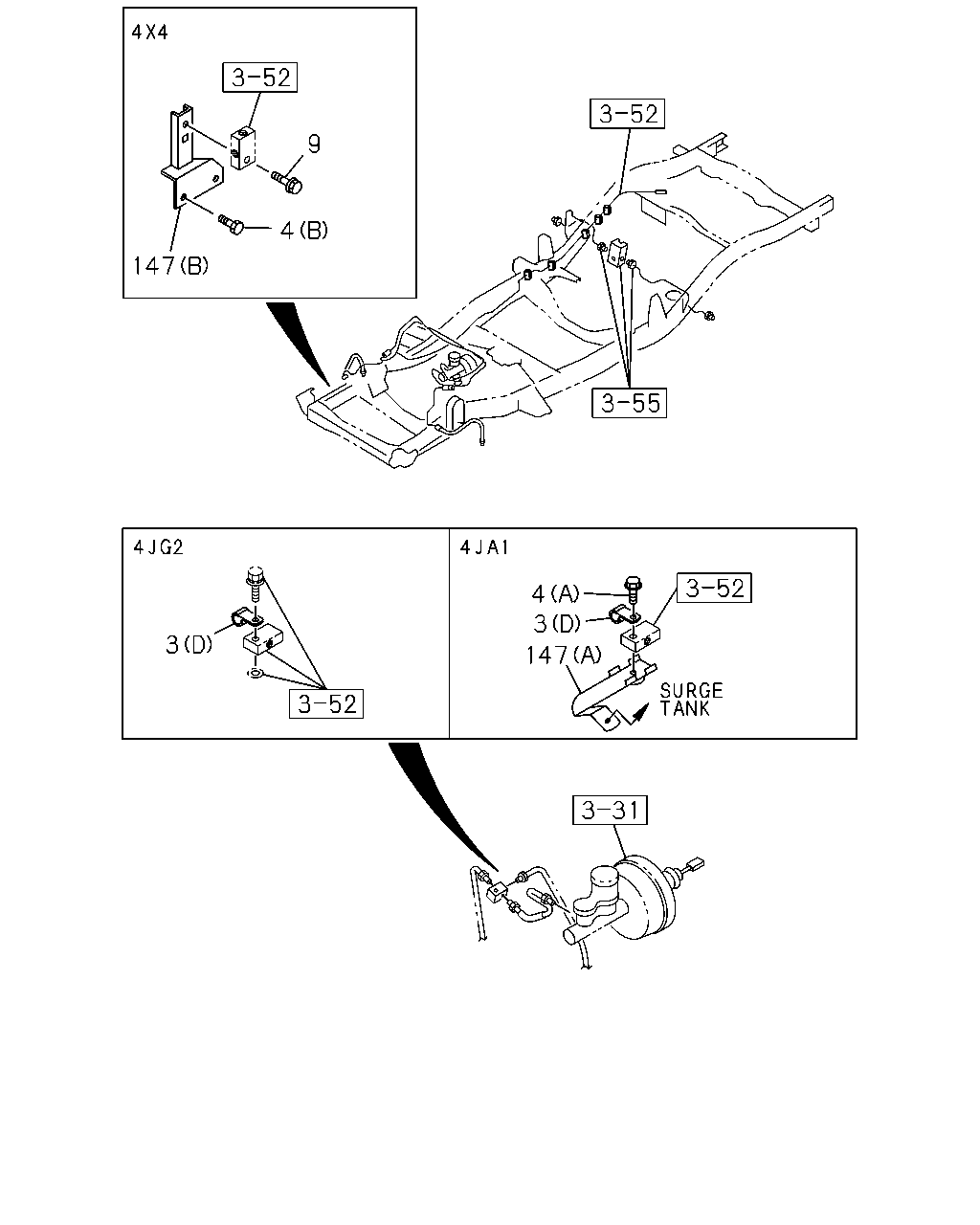

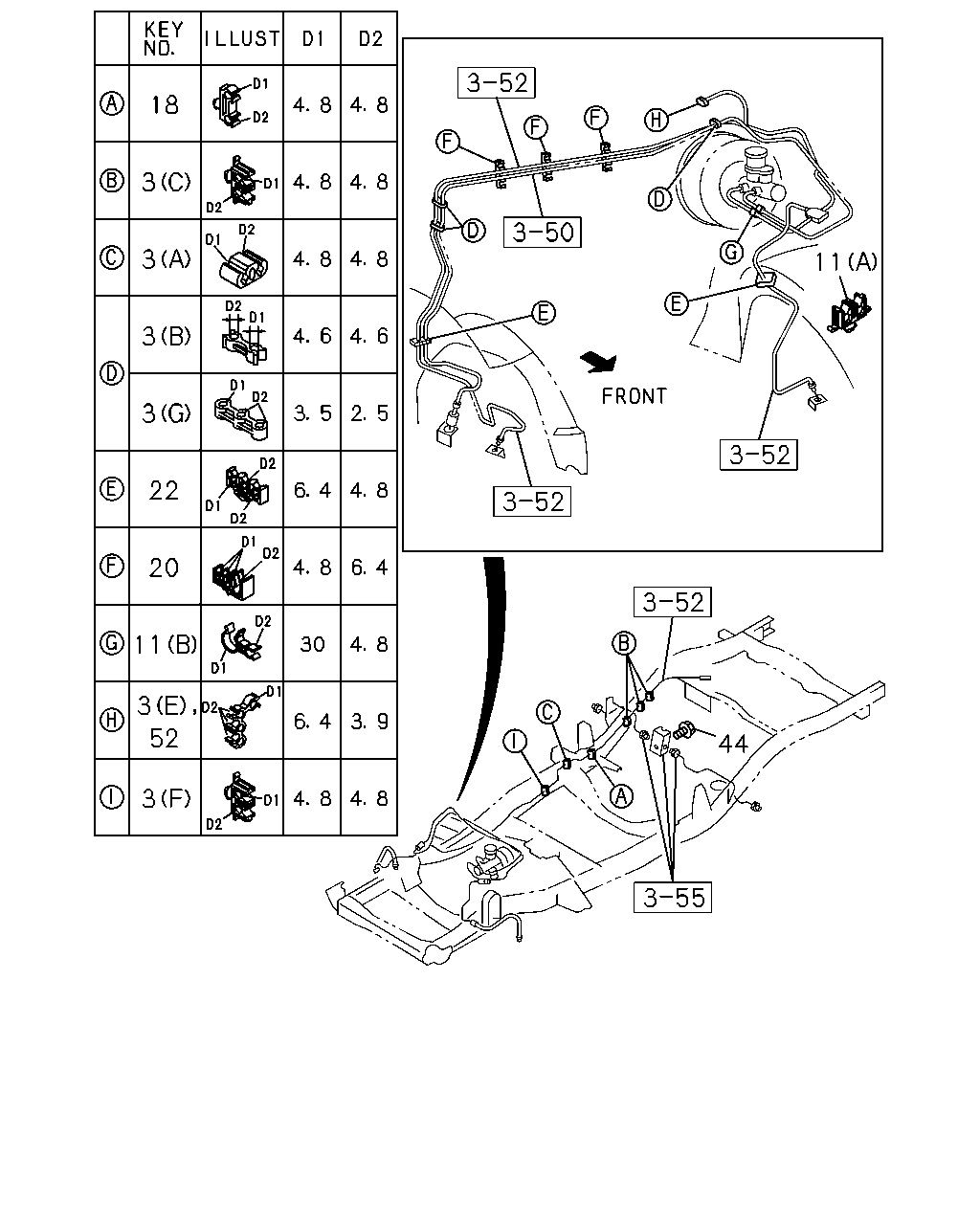

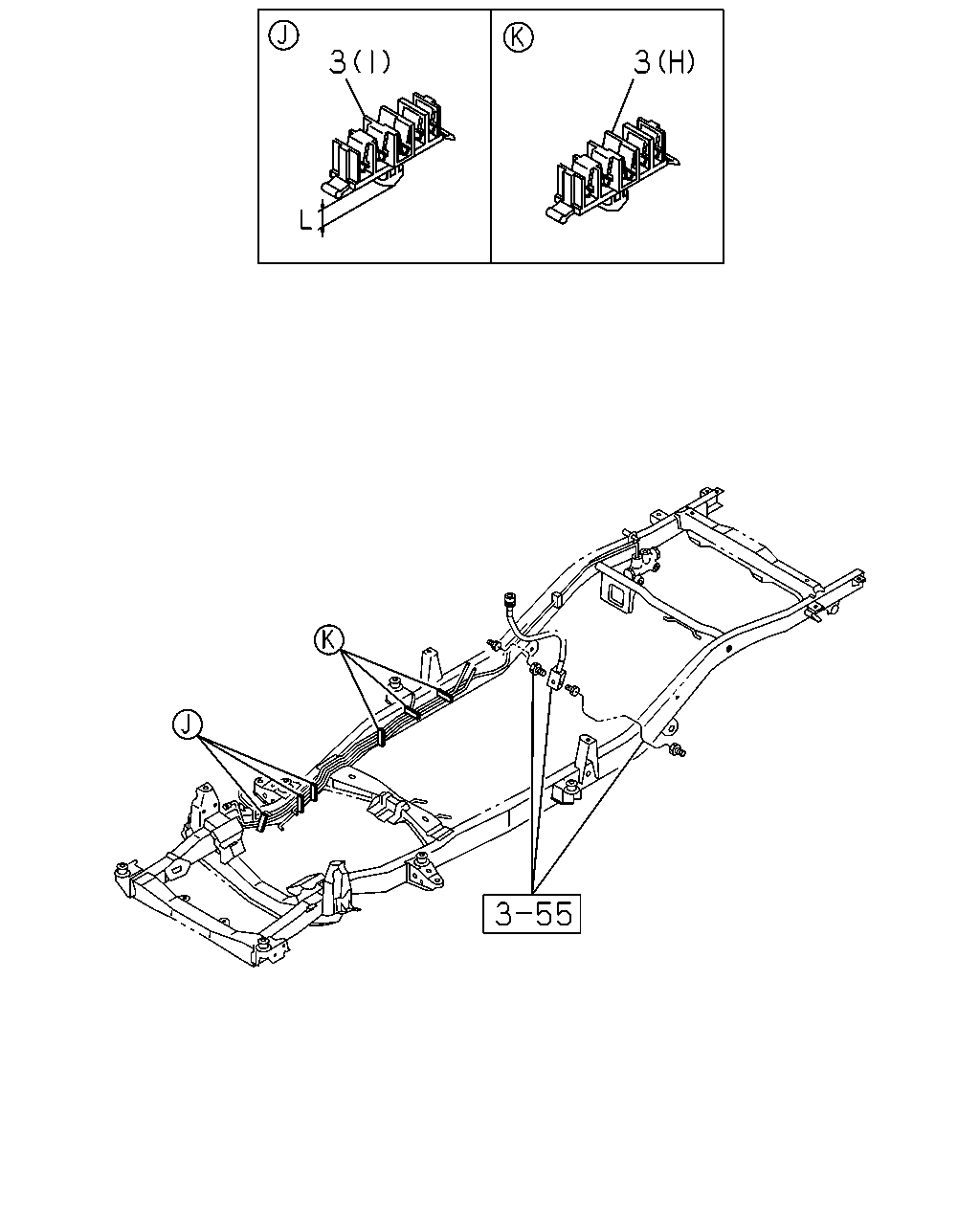

3-58 — FIXING PARTS; OIL PIPING (#44660) — 105 parça

3 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
3	04.685 CLIP; BRK PIPE AIR BAG DRIVER(AJ3) 03.162 (H) L=7.4	8-94435-550-0	04	1	0108-	●
3	04.685 CLIP; BRK PIPE EXC. AIR BAG DRIVER(AJ3) 03.162 (H) L=7.4	8-94435-550-0	06	1	0108-	●
3	04.685 CLIP; BRK PIPE 04.686 (D)	9-09524-562-0	01	1	9804-	●	●	●	●	●	●
3	04.685 CLIP; BRK PIPE 4JA1 ENG(RLE) 04.868 (B) ID=4.6X2	8-94241-454-0	02	1	9804-0012	●	●	●	●	●	●
3	04.685 CLIP; BRK PIPE 4JA1 ENG(RLE) 04.868 (B) ID=4.6X2	8-94241-454-0	01	1	0101-	●	●	●	●	●	●
3	04.685 CLIP; BRK PIPE 4JA1 ENG(RLE) 03.162 (E) ID=6.4 & 4.8 & 4.8 & 4.8	8-97035-565-2	01	1	9804-	●	●	●	●	●	●
3	04.685 CLIP; BRK PIPE 4JG2 ENG(RJC) 04.868 (B) ID=4.6X2	8-94241-454-0	01	1	9804-0012	●	●	●	●	●	●
3	04.685 CLIP; BRK PIPE 4JG2 ENG(RJC),4JA1 ENG(RLE) 04.686 (G) ID=6.4 & 4.8X2	8-94146-043-0	03	1	0101-0107	●	●	●	●	●	●
3	04.685 CLIP; BRK PIPE 04.686 (G) ID=6.4 & 4.8X2	8-94146-043-0	03	1	0108-	●
3	04.685 CLIP; BRK PIPE 4JG2 ENG(RJC),4JA1 ENG(RLE) 04.686 (G) ID=6.4 & 4.8X2	8-94146-043-0	03	1	0108-		●	●		●	●
3	04.685 CLIP; BRK PIPE 4JA1 ENG(RLE) 04.686 (G) ID=6.4 & 4.8X2	8-94146-043-0	03	1	0108-				●
3	04.685 CLIP; BRK PIPE 04.686 (C)	8-94435-553-0	04	1	9804-9906	●	●		●	●
3	04.685 CLIP; BRK PIPE EXC. AIR BAG DRIVER(AJ3) 04.686 (C)	8-94435-553-0	04	1	9907-	●			●	●
3	04.685 CLIP; BRK PIPE 4JG2 ENG(RJC),4JA1 ENG(RLE) 04.686 (C)	8-94435-553-0	04	1	9907-		●
3	04.685 CLIP; BRK PIPE 04.686 (A) ID=4.8X2	8-94389-060-0	01	1	9804-	●			●
3	04.685 CLIP; BRK PIPE AIR BAG DRIVER(AJ3) 04.686 (F)	8-94326-752-0	01	1	9907-	●			●	●	●
3	04.685 CLIP; BRK PIPE 4JA1 ENG(RLE) AIR BAG DRIVER(AJ3) CHARGE AIR COOLER<6PL> 03.162 (I) L=8.9	8-94435-551-1	02	1	0108-	●			●	●	●
3	04.685 CLIP; BRK PIPE 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> 03.162 (H) L=7.4	8-94435-550-0	07	1	0108-		●	●
3	04.685 CLIP; BRK PIPE 04.686 (C)	8-94435-553-0	03	1	9804-9906			●			●
3	04.685 CLIP; BRK PIPE AIR BAG DRIVER(AJ3) 04.686 (C)	8-94435-553-0	03	1	9907-	●			●	●
3	04.685 CLIP; BRK PIPE 4JG2 ENG(RJC),4JA1 ENG(RLE) 04.686 (C)	8-94435-553-0	03	1	9907-			●
3	04.685 CLIP; BRK PIPE EXC. AIR BAG DRIVER(AJ3) 04.686 (C)	8-94435-553-0	03	1	9907-						●
3	04.685 CLIP; BRK PIPE 4JA1 ENG(RLE) AIR BAG DRIVER(AJ3) 03.162 (H) L=7.4	8-94435-550-0	01	1	0108-				●
3	04.685 CLIP; BRK PIPE 4JA1 ENG(RLE) EXC. AIR BAG DRIVER(AJ3) 03.162 (H) L=7.4	8-94435-550-0	02	1	0108-				●
3	04.685 CLIP; BRK PIPE 4JA1 ENG(RLE) AIR BAG DRIVER(AJ3) CHARGE AIR COOLER<6PL> 03.162 (H) L=7.4	8-94435-550-0	02	1	0108-					●	●
3	04.685 CLIP; BRK PIPE 4JA1 ENG(RLE) AIR BAG DRIVER(AJ3) CHARGE AIR COOLER<6PL> 03.162 (I) L=8.9	8-94435-551-1	03	1	0108-				●	●	●
3	04.685 CLIP; BRK PIPE 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> EXC. AIR BAG DRIVER(AJ3) 03.162 (H) L=7.4	8-94435-550-0	03	1	0108-					●	●
3	04.685 CLIP; BRK PIPE AIR BAG DRIVER(AJ3) 04.686 (C)	8-94435-553-0	02	1	9907-						●

9 4 147 4 3 3 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
3	04.685 CLIP; BRK PIPE AIR BAG DRIVER(AJ3) 03.162 (H) L=7.4	8-94435-550-0	04	1	0108-	●
3	04.685 CLIP; BRK PIPE EXC. AIR BAG DRIVER(AJ3) 03.162 (H) L=7.4	8-94435-550-0	06	1	0108-	●
3	04.685 CLIP; BRK PIPE 04.686 (D)	9-09524-562-0	01	1	9804-	●	●	●	●	●	●
3	04.685 CLIP; BRK PIPE 4JA1 ENG(RLE) 04.868 (B) ID=4.6X2	8-94241-454-0	02	1	9804-0012	●	●	●	●	●	●
3	04.685 CLIP; BRK PIPE 4JA1 ENG(RLE) 04.868 (B) ID=4.6X2	8-94241-454-0	01	1	0101-	●	●	●	●	●	●
3	04.685 CLIP; BRK PIPE 4JA1 ENG(RLE) 03.162 (E) ID=6.4 & 4.8 & 4.8 & 4.8	8-97035-565-2	01	1	9804-	●	●	●	●	●	●
3	04.685 CLIP; BRK PIPE 4JG2 ENG(RJC) 04.868 (B) ID=4.6X2	8-94241-454-0	01	1	9804-0012	●	●	●	●	●	●
3	04.685 CLIP; BRK PIPE 4JG2 ENG(RJC),4JA1 ENG(RLE) 04.686 (G) ID=6.4 & 4.8X2	8-94146-043-0	03	1	0101-0107	●	●	●	●	●	●
3	04.685 CLIP; BRK PIPE 04.686 (G) ID=6.4 & 4.8X2	8-94146-043-0	03	1	0108-	●
3	04.685 CLIP; BRK PIPE 4JG2 ENG(RJC),4JA1 ENG(RLE) 04.686 (G) ID=6.4 & 4.8X2	8-94146-043-0	03	1	0108-		●	●		●	●
3	04.685 CLIP; BRK PIPE 4JA1 ENG(RLE) 04.686 (G) ID=6.4 & 4.8X2	8-94146-043-0	03	1	0108-				●
3	04.685 CLIP; BRK PIPE 04.686 (C)	8-94435-553-0	04	1	9804-9906	●	●		●	●
3	04.685 CLIP; BRK PIPE EXC. AIR BAG DRIVER(AJ3) 04.686 (C)	8-94435-553-0	04	1	9907-	●			●	●
3	04.685 CLIP; BRK PIPE 4JG2 ENG(RJC),4JA1 ENG(RLE) 04.686 (C)	8-94435-553-0	04	1	9907-		●
3	04.685 CLIP; BRK PIPE 04.686 (A) ID=4.8X2	8-94389-060-0	01	1	9804-	●			●
3	04.685 CLIP; BRK PIPE AIR BAG DRIVER(AJ3) 04.686 (F)	8-94326-752-0	01	1	9907-	●			●	●	●
3	04.685 CLIP; BRK PIPE 4JA1 ENG(RLE) AIR BAG DRIVER(AJ3) CHARGE AIR COOLER<6PL> 03.162 (I) L=8.9	8-94435-551-1	02	1	0108-	●			●	●	●
3	04.685 CLIP; BRK PIPE 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> 03.162 (H) L=7.4	8-94435-550-0	07	1	0108-		●	●
3	04.685 CLIP; BRK PIPE 04.686 (C)	8-94435-553-0	03	1	9804-9906			●			●
3	04.685 CLIP; BRK PIPE AIR BAG DRIVER(AJ3) 04.686 (C)	8-94435-553-0	03	1	9907-	●			●	●
3	04.685 CLIP; BRK PIPE 4JG2 ENG(RJC),4JA1 ENG(RLE) 04.686 (C)	8-94435-553-0	03	1	9907-			●
3	04.685 CLIP; BRK PIPE EXC. AIR BAG DRIVER(AJ3) 04.686 (C)	8-94435-553-0	03	1	9907-						●
3	04.685 CLIP; BRK PIPE 4JA1 ENG(RLE) AIR BAG DRIVER(AJ3) 03.162 (H) L=7.4	8-94435-550-0	01	1	0108-				●
3	04.685 CLIP; BRK PIPE 4JA1 ENG(RLE) EXC. AIR BAG DRIVER(AJ3) 03.162 (H) L=7.4	8-94435-550-0	02	1	0108-				●
3	04.685 CLIP; BRK PIPE 4JA1 ENG(RLE) AIR BAG DRIVER(AJ3) CHARGE AIR COOLER<6PL> 03.162 (H) L=7.4	8-94435-550-0	02	1	0108-					●	●
3	04.685 CLIP; BRK PIPE 4JA1 ENG(RLE) AIR BAG DRIVER(AJ3) CHARGE AIR COOLER<6PL> 03.162 (I) L=8.9	8-94435-551-1	03	1	0108-				●	●	●
3	04.685 CLIP; BRK PIPE 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> EXC. AIR BAG DRIVER(AJ3) 03.162 (H) L=7.4	8-94435-550-0	03	1	0108-					●	●
3	04.685 CLIP; BRK PIPE AIR BAG DRIVER(AJ3) 04.686 (C)	8-94435-553-0	02	1	9907-						●
4	04.686 BOLT; BRKT 4JA1 ENG(RLE) 03.163 (A) M6X40 FLANGE	0-28680-640-0	01	1	9804-0012	●	●	●	●	●	●
4	04.686 BOLT; BRKT 02.334 (B) M8X40 W/LK&PL WASHER	0-51240-840-0	02	1	9804-0012				●	●	●
4	04.686 BOLT; BRKT 04.595 (B) M8X20 FLANGE	0-28480-820-0	02	1	0101-0111				●	●	●
4	04.686 BOLT; BRKT 01.252 (B) M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	0112-0210				●	●	●
4	04.686 BOLT; BRKT 02.183 (B) M8X35 FLANGE	0-28680-835-0	02	1	0211-				●	●	●
9	04.686 BOLT; BRKT 01.252 M8X30 W/LK&PL WASHER	0-50140-830-0	01	1	9804-0210				●	●	●
9	04.686 BOLT; BRKT M8X30 FLANGE	0-28680-830-0	01	1	0211-				●	●	●
147	04.686 BRACKET; CONNECTOR 4JA1 ENG(RLE) (A)	8-94331-701-1	01	1	9804-0012	●	●	●	●	●	●
147	04.686 BRACKET; CONNECTOR (B)	8-94333-040-1	01	1	9804-				●	●	●

18 3 3 11 3 3 22 20 11 3 52 44 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
3	04.685 CLIP; BRK PIPE AIR BAG DRIVER(AJ3) 03.162 (H) L=7.4	8-94435-550-0	04	1	0108-	●
3	04.685 CLIP; BRK PIPE EXC. AIR BAG DRIVER(AJ3) 03.162 (H) L=7.4	8-94435-550-0	06	1	0108-	●
3	04.685 CLIP; BRK PIPE 04.686 (D)	9-09524-562-0	01	1	9804-	●	●	●	●	●	●
3	04.685 CLIP; BRK PIPE 4JA1 ENG(RLE) 04.868 (B) ID=4.6X2	8-94241-454-0	02	1	9804-0012	●	●	●	●	●	●
3	04.685 CLIP; BRK PIPE 4JA1 ENG(RLE) 04.868 (B) ID=4.6X2	8-94241-454-0	01	1	0101-	●	●	●	●	●	●
3	04.685 CLIP; BRK PIPE 4JA1 ENG(RLE) 03.162 (E) ID=6.4 & 4.8 & 4.8 & 4.8	8-97035-565-2	01	1	9804-	●	●	●	●	●	●
3	04.685 CLIP; BRK PIPE 4JG2 ENG(RJC) 04.868 (B) ID=4.6X2	8-94241-454-0	01	1	9804-0012	●	●	●	●	●	●
3	04.685 CLIP; BRK PIPE 4JG2 ENG(RJC),4JA1 ENG(RLE) 04.686 (G) ID=6.4 & 4.8X2	8-94146-043-0	03	1	0101-0107	●	●	●	●	●	●
3	04.685 CLIP; BRK PIPE 04.686 (G) ID=6.4 & 4.8X2	8-94146-043-0	03	1	0108-	●
3	04.685 CLIP; BRK PIPE 4JG2 ENG(RJC),4JA1 ENG(RLE) 04.686 (G) ID=6.4 & 4.8X2	8-94146-043-0	03	1	0108-		●	●		●	●
3	04.685 CLIP; BRK PIPE 4JA1 ENG(RLE) 04.686 (G) ID=6.4 & 4.8X2	8-94146-043-0	03	1	0108-				●
3	04.685 CLIP; BRK PIPE 04.686 (C)	8-94435-553-0	04	1	9804-9906	●	●		●	●
3	04.685 CLIP; BRK PIPE EXC. AIR BAG DRIVER(AJ3) 04.686 (C)	8-94435-553-0	04	1	9907-	●			●	●
3	04.685 CLIP; BRK PIPE 4JG2 ENG(RJC),4JA1 ENG(RLE) 04.686 (C)	8-94435-553-0	04	1	9907-		●
3	04.685 CLIP; BRK PIPE 04.686 (A) ID=4.8X2	8-94389-060-0	01	1	9804-	●			●
3	04.685 CLIP; BRK PIPE AIR BAG DRIVER(AJ3) 04.686 (F)	8-94326-752-0	01	1	9907-	●			●	●	●
3	04.685 CLIP; BRK PIPE 4JA1 ENG(RLE) AIR BAG DRIVER(AJ3) CHARGE AIR COOLER<6PL> 03.162 (I) L=8.9	8-94435-551-1	02	1	0108-	●			●	●	●
3	04.685 CLIP; BRK PIPE 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> 03.162 (H) L=7.4	8-94435-550-0	07	1	0108-		●	●
3	04.685 CLIP; BRK PIPE 04.686 (C)	8-94435-553-0	03	1	9804-9906			●			●
3	04.685 CLIP; BRK PIPE AIR BAG DRIVER(AJ3) 04.686 (C)	8-94435-553-0	03	1	9907-	●			●	●
3	04.685 CLIP; BRK PIPE 4JG2 ENG(RJC),4JA1 ENG(RLE) 04.686 (C)	8-94435-553-0	03	1	9907-			●
3	04.685 CLIP; BRK PIPE EXC. AIR BAG DRIVER(AJ3) 04.686 (C)	8-94435-553-0	03	1	9907-						●
3	04.685 CLIP; BRK PIPE 4JA1 ENG(RLE) AIR BAG DRIVER(AJ3) 03.162 (H) L=7.4	8-94435-550-0	01	1	0108-				●
3	04.685 CLIP; BRK PIPE 4JA1 ENG(RLE) EXC. AIR BAG DRIVER(AJ3) 03.162 (H) L=7.4	8-94435-550-0	02	1	0108-				●
3	04.685 CLIP; BRK PIPE 4JA1 ENG(RLE) AIR BAG DRIVER(AJ3) CHARGE AIR COOLER<6PL> 03.162 (H) L=7.4	8-94435-550-0	02	1	0108-					●	●
3	04.685 CLIP; BRK PIPE 4JA1 ENG(RLE) AIR BAG DRIVER(AJ3) CHARGE AIR COOLER<6PL> 03.162 (I) L=8.9	8-94435-551-1	03	1	0108-				●	●	●
3	04.685 CLIP; BRK PIPE 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> EXC. AIR BAG DRIVER(AJ3) 03.162 (H) L=7.4	8-94435-550-0	03	1	0108-					●	●
3	04.685 CLIP; BRK PIPE AIR BAG DRIVER(AJ3) 04.686 (C)	8-94435-553-0	02	1	9907-						●
11	04.686 CLIP; OIL PIPE 4JG2 ENG(RJC),4JA1 ENG(RLE) (A) ID=4.8X2	8-94113-470-0	01	1	9804-0107	●	●	●
11	04.686 CLIP; OIL PIPE (A) ID=4.8X2	8-94113-470-0	01	1	0108-	●
11	04.686 CLIP; OIL PIPE 4JG2 ENG(RJC),4JA1 ENG(RLE) (A) ID=4.8X2	8-94113-470-0	01	1	0108-		●	●
11	04.686 CLIP; OIL PIPE (B)	8-97084-569-0	01	1	9804-	●
11	04.686 CLIP; OIL PIPE 4JA1 ENG(RLE) (B)	8-97084-569-0	01	1	9804-		●	●	●	●	●
18	04.686 CLIP; BRK PIPE	8-94389-586-0	01	1	9804-			●			●
20	04.686 CLIP; BRK PIPE	8-97102-873-0	03	1	9804-	●	●	●	●	●	●
22	04.686 CLIP; PIPE TO FRAME	8-94442-883-1	01	1	9804-	●	●	●
22	04.686 CLIP; PIPE TO FRAME	8-94442-883-1	02	1	9804-				●	●	●
44	04.686 BOLT; CLIP TO FRAME M8X30 FLANGE	0-28680-830-0	01	1	9804-	●	●	●	●	●	●
52	04.686 CLIP; BRK PIPE 4JG2 ENG(RJC) 03.162 ID=6.4 & 4.8 & 4.8 & 4.8	8-97035-565-2	01	1	9804-0107	●	●	●	●	●	●
52	04.686 CLIP; BRK PIPE 4JG2 ENG(RJC) 03.162 ID=6.4 & 4.8 & 4.8 & 4.8	8-97035-565-2	01	1	0108-		●	●		●	●
