1 |

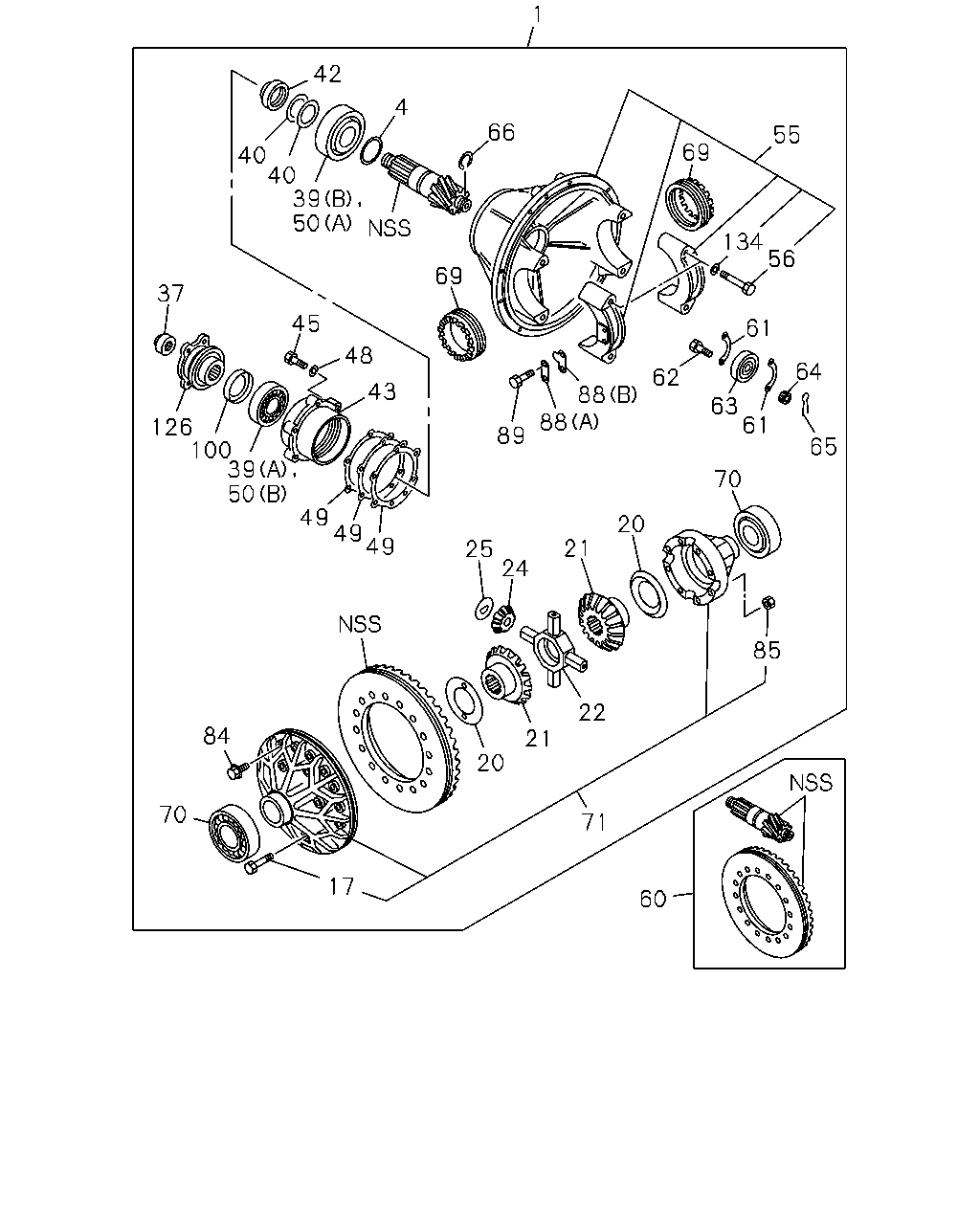

DRIVE ASM; FINAL,RR
FINAL GEAR 43/7 15.5" HYPOID(W1R)
FINAL GEAR SHOTPEENING<BHT>
EXC. BRK SYSTEM HEAVY DUTY<J55>
43/7
|
1-41003-265-0 |
01 |
1 |
0601- |
● |
|
| |
1 |
DRIVE ASM; FINAL,RR
FINAL GEAR 39/7 15.5" HYPOID(W3K)
FINAL GEAR SHOTPEENING<BHT>
EXC. BRK SYSTEM HEAVY DUTY<J55>
39/7
|
1-41003-266-0 |
01 |
1 |
0601- |
● |
|
| |
1 |
DRIVE ASM; FINAL,RR
FINAL GEAR 39/6 15.5" HYPOID(W1T)
39/6
|
1-41000-602-0 |
01 |
1 |
9101-9504 |
● |
● |
| |
1 |
DRIVE ASM; FINAL,RR
FINAL GEAR 39/6 15.5" HYPOID(W1T)
EXC. RR AXLE R105A<BBJ>
39/6
|
1-41001-311-0 |
01 |
1 |
9505-9605 |
● |
● |
| |
1 |
DRIVE ASM; FINAL,RR
FINAL GEAR 39/6 15.5" HYPOID(W1T)
EXC. BRK SYSTEM HEAVY DUTY<J55>
39/6
|
1-41001-311-0 |
01 |
1 |
9606-9706 |
● |
● |
| |
1 |
DRIVE ASM; FINAL,RR
FINAL GEAR 39/6 15.5" HYPOID(W1T)
EXC. P60W PROP SHAFT<B5M>,BRK SYSTEM HEAVY
DUTY<J55>
39/6
|
1-41001-311-0 |
01 |
1 |
9707-9805 |
● |
● |
| |
1 |
DRIVE ASM; FINAL,RR
FINAL GEAR 39/6 15.5" HYPOID(W1T)
EXC. BRK SYSTEM HEAVY DUTY<J55>
39/6
|
1-41001-311-0 |
01 |
1 |
9806- |
● |
● |
| |
1 |
DRIVE ASM; FINAL,RR
FINAL GEAR 39/6 15.5" HYPOID(W1T)
BRK SYSTEM HEAVY DUTY<J55>
39/6
|
1-41001-130-0 |
01 |
1 |
9606-9706 |
● |
● |
| |
1 |
DRIVE ASM; FINAL,RR
FINAL GEAR 39/6 15.5" HYPOID(W1T)
BRK SYSTEM HEAVY DUTY<J55>
EXC. P60W PROP SHAFT<B5M>
39/6
|
1-41001-130-0 |
01 |
1 |
9707-9805 |
● |
● |
| |
1 |
DRIVE ASM; FINAL,RR
FINAL GEAR 39/6 15.5" HYPOID(W1T)
BRK SYSTEM HEAVY DUTY<J55>
39/6
|
1-41001-130-0 |
01 |
1 |
9806- |
● |
● |
| |
1 |
DRIVE ASM; FINAL,RR
FINAL GEAR 39/7 15.5" HYPOID(W3K)
39/7
|
1-41000-605-0 |
01 |
1 |
9101-9504 |
● |
● |
| |
1 |
DRIVE ASM; FINAL,RR
FINAL GEAR 39/7 15.5" HYPOID(W3K)
EXC. RR AXLE R105A<BBJ>
39/7
|
1-41001-276-0 |
01 |
1 |
9505-9605 |
● |
● |
| |
1 |
DRIVE ASM; FINAL,RR
FINAL GEAR 39/7 15.5" HYPOID(W3K)
EXC. BRK SYSTEM HEAVY DUTY<J55>
39/7
|
1-41001-276-0 |
01 |
1 |
9606-9706 |
● |
● |
| |
1 |
DRIVE ASM; FINAL,RR
FINAL GEAR 39/7 15.5" HYPOID(W3K)
EXC. P60W PROP SHAFT<B5M>,BRK SYSTEM HEAVY
DUTY<J55>
39/7
|
1-41001-276-0 |
01 |
1 |
9707-9805 |
● |
● |
| |
1 |
DRIVE ASM; FINAL,RR
FINAL GEAR 39/7 15.5" HYPOID(W3K)
EXC. BRK SYSTEM HEAVY DUTY<J55>
39/7
|
1-41001-276-0 |
01 |
1 |
9806-0512 |
● |
● |
| |
1 |
DRIVE ASM; FINAL,RR
FINAL GEAR 39/7 15.5" HYPOID(W3K)
EXC. BRK SYSTEM HEAVY DUTY<J55>
39/7
|
1-41001-276-0 |
01 |
1 |
0601- |
|
● |
| |
1 |
DRIVE ASM; FINAL,RR
FINAL GEAR 39/7 15.5" HYPOID(W3K)
EXC. FINAL GEAR SHOTPEENING<BHT>,BRK SYSTEM HEAVY
DUTY<J55>
39/7
|
1-41001-276-0 |
01 |
1 |
0601- |
● |
|
| |
1 |
DRIVE ASM; FINAL,RR
FINAL GEAR 39/7 15.5" HYPOID(W3K)
BRK SYSTEM HEAVY DUTY<J55>
39/7
|
1-41001-257-0 |
01 |
1 |
9606-9706 |
● |
● |
| |
1 |
DRIVE ASM; FINAL,RR
FINAL GEAR 39/7 15.5" HYPOID(W3K)
BRK SYSTEM HEAVY DUTY<J55>
EXC. P60W PROP SHAFT<B5M>
39/7
|
1-41001-257-0 |
01 |
1 |
9707-9805 |
● |
● |
| |
1 |
DRIVE ASM; FINAL,RR
FINAL GEAR 39/7 15.5" HYPOID(W3K)
BRK SYSTEM HEAVY DUTY<J55>
39/7
|
1-41001-257-0 |
01 |
1 |
9806- |
● |
● |
| |
1 |
DRIVE ASM; FINAL,RR
FINAL GEAR 41/7 15.5" HYPOID(W3S)
BRK SYSTEM HEAVY DUTY<J55>
41/7
|
1-41001-596-0 |
01 |
1 |
9702- |
● |
● |
| |
1 |
DRIVE ASM; FINAL,RR
FINAL GEAR 41/7 15.5" HYPOID(W3S)
EXC. BRK SYSTEM HEAVY DUTY<J55>
41/7
|
1-41001-310-0 |
01 |
1 |
9702- |
● |
● |
| |
1 |
DRIVE ASM; FINAL,RR
FINAL GEAR 41/8 15.5" HYPOID(W4H)
BRK SYSTEM HEAVY DUTY<J55>
41/8
|
1-41001-352-0 |
01 |
1 |
9606-9706 |
● |
● |
| |
1 |
DRIVE ASM; FINAL,RR
FINAL GEAR 41/8 15.5" HYPOID(W4H)
BRK SYSTEM HEAVY DUTY<J55>
EXC. P60W PROP SHAFT<B5M>
41/8
|
1-41001-352-0 |
01 |
1 |
9707-9805 |
● |
● |
| |
1 |
DRIVE ASM; FINAL,RR
FINAL GEAR 41/8 15.5" HYPOID(W4H)
BRK SYSTEM HEAVY DUTY<J55>
41/8
|
1-41001-352-0 |
01 |
1 |
9806- |
● |
● |
| |
1 |
DRIVE ASM; FINAL,RR
FINAL GEAR 41/8 15.5" HYPOID(W4H)
P60W PROP SHAFT<B5M>
41/8
|
1-41002-294-0 |
01 |
1 |
9709-9805 |
● |
● |
| |
1 |
DRIVE ASM; FINAL,RR
FINAL GEAR 43/7 15.5" HYPOID(W1R)
BRK SYSTEM HEAVY DUTY<J55>
43/7
|
1-41001-256-0 |
01 |
1 |
9606-9706 |
● |
● |
| |
1 |
DRIVE ASM; FINAL,RR
FINAL GEAR 43/7 15.5" HYPOID(W1R)
BRK SYSTEM HEAVY DUTY<J55>
EXC. P60W PROP SHAFT<B5M>
43/7
|
1-41001-256-0 |
01 |
1 |
9707-9805 |
● |
● |
| |
1 |
DRIVE ASM; FINAL,RR
FINAL GEAR 43/7 15.5" HYPOID(W1R)
BRK SYSTEM HEAVY DUTY<J55>
43/7
|
1-41001-256-0 |
01 |
1 |
9806- |
● |
● |
| |
1 |
DRIVE ASM; FINAL,RR
FINAL GEAR 43/7 15.5" HYPOID(W1R)
ISUZU M/T<X9A>
43/7
|
1-41000-603-0 |
01 |
1 |
9101-9504 |
● |
● |
| |
1 |
DRIVE ASM; FINAL,RR
FINAL GEAR 43/7 15.5" HYPOID(W1R)
MT643 A/T ALLISON(PR7)
FRT & RR SPR LONG SPAN<W55>
EXC. DISC WHEEL 10STUD 22.5X8.25 165-13<QM8>,DISC
WHEEL 10STUD 20X7.00T<Q58>,DISC WHEEL 10STUD
20X7.50V 165-12<Q64>
43/7
|
1-41000-603-0 |
01 |
1 |
9101-9504 |
● |
● |
| |
1 |
DRIVE ASM; FINAL,RR
FINAL GEAR 43/7 15.5" HYPOID(W1R)
MT643 A/T ALLISON(PR7)
EXC. FRT & RR SPR LONG SPAN<W55>
43/7
|
1-41000-603-0 |
01 |
1 |
9101-9504 |
● |
● |
| |
1 |
DRIVE ASM; FINAL,RR
FINAL GEAR 43/7 15.5" HYPOID(W1R)
EXC. RR AXLE R105A<BBJ>
43/7
|
1-41001-307-0 |
01 |
1 |
9505-9605 |
● |
● |
| |
1 |
DRIVE ASM; FINAL,RR
FINAL GEAR 43/7 15.5" HYPOID(W1R)
EXC. BRK SYSTEM HEAVY DUTY<J55>
43/7
|
1-41001-307-0 |
01 |
1 |
9606-9706 |
● |
● |
| |
1 |
DRIVE ASM; FINAL,RR
FINAL GEAR 43/7 15.5" HYPOID(W1R)
EXC. P60W PROP SHAFT<B5M>,BRK SYSTEM HEAVY
DUTY<J55>
43/7
|
1-41001-307-0 |
01 |
1 |
9707-9805 |
● |
● |
| |
1 |
DRIVE ASM; FINAL,RR
FINAL GEAR 43/7 15.5" HYPOID(W1R)
EXC. BRK SYSTEM HEAVY DUTY<J55>
43/7
|
1-41001-307-0 |
01 |
1 |
9806-0512 |
● |
● |
| |
1 |
DRIVE ASM; FINAL,RR
FINAL GEAR 43/7 15.5" HYPOID(W1R)
EXC. BRK SYSTEM HEAVY DUTY<J55>
43/7
|
1-41001-307-0 |
01 |
1 |
0601- |
|
● |
| |
1 |
DRIVE ASM; FINAL,RR
FINAL GEAR 43/7 15.5" HYPOID(W1R)
EXC. FINAL GEAR SHOTPEENING<BHT>,BRK SYSTEM HEAVY
DUTY<J55>
43/7
|
1-41001-307-0 |
01 |
1 |
0601- |
● |
|
| |
1 |
DRIVE ASM; FINAL,RR
FINAL GEAR 43/7 15.5" HYPOID(W1R)
MT643 A/T ALLISON(PR7)
DISC WHEEL 10STUD 22.5X8.25 165-13<QM8>,DISC
WHEEL10STUD 20X7.00T<Q58>,DISC WHEEL 10STUD 20X7.50V
165-12<Q64>
FRT & RR SPR LONG SPAN<W55>
43/7
|
1-41000-716-0 |
01 |
1 |
9101-9504 |
● |
● |
| |
1 |
DRIVE ASM; FINAL,RR
FINAL GEAR 41/8 15.5" HYPOID(W4H)
EXC. RR AXLE R105A<BBJ>
41/8
|
1-41001-306-0 |
01 |
1 |
9505-9605 |
● |
● |
| |
1 |
DRIVE ASM; FINAL,RR
FINAL GEAR 41/8 15.5" HYPOID(W4H)
EXC. BRK SYSTEM HEAVY DUTY<J55>
41/8
|
1-41001-306-0 |
01 |
1 |
9606-9706 |
● |
● |
| |
1 |
DRIVE ASM; FINAL,RR
FINAL GEAR 41/8 15.5" HYPOID(W4H)
EXC. P60W PROP SHAFT<B5M>,BRK SYSTEM HEAVY
DUTY<J55>
41/8
|
1-41001-306-0 |
01 |
1 |
9707-9805 |
● |
● |
| |
1 |
DRIVE ASM; FINAL,RR
FINAL GEAR 41/8 15.5" HYPOID(W4H)
EXC. BRK SYSTEM HEAVY DUTY<J55>
41/8
|
1-41001-306-0 |
01 |
1 |
9806- |
● |
● |
| |
1 |
DRIVE ASM; FINAL,RR
FINAL GEAR 39/6 15.5" HYPOID(W1T)
P60W PROP SHAFT<B5M>
39/6
|
1-41001-804-0 |
01 |
1 |
9707-9805 |
● |
|
| |
1 |
DRIVE ASM; FINAL,RR
FINAL GEAR 39/7 15.5" HYPOID(W3K)
P60W PROP SHAFT<B5M>
39/7
|
1-41001-805-0 |
01 |
1 |
9707-9805 |
● |
|
| |
1 |
DRIVE ASM; FINAL,RR
FINAL GEAR 43/7 15.5" HYPOID(W1R)
P60W PROP SHAFT<B5M>
43/7
|
1-41001-712-0 |
01 |
1 |
9707-9805 |
● |
|
| |
4 |
GASKET; FLANGE,FINAL PINION
ID=42
|
1-09623-475-0 |
01 |
1 |
9101-0208 |
● |
● |
| |
4 |
GASKET; FLANGE,FINAL PINION
ID=42
|
9-09921-116-0 |
01 |
1 |
0209- |
● |
● |
| |
17 |
BOLT; DIFF CAGE SETTING
M14X95 FLANGE
|
1-09044-007-0 |
12 |
1 |
9101- |
● |
● |
| |
20 |
WASHER; THRUST,SIDE GEAR
T=2.75
|
1-41562-139-0 |
AR |
1 |
9101- |
● |
● |
| |
20 |
WASHER; THRUST,SIDE GEAR
T=2.80
|
1-41562-140-0 |
AR |
1 |
9101- |
● |
● |
| |
20 |
WASHER; THRUST,SIDE GEAR
T=2.85
|
1-41562-141-0 |
AR |
1 |
9101- |
● |
● |
| |
20 |
WASHER; THRUST,SIDE GEAR
T=2.90
|
1-41562-142-0 |
AR |
1 |
9101- |
● |
● |
| |
20 |
WASHER; THRUST,SIDE GEAR
T=2.95
|
1-41562-143-0 |
AR |
1 |
9101-9708 |
● |
● |
| |
20 |
WASHER; THRUST,SIDE GEAR
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. RR AXLE R105A<BBJ>
T=2.95
|
1-41562-143-0 |
AR |
1 |
9709-9802 |
|
● |
| |
20 |
WASHER; THRUST,SIDE GEAR
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)
T=2.95
|
1-41562-143-0 |
AR |
1 |
9709-9802 |
|
● |
| |
20 |
WASHER; THRUST,SIDE GEAR
T=2.95
|
1-41562-143-0 |
AR |
1 |
9709-9802 |
● |
|
| |
20 |
WASHER; THRUST,SIDE GEAR
T=2.95
|
1-41562-143-0 |
AR |
1 |
9803- |
● |
● |
| |
20 |
WASHER; THRUST,SIDE GEAR
T=3.00
|
1-41562-144-0 |
AR |
1 |
9101- |
● |
● |
| |
20 |
WASHER; THRUST,SIDE GEAR
T=3.05
|
1-41562-145-0 |
AR |
1 |
9101- |
● |
● |
| |
20 |
WASHER; THRUST,SIDE GEAR
T=3.10
|
1-41562-146-0 |
AR |
1 |
9101- |
● |
● |
| |
20 |
WASHER; THRUST,SIDE GEAR
T=3.15
|
1-41562-147-0 |
AR |
1 |
9101- |
● |
● |
| |
20 |
WASHER; THRUST,SIDE GEAR
T=3.20
|
1-41562-148-0 |
AR |
1 |
9101- |
● |
● |
| |
20 |
WASHER; THRUST,SIDE GEAR
T=3.25
|
1-41562-149-0 |
AR |
1 |
9101- |
● |
● |
| |
20 |
WASHER; THRUST,SIDE GEAR
T=3.30
|
1-41562-150-0 |
AR |
1 |
9101- |
● |
● |
| |
20 |
WASHER; THRUST,SIDE GEAR
T=3.35
|
1-41562-151-0 |
AR |
1 |
9101- |
● |
● |
| |
20 |
WASHER; THRUST,SIDE GEAR
T=3.40
|
1-41562-152-0 |
AR |
1 |
9101- |
● |
● |
| |
20 |
WASHER; THRUST,SIDE GEAR
T=3.45
|
1-41562-153-0 |
AR |
1 |
9101- |
● |
● |
| |
21 |
GEAR; SIDE,DIFF
Z=16
|
1-41561-027-1 |
02 |
1 |
9101-9504 |
● |
● |
| |
21 |
GEAR; SIDE,DIFF
Z=16
|
1-41561-075-0 |
02 |
1 |
9505-9605 |
● |
● |
| |
21 |
GEAR; SIDE,DIFF
EXC. BRK SYSTEM HEAVY DUTY<J55>
Z=16
|
1-41561-075-0 |
02 |
1 |
9606-9706 |
● |
● |
| |
21 |
GEAR; SIDE,DIFF
EXC. P60W PROP SHAFT<B5M>,BRK SYSTEM HEAVY
DUTY<J55>
Z=16
|
1-41561-075-0 |
02 |
1 |
9707-9805 |
● |
● |
| |
21 |
GEAR; SIDE,DIFF
EXC. BRK SYSTEM HEAVY DUTY<J55>
Z=16
|
1-41561-075-0 |
02 |
1 |
9806-0407 |
● |
● |
| |
21 |
GEAR; SIDE,DIFF
EXC. BRK SYSTEM HEAVY DUTY<J55>
Z=16
|
1-41561-127-0 |
02 |
1 |
0408-0903 |
● |
● |
| |
21 |
GEAR; SIDE,DIFF
EXC. BRK SYSTEM HEAVY DUTY<J55>
Z=16
|
1-41561-160-0 |
02 |
1 |
0904- |
● |
● |
| |
21 |
GEAR; SIDE,DIFF
BRK SYSTEM HEAVY DUTY<J55>
Z=16
|
1-41561-064-0 |
02 |
1 |
9606-0407 |
● |
● |
| |
21 |
GEAR; SIDE,DIFF
BRK SYSTEM HEAVY DUTY<J55>
Z=16
|
1-41561-126-0 |
02 |
1 |
0408-0903 |
● |
● |
| |
21 |
GEAR; SIDE,DIFF
BRK SYSTEM HEAVY DUTY<J55>
Z=16
|
1-41561-159-1 |
02 |
1 |
0904- |
● |
● |
| |
22 |
SPIDER; DIFF PINION
|
1-41521-014-1 |
01 |
1 |
9101-0408 |
● |
● |
| |
22 |
SPIDER; DIFF PINION
|
1-41521-061-0 |
01 |
1 |
0409- |
● |
● |
| |
24 |
GEAR; PINION,DIFF
Z=10
|
1-41551-010-2 |
04 |
1 |
9101-0407 |
● |
● |
| |
24 |
GEAR; PINION,DIFF
Z=10
|
1-41551-041-0 |
04 |
1 |
0408-0903 |
● |
● |
| |
24 |
GEAR; PINION,DIFF
Z=10
|
1-41551-051-0 |
04 |
1 |
0904- |
● |
● |
| |
25 |
WASHER; THRUST,PINION
|
1-41552-012-0 |
04 |
1 |
9101- |
● |
● |
| |
37 |
NUT; DRIVING PINION
M36 FLANGE
|
1-09449-067-0 |
01 |
1 |
9101- |
● |
● |
| |
39 |
BEARING; FINAL PINION
(A)
NSK
|
1-09812-041-2 |
01 |
1 |
9101-9504 |
● |
● |
| |
39 |
BEARING; FINAL PINION
(B)
NTN
|
1-09812-007-0 |
01 |
1 |
9505-9612 |
● |
● |
| |
39 |
BEARING; FINAL PINION
(B)
JTEKT
|
1-09812-218-0 |
01 |
1 |
9701- |
● |
● |
| |
40 |
SHIM; FINAL PINION
T=3.50
|
1-41229-020-0 |
AR |
1 |
9101-9404 |
● |
● |
| |
40 |
SHIM; FINAL PINION
T=3.50
|
1-41229-256-0 |
AR |
1 |
9405- |
● |
● |
| |
40 |
SHIM; FINAL PINION
T=3.51
|
1-41229-021-0 |
AR |
1 |
9101-9404 |
● |
● |
| |
40 |
SHIM; FINAL PINION
T=3.51
|
1-41229-257-0 |
AR |
1 |
9405- |
● |
● |
| |
40 |
SHIM; FINAL PINION
T=3.52
|
1-41229-022-0 |
AR |
1 |
9101-9404 |
● |
● |
| |
40 |
SHIM; FINAL PINION
T=3.52
|
1-41229-258-0 |
AR |
1 |
9405- |
● |
● |
| |
40 |
SHIM; FINAL PINION
T=3.53
|
1-41229-023-0 |
AR |
1 |
9101-9404 |
● |
● |
| |
40 |
SHIM; FINAL PINION
T=3.53
|
1-41229-259-0 |
AR |
1 |
9405- |
● |
● |
| |
40 |
SHIM; FINAL PINION
T=3.54
|
1-41229-024-0 |
AR |
1 |
9101-9404 |
● |
● |
| |
40 |
SHIM; FINAL PINION
T=3.54
|
1-41229-260-0 |
AR |
1 |
9405- |
● |
● |
| |
40 |
SHIM; FINAL PINION
T=3.55
|
1-41229-025-0 |
AR |
1 |
9101-9404 |
● |
● |
| |
40 |
SHIM; FINAL PINION
T=3.55
|
1-41229-261-0 |
AR |
1 |
9405- |
● |
● |
| |
40 |
SHIM; FINAL PINION
T=3.56
|
1-41229-026-0 |
AR |
1 |
9101-9404 |
● |
● |
| |
40 |
SHIM; FINAL PINION
T=3.56
|
1-41229-262-0 |
AR |
1 |
9405- |
● |
● |
| |
40 |
SHIM; FINAL PINION
T=3.57
|
1-41229-027-0 |
AR |
1 |
9101-9404 |
● |
● |
| |
40 |
SHIM; FINAL PINION
T=3.57
|
1-41229-263-0 |
AR |
1 |
9405- |
● |
● |
| |
40 |
SHIM; FINAL PINION
T=3.58
|
1-41229-028-0 |
AR |
1 |
9101-9404 |
● |
● |
| |
40 |
SHIM; FINAL PINION
T=3.58
|
1-41229-264-0 |
AR |
1 |
9405- |
● |
● |
| |
40 |
SHIM; FINAL PINION
T=3.59
|
1-41229-029-0 |
AR |
1 |
9101-9404 |
● |
● |
| |
40 |
SHIM; FINAL PINION
T=3.59
|
1-41229-265-0 |
AR |
1 |
9405- |
● |
● |
| |
40 |
SHIM; FINAL PINION
T=3.60
|
1-41229-030-0 |
AR |
1 |
9101-9404 |
● |
● |
| |
40 |
SHIM; FINAL PINION
T=3.60
|
1-41229-266-0 |
AR |
1 |
9405- |
● |
● |
| |
42 |
COLLAR; DIST,COLLAPSIBLE
T=7.40
|
1-41229-053-0 |
AR |
1 |
9101-9404 |
● |
● |
| |
42 |
COLLAR; DIST,COLLAPSIBLE
T=7.40
|
1-41229-267-0 |
AR |
1 |
9405- |
● |
● |
| |
42 |
COLLAR; DIST,COLLAPSIBLE
T=7.60
|
1-41229-054-0 |
AR |
1 |
9101-9404 |
● |
● |
| |
42 |
COLLAR; DIST,COLLAPSIBLE
T=7.60
|
1-41229-268-0 |
AR |
1 |
9405- |
● |
● |
| |
42 |
COLLAR; DIST,COLLAPSIBLE
T=7.80
|
1-41229-055-0 |
AR |
1 |
9101-9404 |
● |
● |
| |
42 |
COLLAR; DIST,COLLAPSIBLE
T=7.80
|
1-41229-269-0 |
AR |
1 |
9405- |
● |
● |
| |
42 |
COLLAR; DIST,COLLAPSIBLE
T=8.00
|
1-41229-056-0 |
AR |
1 |
9101-9404 |
● |
● |
| |
42 |
COLLAR; DIST,COLLAPSIBLE
T=8.00
|
1-41229-270-0 |
AR |
1 |
9405- |
● |
● |
| |
42 |
COLLAR; DIST,COLLAPSIBLE
T=8.20
|
1-41229-057-0 |
AR |
1 |
9101-9404 |
● |
● |
| |
42 |
COLLAR; DIST,COLLAPSIBLE
T=8.20
|
1-41229-271-0 |
AR |
1 |
9405- |
● |
● |
| |
43 |
CAGE; FINAL PINION
|
1-41151-028-1 |
01 |
1 |
9101- |
● |
● |
| |
45 |
BOLT; FINAL PINION CAGE
M14X50
|
0-16806-450-0 |
08 |
1 |
9101- |
● |
● |
| |
48 |
WASHER; LK,FINAL PINION
ID=14.2
|
9-09150-514-0 |
08 |
1 |
9101-0603 |
● |
● |
| |
48 |
WASHER; LK,FINAL PINION
ID=14.2
|
0-91510-514-0 |
08 |
1 |
0604- |
● |
● |
| |
49 |
SHIM; FINAL PINION CAGE
T=0.30
|
1-41154-063-0 |
AR |
1 |
9101- |
● |
● |
| |
49 |
SHIM; FINAL PINION CAGE
T=0.40
|
1-41154-064-0 |
AR |
1 |
9101- |
● |
● |
| |
49 |
SHIM; FINAL PINION CAGE
T=1.00
|
9-41154-013-0 |
AR |
1 |
9101- |
● |
● |
| |
49 |
SHIM; FINAL PINION CAGE
T=0.50
|
9-41154-014-0 |
AR |
1 |
9101- |
● |
● |
| |
50 |
BEARING; FINAL PINION
(B)
JTEKT
|
1-09812-042-1 |
01 |
1 |
0612- |
● |
● |
| |
50 |
BEARING; FINAL PINION
(A)
NTN
|
1-09812-007-0 |
01 |
1 |
9101-9504 |
● |
● |
| |
50 |
BEARING; FINAL PINION
(B)
NSK
|
1-09812-041-2 |
01 |
1 |
9505- |
● |
● |
| |
55 |
CARRIER; DIFF
|
1-41110-052-0 |
01 |
1 |
9101- |
● |
● |
| |
56 |
BOLT; BRG CAP
M18X107
|
1-09050-002-1 |
04 |
1 |
9101- |
● |
● |
| |
60 |
GEAR SET; FINAL DRIVE,RR
FINAL GEAR 43/7 15.5" HYPOID(W1R)
FINAL GEAR SHOTPEENING<BHT>
EXC. BRK SYSTEM HEAVY DUTY<J55>
43/7
|
1-41210-694-0 |
01 |
1 |
0601- |
● |
|
| |
60 |
GEAR SET; FINAL DRIVE,RR
FINAL GEAR 39/7 15.5" HYPOID(W3K)
FINAL GEAR SHOTPEENING<BHT>
EXC. BRK SYSTEM HEAVY DUTY<J55>
39/7
|
1-41210-704-0 |
01 |
1 |
0601- |
● |
|
| |
60 |
GEAR SET; FINAL DRIVE,RR
FINAL GEAR 39/6 15.5" HYPOID(W1T)
39/6
|
1-41210-276-3 |
01 |
1 |
9101-9706 |
● |
● |
| |
60 |
GEAR SET; FINAL DRIVE,RR
FINAL GEAR 39/6 15.5" HYPOID(W1T)
EXC. P60W PROP SHAFT<B5M>
39/6
|
1-41210-276-3 |
01 |
1 |
9707-9805 |
● |
● |
| |
60 |
GEAR SET; FINAL DRIVE,RR
FINAL GEAR 39/6 15.5" HYPOID(W1T)
39/6
|
1-41210-276-3 |
01 |
1 |
9806- |
● |
● |
| |
60 |
GEAR SET; FINAL DRIVE,RR
FINAL GEAR 39/7 15.5" HYPOID(W3K)
39/7
|
1-41210-280-3 |
01 |
1 |
9101-9706 |
● |
● |
| |
60 |
GEAR SET; FINAL DRIVE,RR
FINAL GEAR 39/7 15.5" HYPOID(W3K)
EXC. P60W PROP SHAFT<B5M>
39/7
|
1-41210-280-3 |
01 |
1 |
9707-9805 |
● |
● |
| |
60 |
GEAR SET; FINAL DRIVE,RR
FINAL GEAR 39/7 15.5" HYPOID(W3K)
39/7
|
1-41210-280-3 |
01 |
1 |
9806-0512 |
● |
● |
| |
60 |
GEAR SET; FINAL DRIVE,RR
FINAL GEAR 39/7 15.5" HYPOID(W3K)
BRK SYSTEM HEAVY DUTY<J55>
39/7
|
1-41210-280-3 |
01 |
1 |
0601- |
● |
● |
| |
60 |
GEAR SET; FINAL DRIVE,RR
FINAL GEAR 39/7 15.5" HYPOID(W3K)
EXC. FINAL GEAR SHOTPEENING<BHT>,BRK SYSTEM HEAVY
DUTY<J55>
39/7
|
1-41210-280-3 |
01 |
1 |
0601- |
● |
● |
| |
60 |
GEAR SET; FINAL DRIVE,RR
FINAL GEAR 41/7 15.5" HYPOID(W3S)
41/7
|
1-41210-278-3 |
01 |
1 |
9702- |
● |
● |
| |
60 |
GEAR SET; FINAL DRIVE,RR
FINAL GEAR 41/8 15.5" HYPOID(W4H)
41/8
|
1-41210-279-3 |
01 |
1 |
9505- |
● |
● |
| |
60 |
GEAR SET; FINAL DRIVE,RR
FINAL GEAR 43/7 15.5" HYPOID(W1R)
43/7
|
1-41210-277-3 |
01 |
1 |
9101-9706 |
● |
● |
| |
60 |
GEAR SET; FINAL DRIVE,RR
FINAL GEAR 43/7 15.5" HYPOID(W1R)
EXC. P60W PROP SHAFT<B5M>
43/7
|
1-41210-277-3 |
01 |
1 |
9707-9805 |
● |
● |
| |
60 |
GEAR SET; FINAL DRIVE,RR
FINAL GEAR 43/7 15.5" HYPOID(W1R)
43/7
|
1-41210-277-3 |
01 |
1 |
9806-0512 |
● |
● |
| |
60 |
GEAR SET; FINAL DRIVE,RR
FINAL GEAR 43/7 15.5" HYPOID(W1R)
BRK SYSTEM HEAVY DUTY<J55>
43/7
|
1-41210-277-3 |
01 |
1 |
0601- |
● |
● |
| |
60 |
GEAR SET; FINAL DRIVE,RR
FINAL GEAR 43/7 15.5" HYPOID(W1R)
EXC. FINAL GEAR SHOTPEENING<BHT>,BRK SYSTEM HEAVY
DUTY<J55>
43/7
|
1-41210-277-3 |
01 |
1 |
0601- |
● |
● |
| |
60 |
GEAR SET; FINAL DRIVE,RR
FINAL GEAR 39/6 15.5" HYPOID(W1T)
P60W PROP SHAFT<B5M>
39/6
|
1-41210-509-0 |
01 |
1 |
9707-9805 |
● |
|
| |
60 |
GEAR SET; FINAL DRIVE,RR
FINAL GEAR 39/7 15.5" HYPOID(W3K)
P60W PROP SHAFT<B5M>
39/7
|
1-41210-510-0 |
01 |
1 |
9707-9805 |
● |
|
| |
60 |
GEAR SET; FINAL DRIVE,RR
FINAL GEAR 43/7 15.5" HYPOID(W1R)
P60W PROP SHAFT<B5M>
43/7
|
1-41210-500-0 |
01 |
1 |
9707-9805 |
● |
|
| |
61 |
RETAINER; PILOT BRG,PINION
T=2.3
|
1-41227-006-0 |
02 |
1 |
9101- |
● |
● |
| |
62 |
BOLT; RET
M8X36 W/PIN HOLE
|
1-09042-035-0 |
02 |
1 |
9101- |
● |
● |
| |
63 |
BEARING; PINION PILOT
JTEKT
|
1-09810-007-0 |
01 |
1 |
9101-9509 |
● |
● |
| |
63 |
BEARING; PINION PILOT
JTEKT
|
1-09810-229-2 |
01 |
1 |
9510- |
● |
● |
| |
63 |
BEARING; PINION PILOT
NSK
|
1-09810-015-0 |
01 |
1 |
9101-9509 |
● |
● |
| |
63 |
BEARING; PINION PILOT
NSK
|
1-09810-230-1 |
01 |
1 |
9510- |
● |
● |
| |
64 |
NUT; RET
M8
|
9-09117-408-0 |
02 |
1 |
9101-9707 |
● |
● |
| |
64 |
NUT; RET
M8 SLOTTED
|
9-09117-508-0 |
02 |
1 |
9708-0512 |
● |
● |
| |
64 |
NUT; RET
M8 SLOTTED
|
0-91117-508-0 |
02 |
1 |
0601- |
● |
● |
| |
65 |
PIN; SPLIT,RET
|
9-08112-012-0 |
02 |
1 |
9101-0805 |
● |
● |
| |
65 |
PIN; SPLIT,RET
|
0-81122-012-0 |
02 |
1 |
0806- |
● |
● |
| |
66 |
RING; SNAP,PILOT BRG
OD=42
|
9-09950-179-0 |
01 |
1 |
9101- |
● |
● |
| |
69 |
NUT; ADJ,DIFF CAGE
M143 H=29
|
1-41121-006-0 |
01 |
1 |
9101- |
● |
● |
| |
69 |
NUT; ADJ,DIFF CAGE
M143 H=24
|
1-41121-005-0 |
01 |
1 |
9101- |
● |
● |
| |
70 |
BEARING; DIFF CAGE
NACHI ID=80 OD=140 T=35.3
|
1-09812-022-0 |
02 |
1 |
9101-9101 |
● |
● |
| |
70 |
BEARING; DIFF CAGE
NACHI ID=80 OD=140 T=35.3
|
1-09812-144-0 |
02 |
1 |
9102-0911 |
● |
● |
| |
70 |
BEARING; DIFF CAGE
NACHI
|
1-09812-151-0 |
02 |
1 |
0912- |
● |
● |
| |
70 |
BEARING; DIFF CAGE
KOYO
|
1-09812-048-0 |
02 |
1 |
9101-9101 |
● |
● |
| |
70 |
BEARING; DIFF CAGE
KOYO
|
1-09812-145-0 |
02 |
1 |
9102-0911 |
● |
● |
| |
70 |
BEARING; DIFF CAGE
NSK
|
9-00093-032-0 |
02 |
1 |
9101-9101 |
● |
● |
| |
70 |
BEARING; DIFF CAGE
NSK
|
1-09812-146-0 |
02 |
1 |
9102-1002 |
● |
● |
| |
70 |
BEARING; DIFF CAGE
NSK
|
1-09812-150-0 |
02 |
1 |
1003- |
● |
● |
| |
71 |
CAGE ASM; DIFF,FINAL DRIVE
|
1-41510-127-0 |
01 |
1 |
9101-0512 |
● |
● |
| |
71 |
CAGE ASM; DIFF,FINAL DRIVE
|
1-41510-127-0 |
01 |
1 |
0510- |
● |
● |
| |
84 |
BOLT; FINAL DRIVE GEAR
M16X37.5 FLANGE
|
9-09802-561-0 |
16 |
1 |
9101-9804 |
● |
● |
| |
84 |
BOLT; FINAL DRIVE GEAR
M16X37.5 FLANGE
|
1-09020-167-0 |
16 |
1 |
9805- |
● |
● |
| |
85 |
NUT; DIFF CAGE SETTING
M14
|
1-09400-077-1 |
12 |
1 |
9101- |
● |
● |
| |
88 |
PLATE; LK,ADJ NUT
(B)
|
1-41124-002-0 |
02 |
1 |
9101- |
● |
● |
| |
88 |
PLATE; LK,ADJ NUT
(A)
|
9-41124-005-0 |
02 |
1 |
9101- |
● |
● |
| |
89 |
BOLT; LK PLATE
M8X16
|
9-02040-816-0 |
04 |
1 |
9101-9204 |
● |
● |
| |
89 |
BOLT; LK PLATE
M8X16
|
0-20800-816-0 |
04 |
1 |
9205-0512 |
● |
● |
| |
89 |
BOLT; LK PLATE
M8X16
|
0-20850-816-0 |
04 |
1 |
0601- |
● |
● |
| |
100 |
SEAL; OIL,FINAL PINION
NOK
|
1-09625-017-0 |
01 |
1 |
9101- |
● |
● |
| |
126 |
COUPLING; DRIVING PINION
ISUZU M/T<X9A>
|
1-37245-215-2 |
01 |
1 |
9101-9504 |
● |
● |
| |
126 |
COUPLING; DRIVING PINION
MT643 A/T ALLISON(PR7)
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7
15.5" HYPOID(W3K)
|
1-37245-215-2 |
01 |
1 |
9101-9504 |
● |
● |
| |
126 |
COUPLING; DRIVING PINION
MT643 A/T ALLISON(PR7)
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FINAL GEAR 43/7 15.5" HYPOID(W1R)
EXC. DISC WHEEL 10STUD 22.5X8.25 165-13<QM8>,DISC
WHEEL 10STUD 20X7.00T<Q58>,DISC WHEEL 10STUD
20X7.50V 165-12<Q64>
|
1-37245-215-2 |
01 |
1 |
9101-9504 |
● |
● |
| |
126 |
COUPLING; DRIVING PINION
|
1-37245-215-2 |
01 |
1 |
9505-9706 |
● |
● |
| |
126 |
COUPLING; DRIVING PINION
EXC. P60W PROP SHAFT<B5M>
|
1-37245-215-2 |
01 |
1 |
9707-9805 |
● |
● |
| |
126 |
COUPLING; DRIVING PINION
|
1-37245-215-3 |
01 |
1 |
9806-0208 |
● |
● |
| |
126 |
COUPLING; DRIVING PINION
|
1-37245-388-0 |
01 |
1 |
0209- |
● |
● |
| |
126 |
COUPLING; DRIVING PINION
MT643 A/T ALLISON(PR7)
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FINAL GEAR 43/7 15.5" HYPOID(W1R)
DISC WHEEL 10STUD 22.5X8.25 165-13<QM8>,DISC
WHEEL10STUD 20X7.00T<Q58>,DISC WHEEL 10STUD 20X7.50V
165-12<Q64>
|
1-37245-114-2 |
01 |
1 |
9101-9504 |
● |
● |
| |
126 |
COUPLING; DRIVING PINION
P60W PROP SHAFT<B5M>
|
1-37245-285-0 |
01 |
1 |
9707-9805 |
● |
|
| |
134 |
WASHER; LK,BRG CAP
ID=18.2
|
9-09150-518-0 |
04 |
1 |
9101-0603 |
● |
● |
| |
134 |
WASHER; LK,BRG CAP
ID=18.2
|
0-91510-518-0 |
04 |
1 |
0604- |
● |
● |
