◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50802 - TFR/TFS(EUROPE)-LHD ▶ 3 - Brakes, Brake System ▶ 3-55 - BRAKE PIPING; OIL,REAR ▶
3-55 — BRAKE PIPING; OIL,REAR (#44659) — 23 parça

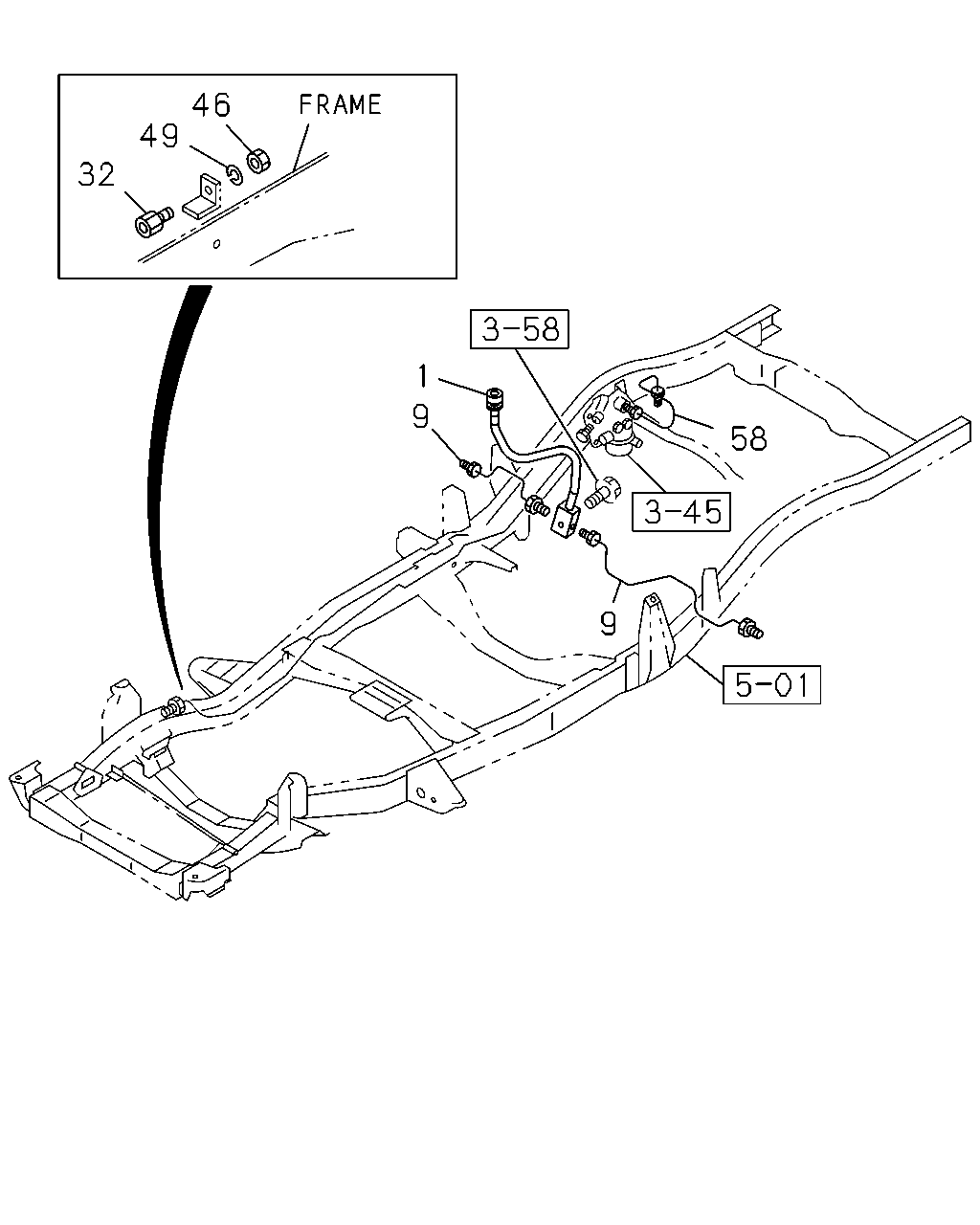

çizim 64690
46 49 32 1 9 58 9
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 04.680 HOSE; FLEX,RR BRK
L=479.5 		8-97134-831-0 01 1 9804- ● ● ● ● ● ●
9 04.685 PIPE; BRK,RR AXLE 8-94375-046-3 01 1 9804- ●
9 04.685 PIPE; BRK,RR AXLE
4JG2 ENG(RJC),4JA1 ENG(RLE) 		8-94375-046-3 01 1 9804- ● ●
9 04.685 PIPE; BRK,RR AXLE
4JA1 ENG(RLE) 		8-94375-048-2 01 1 9804-9906 ● ● ●
9 04.685 PIPE; BRK,RR AXLE
4JA1 ENG(RLE) 		8-97231-411-2 01 1 9907-0107 ● ● ●
9 04.685 PIPE; BRK,RR AXLE
4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL> 		8-97231-411-2 01 1 0108- ● ● ●
9 04.685 PIPE; BRK,RR AXLE
4JG2 ENG(RJC) 		8-94375-047-4 01 1 9804-9906 ● ● ●
9 04.685 PIPE; BRK,RR AXLE
4JG2 ENG(RJC) 		8-97231-410-2 01 1 9907-0107 ● ● ●
9 04.685 PIPE; BRK,RR AXLE 8-97231-410-2 01 1 0108- ●
9 04.685 PIPE; BRK,RR AXLE
4JG2 ENG(RJC) 		8-97231-410-2 01 1 0108- ● ●
9 04.685 PIPE; BRK,RR AXLE
4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> 		8-97231-410-2 01 1 0108- ● ●
9 04.685 PIPE; BRK,RR AXLE 8-97113-093-4 01 1 9804- ● ● ●
9 04.685 PIPE; BRK,RR AXLE
4JA1 ENG(RLE) 		8-97113-095-2 01 1 9804-9906 ● ● ●
9 04.685 PIPE; BRK,RR AXLE
4JA1 ENG(RLE) 		8-97231-408-1 01 1 9907-0107 ● ● ●
9 04.685 PIPE; BRK,RR AXLE
4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL> 		8-97231-408-1 01 1 0108- ● ●
9 04.685 PIPE; BRK,RR AXLE
4JG2 ENG(RJC) 		8-97113-094-3 01 1 9804-9906 ● ● ●
9 04.685 PIPE; BRK,RR AXLE
4JG2 ENG(RJC) 		8-97231-409-3 01 1 9907-0107 ● ● ●
9 04.685 PIPE; BRK,RR AXLE
4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> 		8-97231-409-3 01 1 0108- ● ● ●
9 04.685 PIPE; BRK,RR AXLE
4JG2 ENG(RJC) 		8-97231-409-3 01 1 0108- ● ●
32 04.686 UNION; OIL PIPE
M10 STRAIGHT OUTER M16X21 		9-09227-055-0 01 1 9804- ● ● ● ● ● ●
46 04.686 NUT; UNION,OIL PIPE
04.681 M16 		9-99111-416-0 01 1 9804- ● ● ● ● ● ●
49 04.686 WASHER; LK,UNION,OIL PIPE
06.897 ID=16.2 		9-09150-516-0 01 1 9804- ● ● ● ● ● ●
58 04.686 PIPE; BRK,LSV TO RR AXLE 8-94318-699-2 01 1 9804- ● ● ● ● ● ●
