◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50802 - TFR/TFS(EUROPE)-LHD ▶ 3 - Brakes, Brake System ▶ 3-52 - BRAKE PIPING; OIL,FRONT ▶
3-52 — BRAKE PIPING; OIL,FRONT (#44658) — 65 parça

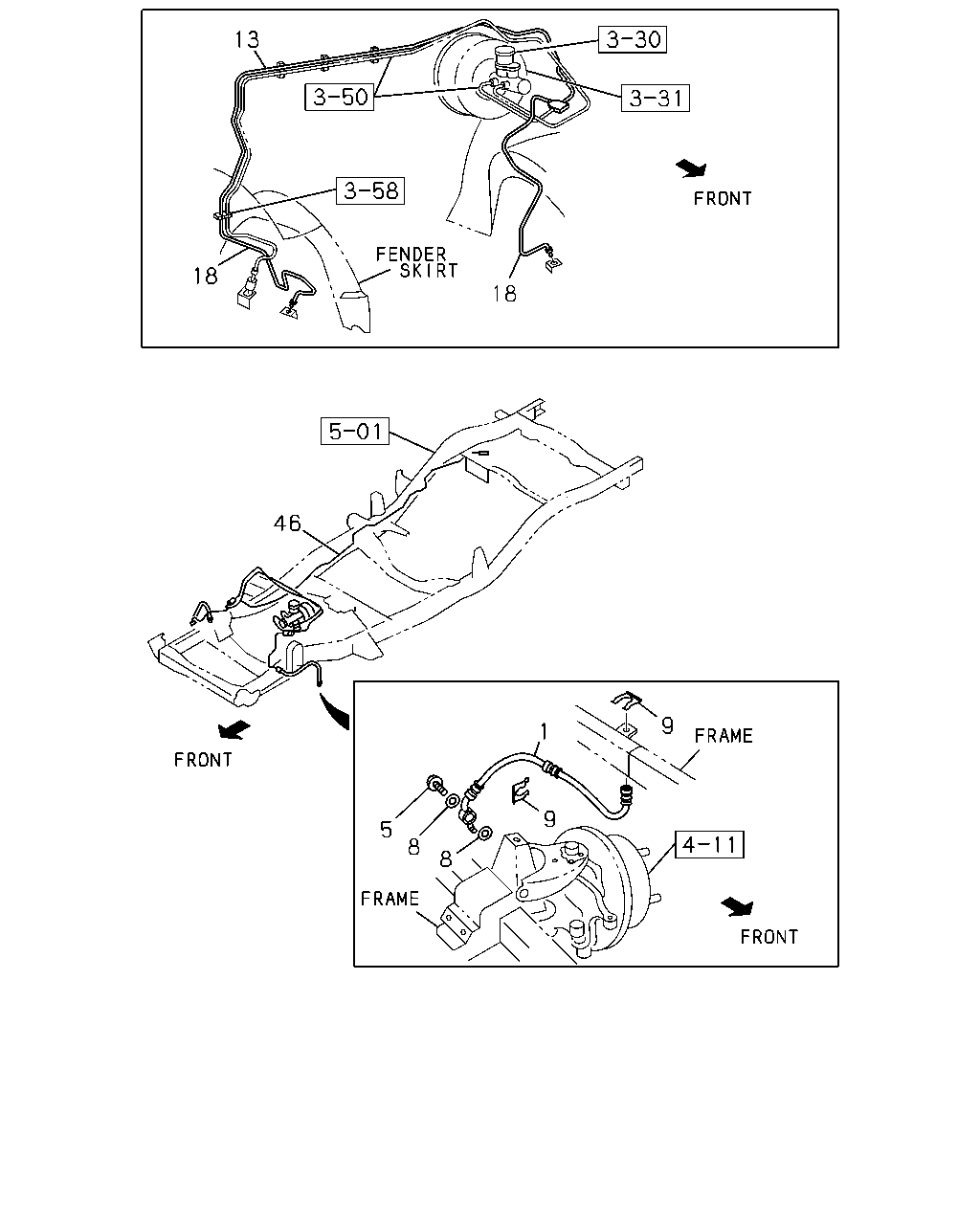

çizim 64630
13 18 18 46 9 1 9 5 8 8
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 04.680 HOSE; FLEX,FRT BRK
L=500 		8-97134-829-1 02 1 9804- ●
1 04.680 HOSE; FLEX,FRT BRK
4JG2 ENG(RJC),4JA1 ENG(RLE) L=500 		8-97134-829-1 02 1 9804- ● ●
1 04.680 HOSE; FLEX,FRT BRK
L=436 		8-97134-830-1 02 1 9804- ● ● ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
04.665 M10X22 		5-09675-017-0 02 1 9804- ● ● ● ● ● ●
8 04.681 GASKET; FLEX HOSE,FRT BRK
08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 9804- ● ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
04.681 		8-94137-662-0 05 1 9804- ● ● ● ● ● ●
13 04.685 PIPE; OIL,UNION TO UNION
4JA1 ENG(RLE) 		8-97081-807-2 01 1 9804-0012 ● ● ●
13 04.685 PIPE; OIL,UNION TO UNION
4JG2 ENG(RJC),4JA1 ENG(RLE) 		8-97306-377-1 01 1 0101-0107 ● ● ●
13 04.685 PIPE; OIL,UNION TO UNION
4JG2 ENG(RJC),4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL> 		8-97306-377-1 01 1 0108- ● ●
13 04.685 PIPE; OIL,UNION TO UNION 8-97301-152-2 01 1 0108- ●
13 04.685 PIPE; OIL,UNION TO UNION
4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> 		8-97301-152-2 01 1 0108- ● ●
13 04.685 PIPE; OIL,UNION TO UNION
4JG2 ENG(RJC) 		8-97174-482-3 01 1 9804-0012 ● ● ●
13 04.685 PIPE; OIL,UNION TO UNION
4JG2 ENG(RJC),4JA1 ENG(RLE) 		8-97306-378-1 01 1 0101-0107 ● ● ●
13 04.685 PIPE; OIL,UNION TO UNION
4JG2 ENG(RJC),4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL> 		8-97306-378-1 01 1 0108- ● ●
13 04.685 PIPE; OIL,UNION TO UNION
4JA1 ENG(RLE) 		8-97301-151-2 01 1 0108- ●
13 04.685 PIPE; OIL,UNION TO UNION
4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> 		8-97301-151-2 01 1 0108- ● ●
13 04.685 PIPE; OIL,UNION TO UNION
4JA1 ENG(RLE) 		8-97081-808-2 01 1 9804-0012 ● ● ●
13 04.685 PIPE; OIL,UNION TO UNION
4JG2 ENG(RJC) 		8-97174-483-3 01 1 9804-0012 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE 8-97086-043-0 01 1 9804-9812 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE 8-97212-625-0 01 1 9901-9906 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE 8-97230-486-1 01 1 9907- ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JG2 ENG(RJC),4JA1 ENG(RLE) 		8-97230-486-1 01 1 9907- ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JA1 ENG(RLE) 		8-97109-877-1 01 1 9804-9906 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JA1 ENG(RLE) 		8-97231-349-0 01 1 9907-0012 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE 8-97261-130-1 01 1 0101-0107 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
EXC. CHARGE AIR COOLER<6PL> 		8-97261-130-1 01 1 0108-0205 ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
EXC. CHARGE AIR COOLER<6PL> 		8-97349-467-0 01 1 0206- ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE 8-97301-174-1 01 1 0108- ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> 		8-97301-174-1 01 1 0108- ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JG2 ENG(RJC) 		8-97174-484-1 01 1 9804-9906 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JG2 ENG(RJC) 		8-97231-350-0 01 1 9907-0012 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JG2 ENG(RJC),4JA1 ENG(RLE) 		8-97231-350-1 01 1 0101-0107 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JG2 ENG(RJC),4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL> 		8-97231-350-1 01 1 0108- ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JA1 ENG(RLE) 		8-97301-175-1 01 1 0108- ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> 		8-97301-175-1 01 1 0108- ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE 8-97115-645-1 01 1 9804- ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JA1 ENG(RLE) 		8-97110-223-1 01 1 9804-9906 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JA1 ENG(RLE) 		8-97227-159-0 01 1 9907-0012 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JG2 ENG(RJC) 		8-97174-485-1 01 1 9804-9906 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JG2 ENG(RJC) 		8-97227-158-1 01 1 9907-0012 ● ● ●
46 04.685 PIPE; BRK,JOINT TO VLV 8-97117-623-0 01 1 9804-9906 ● ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 		8-97117-623-1 01 1 9907-0107 ● ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 		8-97300-999-1 01 1 0108- ● ● ●
46 04.685 PIPE; BRK,JOINT TO VLV 8-97117-624-0 01 1 9804-9906 ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
EXC. ISRAEL EQUIPMENT(7LX) 		8-97117-624-0 01 1 9804-9906 ●
46 04.685 PIPE; BRK,JOINT TO VLV 8-97216-857-1 01 1 9907-0107 ● ● ●
46 04.685 PIPE; BRK,JOINT TO VLV 8-97301-000-1 01 1 0108- ● ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
ISRAEL EQUIPMENT(7LX) 		8-97160-370-0 01 1 9804-9906 ●
46 04.685 PIPE; BRK,JOINT TO VLV
4JG2 ENG(RJC) A/T AISIN(RMD) 		8-97224-935-1 01 1 9907-0107 ●
46 04.685 PIPE; BRK,JOINT TO VLV
4JG2 ENG(RJC) A/T AISIN(RMD) 		8-97301-001-1 01 1 0108- ●

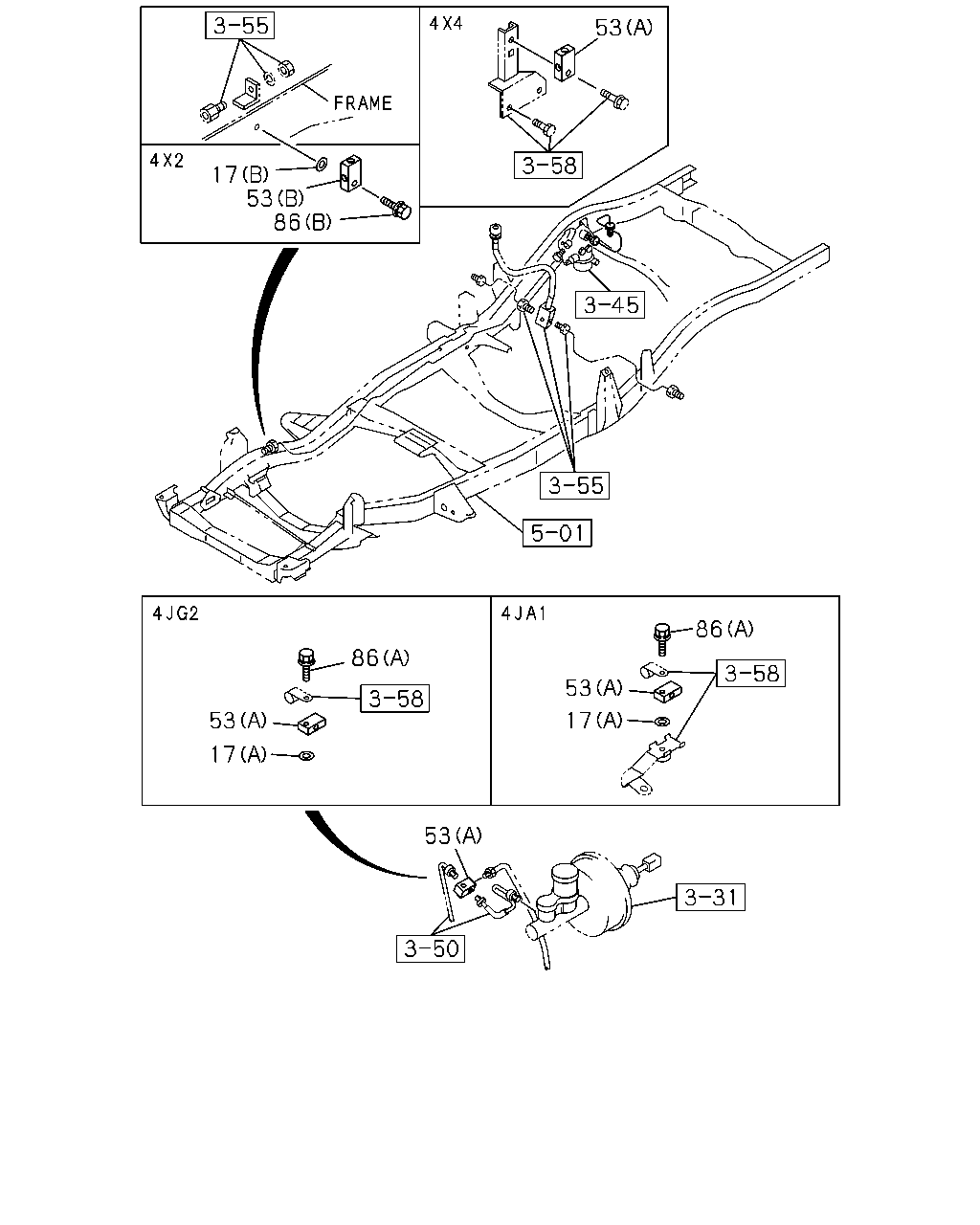

çizim 65283
53 17 53 86 86 86 53 17 53 17 53
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
17 04.686 WASHER; PL,3 WAY CONNECTOR
(B) ID=8.2 		8-94312-733-0 01 1 9804- ●
17 04.686 WASHER; PL,3 WAY CONNECTOR
4JG2 ENG(RJC),4JA1 ENG(RLE) (B) ID=8.2 		8-94312-733-0 01 1 9804- ● ●
17 04.686 WASHER; PL,3 WAY CONNECTOR
4JG2 ENG(RJC) (A) ID=6.4 		1-09985-038-0 01 1 9804-0012 ● ● ● ● ● ●
17 04.686 WASHER; PL,3 WAY CONNECTOR
(A) ID=6.4 		1-09985-038-0 01 1 0101- ● ● ● ● ● ●
53 04.686 CONNECTOR; OIL PIPE
(B) 		8-94328-125-0 01 1 9804- ●
53 04.686 CONNECTOR; OIL PIPE
4JG2 ENG(RJC),4JA1 ENG(RLE) (B) 		8-94328-125-0 01 1 9804- ● ●
53 04.686 CONNECTOR; OIL PIPE
(A) 		8-94406-895-0 01 1 9804- ● ● ● ● ● ●
53 04.686 CONNECTOR; OIL PIPE
(A) 		8-94406-895-0 01 1 9804- ● ● ●
86 04.686 BOLT; BRK PIPE
02.334 (B) M8X40 W/LK&PL WASHER 		0-51240-840-0 01 1 9804-0210 ●
86 04.686 BOLT; BRK PIPE
4JG2 ENG(RJC),4JA1 ENG(RLE) 02.334 (B) M8X40 W/LK&PL WASHER 		0-51240-840-0 01 1 9804-0210 ● ●
86 04.686 BOLT; BRK PIPE
02.183 (B) M8X35 FLANGE 		0-28680-835-0 01 1 0211- ●
86 04.686 BOLT; BRK PIPE
4JG2 ENG(RJC),4JA1 ENG(RLE) 02.183 (B) M8X35 FLANGE 		0-28680-835-0 01 1 0211- ● ●
86 04.686 BOLT; BRK PIPE
4JG2 ENG(RJC) 03.634 (A) M6X30 W/LK&PL WASHER 		0-50140-630-0 01 1 9804-0012 ● ● ● ● ● ●
86 04.686 BOLT; BRK PIPE
03.634 (A) M6X30 W/LK&PL WASHER 		0-50140-630-0 01 1 0101-0107 ● ● ● ● ● ●
86 04.686 BOLT; BRK PIPE
00.206 (A) M6X35 W/LK&PL WASHER 		0-50140-635-0 01 1 0108- ● ● ● ● ● ●
