3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#44657) — 27 parça

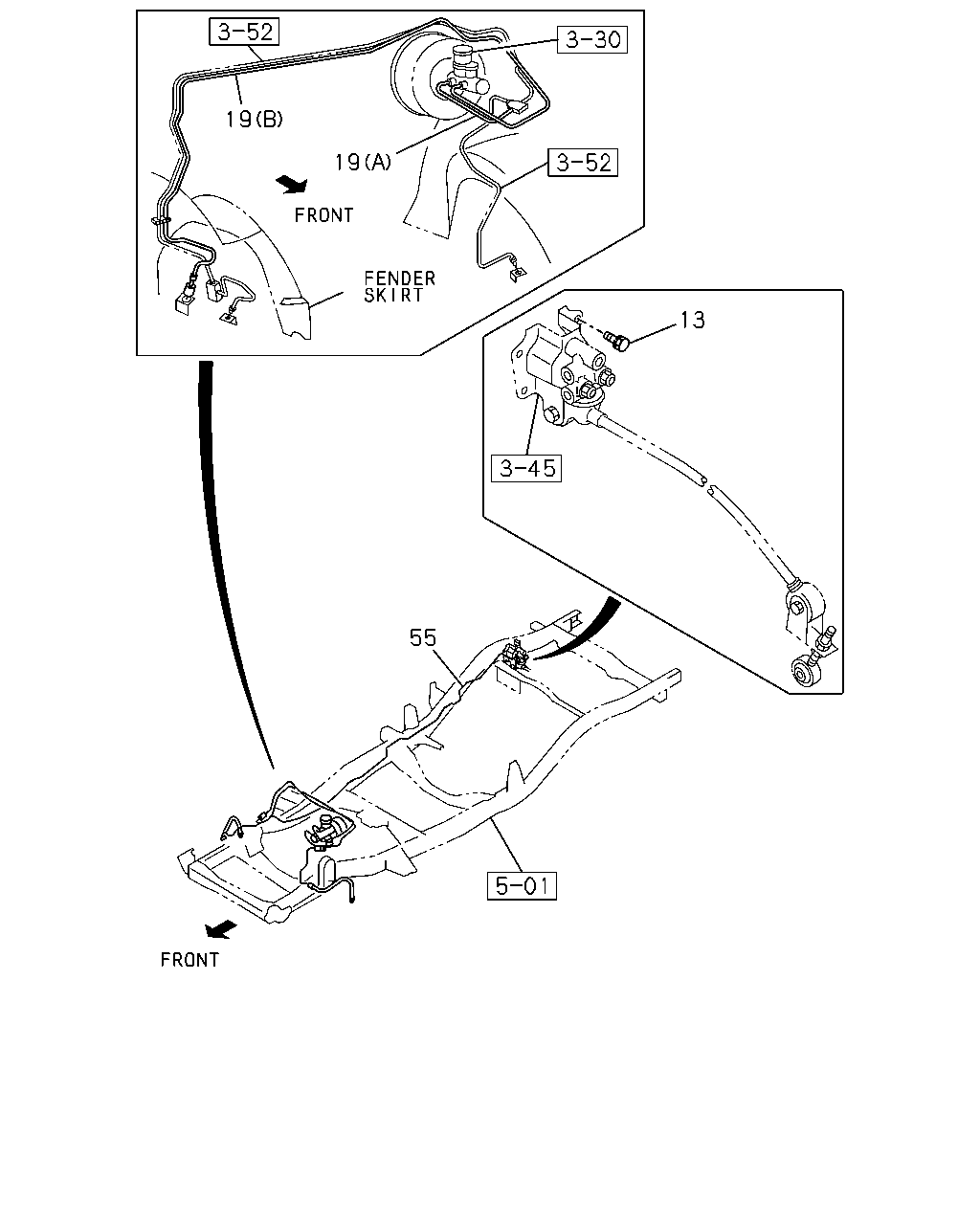

çizim 64593
19 19 13 55
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
13 04.686 BOLT; VLV TO BRKT
03.704 M8X16 W/LK WASHER 		0-50040-816-0 04 1 9804-0106 ● ● ● ● ● ●
13 04.686 BOLT; VLV TO BRKT
01.062 M8X16 FLANGE 		0-28080-816-0 04 1 0107- ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1 ENG(RLE) (A) 		8-94435-233-3 01 1 9804-0012 ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1 ENG(RLE) (B) 		8-97109-381-1 01 1 9804-0012 ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JG2 ENG(RJC) (A) 		8-97174-478-2 01 1 9804-0012 ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JG2 ENG(RJC),4JA1 ENG(RLE) (A) 		8-97174-478-3 01 1 0101-0107 ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JG2 ENG(RJC),4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL> (A) 		8-97174-478-3 01 1 0108- ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JG2 ENG(RJC) (B) 		8-97174-480-1 01 1 9804-9906 ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JG2 ENG(RJC) (B) 		8-97227-826-0 01 1 9907-0012 ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JG2 ENG(RJC),4JA1 ENG(RLE) (B) 		8-97306-374-1 01 1 0101-0107 ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JG2 ENG(RJC),4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL> (B) 		8-97306-374-1 01 1 0108- ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(A) 		8-97301-149-0 01 1 0108- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> (A) 		8-97301-149-0 01 1 0108- ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1 ENG(RLE) (A) 		8-97301-149-0 01 1 0108- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(B) 		8-97301-150-2 01 1 0108- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> (B) 		8-97301-150-2 01 1 0108- ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1 ENG(RLE) (B) 		8-97301-150-2 01 1 0108- ●
55 04.686 PIPE; BRK,VLV TO UNION 8-97117-616-0 01 1 9804-9906 ● ● ●
55 04.686 PIPE; BRK,VLV TO UNION
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 		8-97117-616-1 01 1 9907-0107 ● ● ●
55 04.686 PIPE; BRK,VLV TO UNION
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 		8-97300-996-2 01 1 0108- ● ● ●
55 04.686 PIPE; BRK,VLV TO UNION 8-97117-617-0 01 1 9804-9906 ● ●
55 04.686 PIPE; BRK,VLV TO UNION
EXC. ISRAEL EQUIPMENT(7LX) 		8-97117-617-0 01 1 9804-9906 ●
55 04.686 PIPE; BRK,VLV TO UNION 8-97216-846-1 01 1 9907-0107 ● ● ●
55 04.686 PIPE; BRK,VLV TO UNION 8-97300-997-2 01 1 0108- ● ● ●
55 04.686 PIPE; BRK,VLV TO UNION
ISRAEL EQUIPMENT(7LX) 		8-97160-373-0 01 1 9804-9906 ●
55 04.686 PIPE; BRK,VLV TO UNION
4JG2 ENG(RJC) A/T AISIN(RMD) 		8-97224-934-1 01 1 9907-0107 ●
55 04.686 PIPE; BRK,VLV TO UNION
4JG2 ENG(RJC) A/T AISIN(RMD) 		8-97300-998-2 01 1 0108- ●
