3-31 — BRAKE MASTER VAC AND BRAKE BOOSTER (#44655) — 13 parça

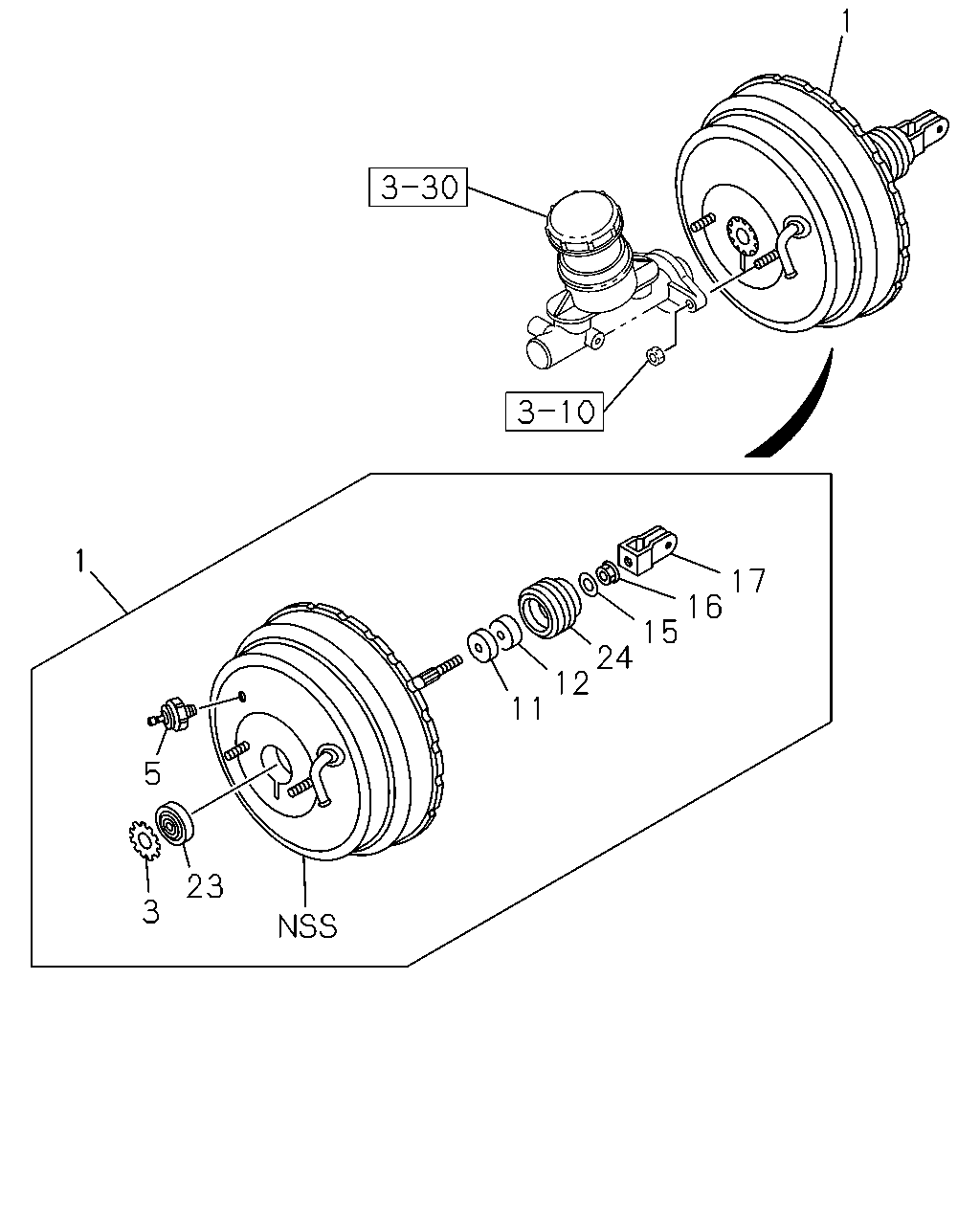

çizim 65215
1 1 17 16 15 24 12 11 5 23 3
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 04.901 MASTER VAC ASM; BRK 8-97021-942-2 01 1 9804- ● ● ● ● ● ●
3 04.906 RETAINER; FRT SHELL,M/VAC 9-83315-319-0 01 1 9804-0306 ● ● ● ● ● ●
3 04.906 RETAINER; FRT SHELL,M/VAC 8-97040-871-0 01 1 0307- ● ● ● ● ● ●
5 04.906 SWITCH; VAC,M/VAC 8-94460-517-0 01 1 9804- ● ● ● ● ● ●
11 04.906 FILTER; M/VAC
04.913 		9-83345-063-0 01 1 9804- ● ● ● ● ● ●
12 04.906 SILENCER; M/VAC 8-94341-722-0 01 1 9804- ● ● ● ● ● ●
15 04.906 RETAINER; GUARD,M/VAC 8-94375-083-0 01 1 9804- ● ● ● ● ● ●
16 04.662 NUT; VLV ROD,M/VAC
M10 FLANGE 		8-97096-430-0 01 1 9804-0306 ● ● ● ● ● ●
16 04.662 NUT; VLV ROD,M/VAC
M10 		1-52139-008-0 01 1 0307- ● ● ● ● ● ●
17 04.662 CLEVIS; YOKE,M/VAC 8-94342-517-0 01 1 9804- ● ● ● ● ● ●
23 04.910 SEAL; M/VAC 8-94152-349-0 01 1 9804-0306 ● ● ● ● ● ●
23 04.910 SEAL; M/VAC 8-97261-943-0 01 1 0307- ● ● ● ● ● ●
24 04.906 GUARD; VLV BODY,M/VAC 8-94375-084-1 01 1 9804- ● ● ● ● ● ●
