Sayfa 3-11 - Isuzu EPC

3-11 — PARKING BRAKE CONTROL (#44653) — 188 parça

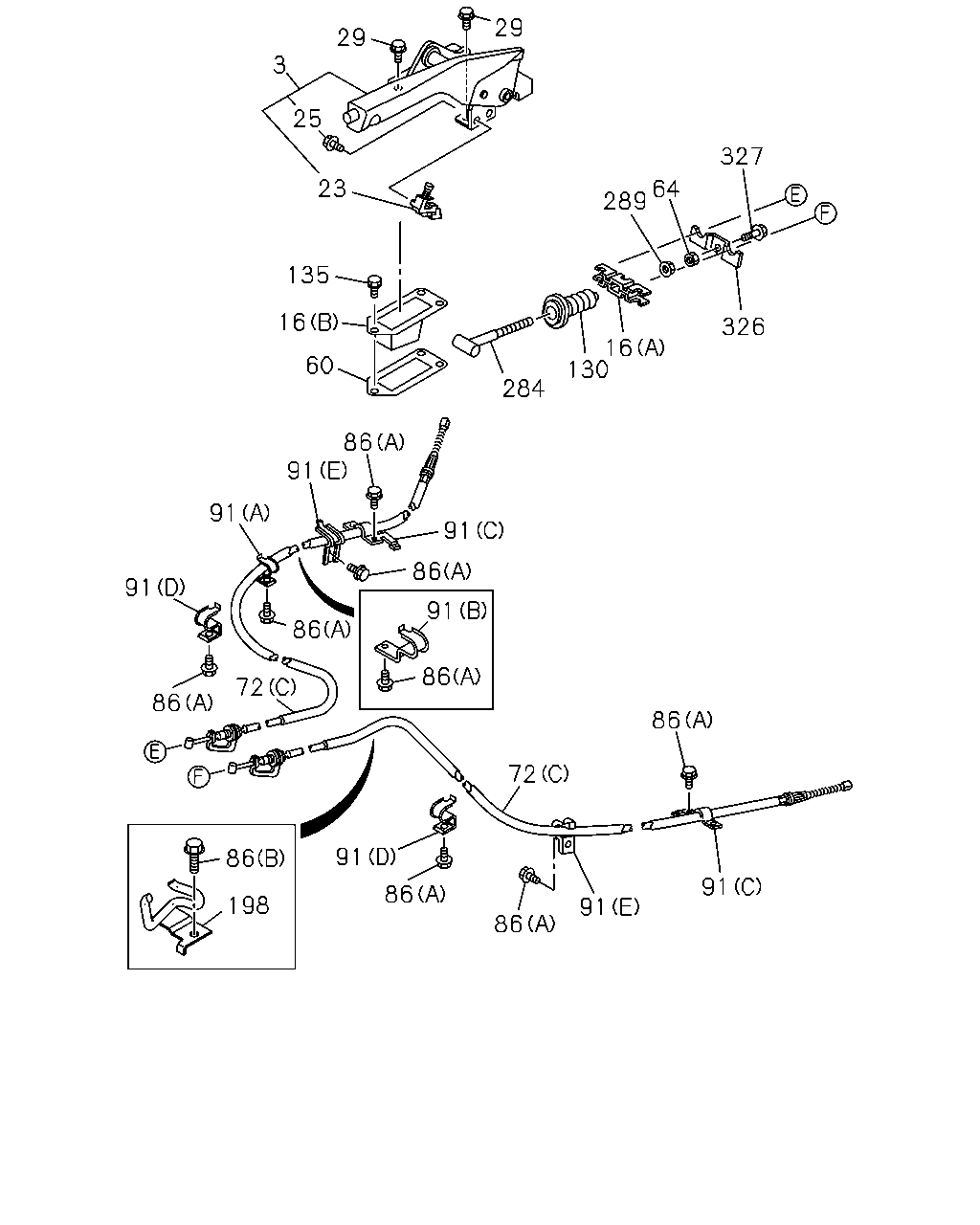

29 29 3 25 327 23 64 289 135 16 326 16 130 60 284 86 91 91 91 86 91 91 86 86 72 86 86 72 91 86 91 86 198 91 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
3	04.591 LEVER; PARKING BRK	8-97177-396-1	01	1	9804-9906	●	●	●
3	04.591 LEVER; PARKING BRK PARKING BRAKE FLOOR<7XW>	8-97207-662-0	01	1	9907-				●	●	●
3	04.591 LEVER; PARKING BRK	8-97207-662-0	01	1	9907-	●	●	●
16	04.591 BRACKET; PARKING BRK (A)	8-97142-956-2	01	1	9804-9906	●	●	●
16	04.591 BRACKET; PARKING BRK PARKING BRAKE FLOOR<7XW> (A)	8-97142-956-2	01	1	9907-				●	●	●
16	04.591 BRACKET; PARKING BRK (A)	8-97142-956-2	01	1	9907-	●	●	●
16	04.591 BRACKET; PARKING BRK (B)	8-97177-857-0	01	1	9804-9906	●	●	●
16	04.591 BRACKET; PARKING BRK PARKING BRAKE FLOOR<7XW> (B)	8-97177-857-0	01	1	9907-				●	●	●
16	04.591 BRACKET; PARKING BRK (B)	8-97177-857-0	01	1	9907-	●	●	●
23	04.589 SWITCH; PARKING BRK	8-94328-267-0	01	1	9804-9906				●	●	●
23	04.589 SWITCH; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW>	8-94328-267-0	01	1	9907-				●	●	●
23	04.589 SWITCH; PARKING BRK	8-97032-276-0	01	1	9804-9906	●	●	●
23	04.589 SWITCH; PARKING BRK PARKING BRAKE FLOOR<7XW>	8-97032-276-0	01	1	9907-				●	●	●
23	04.589 SWITCH; PARKING BRK	8-97032-276-0	01	1	9907-	●	●	●
25	04.589 SCREW; SW,PARKING BRK PARKING BRAKE FLOOR<7XW>	8-97103-556-0	01	1	9907-				●	●	●
25	04.589 SCREW; SW,PARKING BRK	8-97103-556-0	01	1	9907-	●	●	●
25	04.589 SCREW; SW,PARKING BRK	8-97103-556-0	01	1	9804-9906	●	●	●
25	04.589 SCREW; SW,PARKING BRK PARKING BRAKE FLOOR<7XW>	8-97103-556-0	01	1	9907-				●	●	●
25	04.589 SCREW; SW,PARKING BRK	8-97103-556-0	01	1	9907-	●	●	●
29	04.595 BOLT; PARKING BRK LEVER TO BODY 02.664 M8X20 FLANGE	0-28680-820-0	04	1	9804-9906	●	●	●
29	04.595 BOLT; PARKING BRK LEVER TO BODY PARKING BRAKE FLOOR<7XW> 02.664 M8X20 FLANGE	0-28680-820-0	04	1	9907-				●	●	●
29	04.595 BOLT; PARKING BRK LEVER TO BODY 02.664 M8X20 FLANGE	0-28680-820-0	04	1	9907-	●	●	●
60	04.595 GASKET; PARKING BRK	8-97046-789-1	01	1	9804-9906	●	●	●
60	04.595 GASKET; PARKING BRK PARKING BRAKE FLOOR<7XW>	8-97046-789-1	01	1	9907-				●	●	●
60	04.595 GASKET; PARKING BRK	8-97046-789-1	01	1	9907-	●	●	●
64	04.595 NUT; PARKING BRK 02.559 M8	9-09110-408-0	01	1	9804-9906	●	●	●
64	04.595 NUT; PARKING BRK PARKING BRAKE FLOOR<7XW> 02.559 M8	9-09110-408-0	01	1	9907-				●	●	●
64	04.595 NUT; PARKING BRK 02.559 M8	9-09110-408-0	01	1	9907-	●	●	●
72	04.779 CABLE; PARKING BRK (B) L=1850 WHITE	8-94367-286-0	01	1	9804-9906				●	●	●
72	04.779 CABLE; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW> (B) L=1850 WHITE	8-94367-286-0	01	1	9907-				●	●	●
72	04.779 CABLE; PARKING BRK (A) L=1604	8-94366-770-2	01	1	9804-9906				●	●	●
72	04.779 CABLE; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW> (A) L=1604	8-94366-770-2	01	1	9907-				●	●	●
72	04.779 CABLE; PARKING BRK (A) L=1684	8-94366-769-2	01	1	9804-9906				●	●	●
72	04.779 CABLE; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW> (A) L=1684	8-94366-769-2	01	1	9907-				●	●	●
72	04.779 CABLE; PARKING BRK PARKING BRAKE FLOOR<7XW> (C)	8-97217-149-1	01	1	9907-				●	●	●
72	04.779 CABLE; PARKING BRK PARKING BRAKE FLOOR<7XW> (C)	8-97174-665-2	01	1	9907-				●	●	●
72	04.779 CABLE; PARKING BRK (C)	8-97111-566-2	01	1	9804-	●	●	●
72	04.779 CABLE; PARKING BRK (C)	8-97111-565-3	01	1	9804-	●	●	●
86	04.785 BOLT PARKING BRAKE FLOOR<7XW> 01.062 (B) M8X16 FLANGE	0-28080-816-0	01	1	9907-				●
86	04.785 BOLT 4JG2 ENG(RJC),4JA1 ENG(RLE) PARKING BRAKE FLOOR<7XW> 01.062 (B) M8X16 FLANGE	0-28080-816-0	01	1	9907-					●	●
86	04.785 BOLT 01.428 (A) M6X12 FLANGE	0-28080-612-0	03	1	9804-	●	●	●	●	●	●
86	04.785 BOLT 01.428 (A) M6X12 FLANGE	0-28080-612-0	06	1	9804-	●	●	●	●	●	●
86	04.785 BOLT 01.428 (A) M6X12 FLANGE	0-28080-612-0	02	1	9804-9906	●	●	●
86	04.785 BOLT PARKING BRAKE FLOOR<7XW> 01.428 (A) M6X12 FLANGE	0-28080-612-0	02	1	9907-				●
86	04.785 BOLT 4JG2 ENG(RJC),4JA1 ENG(RLE) PARKING BRAKE FLOOR<7XW> 01.428 (A) M6X12 FLANGE	0-28080-612-0	02	1	9907-					●	●
86	04.785 BOLT 01.428 (A) M6X12 FLANGE	0-28080-612-0	02	1	9907-	●	●	●
91	04.785 CLIP; PARKING BRK CABLE (C)	8-94126-640-1	01	1	9804-				●	●	●
91	04.785 CLIP; PARKING BRK CABLE (C)	8-94126-639-1	01	1	9804-				●	●	●
91	04.785 CLIP; PARKING BRK CABLE (D)	8-94146-602-0	01	1	9804-	●	●	●	●	●	●
91	04.785 CLIP; PARKING BRK CABLE (D)	8-94146-602-0	01	1	9804-	●	●	●	●	●	●
91	04.785 CLIP; PARKING BRK CABLE (A)	8-94450-389-0	01	1	9804-	●	●	●	●	●	●
91	04.785 CLIP; PARKING BRK CABLE (B)	8-94459-413-0	02	1	9804-	●	●	●	●	●	●
91	04.785 CLIP; PARKING BRK CABLE (E) ID=14	9-09916-883-0	02	1	9804-9906	●	●	●
91	04.785 CLIP; PARKING BRK CABLE PARKING BRAKE FLOOR<7XW> (E) ID=14	9-09916-883-0	01	1	9907-				●	●	●
91	04.785 CLIP; PARKING BRK CABLE PARKING BRAKE FLOOR<7XW> (E) ID=14	9-09916-883-0	01	1	9907-				●
91	04.785 CLIP; PARKING BRK CABLE 4JG2 ENG(RJC),4JA1 ENG(RLE) PARKING BRAKE FLOOR<7XW> (E) ID=14	9-09916-883-0	01	1	9907-					●	●
91	04.785 CLIP; PARKING BRK CABLE (E) ID=14	9-09916-883-0	01	1	9907-	●	●	●
91	04.785 CLIP; PARKING BRK CABLE (E) ID=14	9-09916-883-0	01	1	9907-	●	●	●
91	04.785 CLIP; PARKING BRK CABLE (C)	8-97087-002-0	01	1	9804-	●	●	●
91	04.785 CLIP; PARKING BRK CABLE (C)	8-97087-001-0	01	1	9804-	●	●	●
130	04.591 COVER; DUST,PARK BRK LEVER	8-97142-954-0	01	1	9804-9906	●	●	●
130	04.591 COVER; DUST,PARK BRK LEVER PARKING BRAKE FLOOR<7XW>	8-97142-954-0	01	1	9907-				●	●	●
130	04.591 COVER; DUST,PARK BRK LEVER	8-97142-954-0	01	1	9907-	●	●	●
135	04.591 BOLT; PARKING BRK BRKT 08.143 M6X16 W/PL WASHER	8-94204-636-0	03	1	9804-9906	●	●	●
135	04.591 BOLT; PARKING BRK BRKT PARKING BRAKE FLOOR<7XW> 08.143 M6X16 W/PL WASHER	8-94204-636-0	03	1	9907-				●	●	●
135	04.591 BOLT; PARKING BRK BRKT 08.143 M6X16 W/PL WASHER	8-94204-636-0	03	1	9907-	●	●	●
198	04.785 BRACKET; CABLE PARKING BRAKE FLOOR<7XW>	8-97217-152-0	01	1	9907-				●
198	04.785 BRACKET; CABLE 4JG2 ENG(RJC),4JA1 ENG(RLE) PARKING BRAKE FLOOR<7XW>	8-97217-152-0	01	1	9907-					●	●
284	04.595 ROD; HAND BRK	8-97161-636-1	01	1	9804-9906	●	●	●
284	04.595 ROD; HAND BRK PARKING BRAKE FLOOR<7XW>	8-97161-636-1	01	1	9907-				●	●	●
284	04.595 ROD; HAND BRK	8-97161-636-1	01	1	9907-	●	●	●
289	04.594 NUT; PARKING BRK 07.633 M8 FLANGE	0-91150-108-0	01	1	9804-9906	●	●	●
289	04.594 NUT; PARKING BRK PARKING BRAKE FLOOR<7XW> 07.633 M8 FLANGE	0-91150-108-0	01	1	9907-				●	●	●
289	04.594 NUT; PARKING BRK 07.633 M8 FLANGE	0-91150-108-0	01	1	9907-	●	●	●
326	04.785 RETAINER; PARK CABLE	8-97024-708-0	01	1	9804-9906	●	●	●
326	04.785 RETAINER; PARK CABLE PARKING BRAKE FLOOR<7XW>	8-97024-708-0	01	1	9907-				●	●	●
326	04.785 RETAINER; PARK CABLE	8-97024-708-0	01	1	9907-	●	●	●
327	04.785 BOLT; RETAINER 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9804-9906	●	●	●
327	04.785 BOLT; RETAINER PARKING BRAKE FLOOR<7XW> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9907-				●	●	●
327	04.785 BOLT; RETAINER 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9907-	●	●	●

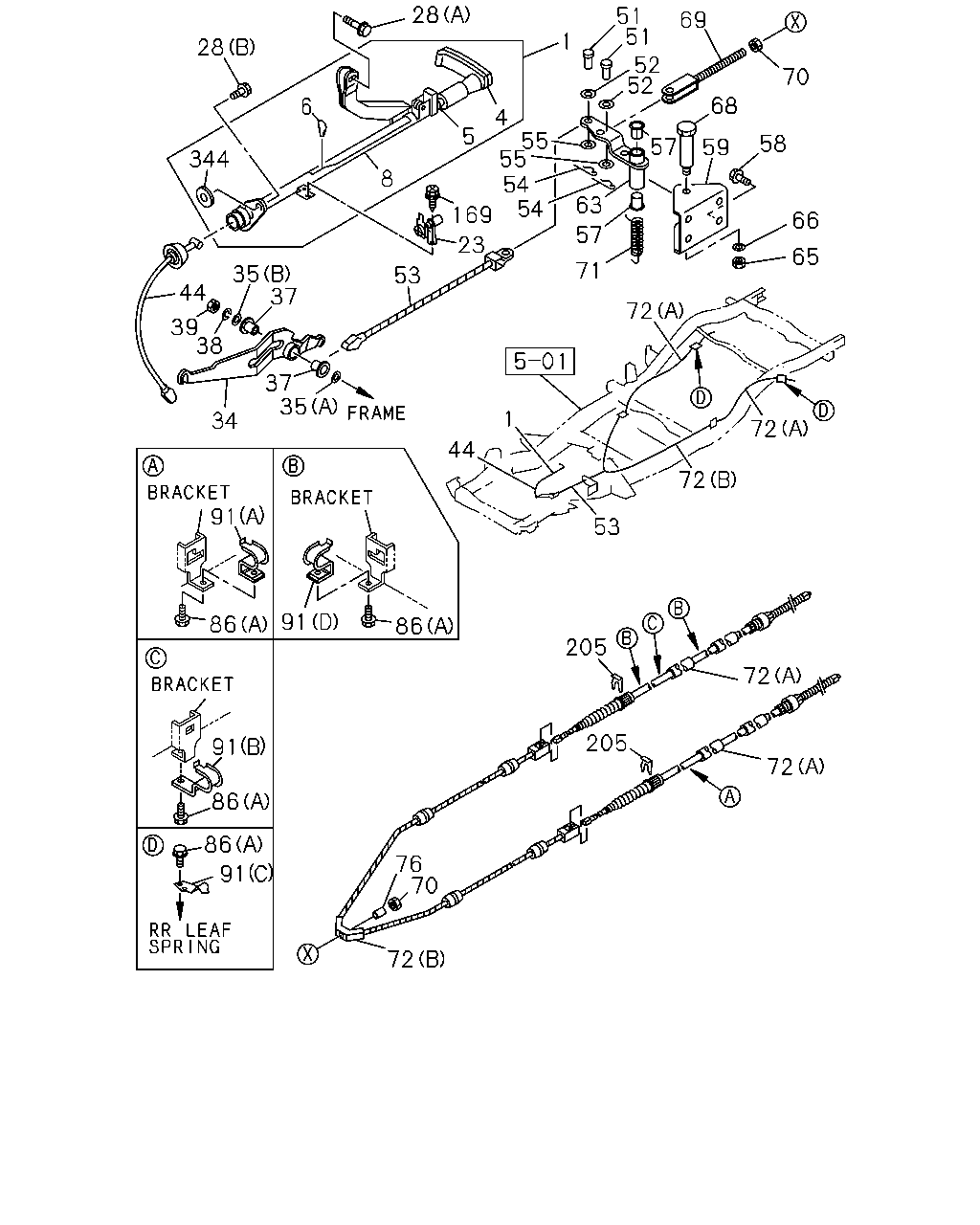

28 51 51 52 52 69 1 28 70 68 6 4 5 55 55 54 54 58 57 59 344 8 63 169 66 57 23 65 71 35 37 53 44 72 39 38 37 35 1 34 72 44 72 91 53 86 91 86 205 72 205 91 72 86 86 76 70 91 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	04.592 STEM ASM; PARKING BRK	8-97131-923-0	01	1	9804-9906				●	●	●
1	04.592 STEM ASM; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW>	8-97131-923-0	01	1	9907-				●	●	●
4	04.592 STEM; PARKING BRK	8-97162-053-0	01	1	9804-9906				●	●	●
4	04.592 STEM; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW>	8-97162-053-0	01	1	9907-				●	●	●
5	04.592 BUSHING; PARKING BRK	9-46129-022-0	01	1	9804-9906				●	●	●
5	04.592 BUSHING; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW>	9-46129-022-0	01	1	9907-				●	●	●
6	04.589 PIN; STEM,PARK BRK	8-97162-045-0	01	1	9804-9906				●	●	●
6	04.589 PIN; STEM,PARK BRK EXC. PARKING BRAKE FLOOR<7XW>	8-97162-045-0	01	1	9907-				●	●	●
8	04.592 GUIDE; PARKING BRK	8-97076-059-0	01	1	9804-9906				●	●	●
8	04.592 GUIDE; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW>	8-97076-059-0	01	1	9907-				●	●	●
23	04.589 SWITCH; PARKING BRK	8-94328-267-0	01	1	9804-9906				●	●	●
23	04.589 SWITCH; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW>	8-94328-267-0	01	1	9907-				●	●	●
23	04.589 SWITCH; PARKING BRK	8-97032-276-0	01	1	9804-9906	●	●	●
23	04.589 SWITCH; PARKING BRK PARKING BRAKE FLOOR<7XW>	8-97032-276-0	01	1	9907-				●	●	●
23	04.589 SWITCH; PARKING BRK	8-97032-276-0	01	1	9907-	●	●	●
28	04.594 BOLT; HAND BRK LEVER 01.780 (A) M8X50 FLANGE	0-28080-850-0	01	1	9804-9906				●	●	●
28	04.594 BOLT; HAND BRK LEVER EXC. PARKING BRAKE FLOOR<7XW> 01.780 (A) M8X50 FLANGE	0-28080-850-0	01	1	9907-				●	●	●
28	04.594 BOLT; HAND BRK LEVER 02.664 (B) M8X20 FLANGE	0-28680-820-0	02	1	9804-	●	●	●	●	●	●
34	04.591 LEVER; PARK BRK CONT	8-94479-100-1	01	1	9804-9906				●	●	●
34	04.591 LEVER; PARK BRK CONT EXC. PARKING BRAKE FLOOR<7XW>	8-94479-100-1	01	1	9907-				●	●	●
35	04.792 WASHER; PL,RELAY LEVER,PARK BRK (A) ID=15.5 OD=24	8-94222-473-0	01	1	9804-9906				●	●	●
35	04.792 WASHER; PL,RELAY LEVER,PARK BRK EXC. PARKING BRAKE FLOOR<7XW> (A) ID=15.5 OD=24	8-94222-473-0	01	1	9907-				●	●	●
35	04.792 WASHER; PL,RELAY LEVER,PARK BRK (B) ID=10.5 OD=26	9-09160-710-0	01	1	9804-9906				●	●	●
35	04.792 WASHER; PL,RELAY LEVER,PARK BRK EXC. PARKING BRAKE FLOOR<7XW> (B) ID=10.5 OD=26	9-09160-710-0	01	1	9907-				●	●	●
37	04.792 BUSHING; RELAY LEVER,PARK BRK	8-94408-022-0	02	1	9804-9906				●	●	●
37	04.792 BUSHING; RELAY LEVER,PARK BRK EXC. PARKING BRAKE FLOOR<7XW>	8-94408-022-0	02	1	9907-				●	●	●
38	04.792 WASHER; LK,RELAY LEVER,PARK BRK 00.002 ID=10.2	9-09150-510-0	01	1	9804-9906				●	●	●
38	04.792 WASHER; LK,RELAY LEVER,PARK BRK EXC. PARKING BRAKE FLOOR<7XW> 00.002 ID=10.2	9-09150-510-0	01	1	9907-				●	●	●
39	04.792 NUT; RELAY LEVER,PARK BRK 09.011 M10	9-09110-410-0	01	1	9804-9906				●	●	●
39	04.792 NUT; RELAY LEVER,PARK BRK EXC. PARKING BRAKE FLOOR<7XW> 09.011 M10	9-09110-410-0	01	1	9907-				●	●	●
44	04.779 CABLE; PARKING BRK,FRT	8-94479-091-1	01	1	9804-9906				●	●	●
44	04.779 CABLE; PARKING BRK,FRT EXC. PARKING BRAKE FLOOR<7XW>	8-94479-091-1	01	1	9907-				●	●	●
51	04.785 PIN; JOINT,RELAY LEVER 08.942 OD=8 L=20	9-08233-820-0	02	1	9804-9906				●	●	●
51	04.785 PIN; JOINT,RELAY LEVER EXC. PARKING BRAKE FLOOR<7XW> 08.942 OD=8 L=20	9-08233-820-0	02	1	9907-				●	●	●
52	04.785 WASHER; CURVED RELAY LEVER 04.037 ID=8.5 T=0.3	5-09509-001-0	02	1	9804-9906				●	●	●
52	04.785 WASHER; CURVED RELAY LEVER EXC. PARKING BRAKE FLOOR<7XW> 04.037 ID=8.5 T=0.3	5-09509-001-0	02	1	9907-				●	●	●
53	04.779 CABLE; PARK BRK,FRT LWR	8-94479-095-0	01	1	9804-9906				●	●	●
53	04.779 CABLE; PARK BRK,FRT LWR EXC. PARKING BRAKE FLOOR<7XW>	8-94479-095-0	01	1	9907-				●	●	●
54	04.606 PIN; SNAP,CABLE TO LEVER 00.793 OD=1.8 L=15	9-08112-015-0	02	1	9804-9906				●	●	●
54	04.606 PIN; SNAP,CABLE TO LEVER EXC. PARKING BRAKE FLOOR<7XW> 00.793 OD=1.8 L=15	9-08112-015-0	02	1	9907-				●	●	●
55	04.792 WASHER; PL,PARK BRK CABLE 16.674 ID=8.4	9-09160-508-0	02	1	9804-9906				●	●	●
55	04.792 WASHER; PL,PARK BRK CABLE EXC. PARKING BRAKE FLOOR<7XW> 16.674 ID=8.4	9-09160-508-0	02	1	9907-				●	●	●
57	04.592 BUSHING; RELAY LEVER 04.439	5-33659-053-0	02	1	9804-9906				●	●	●
57	04.592 BUSHING; RELAY LEVER EXC. PARKING BRAKE FLOOR<7XW> 04.439	5-33659-053-0	02	1	9907-				●	●	●
58	04.765 BOLT; RELAY LEVER,PARK BRK 02.664 M8X20 FLANGE	0-28680-820-0	04	1	9804-9906				●	●	●
58	04.765 BOLT; RELAY LEVER,PARK BRK EXC. PARKING BRAKE FLOOR<7XW> 02.664 M8X20 FLANGE	0-28680-820-0	04	1	9907-				●	●	●
59	04.765 BRACKET; RELAY LEVER	8-94479-094-0	01	1	9804-9906				●	●	●
59	04.765 BRACKET; RELAY LEVER EXC. PARKING BRAKE FLOOR<7XW>	8-94479-094-0	01	1	9907-				●	●	●
63	04.792 LEVER; RELAY,HAND BRK	8-94324-632-0	01	1	9804-9906				●	●	●
63	04.792 LEVER; RELAY,HAND BRK EXC. PARKING BRAKE FLOOR<7XW>	8-94324-632-0	01	1	9907-				●	●	●
65	04.594 NUT; RELAY LEVER 09.011 M10	9-09110-410-0	01	1	9804-9906				●	●	●
65	04.594 NUT; RELAY LEVER EXC. PARKING BRAKE FLOOR<7XW> 09.011 M10	9-09110-410-0	01	1	9907-				●	●	●
66	04.592 WASHER; LK,RELAY LEVER 00.002 ID=10.2	9-09150-510-0	01	1	9804-9906				●	●	●
66	04.592 WASHER; LK,RELAY LEVER EXC. PARKING BRAKE FLOOR<7XW> 00.002 ID=10.2	9-09150-510-0	01	1	9907-				●	●	●
68	04.792 PIN; FULCRUM,RELAY LEVER,PARK BR	8-94404-908-1	01	1	9804-9906				●	●	●
68	04.792 PIN; FULCRUM,RELAY LEVER,PARK BR EXC. PARKING BRAKE FLOOR<7XW>	8-94404-908-1	01	1	9907-				●	●	●
69	04.589 ROD; RELAY LEVER	8-94314-430-0	01	1	9804-9906				●	●	●
69	04.589 ROD; RELAY LEVER EXC. PARKING BRAKE FLOOR<7XW>	8-94314-430-0	01	1	9907-				●	●	●
70	04.606 NUT; EQUALIZER TO FRT CABLE 00.787 M8	9-09111-408-0	02	1	9804-9906				●	●	●
70	04.606 NUT; EQUALIZER TO FRT CABLE EXC. PARKING BRAKE FLOOR<7XW> 00.787 M8	9-09111-408-0	02	1	9907-				●	●	●
71	04.606 SPRING; RETURN,PARKING BRK TO BO 03.302	8-94479-600-2	01	1	9804-9906				●	●	●
71	04.606 SPRING; RETURN,PARKING BRK TO BO EXC. PARKING BRAKE FLOOR<7XW> 03.302	8-94479-600-2	01	1	9907-				●	●	●
72	04.779 CABLE; PARKING BRK (B) L=1850 WHITE	8-94367-286-0	01	1	9804-9906				●	●	●
72	04.779 CABLE; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW> (B) L=1850 WHITE	8-94367-286-0	01	1	9907-				●	●	●
72	04.779 CABLE; PARKING BRK (A) L=1604	8-94366-770-2	01	1	9804-9906				●	●	●
72	04.779 CABLE; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW> (A) L=1604	8-94366-770-2	01	1	9907-				●	●	●
72	04.779 CABLE; PARKING BRK (A) L=1684	8-94366-769-2	01	1	9804-9906				●	●	●
72	04.779 CABLE; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW> (A) L=1684	8-94366-769-2	01	1	9907-				●	●	●
72	04.779 CABLE; PARKING BRK PARKING BRAKE FLOOR<7XW> (C)	8-97217-149-1	01	1	9907-				●	●	●
72	04.779 CABLE; PARKING BRK PARKING BRAKE FLOOR<7XW> (C)	8-97174-665-2	01	1	9907-				●	●	●
72	04.779 CABLE; PARKING BRK (C)	8-97111-566-2	01	1	9804-	●	●	●
72	04.779 CABLE; PARKING BRK (C)	8-97111-565-3	01	1	9804-	●	●	●
76	04.595 SLEEVE; CABLE GUIDE,PARKING BRK 05.601	8-11042-301-3	01	1	9804-9906				●	●	●
76	04.595 SLEEVE; CABLE GUIDE,PARKING BRK EXC. PARKING BRAKE FLOOR<7XW> 05.601	8-11042-301-3	01	1	9907-				●	●	●
86	04.785 BOLT PARKING BRAKE FLOOR<7XW> 01.062 (B) M8X16 FLANGE	0-28080-816-0	01	1	9907-				●
86	04.785 BOLT 4JG2 ENG(RJC),4JA1 ENG(RLE) PARKING BRAKE FLOOR<7XW> 01.062 (B) M8X16 FLANGE	0-28080-816-0	01	1	9907-					●	●
86	04.785 BOLT 01.428 (A) M6X12 FLANGE	0-28080-612-0	03	1	9804-	●	●	●	●	●	●
86	04.785 BOLT 01.428 (A) M6X12 FLANGE	0-28080-612-0	06	1	9804-	●	●	●	●	●	●
86	04.785 BOLT 01.428 (A) M6X12 FLANGE	0-28080-612-0	02	1	9804-9906	●	●	●
86	04.785 BOLT PARKING BRAKE FLOOR<7XW> 01.428 (A) M6X12 FLANGE	0-28080-612-0	02	1	9907-				●
86	04.785 BOLT 4JG2 ENG(RJC),4JA1 ENG(RLE) PARKING BRAKE FLOOR<7XW> 01.428 (A) M6X12 FLANGE	0-28080-612-0	02	1	9907-					●	●
86	04.785 BOLT 01.428 (A) M6X12 FLANGE	0-28080-612-0	02	1	9907-	●	●	●
91	04.785 CLIP; PARKING BRK CABLE (C)	8-94126-640-1	01	1	9804-				●	●	●
91	04.785 CLIP; PARKING BRK CABLE (C)	8-94126-639-1	01	1	9804-				●	●	●
91	04.785 CLIP; PARKING BRK CABLE (D)	8-94146-602-0	01	1	9804-	●	●	●	●	●	●
91	04.785 CLIP; PARKING BRK CABLE (D)	8-94146-602-0	01	1	9804-	●	●	●	●	●	●
91	04.785 CLIP; PARKING BRK CABLE (A)	8-94450-389-0	01	1	9804-	●	●	●	●	●	●
91	04.785 CLIP; PARKING BRK CABLE (B)	8-94459-413-0	02	1	9804-	●	●	●	●	●	●
91	04.785 CLIP; PARKING BRK CABLE (E) ID=14	9-09916-883-0	02	1	9804-9906	●	●	●
91	04.785 CLIP; PARKING BRK CABLE PARKING BRAKE FLOOR<7XW> (E) ID=14	9-09916-883-0	01	1	9907-				●	●	●
91	04.785 CLIP; PARKING BRK CABLE PARKING BRAKE FLOOR<7XW> (E) ID=14	9-09916-883-0	01	1	9907-				●
91	04.785 CLIP; PARKING BRK CABLE 4JG2 ENG(RJC),4JA1 ENG(RLE) PARKING BRAKE FLOOR<7XW> (E) ID=14	9-09916-883-0	01	1	9907-					●	●
91	04.785 CLIP; PARKING BRK CABLE (E) ID=14	9-09916-883-0	01	1	9907-	●	●	●
91	04.785 CLIP; PARKING BRK CABLE (E) ID=14	9-09916-883-0	01	1	9907-	●	●	●
91	04.785 CLIP; PARKING BRK CABLE (C)	8-97087-002-0	01	1	9804-	●	●	●
91	04.785 CLIP; PARKING BRK CABLE (C)	8-97087-001-0	01	1	9804-	●	●	●
169	04.589 BOLT; SWITCH 10.230 M6X16 W/LK&PL WASHER	8-94452-505-0	01	1	9804-9906				●	●	●
169	04.589 BOLT; SWITCH EXC. PARKING BRAKE FLOOR<7XW> 10.230 M6X16 W/LK&PL WASHER	8-94452-505-0	01	1	9907-				●	●	●
205	04.785 CLIP; 3RD C/MBR 04.681	5-09709-039-0	02	1	9804-9906				●	●	●
205	04.785 CLIP; 3RD C/MBR EXC. PARKING BRAKE FLOOR<7XW> 04.681	5-09709-039-0	02	1	9907-				●	●	●
344	04.595 GASKET; DASH LWR	8-94371-873-0	01	1	9804-9906				●	●	●
344	04.595 GASKET; DASH LWR EXC. PARKING BRAKE FLOOR<7XW>	8-94371-873-0	01	1	9907-				●	●	●

328 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
28	04.594 BOLT; HAND BRK LEVER 01.780 (A) M8X50 FLANGE	0-28080-850-0	01	1	9804-9906				●	●	●
28	04.594 BOLT; HAND BRK LEVER EXC. PARKING BRAKE FLOOR<7XW> 01.780 (A) M8X50 FLANGE	0-28080-850-0	01	1	9907-				●	●	●
28	04.594 BOLT; HAND BRK LEVER 02.664 (B) M8X20 FLANGE	0-28680-820-0	02	1	9804-	●	●	●	●	●	●
328	04.784 PLATE; SEAL	8-97064-242-1	01	1	9804-9906	●	●	●
328	04.784 PLATE; SEAL PARKING BRAKE FLOOR<7XW>	8-97064-242-1	01	1	9907-				●	●	●
328	04.784 PLATE; SEAL	8-97064-242-1	01	1	9907-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
