◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50802 - TFR/TFS(EUROPE)-LHD ▶ 3 - Brakes, Brake System ▶ 3-10 - BRAKE PEDAL AND CONTROL ▶
3-10 — BRAKE PEDAL AND CONTROL (#44652) — 35 parça

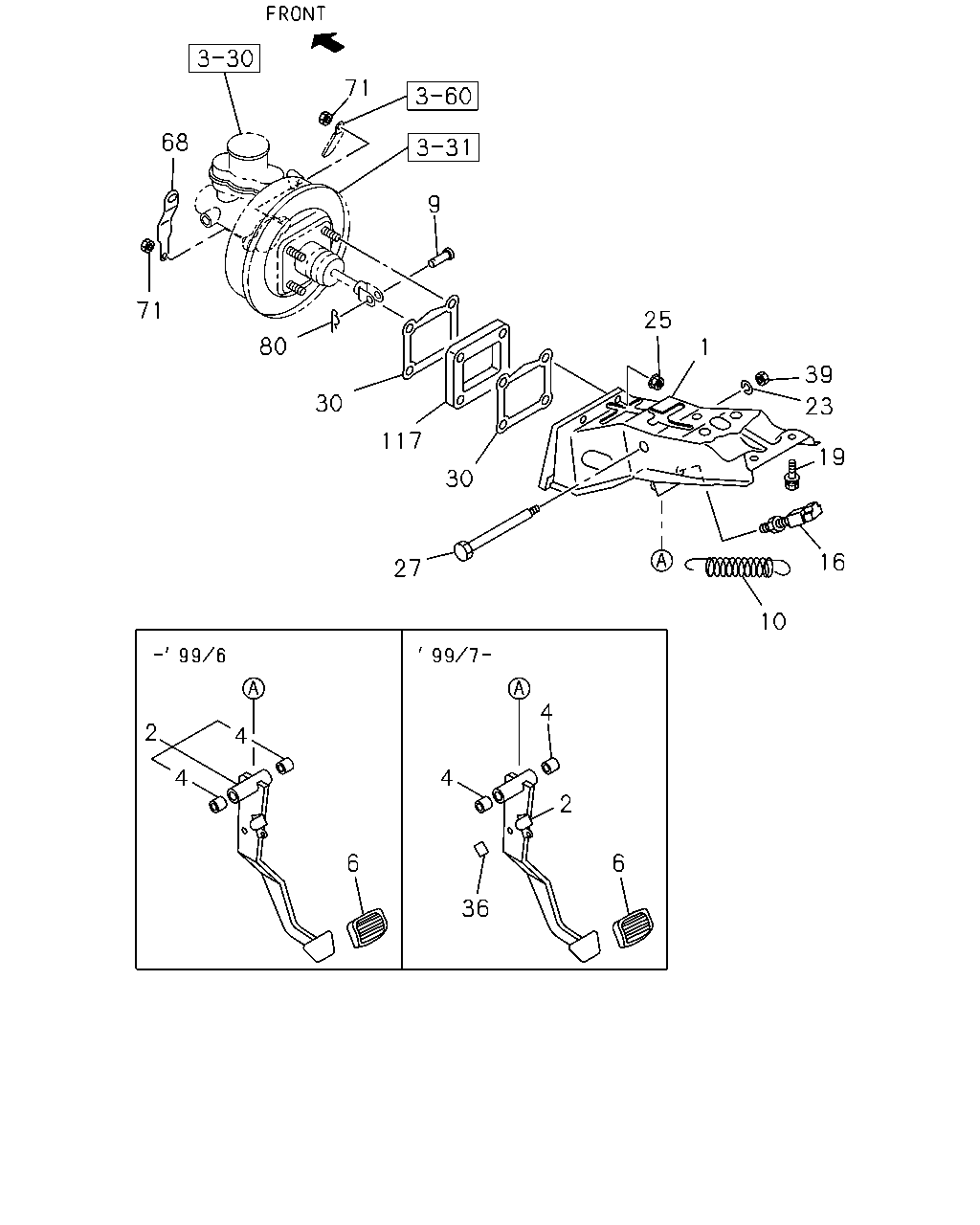

çizim 64567
71 68 9 71 25 80 1 39 30 23 117 19 30 16 27 10 4 2 4 4 4 2 6 6 36
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 04.634 BRACKET ASM; PEDAL 8-97127-534-1 01 1 9804-9906 ● ● ● ● ● ●
1 04.634 BRACKET ASM; PEDAL 8-97230-051-0 01 1 9907-0202 ● ● ● ● ● ●
1 04.634 BRACKET ASM; PEDAL 8-97326-665-1 01 1 0203- ● ● ● ● ● ●
2 04.625 PEDAL; BRK
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 		8-94329-613-1 01 1 9804-9906 ● ● ● ● ● ●
2 04.625 PEDAL; BRK
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 		8-97208-821-0 01 1 9907- ● ● ● ● ● ●
2 04.625 PEDAL; BRK
A/T AISIN(RMD) 		8-94329-614-1 01 1 9806-9906 ●
2 04.625 PEDAL; BRK
A/T AISIN(RMD) 		8-97208-822-0 01 1 9907- ● ●
4 04.634 BUSHING; BRK PEDAL
00.833 		8-94244-439-0 02 1 9804-9906 ● ● ● ● ● ●
4 04.634 BUSHING; BRK PEDAL
04.792 		8-94238-596-0 02 1 9907- ● ● ● ● ● ●
6 04.630 COVER; BRK PEDAL
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 		8-94222-524-1 01 1 9804- ● ● ● ● ● ●
6 04.630 COVER; BRK PEDAL
A/T AISIN(RMD) 		5-31413-004-0 01 1 9907-0008 ● ●
6 04.630 COVER; BRK PEDAL
A/T AISIN(RMD) 		8-97263-035-0 01 1 0009- ● ●
6 04.630 COVER; BRK PEDAL
A/T AISIN(RMD) 		5-31413-004-0 01 1 9806-9906 ●
9 04.634 PIN; JAW JOINT
04.662 		8-94250-182-0 01 1 9804- ● ● ● ● ● ●
10 04.639 SPRING; RETURN,BRK PEDAL 8-94329-696-0 01 1 9804-9906 ● ● ● ● ● ●
10 04.639 SPRING; RETURN,BRK PEDAL 8-97212-877-0 01 1 9907- ● ● ● ● ● ●
16 02.447 SWITCH; STOP LAMP
12V 12A 		8-94362-930-0 01 1 9804-0107 ● ● ● ● ● ●
16 02.447 SWITCH; STOP LAMP
EXC. CHARGE AIR COOLER<6PL> 12V 12A 		8-94362-930-0 01 1 0108- ● ● ● ●
16 02.447 SWITCH; STOP LAMP 8-94109-863-0 01 1 0108- ●
16 02.447 SWITCH; STOP LAMP
4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> 		8-94109-863-0 01 1 0108- ● ● ● ●
16 02.447 SWITCH; STOP LAMP
4JA1 ENG(RLE) 		8-94109-863-0 01 1 0108- ●
19 04.634 BOLT; BRKT
01.062 M8X16 FLANGE 		0-28080-816-0 05 1 9804- ● ● ● ● ● ●
23 04.634 WASHER; LK,SHAFT
00.002 ID=10.2 		9-09150-510-0 01 1 9804-9906 ● ● ● ● ● ●
25 04.634 NUT; FLANGE,MTG BRKT TO BODY
00.854 M8 FLANGE 		5-09440-005-0 04 1 9907- ● ● ● ● ● ●
27 04.634 SHAFT; BRK PEDAL 8-94480-803-0 01 1 9804-9906 ● ● ● ● ● ●
27 04.634 SHAFT; BRK PEDAL 8-94384-221-0 01 1 9907- ● ● ● ● ● ●
30 04.910 GASKET; M/VAC TO BODY 8-94111-590-0 02 1 9804- ● ● ● ● ● ●
36 04.639 STOPPER; BRK PEDAL
03.459 		8-97857-401-1 01 1 9907-0307 ● ● ● ● ● ●
36 04.639 STOPPER; BRK PEDAL
03.459 		8-97302-305-0 01 1 0308- ● ● ● ● ● ●
39 04.634 NUT; STOPPER LK
09.011 M10 		9-09110-410-0 01 1 9804-9906 ● ● ● ● ● ●
39 04.634 NUT; STOPPER LK
00.833 M10 FLANGE 		1-09440-022-0 01 1 9907- ● ● ● ● ● ●
68 04.634 BRACKET; SERVO TO DASH PANEL 8-97061-908-0 01 1 9804- ● ● ● ● ● ●
71 04.650 NUT; BRK M/CYL
00.777 M8 W/LK WASHER 		8-94279-050-0 02 1 9804- ● ● ● ● ● ●
80 04.634 PIN; SNAP,BRK PEDAL
L=27.7 		8-94157-841-0 01 1 9804- ● ● ● ● ● ●
117 04.910 SPACER; M/VAC TO BODY 8-94126-762-0 01 1 9804- ● ● ● ● ● ●
