◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50802 - TFR/TFS(EUROPE)-LHD ▶ 3 - Brakes, Brake System ▶ 3-02 - FRONT DISC BRAKE CALIPER ▶
3-02 — FRONT DISC BRAKE CALIPER (#44650) — 25 parça

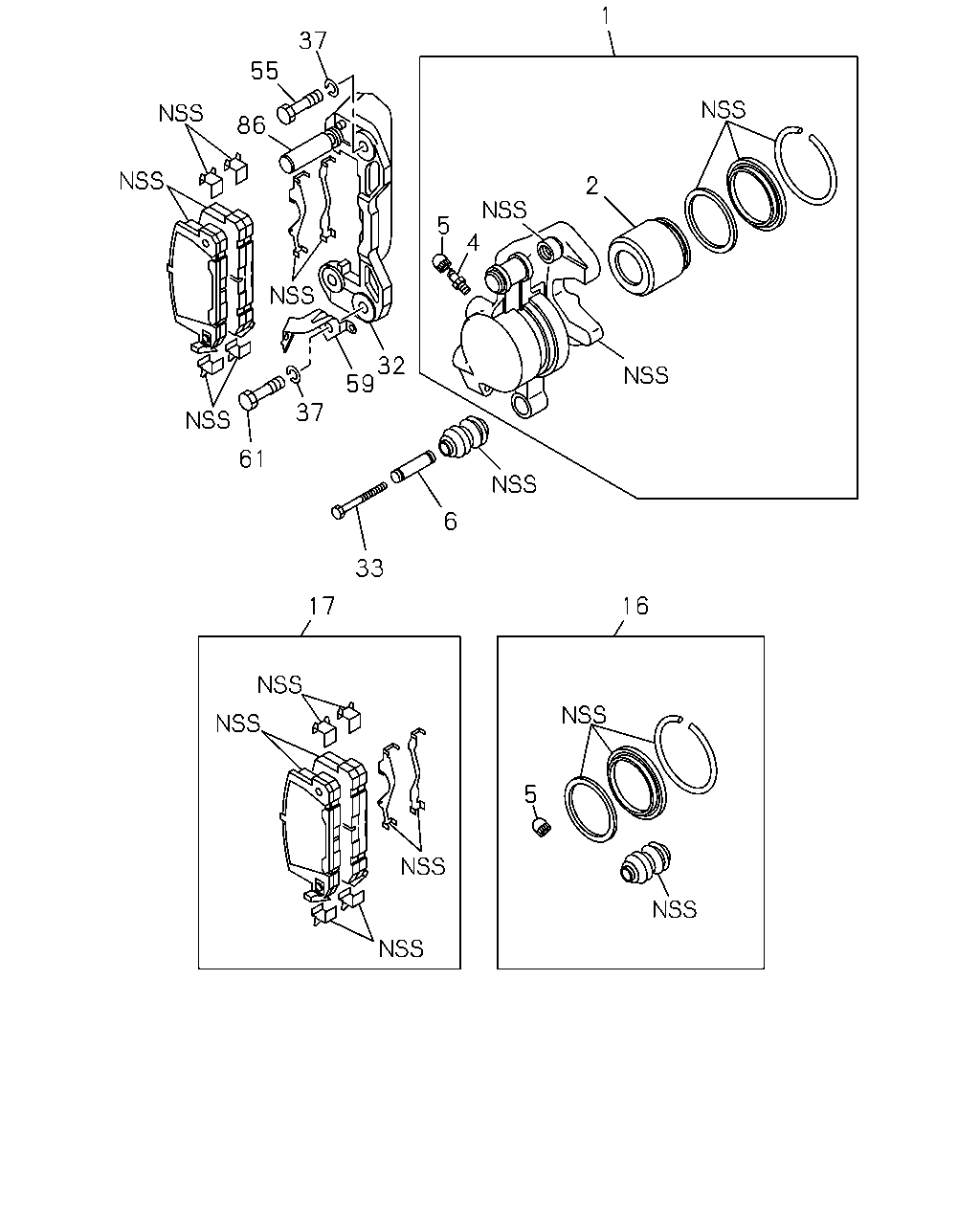

çizim 65538
1 37 55 86 2 5 4 32 59 37 61 6 33 17 16 5
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 04.665 CALIPER; FRT DISC BRK 8-94388-013-0 01 1 9804- ● ● ●
1 04.665 CALIPER; FRT DISC BRK 8-94388-012-0 01 1 9804- ● ● ●
1 04.665 CALIPER; FRT DISC BRK 8-94388-017-0 01 1 9804- ● ● ●
1 04.665 CALIPER; FRT DISC BRK 8-94388-016-0 01 1 9804- ● ● ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT 8-94438-689-0 04 1 0108- ● ● ● ● ● ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT 8-94438-689-0 02 1 9804-0107 ● ● ● ● ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT
04.665 		8-97113-867-0 03 1 0108- ● ● ● ● ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT 8-94438-713-0 01 1 9804- ● ● ● ● ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT
04.665 		8-97113-867-0 01 1 9804-0107 ● ● ● ● ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT 1-47619-009-0 03 1 0108- ● ● ● ● ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT 5-47619-007-2 01 1 9804- ● ● ● ● ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT 1-47619-009-0 01 1 9804-0107 ● ● ● ● ● ●
6 04.681 SLEEVE; BOOT,CALIPER 8-94136-644-0 02 1 9804- ● ● ● ● ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT 8-97134-715-0 01 1 9804- ● ● ● ● ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT 8-97114-300-1 01 1 9804- ● ● ● ● ● ●
32 04.665 SUPPORT; FRT DISC BRK 8-94438-690-0 02 1 9804- ● ● ● ● ● ●
33 04.665 BOLT; SUPPORT BRKT TO DISC BRK
M10X59.5 		8-94438-712-0 02 1 9804- ● ● ● ● ● ●
37 04.665 WASHER; LK
05.422 ID=14.2 		9-09150-814-0 04 1 9804- ● ● ● ● ● ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK
04.665 M14X29 		8-97126-347-0 02 1 9804-0203 ● ● ● ● ● ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK
04.665 M14X29 		8-97327-422-0 02 1 0204- ● ● ● ● ● ●
59 04.665 BRACKET; FLEX HOSE,FRT 8-94433-667-1 01 1 9804- ● ● ●
59 04.665 BRACKET; FLEX HOSE,FRT 8-94433-666-1 01 1 9804- ● ● ●
61 04.665 BOLT; SUPPORT BRKT TO KNUCKLE
M14X29 		8-97126-347-0 02 1 9804-0203 ● ● ● ● ● ●
61 04.665 BOLT; SUPPORT BRKT TO KNUCKLE
M14X29 		8-97327-422-0 02 1 0204- ● ● ● ● ● ●
86 04.665 PIN; GUIDE 8-94438-694-0 02 1 9804- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
