Sayfa 2-62 - Isuzu EPC

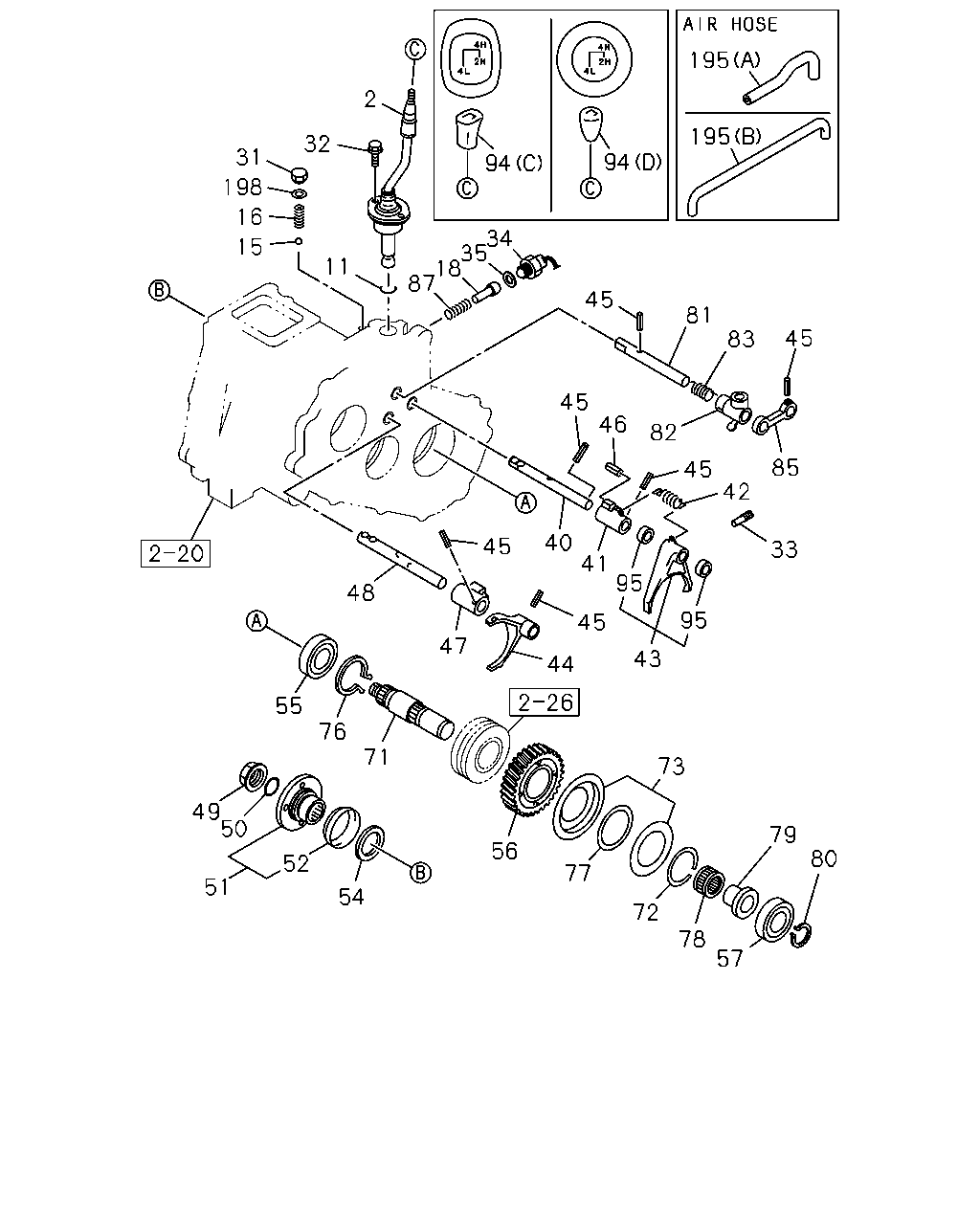

2-62 — TRANSFER SIDE CASE AND SHIFT LEVER (#44647) — 343 parça

195 2 195 32 31 198 16 15 94 94 34 35 18 87 11 45 81 45 83 45 46 82 85 45 42 40 41 95 45 33 48 95 45 47 43 44 55 76 71 73 49 50 79 80 56 52 77 51 54 72 78 57

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	04.570 LEVER ASM; CHANGE,TRANSFER M/T MSG 5 SPEED(M75)	8-94450-509-2	01	1	9804-9910	●	●	●
2	04.570 LEVER ASM; CHANGE,TRANSFER M/T MSG 5 SPEED(M75)	8-97240-219-0	01	1	9911-0107	●	●	●
2	04.570 LEVER ASM; CHANGE,TRANSFER 4JA1 ENG(RLE) M/T MSG 5 SPEED(M75)	8-97240-219-0	01	1	0108-		●	●
2	04.570 LEVER ASM; CHANGE,TRANSFER M/T MUA 5 SPEED(RMN)	8-97182-130-0	01	1	9804-9906	●	●	●
2	04.570 LEVER ASM; CHANGE,TRANSFER M/T MUA 5 SPEED(RMN)	8-97217-562-3	01	1	9907-	●	●	●
2	04.570 LEVER ASM; CHANGE,TRANSFER A/T AISIN(RMD)	8-97210-509-2	01	1	9806-			●
11	04.570 GASKET; CHANGE LEVER M/T MSG 5 SPEED(M75) ID=35.2	9-09561-235-0	01	1	9804-0107	●	●	●
11	04.570 GASKET; CHANGE LEVER M/T MSG 5 SPEED(M75) ID=35.2	9-09561-235-0	01	1	0108-		●	●
11	04.570 GASKET; CHANGE LEVER M/T MUA 5 SPEED(RMN) 04.435 ID=33.2	1-09623-378-0	01	1	9804-9906	●	●	●
11	04.570 GASKET; CHANGE LEVER M/T MUA 5 SPEED(RMN) 04.435 ID=33.2	1-09623-378-0	01	1	9907-	●	●	●
15	04.311 BALL; DETENT,SHIFT ROD,TRANSFER M/T MSG 5 SPEED(M75)	9-00097-010-0	02	1	9804-0107	●	●	●
15	04.311 BALL; DETENT,SHIFT ROD,TRANSFER 4JA1 ENG(RLE) M/T MSG 5 SPEED(M75)	9-00097-010-0	02	1	0108-		●	●
15	04.311 BALL; DETENT,SHIFT ROD,TRANSFER M/T MUA 5 SPEED(RMN)	8-94435-335-0	02	1	9804-9805	●	●	●
15	04.311 BALL; DETENT,SHIFT ROD,TRANSFER A/T AISIN(RMD),M/T MUA 5 SPEED(RMN)	8-94435-335-0	02	1	9806-	●	●	●
16	04.515 SPRING; DETENT,SHIFT ROD,TRANSFE A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) L=23.2	8-97241-351-0	01	1	0006-	●	●	●
16	04.515 SPRING; DETENT,SHIFT ROD,TRANSFE M/T MSG 5 SPEED(M75) L=43	5-09580-087-0	02	1	9804-0107	●	●	●
16	04.515 SPRING; DETENT,SHIFT ROD,TRANSFE 4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) L=43	5-09580-087-0	02	1	0108-		●	●
16	04.515 SPRING; DETENT,SHIFT ROD,TRANSFE M/T MUA 5 SPEED(RMN) L=23.4	8-97145-374-0	02	1	9804-9805	●	●	●
16	04.515 SPRING; DETENT,SHIFT ROD,TRANSFE A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) L=23.4	8-97145-374-0	02	1	9806-0005	●	●	●
16	04.515 SPRING; DETENT,SHIFT ROD,TRANSFE A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) 04.311 L=26.8	8-94320-193-0	02	1	0006-	●	●	●
18	04.525 PIN; INTER LOCK,SHIFT ROD,TRANSF M/T MSG 5 SPEED(M75)	5-09740-010-0	01	1	9804-0107	●	●	●
18	04.525 PIN; INTER LOCK,SHIFT ROD,TRANSF 4JA1 ENG(RLE) M/T MSG 5 SPEED(M75)	5-09740-010-0	01	1	0108-		●	●
18	04.525 PIN; INTER LOCK,SHIFT ROD,TRANSF M/T MUA 5 SPEED(RMN)	8-94461-898-0	01	1	9804-9805	●	●	●
18	04.525 PIN; INTER LOCK,SHIFT ROD,TRANSF A/T AISIN(RMD),M/T MUA 5 SPEED(RMN)	8-94461-898-0	01	1	9806-	●	●	●
31	04.520 PLUG; DETENT BALL,TRANSFER M/T MUA 5 SPEED(RMN) M12X9	9-99202-312-0	02	1	9804-9805	●	●	●
31	04.520 PLUG; DETENT BALL,TRANSFER A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) M12X9	9-99202-312-0	02	1	9806-	●	●	●
32	04.012 BOLT; CHANGE LEVER TO SIDE CASE M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9804-9807	●	●	●
32	04.012 BOLT; CHANGE LEVER TO SIDE CASE M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9808-0012	●	●
32	04.012 BOLT; CHANGE LEVER TO SIDE CASE 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9808-0012			●
32	04.012 BOLT; CHANGE LEVER TO SIDE CASE 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0101-	●	●	●
33	04.557 SCREW; STOPPER,TRANSFER M/T MUA 5 SPEED(RMN) M6X18	8-94448-812-1	01	1	9804-9805	●	●	●
33	04.557 SCREW; STOPPER,TRANSFER A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) M6X18	8-94448-812-1	01	1	9806-9903	●	●	●
33	04.557 SCREW; STOPPER,TRANSFER A/T AISIN(RMD) M6X18	8-94448-812-2	01	1	9904-0302			●
33	04.557 SCREW; STOPPER,TRANSFER A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) M6X18	8-94448-812-2	01	1	0303-	●	●	●
34	04.075 SWITCH; TRANSFER INDICATOR M/T MSG 5 SPEED(M75)	5-82440-019-0	01	1	9804-0107	●	●	●
34	04.075 SWITCH; TRANSFER INDICATOR 4JA1 ENG(RLE) M/T MSG 5 SPEED(M75)	5-82440-019-0	01	1	0108-		●	●
34	04.075 SWITCH; TRANSFER INDICATOR M/T MUA 5 SPEED(RMN)	8-97138-632-0	01	1	9804-9805	●	●	●
34	04.075 SWITCH; TRANSFER INDICATOR A/T AISIN(RMD),M/T MUA 5 SPEED(RMN)	8-97138-632-1	01	1	9806-	●	●	●
35	04.075 GASKET; INDICATOR SWITCH,TRANSFE M/T MSG 5 SPEED(M75) ID=14.2	8-94462-114-0	01	1	9804-0107	●	●	●
35	04.075 GASKET; INDICATOR SWITCH,TRANSFE 4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) ID=14.2	8-94462-114-0	01	1	0108-		●	●
35	04.075 GASKET; INDICATOR SWITCH,TRANSFE M/T MUA 5 SPEED(RMN) 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	9804-9805	●	●	●
35	04.075 GASKET; INDICATOR SWITCH,TRANSFE A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	9806-	●	●	●
40	04.309 ROD; SHIFT,4X2-4X4,TRANSFER M/T MSG 5 SPEED(M75) 04.555	5-36564-006-1	01	1	9804-0107	●	●	●
40	04.309 ROD; SHIFT,4X2-4X4,TRANSFER 4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) 04.555	5-36564-006-1	01	1	0108-		●	●
40	04.309 ROD; SHIFT,4X2-4X4,TRANSFER M/T MUA 5 SPEED(RMN)	8-97070-675-1	01	1	9804-9805	●	●	●
40	04.309 ROD; SHIFT,4X2-4X4,TRANSFER A/T AISIN(RMD),M/T MUA 5 SPEED(RMN)	8-97070-675-2	01	1	9806-	●	●	●
41	04.555 BLOCK; SHIFT,4X2-4X4,TRANSFER M/T MSG 5 SPEED(M75)	8-97067-103-0	01	1	9804-0107	●	●	●
41	04.555 BLOCK; SHIFT,4X2-4X4,TRANSFER 4JA1 ENG(RLE) M/T MSG 5 SPEED(M75)	8-97067-103-0	01	1	0108-		●	●
41	04.555 BLOCK; SHIFT,4X2-4X4,TRANSFER M/T MUA 5 SPEED(RMN)	8-97033-094-2	01	1	9804-9805	●	●	●
41	04.555 BLOCK; SHIFT,4X2-4X4,TRANSFER A/T AISIN(RMD),M/T MUA 5 SPEED(RMN)	8-97033-094-2	01	1	9806-	●	●	●
42	04.515 SPRING; GEAR LOCK RELEASE,TRANSF M/T MSG 5 SPEED(M75) L=26	5-09583-098-0	01	1	9804-0107	●	●	●
42	04.515 SPRING; GEAR LOCK RELEASE,TRANSF 4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) L=26	5-09583-098-0	01	1	0108-		●	●
42	04.515 SPRING; GEAR LOCK RELEASE,TRANSF M/T MUA 5 SPEED(RMN) L=30	8-94422-188-0	01	1	9804-9805	●	●	●
42	04.515 SPRING; GEAR LOCK RELEASE,TRANSF A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) L=30	8-94422-188-0	01	1	9806-	●	●	●
43	04.555 ARM; SHIFT,4X2-4X4,TRANSFER M/T MSG 5 SPEED(M75)	5-36561-011-1	01	1	9804-0107	●	●	●
43	04.555 ARM; SHIFT,4X2-4X4,TRANSFER 4JA1 ENG(RLE) M/T MSG 5 SPEED(M75)	5-36561-011-1	01	1	0108-		●	●
43	04.555 ARM; SHIFT,4X2-4X4,TRANSFER M/T MUA 5 SPEED(RMN)	8-97100-915-2	01	1	9804-9805	●	●	●
43	04.555 ARM; SHIFT,4X2-4X4,TRANSFER A/T AISIN(RMD),M/T MUA 5 SPEED(RMN)	8-97100-915-2	01	1	9806-	●	●	●
44	04.555 ARM; SHIFT,HIGH-LOW,TRANSFER M/T MSG 5 SPEED(M75)	5-36561-010-1	01	1	9804-0107	●	●	●
44	04.555 ARM; SHIFT,HIGH-LOW,TRANSFER 4JA1 ENG(RLE) M/T MSG 5 SPEED(M75)	5-36561-010-1	01	1	0108-		●	●
44	04.555 ARM; SHIFT,HIGH-LOW,TRANSFER M/T MUA 5 SPEED(RMN)	8-94421-922-3	01	1	9804-9805	●	●	●
44	04.555 ARM; SHIFT,HIGH-LOW,TRANSFER A/T AISIN(RMD),M/T MUA 5 SPEED(RMN)	8-94421-922-3	01	1	9806-	●	●	●
45	04.303 PIN; SPR,SHIFT ARM TO ROD M/T MSG 5 SPEED(M75) D=4.2 L=25	8-94171-541-0	02	1	9804-0107	●	●	●
45	04.303 PIN; SPR,SHIFT ARM TO ROD 4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) D=4.2 L=25	8-94171-541-0	02	1	0108-		●	●
45	04.303 PIN; SPR,SHIFT ARM TO ROD M/T MUA 5 SPEED(RMN) D=4.2 L=25	8-94171-541-0	06	1	9804-9805	●	●	●
45	04.303 PIN; SPR,SHIFT ARM TO ROD A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) D=4.2 L=25	8-94171-541-0	06	1	9806-	●	●	●
46	04.555 PIN; SPR,SELECT LEVER M/T MSG 5 SPEED(M75)	9-09678-517-0	01	1	9804-0107	●	●	●
46	04.555 PIN; SPR,SELECT LEVER 4JA1 ENG(RLE) M/T MSG 5 SPEED(M75)	9-09678-517-0	01	1	0108-		●	●
46	04.555 PIN; SPR,SELECT LEVER M/T MUA 5 SPEED(RMN)	8-94448-816-1	01	1	9804-9805	●	●	●
46	04.555 PIN; SPR,SELECT LEVER A/T AISIN(RMD),M/T MUA 5 SPEED(RMN)	8-94448-816-1	01	1	9806-	●	●	●
47	04.555 BLOCK; SHIFT,LOW-HIGH,TRANSFER M/T MUA 5 SPEED(RMN)	8-97141-883-1	01	1	9804-9805	●	●	●
47	04.555 BLOCK; SHIFT,LOW-HIGH,TRANSFER A/T AISIN(RMD),M/T MUA 5 SPEED(RMN)	8-97141-883-1	01	1	9806-	●	●	●
48	04.309 ROD; SHIFT,HIGH-LOW,TRANSFER M/T MSG 5 SPEED(M75) 04.555	5-36564-009-0	01	1	9804-0107	●	●	●
48	04.309 ROD; SHIFT,HIGH-LOW,TRANSFER 4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) 04.555	5-36564-009-0	01	1	0108-		●	●
48	04.309 ROD; SHIFT,HIGH-LOW,TRANSFER M/T MUA 5 SPEED(RMN)	8-97182-406-0	01	1	9804-9805	●	●	●
48	04.309 ROD; SHIFT,HIGH-LOW,TRANSFER A/T AISIN(RMD),M/T MUA 5 SPEED(RMN)	8-97182-406-1	01	1	9806-	●	●	●
49	04.525 NUT; COUPLING DRIVER,FRT OUTPUT M/T MUA 5 SPEED(RMN) M27 FLANGE	8-94422-073-0	01	1	9804-9805	●	●	●
49	04.525 NUT; COUPLING DRIVER,FRT OUTPUT A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) M27 FLANGE	8-94422-073-0	01	1	9806-	●	●	●
50	04.552 GASKET; COUPLING DRIVER,FRT OUTP M/T MUA 5 SPEED(RMN) ID=29.7 OD=36.1	8-94483-035-0	01	1	9804-9805	●	●	●
50	04.552 GASKET; COUPLING DRIVER,FRT OUTP A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) ID=29.7 OD=36.1	8-94483-035-0	01	1	9806-	●	●	●
51	05.555 FLANGE ASM; COUPLING DRIVER,TRAN M/T MSG 5 SPEED(M75)	8-94343-222-0	01	1	9804-0107	●	●	●
51	05.555 FLANGE ASM; COUPLING DRIVER,TRAN 4JA1 ENG(RLE) M/T MSG 5 SPEED(M75)	8-94343-222-0	01	1	0108-		●	●
51	05.555 FLANGE ASM; COUPLING DRIVER,TRAN M/T MUA 5 SPEED(RMN)	8-94453-699-5	01	1	9804-9805	●	●	●
51	05.555 FLANGE ASM; COUPLING DRIVER,TRAN A/T AISIN(RMD),M/T MUA 5 SPEED(RMN)	8-94453-699-7	01	1	9806-	●	●	●
52	05.545 COVER; DUST,TRANSFER FLANGE M/T MSG 5 SPEED(M75)	8-94343-223-0	01	1	9804-0107	●	●	●
52	05.545 COVER; DUST,TRANSFER FLANGE 4JA1 ENG(RLE) M/T MSG 5 SPEED(M75)	8-94343-223-0	01	1	0108-		●	●
52	05.545 COVER; DUST,TRANSFER FLANGE M/T MUA 5 SPEED(RMN)	8-94320-867-2	01	1	9804-9805	●	●	●
52	05.545 COVER; DUST,TRANSFER FLANGE A/T AISIN(RMD),M/T MUA 5 SPEED(RMN)	8-94320-867-3	01	1	9806-	●	●	●
54	04.515 SEAL; OIL,TRANSFER FLANGE M/T MSG 5 SPEED(M75) TKK	8-94343-237-0	01	1	9804-0107	●	●	●
54	04.515 SEAL; OIL,TRANSFER FLANGE 4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) TKK	8-94343-237-0	01	1	0108-		●	●
54	04.515 SEAL; OIL,TRANSFER FLANGE M/T MUA 5 SPEED(RMN) TKK	8-97046-702-0	01	1	9804-9805	●	●	●
54	04.515 SEAL; OIL,TRANSFER FLANGE A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) TKK	8-97046-702-0	01	1	9806-0010	●	●	●
54	04.515 SEAL; OIL,TRANSFER FLANGE M/T MUA 5 SPEED(RMN) NOK	8-97046-703-2	01	1	9804-9805	●	●	●
54	04.515 SEAL; OIL,TRANSFER FLANGE A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) NOK	8-97046-703-2	01	1	9806-	●	●	●
55	04.520 BEARING; BALL,TRANSFER FLANGE,FR M/T MSG 5 SPEED(M75) NSK	9-00090-628-0	01	1	9804-0107	●	●	●
55	04.520 BEARING; BALL,TRANSFER FLANGE,FR 4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) NSK	9-00090-628-0	01	1	0108-		●	●
55	04.520 BEARING; BALL,TRANSFER FLANGE,FR M/T MUA 5 SPEED(RMN) NSK	8-94422-172-0	01	1	9804-9805	●	●	●
55	04.520 BEARING; BALL,TRANSFER FLANGE,FR A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) NSK	8-94422-172-1	01	1	9806-	●	●	●
56	04.535 GEAR; OUTPUT,FRT WHEEL,TRANSFER M/T MSG 5 SPEED(M75) Z=32	8-94435-149-1	01	1	9804-0107	●	●	●
56	04.535 GEAR; OUTPUT,FRT WHEEL,TRANSFER 4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) Z=32	8-94435-149-1	01	1	0108-		●	●
56	04.535 GEAR; OUTPUT,FRT WHEEL,TRANSFER M/T MUA 5 SPEED(RMN) Z=49	8-97126-101-1	01	1	9804-9805	●	●	●
56	04.535 GEAR; OUTPUT,FRT WHEEL,TRANSFER A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) Z=49	8-97126-101-1	01	1	9806-	●	●	●
57	04.520 BEARING; BALL,TRANSFER FLANGE,RR M/T MSG 5 SPEED(M75) NSK	9-00090-626-0	01	1	9804-0107	●	●	●
57	04.520 BEARING; BALL,TRANSFER FLANGE,RR 4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) NSK	9-00090-626-0	01	1	0108-		●	●
57	04.520 BEARING; BALL,TRANSFER FLANGE,RR M/T MUA 5 SPEED(RMN) NSK	8-94422-052-0	01	1	9804-9805	●	●	●
57	04.520 BEARING; BALL,TRANSFER FLANGE,RR A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) NSK	8-94422-052-0	01	1	9806-	●	●	●
71	05.555 SHAFT; TRANSFER OUTPUT M/T MUA 5 SPEED(RMN)	8-94377-437-3	01	1	9804-9805	●	●	●
71	05.555 SHAFT; TRANSFER OUTPUT A/T AISIN(RMD),M/T MUA 5 SPEED(RMN)	8-94377-437-5	01	1	9806-	●	●	●
72	04.537 RING; SNAP,ANTI LASH PLATE,FRT O M/T MUA 5 SPEED(RMN)	8-94482-501-0	01	1	9804-9805	●	●	●
72	04.537 RING; SNAP,ANTI LASH PLATE,FRT O A/T AISIN(RMD),M/T MUA 5 SPEED(RMN)	8-94482-501-0	01	1	9806-9906	●	●	●
72	04.537 RING; SNAP,ANTI LASH PLATE,FRT O M/T MUA 5 SPEED(RMN)	8-94482-501-0	01	1	9907-	●	●	●
73	04.537 PLATE ASM; ANTI LASH,TRANSFER GE M/T MUA 5 SPEED(RMN)	8-97164-346-0	01	1	9804-9805	●	●	●
73	04.537 PLATE ASM; ANTI LASH,TRANSFER GE A/T AISIN(RMD),M/T MUA 5 SPEED(RMN)	8-97164-346-0	01	1	9806-9906	●	●	●
73	04.537 PLATE ASM; ANTI LASH,TRANSFER GE M/T MUA 5 SPEED(RMN)	8-97164-346-0	01	1	9907-	●	●	●
76	04.525 RING; SNAP,BRG OUTER,TRANSFER M/T MUA 5 SPEED(RMN) OD=77.0	8-94422-092-0	01	1	9804-9805	●	●	●
76	04.525 RING; SNAP,BRG OUTER,TRANSFER A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) OD=77.0	8-94422-092-0	01	1	9806-	●	●	●
77	04.537 SPRING; BELLEVILLE,ANTI LASH PLA M/T MUA 5 SPEED(RMN)	8-94482-499-0	01	1	9804-9805	●	●	●
77	04.537 SPRING; BELLEVILLE,ANTI LASH PLA A/T AISIN(RMD),M/T MUA 5 SPEED(RMN)	8-94482-499-0	01	1	9806-9906	●	●	●
77	04.537 SPRING; BELLEVILLE,ANTI LASH PLA M/T MUA 5 SPEED(RMN)	8-94482-499-0	01	1	9907-	●	●	●
78	04.520 BEARING; FRT OUTPUT GEAR,TRANSFE M/T MUA 5 SPEED(RMN) 04.419 NSK	8-94422-064-0	01	1	9804-9805	●	●	●
78	04.520 BEARING; FRT OUTPUT GEAR,TRANSFE A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) 04.419 NSK	8-94422-064-0	01	1	9806-	●	●	●
78	04.520 BEARING; FRT OUTPUT GEAR,TRANSFE A/T AISIN(RMD) 04.419 JTEKT	8-94422-065-1	01	1	9806-9808			●
78	04.520 BEARING; FRT OUTPUT GEAR,TRANSFE A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) 04.419 JTEKT	8-94422-065-1	01	1	9809-	●	●	●
79	04.520 COLLAR; FRT OUTPUT GEAR,TRANSFER M/T MUA 5 SPEED(RMN) 04.419	8-94422-076-1	01	1	9804-9805	●	●	●
79	04.520 COLLAR; FRT OUTPUT GEAR,TRANSFER A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) 04.419	8-94422-076-1	01	1	9806-	●	●	●
80	04.525 RING; FRT OUTPUT SHAFT,TRANSFER M/T MUA 5 SPEED(RMN) T=1.55 WHITE	8-94422-180-0	01	1	9804-9805	●	●	●
80	04.525 RING; FRT OUTPUT SHAFT,TRANSFER A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) T=1.55 WHITE	8-94422-180-0	01	1	9806-	●	●	●
80	04.525 RING; FRT OUTPUT SHAFT,TRANSFER M/T MUA 5 SPEED(RMN) T=1.60 YELLOW	8-94422-181-0	01	1	9804-9805	●	●	●
80	04.525 RING; FRT OUTPUT SHAFT,TRANSFER A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) T=1.60 YELLOW	8-94422-181-0	01	1	9806-	●	●	●
80	04.525 RING; FRT OUTPUT SHAFT,TRANSFER M/T MUA 5 SPEED(RMN) T=1.65 BLUE	8-94422-182-0	01	1	9804-9805	●	●	●
80	04.525 RING; FRT OUTPUT SHAFT,TRANSFER A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) T=1.65 BLUE	8-94422-182-0	01	1	9806-	●	●	●
80	04.525 RING; FRT OUTPUT SHAFT,TRANSFER M/T MUA 5 SPEED(RMN) T=1.70 PINK	8-94422-183-0	01	1	9804-9805	●	●	●
80	04.525 RING; FRT OUTPUT SHAFT,TRANSFER A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) T=1.70 PINK	8-94422-183-0	01	1	9806-	●	●	●
80	04.525 RING; FRT OUTPUT SHAFT,TRANSFER M/T MUA 5 SPEED(RMN) T=1.75 GREEN	8-94422-184-0	01	1	9804-9805	●	●	●
80	04.525 RING; FRT OUTPUT SHAFT,TRANSFER A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) T=1.75 GREEN	8-94422-184-0	01	1	9806-	●	●	●
80	04.525 RING; FRT OUTPUT SHAFT,TRANSFER M/T MUA 5 SPEED(RMN) T=1.80 BROWN	8-94422-185-0	01	1	9804-9805	●	●	●
80	04.525 RING; FRT OUTPUT SHAFT,TRANSFER A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) T=1.80 BROWN	8-94422-185-0	01	1	9806-	●	●	●
80	04.525 RING; FRT OUTPUT SHAFT,TRANSFER M/T MUA 5 SPEED(RMN) T=1.85 RED	8-94422-186-0	01	1	9804-9805	●	●	●
80	04.525 RING; FRT OUTPUT SHAFT,TRANSFER A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) T=1.85 RED	8-94422-186-0	01	1	9806-	●	●	●
80	04.525 RING; FRT OUTPUT SHAFT,TRANSFER M/T MUA 5 SPEED(RMN) T=1.90 ORANGE	8-94422-187-0	01	1	9804-9805	●	●	●
80	04.525 RING; FRT OUTPUT SHAFT,TRANSFER A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) T=1.90 ORANGE	8-94422-187-0	01	1	9806-	●	●	●
81	04.309 ROD; TRANSFER SELECT M/T MUA 5 SPEED(RMN)	8-94370-499-2	01	1	9804-9805	●	●	●
81	04.309 ROD; TRANSFER SELECT A/T AISIN(RMD),M/T MUA 5 SPEED(RMN)	8-94370-499-2	01	1	9806-	●	●	●
82	04.555 BLOCK; TRANSFER M/T MUA 5 SPEED(RMN)	8-97033-092-1	01	1	9804-9805	●	●	●
82	04.555 BLOCK; TRANSFER A/T AISIN(RMD),M/T MUA 5 SPEED(RMN)	8-97033-092-1	01	1	9806-	●	●	●
83	04.515 SPRING; SELECT M/T MUA 5 SPEED(RMN)	8-94462-235-0	01	1	9804-9805	●	●	●
83	04.515 SPRING; SELECT A/T AISIN(RMD),M/T MUA 5 SPEED(RMN)	8-94462-235-0	01	1	9806-	●	●	●
85	04.555 BRIDGE; CONT ROD,TRANSFER M/T MUA 5 SPEED(RMN)	8-97128-522-0	01	1	9804-9805	●	●	●
85	04.555 BRIDGE; CONT ROD,TRANSFER A/T AISIN(RMD),M/T MUA 5 SPEED(RMN)	8-97128-522-0	01	1	9806-	●	●	●
87	04.515 SPRING; INTER LOCK,TRANSFER M/T MUA 5 SPEED(RMN)	8-94461-897-0	01	1	9804-9805	●	●	●
87	04.515 SPRING; INTER LOCK,TRANSFER A/T AISIN(RMD),M/T MUA 5 SPEED(RMN)	8-94461-897-0	01	1	9806-	●	●	●
94	04.570 KNOB; TRANSFER LEVER A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) LEATHER GRIP PACKAGE<7GZ> (C) BLACK	8-97096-174-0	01	1	0101-	●	●	●
94	04.570 KNOB; TRANSFER LEVER M/T MSG 5 SPEED(M75) 04.006 (A)	8-94453-162-1	01	1	9804-9906	●	●	●
94	04.570 KNOB; TRANSFER LEVER M/T MSG 5 SPEED(M75) SHIFT KNOB DELUXE<S2Y> 04.006 (A)	8-94453-162-1	01	1	9907-0012	●	●	●
94	04.570 KNOB; TRANSFER LEVER M/T MSG 5 SPEED(M75) SHIFT KNOB DELUXE<S2Y> EXC. LEATHER GRIP PACKAGE<7GZ> 04.006 (A)	8-94453-162-1	01	1	0101-0107	●	●	●
94	04.570 KNOB; TRANSFER LEVER M/T MSG 5 SPEED(M75) SHIFT KNOB DELUXE<S2Y> EXC. LEATHER GRIP PACKAGE<7GZ> 04.006 (A)	8-94453-162-1	01	1	0108-		●	●
94	04.570 KNOB; TRANSFER LEVER M/T MSG 5 SPEED(M75) LEATHER GRIP PACKAGE<7GZ> (A)	8-97261-997-0	01	1	0101-0107	●	●	●
94	04.570 KNOB; TRANSFER LEVER M/T MSG 5 SPEED(M75) LEATHER GRIP PACKAGE<7GZ> (A)	8-97261-997-0	01	1	0108-		●	●
94	04.570 KNOB; TRANSFER LEVER M/T MSG 5 SPEED(M75) EXC. SHIFT KNOB DELUXE<S2Y> 04.006 (B)	8-94473-780-0	01	1	9907-0012	●	●	●
94	04.570 KNOB; TRANSFER LEVER M/T MSG 5 SPEED(M75) EXC. SHIFT KNOB DELUXE<S2Y>,LEATHER GRIP PACKAGE<7GZ> 04.006 (B)	8-94473-780-0	01	1	0101-0107	●	●	●
94	04.570 KNOB; TRANSFER LEVER M/T MSG 5 SPEED(M75) EXC. SHIFT KNOB DELUXE<S2Y>,LEATHER GRIP PACKAGE<7GZ> 04.006 (B)	8-94473-780-0	01	1	0108-		●	●
94	04.570 KNOB; TRANSFER LEVER M/T MUA 5 SPEED(RMN) 04.006 (C) BLACK	8-94453-161-1	01	1	9804-9807	●	●	●
94	04.570 KNOB; TRANSFER LEVER A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) 04.006 (C) BLACK	8-94453-161-1	01	1	9808-9906	●	●	●
94	04.570 KNOB; TRANSFER LEVER A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) SHIFT KNOB DELUXE<S2Y> 04.006 (C) BLACK	8-94453-161-1	01	1	9907-0012	●	●	●
94	04.570 KNOB; TRANSFER LEVER A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) SHIFT KNOB DELUXE<S2Y> EXC. LEATHER GRIP PACKAGE<7GZ> 04.006 (C) BLACK	8-94453-161-1	01	1	0101-	●	●	●
94	04.570 KNOB; TRANSFER LEVER M/T MUA 5 SPEED(RMN) EXC. SHIFT KNOB DELUXE<S2Y> 04.006 (D)	8-94473-779-0	01	1	9907-0012	●	●	●
94	04.570 KNOB; TRANSFER LEVER A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) EXC. SHIFT KNOB DELUXE<S2Y>,LEATHER GRIP PACKAGE<7GZ> 04.006 (D)	8-94473-779-0	01	1	0101-	●	●	●
95	04.570 BUSHING M/T MUA 5 SPEED(RMN)	8-97103-115-0	02	1	9804-9805	●	●	●
95	04.570 BUSHING A/T AISIN(RMD),M/T MUA 5 SPEED(RMN)	8-97103-115-0	02	1	9806-	●	●	●
195	04.510 HOSE; AIR M/T MUA 5 SPEED(RMN) (A)	8-97172-683-0	01	1	9804-	●	●	●
195	04.510 HOSE; AIR A/T AISIN(RMD) (B)	8-97173-553-0	01	1	9806-			●
198	04.520 GASKET; PLUG,DETENT A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) 01.531 ID=12.2	1-09630-084-0	02	1	0006-	●	●	●

94 94 2 37 34 41 42 11 40 35 27 26 26 24 21 22 23 21 32 25 24 21 43 46 45 25 44 51 48 45 18 17 21 20 19 52 54 55 66 15 56 16 57 14 13 17 70 69 68 62 63 58 59 60 61 67 66 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	04.570 LEVER ASM; CHANGE,TRANSFER M/T MSG 5 SPEED(M75)	8-94450-509-2	01	1	9804-9910	●	●	●
2	04.570 LEVER ASM; CHANGE,TRANSFER M/T MSG 5 SPEED(M75)	8-97240-219-0	01	1	9911-0107	●	●	●
2	04.570 LEVER ASM; CHANGE,TRANSFER 4JA1 ENG(RLE) M/T MSG 5 SPEED(M75)	8-97240-219-0	01	1	0108-		●	●
2	04.570 LEVER ASM; CHANGE,TRANSFER M/T MUA 5 SPEED(RMN)	8-97182-130-0	01	1	9804-9906	●	●	●
2	04.570 LEVER ASM; CHANGE,TRANSFER M/T MUA 5 SPEED(RMN)	8-97217-562-3	01	1	9907-	●	●	●
2	04.570 LEVER ASM; CHANGE,TRANSFER A/T AISIN(RMD)	8-97210-509-2	01	1	9806-			●
11	04.570 GASKET; CHANGE LEVER M/T MSG 5 SPEED(M75) ID=35.2	9-09561-235-0	01	1	9804-0107	●	●	●
11	04.570 GASKET; CHANGE LEVER M/T MSG 5 SPEED(M75) ID=35.2	9-09561-235-0	01	1	0108-		●	●
11	04.570 GASKET; CHANGE LEVER M/T MUA 5 SPEED(RMN) 04.435 ID=33.2	1-09623-378-0	01	1	9804-9906	●	●	●
11	04.570 GASKET; CHANGE LEVER M/T MUA 5 SPEED(RMN) 04.435 ID=33.2	1-09623-378-0	01	1	9907-	●	●	●
13	04.510 CASE; SIDE,TRANSFER M/T MSG 5 SPEED(M75)	5-36131-009-3	01	1	9804-0107	●	●	●
13	04.510 CASE; SIDE,TRANSFER 4JA1 ENG(RLE) M/T MSG 5 SPEED(M75)	5-36131-009-3	01	1	0108-		●	●
14	04.515 GASKET; TRANSFER SIDE CASE M/T MSG 5 SPEED(M75)	8-94482-497-0	01	1	9804-0107	●	●	●
14	04.515 GASKET; TRANSFER SIDE CASE 4JA1 ENG(RLE) M/T MSG 5 SPEED(M75)	8-94482-497-0	01	1	0108-		●	●
15	04.311 BALL; DETENT,SHIFT ROD,TRANSFER M/T MSG 5 SPEED(M75)	9-00097-010-0	02	1	9804-0107	●	●	●
15	04.311 BALL; DETENT,SHIFT ROD,TRANSFER 4JA1 ENG(RLE) M/T MSG 5 SPEED(M75)	9-00097-010-0	02	1	0108-		●	●
15	04.311 BALL; DETENT,SHIFT ROD,TRANSFER M/T MUA 5 SPEED(RMN)	8-94435-335-0	02	1	9804-9805	●	●	●
15	04.311 BALL; DETENT,SHIFT ROD,TRANSFER A/T AISIN(RMD),M/T MUA 5 SPEED(RMN)	8-94435-335-0	02	1	9806-	●	●	●
16	04.515 SPRING; DETENT,SHIFT ROD,TRANSFE A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) L=23.2	8-97241-351-0	01	1	0006-	●	●	●
16	04.515 SPRING; DETENT,SHIFT ROD,TRANSFE M/T MSG 5 SPEED(M75) L=43	5-09580-087-0	02	1	9804-0107	●	●	●
16	04.515 SPRING; DETENT,SHIFT ROD,TRANSFE 4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) L=43	5-09580-087-0	02	1	0108-		●	●
16	04.515 SPRING; DETENT,SHIFT ROD,TRANSFE M/T MUA 5 SPEED(RMN) L=23.4	8-97145-374-0	02	1	9804-9805	●	●	●
16	04.515 SPRING; DETENT,SHIFT ROD,TRANSFE A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) L=23.4	8-97145-374-0	02	1	9806-0005	●	●	●
16	04.515 SPRING; DETENT,SHIFT ROD,TRANSFE A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) 04.311 L=26.8	8-94320-193-0	02	1	0006-	●	●	●
17	04.525 PIN; KNOCK,TRANSFER CASE M/T MSG 5 SPEED(M75) 08.939 OD=8 L=20	9-08160-820-0	01	1	9804-0107	●	●	●
17	04.525 PIN; KNOCK,TRANSFER CASE 4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) 08.939 OD=8 L=20	9-08160-820-0	01	1	0108-		●	●
17	04.525 PIN; KNOCK,TRANSFER CASE M/T MSG 5 SPEED(M75) 08.939 OD=8 L=45	9-08160-845-0	01	1	9804-0107	●	●	●
17	04.525 PIN; KNOCK,TRANSFER CASE 4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) 08.939 OD=8 L=45	9-08160-845-0	01	1	0108-		●	●
18	04.525 PIN; INTER LOCK,SHIFT ROD,TRANSF M/T MSG 5 SPEED(M75)	5-09740-010-0	01	1	9804-0107	●	●	●
18	04.525 PIN; INTER LOCK,SHIFT ROD,TRANSF 4JA1 ENG(RLE) M/T MSG 5 SPEED(M75)	5-09740-010-0	01	1	0108-		●	●
18	04.525 PIN; INTER LOCK,SHIFT ROD,TRANSF M/T MUA 5 SPEED(RMN)	8-94461-898-0	01	1	9804-9805	●	●	●
18	04.525 PIN; INTER LOCK,SHIFT ROD,TRANSF A/T AISIN(RMD),M/T MUA 5 SPEED(RMN)	8-94461-898-0	01	1	9806-	●	●	●
19	04.520 PLUG; 2-4 SHIFT ROD,RR,TRANSFER M/T MSG 5 SPEED(M75) M16X8 PLUG	9-09661-005-0	01	1	9804-0107	●	●	●
19	04.520 PLUG; 2-4 SHIFT ROD,RR,TRANSFER 4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) M16X8 PLUG	9-09661-005-0	01	1	0108-		●	●
20	04.520 PLUG; HIGH-LOW SHIFT ROD,RR,TRAN M/T MSG 5 SPEED(M75)	9-33545-601-0	01	1	9804-0107	●	●	●
20	04.520 PLUG; HIGH-LOW SHIFT ROD,RR,TRAN 4JA1 ENG(RLE) M/T MSG 5 SPEED(M75)	9-33545-601-0	01	1	0108-		●	●
21	04.525 BOLT; TRANSFER SIDE CASE M/T MSG 5 SPEED(M75) M10X25 FLANGE	0-28181-025-0	01	1	9804-0107	●	●	●
21	04.525 BOLT; TRANSFER SIDE CASE 4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) M10X25 FLANGE	0-28181-025-0	01	1	0108-		●	●
21	04.525 BOLT; TRANSFER SIDE CASE M/T MSG 5 SPEED(M75) M10X30 FLANGE	0-28181-030-0	02	1	9804-0107	●	●	●
21	04.525 BOLT; TRANSFER SIDE CASE 4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) M10X30 FLANGE	0-28181-030-0	02	1	0108-		●	●
21	04.525 BOLT; TRANSFER SIDE CASE M/T MSG 5 SPEED(M75) 04.510 M10X40 FLANGE	0-28181-040-0	01	1	9804-0107	●	●	●
21	04.525 BOLT; TRANSFER SIDE CASE 4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) 04.510 M10X40 FLANGE	0-28181-040-0	01	1	0108-		●	●
21	04.525 BOLT; TRANSFER SIDE CASE M/T MSG 5 SPEED(M75) M10X75 FLANGE	8-94473-960-1	01	1	9804-9805	●	●	●
21	04.525 BOLT; TRANSFER SIDE CASE M/T MSG 5 SPEED(M75) 02.042 M10X75 FLANGE	8-94399-669-1	01	1	9806-0107	●	●	●
21	04.525 BOLT; TRANSFER SIDE CASE 4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) 02.042 M10X75 FLANGE	8-94399-669-1	01	1	0108-		●	●
22	04.525 WASHER; LK,TRANSFER SIDE CASE M/T MSG 5 SPEED(M75) 00.002 ID=10.2	9-09150-510-0	01	1	9804-0107	●	●	●
22	04.525 WASHER; LK,TRANSFER SIDE CASE 4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) 00.002 ID=10.2	9-09150-510-0	01	1	0108-		●	●
23	04.525 NUT; TRANSFER SIDE CASE M/T MSG 5 SPEED(M75) 00.002 M10	9-09110-510-0	01	1	9804-0107	●	●	●
23	04.525 NUT; TRANSFER SIDE CASE 4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) 00.002 M10	9-09110-510-0	01	1	0108-		●	●
24	04.105 PIN; BALL SEAT,CHANGE LEVER,TRAN M/T MSG 5 SPEED(M75)	9-09878-094-0	02	1	9804-0107	●	●	●
24	04.105 PIN; BALL SEAT,CHANGE LEVER,TRAN 4JA1 ENG(RLE) M/T MSG 5 SPEED(M75)	9-09878-094-0	02	1	0108-		●	●
25	04.520 PLUG; HIGH-LOW SHIFT ROD,FRT,TRA M/T MSG 5 SPEED(M75) 04.309 (A) OD=14	5-09609-004-0	01	1	9804-0107	●	●	●
25	04.520 PLUG; HIGH-LOW SHIFT ROD,FRT,TRA 4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) 04.309 (A) OD=14	5-09609-004-0	01	1	0108-		●	●
25	04.520 PLUG; HIGH-LOW SHIFT ROD,FRT,TRA M/T MSG 5 SPEED(M75) (B) M16X8 PLUG	9-09661-005-0	01	1	9804-0107	●	●	●
25	04.520 PLUG; HIGH-LOW SHIFT ROD,FRT,TRA 4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) (B) M16X8 PLUG	9-09661-005-0	01	1	0108-		●	●
26	04.570 SPRING; BALL SEAT,CHANGE LEVER,T M/T MSG 5 SPEED(M75)	9-33619-632-0	02	1	9804-0107	●	●	●
26	04.570 SPRING; BALL SEAT,CHANGE LEVER,T 4JA1 ENG(RLE) M/T MSG 5 SPEED(M75)	9-33619-632-0	02	1	0108-		●	●
27	04.570 SEAT; BALL,CHANGE LEVER,TRANSFER M/T MSG 5 SPEED(M75)	5-33619-042-0	01	1	9804-0107	●	●	●
27	04.570 SEAT; BALL,CHANGE LEVER,TRANSFER 4JA1 ENG(RLE) M/T MSG 5 SPEED(M75)	5-33619-042-0	01	1	0108-		●	●
32	04.012 BOLT; CHANGE LEVER TO SIDE CASE M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9804-9807	●	●	●
32	04.012 BOLT; CHANGE LEVER TO SIDE CASE M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9808-0012	●	●
32	04.012 BOLT; CHANGE LEVER TO SIDE CASE 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9808-0012			●
32	04.012 BOLT; CHANGE LEVER TO SIDE CASE 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0101-	●	●	●
34	04.075 SWITCH; TRANSFER INDICATOR M/T MSG 5 SPEED(M75)	5-82440-019-0	01	1	9804-0107	●	●	●
34	04.075 SWITCH; TRANSFER INDICATOR 4JA1 ENG(RLE) M/T MSG 5 SPEED(M75)	5-82440-019-0	01	1	0108-		●	●
34	04.075 SWITCH; TRANSFER INDICATOR M/T MUA 5 SPEED(RMN)	8-97138-632-0	01	1	9804-9805	●	●	●
34	04.075 SWITCH; TRANSFER INDICATOR A/T AISIN(RMD),M/T MUA 5 SPEED(RMN)	8-97138-632-1	01	1	9806-	●	●	●
35	04.075 GASKET; INDICATOR SWITCH,TRANSFE M/T MSG 5 SPEED(M75) ID=14.2	8-94462-114-0	01	1	9804-0107	●	●	●
35	04.075 GASKET; INDICATOR SWITCH,TRANSFE 4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) ID=14.2	8-94462-114-0	01	1	0108-		●	●
35	04.075 GASKET; INDICATOR SWITCH,TRANSFE M/T MUA 5 SPEED(RMN) 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	9804-9805	●	●	●
35	04.075 GASKET; INDICATOR SWITCH,TRANSFE A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	9806-	●	●	●
37	04.570 SPRING; SELECT RETURN,CHANGE LEV M/T MSG 5 SPEED(M75)	8-97104-789-0	01	1	9804-0107	●	●	●
37	04.570 SPRING; SELECT RETURN,CHANGE LEV 4JA1 ENG(RLE) M/T MSG 5 SPEED(M75)	8-97104-789-0	01	1	0108-		●	●
40	04.309 ROD; SHIFT,4X2-4X4,TRANSFER M/T MSG 5 SPEED(M75) 04.555	5-36564-006-1	01	1	9804-0107	●	●	●
40	04.309 ROD; SHIFT,4X2-4X4,TRANSFER 4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) 04.555	5-36564-006-1	01	1	0108-		●	●
40	04.309 ROD; SHIFT,4X2-4X4,TRANSFER M/T MUA 5 SPEED(RMN)	8-97070-675-1	01	1	9804-9805	●	●	●
40	04.309 ROD; SHIFT,4X2-4X4,TRANSFER A/T AISIN(RMD),M/T MUA 5 SPEED(RMN)	8-97070-675-2	01	1	9806-	●	●	●
41	04.555 BLOCK; SHIFT,4X2-4X4,TRANSFER M/T MSG 5 SPEED(M75)	8-97067-103-0	01	1	9804-0107	●	●	●
41	04.555 BLOCK; SHIFT,4X2-4X4,TRANSFER 4JA1 ENG(RLE) M/T MSG 5 SPEED(M75)	8-97067-103-0	01	1	0108-		●	●
41	04.555 BLOCK; SHIFT,4X2-4X4,TRANSFER M/T MUA 5 SPEED(RMN)	8-97033-094-2	01	1	9804-9805	●	●	●
41	04.555 BLOCK; SHIFT,4X2-4X4,TRANSFER A/T AISIN(RMD),M/T MUA 5 SPEED(RMN)	8-97033-094-2	01	1	9806-	●	●	●
42	04.515 SPRING; GEAR LOCK RELEASE,TRANSF M/T MSG 5 SPEED(M75) L=26	5-09583-098-0	01	1	9804-0107	●	●	●
42	04.515 SPRING; GEAR LOCK RELEASE,TRANSF 4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) L=26	5-09583-098-0	01	1	0108-		●	●
42	04.515 SPRING; GEAR LOCK RELEASE,TRANSF M/T MUA 5 SPEED(RMN) L=30	8-94422-188-0	01	1	9804-9805	●	●	●
42	04.515 SPRING; GEAR LOCK RELEASE,TRANSF A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) L=30	8-94422-188-0	01	1	9806-	●	●	●
43	04.555 ARM; SHIFT,4X2-4X4,TRANSFER M/T MSG 5 SPEED(M75)	5-36561-011-1	01	1	9804-0107	●	●	●
43	04.555 ARM; SHIFT,4X2-4X4,TRANSFER 4JA1 ENG(RLE) M/T MSG 5 SPEED(M75)	5-36561-011-1	01	1	0108-		●	●
43	04.555 ARM; SHIFT,4X2-4X4,TRANSFER M/T MUA 5 SPEED(RMN)	8-97100-915-2	01	1	9804-9805	●	●	●
43	04.555 ARM; SHIFT,4X2-4X4,TRANSFER A/T AISIN(RMD),M/T MUA 5 SPEED(RMN)	8-97100-915-2	01	1	9806-	●	●	●
44	04.555 ARM; SHIFT,HIGH-LOW,TRANSFER M/T MSG 5 SPEED(M75)	5-36561-010-1	01	1	9804-0107	●	●	●
44	04.555 ARM; SHIFT,HIGH-LOW,TRANSFER 4JA1 ENG(RLE) M/T MSG 5 SPEED(M75)	5-36561-010-1	01	1	0108-		●	●
44	04.555 ARM; SHIFT,HIGH-LOW,TRANSFER M/T MUA 5 SPEED(RMN)	8-94421-922-3	01	1	9804-9805	●	●	●
44	04.555 ARM; SHIFT,HIGH-LOW,TRANSFER A/T AISIN(RMD),M/T MUA 5 SPEED(RMN)	8-94421-922-3	01	1	9806-	●	●	●
45	04.303 PIN; SPR,SHIFT ARM TO ROD M/T MSG 5 SPEED(M75) D=4.2 L=25	8-94171-541-0	02	1	9804-0107	●	●	●
45	04.303 PIN; SPR,SHIFT ARM TO ROD 4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) D=4.2 L=25	8-94171-541-0	02	1	0108-		●	●
45	04.303 PIN; SPR,SHIFT ARM TO ROD M/T MUA 5 SPEED(RMN) D=4.2 L=25	8-94171-541-0	06	1	9804-9805	●	●	●
45	04.303 PIN; SPR,SHIFT ARM TO ROD A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) D=4.2 L=25	8-94171-541-0	06	1	9806-	●	●	●
46	04.555 PIN; SPR,SELECT LEVER M/T MSG 5 SPEED(M75)	9-09678-517-0	01	1	9804-0107	●	●	●
46	04.555 PIN; SPR,SELECT LEVER 4JA1 ENG(RLE) M/T MSG 5 SPEED(M75)	9-09678-517-0	01	1	0108-		●	●
46	04.555 PIN; SPR,SELECT LEVER M/T MUA 5 SPEED(RMN)	8-94448-816-1	01	1	9804-9805	●	●	●
46	04.555 PIN; SPR,SELECT LEVER A/T AISIN(RMD),M/T MUA 5 SPEED(RMN)	8-94448-816-1	01	1	9806-	●	●	●
48	04.309 ROD; SHIFT,HIGH-LOW,TRANSFER M/T MSG 5 SPEED(M75) 04.555	5-36564-009-0	01	1	9804-0107	●	●	●
48	04.309 ROD; SHIFT,HIGH-LOW,TRANSFER 4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) 04.555	5-36564-009-0	01	1	0108-		●	●
48	04.309 ROD; SHIFT,HIGH-LOW,TRANSFER M/T MUA 5 SPEED(RMN)	8-97182-406-0	01	1	9804-9805	●	●	●
48	04.309 ROD; SHIFT,HIGH-LOW,TRANSFER A/T AISIN(RMD),M/T MUA 5 SPEED(RMN)	8-97182-406-1	01	1	9806-	●	●	●
51	05.555 FLANGE ASM; COUPLING DRIVER,TRAN M/T MSG 5 SPEED(M75)	8-94343-222-0	01	1	9804-0107	●	●	●
51	05.555 FLANGE ASM; COUPLING DRIVER,TRAN 4JA1 ENG(RLE) M/T MSG 5 SPEED(M75)	8-94343-222-0	01	1	0108-		●	●
51	05.555 FLANGE ASM; COUPLING DRIVER,TRAN M/T MUA 5 SPEED(RMN)	8-94453-699-5	01	1	9804-9805	●	●	●
51	05.555 FLANGE ASM; COUPLING DRIVER,TRAN A/T AISIN(RMD),M/T MUA 5 SPEED(RMN)	8-94453-699-7	01	1	9806-	●	●	●
52	05.545 COVER; DUST,TRANSFER FLANGE M/T MSG 5 SPEED(M75)	8-94343-223-0	01	1	9804-0107	●	●	●
52	05.545 COVER; DUST,TRANSFER FLANGE 4JA1 ENG(RLE) M/T MSG 5 SPEED(M75)	8-94343-223-0	01	1	0108-		●	●
52	05.545 COVER; DUST,TRANSFER FLANGE M/T MUA 5 SPEED(RMN)	8-94320-867-2	01	1	9804-9805	●	●	●
52	05.545 COVER; DUST,TRANSFER FLANGE A/T AISIN(RMD),M/T MUA 5 SPEED(RMN)	8-94320-867-3	01	1	9806-	●	●	●
54	04.515 SEAL; OIL,TRANSFER FLANGE M/T MSG 5 SPEED(M75) TKK	8-94343-237-0	01	1	9804-0107	●	●	●
54	04.515 SEAL; OIL,TRANSFER FLANGE 4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) TKK	8-94343-237-0	01	1	0108-		●	●
54	04.515 SEAL; OIL,TRANSFER FLANGE M/T MUA 5 SPEED(RMN) TKK	8-97046-702-0	01	1	9804-9805	●	●	●
54	04.515 SEAL; OIL,TRANSFER FLANGE A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) TKK	8-97046-702-0	01	1	9806-0010	●	●	●
54	04.515 SEAL; OIL,TRANSFER FLANGE M/T MUA 5 SPEED(RMN) NOK	8-97046-703-2	01	1	9804-9805	●	●	●
54	04.515 SEAL; OIL,TRANSFER FLANGE A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) NOK	8-97046-703-2	01	1	9806-	●	●	●
55	04.520 BEARING; BALL,TRANSFER FLANGE,FR M/T MSG 5 SPEED(M75) NSK	9-00090-628-0	01	1	9804-0107	●	●	●
55	04.520 BEARING; BALL,TRANSFER FLANGE,FR 4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) NSK	9-00090-628-0	01	1	0108-		●	●
55	04.520 BEARING; BALL,TRANSFER FLANGE,FR M/T MUA 5 SPEED(RMN) NSK	8-94422-172-0	01	1	9804-9805	●	●	●
55	04.520 BEARING; BALL,TRANSFER FLANGE,FR A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) NSK	8-94422-172-1	01	1	9806-	●	●	●
56	04.535 GEAR; OUTPUT,FRT WHEEL,TRANSFER M/T MSG 5 SPEED(M75) Z=32	8-94435-149-1	01	1	9804-0107	●	●	●
56	04.535 GEAR; OUTPUT,FRT WHEEL,TRANSFER 4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) Z=32	8-94435-149-1	01	1	0108-		●	●
56	04.535 GEAR; OUTPUT,FRT WHEEL,TRANSFER M/T MUA 5 SPEED(RMN) Z=49	8-97126-101-1	01	1	9804-9805	●	●	●
56	04.535 GEAR; OUTPUT,FRT WHEEL,TRANSFER A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) Z=49	8-97126-101-1	01	1	9806-	●	●	●
57	04.520 BEARING; BALL,TRANSFER FLANGE,RR M/T MSG 5 SPEED(M75) NSK	9-00090-626-0	01	1	9804-0107	●	●	●
57	04.520 BEARING; BALL,TRANSFER FLANGE,RR 4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) NSK	9-00090-626-0	01	1	0108-		●	●
57	04.520 BEARING; BALL,TRANSFER FLANGE,RR M/T MUA 5 SPEED(RMN) NSK	8-94422-052-0	01	1	9804-9805	●	●	●
57	04.520 BEARING; BALL,TRANSFER FLANGE,RR A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) NSK	8-94422-052-0	01	1	9806-	●	●	●
58	04.525 WASHER; PL,OUTPUT GEAR,TRANSFER M/T MSG 5 SPEED(M75) 08.929 ID=21	9-09160-520-0	01	1	9804-0107	●	●	●
58	04.525 WASHER; PL,OUTPUT GEAR,TRANSFER 4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) 08.929 ID=21	9-09160-520-0	01	1	0108-		●	●
59	04.525 WASHER; LK,OUTPUT GEAR,TRANSFER M/T MSG 5 SPEED(M75) 08.931 ID=20.2	9-09150-520-0	01	1	9804-0107	●	●	●
59	04.525 WASHER; LK,OUTPUT GEAR,TRANSFER 4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) 08.931 ID=20.2	9-09150-520-0	01	1	0108-		●	●
60	04.525 NUT; OUTPUT GEAR,TRANSFER FLANGE M/T MSG 5 SPEED(M75) 08.915 M20	9-99111-520-0	01	1	9804-0107	●	●	●
60	04.525 NUT; OUTPUT GEAR,TRANSFER FLANGE 4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) 08.915 M20	9-99111-520-0	01	1	0108-		●	●
61	04.540 PIECE; DIST,OUTPUT GEAR BRG M/T MSG 5 SPEED(M75) 04.525	5-36315-001-0	01	1	9804-0107	●	●	●
61	04.540 PIECE; DIST,OUTPUT GEAR BRG 4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) 04.525	5-36315-001-0	01	1	0108-		●	●
62	04.515 GASKET; OUTPUT GEAR COVER M/T MSG 5 SPEED(M75)	5-36152-003-0	01	1	9804-0107	●	●	●
62	04.515 GASKET; OUTPUT GEAR COVER 4JA1 ENG(RLE) M/T MSG 5 SPEED(M75)	5-36152-003-0	01	1	0108-		●	●
63	04.510 COVER; OUTPUT GEAR,TRANSFER M/T MSG 5 SPEED(M75)	5-36151-001-0	01	1	9804-0107	●	●	●
63	04.510 COVER; OUTPUT GEAR,TRANSFER 4JA1 ENG(RLE) M/T MSG 5 SPEED(M75)	5-36151-001-0	01	1	0108-		●	●
64	04.525 BOLT; OUTPUT GEAR COVER M/T MSG 5 SPEED(M75)	8-94318-919-0	04	1	9804-0107	●	●	●
64	04.525 BOLT; OUTPUT GEAR COVER 4JA1 ENG(RLE) M/T MSG 5 SPEED(M75)	8-94318-919-0	04	1	0108-		●	●
66	04.525 WASHER; THRUST,IDLE GEAR,TRANSFE M/T MSG 5 SPEED(M75)	5-36279-002-0	02	1	9804-0107	●	●	●
66	04.525 WASHER; THRUST,IDLE GEAR,TRANSFE 4JA1 ENG(RLE) M/T MSG 5 SPEED(M75)	5-36279-002-0	02	1	0108-		●	●
67	04.535 GEAR; IDLE,TRANSFER M/T MSG 5 SPEED(M75) Z=33	8-94435-147-1	01	1	9804-0107	●	●	●
67	04.535 GEAR; IDLE,TRANSFER 4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) Z=33	8-94435-147-1	01	1	0108-		●	●
68	04.520 BEARING; IDLE GEAR,TRANSFER M/T MSG 5 SPEED(M75)	9-00096-606-0	02	1	9804-0107	●	●	●
68	04.520 BEARING; IDLE GEAR,TRANSFER 4JA1 ENG(RLE) M/T MSG 5 SPEED(M75)	9-00096-606-0	02	1	0108-		●	●
69	04.515 GASKET; IDLE GEAR SHAFT,TRANSFER M/T MSG 5 SPEED(M75) ID=20.8	9-09565-221-0	01	1	9804-0107	●	●	●
69	04.515 GASKET; IDLE GEAR SHAFT,TRANSFER 4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) ID=20.8	9-09565-221-0	01	1	0108-		●	●
70	04.439 SHAFT; IDLE GEAR,TRANSFER M/T MSG 5 SPEED(M75) 04.530	5-36251-007-0	01	1	9804-0107	●	●	●
70	04.439 SHAFT; IDLE GEAR,TRANSFER 4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) 04.530	5-36251-007-0	01	1	0108-		●	●
94	04.570 KNOB; TRANSFER LEVER A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) LEATHER GRIP PACKAGE<7GZ> (C) BLACK	8-97096-174-0	01	1	0101-	●	●	●
94	04.570 KNOB; TRANSFER LEVER M/T MSG 5 SPEED(M75) 04.006 (A)	8-94453-162-1	01	1	9804-9906	●	●	●
94	04.570 KNOB; TRANSFER LEVER M/T MSG 5 SPEED(M75) SHIFT KNOB DELUXE<S2Y> 04.006 (A)	8-94453-162-1	01	1	9907-0012	●	●	●
94	04.570 KNOB; TRANSFER LEVER M/T MSG 5 SPEED(M75) SHIFT KNOB DELUXE<S2Y> EXC. LEATHER GRIP PACKAGE<7GZ> 04.006 (A)	8-94453-162-1	01	1	0101-0107	●	●	●
94	04.570 KNOB; TRANSFER LEVER M/T MSG 5 SPEED(M75) SHIFT KNOB DELUXE<S2Y> EXC. LEATHER GRIP PACKAGE<7GZ> 04.006 (A)	8-94453-162-1	01	1	0108-		●	●
94	04.570 KNOB; TRANSFER LEVER M/T MSG 5 SPEED(M75) LEATHER GRIP PACKAGE<7GZ> (A)	8-97261-997-0	01	1	0101-0107	●	●	●
94	04.570 KNOB; TRANSFER LEVER M/T MSG 5 SPEED(M75) LEATHER GRIP PACKAGE<7GZ> (A)	8-97261-997-0	01	1	0108-		●	●
94	04.570 KNOB; TRANSFER LEVER M/T MSG 5 SPEED(M75) EXC. SHIFT KNOB DELUXE<S2Y> 04.006 (B)	8-94473-780-0	01	1	9907-0012	●	●	●
94	04.570 KNOB; TRANSFER LEVER M/T MSG 5 SPEED(M75) EXC. SHIFT KNOB DELUXE<S2Y>,LEATHER GRIP PACKAGE<7GZ> 04.006 (B)	8-94473-780-0	01	1	0101-0107	●	●	●
94	04.570 KNOB; TRANSFER LEVER M/T MSG 5 SPEED(M75) EXC. SHIFT KNOB DELUXE<S2Y>,LEATHER GRIP PACKAGE<7GZ> 04.006 (B)	8-94473-780-0	01	1	0108-		●	●
94	04.570 KNOB; TRANSFER LEVER M/T MUA 5 SPEED(RMN) 04.006 (C) BLACK	8-94453-161-1	01	1	9804-9807	●	●	●
94	04.570 KNOB; TRANSFER LEVER A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) 04.006 (C) BLACK	8-94453-161-1	01	1	9808-9906	●	●	●
94	04.570 KNOB; TRANSFER LEVER A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) SHIFT KNOB DELUXE<S2Y> 04.006 (C) BLACK	8-94453-161-1	01	1	9907-0012	●	●	●
94	04.570 KNOB; TRANSFER LEVER A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) SHIFT KNOB DELUXE<S2Y> EXC. LEATHER GRIP PACKAGE<7GZ> 04.006 (C) BLACK	8-94453-161-1	01	1	0101-	●	●	●
94	04.570 KNOB; TRANSFER LEVER M/T MUA 5 SPEED(RMN) EXC. SHIFT KNOB DELUXE<S2Y> 04.006 (D)	8-94473-779-0	01	1	9907-0012	●	●	●
94	04.570 KNOB; TRANSFER LEVER A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) EXC. SHIFT KNOB DELUXE<S2Y>,LEATHER GRIP PACKAGE<7GZ> 04.006 (D)	8-94473-779-0	01	1	0101-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
