Isuzu WW
▶
PICKUP
▶
TFR
▶
50802 - TFR/TFS(EUROPE)-LHD
▶
2 - Clutch, Transmission, Trans Axle
▶
2-56 - AUTO TRANS CONTROL LINK
▶

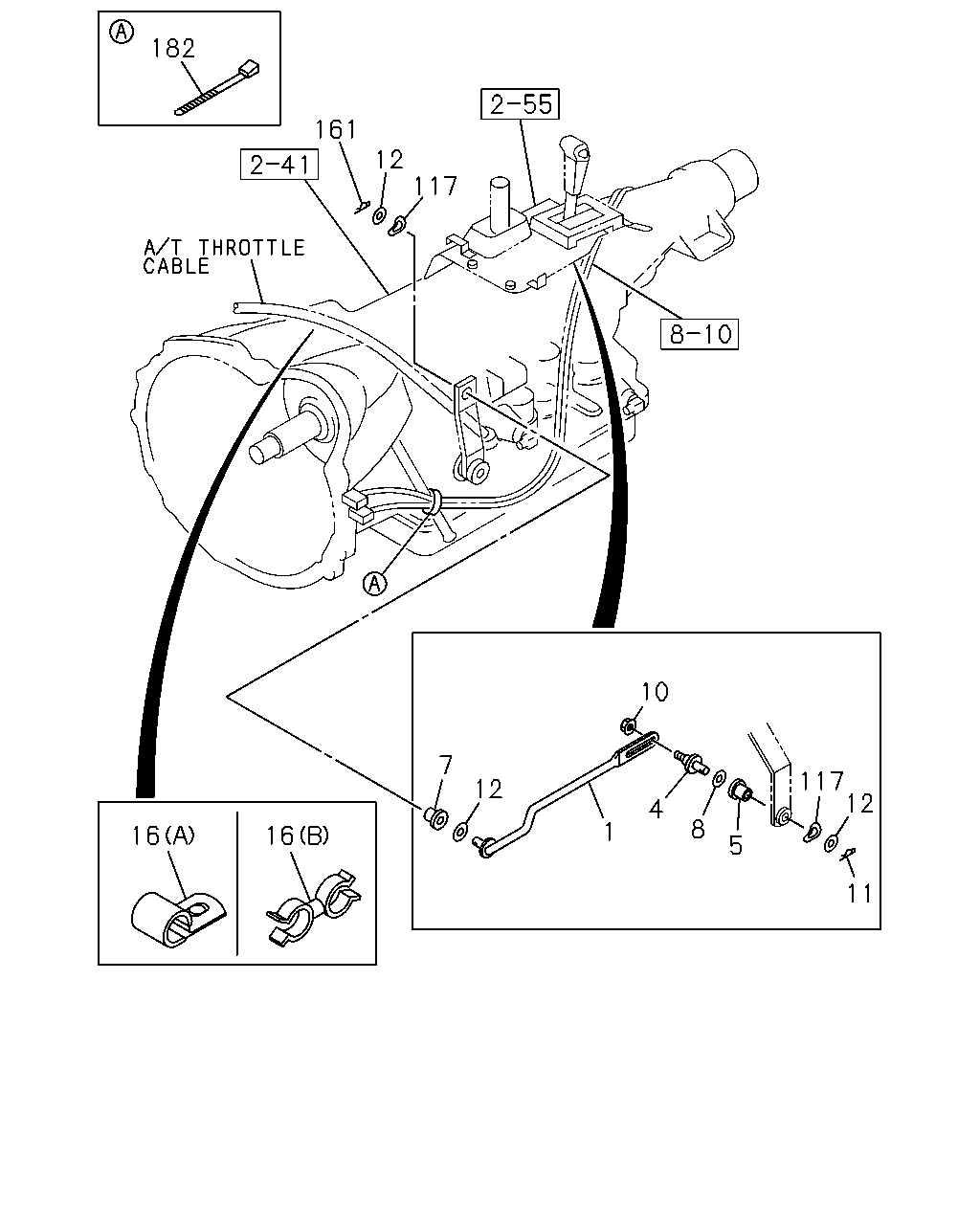

2-56 — AUTO TRANS CONTROL LINK
(#44644) — 16 parça
182
161
12
117
10
7
117
12
12
4
8
1
16
16
5
11
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
04.035 ROD; LINK,SELECT CONT
8-97124-684-2
01
1
9806-
4
04.037 BOSS; SELECT LEVER
8-97124-639-0
01
1
9806-
5
04.037 BUSHING; LINK ROD TO SELECT LEVE
8-97038-937-0
01
1
9806-
7
04.037 BUSHING; JOINT,A/T CONT
8-97038-937-0
01
1
9806-
8
04.047 WASHER; PL,A/T CONT
06.760 ID=8.4 OD=22
9-09160-708-0
01
1
9806-
10
04.037 NUT; CLIP
08.917 M10 FLANGE
0-91150-210-0
01
1
9806-
11
04.047 PIN; SNAP,A/T CONT
04.004 L=27.7
8-94210-407-0
01
1
9806-
12
04.012 WASHER; PL,SELECT CONT
06.760 ID=8.4 OD=22
9-09160-708-0
03
1
9806-
16
04.047 CLIP; TV CABLE
(A) ID=12 L=20
1-09700-911-1
01
1
9806-9808
16
04.047 CLIP; TV CABLE
02.559 (B) ID=10 & 12
8-94155-296-0
01
1
9809-
117
04.012 WASHER; CURVED,SELECT CONT
04.037 ID=8.5 T=0.3
5-09509-001-0
02
1
9806-
161
04.047 PIN; SNAP,LINK ROD TO SELECT LEV
04.004 L=27.7
8-94210-407-0
01
1
9806-
182
04.104 CLIP; BREATHER HOSE
03.162 L=140
5-09707-031-0
02
1
9806-9806
182
04.104 CLIP; BREATHER HOSE
03.162 L=140
5-09707-031-1
01
1
9807-0004
182
04.104 CLIP; BREATHER HOSE
03.162 L=140
5-09707-031-1
02
1
0005-0009
182
04.104 CLIP; BREATHER HOSE
02.559 ID=12 B=13 ID=6.5
5-09700-348-0
01
1
9807-9810
