2-49 — AUTO TRANS INHIBITOR SWITCH (#44640) — 47 parça

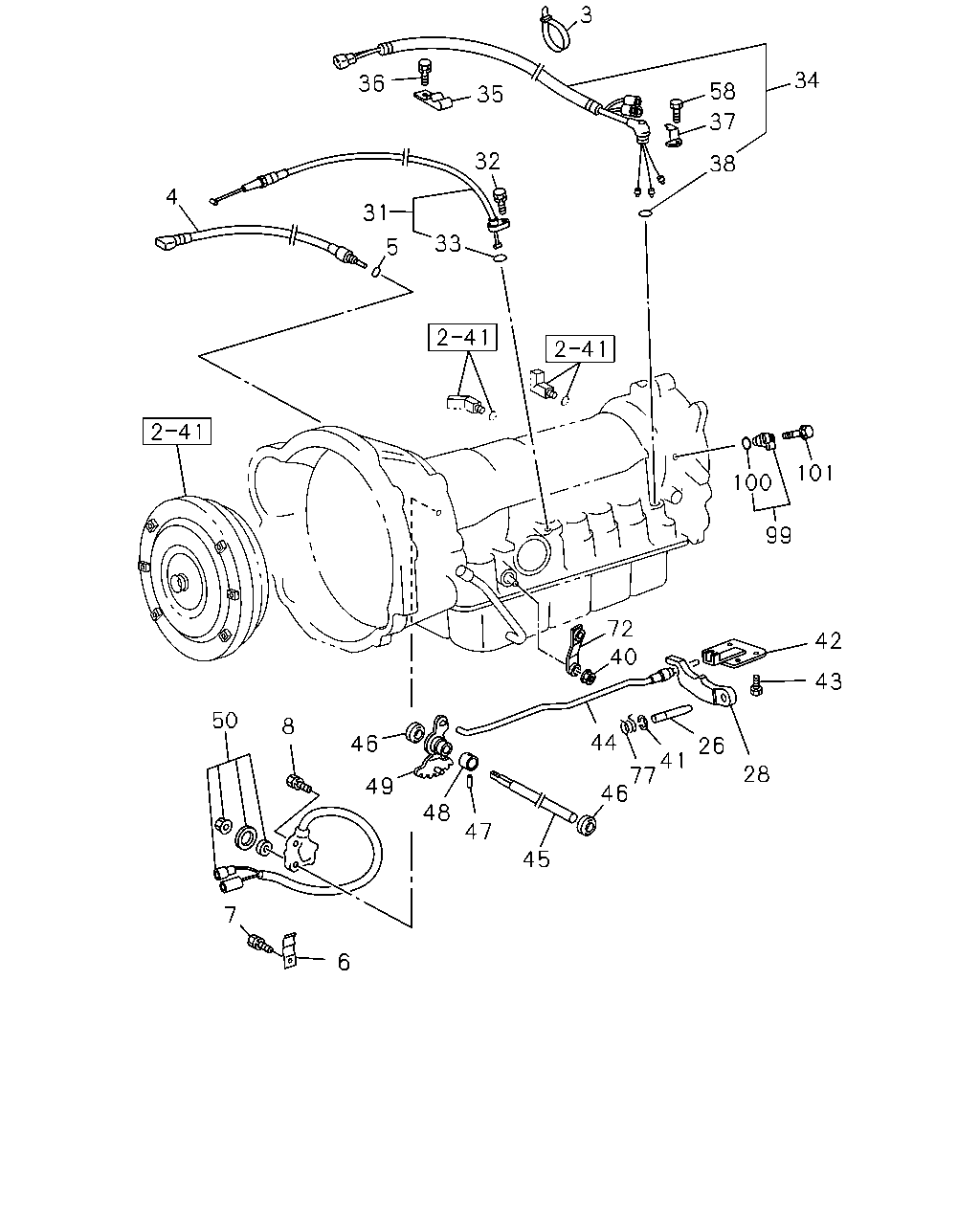

çizim 15584
3 34 36 58 35 37 32 38 4 31 33 5 101 100 99 72 42 40 43 50 8 44 46 26 41 77 46 28 49 48 47 45 7 6
BalonParca AdiParca NoAdetTipApplied Date
3 04.054 CLIP; INHIBITOR SW,A/T 8-94473-565-0 05 1 9806-9810
3 04.054 CLIP; INHIBITOR SW,A/T 8-94473-565-0 07 1 9811-9906
3 04.054 CLIP; INHIBITOR SW,A/T
4X4 CREW CAB(TFS*W*) 		8-94473-565-0 07 1 9907-
3 04.054 CLIP; INHIBITOR SW,A/T
4X2 CREW CAB(TFB*W*) 		8-94473-565-0 06 1 9907-
4 04.054 SENSOR; THERMO,A/T OIL 8-97025-852-0 01 1 9806-
5 04.054 GASKET; OIL THERMO SENSOR,A/T 8-94479-726-0 01 1 9806-
6 04.054 CLAMP; WIRING HARNESS,A/T 8-97069-460-0 01 1 9806-
7 04.054 BOLT; CLAMP,WIRING HARNESS
04.050 M6X10 		8-94252-680-0 01 1 9806-
8 04.054 BOLT; NEUTRAL START SW,A/T
M8X30 		8-97130-929-0 01 1 9806-
26 04.294 SHAFT; PARKING PAWL,A/T 8-94479-975-0 01 1 9806-
28 04.294 PAWL; PARKING,A/T 8-97143-087-0 01 1 9806-
31 04.050 CABLE; THROTTLE,A/T 8-97069-459-0 01 1 9806-9906
31 04.050 CABLE; THROTTLE,A/T
4X4 CREW CAB(TFS*W*) 		8-97069-459-0 01 1 9907-
31 04.050 CABLE; THROTTLE,A/T
4X2 CREW CAB(TFB*W*) 		8-97184-338-0 01 1 9907-
32 04.050 BOLT; THROTTLE CABLE
M6X16 		8-94479-712-0 01 1 9806-
33 04.050 GASKET; THROTTLE CABLE 8-94364-922-0 01 1 9806-
34 04.265 SOLENOID ASM; A/T 8-97130-931-0 01 1 9806-9906
34 04.265 SOLENOID ASM; A/T
4X4 CREW CAB(TFS*W*) 		8-97130-931-0 01 1 9907-
34 04.265 SOLENOID ASM; A/T
4X2 CREW CAB(TFB*W*) 		8-97184-400-0 01 1 9907-
35 04.050 CLAMP; THROTTLE CABLE 8-97025-850-0 01 1 9806-
36 04.050 BOLT; CLAMP,THROTTLE CABLE
M6X10 		8-94252-680-0 01 1 9806-
37 04.275 CLAMP; SOLENOID,A/T 8-97069-462-0 01 1 9806-
38 04.265 GASKET; SOLENOID INNER 8-94479-719-0 01 1 9806-
40 04.037 NUT; LEVER TO SHAFT
07.633 M8 FLANGE 		0-91150-108-0 02 1 9806-0107
40 04.037 NUT; LEVER TO SHAFT
07.633 M8 FLANGE 		0-91150-108-0 01 1 0108-
41 04.290 RETAINER; SPR,SHAFT 5-34488-002-0 01 1 9806-
42 04.290 BRACKET; PARKING LOCK 8-97126-815-0 01 1 9806-
43 04.290 BOLT; BRKT
M6X14 		8-94479-978-0 03 1 9806-
44 04.290 ROD ASM; PARKING PAWL 8-97126-814-0 01 1 9806-
45 04.275 SHAFT; VALVE LEVER 8-97025-848-0 01 1 9806-
46 04.282 SEAL; OIL
04.027 OD=22 		8-94479-740-0 02 1 9806-
47 04.275 PIN; ROLL SHAFT
04.052 D=4 		8-94257-081-0 01 1 9806-
48 04.008 COVER; SLEEVE 8-94479-761-0 01 1 9806-
49 04.279 LEVER ASM; CAM 8-94479-760-0 01 1 9806-
50 04.054 SWITCH; NEUTRAL,A/T 8-97104-405-0 01 1 9806-
58 04.260 BOLT; SOLENOID TO A/T
04.050 M6X16 		8-94479-712-0 01 1 9806-
72 04.035 LEVER; SELECT CONT 8-97019-749-1 01 1 9806-
77 04.295 SPRING; TORSION,PARKING BRK LK,A 8-94479-976-0 01 1 9806-
99 04.329 SENSOR; SPD 8-97027-383-0 01 1 9806-9906
99 04.329 SENSOR; SPD
4X4 CREW CAB(TFS*W*) 		8-97027-383-0 01 1 9907-
99 04.329 SENSOR; SPD
4X2 CREW CAB(TFB*W*) 		8-97184-423-0 01 1 9907-
100 04.239 GASKET; SPD SENSOR 8-97027-197-0 01 1 9806-9906
100 04.239 GASKET; SPD SENSOR
4X4 CREW CAB(TFS*W*) 		8-97027-197-0 01 1 9907-
100 04.239 GASKET; SPD SENSOR
4X2 CREW CAB(TFB*W*) 		8-97184-424-0 01 1 9907-
101 04.329 BOLT; SPD SENSOR
04.260 		8-94244-568-0 01 1 9806-9906
101 04.329 BOLT; SPD SENSOR
4X4 CREW CAB(TFS*W*) 04.260 		8-94244-568-0 01 1 9907-
101 04.329 BOLT; SPD SENSOR
4X2 CREW CAB(TFB*W*) 04.050 M6X16 		8-94479-712-0 01 1 9907-
